Creda S077EE User manual

Instructions for Installation and Use
Electric Multifunction Oven
Model S077EE

3
CONTENTS
Introduction
ForYour Safety
Know your Oven
The Controls
Cooking Advice
Cooking Chart
Programming the cooking mode
Do not worry if
Care and Cleaning
Installation
Electrical Connection
Key Contacts
4
5
6
7-8
9
9
10-11
12
13
14
15
Back Cover
Retention of this Instruction Book
This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use of
the appliance.
If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is also
provided so the new owner can become familiar with the appliance and safety warnings.
If the Book is lost or damaged a copy may be obtained from:
GDA LTD., MorleyWay, Peterborough, PE2 9JB

4
Your new electric oven is guaranteed* and will give lasting service. This guarantee is only applicable if the appliance
has been installed in accordance with the installation instructions detailed in this booklet.
To help make best use of your cooking equipment, please read this booklet carefully.
Theovenisdesignedspecifically fordomesticuse and responsibilitywill not beaccepted forusein any otherinstallation.
Introduction
To help remove the 'new' smell, heat the empty oven to maximum temperature for a minimum of two to three hours,
keeping the door/s closed. Ensure that the room is well ventilated (eg.open a window or use an extractor fan) and that
persons who may be sensitive to the odour avoid any fumes. It is suggested that any pets be removed from the room
until the smell has ceased.
This odour is due to any temporary finish on oven linings and elements and any moisture absorbed by the insulation.
Note:When the oven is first used, an odour may be omitted - this will cease after a short period of use.
*The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with this booklet.
(b) Has been properly connected to a suitable supply voltage as stated on the rating plate, attached to the
appliance.
(c) Has not been subjected to misuse or accident or been modified or repaired by any person other than the
manufacturers authorised employee or agent.
(d) Has been correctly installed.

5
ForYour Safety
ALWAYS:
- make sure you remove all packaging and literature from
inside the appliance before switching on for the first time.
- check the soundness of the appliance after it has been
unpacked.
- make sure you understand the controls before using the
appliance.
- keep children away from the appliance during use, as
surfaces will get extremely hot during and after cooking.
Care should be taken to avoid touching the heating
elements inside the oven during use.
- make sure the controls are turned off when you have
finished cooking and when not in use.
- grip the handle in the centre when opening the door.
- stand back when openign the door to allow any build up
of steam or heat to disperse.
- use dry, good quality oven gloves when removing items.
- take care to avoid heat/steam burns when operating the
controls.
- switch off the electricity supply at the wall switch, and
allowtocool, beforecleaning orperformingmaintenance..
- make sure the shelves are in the correct position before
switching on the oven.
- keep the door partially open when grilling.
- keep the door closed when the appliance is not in use.
- keep the appliance clean as a build up of grease or fat
from cooking can cause a fire.
- follow the basic principles of food handling and hygiene
to prevent the possibility of bacterial growth.
- keep any ventilation slots clear of obstructions.
NEVER:
- attempt to install or repair the appliance without the
assistance of qualified personnel.
-operate the grill with the door closed(exceptwhen using
therotisserie)asthis maycausetheappliance to overheat.
- remove the oven shelves whilst the oven is hot.
-allow anyoneto sit orstand onany part ofthe appliance.
-storeitemsabovethe appliancethatchildrenmayattempt
to reach.
-heat up unopenedfoodcontainers,as pressurecanbuild
up causing the container to burst.
- use the appliance to heat up anything other than food.
- use the appliance as a room heater.
- use the grill to warm plates.
- dry items on the oven doors.
- install the appliance next to curtains of other soft
furnishings.
- allow children to play with or tamper with the controls.
- use steam cleaners.
- use the oven for storage purposes.
- use flammable liquids near the appliance.
- use adapters, multiple sockets and/or extension leads.
- pull on the appliance or the supply able to unplug it from
the electrical outlet.
- allow power cables of other appliances to come into
contact with hot parts of this appliance.
- expose the appliance to atmospheric agents, such as
rain or sunlight.
- operate the appliance with wet hands.
- operate the appliance when barefoot.
When used properly your appliance is completely safe but as with any electrical product there are certain
precautions that must be observed.
PLEASE READTHE BELOW PRECAUTIONS BEFORE USINGYOUR APPLIANCE.
To maintain the efficiency and safety of this appliance, we recommend you do the following:
- only call the Service Centres authorised by the manufacturer.
- always use genuine spare parts.

6
Know your Oven

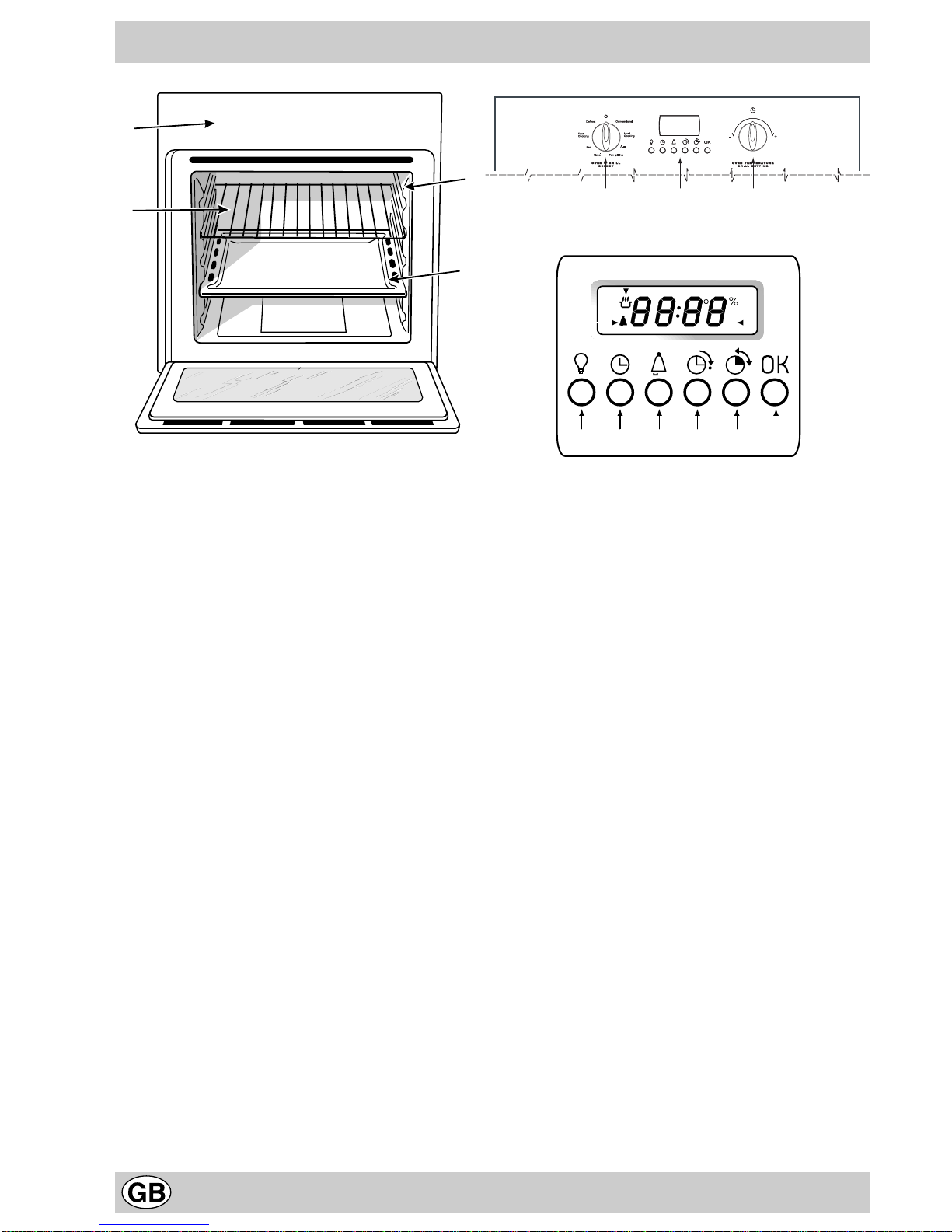

A. Control Panel
B. Function selector
C. Temperature control
D. Electronic programmer - Allows you to programme
thedesiredcookingmode byselecting the cookingtime
and the end cooking time. It can also be used as a
timer.
F. Grill Pan or BakingTray
G. Oven Shelf
H. Guides for sliding the shelf or grill pan/baking tray
in and out
1. Oven Light
2. Clock adjustment
3. Timer adjustment
4. End cooking time
5. Cooking time
6. Setting confirmation
7. Timer indicator
8. Pre-heating (mflashing) or cooking (mon) under
way indicator
9. Programming complete indicator
BDC
G
A
F
H
1
8
23456
79
A

7
The Controls
The 7 Cuochi oven combines the advantages of traditional
convectionovenswiththoseofthemoremodernfanassisted
models in a single appliance.
Itisanextremelyversatileappliancethatallowsyoutochoose
easily and safely between 7 different cooking modes. The
various features offered by the oven are selected by means
of selector knob“B” situated on the control panel.
Notice:Thefirsttimeyouuseyourappliance,werecommend
that you set the thermostat to the highest setting and leave
theovenonforatleasthalfanhourwithnothinginit,withthe
oven door shut.Then, open the oven door and let the room
air.The odour that is often detected during this initial use is
due to the evaporation of substances used to protect the
oven during storage and until it is installed.
Setting the digital clock
The time can only be set on the clock when knob “B” is in
position 0.
Aftertheappliancehasbeenconnectedtothepowersupply,
or when the power has gone out, the clock display will
automatically reset to 0:00 and begin to blink.0.00.
Turn knob Cto set thehours andthenpress OK toconfirm.
Turn knob Cagain to set the minutes and then press OK
to confirm the time definitively.Any changes can be made
by pressing button 2and following the above procedure.
Timer Feature
The timer does not control the starting or stopping of the
oven, it merely sounds a buzzer when the time is up and
can be interrupted at any time just by pressing a button.
To set the timer, press button 3, adjust it using knob Cand
then press the OK button to confirm.The nicon will remind
you the timer is on.
Oncethecountdownisover,abuzzerwillsound,andwillstop
doingsoafter1minuteorifyoupressanybutton whatsoever.
The oven light
It can be turned on at any time with the oven turned off,
simply by pressing button 1.
Cooling ventilation
In order to reduce the temperature of the exterior of the
oven, a cooling fan generates a flow of air that can be
heardexitingbetweenthe ovendoorandthecontrolpanel.
Note: When cooking is done, the fan stays on until
the oven cools down sufficiently.
Note:In“Fastcooking”mode,thefancomesonautomatically
only when the oven is hot.
Reminder: the appliance is fitted with a diagnosis system
which detects any malfunctions.The user is informed of the
latter by messages such as “F n m ” that come up on the
display( n and m =singledigitnumbers).Inthesecases,you
need to call for technical assistance as the oven is faulty.
HowTo UseYour Oven
Turn knobBto select thedesired cookingmode.Theoven
willimmediately startthe pre-heatingphase,during which
the icon mwill flash on the display, and the cooking tem-
perature associated with the mode selected will be
displayed: should this value not be the one you desire,
you can modify it simply by turning knob C.
Oncepre-heatingiscomplete,anacousticsignalwillsound
and the icon mwill come on permanently, and at this
stage you can place the food to be cooked inside the pre-
heated oven.
Note:theFAST COOKING andGRILLmodesdonot inclu-
de a pre-heating phase. Please remember that you can
always do the following when cooking is under way:
• change the cooking mode by turning knob “B”;
• change the temperature by turning knob“C”;
• programme the cooking time and end cooking time (see
paragraph entitled“Programming the cooking mode”).
• stop it at any time by setting knob “B” back to 0.
Note:For safety reasons, a cooking time of 2 hours is set
for each cooking mode by default.Should this time fail to
beadjusted, theoven willbe automaticallyturnedoff once
this time is up.
Notice: Place the oven tray provided on the bottom shelf of
the oven to prevent any sauce and/or grease from dripping
onto the bottom of the oven only when grilling food or when
using the turnspit (only available on certain models).For all
othertypesofcooking,neverusethebottomshelfandnever
place anything on the bottom of the oven when it is in
operation because this could damage the enamel coating.
Alwaysplaceyourcookware(dishes,aluminiumfoil,etc.etc.)
on the grid provided with the appliance inserted especially
along the oven guides.
Convectional
Position of thermostat knob“C”:Between40°C and250°C.
On this setting, the top and bottom heating elements come
on. This is the classic, traditional type of oven which has
beenperfected,withexceptionalheatdistributionandreduced
energyconsumption.Theconvectionovenisstillunequalled
when it comes to cooking dishes made up of several
ingredients, e.g. cabbage with ribs, local stockfish recipes,
tendervealwithrice,etc.Excellentresultsareachievedwhen
preparing meat-based dishes as well: braised meats, stew,
goulash, game, ham etc. which need to cook slowly and
requirebastingortheadditionofliquid.Itnonethelessremains
the best system for baking cakes and pastries as well as
fruit and cooking casseroles. When cooking in convection
mode, use only one rack, as the temperature would not be
distributed evenly on several racks.Using the different rack
heights available, you can balance the amount of heat
between the top and the bottom of the oven. Select from
among the various rack heights based on whether the dish
needs more or less heat from the top.
Multi-Cooking
Position of thermostat knob“C”:Between40°C and250°C.
Theheatingelementsandthefancomeonalternately.Since
theheatremainsconstantanduniform throughout the oven,
theaircooksandbrownsfooduniformlyoveritsentiresurface.
With this mode, you can also cook various dishes at the
sametime,aslongastheirrespectivecookingtemperatures
are the same. A maximum of 2 racks can be used at the
same time, following the instructions in the section entitled:
“Cooking On MoreThan One Rack”.

8
The Controls
This cooking mode is particularly recommended for dishes
requiring a gratin finish or for those requiring considerably
prolongedcookingtimes,suchasforexample:lasagne,pasta
bakes, roast chicken and potatoes, etc… Moreover, the
excellent heat distribution makes it possible to use lower
temperatures when cooking roasts.This results in less loss
of juices, meat which is more tender and a decrease in the
loss of weight for the roast. The Multi-cooking mode is
especially suited for cooking fish, which can be prepared
with the addition of a limited amount of condiments, thus
maintaining their flavour and appearance.Excellent results
can be attained when cooking vegetable-based side dishes
like courgettes, aubergines, peppers, etc.
Desserts:thismodeisalsoperfectforbakingleavenedcakes.
Moreover, this mode can also be used to thaw quickly white
or red meat and bread by setting the temperature to 80 °C.
To thaw more delicate foods, set the thermostat to 60°C or
use only the cold air circulation feature by setting the
thermostat to 0°C.
Grill
Position of thermostat knob“C”:Between50% and 100%.
The top heating element come on.
Theextremelyhighanddirecttemperatureofthegrillmakes
it possible to brown the surface of meats and roasts while
locking in the juices to keep them tender. The grill is also
highly recommended for dishes that require a high
temperature on the surface: such as beef steaks, veal, rib
steak, filets, hamburgers etc...
Always leave the oven door ajar during cooking.
Somegrillingexamplesareincludedinthe“PracticalCooking
Advice”paragraph.
Turn knob “C” and the display will indicate the different
energy percentages which represent the minimum (50%)
and maximum (100%) settings.
Fan Grilling
Positionofthermostat knob“C”:Between40°C and250°C.
The top heating element and the fan come on.
This combination of features increases the effectiveness of
the unidirectional thermal radiation of the heating elements
throughforcedcirculationoftheairthroughouttheoven.This
helpspreventfoodfromburningonthesurface, allowingthe
heat to penetrate right into the food. Excellent results are
achieved with kebabs made with meats and vegetables,
sausages,ribs, lamb chops,chicken ina spicysauce, quail,
pork chops, etc.
All"fangrilling"cookingmustbedonewiththeovendoor
shut.
The “fan grilling”mode is ideal for cooking grouper steaks,
tuna, swordfish, stuffed cuttlefish etc.
Pizza
Position of thermostat knob“C”:Between40°C and250°C.
The bottom and circular heating elements, as well as the
fan, will come on.This combination rapidly heats the oven
due to the large amounts of power used by the appliance
(2800 W), which results in the production of considerable
heat coming prevalently from the bottom.
Thepizzamodeisidealforfoodsrequiringhightemperatures
tocook, likepizzas and largeroasts.Only use oneoventray
or rack at a time. However, if more than one is used, these
must be switched halfway through the cooking process.
Fan
Position of thermostat knob“C”:Between40°C and250°C.
Therearheatingelementandthefancomeon,guaranteeing
delicate heat distributed uniformly throughout the oven.
This mode is ideal for baking and cooking delicate foods -
especiallycakesthatneedtorise-andforthepreparationof
certaintartlets on 3shelvesatthesametime.Hereareafew
examples:creampuffs,sweetand savourybiscuits,savoury
puffs,Swissrollsandsmallportions of vegetablesau gratin,
etc…..
Fast cooking
Position of thermostat knob“C”:Between40°C and250°C.
The heating elements and the fan come on, guaranteeing
constant heat distributed uniformly throughout the oven.
This mode is especially recommended for cooking pre-
packed food quickly (aspre-heating isnot necessary), such
as for example: frozen or pre-cooked food) as well as for a
few“home-made”dishes.
Thebestresultswhencookingusingthe“Fastcooking”mode
are obtained if you use one cooking rack only (the second
from the bottom), please see the table entitled “Cooking
Advice”.
Defrost
Position of thermostat knob “C”:any
The fan located on the bottom of the oven makes the air
circulate at room temperature around the food. This is
recommendedforthe defrostingof all types of food,but in
particular for delicate types of food which do not require
heat, such as for example: ice cream cakes, cream or
custard desserts, fruit cakes. By using the fan, the
defrosting time is approximately halved. In the case of
meat, fish and bread, it is possible to accelerate the
process using the “multi-cooking” mode and setting the
temperature to 80° - 100°C.

9
Programming the cooking mode
The cooking time and/or end cooking time can be
programmed after the desired cooking mode has been
selected.
Programming the cooking time
Pressbutton5 andthen adjust thecooking time byturning
knobC.Press theOK buttonto storethe setting.The tem-
perature selected (which can be adjusted using knob C)
and the amount of time left until cooking is complete will
be displayed alternately.
Once this time is up, the word “end”will be displayed and
a sequence of acoustic signals will be emitted to indicate
that cooking is complete.
• Press any button to silence the acoustic signal.
• Turn knob Bback to position 0 to remove the word
“end” from the display.

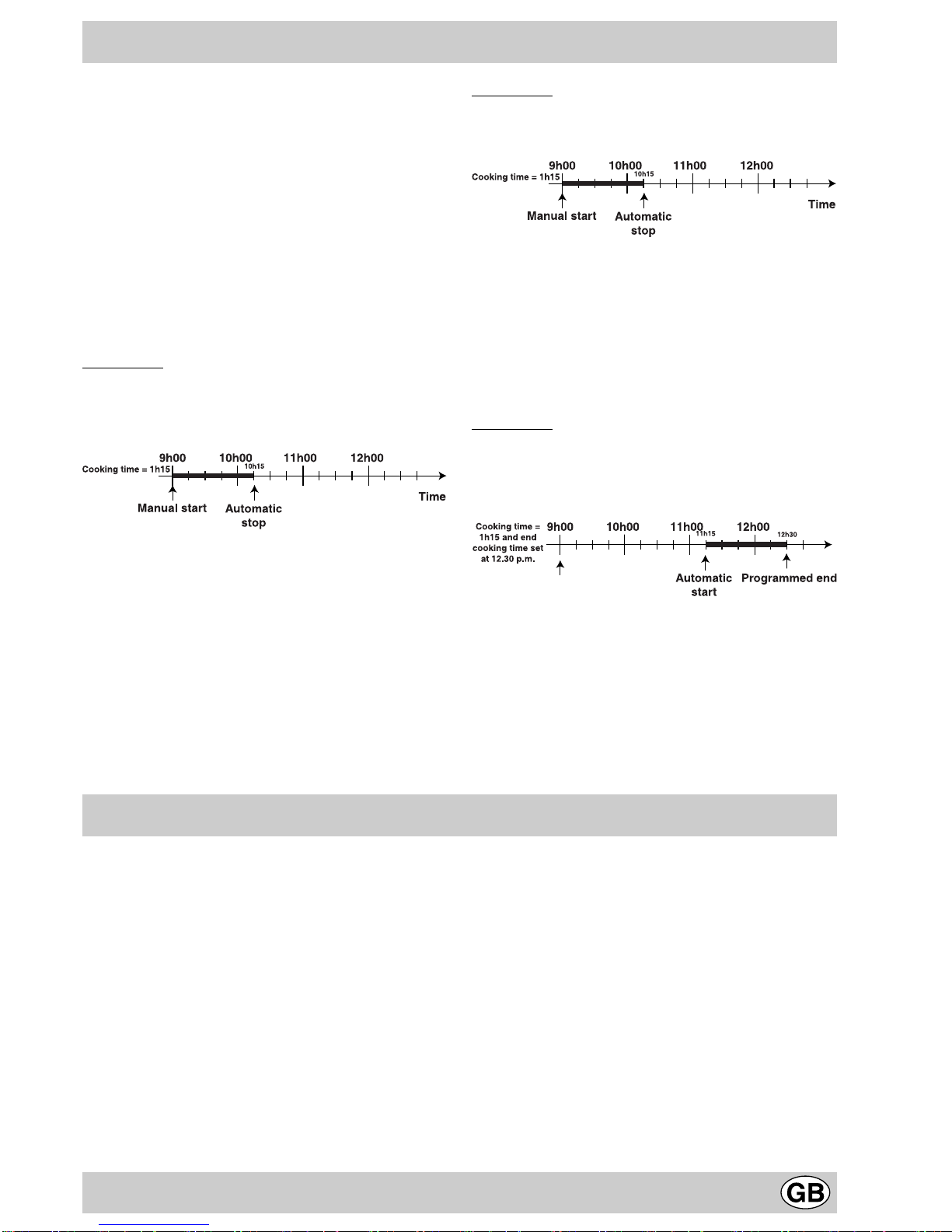

For example
Itis 9:00a.m.anda cookingtime of 1hour and15minutes
is programmed. Cooking will stop automatically at 10:15
a.m..
Programming the end cooking time
Press button 4and then adjust by turning knob C. Press
the OK button to store the setting.The display will remind
youalternatelyofthetemperatureselectedandtheamount
of time left until cooking is complete.
When the end cooking time selected previously is up, the
word “end” will be displayed and a sequence of acoustic
signals will be emitted to indicate that cooking is comple-
te.
• Press any button to silence the acoustic signal.
• Turn knob Bback to position 0 to remove the word
“end” from the display.
For example
It is 9:00 a.m. and the end cooking time is set at 10:15
a.m..Cooking will last 1 hour and 15 minutes.
Delayed cooking programming
Pressbutton5 andthen adjust thecooking time byturning
knobC.Press theOK buttonto storethe setting.Thetem-
perature and the time set previously will be displayed
alternately.
Press button 4and then adjust the end cooking time by
turning knob C. Press the OK button to store the setting
and the display will remind you of the end cooking time
and of the temperature set alternately.
For example
Itis 9:00a.m.anda cookingtime of 1hour and15minutes
and 12:20 as the end cooking time are programmed.
Cooking will start automatically at 11:15 a.m..
Theicon Awillremind youthatyouhave programmed the
cooking time and/or the end cooking time.
To cancel a programmed time
To cancel any programming you have made, set knob “B”
to position “0”.
DO NOTWORRY IF
1youseeventilatedair exitingthe ovenfor a while when
cooking is complete: it is due to the normal cooling
phase of the oven interior;
2when using the “grill” mode, the top heating element
isn’talways on(redin colour):itsoperationiscontrolled
by a thermostat;
3a blast of hot steam exits the oven when you open the
door during cooking;
4drops of water or steam form inside the oven if you
leave food inside the oven after cooking is complete;

10
Cooking Advice
The oven offers a wide range of alternatives which allows
you to cook any type of food in the best possible way.
With time you will learn to make the best use of this ver-
satilecookingappliance and thefollowing areonlyaguide,
whichmaybevariedaccordingtoyourownpersonaltaste.
Cooking on MoreThan One Shelf
Ifyou have to cook foodon severalshelves,useeither the
“fan” mode or the “Multi-cooking” mode, as these are
the only modes that allow you to do so.
When cooking delicate food on more than one shelf, use
the“fan”mode, which allows you to cook on 3 shelves at
thesametime(the 1st, 3rdand5thfromthe bottom). Some
examples are included in the “Cooking Chart”.
When cooking other food on several shelves, use the
“Multi-cooking” modekeepingthefollowing suggestions
in mind:
• The oven is fitted with 5 shelves. During fan assisted
cooking, use two of the three central shelves;the low-
estand highestshelvesreceivethehot airdirectly and
therefore delicate foodstuffs could be burnt on these
shelves.
• As a general rule, use the 2nd and 4th shelf from the
bottom,placing thefoodstuffsthatrequire greaterheat
on the 2nd shelf from the bottom. For example, when
cooking meat roasts together with other food, place
the roast on the 2nd shelf position from the bottom
and the more delicate food on the 4th shelf position
from the bottom.
• When cooking food that require differing times and
temperatures, set a temperature that is somewhere
betweenthetwotemperaturesrequired,placethe more
delicate food on the 4th shelf position from the bottom
and take the food requiring less time out of the oven
first.
• Use the baking tray on the lower shelf position and the
shelf on the upper;
Using the“Fast Cooking”Mode
Functional, fast and practical for those of you who use
frozen or pre-cooked food along with other food items.
You will find useful suggestions in the “Cooking Chart” .
Using the Grill
The “7 Chefs” oven offers you several different grilling
modes.
Use the “grill” mode, with the oven door ajar, placing
the food in the centre of the grill pan (situated on the 3rd
or 4th shelf from the bottom).
When using this mode, we recommend you set the tem-
perature control to the highest setting. Lower tempera-
tures can also be set, simply by setting the temperature
control to the temperature required.
Setting “Fan grilling”,isextremelyusefulforgrilling foods
rapidly, as the distribution of heat makes it possible not
only to brown the surface, but also to cook the bottom
part.
Moreover, it can also be used for browning foods at the
end of the cooking process, such as adding that gratin
finish to pasta bakes.
When using this mode, place the shelf on the 2nd or 3rd
shelfposition fromthe bottom(see cookingtable)then, to
prevent fat and grease from dripping onto the bottom of
the oven and thus smoke from forming, place a baking
tray on the 1st shelf position from the bottom.
Important: always cook in “Fan grilling” mode with
the oven door shut. This will allow you both to obtain
excellent results and to save on energy (approximately
10%).
When using this mode, we advise you to set the tempera-
ture control to 200°C, as it is the most efficient way to use
the grill, which is based on the use of infrared rays.How-
ever, this does not mean you cannot use lower tempera-
tures, simply by adjusting the thermostat knob to the de-
sired temperature.

11
Cooking Fish and Meat
When cooking white meat, fowl and fish, use temperature
settings from 180 °C to 200 °C.
Forred meatthatshould bewelldone on theoutside while
tender and juicy in the inside, it is a good idea to start with
ahigh temperaturesetting (200°C-220°C)forashort time,
then turn the oven down afterwards.
In general, the larger the roast, the lower the temperature
setting.Placethe meatonthecentre of theshelfand place
the grill pan/baking tray beneath it to catch the fat.
Makesurethattheshelf is insertedsothat it isinthecentre
of the oven. If you would like to increase the amount of
heat from below, use the low shelf positions.
Cooking Pizza
For best results when cooking pizza, use setting for “
Pizza Mode”:
• Preheat the oven for at least 10 minutes
• Usea lightaluminium pizzapan, placingit onthe shelf
supplied with the oven. If the baking tray is used, this
will extend the cooking time, making it difficult to get a
crispy crust;
• Do not open the oven door frequently while the pizza
is cooking;
• If the pizza has a lot of toppings (three or four), we
recommend you add the mozzarella cheese on top
halfway through the cooking process.
• If cooking on more than one shelf (up to 2), we advise
you to use the Multi-cooking Mode as the Pizza Mode
would heat the bottom shelf more than the others.
Cooking Advice
Baking Cakes
When baking cakes, always preheat the oven. Make
sure you wait until the oven has preheated thoroughly.
Do not open the oven door during baking to prevent the
cake from dropping.In general, if:
Cooked well on the inside but sticky on the
outside
Use less liquid, lower the temperature, and increase
the cooking time.
The pastry sticks to the pan
Grease the pan well and sprinkle it with a dusting of
flour or use greaseproof paper.
Pastry is too dry
Increase the temperature by 10°C and reduce the
cooking time.
Pastry dropped
Use less liquid or lower the temperature by 10°C.
Pastry is too dark on top
Place it on a lower rack, lower the temperature, and
increase the cooking time.
I used more than one level (in the function
"ventilated oven") and they are not all at the same
cooking point
Use a lower temperature setting. It is not necessary to
remove the food from all the racks at the same time.
Pastry has dropped
Place it on a lower shelf, lower the temperature and
It is cooked well on the inside but sticky on the
Use a lower temperature setting. It is not necessary to
remove the food from all the shelves at the same time.
You used more than one shelf (in the fan assisted oven
mode) and they are not all at the same cooking point.

12
Cooking Chart
Setting made Type of food Weig-
ht (in
kg)
Position of
the rack
from the
oven bottom
Preheating time
(min.) Thermostat setting Cooking time
(min.)
1 Convectional Duck
Roast veal or beef
Pork roast
Biscuits (short pastry)
Tarts
1
1
1
-
1
3
3
3
3
3
15
15
15
15
15
200
200
200
180
180
65-75
70-75
70-80
15-20
30-35
2 Multi-cooking Pizza (on 2 racks)
Lasagne
Lamb
Roast chicken + potatoes
Mackerel
Fruitcake
Cream puffs (on 2 racks)
Biscuits (on 2 racks)
Sponge cake (on 1 rack) )
Sponge cake (on 2 racks)
Savoury pies
1
1
1
1+1
1
1
0.5
0.5
0.5
1.0
1.5
2-4
3
2
2-4
2
2
2-4
2-4
2
2-4
3
15
10
10
15
10
10
10
10
10
10
15
230
180
180
200
180
170
190
180
170
170
200
15-20
30-35
40-45
60-70
30-35
40-50
20-25
10-15
15-20
20-25
25-30
3 Grill Soles and cuttlefish
Squid and prawn kebabs
Cuttlefish
Cod filet
Grilled vegetables
Veal steak
Sausages
Hamburger
Mackerels
Toasted sandwiches (or
toast)
0.7
0.6
0.6
0.8
0.4
0.8
0.6
0.6
1
n.° 4-6
4
4
4
4
3/4
4
4
4
4
4
-
-
-
-
-
-
-
-
-
-
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
10-12
8-10
10-15
10-15
15-20
15-20
15-20
10-12
15-20
3-5
4 Fan grilling Grilled chicken
Cuttlefish 1.5 1.5 2 210 10 200 200 55-60 30-35
5 Pizza Pizza
Roast veal or beef
Chicken
0.5
1
1
3
2
2/3
15
10
10
220
220
180
15-20
25-30
60-70
6 Fan Tarts
Fruit cakes
Fruitcake
Sponge cake
Stuffed pancakes (on 2
racks)
Small cakes (on 2 racks)
Cheese puffs (on 2 racks)
Cream puffs (on 3 racks)
Biscuits (on 3 racks)
Meringues (on 3 racks)
0.5
1
0.7
0.5
1.2
0.6
0.4
0.7
0.7
0.5
3
2/3
3
3
2-4
2-4
2-4
1-3-5
1-3-5
1-3-5
15
15
15
15
15
15
15
15
15
15
180
180
180
160
200
190
210
180
180
90
20-30
40-45
40-50
25-30
30-35
20-25
15-20
20-25
20-25
180
7 Fast cooking Frozen food
Pizza
Courgette and prawn pie
Country style spinach pie
Turnovers
Lasagne
Golden Rollsi
Chicken morsels
0.3
0.4
0.5
0.3
0.5
0.4
0.4
2
2
2
2
2
2
2
-
-
-
-
-
-
-
250
200
220
200
200
180
220
12
20
30-35
25
35
25-30
15-20
Pre-cooked food
Golden chicken wings 0.4 2 - 200 20-25
Fresh Food
Biscuits (short pastry)
Fruitcake
Cheese puffs
0.3
0.6
0.2
2
2
2
-
-
-
200
180
210
15-18
45
10-12
8 Defrost All frozen food
NB: cooking times are approximate and may vary according to personal taste. When cooking using the Grill or Fan
grilling mode, the dripping pan must always be placed on the 1st oven rack from the bottom.

13
Care and Cleaning
Befor carrying out any cleaning and maintenance to your
appliance you must disconnect it from the power supply.
Inside the oven
We recommend you clean your oven each time you use it,
especially after cooking roasts. In fact, it is advisable to
prevent food residue from building up during cooking: the
residue would be re-cooked each time the oven is used
and would char and release smoke and unpleasant
odours.
Oven exterior
Clean the enamelled or stainless steel exterior surfaces of
your oven using a sponge soaked in soapy water, making
sureyourinseanddrythesethoroughly,withoutusingabra-
sive or corrosive products which could damage them.
Stainless steel
Rinse stainless steel parts and dry them thoroughly using
asoftcloth.Useaspecificnon-abrasiveproduct to remove
tougher stains,
DO NOT use aluminium foil to line the bottom of the
oven.
To avoid having to clean the bottom of the oven, you may
betemptedtolineitwithsomealuminiumfoil.Westrongly
advise against this.The aluminium foil sheet in direct
contactwiththeheatedenamel coating could meltand
damagetheenamelcoatinginsidetheovenirreversibly.
Cleaning the rotisserie and other accessories
The rotisserie can be removed completely thanks to the 2
wingnuts.Theelementscomprisingtherotisserieassembly
should be cleaned together with the other accessories
(dripping pan, grid) in the sink using a damp sponge and
ordinary detergent or even in your dishwasher.
Rubber Seal
Thereisarubbersealsurrounding the ovenopening which
guarantees its perfect functioning. Check the condition of
this seal on a regular basis. If necessary, clean it using
warm water and dry thoroughly.
DONOTuseabrasiveproductsorobjectsto doso. Should
thesealbecomedamaged,pleasecontactHotpointService
(see KEY CONTACTS, back page). We recommend you
avoid using the oven until it has been repaired.
Replacing the Oven Lamp
• Disconnect the oven from the power supply by means
of the omnipolar switch used to connect the appliance
to the electrical mains; or unplug the appliance if the
plug is accessible.
• Remove the glass cover of the lamp-holder;
• Remove the lamp and replace with a lamp resistant to
high temperatures (300°C) with the following charac-
teristics:
- Voltage: 230/240V
- Wattage 25W
- Type E14
• Replace the glass cover and reconnect the oven to
the power supply.
Disassembling the oven door
The oven door can easily be removed to clean the space
between the bottom of the door and the front of the oven.To
disassemble the door, proceed as follows:
- open the oven door fully,
-liftupandturnthesmalllevers situatedonthetwohinges,
- shut the door, but not completely,
- grip the door on the two external sides and pull it towards
you, pulling it out of its seat.
Reassemble the door by following the above procedures
in reverse order.
132

14
The appliance must be installed only by a qualified
person in compliance with the instructions provided.
The manufacturer declines all responsibility for improper
installation which may harm persons and animals and
damage property.
Important: The power supply to the appliance must be
cut off before any adjustments or maintenance work is
done on it.

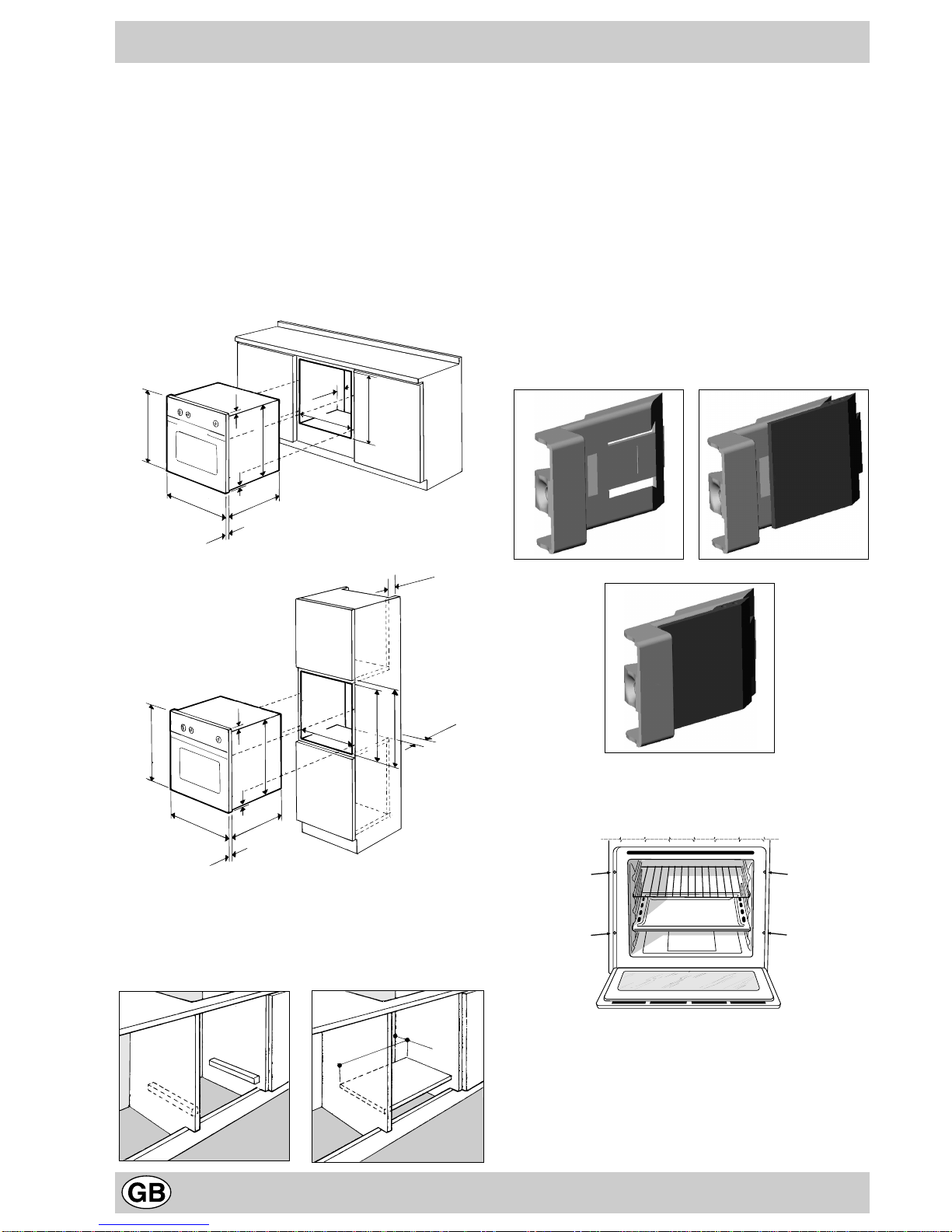

Installation of Built-in Ovens
Inordertoensure that thebuilt-inappliancefunctionsprop-
erly, the cabinet containing it must be appropriate. The
figurebelow givesthe dimensionsof thecut-out for instal-
lation under the counter or in a wall cabinet unit.
In order to ensure adequate ventilation, the back panel of
the cabinet unit must be removed. Installing the oven so
that it rests on two strips of wood is preferable.If the oven
rests on a continuous, flat surface, there must be an ap-
erture of at least 45 x 560 mm.
Thepanelsof the adjacentcabinetsmust be madeofheat-
resistantmaterial.In particular,cabinetswith aveneerex-
terior must be assembled with glues which can withstand
temperatures of up to 100 °C.
In compliance with current safety standards, contact with
the electrical parts of the oven must not be possible once
it has been installed.
All parts which ensure the safe operation of the appliance
must be removable only with the aid of a tool.
For the correct centring of your appliance, position the 4
tabs on the sides of the oven in correspondence with the
4 holes on the perimeter of the frame.In particular, if the
cabinet side panel:
•is 20 mm thick:the removable part of the tab must be
removed (Fig. A);
•is 18 mm thick: use the first groove, which is factory-
set (Fig. B);
•is 16 mm thick:use the second groove (Fig.C)
Fig.A Fig. B
Fig.C
To fasten the oven to the cabinet, open the door of the
oven and attach it by inserting the 4 wood screws into the
4 holes located on the perimeter of the frame.
595 mm.
595 mm.
24 mm. 545 mm.
5 mm.
567 mm.
23 mm.
593 mm.
45 mm.
558 mm.
N.B.: Installation in compliance with the consumption declaration
595 mm.
595 mm.
24 mm. 545 mm.
5 mm.
567 mm.
23 mm.
575-585 mm.
558 mm.
595 mm.
45 mm.
min.
45 mm.
min.
560 mm.
45 mm.
Installation

15
This appliance conforms to the following EEC
Directives:
LowVoltage Equipment
73/23/EEC
93/68/EEC
Electromagnetic Compatibility
89/336/EEC
93/68/EEC
Inner dimensions of the oven:
width 43.5cm
depth 40.0cm
height 32.0cm
Voltage and frequency of power supply:
230-240V~
50Hz
2800-3000W
ENERGY LABEL
Directive 2002/40/EC on the label of electric ovens
Norm EN 50304
Energy consumption for Natural convection
heating mode:Convectional
Declared energy consumption for Forced convection Class
heating mode:Fan
Electrical Connection
Electrical connection
The electrical connection to the mains must be made on
the appliance. The power voltage and frequency are as
indicated on the rating plate.
WARNING:THIS APPLIANCE MUST BE EARTHED.
Mounting the power supply cable
To open the terminal board:
•Usinga screwdriver,press on thetabs situated oneach
side of the terminal board cover.
•Pull open the terminal board cover.
To mount the power supply cable, proceed as follows:
•Unscrewthe cableclamp screwand thecontactscrews
L-N-6.
• Fasten the wires beneath the screwheads using the follow-
ingcolour scheme:Blue (N)Brown (L)Yellow-Green6
• Fasten the power supply cable in the corresponding
cable clamp and close the cover.
Electrical Connection:
Voltage Frequency: 230 V-1+N 50Hz
Fuse Section: 16A
Supply cable:3x1.5mm2
You can connect your oven to the system means of a
terminal board.Refer to above information for the
minimal cable sections and the calibration of the
protective elements according to the connection.
If the appliance is installed with a junction box, an
omnipolar circuit breaker - with a minimum contact
opening of 3mm - should be installed between the
appliance and the mains.
Power cable supply connection to the electrical
mains:
We recommend you use a power supply cable which is
long enough to allow you to take the oven out of its recess
in the event of maintenance operations (only use HAR - H
05 - RRF quality cables fitted with a plug conforming to
the regulations in force.
The plug must be accessible at all times.
Unplug the appliance before all operations,even when
replacing the oven lamp.
Using the appliance without correct earthing is highly
dangerous.
IMPORTANT:
Afterconnecting the applianceto theflexiblecable,tighten
all the screws on the terminal board.
42
NL

195.042.168.00 January 2004 Part no. FP142 - 01
Over 1200 trained specialists, directly employed by us, ensure that you can have complete confidence in
both the appliances and services we offer.
Repair Service and Information Desk
UK: 08709 066 066
(Open 8 to 8 Mon - Fri, 8 to 6 Sat, 10 to 4 Sun & Bank Holidays)
www.theservicecentre.co.uk
Republic of Ireland:1850 302 200
Note: Our operators will require the following information:
Model number:
Serial number:
Extended Warranties
UK: 08709 088 088
(Open 8 to 8 Mon - Sun)
www.theservicecentre.co.uk
Republic of Ireland:1850 502 200
Genuine Parts and Accessories
UK: 08709 077 077
(Open 8-30 to 5-30 Mon - Fri & 9 to 12 Sat)
www.theservicecentre.co.uk
Republic of Ireland:[phone]
General Domestic Appliances Limited, Morley Way, Peterborough, PE2 9JB.
Key Contacts
After Sales Service
