Creek Audio 4040 User manual

Instruction Manual
V1.0
4040 CD
CD Player
WWW.CREEKAUDIO.COM
ENGLISH

USER MANUAL FOR 4040 CD PLAYER
OVERVIEW
COMPACT DISCS may be a 20th century legacy format, but most people still have a perfectly good collection of CDs
that may be collecting dust somewhere. Your CD music is wholly owned by you and not borrowed from the cloud.
So, why not exploit what is yours?
SIZE
The diminutive 4040 CD’s case, with its extruded aluminium front panel, matches the 4040 A integrated amplifier.
Technical advances and circuit miniaturisation over the last 40 years no longer require heavy casework and massive
power supplies to play digital music accurately from CD.
DIGITAL OUTPUTS
The 4040 CD oers three types of digital outputs for the discerning audiophile, including transformer-isolated SPDIF
(via coaxial RCA), professional balanced AES-EBU (via XLR), and optical TOSLINK.
DAC
The 4040 CD provides a useful built-in DAC for convenient stand-alone analogue audio output, via a pair of RCA
sockets. However, to ensure the highest quality audio reproduction, Creek recommends connecting the 4040 A by
SPDIF coaxial or optical digital output, to benefit from the amplifier’s excellent ES9018K2M ESS Sabre32 Reference
DAC.
POWER SUPPLY
An important feature of any high-end audio product is its power supply. The 4040 CD Player’s impressive
performance and small size is thanks to its eicient and rock-steady external DC power supply. The CREEK multi-
region 12 Volt power supply adapter provides a stable DC voltage to the 4040 CD’s circuitry, independent of mains
quality and stability. Multiple linear voltage stabilisers then power every part of its circuitry.
STANDBY
Audio signal sensing circuitry enables the 4040 CD to reduce overall power consumption by powering down non-
essential circuitry when not required to less than 0.5W.
CD QUALITY
Properly recorded and well-maintained CDs can still provide resolution equal to most streamed music. The Compact
Disc’s native 16 bit 44.1kHz format is adequate for most music replay and is not compressed. By comparison, a lot of
streamed music undergoes some form of compression to shrink its file size, with consequent losses. As a bonus, CDs
provide a positive tactile experience and provides helpful and informative artist and title notes.
2
Page:

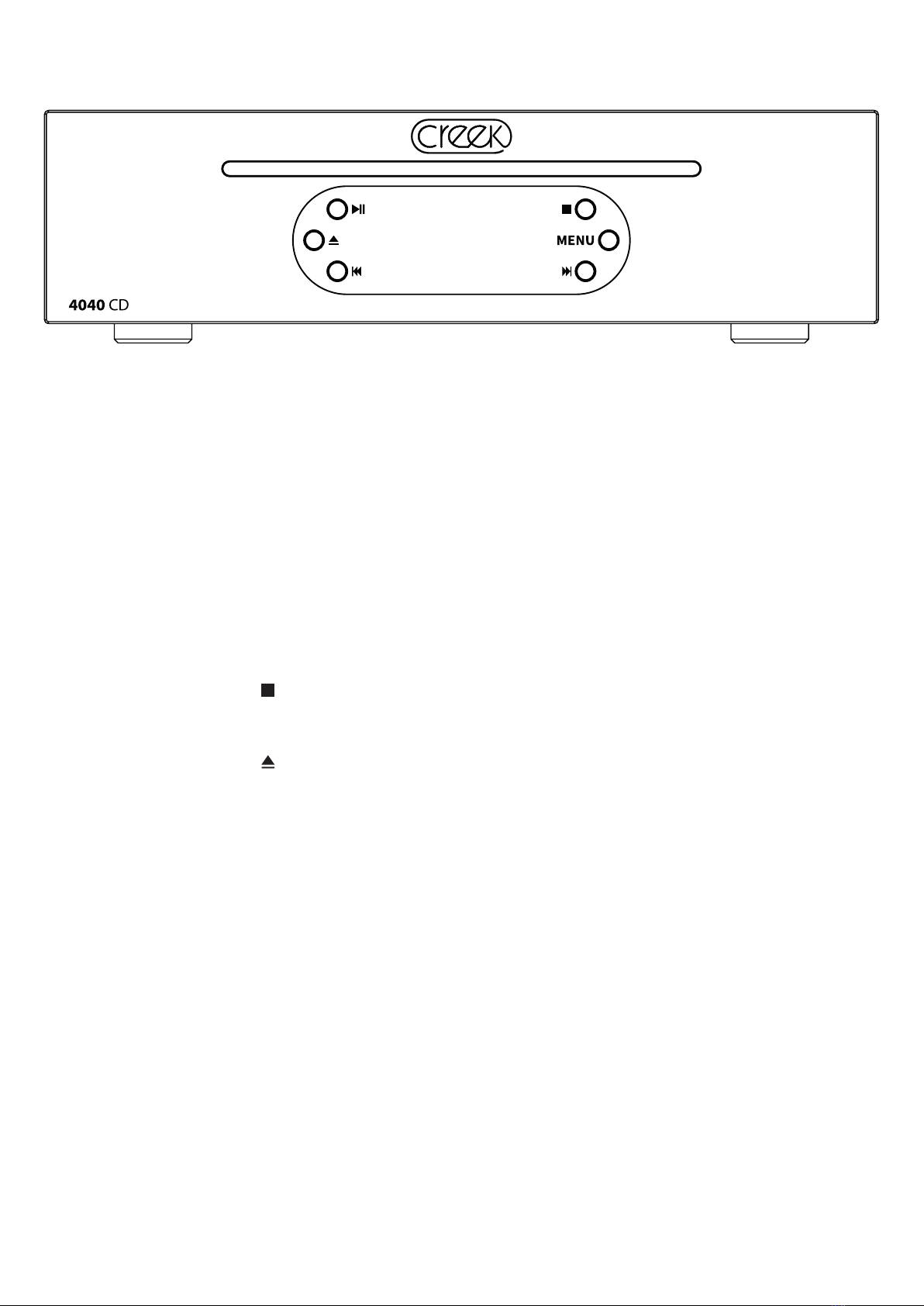

FRONT PANEL CONTROLS AND DISPLAY
POWER ON Press MENU once to wake-up from Standby.
POWER OFF Press MENU for 1 second to enter Standby.
Insert a Compact Disc into the slot and it will automatically load.
The display will indicate ‘Loading’ while the mechanism reads the Table of Contents (TOC).
It will then show the number of tracks, the total time of the CD, and automatically play the
first track.
If a Compact Disc is already inside the 4040 CD, when it is woken-up from standby it will read
the TOC and show the number of tracks and total time of the CD. If there is no disc loaded
the 4040 CD will display ‘No Disc’.
PLAY / PAUSE Press >II to PLAY the first track. Press >II to PAUSE.
STOP Press to STOP playing but leave the disc inside.
TRACK FORWARD Press >>I to move the disc forward to the next track.
TRACK BACKWARD Press I<< to move the disc backward to the last track.
EJECT Press to stop play and EJECT the disc.
MENU Press briefly to select the SETUP MENU, then press >>I or I<< to select options and then
press MENU again to confirm selection.
DIMMER Press once to enter. Press >>I to select display Always ON or Auto OFF.
BRIGHTNESS Display brightness has 7 levels of adjustment.
AUTO STANDBY Auto Standby time can be set for: 30 mins, 60 mins, or 120 mins without a signal. Always On,
means it will not automatically power down without a signal.
INFO Soware revision V1.0 confirms the initial release number and may be updated in future if
necessary. CD Servo soware revision V1.0 is also the initial release number.
BACK Press to exit SETUP MENU or wait for 10 seconds to automatically exit.
3
Page:

RC- 40 REMOTE CONTROL HANDSET
CD COMMANDS
Press CD once to prioritise CD Player functions. The handset will remember this instruction until AMP is pressed.
Amplifier volume and mute will continue to work in CD mode.
Press AMP to switch the remote handset to amplifier commands.
POWER Press the top right, blue button, to wake up or send the CD Player to sleep.
PLAY PAUSE Play >II, Pause >II.
STOP Stop.
FORWARD >>I Track Forward.
BACKWARD I<< Track backward.
SCAN >> Scan Forward.
<< Scan backward.
Forward, and Scan backwards.
Scan backwards, and Eject disc.
MENU Press MENU to enter and navigate options including Display brightness, SW revision info, with
>>I and I<<.
NUMBERS 0 to 9 are for direct track access.
REPEAT Press the bottom le button once to repeat all tracks, press again to repeat the same track
and press again to exit repeat.
RANDOM Press the bottom right button once to play all tracks in a random order. Press once again to exit
random play.
AMPLIFIER COMMANDS
VOLUME Up and down.
MUTE On or o.
These AMP commands continue to operate even in CD mode.
AAMMPPCCDD
MMEENNUU
4
Page:

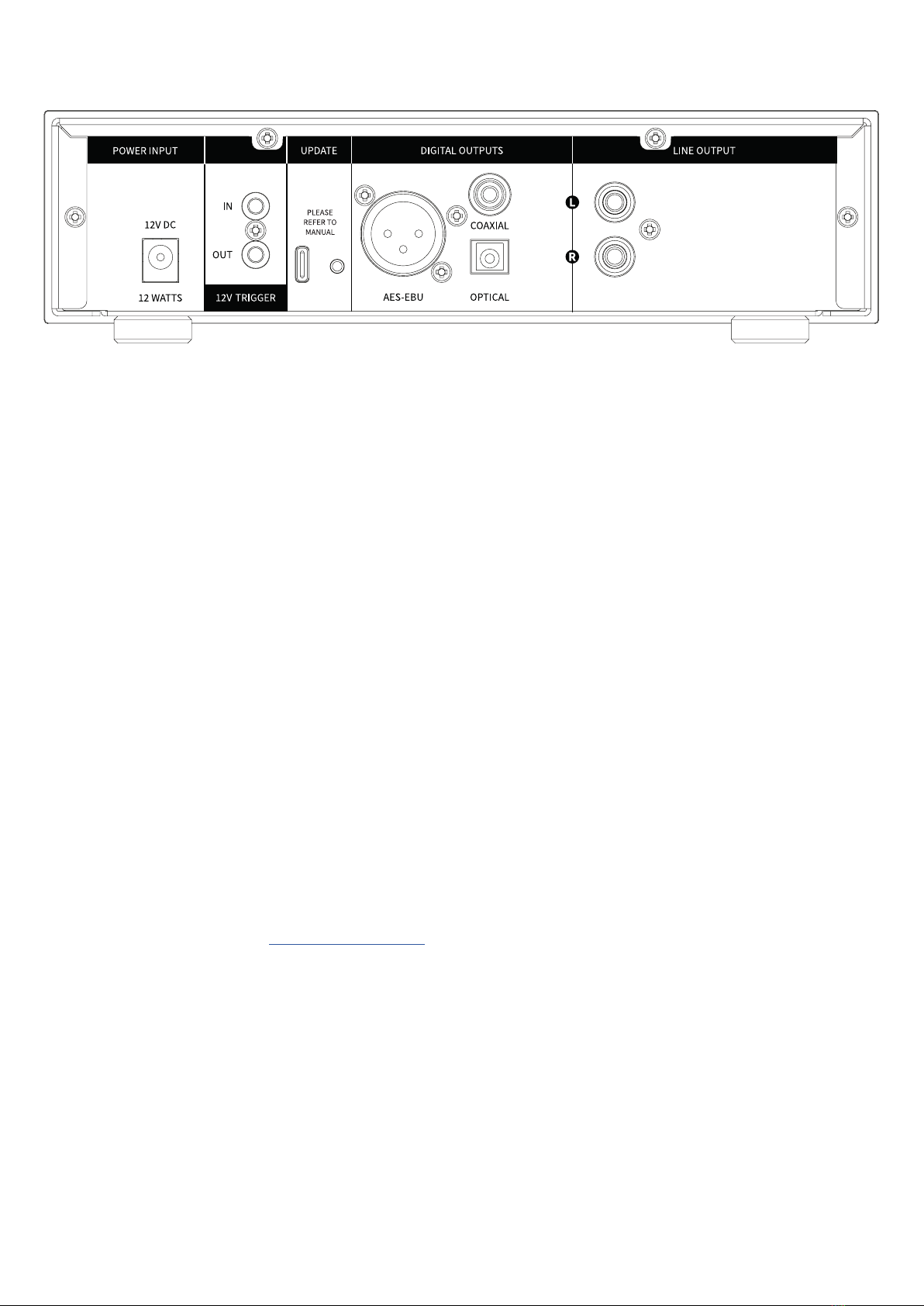

REAR PANEL CONNECTIONS
LINE OUTPUT
Le and right RCA sockets provide audio output to an amplifier. Connect a good quality RCA to RCA interconnect
cable from the output sockets to the Line input of an integrated amplifier or pre-amplifier, like the Creek 4040 A.
Adjust the volume level on the amplifier.
DIGITAL OUTPUTS
COAXIAL For the best performance, connect a 75 Ohm RCA to RCA digital audio cable from the coaxial output
socket to the matching coaxial digital input on the Creek 4040 A, or another D to A product.
OPTICAL Use the TOSLINK optical output for ground isolated connection to a separate DAC or 4040 A
integrated amplifier, with digital inputs.
AES-EBU Professional systems use balanced digital interfaces, using higher signal voltages, enabling longer
cables to be used. Balanced or symmetrical signals oer better common-mode-rejection of noise
and hum than unbalanced connections. Use an XLR to XLR - 110 Ohm interconnect.
TRIGGER enables the 4040 CD to wake up an amplifier when powered ON. It also enables another product,
like an amplifier, to wake up the CD Player.
IN Connect a 3.5mm MONO interconnect from the IN socket to a 12V output trigger on another device
to wake-up the CD Player from standby, when the other device is powered-ON.
OUT Connect a 3.5mm MONO interconnect from the OUT socket to an amplifier or other device to wake it
up from Standby when the CD Player is powered-on.
12V DC Connect the 3.5mm jack plug to the 12V POWER INPUT. Centre pin is positive.
UPDATE Soware updates can be performed only from a PC computer running windows OS 10 via the USB-C
socket. The associated push button must only be pressed when performing an update. Check with
your dealer, or [e-mail].
5
Page:

WARRANTY
If within two years from the date of purchase the product becomes defective for any reason other than accident,
misuse, neglect, unauthorised modification or fair wear and tear, Creek Audio Ltd will repair any such defect or, at its
discretion, replace it without charge for labour, parts or return carriage.
This warranty is applicable in the UK only and is given in addition to the customer’s statutory rights and is
transferable to subsequent owners who acquire the product within the warranty period. Proof of original purchase
must be provided.
All service and product enquiries arising in countries other than the United Kingdom should be addressed to the
local Creek importer, retailer, or distributor who, at their own discretion, will extend the warranty protection in the
country they serve.
FREQUENTLY ASKED QUESTIONS
Q. Can the product be le switched on permanently?
A. Yes, but it is advisable to power it down to standby mode for reduced energy consumption and to extend its
life. Power the adapter o from the mains if not used for an extended time, while away on holiday, etc.
Q. Why can’t my CD Player be remotely controlled?
A. You must press the CD button on the handset to remotely control it.
Q. Can a remote handset from another hi-fi product operate the 4040 CD?
A. Yes, if that remote handset conforms to standard Philips type RC5 codes.
Q. What is the best way to connect the 4040 CD to my matching 4040 A amplifier?
A. The best audio performance will be obtained by digital coaxial connection to the amplifier’s high-grade DAC.
Q. Why does the Compact Disc I insert not load properly?
A. You must insert the disc half-way into the slot to allow the rollers to grab it.
Q. I inserted a disc incorrectly and now I cannot eject it.
A. Power o the 4040 CD from the mains and reconnect it, to reset it. Then press Eject.
Q. Can I program a selection of tracks from a CD?
A. The 4040 CD cannot play programmed tracks.
Q. Can CD TEXT be displayed on the 4040 CD.
A. Unfortunately, this feature is not available.
Q. My retailer cannot answer my technical questions, who can I ask instead?
A. E-mail [e-mail] or phone [phone], 0900 to 1700 hrs GMT.
6
Page:

TECHNICAL SPECIFICATIONS
CD Transport Rugged slot-loading mechanism plays standard 12cm (4.7”) compact discs only.
Mechanical isolation Digital signals are clocked from a dynamic memory to provide immunity from
vibration or mechanical shocks.
Digital outputs 1x coaxial SPDIF, RCA, >0.6V RMS max.
Transformer ground isolated.
1x optical TOSLINK SPDIF.
1x AES-EBU balanced XLR socket, 5.0V RMS max. Transformer ground isolated.
Line output 2.0V RMS, dual RCA audio output sockets.
Output LPF buers 2x NJW 8801 dual op-amps in low pass filter circuit.
Output impedance <100 Ohms.
Frequency response 1Hz to 30kHz +/-3dB.
THD + Noise >110dB.
Display 48mm (1.9”) TFT display.
Remote control RC-40 remote handset.
Soware Update USB-C update socket and programming switch.
Power Input 3.5mm DC jack, 12V DC, 2 Amp, 24W.
12V standby trigger 12V active input and output standby triggers.
Power adapter UNI-12V 2A Creek adapter -100V to 250V, 50/60Hz.
Supplied with multi-region snap-on mains plugs.
Power consumption 12W – Max, <0.5W, Standby.
Auto Standby Powers-down aer a pre-set time with no signal. Time
adjustable in Menu: 30, 60, 120 mins or Always On.
Finish colours Optional silver or black front panel. Black outer cover.
Weight 1.8kgs (4lbs) net, 2.5kgs (5.5 lbs) gross.
Size W/H/D 21.5 x 6 x 22 cm (8.46″ x 2.36″ x 8.66”).
