CrimeStopper CS-2005.FM Installation instructions

CS-2005FM
2-WAY FM PAGING ALARM/REMOTE START SYSTEM
INSTALLATION / OPERATING MANUAL
CONGRATULATIONS! on your choice of a SUPER PAGE™ II 2-Way FM Paging Remote Alarm/Remote
Starting System by Crimestopper Security Products Inc. This booklet contains the information necessary for
installing, using, and maintaining your alarm system. If any questions arise, contact your installation dealer first,
or Crimestopper Security Products Inc. at the Tech Support number listed on the next page. This system is
designed for single vehicle operation with automatic transmissions only.
*IMPORTANT INFORMATION: Primary and Optional Features
-PRIMARY: These are features that must be connected in order for the system to operate properly i.e. Siren,
L.E.D., Power, Ground, Door pin, Hood pin (Remote Start Inhibit) etc.
-OPTIONAL: These are features to be connected only if desired or agreed upon by the installing dealer (i.e.
Door Locks, Starter Kill, Trunk, and Auxiliary Remote Output etc.)
Note: Additional labor and parts will be required for some vehicles equipped with Factory Anti-Theft Systems
such as GM PassKey®/Passlock®/VATS, or Key-FOB based RF Transponder systems such as FORD
P.A.T.S.®
This device complies with FCC Rules part 15. Operation is subject
to t
he following two conditions: (1) This device may not cause
harmful interference, and (2) This device must accept any
interference that may be received, including interference that may
cause undesired operation. The manufacturer is not responsible for
any
radio or TV interference caused by unauthorized modifications
to this equipment. Such modification could void the user’s authority
to use the equipment.
II

TABLE OF CONTENTS
Installation Cautions & Warnings…….………………………………………………………………………………3
Suggested Component Mounting………….…………………………………………………………….…………..4
Wiring……..……………………………………………………………………………………………………….…….4-5
Wiring-Mini Plugs………………………………………………………………………………………………………..6
Power Door Lock Wiring...………………………………………………………………..……………………………7
Option Programming…………………………………………….………………………………………………….8-10
Remote Start Engine Options (Dipswitches)…..……………………………………………………………..10-11
Operation……………………………………………..……………………………………………………….…….11-14
LCD Pager / Remote: Icons & Sounds …………………………………………………………………………….14
Remote Start Operation………………………………..………………………………………………….……..15-16
Important Notes………………………………………………………………………………………………………..16
Remote Transceiver Programming…………………………………………………………………………………17
Trouble Shooting………………………………………………………………………………………………………18
Misc. Wiring Diagrams………………………………………………………………………………………………..19
System Wiring Diagram………………………………………………………………………………………………20
TECHNICAL SUPPORT (800)-998-6880
Monday -Friday 8:00am -4:30pm Pacific Standard Time
Fax-On-Demand 805-526-9540
Website: www.crimestopper.com
E-mail: tech-[email protected]
CRIMESTOPPER SECURITY PRODUCTS, INC.
1770 S. TAPO STREET, SIMI VALLEY, CA. 93063

INSTALLATION CAUTIONS & WARNINGS
CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDOR shall not be responsible or liable in any way
for accidents or damage resulting from the use of this equipment. This system is designed to be professionally
installed in a vehicle that is in proper operating condition. Parking brake, Transmission, Throttle, and Engine
Safety features must be in working order. It is the vehicle owner’s responsibility to understand the operating
features of this system.
DO NOT INSTALL CS2005FM ALARM/REMOTE STARTER in vehicles with MANUAL TRANSMISSIONS!
There are no safety features built into this unit for manual transmission vehicles. If accidentally left in
gear, a remote started vehicle could become a self-propelled threat to life and property.
DO NOT REMOTE START A VEHICLE IN A CLOSED AREA OR GARAGE! Make sure that door is open or
there is adequate ventilation is provided. Failure to observe this rule could result in serious injury or death
from poisonous Carbon Monoxide fumes! Also note this warning when programming this system for Cold
Start operation.
BEFORE BEGINNING INSTALLATION,check all vehicle manufacturer cautions and warnings regarding
electrical service. (AIR BAGS, ABS BRAKES, AND BATTERY).
DO NOT ROUTE ANY WIRING THAT MAY BECOME ENTANGLED with brake, and gas pedals, steering
column, or any other moving parts in the vehicle.
DO NOT EXCEED MAXIMUM OUTPUT RATINGS -SERIOUS DAMAGE MAY OCCUR. Limits for alarm and
remote start functions are listed in the main diagram and wiring descriptions page. If you are unsure about
current load, measure the load with an AMP-METER.
REMOVE MAIN SYSTEM FUSE(S) before jump starting the vehicle. DAMAGE MAY OCCUR TO SYSTEM IF
PROPER PRECAUTIONS ARE NOT OBSERVED.
DO NOT EXTEND REMOTE START/IGNITION OUTPUT HARNESS LENGTH. Locate the control module
within reach of the supplied IGNITION/START OUTPUT wires. Extending these wires could result in poor
performance.

SUGGESTED COMPONENT MOUNTING
Control Module: Driver or Passenger side underdash, the unit should be placed as high as possible, not
easily accessible by an intruder.
Shock Sensor: Mount with wire ties to an under dash wire harness or fasten with screws to a panel.
Siren: Under the hood to fender-well or other body surface with the open end facing downward.
LED: In a visible location on the dashboard or console. Drill an 11/32" hole at the chosen location.
Override/Program button: Hidden location, but accessible to the user in case the system must be disarmed
without the use of the transmitter. This switch is also used to program certain features and to page/call the
transceiver from inside the vehicle if necessary.
Antenna Module: Inside front windshield (as high as possible) using supplied double sided tape.
WIRING
6 PIN HI-CURRENT CONNECTORS:
RED:+12V INPUT
RED:+12V INPUT (30 Amp)
BROWN: IGNITION 1 (Secondary IGN. 1 Output)
YELLOW: IGNITION 1 (Primary IGN. Output AND Alarm Input for IGN “ON”)
ORANGE: ACCESSORY (20 Amp)
PURPLE: STARTER OUTPUT
10 PIN MAIN HARNESS PLUG:
YELLOW WIRE: +12V BRAKE INPUT
Connect this wire to the side of the brake pedal switch that shows +12V only when the brake is depressed. This input
is used to reset remote start after entering the running vehicle and turning the ignition key on.
VIOLET WIRE: (+) DOOR TRIGGER INPUT
This wire is used for vehicles that show a positive voltage (12 volts) when the door is open such as Ford.
BLUE WIRE: (-) HOOD/TRUNK TRIGGER (Mandatory For Hood Pin)
Input trigger for a grounding hood or trunk pin switch and to inhibit remote start if the hood is open. Connect to existing
hood and trunk pin switches that read ground when open. If no existing switches are available, install a new pin switch.
Note: DO NOT mount new pin switches in water pathways.

WIRING
GREEN WIRE: (-) DOOR TRIGGER INPUT
Identify the wire that reads ground when any door is open and 12 volts when all doors are closed. Some isolated door
triggers. In this case you need to run an additional wires from the other doors or go directly to the wire that triggers the
vehicle’s dome light.
GRAY WIRE: ENGINE MONITOR / TACH SIGNAL INPUT (Used For Tach Mode)
Used to monitor when the engine is running. Connect to negative terminal of ignition coil, crankshaft position sensor or
ECM/PCM tach wire or wrap several turns around a spark plug wire and fasten with wire ties or hi-temp plastic clamps.
NOTE: When Gray wire is used, DIP #4 should be set in the OFF position. See programming
selection for engine monitor type.
ORANGE WIRE: NEGATIVE STARTER KILL / ANTI_GRIND OUTPUT
Ground output when system is armed / remote started. This output is used for adding a starter disable relay or to
activate Anti-Theft Bypass Modules for remote starting purposes. For starter kill, cut starter wire and connect between
87A and 30 on relay. Connect orange wire to 85 and connect 86 to Ignition Source that has voltage in the ON and
CRANKING position. Be sure to connect the Purple Remote Starter Cranking output to the Motor side of the Starter
Disable Relay or it will not allow the Remote Starter to Crank the engine.
BLACK WIRE: SYSTEM CHASSIS GROUND
Connect to chassis metal of the vehicle. Scrape away any paint or dirt from the connection point to ensure a good
connection.
BROWN WIRE: (+) SIREN OUTPUT (3 amp max.)
Connect to RED siren wire.
RED WIRE: +12V POWER INPUT (10 amp fuse)
Connect to +12 Volt source. Recommended location for this connection is at the vehicle battery positive terminal.
WHITE WIRE: +12V FLASHING PARKING LIGHT OUTPUT
Connect to switched parking light wire at back of light switch. If this is not possible, connect directly to one of the
parking lights at the front of the vehicle. European may vehicles require separate right and left circuits. Use a dual
relay or 2 diodes to separate the output signal.

WIRING -MINI PLUGS
2 PIN (WHITE) PLUG:
RED/BLACK WIRE: DOME LIGHT ILLUMINATION (Optional, Requires Relay)
Connect to terminal 85 of relay. This wire turns the dome light on for 30 seconds upon disarming of the alarm. If the
ignition is turned on or the alarm is re-armed, the dome light will turn off again. Connect this wire to terminal 85 of a
relay. Connect terminal 86 to +12V Constant. Connect terminal 87 to +12V or ground depending on the type of Dome
Light/Door Pin circuit that is in the vehicle. See Page 19.
WHITE/YELLOW: HORN HONK OUTPUT (Optional, Requires Relay)
Negative pulsed output for honking the vehicle's horn when the alarm is triggered. Connect this wire to terminal 85 of a
relay. Connect terminal 86 to +12V Constant. Connect terminal 87 to +12V or ground depending on the type of horn
activation circuit in the vehicle. Connect terminal 30 to the horn activation circuit.
2 PIN (BLUE) PLUG: PROGRAM / OVERRIDE BUTTON
2 PIN (RED) PLUG: LED INDICATOR (Red Flashing Light)
3 PIN (RED) PLUG:
GREEN/BLACK:(-) AUX. REMOTE OUTPUT (Optional, Requires Relay)
Connect to terminal 85 of relay. Connect terminal 86 to constant. Connect terminal 87 to +12V or Ground depending
on the type of circuit that needs to activated. Connect terminal 30 to the device/circuit to be activated.
RED: (-) OEM FACTORY DISARM OUTPUT
Provides a ground pulse to disarm the vehicles' FACTORY anti-theft system prior to Remote Start. Connect this wire to
the vehicles' anti-theft disarm wire. This wire may be found coming off the Driver's door key switch or the Factory Anti-
theft control module. This wire may not be needed if Factory Security only requires a door unlock pulse.
YELLOW: VACUUM SWITCH INPUT (Used with a Vacuum switch for Engine Monitor only)
3 PIN (WHITE) PLUG:
GREEN:(-) NEGATIVE LOCK Connect directly to negative lock/unlock systems. If vehicle uses
RED: +12V For Relays positive door lock signals or reversing polarity type, then external
BLUE: (-) NEGATIVE UNLOCK relays must be added. See Power Door Lock Wiring.
4 PIN (WHITE) SENSOR PLUG:
WHITE: NEGATIVE PRE-WARN The sensor supplied with the system does not require
BLACK:SENSOR GROUND any additional wiring. Simply mount sensor in a suitable
BLUE: NEGATIVE TRIGGER location, plug in, and adjust sensitivity.
RED: SENSOR POWER

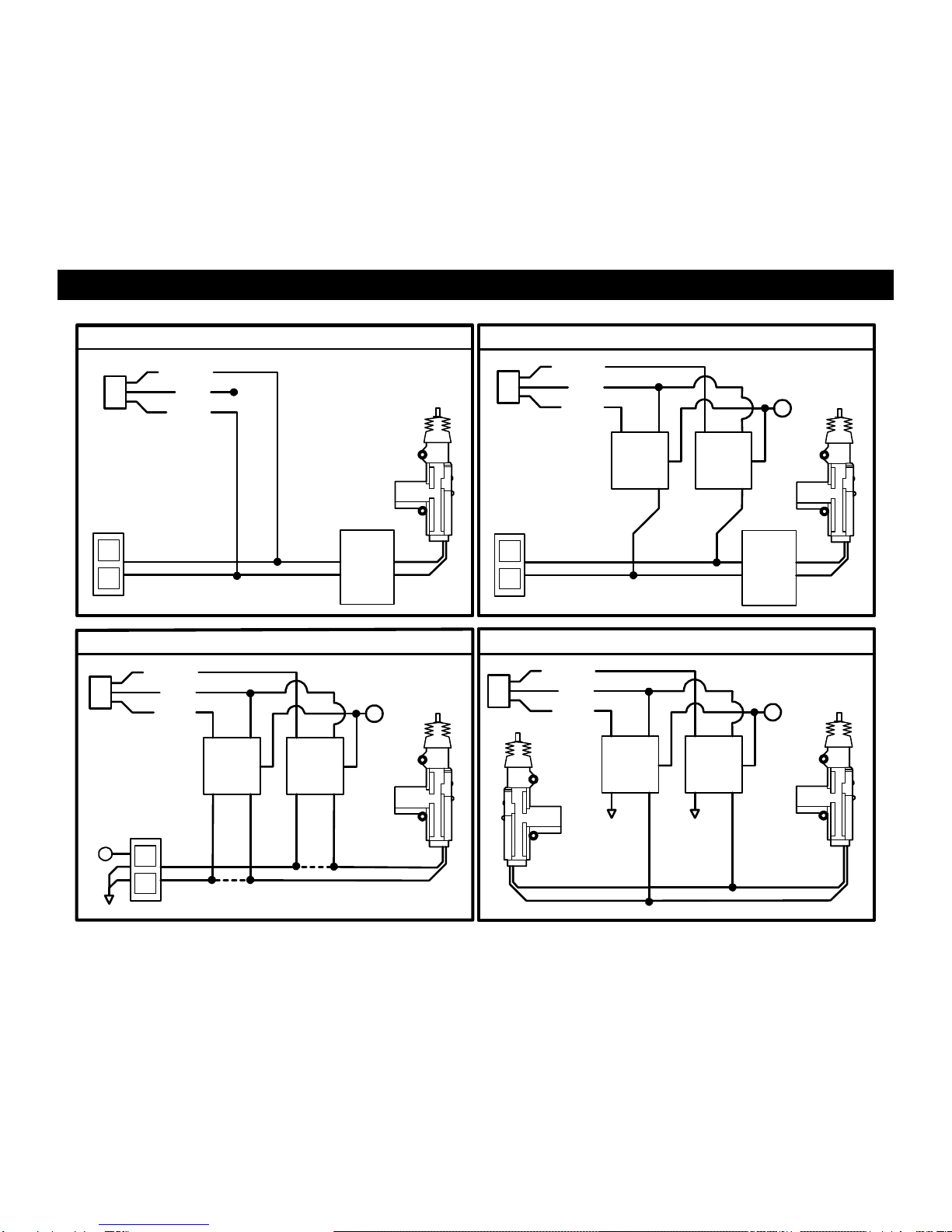

POWER DOOR LOCK WIRING
NEGATIVE TRIGGER DOORLOCK WIRING POSITIVE TRIGGER DOORLOCK WIRING
GREEN
GREEN FUSED
RED +12VRED BLUE +
BLUE
86
858685 8787 3087A30
87A
FACTORY
FACTORY
LLPOWER
POWER LOCKING
LOCKING
UL UL
RELAYS RELAYS
AFTERMARKET DOOR LOCK WIRINGREVERSE POLARITY DOOR LOCK WIRING
GREEN
GREEN FUSED
FUSED RED
RED +12V
+12V BLUE
BLUE +
+
86858685
86858685 8787
8787 3087A3087A
3087A3087A
+LCUT
UL CUT
MASTER
SWITCH
LOCK WIRE
UNLOCK WIRE

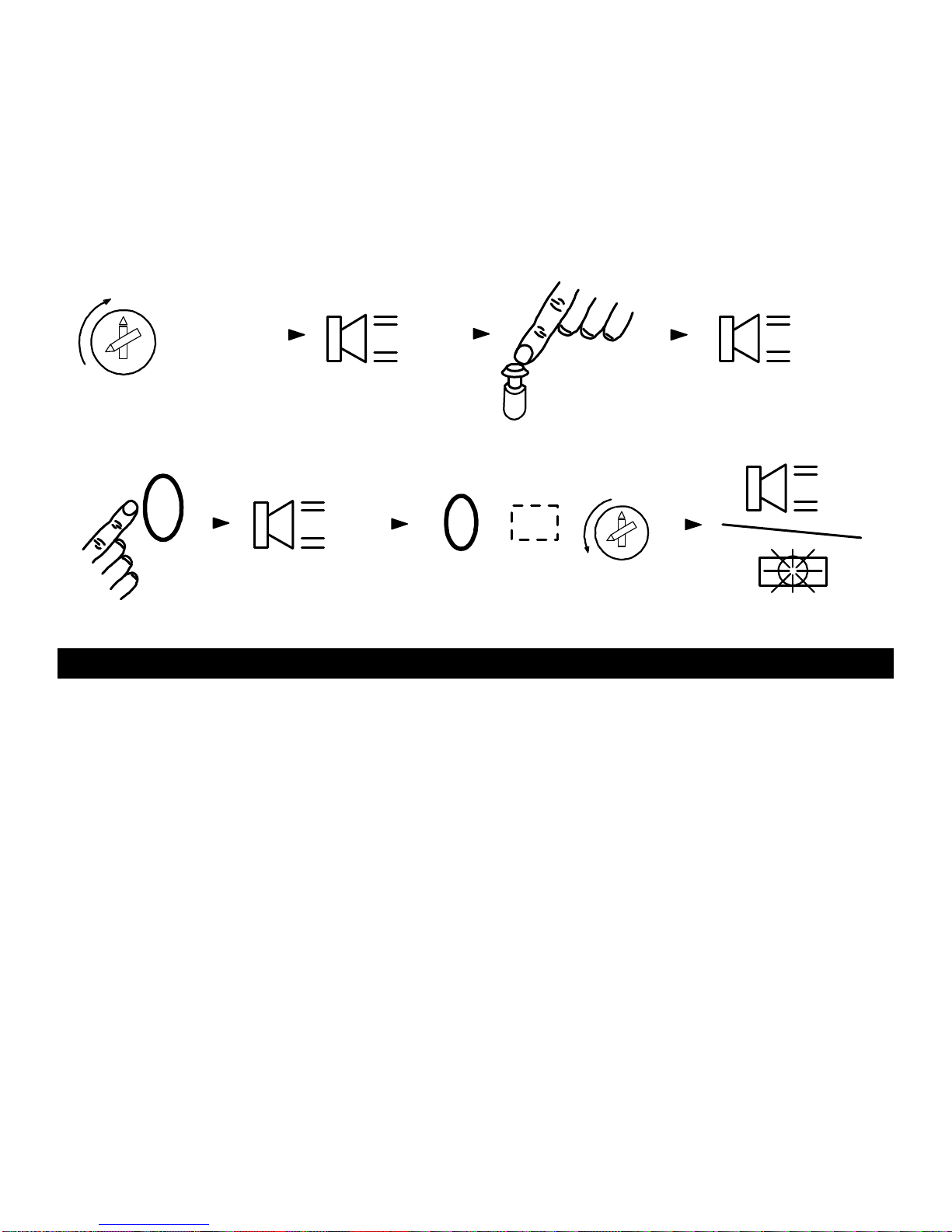

OPTION PROGRAMMING
Follow steps below to access Programming Options:
1. Turn the ignition on and press the override/program button 5 times within 5 seconds. You will hear a (2) Second
confirmation chirp from the siren.
2. Within the next 5 seconds press the override/program button [again] the number of times that corresponds to the
listed feature below. The siren will chirp once for each button press.
3. Once you are at the desired option number, press Button (I) or (II) on the remote to change the option. Button (I)
gives on light flash/chirp and Button (II) give two flashes/chirps. See chart below for option selections. Turn OFF
Ignition.
4. Change ONE option at a time and repeat steps 1-3 as needed.
PROGRAMMING OPTIONS CHART
Option #
Option Description Selection Button 1 Button 2 Factory
Default
1. Passive Arming ON or OFF ON OFF ON
2. Passive Locks ON or OFF OFF ON OFF
3. Active Re-Arm ON or OFF ON OFF ON
4. Silent Arm/Disarm ON or OFF OFF ON OFF
5. Double Unlock Pulse ON or OFF OFF ON OFF
6. Door Lock Pulse Time 0.7 Sec. or3 Sec. 0.7 Sec. 3 Sec. 0.7 Sec.
7. Ignition Controlled Locks ON or OFF ON OFF ON
8. Enable/Disable Cold Start ON or OFF OFF ON OFF
9. Cold Start Interval Time Every 2 Hrs. or 1 hr. 2 Hrs. 1 Hr. 2 Hrs.
10. Disarm with Aux. Feature
Activation (Trunk Pop) ON or OFF OFF ON OFF
11. Chirp Countdown w/Passive
Arming ON or OFF OFF ON OFF
12. 5/60 Sec. Door Open Warning Button #1 = 5 Sec.
Button #2 = 60 Sec. 5 Sec. 60 Sec. 5 Sec.
13. Remote Start Run Time Button #1 = 15 Min.
Button #2 = 25 Min. 15 Min. 25 Min 15 Min.
14. Doors Lock with Remote Start ON or OFF OFF ON OFF
15. Lock After Aborted Remote Start ON or OFF ON OFF ON
16. Parking Lights ON w/Disarm ON or OFF OFF ON OFF

OPTION PROGRAMMING
1. PASSIVE ARMING
With this option ON, arming will occur 30 Seconds after the ignition is turned off and the last door has been closed.
The LED will begin flashing rapidly while counting down. If a door is reopened, the system will wait (LED solid) for the
door or zone to close before arming. The unit will chirp once and flash the lights once. Doors will lock if passive locking
is selected. Factory default setting is ON.
2. PASSIVE LOCKS
This option controls whether the doors will lock when Passive Arming occurs. Note: May increase the risk of locking
keys in the vehicle. Factory default setting is OFF.
3. ACTIVE RE-ARM
Active Re-arming allows the system to re-arm itself 30 seconds after disarmed with the transmitter if a door has not
been opened. This is handy if the vehicle is accidentally disarmed without your knowledge. Default setting is ON.
4. SILENT ARMING /DISARMING (NO CHIRPS)
With this feature, the system can be programmed to Arm and Disarm without the siren chirp. Flashing parking lights
will be the only Arm/Disarm confirmation. The Factory Default setting is OFF.
5. DOUBLE UNLOCK PULSE
With this option ON, the unit will send 2 unlock pulses when the system is Disarmed. This feature may be required for
interfacing this alarm with some existing Factory Unlock systems. Factory Default setting is OFF.
6. DOOR LOCK/UNLOCK PULSE TIME
Controls the amount of time (0.70 sec. or 3 sec.) for the lock/unlock pulse. The 3 sec. setting may be required for
1980’/90’s European Vehicles that require a long pulse to operate Vacuum pump systems. Factory default is 0.75 sec.
7. AUTOLOCK/UNLOCK W/IGNITION
Controls whether the doors will automatically lock when the ignition is turned on and will unlock when the ignition is
turned off. Doors will not lock if they are open to prevent locking the keys in. Factory default setting is ON
8. ENABLE / DISABLE COLD START
With this feature, the system can be programmed to automatically Self-Start every 2 hours or Every hour in severe
weather conditions. See Option 9 below for more information.
9. COLD START INTERVAL TIME
Sets the time interval between remote engine starts when Option #8 Cold Start feature is enabled. Selectable for
Engine starting on the hour every 2 hours or Every hour. Factory Default setting is 2 Hours.

OPTION PROGRAMMING
10. DISARM WITH AUX. OUTPUT (TRUNK POP)
Controls whether the system will or will not DISARM when the trunk pop or AUX. feature is used. When the feature is
turned on the unit will DISARM when opening trunk or other AUX feature. Factory Default setting is OFF
11. SIREN CHIRP COUNTDOWN W/ PASSIVE ARMING
With this feature ON, the alarm will begin to chirp the siren when passive arming sequence begins. A very small siren
chirp is emitted every second for approximately 25 seconds until the system passively arms. Default setting is OFF.
12. 5/60 Sec. DOOR/ZONE OPEN WARNING
This setting changes the time that the alarm system starts to monitor the Door, Hood, or Trunk Zones. Change setting
to 60 Sec. for vehicles with a delayed dome light prevent warning chirps. Factory Default setting is 5 Sec.
13. REMOTE START RUN TIME
Set engine run time for remote start for 15 or 25 minutes. Factory Default setting is 15 min.
14. DOOR LOCK WITH REMOTE START
This option controls whether the unit will lock the doors after a remote start whether alarm system is armed or not. This
prevents an unlocked/unattended running vehicle. Factory Default setting is OFF.
15. DOOR LOCK WITH ABORTED/TIMED OUT REMOTE START
This option controls whether the unit will lock the doors after a remote start is aborted or finished with the run time and
one entered the vehicle. whether alarm system is armed or not. This
16. PARKING LIGHTS ON WITH DISARM
Keeps parking lights on instead when system is disarmed to assist in locating your vehicle in a crowded parking lot or
structure. Light will stay on for 30 Sec. or until Ignition is turned on. Factory Default setting is OFF.
REMOTE START ENGINE OPTIONS
The 4-position DIP SWITCH bank is hidden below the small access door on the top of the alarm control
module. These switches are used to select options as follows:
Dip Switch Number Settings
#1 Gas / Diesel ON = Gas OFF = Diesel
#2 Tach/Tachless or Vacuum ON = Tach/Tachless OFF = Vacuum
#3 Crank Time (0.8 or1.25 Sec.) ON = 0.8 Sec. OFF = 1.25 Sec.
#4 Engine or Tachless Monitor ON = Tachless OFF = Engine Monitor (GRAY WIRE)
SEE DESCRIPTIONS ON NEXT PAGE.

III III
CALL
V
ANTENNA
LCD
PANEL
PAGE/
CALL
SIREN
LOW
BATT
CAR
ICON
ENGINE
BUTTONS 1,2,3
RUN
FM
Two-way
LED
REMOTE START ENGINE OPTIONS
ENGINE TYPE: GAS or DIESEL
Set this switch to select the proper vehicle fuel type. Selecting Diesel delays starter activation about 10 seconds to
allow warming of glow plugs.
TACH/TACHLESS or VACUUM MODE:
For Tach/Tachless Mode, set Dip Switch #2 ON. For Vacuum Mode, set Dip Switch #2 OFF. When this switch is set
to the on position, the unit will monitor the vehicle’s engine according to the setting of Dip Switch #4 below. When in
Vacuum mode, the unit will monitor the Engine using a vacuum switch (not included) and the Yellow Wire.
CRANK TIME:
This feature controls the length of time the starter stays engaged. If the default (0.8 seconds) is not long enough to
start the engine, change the setting to1.25 seconds. These are the only two cranking times. This unit does not use
engine pulses to determine cranking time. Cranking time are preset values only. This system may not be
compatible with Hard Starting, Out-of-Tune, or Older Vehicles
that require longer cranking times.
TACHLESS or ENGINE MONITOR:
When switch #4 is on, the system is in the Tachless mode and it is not
necessary to connect the gray Engine Monitor wire. When switch #4
is off, the unit monitors engine RPM/Pulses through the Gray wire.
The wire must be connected to a valid source when #4 is in the OFF
position.
OPERATION
PAGER / REMOTE TRANSCEIVER:
The hand-held remote transceiver is used to send commands to and
receive information from the 2005FM Alarm system. The Control
Module transmits High Frequency FM signals to the pager for various
alarm functions up to 1 mile away. Range will vary depending on
location, terrain, and RF noise interference. This system is not
guaranteed to page you if you are behind concrete walls,
underground, in a large structure, or an area with high electronic
interference. Handle the pager/remote with care as the LCD display
and/or the electronics may be damaged if abused. Some icons and
areas of the LCD panel are not used or do not animate. These areas

are for future improvements and expansion of this system. Pull up the built-in antenna on the top left of the unit when
additional range is required. Push the antenna in for storage in a pocket or purse. The transceiver uses a standard
AAA Alkaline Cell battery that can easily be replaced by removing the access cover on the back of the unit. Battery life
will vary depending on usage. (4-5 months on average)
ARMING:
Press the (I) button on the transceiver to arm the system. The LCD Display will show “ARM” and “LOCK” icons while
emitting a single beep. At the vehicle, the siren will chirp once and the lights will flash once. The red LED in the
vehicle will start flashing. The system will arm, lock the doors, and the starter will be disabled (Optional).
OPERATION
DISARMING:
Press the (I) button on the transceiver. The LCD Display will show “DISARM” and “UNLOCK” icons while emitting (2)
beeps. At the vehicle, the siren will chirp (2) times and the lights will flash (2) times. The red LED in the vehicle will
turn off. The system will disarm, unlock the doors, and the interior dome light will turn on if these optional features are
installed.
SILENT ARM/DISARM: (Programmable)
The system can programmed to ARM and DISARM silently without Siren Chirps. See programming Option #4. Note:
When programmed for silent ARM/DISARM, the Remote Start confirmation chirps will no longer be heard.
TRIGGERING THE ALARM:
After a short 5 second Arming delay (to allow vehicle/electronics to settle), the system becomes fully armed.
INTRUSION:
If there is an intrusion (door/hood/trunk opening) the alarm will sound with siren, followed 8 seconds later with
alternating light flash / horn honk (optional) for 45 seconds. The 8-second delay before flashing lights/honk is to
allow the control module to transmit signals to the pager/remote. The remote will emit an audible alert and the LCD
Display will show a Trunk or Door Opening icon along with audible beeps.
SHOCK/IMPACT:
A hard impact or shock to the vehicle body will trigger the shock sensor and trip the alarm system as listed above.
The LCD will Display Hammer and Glass-Break icons. This may or may not mean that there is actually glass
breaking on the vehicle, but it is a reminder to you that a hard impact was detected.
ALARM PRE-WARNING:
If a low-level shock to the vehicle body is detected, the pre-warning sensor activates sounding 5 quick siren chirps and
1 light flash. The transceiver will emit an audible alert and the LCD Display will show a Hammer icon. To adjust the
shock sensor, turn its control knob to increase sensitivity or decrease sensitivity.
PANIC FEATURE:

In the event of an emergency situation or to attract attention to your vehicle, press and hold button (I) on the transmitter
for about (5) seconds. The Siren will sound and lights will flash. Press button (I) again to reset.
SHOCK SENSOR BYPASS THROUGH REMOTE
To bypass shock sensor protection, Press Button (I) to arm system, then within 3 seconds press button (II).
VALET MODE:
To disable the Alarm and Remote Start sections of the system while still allowing door lock/unlock, turn the ignition ON
and press the override/program button until the dash LED turns on solid and one siren chirp is heard (about 5 seconds).
Repeat the process to exit valet mode (LED will turn off, lights flash twice, and chirps twice).
OPERATION
EMERGENCY OVERRIDE:
If you have lost the transmitter or it stops working for any reason and the Alarm is armed, you will have to perform an
emergency override to disarm the system. Open the door with the key, (alarm will sound) turn the Ignition ON, and
press and hold the override/program button about 3 seconds. The Alarm will disarm and enter the Valet mode to allow
you to use the vehicle. You can repair/replace the pager/remote or see your installing dealer for assistance.
TRUNK POP/AUXILIARY FEATURE: (Optional)
To pop the trunk or activate an auxiliary feature, press button (III) on the transmitter for about 1½ seconds until it beeps.
Trunk pop feature is recommended for vehicles equipped with a Factory Electric trunk release. Extra parts and/or labor
may be necessary for this feature. If the system is armed, pressing button (III) may or may not trigger the alarm
system when opening the trunk depending on programming option #10 configuration.
AUTOLOCK/UNLOCK WITH IGNITION: (Programmable)
The doors will automatically lock when the ignition is turned on and will unlock when the ignition is turned off. If a door
is open the unit will not lock to prevent keys from being locked in.
PASSIVE ARMING / PASSIVE LOCK MODES:
If programmed for passive (Automatic) Arming, the system will Arm itself 30 Seconds after the ignition is turned off and
the last door has been closed. The LED will begin flashing rapidly while counting down to Passively Arm. If a door is
open or reopened during the countdown, the system will wait (LED solid) for the door or zone to close before arming.
The unit will chirp once and flash the lights once. If Passive Locks are programmed ON, then doors will lock also.
Note: Passive Arming may qualify for insurance discounts-check with your agent or proprietor. Passive
locking may increase the chance of locking the keys inside the vehicle.
ACTIVE RE-ARMING:
Active Re-arming allows the system to re-arm itself 30 seconds after it is disarmed with the transmitter in the event that
a door has not been opened. This is handy if the vehicle is accidentally disarmed without your knowledge (Remote is
pressed while in your pocket/purse). This feature can be turned off with the programming options.

SVC INDICATOR:
If the unit is out of range or the pager/remote and the base unit do not communicate properly, the SVC indicator will
appear on the LCD display. Sometimes this is caused by trying to send commands to the vehicle while it is in turn
trying to page the remote. Be sure to wait about 8 seconds between functions to avoid this message or move closer to
vehicle if you are getting this message from being out-of-range. Status Check feature also serves as a range test.
IN-CAR CALL/PAGE:
Press and hold the program/override button in the vehicle for about a second to initiate a page to the remote. Please
note the LCD Display shows a shock sensor violation as the in-car page!
OPERATION
ALARM RANGE/STATUS CHECK:
To perform a status check, or to test if you are in range of your system, press Buttons (II) and (III) together for about
1½ seconds until the remote beeps twice. The control module in the vehicle will report back to the pager/remote
whether the system is ARMED, DISARMED, or ENGINE RUNNING on the LCD Display. If you get SVC then you are
out of range.
DOME LIGHT ILLUMINATION: (Optional)
This feature turns on the vehicle’s dome light upon disarm for 30 seconds or until the key is inserted and turned on.
This will provide illuminated entry to your vehicle at night or in dimly lit areas for safety and security.
PRIOR INTRUSION ALERT:
If the system was tripped in your absence, the dash LED will be flashing rapidly. When the system is disarmed you will
hear 4 chirps when disarming the system. Carefully inspect your vehicle to see if there is any damage or a theft has
occurred.
OPEN ZONE ALERT/BYPASS:
If the system detects a faulty or open zone (Door left open) when the system is ACTIVELY ARMED, the siren will chirp
(3) times, give (3) light flashes, and the control module will page the remote with the open zone. (Door or Trunk). The
faulty zone will be automatically bypassed.
LCD PAGER / REMOTE: ICONS & SOUNDS
FUNCTION ICON/SYMBOL SOUND
Arm System ARM/Downward Lock Arrow 1 Beep
Disarm System DISARM/Upward Unlock Arrow 2 Beeps
Remote Start KEY/Engine Icon Spins 3 Beeps
Stop Engine Key Icon with Slash 3 Beeps (2X)

Trunk Pop Trunk Opens on Car 6 Beeps
Hood/Trunk Alarm Trigger Trunk Opens on Car 6 Beeps
Door Alarm Trigger Door Opens on Car Ring + 3 Beeps
Sensor Pre-Warn Hammer on Car Constant Beep
Sensor Trigger Hammer/Breaking Glass Ring + 2 Beeps
Out of Range Flashing “SVC” Icon None
Miscommunication Flashing “SVC” Icon None
Low Battery Flashing Battery Icon None
Press and release button (III) to reset the Sound/LCD Display when needed.
REMOTE START OPERATION
REMOTE ENGINE START:
Press and hold Button (II) on the transceiver for about 1½ seconds until it beeps. The alarm will acknowledge the
remote start request by transmitting back to the Transceiver with 3 beeps and the Key/Engine Run icons on the LCD
Display. At the vehicle, the unit will chirp (3) times and the parking lights will turn on solid. After powering up the
Ignition and Accessory circuits, the unit will start the vehicle and run for 15 or 25 minutes (whichever is programmed).
Once the vehicle is running (in the first 8 seconds) the control module will page the remote with engine run status (LCD
display will show a spinning engine run and exhaust). If the vehicle fails to start on the first attempt, the system will try
(2) more times before aborting the remote start process.
REMOTE ENGINE STOP:
To stop (abort) a remote start, Press and hold Button (II) on the transceiver for about 1½ seconds until it beeps. The
alarm will acknowledge the abort remote start request by transmitting back to the Transceiver with (2) sets of 3 beeps.
The LCD Display will show a Key with slash and the Engine Run icon will flash (2) times and turn off. The will remain
armed if it was armed before the remote start took place. If the vehicle was not armed, it will remain locked after the
remote start abort.
ENTERING A REMOTE STARTED VEHICLE:
To enter a remote started vehicle, press button (I) to Unlock/Disarm, insert key and turn on to the run position [DO NOT
Turn the key to the Start position or you damage the Starter!], tap on the foot brake to reset the unit and drive away as
normal. The key is now operating the vehicle. The optional ANTI-GRIND feature and can help to avoid starter damage
from turning the key over and re-engaging the starter on a running engine.
IDLE-DOWN:
This mode allows the unit to take over operation of the parked vehicle while the ignition key is removed and you exit the
vehicle. The vehicle is put into a remote running condition before you exit and it will remain running for the
programmed run time or until you come back.
Examples:

•You pull up to a convenience store for a quick stop, "Idle Down" mode keeps engine running when you exit
the vehicle, (with keys in hand) and arm the alarm. When you return, unlock/disarm alarm, turn ignition ON
and drive away.
•Some Turbocharged vehicle manufacturers recommended that the driver leave the car at idle for a short
time after a long or vigorous drive before turning the car off. This allows the turbo to cool down.
With engine running, press and hold the brake pedal and push button (I) on the Transmitter. The parking
lights/remote start will turn ON. Turn Off the Ignition and remove key while engine will remains running. Exit
vehicle and arm the system. The Engine will remain running for programmed run time, until you return, or it can
be turned off at any time through Button (II).
REMOTE START OPERATION
SELF-START MODE: (Programmable)
The vehicle can be programmed to start every 1 or 2 hours automatically during extreme weather conditions.
DO NOT leave vehicle in a closed garage with this feature activated! First make sure the self-start mode
has been enabled with program option #8. (Unit starts every 2 hours by default). Use program option #9 to
change interval time if needed. To start self-starting mode, press and hold the brake pedal and the Valet
button, then Button (II) on the transceiver for about a second. The parking lights will flash 5 times, and the
vehicle will automatically start and run for about 30 seconds then turn off by itself. From this point on, as long
as you don not press the brake pedal or the Remote Start button on the Transmitter, the vehicle will start by
itself after the pre-programmed time period (1 or 2 hours). Vehicle will self-start a maximum of 12 times.
After that, you will need to go through the brake/override/button (II) procedure again.
ANTI-GRIND / STARTER DISABLE (Optional)
Prevents the user from accidentally grinding the starter if the Ignition key is turned too far to the start position while
engine is already running from the remote starter. Starter circuit is automatically disabled when alarm is armed to
protect the vehicle from “Hot Wiring”.
HOOD OPEN & BRAKE PEDAL SAFETY CIRCUITRY
Both the hood pin and brake switch will prevent the engine from being remote started. Both circuits will also cause a
remote started engine to shut down if activated while running. This helps eliminate the risk of injury to someone
working under the hood or tampering of the vehicle. If a Remote start is requested with the hood/brake active, the
lights will flash twice and the unit will not attempt a start.
**IMPORTANT NOTES**

1. This unit will remote start whether the alarm is on or off. Starting the engine will not trigger the alarm system if it
is in the armed mode when performing a remote start.
2. The vehicle will still be protected when armed/remote started. If a door/hood/trunk is opened, the alarm will
trigger and the engine will shut down automatically.
3. Quickly pressing button 3 will reset any active message icons on the LCD display.
4. If the alarm is triggered by opening the hood, the LCD Display will show and page as a trunk violation. The LCD
remote does not have a separate Hood-Opening Icon.
5. The control module may not respond to multiple commands. You must allow up to 8 seconds between functions
because the unit is sending/paging information to remote/pager.
6. Valet mode inhibits the alarm, remote start, and in-car page/call features.
TRANSCEIVER REMOTE CONTROL PROGRAMMING
The supplied 2-Way Pager/Remote-Transceiver(s) is programmed from the factory to operate the system. In
the event you need to add another transmitter, or reprogram any transmitter to the system, follow the procedure
below. ALL TRANSMITTER CODES MUST BE LEARNED DURING ONE PROGRAMMING SESSION.
NOTE: The Unit will learn a total of (2) Pager/Remote-Transceivers only
1. Turn ignition on and off 3 times within 5 seconds leaving it on the 3rd time. (on/off, on/off, on) A single siren
chirp should sound if this was performed correctly.
2. Press the override/program button for approx. 5 seconds until 5 siren chirps are heard.
3. Press the (I) button on the transceiver. You should hear a single siren chirp when the code is accepted, then
and press button (I) for an additional transceiver if necessary.
4. Turn the ignition off and wait a few seconds before trying the one or both transceivers.
DIAGRAM:

IGN
OFF
TURN IGN. ON
3 TIMES:
ON, OFF
ON, OFF
ON.
1 CHIRP
PRESS AND
HOLD BUTTON
PRESS BUTTON 1
3 CHIRPS
2 FLASHES
IGN
OFF
TURN IGN. OFF
I
1 CHIRP
I
OR
PRESS BUTTON 1
ON A 2nd REMOTE
2 CHIRPS
TROUBLESHOOTING
UNIT SHUTS DOWN 4-5 SECONDS AFTER REMOTE STARTING:
In some vehicles, the unit may not sense the engine/voltage when in Full Tachless mode. Turn Dip switch #4 OFF and
wrap the gray wire around a plug/coil wire. The module will now sense inducted RF/Engine noise in the gray wire allow
the engine to stay running longer than 4-5 seconds.
UNIT CRANKS VEHICLE BUT ENGINE NEVER STARTS: (4 parts)
1. In some vehicles, there may be a Factory anti-theft system that will not allow the engine to run without the key in the
ignition. These systems may include Factory Security Modules, GM Passkey®/Passlock®, and RF Transponder
systems (Ford P.A.T.S.®). Many late 1990’s and 2000 vehicle include some type of Anti-Theft systems, even on base
or low-level models.
2. Cranking time may need to be set longer. Turn Dip switch #3 to the OFF position to increase cranking time to 1.25
seconds.
3. This system may not be compatible with Hard Starting, Out-of-Tune, or Older Vehicles that require a cranking time of
more than 1.25 Seconds. (This unit does not use Engine RPM to determine cranking time.)

4. The vehicle may have more than one Ignition/or Accessory circuit that requires power for the vehicle to start.
Common on some GM/Toyota vehicles.
VEHICLE STARTS BUT CHECK ENGINE LIGHT COMES ON OR ENGINE RUNS BADLY: (2 parts)
1. Some 1990’s GM cars/trucks require a secondary ignition circuit for the Transmission computer. If the vehicle is
starter without this wire energized, the vehicle will display a “Check Engine” or “Service Engine” light on the dash. This
may cause transmission damage if the vehicle is driven. Be sure to check for and additional WHITE (or GREEN)
Ignition wire on Late 90’s GM vehicles and trucks.
2. Some Vehicles (Commonly Nissan) require 2 Start (Cranking) circuits for the vehicle to run properly. If this is the
case, then an additional relay must be installed (triggered off of the VIOLET Start output wire). Connected to the Extra
start relay output to the extra start wire in the vehicle.
STARTER DOES NOT ENGAGE FOR REMOTE START WHEN ARMED:
If there are many external relays added to your CS2005FM installation, the electronic noise created by the relay coils
shuts down the remote start portion of the system. Add 1-Amp diodes across the coils of the external relays (Terminals
85-86).
NO RESPONSE FROM EITHER TRANSMITTER: (4 Parts)
1. Check for proper power/ground wiring connections.
2. Check Antenna Module connection. The antenna module included with this system must be plugged in to allow the
unit to send/receive signals.
3. The remote Transceiver(s) may need to be reprogrammed to operate the system. See Page 17.
4. The remote Transceiver may be damaged or need a new “AAA” battery.
WIRING DIAGRAMS
OPTIONAL STARTER DISABLE / ANTI-GRIND (Relay not included):

TO
IGN 2/ACC MOTOR
START
CUT
VIOLET
OPTIONAL
STARTER DISABLE
ORANGE
86 85
NOTE: MAKE CERTAIN TO CONNECT VIOLET START OUTPUT
WIRE TO THE MOTOR SIDE OF ANTI-GRIND /
IGN 1
IGNITION
SWITCH
ANTI-GRIND
RELAY
STARTER DISABLE RELAY
OPTIONAL DOME LIGHT ILLUMINATION (Relay not included):
+12V BAT.
+
8685
+
87
30
DOOR PIN SWITCH DOME LIGHT
RED/BLACK
(-) DOME ILLUMINATION
CONNECTS TO
EITHER +12V or
GROUND, DEPENDING
ON THE TYPE OF
DOME LIGHT CIRCUIT
