Crosley CR7018A User manual

CR7018A
Haydn Entertainment Center
Instruction Manual
Questions, problems, missing parts?
Before returning to the store, call Customer Service
8 a.m. –6 p.m., EST, Monday –Friday
1-888-CROSLEY
www.crosleyradio.com

English
2
Safety Instructions
Read and understand this entire manual before using this product. Keep
these instructions for future reference.
1. Do not use this product near water.
2. This product should be operated only by the type of power source
indicated on the marking label or in this instruction manual.
3. Do not defeat the safety purpose of the polarized plug. A polarized plug
has two blades with one blade wider than the other. This plug will fit into
the power outlet only one way. If you are unable to insert the plug fully into
the outlet try reversing the plug. If the plug should still fail to fit, contact
your electrician.
4. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
product.
5. Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire or electric
shock.
6. Never push objects of any kind into this product through openings as they
may touch dangerous voltage points or short-out parts that could result in
a fire or electric shock. Never spill liquid of any kind on the product.
7. Do not attempt to service this product yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer
all servicing to qualified service personnel.
8. Changes or modifications to this unit not expressly approved by the party
1. responsible for compliance could void the user’s authority to operate
the equipment.
9. Do not use attachments not recommended by the product manufacturer
as they may cause hazards.
10.A product and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the product
and cart combination to overturn.
11.Slots and openings in the cabinet are provided for ventilation and to
ensure reliable operation of the product and to protect it from overheating.
Do not block or cover these openings.
2. 12. Unplug the product during lightning storm or when unused for long
periods of time.

English
3
Items in this package
Before throwing away any packaging materials, please check thoroughly
and make sure you find the following items that come along with this
package:
Turntable
45 RPM adapter
3.5mm aux in cable
Please contact Crosley customer service if there is any accessory missing
from the package. Retain the original packaging materials for exchange or
return purposes.
Specifications
Power 120V, 60Hz
Power consumption 15W
Speaker 3.5”, 8Ω, 5W x 2
Turntable speed 331/3, 45, 78 RPM
Replacement needle Crosley NP6
Note:
•Design and specifications are subject to change without notice.
•To help save power consumption, some models will comply with ERP
energy saving standard. When there is no audio input for 20 minutes,
their powers will automatically cut-off. To turn power back on and
resume playing, you will need to turn off the power and turn it on again.

English
4

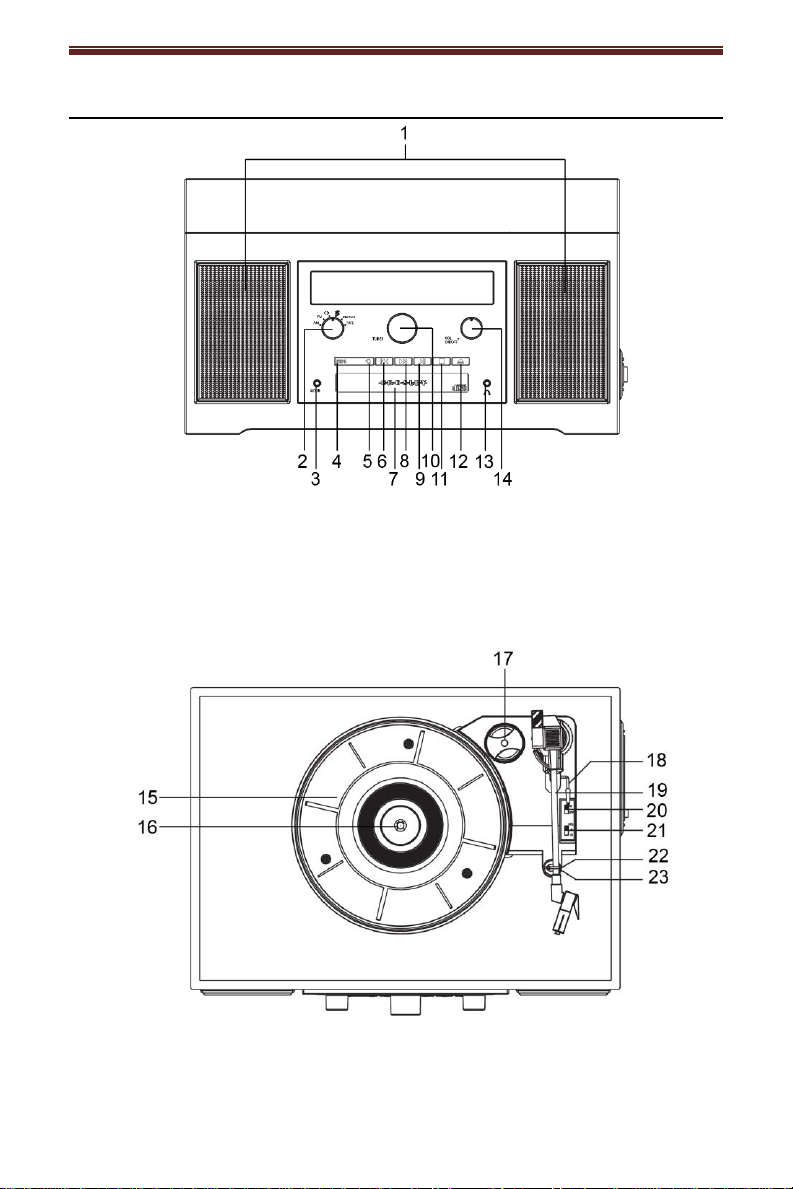

Product Description
1. Speakers
2. Function Knob
3. Aux In Jack
4. Program Button
5. Repeat Button
6. Backward Skip Button
7. CD Tray
8. Forward Skip Button
9. Play/Pause Button
10.Tuning Knob
11.Stop Button
12.CD Door Open/Close Button
13.Headphone Jack
14.On/Off Volume Knob
15. Turntable Platter
16. Turntable Spindle
17. 45 RPM Adapter
18. Tonearm Lever
19. Tonearm
20. Auto-stop Switch
21. Speed Switch
22. Hold Down Clip
23. Tonearm Rest

English
5
24.External Antenna
25.Power Cord Plug
26.Cassette Eject/Fast Forward
Button
27.Cassette Door

English
6
Initial Setup
Essential Setup
1. Place the unit on a flat and level surface. The selected location should
be stable and free from vibration.
2. Remove the tie-wrap that is holding the tonearm.
3. Plug the power cord to the power outlet.
Aux Input Connection
You can connect an audio device to this unit and play your music through
its speakers. To do this, connect the 3.5mm auxiliary cable between your
audio device and the Aux In Jack of this unit and start playing the music.
Note: The aux in connection has the highest priority of all the functions. When there is
an auxiliary cable plugged in, the aux in connection will automatically override the
Bluetooth, turntable, CD, radio or cassette mode. To resume using the other features
of the unit, unplug the auxiliary cable from the aux in jack.
Bluetooth Operation
1. Set the Function Knob to the Bluetooth position, you will hear an activation
sound from the unit.
2. Turn on the Bluetooth feature of your audio device, search for “CROSLEY
CR7018A” and pair.
3. Once your device is successfully paired with the unit, you will hear a short
confirmation sound from the unit.
4. Play and stream music from your device to the unit.
Note: Bluetooth version –5.0

English
7
Turntable Operation
1. Rotate the On/Off Volume Knob to turn on the power.
2. Set the Function Knob to the PHONO position.
3. Set the Speed Switch accordingly.
4. Place the record on the turntable. Use the 45 RPM Adapter if necessary.
5. Remove the stylus protector from the stylus assembly.
Note: To avoid stylus damage, make certain the included stylus guard is in place
whenever the turntable is being moved or cleaned.
6. Release the tonearm Hold Down Clip.
Note: When the turntable is not in use, remember to lock back the hold down clip.
7. Use the Tonearm Lever to lift up the tonearm.
8. Gently move the tonearm over the record where play is desired to begin. Set
the Tonearm Lever back to the down position, the tonearm will descend
slowly onto the record and begin to playback.
9. When the record is finished playing, use the Tonearm Lever again to raise the
tonearm and then return it to the Tonearm Rest. Release the lever to let the
tonearm sit back at its rest. To suspend the playback, repeat the same steps.
10.Lock the Hold Down Clip to secure the tonearm.
Platter Auto-stop
If the Auto-stop Switch is set to ON position, the platter will stop spinning
automatically when the record plays to the end. In some rare occasion, if
the turntable stops playing before the end of the record, set the switch to
OFF position the turntable should overcome this issue.

English
8
Needle Replacement
Removing Needle
1. Gently pull down the front edge of the needle.
2. Pull needle forward.
3. Pull out and remove.
Installing Needle
1. Position the needle with its tip facing down.
2. Line up the back of the needle with the cartridge.
3. Insert the needle with its front end at a downward angle and gently lift
the front of the needle upward until it snaps into place.
Radio Operation
1. Set the Function Knob to AM or FM position.
2. Rotate the Tuning Knob for desired radio station.
Note:
•The unit is equipped with a FM wire antenna. To improve FM reception, move the
wire around until the reception is clear without interferences. Do not connect the
wire to any additional antenna.
•The AM antenna is built inside the unit. If AM reception is poor, try to rotate the
unit for better reception.

English
9
CD Playback Operation
1. Set the Function Knob to CD position.
2. Press the Open/Close button to open the CD tray and put the CD in the
tray with the labeled side facing up.
3. Press the Open/Close button again to close the tray. The LED display will
show “--“ for a few seconds, then the total number of tracks on the CD. If it
is a blank CD or an unrecognizable CD, it will show “00”.
Note: MP3 or similar types of digital audio files can not be read by the CD player.
4. Press the Play/Pause button to start the playback. The Play Indicator will
light up.
5. During the playback, press the Play/Pause button to pause and the Play
Indicator will starting flashing. Press it again to resume playback.
6. To skip to the next or previous track, press the Forward Skip or Backward
Skip button correspondingly.
7. To search fast forward or backward a track, press and hold the Forward
Skip or Backward Skip button correspondingly until you reach the desired
time. Release the button and the playback will resume.
8. To repeat a specific track, press Repeat button once while that track is
playing and the Repeat Indicator will start flashing. To repeat all the tracks,
press the Repeat button twice and the Repeat Indicator will remain on. To
cancel repeat function, press the Repeat button until the Repeat Indicator
is off.
9. Press the Stop button if you want to completely stop playback.
Programmed Playback
1. Before starting the playback, press the Program button once to enter
program mode. Program Indicator will start flashing. The LED display
will flash “01” as the track sequence which is to be edited.
2. Press the Forward Skip or Backward Skip buttons to select the
desired track that you would like to play. The LED’s number will turn
steady instead of flashing, showing the sound track number at
selection.
3. Press the Program button to confirm the selected track. The LED’s
number will start flashing again showing the next track sequence which
is to be edited.
4. Repeat steps 2 & 3 for additional sound tracks that you would like to play.
The tracks can be in any number and repeated. A maximum of 20 tracks
can be programmed at one time.
5. Press Play/Pause button to start the programmed playback. The
tracks will play in the same sequence that you programmed earlier.
6. To exit the program mode, press the Stop button twice and the Program
Indicator will be off.

English
10
Cassette Operation
1. Set the Function Knob to TAPE position.
2. Insert the prerecorded cassette through the cassette door and it will
start playing automatically.
3. To fast forward, press the cassette Eject/F.F button half way in. To stop
fast forwarding and return to the playback mode, press the button again.
Note: To rewind the cassette, you would need to eject the tape and flip it over to
the other side and fast forward.
4. To stop the playback and eject the cassette, press the Eject/F.F. button all the
way in.
5. When one side of the cassette finishes playing, it will stop automatically.
Note: Remove the cassette from the cassette holder when it is not in use.
Turntable Maintenance
1. Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the
turntable mat or a record’s edge.
2. Clean the stylus frequently with a soft brush with a back-to-front motion only.
3. Clean the records to get rid of dust or grease with a record cleaning
brush and record cleaning solution.
4. Clean the turntable lid and turntable cabinet with a slightly damped
microfiber cloth.
Note: Do not use cleanser that contains alcohol, benzene or any other harsh
chemicals, which might damage the paint and finish of the turntable.
** Crosley offers a product line of different cleaning accessories. Please
ask your retailer or check out our website www.crosleyradio.com for
more cleaning product information.

English
11
Troubleshooting
There is no power
•No power at the power outlet.
•To help save power consumption, some models will comply with ERP energy
saving standard. When there is no audio input for 20 minutes, its powers will
automatically cut-off. To turn power back on and resume playing, turn off the
main power switch and turn it on again.
Power is on, but the platter does not turn
•Function switch is not set to Phono/Tape.
•Turntable’s drive belt has slipped off.
•An aux in cable is plugged into the aux in jack, unplug it.
•Cassette Tape is inserted, eject it.
Turntable is spinning, but there is no sound, or sound not loud enough
•Stylus protector is still on.
•Tone arm is lift up by the lever.
•Headphone is plugged in.
CD does not play
•Function switch is not set to CD.
•The CD is blank.
•The CD is placed on the tray incorrectly with the label side facing down.
•The CD has unsupported digital audio files like MP3 and similar types
of format.
•The CD has too many scratches or dirty.
Cannot pause the cassette
•The feature is not available and you have to stop the cassette completely.
