Crown CTs 4200 USP/CN User manual

(For amplifier features, see the CTs multichannel amplifier datasheet.)

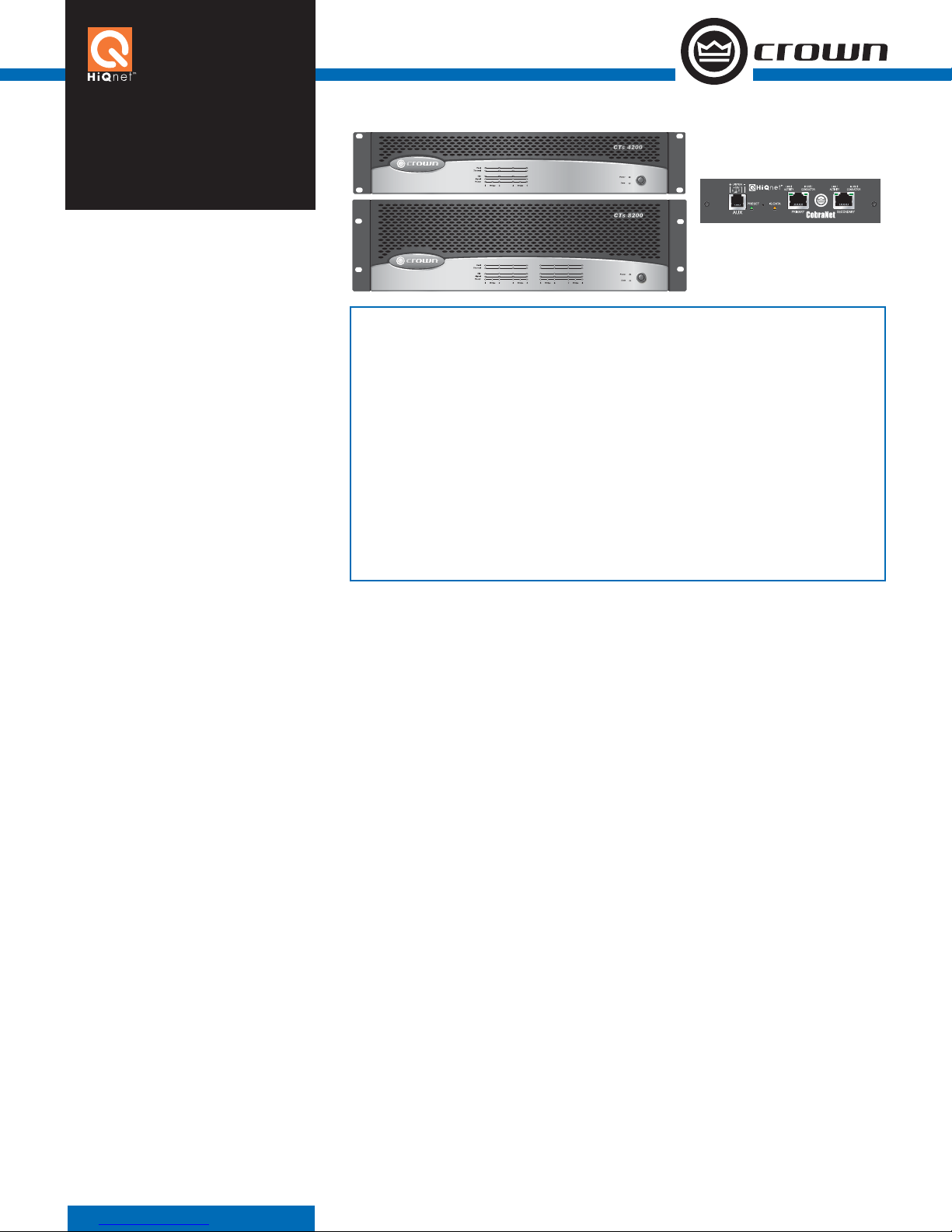

CTs 4200USP/CN
CTs 8200USP/CN
CTs SERIES
The Crown® CTs 4200USP/CN and CTs
8200USP/CN power amplifiers have an
integrated 3rd generation, DSP-based
PIP™ (Programmable Input Processor) input
module. It connects the amplifier to a 100
Mbps Ethernet network allowing it to be
remotely controlled and monitored via System
Architect™ software. In addition, the input
module allows the transport of real-time digital
audio via CobraNet™ over the same Ethernet
network.
The CTs 4200USP/CN and CTs 8200USP/CN
amplifiers connect to a HiQnet™ audio con-
trol/monitor network using standard 100
Mbps Ethernet hardware (switches, Network
Interface Cards, and cables). CobraNet™ audio
is available over the same 100 Mbps Ethernet
network, providing a simple-to-install, single-
plug solution for audio distribution, control,
and monitoring.
The input module’s SHARC DSP processors
give the user an enormous amount of digital
signal processing. Audio routing, faders,
meters, polarity & mute, input compressors,
filters, delays, multimode output limiters, error
reporting, and load monitoring are all avail-
able. A built in noise generator and sine-wave
generator provide noise masking and test
capabilities. The enhanced AUX port capability
allows the user to interface with the amplifier
to provide external manual control and moni-
toring.
These amplifiers require Harman Pro System
Architect software available from www.crown-
audio/forums.
For more details about the Crown
CTs 4200USP/CN and CTs 8200USP/CN, contact
the Crown Technical Support Group at 800-
342-6939 or 574-294-8200. Also, visit the
Crown Audio website at www.crownaudio.com.
Input Module Specifications
Connectors:
AUX Connector
Configurable for AUX input, AUX output and
Listen Bus. Listen Bus is also supported
through CobraNet.
Network Connector
The dual RJ45 CobraNet connectors allow a
Primary & Secondary connection to the 100Mb
Ethernet network. Should the Primary connec-
tion lose link activity with the network, the input
module will automatically switch to the Second-
ary connection to ensure uninterrupted audio
and control. The indicators on the RJ45 con-
nectors display network information concerning
the Ethernet and CobraNet connections.
Indicators:
Preset Indicator
Signals the number of the current preset, if
active, by flashing a series of flashes equal to
the current preset number.
IQ Data Indicator
Flashes when the module receives a valid
command that is addressed to the CTs 4200
USP/CN and CTs 8200USP/CN.
Switches:
Reset/Preset Switch
Used to change presets, restore settings to
factory default or restore all the presets to
the factory defaults. During operation of the
switch, the Data indicator flashes as an aid to
the user. Accessible with a straightened paper
clip through the rear panel, the switch selects
the next user preset if pressed for less than
2 seconds, resets the module to preset “0” if
pressed for more than 2 seconds.
General:
Memory Backup: Non-volatile FLASH memories
for backup of run-time parameters, presets, and
program storage.
Communications: 100Mb Fast Ethernet con-
forming to IEEE 802.3.
Overall Audio Performance:
DSP Processing: Two processors, 32 bit,
Floating Point, 724 µs latency.
D/A and A/D Conversion: 24 bit.
Latency:
DSP processing: 1 ms or 1000 µs.
Digital-to-analog conversion: 250 µs.
Analog-to-digital conversion: 250 µs.
Amplifier: 100 µs.
Total: 1.6 ms or 1000 µs.
Dynamic Range: 103 dB typical (A-
weighted, 20Hz–20kHz, audio sourced from
muted CobraNet channel).
Distortion: < 0.1% THD+N, 20Hz–20kHz.
Frequency Response: ± 0.5 dB, 20Hz–
20kHz.
Input/Output Monitor Accuracy: Typically
±1dB.
Maximum Input Level: + 20 dBu.
Input Module Features
• 100 Mbps Ethernet single-plug solution for
CobraNet audio, and HiQnet control and moni-
toring
• Analog audio inputs allow CobraNet network
audio input, CobraNet audio backup, or a hard-
wire emergency override of CobraNet audio
• 24 bit digital to analog conversion with 32 bit,
floating point DSP processing
• Up to 18 assignable filters per channel with 9
different filter types including all-pass filters
• Over 2 seconds of delay available per
channel
• Input compressors and output limiters for each
channel
• Dual, uncorrelated noise generators for
noise masking
• Sine generator
• Load supervision
• Full error reporting
• Firmware upgrades via the network
• 10 user selectable presets
• Reliable FLASH memory backup of all
parameters
• Three Year, No-Fault, Fully Transferable
Warranty completely protects your invest-
ment and guarantees its specifications
Input module
on back panel

Crown International
1718 W. Mishawka Rd.
Elkhart, IN 46517-9439
TEL: [phone]
FAX: [phone]FAX
www.crownaudio.com
Amplifier Specifications
(For more detail, refer to the CTs
multichannel amplifier datasheet)
Minimum Guaranteed Power: See power
charts at right.
Frequency Response (at 1 watt, 20 Hz - 20
kHz): ±0.5 dB.
Phase Response (at 1 watt, 10 Hz - 20 kHz):
±35°.
Signal to Noise Ratio below rated power (20
Hz to 20 kHz): 100 dB unweighted.
Total Harmonic Distortion (THD) at 1 watt,
from 20 Hz to 20 kHz: < 0.05%.
Intermodulation Distortion (IMD) 60 Hz and 7
kHz at 4:1, from 163 milliwatts to full band-
width power: < 0.05% (typical).
Damping Factor: 10 Hz to 400 Hz: >180.
Crosstalk (below rated power, 20 Hz to 1
kHz): > 80 dB.
Common Mode Rejection (CMR) (20 Hz to 1
kHz): > 50 dB.
DC Output Offset (shorted input):< ±5 mV.
Input Impedance (nominal): 20 kilohms bal-
anced, 10 kilohms unbalanced.
Maximum Input Level (before input compres-
sion): + 20 dBu.
Load Impedance: (Note: Safe with all types of
loads)
Stereo: 4/8 and 25 ohms (70V)
Bridge Mono: 8/16 and 50 ohms (100V)
Voltage Gain (at maximum level setting),
1.4V sensitivity,
4/8 Ohm Operation: 20:1 (26 dB);
70V Operation: 50:1 (34 dB)
100V Operation: 71.4:1 (37 dB)
Required AC Mains: 120V 60 Hz,
220/230/240V/50 Hz.
Power Draw at Idle (120VAC mains, all chan-
nels in 4/8 ohm mode): 58W.
Power Draw at Idle (120VAC mains, all chan-
nels in 70V mode): 77W.
Cooling: Continuously variable speed forced air,
front-to-back airflow.
Dimensions (Width, Height, Depth):
CTs 4200USP/CN: 19 in. (48.3 cm) W x 3.5
in. (8.9 cm) H x 16.25 in. (41.3 cm) D.
CTs 8200USP/CN: 19 in. (48.3 cm) W x 5.25
in. (13.3 cm) H x 16.25 in. (41.3 cm) D.
Front Panel Indicators
Bridge mode
Ready
Signal
Clip
Thermal
Fault
Data
Power
Front Panel Controls
Power switch
Back Panel Controls
Channel level controls
Dual/bridge-mono mode switch
Back Panel Connectors
Output Connectors: One four-pole terminal
strip for every two channels with touch-proof
cover. Accepts up to 10 AWG terminal forks.
Input Connectors: Removable Phoenix-style
barrier connectors for balanced input. Also can
be used as a CobraNet input or a backup for
CobraNet.
Protection Systems
Thermal Level Control
Fault Isolation Topology
Fault
Highpass filter
AC under/over voltage protection
Power fuse
Inrush limiting
Variable speed fan
4-ohm (per ch.)
8-ohm (per ch.)
70V (per ch.)
1 kHz
CTs 8200USP/CN
20 Hz–20 kHz
Dual
8 Channels Driven
200W
160W
200W
175W
155W
185W*
*
4-ohm (per ch.)
8-ohm (per ch.)
70V (per ch.)
1 kHz 20 Hz–20 kHz1 Channel Driven
270W
220W
250W
230W
220W
230W
8-ohm (per ch. pair)
16-ohm (per ch. pair)
100V (per ch. pair)
1 kHz 20 Hz–20 kHz
Bridge-Mono
4 Channel-Pairs Driven
400W
320W
200W
350W
310W
185W*
*
8-ohm (per ch. pair)
16-ohm (per ch. pair)
100V (per ch. pair)
1 kHz 20 Hz–20 kHz1 Channel-Pair Driven
540W
440W
250W
460W
440W
230W
Maximum Average Power
in watts with 0.1% THD.
* Constant Voltage full bandwidth power ratings support
100Hz - 20kHz due to automatic High-Pass Filters.
4-ohm (per ch.)
8-ohm (per ch.)
70V (per ch.)
1 kHz
CTs 4200USP/CN
20 Hz–20 kHz
Dual
4 Channels Driven
260W
180W
220W
215W
190W
220W*
*
4-ohm (per ch.)
8-ohm (per ch.)
70V (per ch.)
1 kHz 20 Hz–20 kHz1 Channel Driven
270W
220W
250W
225W
210W
245W
8-ohm (per ch. pair)
16-ohm (per ch. pair)
100V (per ch. pair)
1 kHz 20 Hz–20 kHz
Bridge-Mono
2 Channel-Pairs Driven
520W
400W
220W
430W
380W
220W*
*
8-ohm (per ch. pair)
16-ohm (per ch. pair)
100V (per ch. pair)
1 kHz 20 Hz–20 kHz1 Channel-Pair Driven
560W
440W
250W
450W
420W
245W
Maximum Average Power
in watts with 0.1% THD.
* Constant Voltage full bandwidth power ratings support
100Hz - 20kHz due to automatic High-Pass Filters.
2/08
Crown’s Three-Year, No-Fault, Fully Transferable Warranty
Crown offers a Three-Year, No-Fault, Fully Transferable Warranty for every new Crown amplifier—
an unsurpassed industry standard. With this unprecedented No-Fault protection, your new Crown
amplifier is warranted to meet or exceed original specifications for the first three years of owner-
ship. During this time, if your unit fails, or does not perform to original specifications, it will be
repaired or replaced at our expense. About the only things not covered by this warranty are those
losses normally covered by insurance and those cuased by intentional abuse. And the coverage is
transferable, should you sell your amplifier.
See your authorized Crown dealer for full warranty disclosure and details. For customers outside
of the USA, please contact your authorized Crown distributor for warranty information or call
574-294-8200.
Specifications subject to change without prior notice. Latest
information available at www.crownaudio.com and
iqaudiosystems.com.
