Crown 4S User manual

MORTAR MIXER MODELS:
4S, S4S, 5S, 6S, 6SR, S6SR, 6PR,
8S, S8S, 8P, 10S, S10S, 12S & S12S
OPERATOR'S MANUAL
SERIES
BULLETIN No.
SUPERSEDES
DATE
MM ~ Mech.
200078-R04
200078-R03
May 2004
www.discount-equipment.com
Discount-Equipment.com

Discount-Equipment.com is your online resource for commercial and industrial
quality parts and equipment sales.
Locations:
Florida (West Palm Beach): 561-964-4949
Outside Florida TOLL FREE: 877-690-3101
Need parts? Check out our website at www.discount-equipment.com
Can’t find what you need?
Click on this link: http://www.discount-equipment.com/category/5443-parts/ and fill out
the request form.
Please have the machine model and serial number available in order to help us get
you the correct parts. One of our experienced staff members will get back to you with
a quote for the right part that your machine needs.
We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mayco, Toro/Stone,
Diamond Products, Magnum, Airman, Mustang, Power Blanket, Nifty Lift, Atlas Copco,
Chicago Pneumatic, Allmand Brothers, Essick, Miller Spreader, Skyjack, Lull, Skytrak,
Tsurumi, Husquvarna/Target, Whiteman-Concrete/Mortar, Stow-Concrete/Mortar, Baldor,
Wacker, Sakai, Snorkel, Upright, Mi-T-M, Sullair, Neal, Basic, Dynapac, MBW, Weber,
Bartell, Bennar Newman, Haulotte, Ditch Runner, Blaw-Knox, Himoinsa, Best, Buddy,
Crown, Edco, Wyco, Bomag, Laymor, Terremite, Barreto, EZ Trench, Takeuchi, Basic, Bil-
Jax, Curtis, Gehl, Heli, Honda, ICS/PowerGrit, Puckett, Waldon, ASV, IHI, Partner, Imer,
Clipper, MMD, Koshin, Rice, Gorman Rupp, CH&E, Cat Pumps, Comet, General Pump,
Giant,AMida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,
Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, Small Line, Wanco, Yanmar
Discount-Equipment.com

TABLE OF CONTENTS
SECTION DESCRIPTION
Proposition 65................................................................................ i
1 Introduction .........................................................................................1
2 Safety...............................................................................................2
2.1 General Safety..............................................................................3
2.2 Operating Safety.........................................................................4
2.3 Maintenance Safety ...................................................................5
2.4 Transport Safety ..........................................................................5
2.5 Tire Safety ......................................................................................5
2.6 Storage Safety..............................................................................5
2.7 Refueling Safety ..........................................................................6
2.8 Electrical Safety ...........................................................................6
2.9 Safety Signs...................................................................................6
2.10 Sign-O Form...............................................................................7
3 Safety Sign Locations ................................................................8
4 Operation.................................................................................... 13
4.1 To the New Operator or Owner .......................................... 13
4.2 How The Machine Works....................................................... 14
4.3 Pre-Operation Checklist ........................................................ 15
4.4 Pre-Start Procedures............................................................... 15
4.5 Machine Break-In ..................................................................... 16
4.6 Controls....................................................................................... 17
4.7 Operating ................................................................................... 19
4.8 Transporting .............................................................................. 28
4.9 Storage ........................................................................................ 31
5 Service and Maintenance ..................................................... 32
5.1 Service ......................................................................................... 32
5.1.1 Fluids and Lubricants ................................................................................... 32
5.1.2 Greasing ............................................................................................................ 32
5.1.3 Servicing Intervals ......................................................................................... 33
5.1.4 Service Record ................................................................................................ 38
5.2 Maintenance.............................................................................. 39
5.2.1 Engine Oil Changing..................................................................................... 39
5.2.2 Engine Speed Setting................................................................................... 40
5.2.3 Air Cleaner Maintenance............................................................................. 41
5.2.4 Belt Tension and Alignment....................................................................... 42
5.2.5 Wiper Spacing and Replacement............................................................. 43
5.2.6 Gearbox Oil Changing.................................................................................. 44
6 Trouble Shooting ..................................................................... 45
7 Specications ............................................................................ 46
7.1 Mechanical................................................................................. 46
7.2 Bolt Torque................................................................................. 47
8 Index............................................................................................. 48
i
Discount-Equipment.com

WARNING
CALIFORNIA - Proposition 65 Warning
Engine exhaust and some of its constituents and some dust created by power sanding, sawing,
grinding, drilling and other construction activities contains chemicals known to the State of California
to cause cancer, birth defects and other reproductive harm.
Some examples of these chemicals are:-
Lead from lead-based paints
Crystalline silica from bricks
Cement and other masonry products
Arsenic and chromium from chemically
treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals:
ALWAYS work in a well ventilated area, and work with approved safety equipment, such as dust
masks that are specially designed to lter out microscopic particles.
1 INTRODUCTION
Congratulations on your choice of a Crown Construction Equipment Mortar Mixer to complement your construction
operation. This equipment has been designed and manufactured to meet the needs of a discriminating buyer for the
ecient mixing of mortar or plaster.
Safe, ecient and trouble free operation of your Crown Mortar Mixer requires that you and anyone else who will be
operating or maintaining the Mixer, read and understand the Safety, Operation, Maintenance and Trouble Shooting
information contained in the Operator's Manual.
This manual is applicable to all the Model 4S, 5S, S5S, 6S, 6SR,
S6SR, 6PR, S8S, 8S, 8P, 10S, S10S,12S and S12S Mortar Mixers built
by Crown Construction Equipment. Use the Table of Contents or
Index as a guide when searching for specic information.
Keep this manual handy for frequent reference and to pass on to
new operators or owners. Call your Crown Construction Equip-
ment distributor or dealer if you need assistance or information.
OPERATOR ORIENTATION - The directions left, right, front and rear,
as mentioned throughout this manual, are as seen from behind
the machine and facing in the direction of towing.
Discount-Equipment.com

Accidents Disable and Kill
Accidents Cost
Accidents Can Be Avoided
Why is SAFETY important to you?
3 Big Reasons
ation that, if not avoided, will result in
death or serious injury. This signal word
is to be limited to the most extreme situ-
ations, typically for machine components
that, for functional purposes, cannot be
guarded.
Indicates a potentially hazardous situ-
ation that, if not avoided, could result
in death or serious injury, and includes
hazards that are exposed when guards
are removed. It may also be used to alert
against unsafe practices.
Indicates a potentially hazardous situ-
ation that, if not avoided, may result in
minor or moderate injury. It may also be
used to alert against unsafe practices.
SIGNAL WORDS:
Note the use of the signal words DANGER,
The Safety Alert symbol identies im-
portant safety messages on the Crown
Mortar Mixer and in the manual. When
you see this symbol, be alert to the
possibility of personal injury or death.
Follow the instructions in the safety
message.
This Safety Alert symbol means
ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
WARNING and CAUTION with the safety
messages. The appropriate signal word for
each message has been selected using the
following guide-lines:
2 SAFETY
SAFETY ALERT SYMBOL
DANGER - Indicates an imminently hazardous situ-
WARNING -
CAUTION -
1
SAFETY
YOU are responsible for the SAFE operation and mainte-
nance of your Concrete Mixer. YOU must ensure that you
and anyone else who is going to operate, maintain or work
around the Concrete Mixer be familiar with the operating
and maintenance procedures and related SAFETY informa-
tion contained in this manual. This manual will take you step-
by-step through your working day and alerts you to all good
safety practices that should be adhered to while operating
the Mixer.
Remember, YOU are the key to safety. Good safety
practices not only protect you but also the people
around you. Make these practices a working part
of your safety program. Be certain that EVERYONE
operating this equipment is familiar with the recom-
mended operating and maintenance procedures and
follows all the safety precautions. Most accidents can
be prevented. Do not risk injury or death by ignoring
good safety practices.
Discount-Equipment.com

2
• Mixerownersmustgiveoperatinginstructions
to operators or employees before allowing them
to operate the machine, and at least annually
thereafter.
• Themostimportantsafetydeviceonthisequip-
ment is a SAFE operator. It is the operator’s
responsibility to read and understand ALL Safety
and Operating instructions in the manual and to
follow these. All accidents can be avoided.
• Apersonwhohasnotreadandunderstoodall
operating and safety instructions is not qualied
to operate the machine. An untrained operator
exposes himself and bystanders to possible seri-
ous injury or death.
• Donotmodifytheequipmentinanyway.
Unauthorized modication may impair the
function and/or safety and could aect the life
of the equipment.

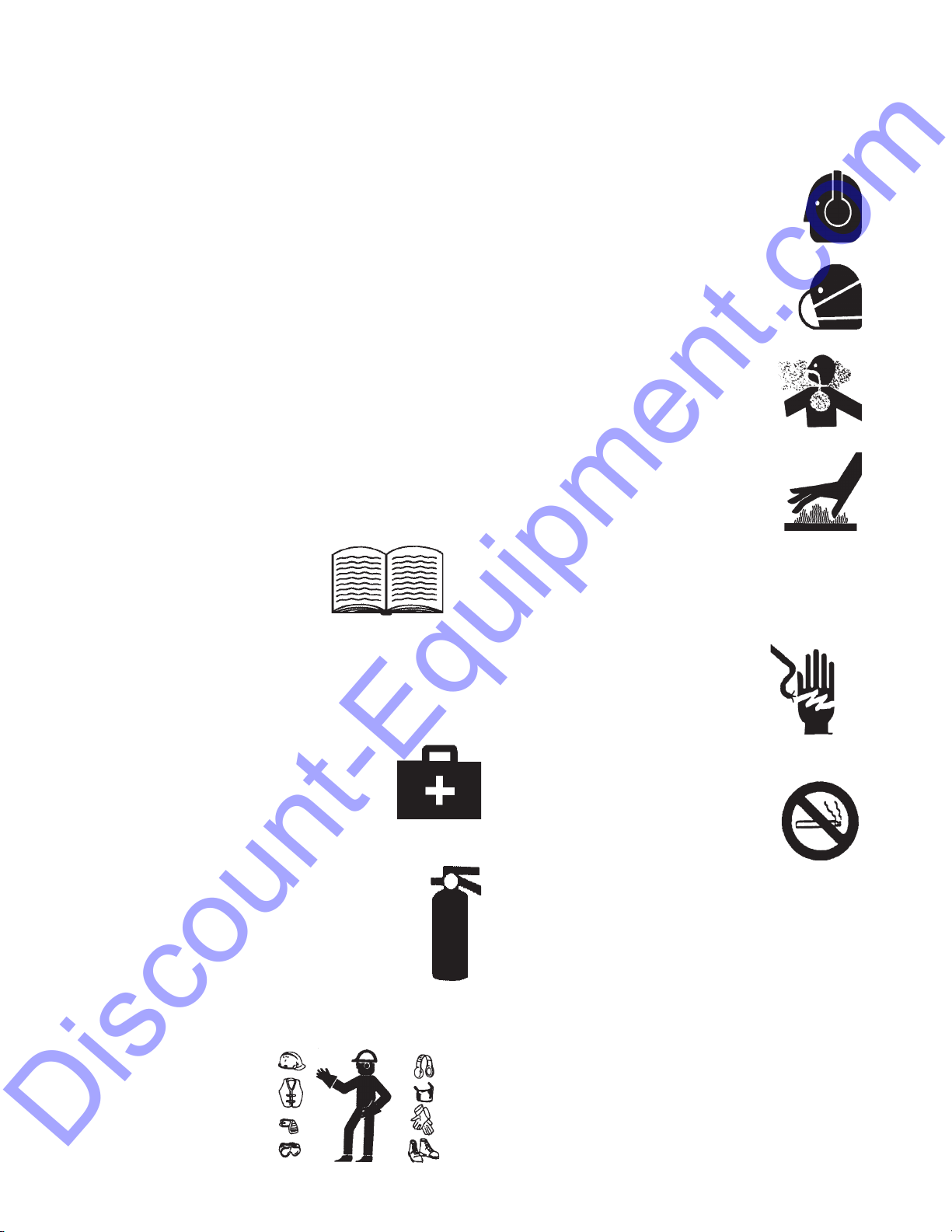

2.1 GENERAL SAFETY
1. Read and understand the
Operator's manual and all
safety signs before
operating, maintaining,
adjusting, servicing or
cleaning the Mixer.
Only trained competent persons shall operate the
Mixer. An untrained operator is not qualied to
operate the machine.
Have a rst-aid kit available for use,
should the need arise and know how
to use it.
Do not allow riders when towing.
Have a re extinguisher available for use
should the need arise and know how to use
it.
Wear appropriate protective gear. This list
includes, but is not limited to:
- A hard hat
- Protective boots
with
slip resistant soles
- Protective goggles
- Heavy gloves
- Hearing protection
2.
3.
4.
5.
6.
Stop engine, disconnect spark plug wire and
wait for all moving parts to stop before servicing,
adjusting, repairing or cleaning.
Wear appropriate hearing protection when
operating for long periods of time.
Dust Hazard ~ Wear appropriate dust
mask around this equipment.
Ventilation ~ Never operate any
gas powered equipment in a poorly
ventilated or enclose area. Avoid
prolonged breathing of exhaust
gases.
Hot Surface ~ Avoid contact with hot
exhaust system and engine.
Allow to cool before performing
repairs or service.
7.
8.
9.
10.
11.
2.1 GENERAL SAFETY
Electrocution Hazard ~ Always
use proper size grounded
extension cord. Inspect all
extension cords for cuts, frayed
wire and broken connectors.
Do not use cords if not in good
condition.
12.
13. Do not refuel the ma-
chine while
smoking or when
near open ame or sparks.
2.2 OPERATING SAFETY
1. Read and understand the Operator’s Manual and all
safety signs before operating, servicing, adjusting, or
cleaning the Mixer.
2. Do not allow riders on the machine during transport.
3. Install, close and secure all guards, shields and hoods
before starting or operating.
4. Stop engine or motor, disconnect spark plug wire or
unplug power cord, and wait for all moving parts to
stop before servicing, adjusting, repairing, or clean-
ing.
Discount-Equipment.com

4
5. Clear the area of all bystanders before starting.
6. Keep hands, feet, hair and clothing away from
moving parts.
7. Keep working area clean and dry to prevent slip-
ping and tripping.
8. Do not run the mixer in an explosive atmosphere
or in a poorly ventilated or enclosed area.
9. Wear appropriate hearing protection when oper-
ating for long periods of time.
10. Always attach safety chain when towing.
11. Do not exceed a safe travel speed when towing.
Slow down for corners and when going over
rough terrain.
12. Review safety instructions with all operators an-
nually.
Gas engine powered units:
•Do not place hands in the drum unless the
engine is OFF and the spark plug wire is discon-
nected.
•Stay away from hot engine components during
operation.
•Do not smoke when refueling gas engine.
Electric motor powered units:
•Do not place hands in the drum unless the motor is
OFF and the power cord unplugged.
•Have a licensed electrician wire up and provide
power to the motor.
•Only use a power cord that is grounded.
•Always use an electrical cord with the required
power carrying capacity.
2.3 MAINTENANCE SAFETY
1. Review the Operator's Manual and all safety
items before working with, maintaining or oper-
ating the Mixer.
2. Stop engine or motor, disconnect spark plug wire
or unplug power cord, and wait for all moving
parts to stop before servicing, adjusting, repair-
ing, or cleaning.
3. Follow good shop practices
4. Keep hands, feet, clothing and hair away from all
moving and/or rotating parts.
5. Do not place hands in the drum unless the
engine is o and the spark plug wire is discon-
nected or the power cord is unplugged.
6. Do not attempt any adjustment or maintenance
to any system of the Mixer unless the power
source is disabled.
7. Make sure that all guards, shields and hoods are
properly installed and secured before operating
the Mixer.
8. Securely support the machine using blocks
or safety stands before working beneath it or
changing tires.
9. Store and transfer gasoline, solvents, cleaners
or any ammable liquids only in safety standard
approved containers.
- Keep service area
clean and dry.
- Be sure electrical
outlets and tools
are properly
grounded.
- Use adequate
light for the job
at
2.4 TRANSPORT SAFETY
1. Read and understand ALL the information in the
Operator’s Manual regarding procedures and
SAFETY when operating the Mixer in the work-
place and/or on the road.
2. Always travel at a safe speed. Use caution when
making corners or on a rough surface.
3. Make sure all the lights and reectors that are
required by the local highway and transport au-
thorities are in place, are clean and can be seen
clearly by all overtaking and oncoming trac.
4. Do not allow riders on any part of the machine
during either road or highway travel.
5. Always use a safety chain between the Mixer and
the towing vehicle when transporting.
Discount-Equipment.com

2.7 REFUELING SAFETY
1. Handle fuel with care. It is highly ammable.
2. Allow engine to cool for 5 minutes before re-
fueling. Clean up spilled fuel before restarting
engine.
3. Do not refuel the machine while smoking or
when near open ame or
sparks.
4. Always use an approved fuel
container.
2.8 ELECTRICAL SAFETY
1. Have a licensed electrician wire up and supply
power to the electric motor.
2. Always use a grounded power cord with the re-
quired capacity to carry the power to the motor.
3. Route the power cord out of the way or protect
from damage.
5. Fill fuel tank outdoors.
6. Prevent res by keeping machine clean of accu-
mulated trash, grease and debris.
5
2.5 TIRE SAFETY
1. Failure to follow proper procedures when mount-
ing a tire on a wheel or rim can produce an explo-
sion which may result in serious injury or death.
2. Do not attempt to mount a tire unless you have the
proper equipment and experience to do the job.
3. Have a qualied tire dealer or repair service per-
form required tire maintenance.
2.6 STORAGE SAFETY
1. Store unit in an area away from human activity.
2. Do not permit children to play on or around the
stored Mixer.
6. Use a mechanical retainer through the ball hitch or
clevis pin before transporting.
7. Ensure wheel nuts and axle hardware are tight.
4. Turn motor o, unplug power cord or turn o
power at master panel and wait for all moving
parts to stop before servicing, maintaining, ad-
justing or cleaning.
5. Keep all electrical components in good condi-
tion.
2.9 SAFETY SIGNS
1. Keep safety signs clean and legible at all times.
2. Replace safety signs that are missing or have become
illegible.
3. Replaced parts that displayed a safety sign should
also display the current sign.
4. Safety signs are available from your Distributor or the
factory.
How to Install Safety Signs:
• Besurethattheinstallationareaiscleananddry.
• Decideontheexactpositionbeforeyouremove
the backing paper.
• Removethesmallestportionofthesplitbacking
paper.
• Alignthesignoverthespeciedareaandcarefully
press the small portion with the exposed sticky
backing in place.
• Slowlypeelbacktheremainingpaperandcarefully
smooth the remaining portion of the sign in place.
• Smallairpocketscanbepiercedwithapinand
smoothed out using the piece of sign backing
paper.
2.10 SIGN-OFF FORM
Crown Construction Equipment follows the general
Safety Standards specied by the Society of Automo-
tive Engineers (SAE) and the Occupational Safety
and Health Administration (OSHA). Anyone who will
be operating and/or maintaining the Crown Mortar
Mixer must read and clearly understand ALL Safety,
Operating and Maintenance information presented in
this manual.
Do not operate or allow anyone else to operate this
equipment until such information has been reviewed.
Annually review this information before the season
start-up.
Discount-Equipment.com

DATE EMPLOYEES SIGNATURE EMPLOYERS SIGNATURE
SIGN-OFF FORM
7
3 SAFETY SIGN LOCATIONS
The types of safety signs and locations on the equipment are shown in the illustration below. Good safety requires
that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particular function
related to that area, that requires your SAFETY AWARENESS.
•ThinkSAFETY!WorkSAFELY!
ROTATING PART HAZARD
KEEP AWAY
To prevent serious injury or death from rotating parts:
1. Install, close and secure all guards, shields and hoods
before operating.
2. Do not place hands in drum unless the motor or engine
is o and the power cord unplugged or the spark plug
wire is disconnected.
3. Keep hands, feet, hair and clothing away from moving
parts.
WARNING
A
201003
BWARNING
guards, shields and hoods before
operating.
MISSING GUARD HAZARD
Install, close and secure all
201004
A
B
C
D
Make these periodic reviews of SAFETY and OPERATION a standard practice for all of your equipment. We feel
that an untrained operator is unqualied to operate this machine.
A sign-o sheet is provided for your record keeping to show that all personnel who will be working with the
equipment have read and understand the information in the Operator’s Manual and have been instructed in the
operation of the equipment.
Discount-Equipment.com

8
C
201154
WARNING
Improper operation of this equipment can cause serious
injury or death.
Read Operator's Manual supplied with this machine before
operation or service.
Modication or alteration of this machine can cause serious
injury or death.
Do not alter or modify this machine without the express
written consent of the manufacturer.
D
WARNING
201353
REMEMBER - If Safety Signs
have been damaged, removed,
become illegible or parts
replaced without safety signs,
new signs must be applied.
New safety signs are available
from your authorized dealer.
3 SAFETY SIGN LOCATIONS
The types of safety signs and locations on the equipment
are shown in the illustration below. Good safety requires
that you familiarize yourself with the various Safety Signs,
the type of warning and the area, or particular function
related to that area, that requires your SAFETY AWARE-
NESS.
•ThinkSAFETY!WorkSAFELY!
EF
ROTATING PART HAZARD
KEEP AWAY
To prevent serious injury or death from rotating parts:
1. Install, close and secure all guards, shields and hoods
before operating.
2. Do not place hands in drum unless the motor or engine
is o and the power cord unplugged or the spark plug
wire is disconnected.
3. Keep hands, feet, hair and clothing away from moving
parts.
WARNING
E
201003
F
E
REMEMBER - If Safety Signs have been damaged,
removed, become illegible or parts replaced without
safety signs, new signs must be applied. New safety
signs are available from your authorized dealer.
Discount-Equipment.com

10

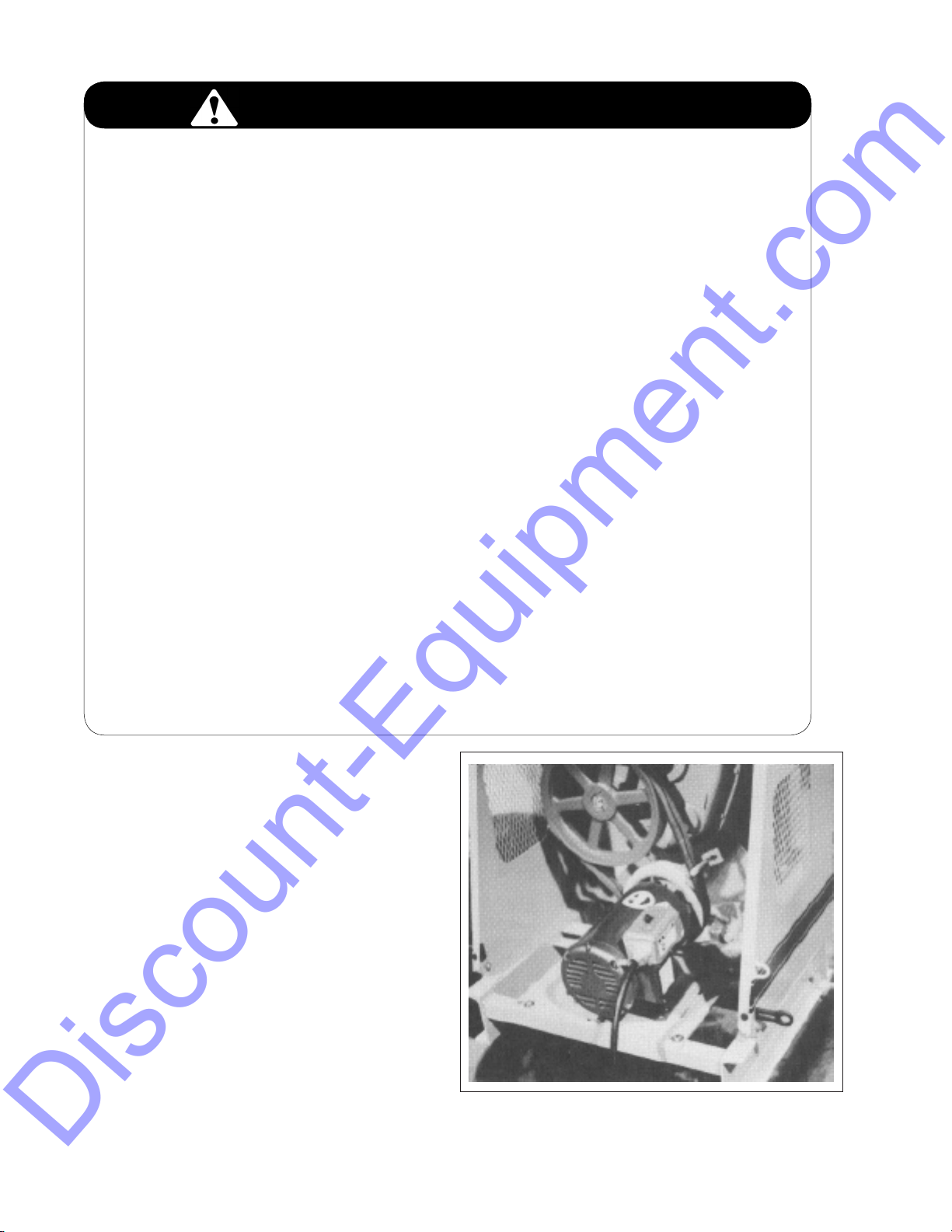

1. Read and understand Operator's Manual and safety signs
before starting.
2. Stop engine, disconnect spark plug wire and wait for all
moving parts to stop before servicing, maintaining, adjust-
ing or cleaning.
3. Keep hands, feet, hair and clothing away from moving parts.
4. Install, close and secure all guards, shields and hoods before
operating.
5. Do not place hands in the drum unless engine is OFF and
spark plug wire is disconnected.
6. Stay away from hot engine components during operation.
7. Do not smoke when refueling.
8. Follow good safety procedures when handling fuel.
9. Do not operate in an explosive atmosphere or a poorly
ventilated area without adequate ventilation.
10. Keep working area dry and clean to prevent slipping and
tripping.
11. Always attach safety chain when towing.
12. Comply with applicable transporting regulations when tow-
ing.
13. Do not allow riders during transporting.
14. Do not exceed a safe travel speed when transporting. Slow
down for corners and when going over rough terrain.
201001
WARNING

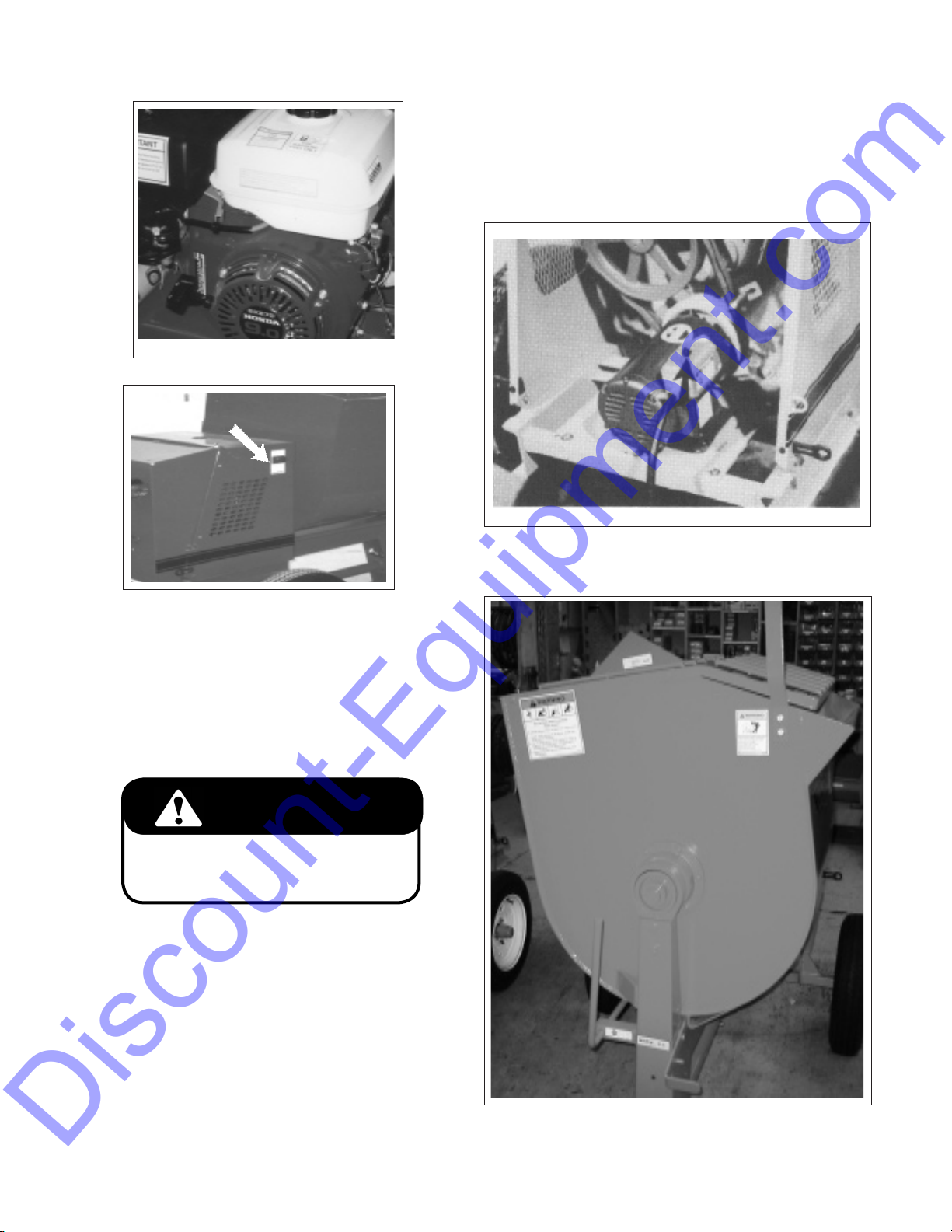

3 SAFETY SIGN LOCATIONS
GAS ENGINE POWER UNIT
The types of safety signs and locations on the equipment are shown in the illustration below. Good safety requires
that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particular function
related to that area, that requires your SAFETY AWARENESS.
•ThinkSAFETY!WorkSAFELY!
REMEMBER - If Safety Signs have been damaged,
removed, become illegible or parts replaced without
safety signs, new signs must be applied. New safety
signs are available from your authorized dealer.
G
HJ
G
J
FIRE HAZARD
NO SMOKING
To prevent serious injury or death from re:
1. Do not smoke when refueling.
2. Keep sparks, ames and hot material away from ammable
substances.
DANGER
201005
H
USE
GASOLINE
FUEL ONLY
201152
DECAL 'G' ~ ALSO LOCATED ON
OUTSIDE OF HOOD
Discount-Equipment.com

1. Read and understand Operator's Manual and safety signs
before starting.
2. Turn motor o, unplug power cord or turn o power at
master panel and wait for all moving parts to stop before
servicing, maintaining, adjusting or cleaning.
3. Keep hands, feet, hair and clothing away from moving parts.
4. Install, close and secure all guards, shields and hoods before
operating.
5. Do not place hands in the drum unless engine is OFF and
power cord is unplugged.
6. Have a licensed electrician wire up and provide power to the
electric motor.
7. Use a power cord with the required capacity to carry the
power to the motor.
8. Route the power cord out of the way or protect it from dam-
age.
9. Do not operate in an explosive atmosphere or a poorly
ventilated area without adequate ventilation.
10. Keep working area dry and clean to prevent slipping and
tripping.
11. Always attach safety chain when towing.
12. Comply with applicable transporting regulations when tow-
ing.
13. Do not allow riders during transporting.
14. Do not exceed a safe travel speed when transporting. Slow
down for corners and when going over rough terrain.
15. Review safety instructions annually.
3 SAFETY SIGN LOCATIONS
ELECTRIC MOTOR POWER UNIT
The types of safety signs and locations on the equipment are shown in the illustration below. Good safety requires
that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particular function
related to that area, that requires your SAFETY AWARENESS.
•ThinkSAFETY!WorkSAFELY!
201002
CAUTION
K
DANGER
ELECTROCUTION HAZARD
1. Turn machine OFF, shut down and
lock out power source, unplug pow-
er cord and wait for all moving parts
to stop before servicing or repairing
machine or electrical components.
2. Keep electrical components in good
repair.
L
201006
REMEMBER - If Safety Signs have been damaged,
removed, become illegible or parts replaced without
safety signs, new signs must be applied. New safety
signs are available from your authorized dealer.
K
L
11
DECAL 'H' ~ ALSO LOCATED ON OUTSIDE OF
HOOD
Discount-Equipment.com

12
3 SAFETY SIGN LOCATIONS
The types of safety signs and locations on the equipment are shown in the illustration below. Good safety requires
that you familiarize yourself with the various Safety Signs, the type of warning and the area, or particular function
related to that area, that requires your SAFETY AWARENESS.
•ThinkSAFETY!WorkSAFELY!
201001
Excessive towing speed can cause serious
injury or death.
Do NOT exceed 65 mph (105 km/h)
M
201151
WARNING
1. Make certain that the wheel lug nuts and axle
mounting hardware are tight.
105
km/h
2. Check pressure and
overall condition of
tires.
Ensure tow vehicle has towing capacity for the weight of this
machine.
Do not tow the machine unless the draw bar is bolted in
place and the safety bolt on the end of the draw bar is
securely fastened.
Close engine fuel cuto (where applicable) before towing
mixer to prevent leakage into the engine crankcase.
Use 2 people to lift and position hitch (pintle and ball) on
and o tow vehicle.
Securely attach hitch to towing vehicle - pintle or ball type
coupler (ball type shown).
Be certain ball clamp captures ball and lever or handwheel
is fully clamped. Ensure use of safety pin through latch or
handwheel (for ball type coupler).
Safety chain attachment (see illustration) chains must cross
under the draw bar and be positioned to prevent the draw
bar from dropping to the ground in the event of a hitch
failure.
Connect lighting plug/electric brake
plug (where applicable).
Make certain that the wheel lug nuts
and axle mounting hardware are tight.
Check pressure and overall
condition of tires.
Test brakes
(if applicable).
N
201150
NOTICE
CAUTION
Use 2 people to lift and po-
sition hitch on and o tow
vehicle. 201155
P
N
P
M
REMEMBER - If Safety Signs have been dam-
aged, removed, become illegible or parts
replaced without safety signs, new signs must
be applied. New safety signs are available from
your authorized dealer.
Discount-Equipment.com

4 OPERATION
OPERATING SAFETY
1. Read and understand the Operator’s Manual
and all safety signs before operating, servicing,
adjusting, or cleaning the Mixer.
2. Do not allow riders on the machine during trans-
port.
3. Install, close and secure all guards, shields and
hoods before starting or operating.
4. Stop engine or motor, disconnect spark plug wire
or unplug power cord, and wait for all moving
parts to stop before servicing, adjusting, repair-
ing, or cleaning.
5. Clear the area of all bystanders before starting.
6. Keep hands, feet, hair and clothing away from
moving parts.
7. Keep working area clean and dry to prevent slip-
ping and tripping.
8. Do not run the mixer in an explosive atmosphere
or in a poorly ventilated or enclosed area.
9. Wear appropriate hearing protection when oper-
ating for long periods of time.
10. Always attach safety chain when towing.
11. Do not exceed a safe travel speed when towing.
Slow down for corners and when going over
rough terrain.
12. Review safety instructions with all operators
annually.
Gas engine powered units:
•Do not place hands in the drum unless the en-
gine is OFF and the spark plug wire is discon-
nected.
•Stay away from hot engine components dur-
ing operation.
•Do not smoke when refueling gas engine.
Electric motor powered units:
•Do not place hands in the drum unless the mo-
tor is OFF and the power cord unplugged.
•Have a licensed electrician wire up and provide
power to the motor.
•Only use a power cord that is grounded.
•Always use an electrical cord with the required
power carrying capacity.
4.1 TO THE NEW OPERATOR OR OWNER
The Crown Construction Equipment Mortar Mixer is
designed to eciently combine water, lime, aggre-
gate and cement into a mixture for forming mortar. It
is the responsibility of the operator to be familiar with
the machine before starting.
It is the responsibility of the owner or operator to
read this manual before starting. Follow all safety
instructions exactly. Safety is everyone's business. By
following recommended procedures, a safe working
environment is provided for the operator, bystanders
and the environment.
Many features incorporated into this machine are the
result of suggestions made by customers like you.
Read this manual carefully to learn how to operate the
machine safely and how to set it to provide maximum
mixing eciency. By following the operating instructions
in conjunction with a good maintenance program, your
Mixer will provide many years of trouble-free service.
13
Discount-Equipment.com

The Mortar Mixer consists of a large tilting drum with
internal rotating paddles or spiral blades for combining
cement, lime, aggregate and water into a mixture for
forming mortar. The enclosure on the back end houses
the electric motor or gas engine for turning the mix-
ing elements. A set of pulleys and drive belt within the
enclosure transmits rotational power to a gearbox that
powers the mixing elements.
A lever on the front end of the drum assembly allows
the operator to tilt the drum to the required position
for mixing and emptying. A lever on the bottom of the
frame extends to the power compartment and moves
the gearbox to engage the drive belt for turning the mix-
ing elements. An extendable hitch allows the hitch to
extend for towing and retracts during operation.
Fig. 1 MACHINE COMPONENTS
4.2 HOW THE MACHINE WORKS
14
A Gas Engine
B Electric Motor
C Belt/Pulley Drive
D Gearbox
E Power Compartment
F Paddles
G Spiral Blades
H Grill
J Bag Splitter
K Drum
L Tilt Lever
M Drum Lock
N Engagement Clutch
O Hitch
P Safety Chain
Q Emergency Stop
H
G
K
L
N
M
P
O
K
H
J
E
Q
Discount-Equipment.com

Ecient and safe operation of the Mixer requires that
each operator reads and understands the operating
procedures and all related safety precautions outlined
in this section. A pre-operation checklist is provided
for the operator. It is important for both personal
safety and maintaining the good mechanical condi-
tion of the machine that this checklist is followed.
Before operating the Mixer and each time there-after,
the following areas should be checked o:
1. Gas Engine Units:
a. Check all uid levels: fuel, engine oil and
gearbox oil. Refuel or top up oil as required.
b. Check the tires and be sure that they are
inated to the specied pressure.
c. Check the tension and alignment of drive belt
when engaged. Tension or align as required.
d. Check the engine speed at maximum. Be sure
it is set to give a paddle rotation speed of 30-
35 RPM and a spiral rotation of 40-45 RPM.
e. Use the emergency stop switch to stop the
engine to be sure that it works. Repair or
replace if it is not functioning.
f. Lubricate machine per Maintenance Section.
g. Close and secure all guards, shields and
hoods.
2. Electric motor units:
a. Check the tension and alignment of drive
belt when engaged. Tension and align as
required.
b. Check gearbox oil level. Top up as required.
c. Check the tires and be sure that they are
inated to the specied pressure.
4.3 PRE-OPERATION CHECKLIST
15
4.4 PRE-START PROCEDURES
All machines are sent from the factory in a special ship-
ping conguration to prevent spilling oil or gas. As a
result, the following items must be done prior to start-
ing the machine:
1. Gas engine powered units:
a. Fill the engine crankcase with its specied oil
(SAE 30W or 10W30 oil).
Refer to engine manual for oil specications if
operating in unusual temperature conditions.
b. Add SAE 80W90 oil to the gearbox.
c. Fill the fuel tank with regular unleaded gas. Do
not use an ethanol blend.
d. Start the engine and set the high idle speed
to give a mixing element rotation speed of 30
to 35 RPM for the paddles and 40 to 45 for the
spiral.
e. The machine is shipped with the drum tilt
lever pointing down or fastened to the safety
grill. Remove lever and turn it around so it is
pointing up. Tighten mounting bolts to their
specied torque.
f. Be sure the emergency stop switch is function-
ing properly.
IMPORTANT
The engine is supplied from the engine
manufacturer with the high idle speed set at
approximately 3500 RPM and no gas or oil.
As a result, the engine is not run when it is
mounted to the Mixer. It is the responsibility
of the customer to add oil and gas, start the
engine and reset the high idle RPM to the op-
erating range (Refer the Maintenance Section
for procedure).
IMPORTANT
Engine warranty is void if the
engine is run without oil.
d. Lubricate machine per Maintenance Section.
e. Close and secure all guards, shields and hoods.
Discount-Equipment.com

4.5 MACHINE BREAK-IN
A special break-in procedure has been developed to insure the
integrity of the machine when rst starting. When using the
machine for the rst time, follow this procedure.
A. Before Starting:
1. Read the engine and Mixer Operator's Manuals.
2. Review and follow pre-start procedures before start-
ing machine (Section 4.4).
B. At 1/2, 2, 5 and 10 hours:
1. Check all machine uid levels: Fuel, engine oil and
gearbox oil. Refuel or top up as required.
2. Retorque wheel bolts.
3. Check for loose hardware. Tighten to specied torque.
4. Check drive belt tension and alignment when en-
gaged. Tension and align as required.
5. Lubricate the points dened in the Maintenance sec-
tion.
6. Then go to the service schedule as dened in the
Maintenance section.
C. At 10 hours:
1. Change the engine oil.
2. Change the gearbox oil.
3. Replace with their specied oil.
4. Then go to the oil replacement schedule as dened in
the Maintenance section and engine manual.
16
2. Electric motor powered units:
a. Have a licensed electrician provide power to the
motor. Use only a grounded cord with sucient
capacity to carry the required load.
b. Have a licensed electrician wire up the motor if it is
not a 110 volt unit.
c. The machine is shipped with the drum tilt lever
pointing down. Remove lever and turn it around
so it is pointing up. Tighten mounting bolts to their
specied torque.
4.4 PRE-START PROCEDURES
(Cont'd)
f. External Emergency Stop Switch:
This push-pull switch shorts out the power to
the gas engine ignition system and is located
on the outside of the hood. Push the switch
in to stop the engine and pull out to allow it
to run.
4.6 CONTROLS
Before starting to work, all operators should familiar-
ize themselves with the location and function of the
controls.
1. Gas engine powered units:
Always read the engine Operator's Manual supplied
with the machine for the detailed operating proce-
dures for your engine.
a. Ignition switch:
This switch controls the electrical power to the
engine electrical system. Turn the switch clock-
wise to turn the electrical system ON and the
engine will run. Turn counterclockwise to stop
the engine.
b. Fuel shuto valves:
Each engine is equipped with a shut-o valve
between the fuel tank and the carburator. Slide
the fuel valve toward the block to turn ON and
away for OFF. Turn the fuel OFF when not in use
or before transporting.
c. Throttle:
This lever controls the engine RPM. Move the
lever laterally to increase or decrease the RPM.
Always run at maximum throttle operating.
d. Choke:
The choke controls the fuel/air mixture to the
engine. Close the choke when starting if the
engine is cold. Open the choke as the engine
warms. Always open the choke fully during
operation.
e. Starting rope:
This retracting rope and T bar is used to turn the
engine over for starting. Grasp the T bar rmly
and pull the rope sharply to start the engine.
Close the choke if the engine is cold.
Discount-Equipment.com

Fig. 3 EXTERNAL EMERGENCY STOP
SWITCH (TYPICAL)
17
Fig. 2 GAS ENGINE CONTROLS
Honda
c
a
d
e
b
3. Drum Position:
This lever sets the position of the mixing drum.
Move the lever down to empty the drum and
up to mix.
4. Drum Position Lock:
This lever locks the mixing drum in its mixing
position. Pull up on lever to release the lock.
It will automatically engage when the drum is
moved into its mixing position.
Machine is shown with engine hood open
for illustrative purposes only. Never oper-
ate with hood open.
WARNING
2. Electric Motor (Typical):
a. Master ON/OFF:
This switch controls the power to the electric
motor that turns the mixing elements in the
drum. Move the switch rearward to turn ON
and forward for OFF.
Fig. 5 DRUM EMPTYING CONTROLS
Switch
Fig. 4 ELECTRIC MOTOR (TYPICAL)
3
4
5
5. Drive Engagement Clutch:
This lever engages and disengages the mixing ele-
ments in the drum. Move to the left to disengage
the drive and ease to the right to engage. Always
disengage before starting the engine or motor and
Discount-Equipment.com

Each operator should review this section of the manual
when starting a project and as often as required to be
familiar with the machine. When operating, follow this
procedure:
1. Review and follow the Pre-Start and Pre-Operation
checklists.
2. Review the location and function of all controls.
3. Determine ratio of the cement, lime, water and ag-
gregate required for your mixture. Always use the
same mixture ratio for each batch.
4. Be sure the mixing elements turn at 30 to 35 RPM
for the paddles and 40 to 45 RPM for the spiral to
insure proper mixing.
OPERATING SAFETY
1. Read and understand the Operator’s Manual
and all safety signs before operating, servicing,
adjusting, or cleaning the Mixer.
2. Do not allow riders on the machine during trans-
port.
3. Install, close and secure all guards, shields and
hoods before starting or operating.
4. Stop engine or motor, disconnect spark plug wire
or unplug power cord, and wait for all moving
parts to stop before servicing, adjusting, repair-
ing, or cleaning.
5. Clear the area of all bystanders before starting.
6. Keep hands, feet, hair and clothing away from
moving parts.
7. Keep working area clean and dry to prevent slip-
ping and tripping.
8. Do not run the mixer in an explosive atmosphere
or in a poorly ventilated or enclosed area.
9. Wear appropriate hearing protection when oper-
ating for long periods of time.
10. Always attach safety chain when towing.
11. Do not exceed a safe travel speed when towing.
Slow down for corners and when going over
rough terrain.
12. Review safety instructions with all operators
annually.
Gas engine powered units:
•Do not place hands in the drum unless the en-
gine is OFF and the spark plug wire is discon-
nected.
•Stay away from hot engine components dur-
ing operation.
•Do not smoke when refueling gas engine.
Electric motor powered units:
•Do not place hands in the drum unless the mo-
tor is OFF and the power cord unplugged.
•Have a licensed electrician wire up and provide
power to the motor.
•Only use a power cord that is grounded.
•Always use an electrical cord with the required
power carrying capacity.
4.7 OPERATING
19
Fig. 6 ELECTRICAL POWER SWITCH (TYPICAL)
Discount-Equipment.com

20
5. Starting machine:
A. Electric motor powered units:
a. Check that everyone is clear of the ma-
chine.
b. Move power engagement clutch to the
left to disengage the mixing elements.
c. Unlatch and open the hood.
d. Turn the power switch ON.
e. Close and latch the hood.
f. Move power engagement clutch to the
right to engage the mixing elements.
B. Gas engine powered units:
a. Check that everyone is clear of the ma-
chine.
b. Pull the emergency stop switch out.
c. Move power engagement clutch to the
left to disengage the drive.
d. Unlatch and open the engine compart-
ment hood.
e. Move the throttle into its midrange posi-
tion.
f. Close the choke if starting when the
engine is cold.
g. Turn the ignition switch to its RUN posi-
tion.
h. Pull sharply on the T bar rope to start the
engine.
i. Allow the engine to run for a couple of
minutes to warm up.
j. Open the choke to its fully open position
when the engine is warm.
k. Move the throttle to its maximum RPM
position.
l. Close and secure the engine compart-
ment hood.
m. Ease the power engagement clutch to
the right to engage the mixing elements.
Fig. 8 POWER ENGAGEMENT CLUTCH
Machine is shown with engine hood
open for illustrative purposes only.
Never operate with hood open.
WARNING
Fig. 7 EMERGENCY STOP SWITCH (TYPICAL)
IMPORTANT
Be sure the engine has been set
to give a mixing element speed
of 30 to 35 RPM for the paddles
and 40 to 45 RPM for the spiral.
