Croydex PA670222 User manual

S&H 079 R02
1
PA670222
SLIM LINE WALL MOUNTED
SOAP DISPENSER
ALL PRODUCT DIMENSIONS DETAILED IN THIS
INSTALLATION AND MAINTENANCE MANUAL
ARE APPROXIMATE
ALL ILLUSTRATIONS OF THE PRODUCT ARE FOR
REFERENCE ONLY. COMPONENTS SUPPLIED
WITH INDIVIDUAL PRODUCTS MAY DIFFER
CONTACT DETAILS
Croydex
Central Way
Andover
Hampshire
SP10 5AW
UK
Tel: +44 (0)1264 365881
Email: info@croydex.co.uk
www.croydex.com
INTRODUCTION
Thank you for purchasing this Croydex product. Please follow all assembly and product care instructions
to ensure that your product is assembled safely and retains it's high quality finish.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
x1
SAFETY & PRODUCT CARE
1. ALWAYS take care when using power tools, particularly if there is any water in the working area.
2. ALWAYS wear eye protection when using power tools.
3. ALWAYS check for pipes and cables before drilling into walls.
4. ALWAYS use a ceramic drill bit when drilling into tiled surfaces.
5. ALWAYS use a drill bit that is suitable for the surface that is being drilled.
6. The wall plugs supplied are for use on solid walls only. For cavity walls or plasterboard ALWAYS
use specialist fixings that are suitable for the type of wall construction.
7. DO NOT use abrasive or chemical cleaners as these may damage the product.
PRODUCT CAPACITY
This product has a capacity of
0.45 LITRE
MAX
0.45L
PRODUCT FITTING
IMPORTANT! : Before attempting to fit or use this product. Ensure that it fits and functions in
the desired location.
7
mm
TOOLS REQUIREDWALL FIXING PACK
x2 wall
screws
x2 wall
plugs
S&H 079 R02
2
SECTION 3 - INSTALLATION
INSTALLING THE WALL BRACKET
1. BEFORE INSTALLING the wall bracket, ensure that the safety
warnings in section 1 are followed.
2. Place the bracket against the wall in the desired position.
Place the spirit level along the top of the bracket, level and mark
the hole centres for drilling. (See Fig. 1)
fig. 1
3. Drill the holes to a depth of 34mm in the marked positions
using a 7mm masonry drill. If the product is being fitted onto a
ceramic tiled wall - a ceramic drill bit should be used.
(See Fig. 2)
fig. 2
fig. 4
5. Insert the wall screws into the wall plugs and tighten with a
cross head screwdriver until the screw heads are approximately
5mm from the wall surface.
(See Fig. 4)
4. Insert the wall plugs flush to the wall surface. If fitting to a
tiled surface the wall plugs should be inserted below the surface
of the tile to avoid cracking.
(See Fig. 3)
fig. 3
S&H 079 R01
3
SECTION 3 - INSTALLATION
6. Slide the wall bracket down onto the screws to lock into place.
(See Fig. 5)
fig. 5
7. Tighten the screws to lock the bracket in place. Do not
overtighten. (See Fig. 6)
fig. 6
8. Slide dispenser unit down onto the wall bracket. Check that
the product is securely fixed to the mounting surface before use
(See Fig. 7)
fig. 7
9. To unlock/lock the dispenser
for refilling. Use the included
key - turn clockwise to lock and
anti-clockwise to unlock the
dispenser.
(See Fig. 8)
fig. 8

Other Croydex Dispenser manuals

Croydex PA680150E User manual

Croydex

Croydex PA680150E User manual

Croydex QM896741 User manual

Croydex

Croydex QM896741 User manual

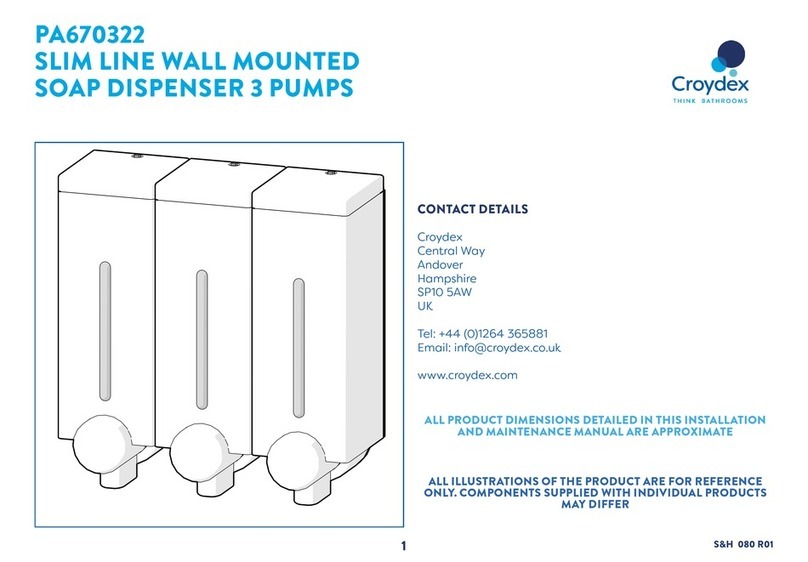

Croydex PA670322 User manual
