Performus I Dispensing System
Operating Manual

You have selected a reliable, high-quality dispensing system from Nordson EFD, the world leader in fluid
dispensing. The Performus™I dispensing system was designed specifically for industrial dispensing and
will provide you with years of trouble-free, productive service.
This manual will help you maximize the usefulness of your Performus dispensing system.
Please spend a few minutes to become familiar with the controls and features. Follow our recommended
testing procedures. Review the helpful information we have included, which is based on more than
50years of industrial dispensing experience.
Most questions you will have are answered in this manual. However, if you need assistance, please do
not hesitate to contact EFD or your authorized EFD distributor. Detailed contact information is provided
on the last page of this document.
The Nordson EFD Pledge
Thank You!
You have just purchased the world’s finest precision dispensing equipment.
I want you to know that all of us at Nordson EFD value your business and will do everything in our power
to make you a satisfied customer.
If at any time you are not fully satisfied with our equipment or the support provided by your Nordson
EFD Product Application Specialist, please contact me personally at 800.556.3484 (US), 401.431.7000
(outside US), or [email protected].
I guarantee that we will resolve any problems to your satisfaction.
Thanks again for choosing Nordson EFD.
Tara Tereso, Vice President
Tara
Performus I Dispensing System
2www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Contents
Contents..........................................................................................................................................................................3
Nordson EFD Product Safety Statement ........................................................................................................................4
Halogenated Hydrocarbon Solvent Hazards...............................................................................................................5
High Pressure Fluids....................................................................................................................................................5
Qualified Personnel......................................................................................................................................................5
Intended Use ...............................................................................................................................................................6
Regulations and Approvals..........................................................................................................................................6
Personal Safety............................................................................................................................................................6
Fire Safety....................................................................................................................................................................7
Preventive Maintenance ..............................................................................................................................................7
Important Disposable Component Safety Information................................................................................................8
Action in the Event of a Malfunction............................................................................................................................8
Disposal .......................................................................................................................................................................8
Specifications..................................................................................................................................................................9
Operating Features........................................................................................................................................................10
Installation .....................................................................................................................................................................11
Unpack Unit...............................................................................................................................................................11
Connect Air Supply....................................................................................................................................................11
Connect Power..........................................................................................................................................................12
Connect Foot Pedal...................................................................................................................................................12
Attach Syringe Barrel / Dispense Tip ........................................................................................................................12
Connect Air Output....................................................................................................................................................12
System Setup and Operation........................................................................................................................................13
Dispensing System Setup .........................................................................................................................................13
Helpful Hints / Suggestions on Settings....................................................................................................................14
Using the Vacuum Control Feature for Low Viscosity Fluids ....................................................................................15
Filling the Syringe Barrel............................................................................................................................................16
Filling Procedure for Pourable Low and Medium Viscosity Fluids ............................................................................17
Filling Procedure for Thick Fluids ..............................................................................................................................17
Syringe Barrel Filling Alternatives ..............................................................................................................................18
Part Number..................................................................................................................................................................19
Accessories...................................................................................................................................................................19
Replacement Parts........................................................................................................................................................20
Troubleshooting ............................................................................................................................................................21
Performus I Dispensing System
3www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Nordson EFD Product Safety Statement
The safety messages that follow have a CAUTION level hazard.
Failure to comply may result in minor or moderate injury.
CAUTION
READ MANUAL
Read manual for proper use of this equipment. Follow all safety instructions. Task- and equipment-
specific warnings, cautions, and instructions are included in equipment documentation where
appropriate. Make sure these instructions and all other equipment documents are accessible to
persons operating or servicing equipment.
The safety message that follows has a WARNING level hazard.
Failure to comply could result in death or serious injury.
WARNING
ELECTRIC SHOCK
Risk of electric shock. Disconnect power before removing covers and / or disconnect, lock out, and
tag switches before servicing electrical equipment. If you receive even a slight electrical shock, shut
down all equipment immediately. Do not restart the equipment until the problem has been identified
and corrected.
MAXIMUM AIR PRESSURE
Unless otherwise noted in the product manual, the maximum air input pressure is 7.0 bar (100psi).
Excessive air input pressure may damage the equipment. Air input pressure is intended to be
applied through an external air pressure regulator rated for 0 to 7.0 bar (0 to 100psi).
RELEASE PRESSURE
Release hydraulic and pneumatic pressure before opening, adjusting, or servicing pressurized
systems or components.
BURNS
Hot surfaces! Avoid contact with the hot metal surfaces of heated components. If contact can not be
avoided, wear heat-protective gloves and clothing when working around heated equipment. Failure
to avoid contact with hot metal surfaces can result in personal injury.
Performus I Dispensing System
4www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Nordson EFD Product Safety Statement (continued)
Halogenated Hydrocarbon Solvent Hazards
Do not use halogenated hydrocarbon solvents in a pressurized system that contains aluminum components.
Under pressure, these solvents can react with aluminum and explode, causing injury, death, or property damage.
Halogenated hydrocarbon solvents contain one or more of the following elements.
Element Symbol Prefix
Fluorine F “Fluoro-”
Chlorine Cl “Chloro-”
Bromine Br “Bromo-”
Iodine I “Iodo-”
Check the Safety Data Sheet (SDS) or contact your material supplier for more information. If you must use
halogenated hydrocarbon solvents, contact your EFD representative for compatible EFD components.
High Pressure Fluids
High pressure fluids, unless they are safely contained, are extremely hazardous. Always release fluid pressure before
adjusting or servicing high pressure equipment. A jet of high pressure fluid can cut like a knife and cause serious
bodily injury, amputation, or death. Fluids penetrating the skin can also cause toxic poisoning.
Any injury caused by high pressure liquid can be serious. If you are injured or even suspect an injury:
• Go to an emergency room immediately.
• Tell the doctor that you suspect an injection injury.
• Show the doctor the following note.
• Tell the doctor what kind of material you were dispensing.
WARNING
Medical Alert — Airless Spray Wounds: Note to Physician
Injection in the skin is a serious traumatic injury. It is important to treat the injury surgically as soon as possible. Do
not delay treatment to research toxicity. Toxicity is a concern with some exotic coatings injected directly into the
bloodstream.
Qualified Personnel
Equipment owners are responsible for making sure that EFD equipment is installed, operated, and serviced by
qualified personnel. Qualified personnel are those employees or contractors who are trained to safely perform
their assigned tasks. They are familiar with all relevant safety rules and regulations and are physically capable of
performing their assigned tasks.
Performus I Dispensing System
5www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Nordson EFD Product Safety Statement (continued)
Intended Use
Use of EFD equipment in ways other than those described in the documentation supplied with the equipment may
result in injury to persons or damage to property. Some examples of unintended use of equipment include:
• Using incompatible materials.
• Making unauthorized modifications.
• Removing or bypassing safety guards or interlocks.
• Using incompatible or damaged parts.
• Using unapproved auxiliary equipment.
• Operating equipment in excess of maximum ratings.
• Operating equipment in an explosive atmosphere.
Regulations and Approvals
Make sure all equipment is rated and approved for the environment in which it is used. Any approvals obtained for
Nordson EFD equipment will be voided if instructions for installation, operation, and service are not followed. If the
equipment is used in a manner not specified by Nordson EFD, the protection provided by the equipment may be
impaired.
Personal Safety
To prevent injury, follow these instructions:
• Do not operate or service equipment unless you are qualified.
• Do not operate equipment unless safety guards, doors, and covers are intact and automatic interlocks are
operating properly. Do not bypass or disarm any safety devices.
• Keep clear of moving equipment. Before adjusting or servicing moving equipment, shut off the power supply
and wait until the equipment comes to a complete stop. Lock out power and secure the equipment to prevent
unexpected movement.
• Make sure spray areas and other work areas are adequately ventilated.
• When using a syringe barrel, always keep the dispensing end of the tip pointing towards the work and away
from the body or face. Store syringe barrels with the tip pointing down when they are not in use.
• Obtain and read the Safety Data Sheet (SDS) for all materials used. Follow the manufacturer’s instructions for
safe handling and use of materials and use recommended personal protection devices.
• Be aware of less-obvious dangers in the workplace that often cannot be completely eliminated, such as hot
surfaces, sharp edges, energized electrical circuits, and moving parts that cannot be enclosed or otherwise
guarded for practical reasons.
• Know where emergency stop buttons, shutoff valves, and fire extinguishers are located.
• Wear hearing protection to protect against hearing loss that can be caused by exposure to vacuum exhaust
port noise over long periods of time.
Performus I Dispensing System
6www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Nordson EFD Product Safety Statement (continued)
Fire Safety
To prevent a fire or explosion, follow these instructions:
• Shut down all equipment immediately if you notice static sparking or arcing. Do not restart the equipment until
the cause has been identified and corrected.
• Do not smoke, weld, grind, or use open flames where flammable materials are being used or stored.
• Do not heat materials to temperatures above those recommended by the manufacturer. Make sure heat
monitoring and limiting devices are working properly.
• Provide adequate ventilation to prevent dangerous concentrations of volatile particles or vapors. Refer to local
codes or the SDS for guidance.
• Do not disconnect live electrical circuits when working with flammable materials. Shut off power at a disconnect
switch first to prevent sparking.
• Know where emergency stop buttons, shutoff valves, and fire extinguishers are located.
Preventive Maintenance
As part of maintaining continuous trouble-free use of this product, Nordson EFD recommends the following simple
preventive maintenance checks:
• Periodically inspect tube-to-fitting connections for proper fit. Secure as necessary.
• Check tubing for cracks and contamination. Replace tubing as necessary.
• Check all wiring connections for looseness. Tighten as necessary.
• Clean: If a front panel requires cleaning, use a clean, soft, damp rag with a mild detergent cleaner. DO NOT
USE strong solvents (MEK, acetone, THF, etc.) as they will damage the front panel material.
• Maintain: Use only a clean, dry air supply to the unit. The equipment does not require any other regular
maintenance.
• Test: Verify the operation of features and the performance of equipment using the appropriate sections of this
manual. Return faulty or defective units to Nordson EFD for replacement.
• Use only replacement parts that are designed for use with the original equipment. Contact your Nordson EFD
representative for information and advice.
Performus I Dispensing System
7www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Important Disposable Component Safety Information
All Nordson EFD disposable components, including syringe barrels, cartridges, pistons, tip caps, end caps,
and dispense tips, are precision engineered for one-time use. Attempting to clean and re-use components will
compromise dispensing accuracy and may increase the risk of personal injury.
Always wear appropriate protective equipment and clothing suitable for your dispensing application and adhere to
the following guidelines:
• Do not heat syringe barrels or cartridges to a temperature greater than 38° C (100° F).
• Dispose of components according to local regulations after one-time use.
• Do not clean components with strong solvents (MEK, acetone, THF, etc.).
• Clean cartridge retainer systems and barrel loaders with mild detergents only.
• To prevent fluid waste, use Nordson EFD SmoothFlow™pistons.
Action in the Event of a Malfunction
If a system or any equipment in a system malfunctions, shut off the system immediately and perform the following
steps:
1. Disconnect and lock out system electrical power. If using hydraulic and pneumatic shutoff valves, close and
relieve pressure.
2. For Nordson EFD air-powered dispensers, remove the syringe barrel from the adapter assembly. For Nordson
EFD electro-mechanical dispensers, slowly unscrew the barrel retainer and remove the barrel from the actuator.
3. Identify the reason for the malfunction and correct it before restarting the system.
Disposal
Dispose of equipment and materials used in operation and servicing according to local codes.
Nordson EFD Product Safety Statement (continued)
Performus I Dispensing System
8www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Specifications
NOTE: Specifications and technical details are subject to change without prior notification.
Item Specification
Cabinet size 18.3Wx 5.1Hx 8.6Dcm (7.22Wx 2.00Hx 3.38D")
Weight 1.0 kg (2.2 lb)
Input AC (to power supply) 100–240 VAC (±10%), ~50/60 Hz, 0.6 A
Output DC (from power supply) 24 VDC, 1.04 A maximum
Internal voltage 24 VDC
Cycle rate Exceeds 600 cycles per minute
Foot pedal Voltage: 24 VDC
Current: 20 mA
Cycle initiate Foot pedal, finger switch
Input air pressure 7.0 bar (100psi) maximum
Air output 1.0–7.0 bar (1–100psi) dependent on user setting
Ambient operating conditions Temperature: 5–45° C (41–113° F)
Humidity: 85% RH at 30° C non-condensing
Height above sea level: 2,000 meters maximum (6,562 feet)
Product classification Installation category II
Pollution degree 2
Approvals CE, TÜV, RoHS, WEEE, China RoHS
RoHS标准相关声明标准相关声明 (China RoHS Hazardous Material Declaration)
产品名称
Part Name
有害物质及元素
Toxic or Hazardous Substances and Elements
铅
Lead
(Pb)
汞
Mercury
(Hg)
镉
Cadmium
(Cd)
六价铬
Hexavalent
Chromium
(Cr6)
多溴联苯
Polybrominated
Biphenyls
(PBB)
多溴联苯醚
Polybrominated
Diphenyl Ethers
(PBDE)
外部接口
External Electrical
Connectors
X00000
O: 表示该产品所含有的危险成分或有害物质含量依照EIP-A, EIP-B, EIP-C
的标准低于SJ/T11363-2006 限定要求。
Indicates that this toxic or hazardous substance contained in all the homogeneous materials for this part, according to EIP-A, EIP-B, EIP-C is below the
limit requirement in SJ/T11363-2006.
X: 表示该产品所含有的危险成分或有害物质含量依照EIP-A, EIP-B, EIP-C
的标准高于SJ/T11363-2006 限定要求.
Indicates that this toxic or hazardous substance contained in all the homogeneous materials for this part, according to EIP-A, EIP-B, EIP-C is above the
limit requirement in SJ/T11363-2006.
WEEE Directive
This equipment is regulated by the European Union under WEEE Directive (2012/19/EU). Refer to
www.nordsonefd.com/WEEE for information about how to properly dispose of this equipment.
Performus I Dispensing System
9www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Operating Features
1. Output air regulator adjustment knob — Controls air pressure in syringe barrel
2. Output quick connector — Syringe barrel adapter connection
3. Vacuum control adjustment knob — Controls syringe barrel vacuum
4. Power switch — Main DC power control switch
5. 0–100psi gauge — Measures syringe barrel air pressure
3
1
4
6. Foot pedal / finger switch connector — Connection for dispenser actuating device
7. Power input jack — DC power input
8. Air exhaust port — Syringe barrel air exit
9. Vacuum exhaust port — Vacuum air exit
10. Air input push-in fitting — Main filtered air supply input
52
10
7
6
89
Performus I Dispensing System
10 www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

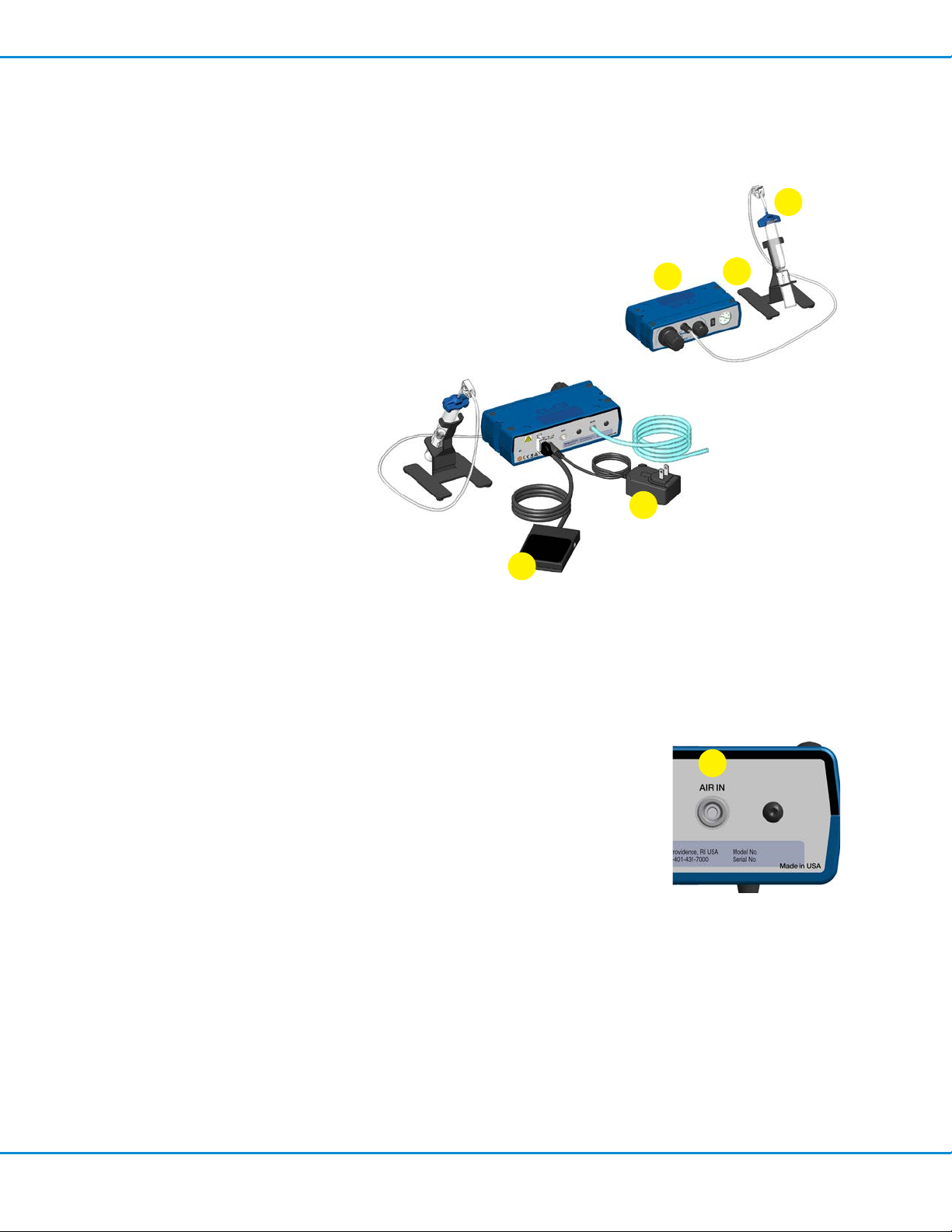

Unpack Unit
Unpack the contents of the package and lay them out on a clean
work bench. The following items should be included with your
Performus dispensing system:
a. Dispenser
b. Foot pedal assembly
c. Power supply
d. Syringe barrel adapter
e. Syringe barrel stand
f. Folding wire stand (not shown)
1
Connect Air Supply
NOTE: Clean, dry filtered factory air is required to meet warranty.
If your air supply is not filtered, order the EFD five micron filter
regulator (P/N 7016547).
Turn the air regulator adjustment knob to zero (0) before
connecting the main air input to the Performus.
a. Push one end of the 6 mm air input hose into the input fitting
(AIR IN) on the back of the Performus.
b. Connect the other end of the hose to your plant air supply.
c. Set plant air supply at minimum 5.5–7.0 bar (80–100psi).
d. Keep the vacuum feature turned off by turning the vacuum
control knob all the way counter-clockwise. If the fluid you
are dispensing is a thin, watery, or low viscosity consistency,
proceed to “Using the Vacuum Control Feature for Low
Viscosity Fluids” on page15.
2
Installation
e
d
a
b
c
2
Performus I Dispensing System
11www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

3
4
5
6
Installation (continued)
3
4
6
5a
5d
Open
Closed
5b
Connect Power
a. Locate the DC input connection on the back of your Performus
dispensing system.
b. Insert the DC Plug securely into the input connection.
c. Select the proper adapter from the power supply plug kit and
then connect the power supply to a grounded power source.
NOTE: The power supply is multi-voltage, therefore no external
adjustments are required.
Connect Foot Pedal
The Performus is normally operated using the foot pedal provided.
• Connect the foot pedal to the back of the Performus.
NOTE: If you prefer, you can also operate the Performus with an
optional finger switch (P/N 7016718).
Attach Syringe Barrel / Dispense Tip
a. Attach an EFD syringe barrel filled with your fluid to the adapter
assembly.
b. Snap the safety clip on the adapter hose closed to prevent
dripping. Remember to unsnap the clip when ready to
dispense.
c. Replace the tip cap with an EFD precision dispense tip.
d. Place the syringe barrel in the barrel holder.
Connect Air Output
a. Push in the black male quick-connect on the syringe barrel
adapter into the front of the Performus.
b. Twist clockwise to lock.
Initial setup is now complete. At this point you are ready to set up
your dispensing flow rate and time to suit your application needs.
Performus I Dispensing System
12 www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

System Setup and Operation
NOTE: Tips and helpful suggestions for setup are provided under “Helpful Hints / Suggestions on Settings” on
page14. Refer to this information as needed during initial setup and testing.
Dispensing System Setup
1. Pull the air regulator adjustment knob out until it clicks into the unlocked position. Start with the pressure set to
zero.
2. Place the syringe barrel over a piece of paper or test surface.
3. Unsnap the safety clip. Depress and hold the foot pedal for the remainder of this setup.
4. While resting the tip on the paper (test surface), SLOWLY turn the air pressure regulator clockwise until fluid
starts to exit from the tip.
5. Keep increasing the air pressure until you have reached the desired fluid dispensing flow rate.
NOTE: Always use the lowest possible pressure and the largest possible tip size. The combination of the lowest
possible output pressure + the largest possible tip size + the longest possible dispense duration = the most
consistent and accurate deposits.
6. Release the foot pedal.
7. Retest the dispensing rate a few more times. Fine tune as required by making small changes in pressure.
8. Push the air regulator adjustment knob in to lock the setting.

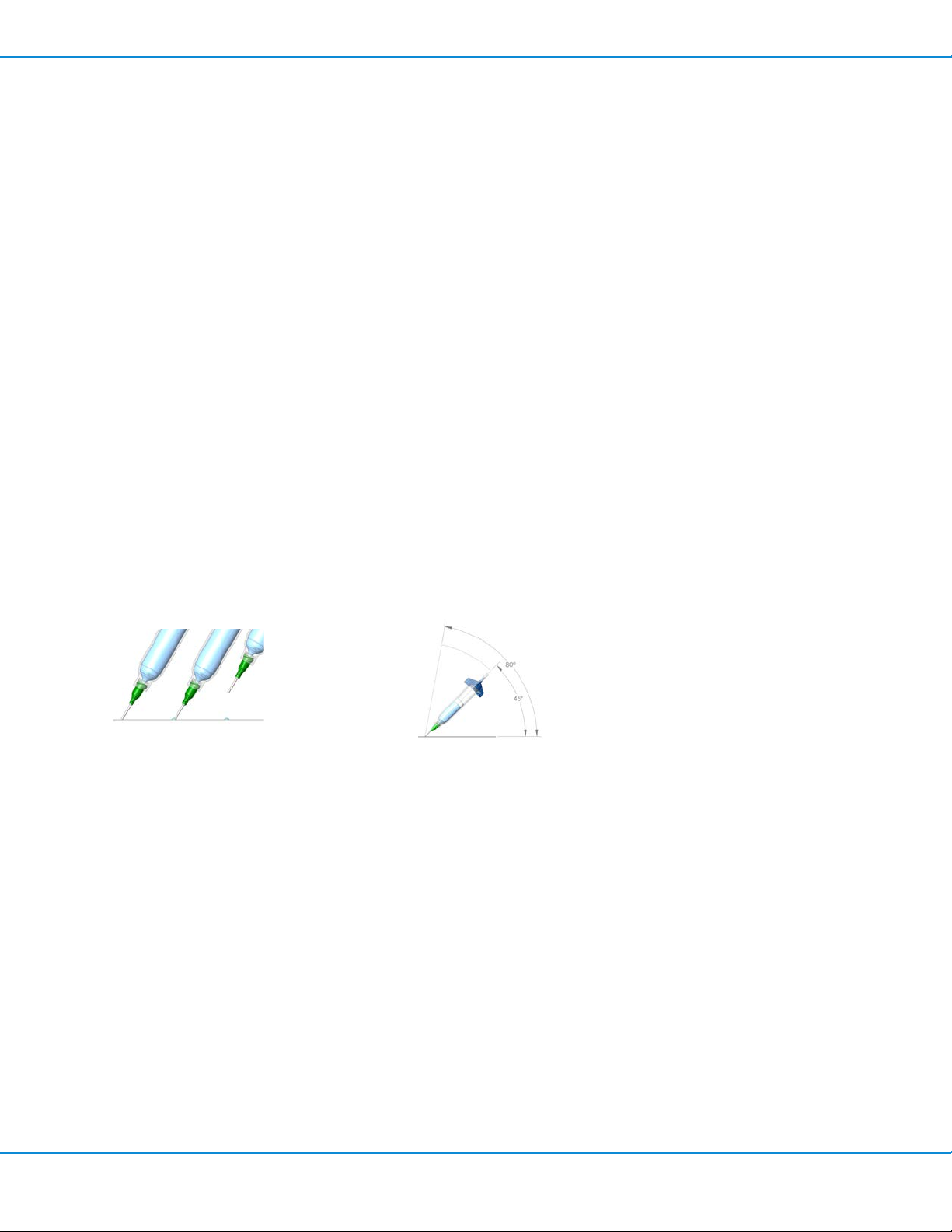

Correct
angle for
consistent
deposits.
Remember —
always bring the tip
in contact with the
work surface at the
illustrated angle.
After the tip is in
position, press the
foot pedal. Release
the pedal and
remove the tip by
lifting straight up.
Performus I Dispensing System
13www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Helpful Hints / Suggestions on Settings
Helpful Hints
• There are three core variables to the Performus dispenser: dispense time, pressure, and
vacuum. Adjust just one of these at a time, in small increments, to achieve the correct
deposit.
• Another variable is tip size. Choose the right tip for the deposit type. Remember, smaller
tips require more pressure and more dispense time. Try different tips without changing
the dispense time or pressure settings and observe the results.
• Tapered tips reduce the amount of air pressure needed to dispense thick materials.
They also help prevent drooling at the end of a dispense cycle.
• To ensure smooth fluid flow and to make consistent deposits, keep the dispense tip at a
45° angle to the work surface.
• Use EFD SmoothFlow pistons to make barrel loading, dispensing, and handling cleaner,
safer, and more accurate.
If you dispense watery fluids and choose not to use EFD pistons, do not increase vacuum
pressure rapidly and do not tip the barrel. Vacuum may pull fluid into the adapter hose, or,
if the syringe barrel is tipped, fluid may flow back into the dispenser.
CAUTION
• Always use new EFD syringe barrels and tips. Carefully dispose of after use. This
practice ensures maximum cleanliness, prevents contamination, and provides proper
safety.
• Do not completely fill the syringe barrel. For most fluids, optimum fill is a maximum 2/3
of the barrel capacity. For cyanoacrylates or watery fluids, optimum fill is 1/2 of the
barrel capacity.
Suggestions on Settings
• To reduce air pressure, turn the knob counterclockwise until the display reads at a
lower-than-needed pressure setting. Then turn clockwise to increase pressure until you
reach the correct setting.
• Avoid high pressure settings with very small deposit settings. The ideal setup matches
air pressure and tip size to create a workable flow rate — no splashing, but not too slow
either.
• With any fluid, always give the air pressure time to do its job. Moderate time and
pressure provides the best results since dispensing pressure remains at its peak for a
longer period of time.
System Setup and Operation (continued)
Performus I Dispensing System
14 www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

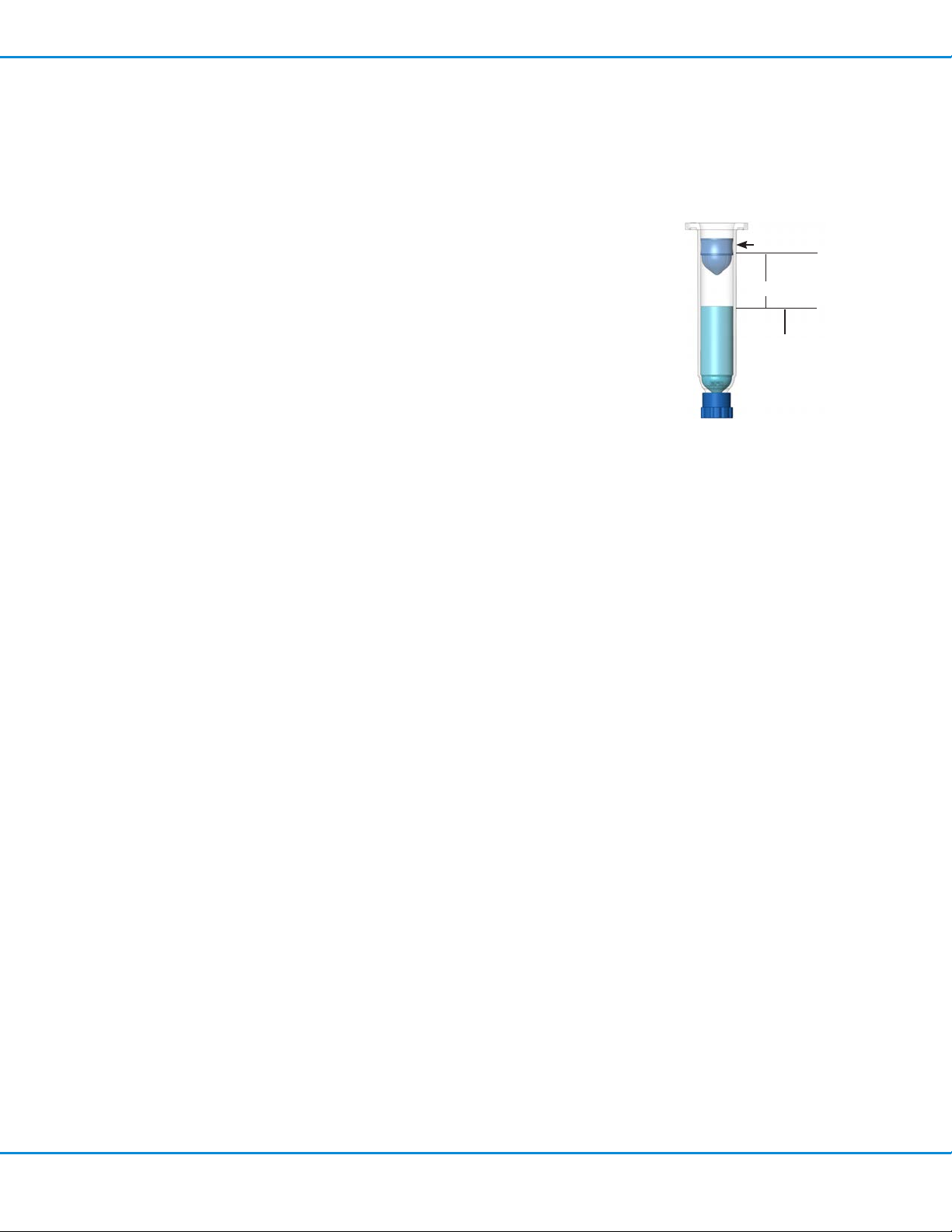

Using the Vacuum Control Feature for Low Viscosity Fluids
The vacuum control feature allows you to dispense low viscosity fluids consistently without dripping between
cycles. The vacuum overcomes head pressure on the fluid within the barrel, which prevents dripping.
1. Make sure that you have attached an EFD barrel filled with the fluid intended for
dispensing, and that the air pressure is turned all the way to zero. EFD recommends
the use of a Blue LV Barrier piston for watery, low viscosity materials.
2. Remove the tip cap and replace it with an appropriate EFD precision dispense tip.
Dispense tips are listed on the components poster included with your Performus
system.
3. While pointing the tip over a container or resting on a test surface, release the safety
clip on the adapter hose assembly.
4. Depress the foot pedal for the duration of this setup.
5. Slowly turn the air regulator adjustment knob up until fluid starts to exit from the tip.
6. Keep increasing the air pressure until you have reached the desired fluid flow rate.
7. Release the foot pedal. At this point, fluid will continue to exit the tip.
8. Slowly turn the vacuum control knob clockwise until the fluid deposit size stabilizes without growing.
NOTE: Do not increase the vacuum to the point where the deposit is actually sucked back into the tip.
Excessive vacuum causes inconsistent dispensing.
9. Lift the tip off the paper, wipe the tip end, and retest by pressing the foot pedal momentarily. The deposit
dispensed should stay at the intended size and not increase or decrease in size. If it does, repeat steps 4–8 to
fine-tune the vacuum control.
1/2 maximum fill
LV Barrier
Air gap
System Setup and Operation (continued)
Performus I Dispensing System
15www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

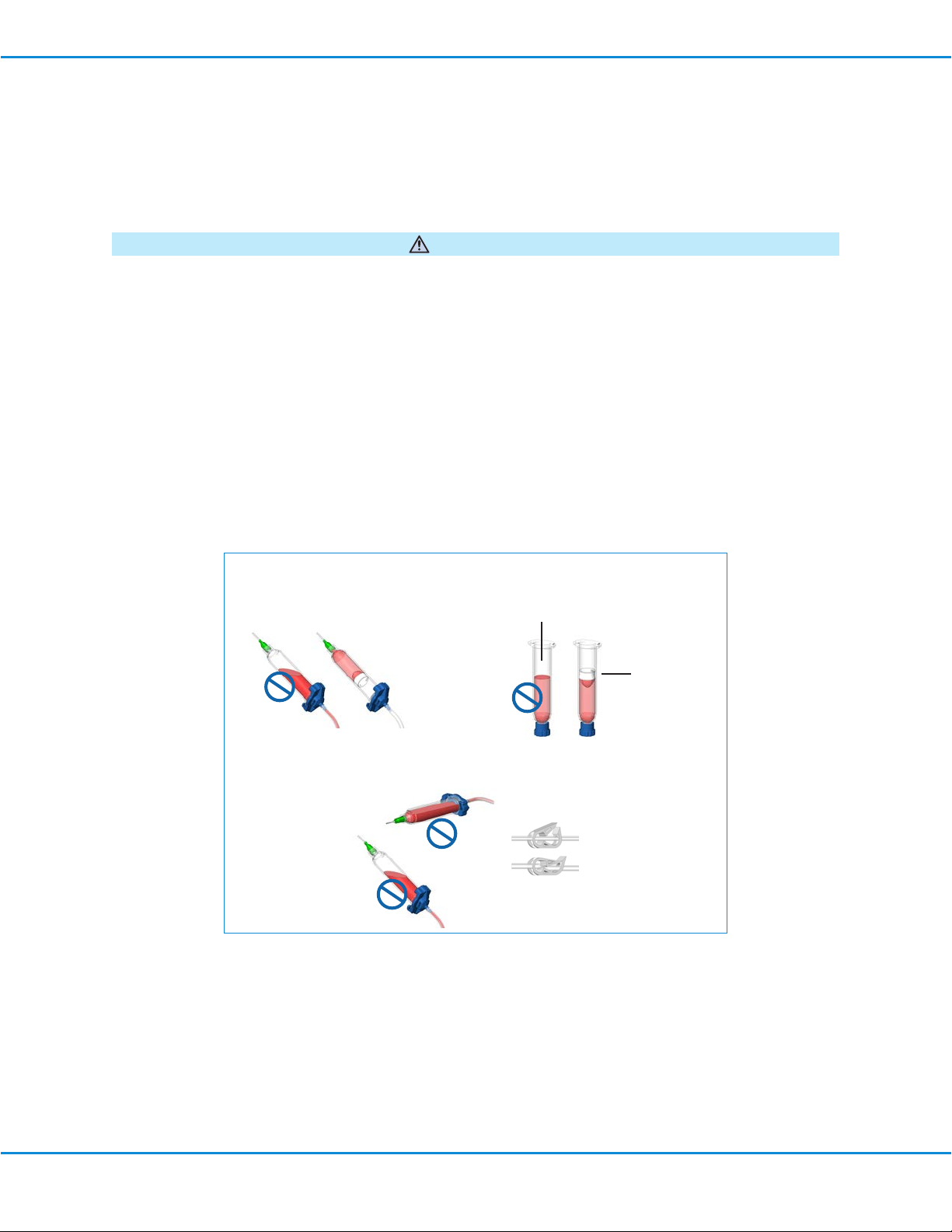

Filling the Syringe Barrel
Barrel Filling Techniques
Do not completely fill syringe barrels. The optimum fill is a maximum 2/3 of the barrel capacity and 1/2 of the barrel
capacity when using the EFD blue LV Barrier piston.
CAUTION
For best results, we strongly recommend that you use a piston as part of your dispensing system. The white EFD
SmoothFlow piston is appropriate for most fluids and has several advantages:
• Vacuum adjustment is less sensitive.
• The piston prevents fumes from the fluid being exhausted into the work environment.
• The piston prevents fluid from flowing back into the dispenser if the syringe barrel is inadvertently turned upside
down.
• The piston makes it easy and safe to change tips without dripping. For watery solvents and cyanoacrylates,
request the blue EFD LV Barrier piston, available in 3cc, 10cc, and 30 / 55cc sizes. Contact EFD for assistance
in selecting a suitable piston.
System Setup and Operation (continued)
Remember
For best results, EFD strongly recommends the use of a piston as part of your
dispensing system.
When changing tips
or attaching a tip cap,
snap the safety clip
completely closed to
prevent any dripping
or bubbling.
Open
Closed
If you choose to not use a piston when dispensing thin fluids, remember these
important points.
Fumes cannot
escape.
No air gap
when using the
SmoothFlow piston.
SmoothFlow
piston prevents
fluid backflow.
Do not tip the barrel
upside down or lay
flat. This will cause
the liquid to run into
the dispenser.
Performus I Dispensing System
16 www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

System Setup and Operation (continued)
Filling Procedure for Pourable Low and Medium Viscosity Fluids
If the fluid you are dispensing is pourable, take the syringe barrel, twist on tip cap and pour your fluid in. Insert a
white SmoothFlow piston and carefully press down until it contacts the fluid. The syringe barrel is now ready for use.
Filling Procedure for Thick Fluids
If your fluid is thick or non-leveling, you can spoon it into the syringe barrel with a spatula. Or, if the fluid comes
packed in a 1/10 gallon (300 mL) cartridge, try loading the barrel with a caulking gun. Then, press the SmoothFlow
piston to move the fluid to the bottom of the syringe barrel and remove trapped air.
Trapped air in thick fluids can lead to drooling and oozing. Also, repetitive air cycles can bore tunnels through
non-leveling fluids, causing spitting and inconsistent deposits. The SmoothFlow piston eliminates these problems.
It prevents tunneling by providing a barrier to the pulsed-air cycles. And it prevents oozing by responding to the
pressure of trapped air with a slight suck-back movement after the dispense cycle.
Performus I Dispensing System
17www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

System Setup and Operation (continued)
Luer-to-luer fitting
P/N 7012606 100 pack
P/N 7014838 1 piece
P/N 7022068 Atlas Filling System
Syringe Barrel Filling Alternatives
Nordson EFD offers productive alternatives to traditional syringe barrel filling methods. Here are a few suggestions
that can help keep your work area clean, save time, and reduce the chance of entrapped air in the fluid.
• Use the Atlas™Filling System, P/N 7022445 (12 fl oz). Pack the fluid into a 2.5 fl oz, 6 fl oz, 12 fl oz, 20 fl oz, or
32fl oz cartridge as shown. Then place the pre-filled cartridge into the barrel loader. Using air pressure, the barrel
loader fills the syringe barrel (with a piston installed) from the bottom up.
If the fluid comes packed in a 300 mL (1/10 gallon) caulking type cartridge, use the EFD P/N 7022452 filling
system.
For fast, volumetric filling, the P/N 7022068 Atlas Filling System is an accurate, easy, and fast system for filling
syringe barrels.
• If you receive frozen epoxies or other fluids in medical type syringes with a manual plunger, request the EFD luer-
to-luer fitting to transfer the material.
Contact an EFD fluid application specialist for additional assistance.
P/N 7022445 (12 fl oz) Atlas Filling
System. Also available in 2.5, 6, 20,
and 32 fl oz.
P/N 7022452 for pre-filled 300mL
(1/10 gal) caulking tubes.
Performus I Dispensing System
18 www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Part Number
Part # Description
7012330 Performus I dispenser
Features a 0–100psi pressure regulator that handles all fluids.
Accessories
See the Dispenser Accessories data sheet for a complete list of optional accessories that will maximize the
performance of your dispenser. Visit www.nordsonefd.com/DispenserAccessories for details.
Performus I Dispensing System
19www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.

Replacement Parts
Item Part # Description
1 7012274 Regulator knob, black
2 — Regulator bezel
3 7017073 Vacuum rotary dial knob
4 7012277 Regulator assembly, 0–100psi
5 7014752 Regulator replacement O-rings*
6 — On / off rocker switch assembly
7 7012595 Quick connector assembly kit*
8 — Overlay, front, Performus I
9 — Gauge, pressure, 0–100psi
10 — Fitting, 10-32 x 3/32 barb, elbow
11 7012293 Manifold assembly, Performus I
12 7012298 Valve, solenoid assembly, Performus I
13 7016761 Urethane tubing (12")
14 — Panel, rear, Performus I
15 7022009 Case, pack of 2, top / bottom
16 7012597 Power supply plug kit*
17 7015199 Universal power supply kit
18 7014865 Foot pedal assembly
19 7016728 Barrel stand with bottle
20 7012280 Stem, vacuum control
*Not Shown
Performus I Dispensing System
20 www.nordsonefd.com [email protected] [phone] Sales and service of Nordson EFD dispensing systems are available worldwide.
1
2
11 14
12
15
6
15
19
4
18
317
913
10
8
