croydon MPED Series User manual

MPEDMPED
MPEDMPED

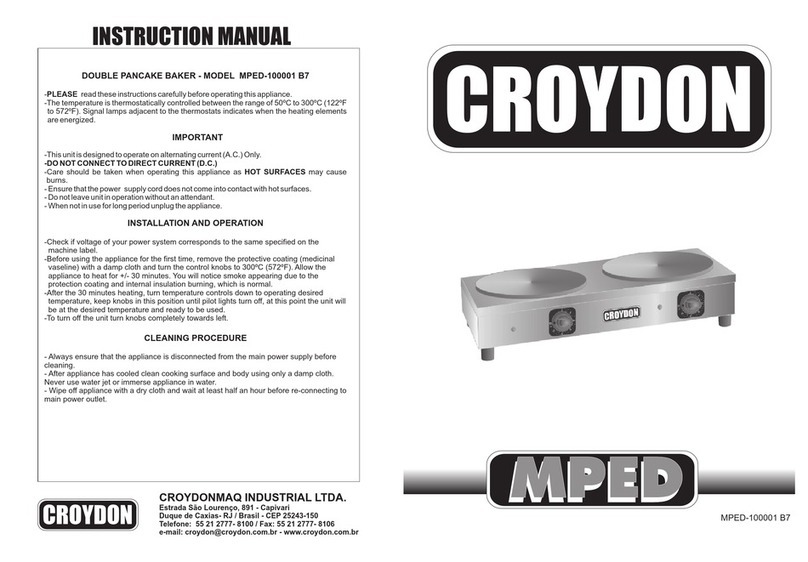

DOUBLE PANCAKE BAKER - MODEL MPED-200001 B7
-PLEASE read these instructions carefully before operating this appliance.
-The temperature is thermostatically controlled between the range of 50ºC to 300ºC (122ºF
to 572ºF). Signal lamps adjacent to the thermostats indicates when the heating elements
are energized.
-This unit is designed to operate on alternating current (A.C.) Only.
-DO NOT CONNECT TO DIRECT CURRENT (D.C.)
-Care should be taken when operating this appliance as HOT SURFACES may cause
burns.
- Ensure that the power supply cord does not come into contact with hot surfaces.
- Do not leave unit in operation without an attendant.
- When not in use for long period unplug the appliance.
INSTALLATION AND OPERATION
-Check if voltage of your power system corresponds to the same specified on the
machine label.
-Before using the appliance for the first time, remove the protective coating (medicinal
vaseline) with a damp cloth and turn the control knobs to 300ºC (572ºF). Allow the
appliance to heat for +/- 30 minutes. You will notice smoke appearing due to the
protection coating and internal insulation burning, which is normal.
-After the 30 minutes heating, turn temperature controls down to operating desired
temperature, keep knobs in this position until pilot lights turn off, at this point the unit will
be at the desired temperature and ready to be used.
-To turn off the unit turn knobs completely towards left.
CLEANING PROCEDURE
- Always ensure that the appliance is disconnected from the main power supply before
cleaning.
- After appliance has cooled clean cooking surface and body using only a damp cloth.
Never use water jet or immerse appliance in water.
- Wipe off appliance with a dry cloth and wait at least half an hour before re-connecting to
main power outlet.
French Crepe Batter recipe.
02 egs
04 Table sopoons of vegetable oil
02 Cups of milk
01 Tea spoon of salt
02 Cups of flour
Stir together milk, oil, and eggs. Gradually add the dry ingredients. Stir until just blended.
Let batter rest for about 1 hour.
Apply oil on the cooking plate. Pour batter onto cooking plate and spread it.
Use your imagination to add stuffing.
IMPORTANT
MPED-200001 B7
INSTRUCTION MANUAL
CROYDON
CROYDON
CROYDONMAQ INDUSTRIAL LTDA.
Estrada São Lourenço, 891 - Capivari - Duque de Caxias.
RJ - Brasil - CEP 25243-150 Fax: [phone]
Phone: [phone]
e-mail: [email protected]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
10.027-3
10.035-3
3.706-3
15.204-3
10.029-3
2.066-3
2.009-3
385
604
329
2.009-B
3.509-3
2.065-3
642
10.023-3
601
2.093-3
9.413-3
10.039-3
1.917-3
552
330
10.038-3
1.343-3
18.003-3
574
10.019-3
2.805-3
Heating Plate
Body
Insulation
Heating Element (1600W)
Heating Element Support
Wiring Connection
Thermostat
Screw (3/16")
Nut (3/16")
Screw
Knob
Pilot Light
Thermostat Bulb Retainer
Washer (1/4")
Heating Element Protection Plate
Nut (1/4")
Cord Connection
Cord Retainer
Bottom Cover Plate
Foot
Screw (3,5)
Screw
Spatula
Plate
Finishing Rubber
Screw
Preparing Tool
Adapter
1
4
3
2
19
21
20
18
17
6
13
15
14
16
7
22
Wiring diagram
DOUBLE PANCAKE BAKER
MPED
DOUBLE PANCAKE BAKER
MPED
Item Code Description
Voltage (V)
Power (W)
Amperage (A)
Weight (Kg/lbs)
Dimensions W x H x D (cm/in)
Technical Data
220
3200
14.5
27.3/60.1
84/33.1 x 19/7.5 x 44/17.4
5
CROYDON
CROYDON
8
9
11
10
12
G
L2
L1
23
MPED-200001 B7
24
26
27
25
28
