Crux SOOGM-16 Installation guide

CRUX GMLAN ONSTAR BACK UP CAMERA
USING THE MUTE CIRCUIT BOARD (FIG 1)
The external mute circuit is used to mute the audio on your radio.
Determine whether your radio is equipped with BOSE, then place
the 8 pin connector into the proper female connector. Reference the
sticker on the mute circuit board.
RADIO REMOTE SELECT:
0. Pioneer
1. Alpine
2. Clarion
3. Kenwood
4. JVC
5. Sony/Jensen/Dual
TO FACTORY
HARNESS
24-PIN
(male plug)
AFTERMARKET
RADIO
MATCH LOOSEWIRES TO AFTERMARKET RADIO
front left speakers
front right speakers
rear left speakers
rear right speakers
constant
accessory
ground
illumination
amp on
vss
swc
8-PIN
(male plug)
12-PIN
(male plug) INTERFACE
THIS HARNESS ONLY HAS
3-PINS POPULATED.
DO NOT PLUG IN THE
FULLY POPULATED 8-PIN.
16-PIN
(male plug)
14-PIN
(male plug)
8-PIN
(male plug)
MUTE
CIRCUIT
BOARD
(SEE FIG 1)
Black = Ground
Red = Accessory
Yellow = Constant
Orange = Illumination
Blue/White =AmplierTurn-On
White = Left Front (+)
White/Black =LeftFront(-)
Gray = Right Front (+)
Gray/Black =RightFront(-)
Green = Left Rear (+)
Green/Black =LeftRear(-)
Purple = Right Rear (+)
Purple/Black =RightRear(-)
Purple/White = Vehicle Speed Sense
Blue/Yellow = SWC (Kenwood/ JVC)
Orange/White = Dimmer
Yellow/Black = Parking Brake
Red/White = Reverse Gear
Werecommendreadingthisinstallationguiderstbeforestartingany
work. Following these instructions from “Start” to” Finish” will ensure
asmoothandhasslefreeinstallation.WeoertelephonesupportM-F
9:00AM–5:00PMPDTat1(855)822-1348.Weareheretohelp.
PARTS INCLUDED:

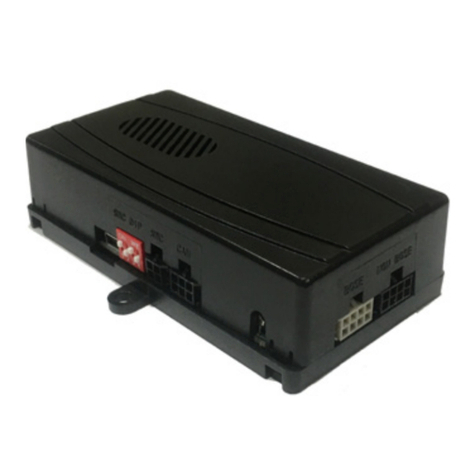

(1)InterfaceModule
(1)GM29-BitHarness(PartNumber:Crux2513)
(1) Instruction Sheet
(1)ReverseCameraHarness(CJA2103A)
PRECAUTIONS:
-Removethenegativesideofthebatterytoavoidanyshortcircuits
durring the installation.
-Donotinstalltheinterfacenearanymajorcomponentsornearthe
HVACsystem.Thismaycausedamageoroverheatingtothevehicle.
PRELIMINARY:
Please read the entire mannual before installing this interface.
This unit provides the following:
-12VAccOutput(3AMax/RAP)
-IlluminationOutput(250mAMax)
-LowVoltage(BattRun-DownProtection)
Chimes Include:
-Seatbelt
-CheckEngine
-KeyInIgnition
-LowFuel
-LowOil
-LightsOn
Before installing this interface please review the options before
removingthefactoryradio.Someoptionsmayneedtobeadjusted
prior to removing the factory radio. Options include:
-StandardBOSEAmplier
-PremiumBose(Y-91)
ONSTAR RADIO REPLACEMENT FOR SELECT GM LAN 29-BIT VEHICLES 2006-UP
SOOGM-16
SOOGM-16A
Harness:2606Only.
Covers2012-UPPick-Ups
w/Navigationlistedbelow.
WIRING COLOR CODES
The module has been rated for upto 3A max of output.
For applications demanding a continuous output of 3A or more,
wereccomendusingastandardBOSCH(SPDT)relay.
See your local car audio specialist.
OVERVIEW OF INSTALLATION CONNECT THE WIRES,
COLOR FOR COLOR.
IMPORTANT:
-TheFrontandRearfadingarenotretainedonY-91BOSE.
-TheOnstarvolumeoutputisdefaultedtolow-gain
BUICK:
2008-2012Enclave
2006-2011Lucerne
CADILLAC
2006-2010DTS
2007-2013Escalade
2007-2009SRX
CHEVROLET:
2007-2013Avalanche*
2007-2009Equinox
2008-2011ExpressVan
2006-2013Impala/ImpalaSS
2006-2007MonteCarlo
2007-2013Silverado*1500-3500Pickup
2007-2013Suburban*
2007-2013Tahoe*
2009-2012Traverse
GMC:
2007-2012Acadia
2008-2011Savana
2007-2013Sierra1500-3500Pickup*
2007-2013Yukon*
HUMMER:
2008-2009H2
PONTIAC:
2007-2009Torrent
SATURN:
2007-2009Outlook
2008-2009Vue
SUZUKI:
2007-2008XL7
*2012 Vehicles with Navigation Units are not
supported. Needed is SOOGM-16A
Tech Tip:
Make sure to wipe the 3.5mm plug
before inserting into the aftermarket radio
to avoid a bad connection.
This Interface Supports:
-BOSEAmplier
-Y-91System
-RearSeatEntertainment*
-Back-UpCamera
USING THE SWC WIRE ON NEW JVC UNITS
NewJVCunitsnolongercarrythe3.5mmcableandhaveaddedthe
SWC signal via a Lt. Blue/Yellow wire.
This wire needs to be connected to the SWC wire labeled “Kenwood”
also Lt. Blue/Yellow. Be sure to keep the dial switch set to number 4
when using JVC units.
Useasmallscrew
driver to make
adjustments.
Note:SeekUpisnot
supported on Jensen
radios.
ADJUSTING THE GAIN
HighGain(Non-BoseSystems)
PressOnStarbutton,Heear“OnstarReady“,TurnDialknobto“9“,
Wait 4 seconds, Press Onstar button “Thank you Good Bye“.
Turn Dial knob back to Aftermarket radio corresponding.
The insterface is defaulted at Low-Gain.(BOSE Systems)
Rev. 082113
REAR SEAT ENTERTAINMENT (SPECIAL ORDER)
1. Conect the rear seat entertainment 16-Pin connector to the vehicles
16-Pin factory connector.
2. Connect the RCA’s to the aftermarket radio video and audio input.
3. Test the video and audio before installing the radio into the dash.
MustSpecialOrderHarness:CJA2333A
CRUX GM LAN ONSTAR
TO OVERHEAD SCREEN
AUX A/V
GRAY
Connector
Connect to
Ground
BACK-UP CAMERA CONNECTION
1. Conect the back-up camera 16-Pin connector to the vehicles 16-Pin
factory connector.
2. Connect the yellow video RCA to the new aftermarket radio video input.
3. Test the video feed before installing the radio back into the dashboard.
8-PIN
(male plug)
BOSE
Non-BOSE
Part Number: CJA2103A
INTERFACING SOLUTIONS
