CSC cornlamps CLW08 Series Service manual

CSC LED
Power 12W 18W 27W 36W
Volume (cm) 30 x 18 x 18 32 x 19 x 19 34 x 20 x 20 38 x 20 x 20
Power 45W/54W 100W 120W
Volume (cm) 42 x 21 x 21 44 x 24 x 24 44 x 26 x 26
www.csc-led.com
Product Features
• 360° illuminance
• Can be with Clear or frosted PC cover.
• 12W-120W lamp can be with AC100-277V internal driver
• Isolated driver for 12W-120W, non-isolated driver for 100W-120W
• 12W-120W sealant pouring for whole driver and lamp plastic housing
• Long lifespan and good heat dissipation
• Direct replacement for Metal Halide with easy installation
• Fitsmanydierentxturestoreplacetraditionallamps
CLW08 Series Installation Instruction Manual

WARNING: ADDED WEIGHT OF THE DEVICE MAY CAUSE INSTABILITY OF A FREE-STANDING PORTABLELUMINAIRE. USE ONLY WITH A
PORTABLE LUMINAIRE THAT IS PROVIDED WITH A SHADE. SUITABLE FOR USE IN ENCLOSED LUMINAIRES. NOT FOR EMERGENCY LIGHTING.
AVERTISSEMENT: LE DISPOSITIF CONSTITUE UN POIDS SUPPLEMENTAIRE CE QUI PEUT CAUSER L’INSTABILITE D’UN LUMINAIRE PORTATIF
AUTONOME. UTILISER UNIQUEMENT AVEC UNE LAMPE DE TABLE DOTEE D’UN ABAT-JOUR. ADECUADA PARA USARSE EN LUMINARIAS
CERRADAS. NE CONVIENT PAS AUX SORTIES DE SECOURS.
1.Turnothepowerswitch.
2. Unscrew the CFL, MHL, HPS, etc. (Figures 5, 6).
3. Take out LED corn light and screw on (Figures 1, 2, 3). Note: Make sure to take
otheballastbeforeinstallingLEDcornlight,otherwisetheballastwillproducethe
resonance of high voltage and make the LED corn light breakdown.
4.Ifsecurityropeisprovided,xtheropeonthelampandthenxthewireontheother
end of the shell (Figure 4).
5. Turn on the power switch.
CLW08 Series Installation Instruction Manual
WARNING: MAKE SURE THE POWER IS OFF BEFORE INSTALLATION BEGINS.

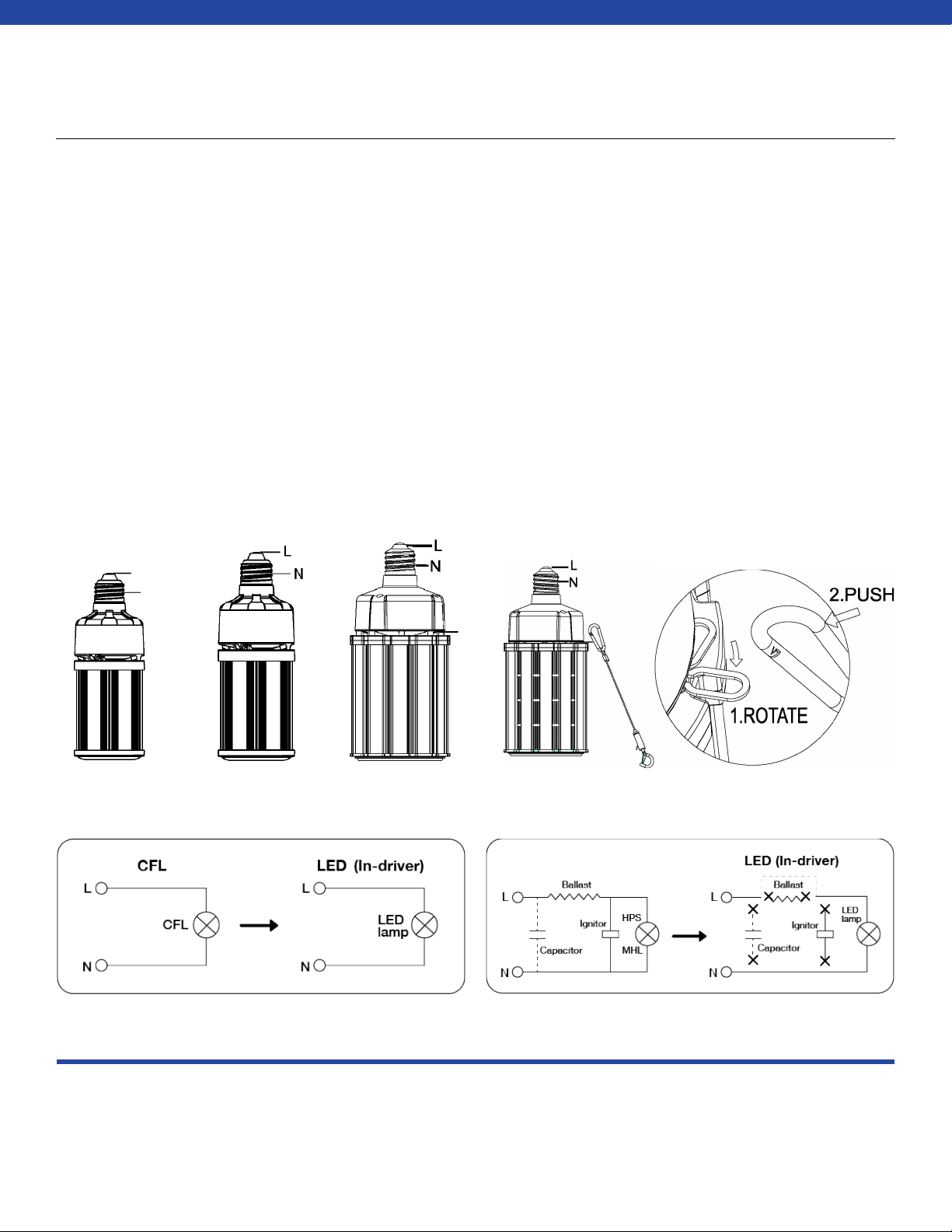

Figure(2) Figure(3) Figure(4)
L
N
Figure(5) Figure(6)
MHL / HPS
DO NOT OPERATE WITH EXISTING BALLAST - LINE VOLTAGE ONLY. Not for use with electric generators. Please avoid
using the LED lamp in environments where there is smoke, sulfur, and corrosive substances. If used in such environment,
makesuretheledxtureiswellprotectedbyanenclosedlampshadewhosedimensionsarenolessthanbelowsize,and
whose material is either glass or semi-glass, semi-metallic. Surface of the lampshade should not have any covering which
prevents heat dissipation.
www.csc-led.com
Figure(1)
