In-band Managed Fiber Media Converter
．Dual channels 10/100Base-TX / 100Base-FX
．FRM220-10/100iS-2
User Guide

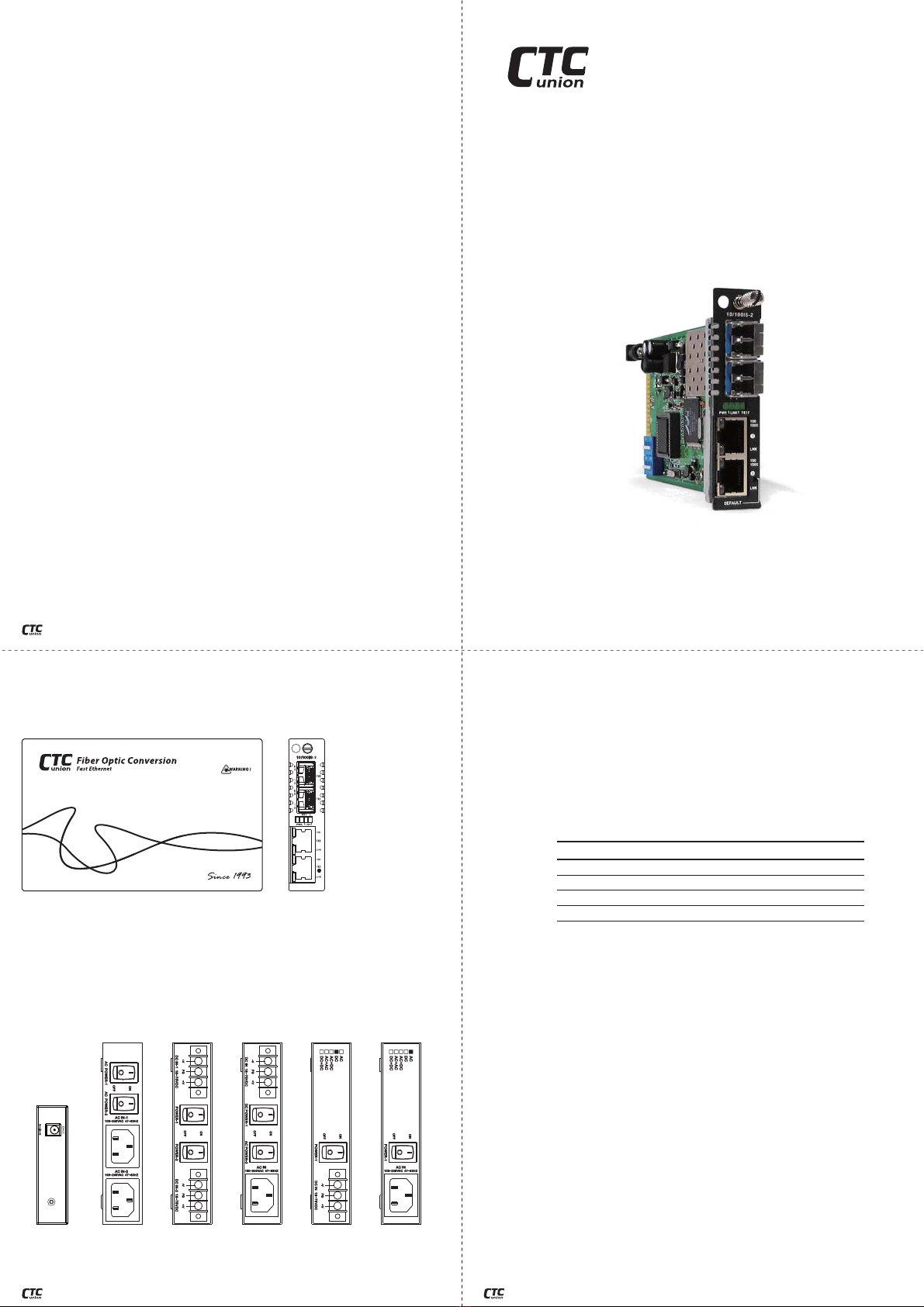

Panel
■Figure #2. Rear Panel of Stand-alone FRM220-10/100iS-2
FRM220-10/100IS-AC/DC48/AD/AA/DD
■Figure #1. Front Panel of FRM220-10/100iS-2
[email protected][email protected]
[email protected]
CTC Union Technologies Co.,Ltd.
www.ctcu.com[email protected]
Introduction
The FRM220-10/100iS-2 is a dual channel (two in one) 10/100Base Ethernet to 100Base-FX
ber slide-in card converter designed for central applications. With advanced features like
bandwidth control, this media converter is targeted for rst mile equipment in metro LAN,
campus, enterprise and FTTx applications. By oering in-band management, this converter
can be completely controlled and monitored from a centrally located managed rack
controlling all converter settings including band-width control, duplex, and speed
conguration. This media converter is completely transparent to Layer 2 and Layer 3
protocols including IEEE 802.1q, VLAN tag, Q in Q, STP, IPX, IP, etc.
Features
■2 independent 10/100BASE-TX to 100BASE-FX Converters
■Compatible with FRM220 10/100i
■2 independent channels OAM in-band management media converter
■Auto-Cross over for MDI/MDIX at TP port
■Supports far end fault function
■Auto-Negotiation or forced mode at TP port
■Supports link fault pass through (LFP) function
■Supports ow control
■Bandwidth control (32K or 512Kbps x N)
■Supports Loop Back Test
■Forward 2046 bytes (max.) packets in switch mode
■Forward 9K jumbo packets in converter mode
■Supports remote CPE power fail detection (dying gasp)
■Supports Auto Laser Shutdown (ALS) function
■Supports On-line remote F/W upgrade
Specifications
Standards
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, 100BASE-FX
Supports Full Duplex Ethernet mode
Supports Ethernet Packet up to 2046Bytes. In switch mode or jumbo
Packets ( >9K ) in converter mode.
10/100BASE-TX RJ-45 Connectors
Two RJ-45 connectors are provided for LAN port TX1, TX2
Auto MDI-X allows all UTP connections to be made using only a common straight-through
UTP cable.
100BASE-TX UTP Cable
Cable type: 100Base-Tx; Category 5 or better
Maximum cable distance: 100 meters (328 feet)
Fiber Optic Connectors
FRM220-10/100iS-2 : two SFP slots LC connectors are provided for FX1, FX2
Environment
Operating -- -10°C – 60°C, Storage -- -20°C – 70°C
Humidity -- 10 – 95%, (non-condensing)
MDI-X type MDI typeRJ-45 Pin
1
2
3
6
Rx+
Rx -
Tx+
Tx -
Tx+
Tx -
Rx+
Rx -
Power
Adapter: 12VDC 1A, Built-in AC Power 100~240V, Built-in DC Power 18~72VDC
Consumption : < 5W
Certication
FCC Part 15 Class A,CE Mark
CH01-DCCH01-DDCH01-AACH01
AC Adapter
CH01-AD
CH01M-AD
CH01-AC
Dimension and Weight: ( W x D x H ) mm
- 10/100iS-2--CH01 : 88 × 168 × 23 mm
- 10/100iS-2--CH01/AC : 135 × 212 × 32 mm
- 10/100iS-2--CH01/DC : 135 × 222 × 32 mm
- 10/100iS-2--CH01/AD : 135 × 222 × 32 mm
- 10/100iS-2--CH01/AA : 135 × 212 × 32 mm
- 10/100iS-2--CH01/DD : 135 × 222 × 32 mm
- 10/100iS-2--CH01M/AC : 135 × 212 × 32 mm
- 10/100iS-2--CH01M/DC : 135 × 222 × 32 mm
- 10/100iS-2--CH01M/AD : 135 × 222 × 32 mm
- 10/100iS-2--CH01M/AA : 135 × 212 × 32 mm
- 10/100iS-2--CH01M/DD : 135 × 222 × 32 mm

LED Indicators
On：
On：
O：
Flash：
On：
O：
Flash：
On：
O：
On：
O：
Flash：
Power On
Link ok
Link fail
Link ok and receive activity
Link ok
Link fail
Link ok and receive activity
100 Base
10 Base
Link ok
Link fail
Link ok and receive activity
PWR
FX1 LNK
FX2 LNK
100 ( TX1, TX2 )
LNK ( TX1, TX2 )
Installation
Connect the Ethernet cable to the FRM220-10/100iS-2 Series. The Converter will sense
whether to operate in full or half mode and will Be indicated on the LED. Follow the
connection examples below. Install The ber converter with the DC power adapter
provided (+12VDC, 1A) And connect the adapter to an AC outlet.
Connections
The following example illustrates the connection scheme when 2-channel
FRM220-10/100iS-2 slide-in card converter in FRM220 chassis connect to two of one
channel FRM220-10/100I(S) stand-alone converters through the ber
The following example illustrates the connection scheme when 2-channel
FRM220-10/100iS-2 stand-alone converter connect to two of one
channel FRM220-10/100I(S) stand-alone converters through the ber
www.ctcu.com[email protected]www.ctcu.com[email protected]
www.ctcu.com[email protected]www.ctcu.com[email protected]
Figure: Explanation of LFP
Fiber
local remote
UTP
UTP
Link o
Converter BConverter A Switch or PCSwitch or PC
(1) TP port link failed (3) Fiber port gets remote link fault information
(5) Remote TP link is o
(4) TP link fail(2) Fiber port sends non-idle pattern
Link-Fault-Pass through (LFP) Application Note
When ‘link fault pass through’function is enabled, link status on TX port will inform the FX
port of the same device and vice versa. From the link fault pass through explanation in the
gure below, if link fail occurrson TX port (1), the local FX port sends non-idle pattern to notify
the remote FX port (2). The remote FX port then forces its TX port to link failed after receiving
the non-idle pattern (4). This mechanism will alert the link fault status of local TX port to the
remote converter's TX port, and the link status of the remote TX port will become down. Link
status LED will also be o for both. Link Fault Pass through is enabled by setting DIP switch 4 (ON).
Notice
Auto Laser Shutdown (ALS) function
Fiber loss will cause the ber output o, for the eyesight safety.
Fiber Hardware Reset (FHR)
Fiber loss will cause a hardware reset on the device.
While a remote ber linked CPE device lost control by any software
process, we can turn o the ber optic output on the local device by
the SNMP manager or just make a ber disconnect. This will let the
remote CPE device make a hardware reset (or call a Cool Start) by
itself. Let this device rework again as normal.
NOTE :
WARNING
WARNING
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
CE NOTICE
Marking by the symbol CE indicates compliance of this equipment to the EMC directive of the European Community. Such
marking is indicative that this equipment meets or exceeds the following technical standards:
EN 55022:1994/A1:1995/A2:1997 Class A and EN61000-3-2:1995, EN61000-3-3:1995 and EN50082-1:1997
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated
ina commercial environment. This equipment generates, uses, and can radiate radio frequency energy and if not installed and
used in accordance with the instruction manual may cause harmful interference in which case the user will be required to
correct the interference at his own expense. NOTICE: (1) The changes or modications not expressively approved by the party
responsible for compliance could void the user's authority to operate the equipment. (2) Shielded interface cables and AC power
cord, if any, must be used in order to comply with the emission limits.
CISPR PUB.22 Class A COMPLIANCE:
This device complies with EMC directive of the European Community and meets or exceeds the following technical standard. EN
55022 -Limits and Methods of Measurement of Radio Interference Characteristics of Information Technology Equipment. This
device complies with CISPR Class A.
