CTR KILL-BACT User manual

OPERATING MANUAL
Rev. 1 – 04/2011
Ultrasonic Nebulizer

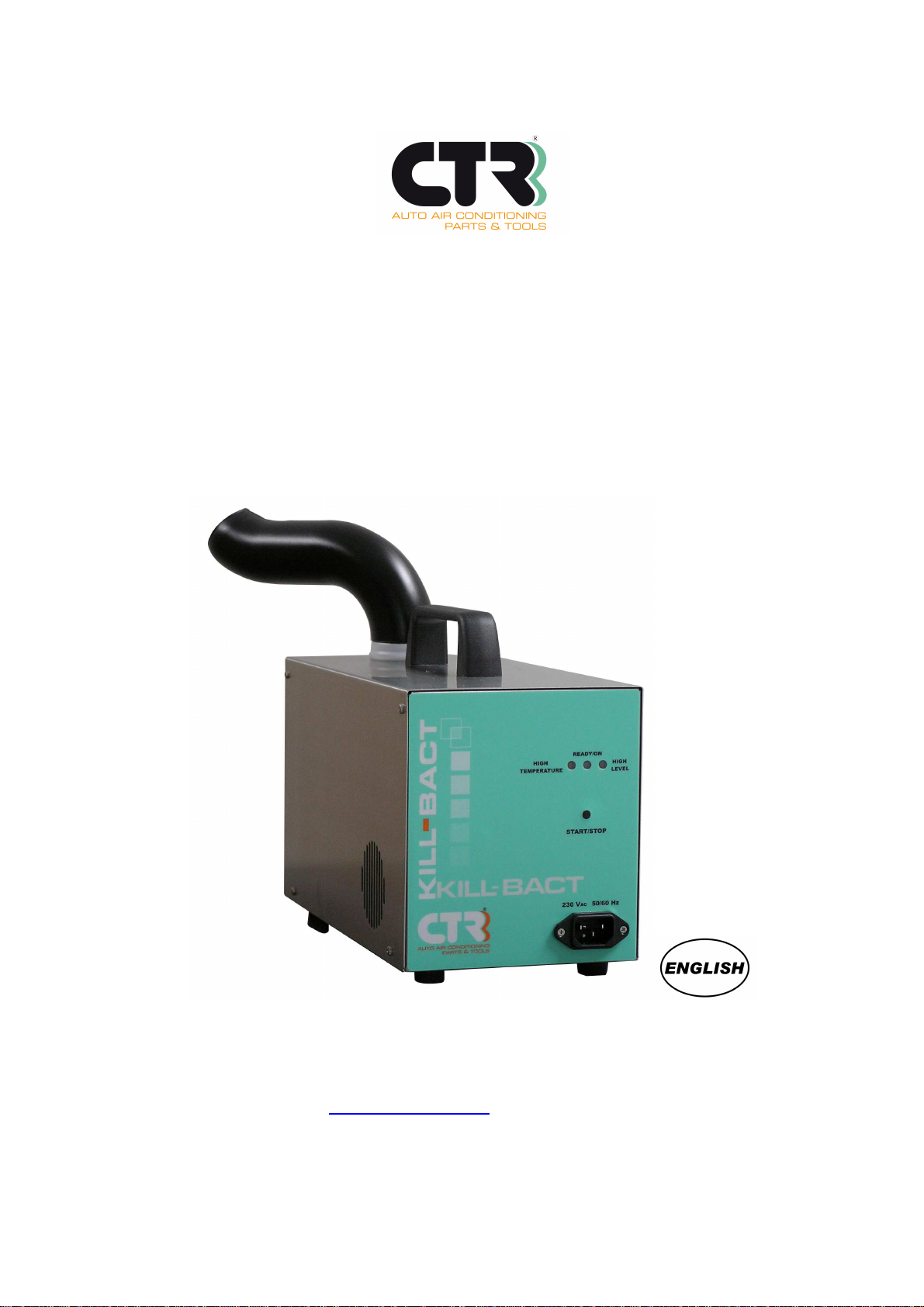

KILL-BACT
COD. 4018150
CTR S.R.L.
Via T. ed E. Manzini, 9 – 43126 Parma – Italy
Tel: [phone] – Fax: [phone]
Internet: http://www.ctrgroup.it; e-mail: [e-mail]

2 OPERATING MANUAL
No parts of this manual may be reproduced in any form without prior written consent by the manufacturer.
The manufacturer reserves the right to make improvements or changes in its instruments at any time and without
prior notice.
Other product names and companies mentioned in this document may be registered trademarks registered by the
respective owners.
Rev. 1 – 04/2011
IMPORTANT !
We recommend you thouroughly read the instructions provided in this manual
before switching on the device.
This will enable you to obtain excellent performance and reliability over time.
Store this manual close to the device for quick reference by operators!
The Manufacturer shall not be liable for failures or other consequences deriving
from incorrect procedures on the part of the User.

OPERATING MANUAL 3
Dear Customer,
Congratulations on purchasing our KILL-BACT COD. 4018150 ultrasonic nebulizer, a very modern
instrument which will help you clean the interior of any vehicle.
The technology applied and the quality achieved in years of experience in the sector, have made
KILL-BACT COD. 4018150 an excellent instrument which will give you maximum satisfaction
thanks to its efficiency and reliability over time.
The device uses the latest technology in the field of ultrasonic nebulization.
This manual is to be considered an integral part of the instrument as it contains general
instructions for correct use of the device.
We therefore invite you to carefully read through the instructions before switching on the device, to
adequately train operators and to store the manual for future reference. These good practices shall
ensure that you obtain from the instrument top performance and reliability over time.

INDEX 4 OPERATING MANUAL
INDEX
Manufacturer’s CE Declaration of Conformity............................................................................5
1 INTRODUCTION ....................................................................................................................6
2 SAFETY PRECAUTIONS.......................................................................................................7
2.1 For the device......................................................................................................................7
2.2 For the user..........................................................................................................................8
2.3 Correct Disposal of product (WEEE Directive).....................................................................8
3 TECHNICAL CHARACTERISTICS.........................................................................................9
3.1 General................................................................................................................................9
4 PREPARATION FOR USE ...................................................................................................10
4.1 Content of package............................................................................................................10
4.2 Leds description.................................................................................................................11
4.3 Preparing the device..........................................................................................................12
5 USE ..................................................................................................................................13
6 MAINTENANCE....................................................................................................................16

OPERATING MANUAL 5 DECLARATION OF CONFORMITY
Declaration of Compliance CE
Under the machinery directive 2006/42/CE, annex II letter. A
The Manufacturer
CTR S.R.L.
Via T. ed E. Manzini, 43126 PARMA - ITALY
Tel: [phone] – Fax: [phone]
Declare under its sole responsibility that the product;
Ultrasonic Nebulizer
Model KILL-BACT - Code 4018150
Complies all the provisions of Machinery directive 2006/42/CE, plus the directives:
· 2006/95/EC (LVD)
· 2004/108/EC (EMCD)
· 2002/95/EC (ROHS)
· 2002/96/EC (WEEE)
The manufacturer declare that the technical manufacturing documentation is available at the
company.

INTRODUCTION 6 OPERATING MANUAL
1 INTRODUCTION
KILL-BACT COD. 4018150 is a modern, advanced ultrasonic nebulizer with compact dimensions
and possibility of multiple applications.
The device is designed for the nebulization of its specific BACTERICIDAL liquid COD. 6026010
and the application of this on the air conditioning system of vehicles (cars, trucks, buses, etcetera)
to achieve sanitizing of seat upholstering seat and mats, and to sterilize the systems.
The liquid is nebulized into small particles (5 µm) and is conveyed into the system to be
disinfected, through a specific shaped tube.
Some of the main advantages of the ultrasonic nebulization mechanism are:
no formation of condensate and effective sanification/disinfection due to the particular
characteristics of the product’s particles, obtained by ultrasonic nebulization.
The liquid particles completely sanitize the conditioning system (including ducts and fans), to stop
the spreading of bacteria and germs and eliminate unpleasant smells inside the vehicle.
For best results, we recommend you carry out a treatment with KILL-BACT COD. 4018150 at
least twice a year.

OPERATING MANUAL 7 SAFETY PRECAUTIONS
2 SAFETY PRECAUTIONS
2.1 For the device
•Before each use, check the device, and the supply cable. Do not use the device if the cable
is damaged. Any damage must be repaired by qualified personnel.
•Store the device is a dry place, sheltered from the weather.
•The device is not suitable for operation in environments with risk of explosion or fire.
•Ensure that the power supply connection points comply with current safety regulations
(differential switch and grounding).
•Use exclusively the COD. 6015010 BACTERICIDAL liquid.
•Place the supply cable in a position where it will not create an obstacle and where it will not
be stepped on. Do not use extension cables. The device must be positioned in a place where
it will not come into contact with wet areas or anything else which could affect its insulation.
•Opening of the instrument by unauthorized personnel is prohibited.
•Maintenance or repair operations must be carried out by authorized personnel.
WARNING
If used correctly and in accordance with the instructions provided by the Manufacturer this
instrument present no hazard for operators.
The Manufacturer shall not be liable for failures and other consequences deriving from
incorrect operations on the part of operators.

SAFETY PRECAUTIONS 8 OPERATING MANUAL
2.2 For the user
•Carefully read though this operation manual before switching on power.
•The instrument must be used only by qualified, trained personnel.
•Use only the cable supplied with the instrument.
•After the treatment ventilate the interior for approx. 5 – 10 minutes.
2.3 Correct Disposal of product (WEEE Directive)
•To prevent possible harm to the environment or human health from uncontrolled waste
disposal, pleased separate this from other types of wastes and recycle it responsibly to
promote the suistainable reuse of material resources.
•Household users should contact either the retailer where they purchased this product, or their
local government office, for details of where and how they can take this item for
environmentally safe recycling.
ATTENTION
The mark following indicates that it should not be disposed, with other household
wastes at the end of its working life.

OPERATING MANUAL 9 SAFETY PRECAUTIONS
3 TECHNICAL CHARACTERISTICS
3.1 General
Power supply:
230 Vac 50/60 Hz
Absorbed current:
Approx. 0,15 Ampere
Dimensions:
L= 295 mm, H = 220 mm, P = 150 mm
Weight:
~3,1 Kg
nebulized liquid:
Circa 15 ml/min
Noise level:
< 70 dBA
Operating temperature:
0° ÷+60°C
Storage temperature:
–30° ÷+90°C

USE 10 OPERATING MANUAL
4 PREPARATION FOR USE
4.1 Content of package

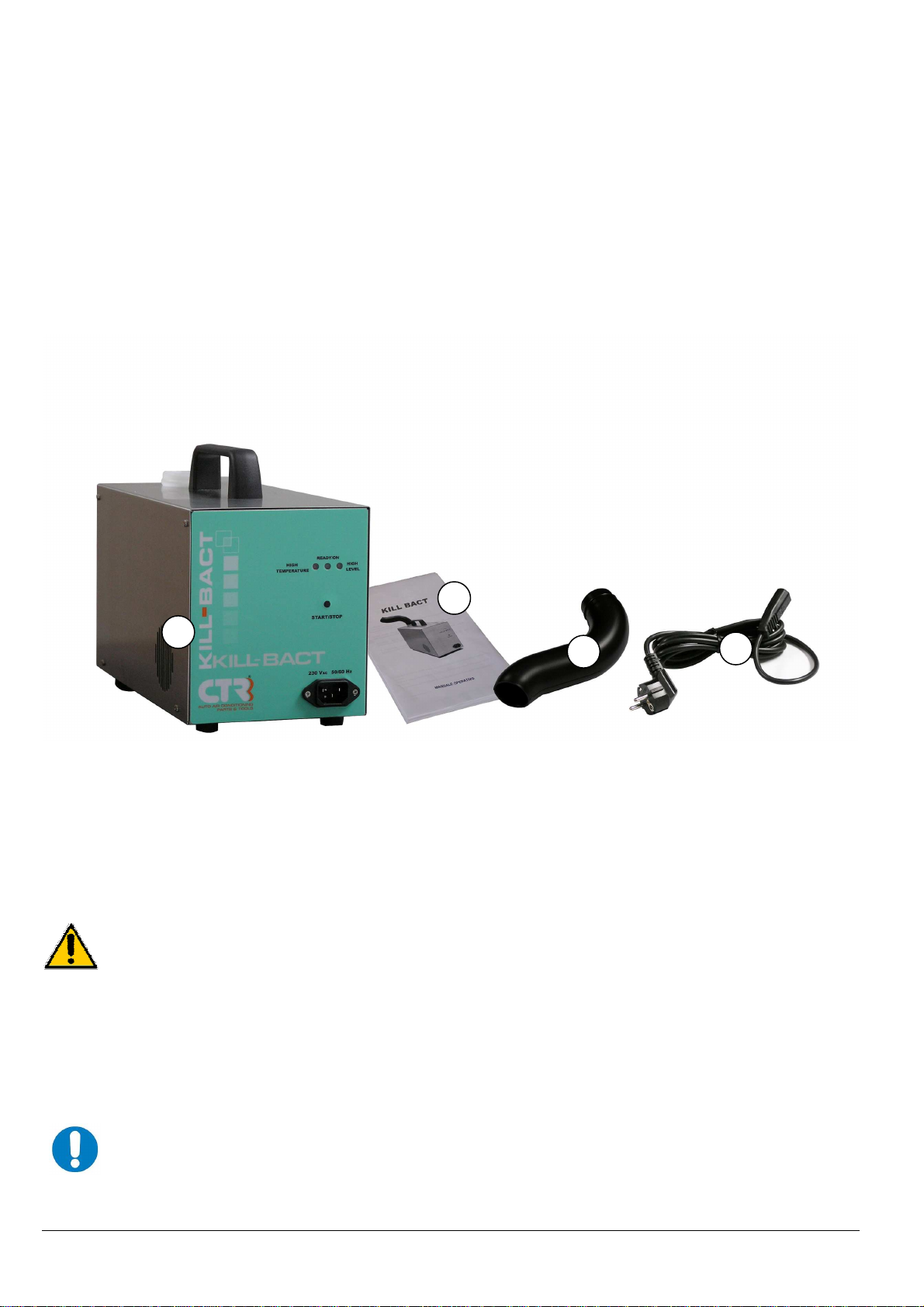

The KILL-BACT COD. 4018150 ultrasonic nebulizer comes in a can which contains the following
material:
1. Ultrasonic nebulizer
2. Operating Manual
3. Conveyor Tube
4. Supply cable
You can purchase the COD. 6026010 BACTERICIDAL liquid from your local
dealer.
IMPORTANT
Ensure that all the parts listed are contained in the case, if any parts are missing
or damaged contained your local dealer.
NOTE
We recommend you do not dispose of the packaging,
because it will provide protection if you need to transport the device.
1
2
3
4

OPERATING MANUAL 11 USE
4.2 Leds description
•HIGH LEVEL: (GREEN led) is on when, during the filling of the tank, exceeds the maximum
permitted level of liquid. The device is stopped and to operate the unit you must restore the
level of liquid.
•READY/ON: (GREEN led) begins to flash as soon as you start to pour the liquid inside the
tank. The LED stays on fixed when you press the button ON/OFF and for the entire duration of
treatment.
•HIGH TEMEPERATURE: (RED led) is on when the temperature inside the vehicle exceeds
65 °C. The device automatically stops nebulisation of the liquid, but the fan will continue to run.
When the temperature reaches the value fit the LED turns off and the device resumed the
treatment.
The treatment ends for exhaustion liquid in the tank, for time expired of the treatment or pressing
the button ON / OFF.

USE 12 OPERATING MANUAL
4.3 Preparing the device
•Insert the power connection into the input in the front part of the device (Picture A), and insert
the power plug into the power socket.

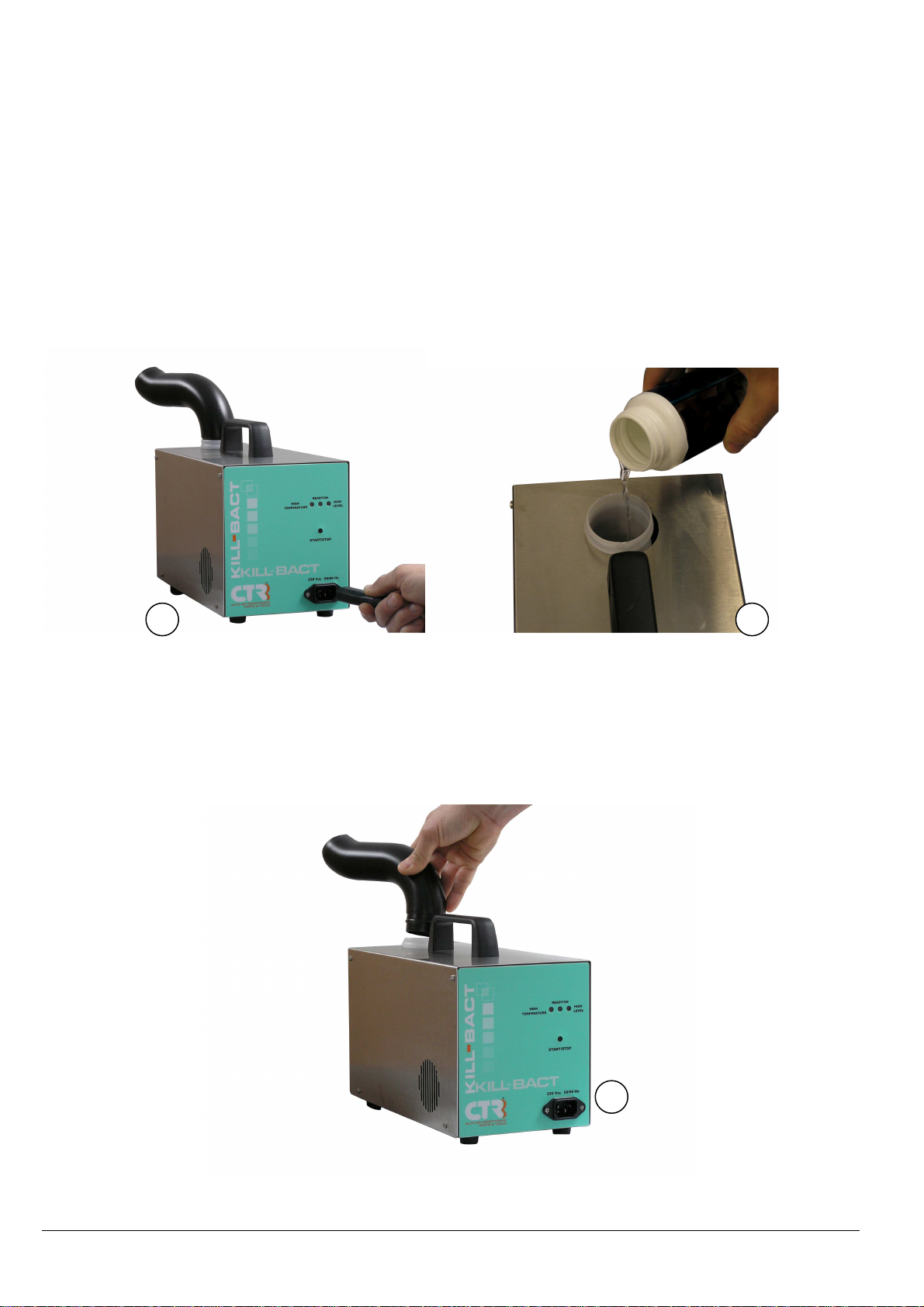

•Fill the tank of NEBULA 2011CTR with a bottle full of liquid (Picture B); The green led
READY /ON starts to flash.
•Insert the Conveyor Tube into the inlet of the NEBULA 2011CTR (Picture C).
C
A
B

OPERATING MANUAL 13 USE
5 USE
•Fill the device as described in paragraph 4.3.
•Set the device down on the floor mat on the
passenger side.
•Accost the conveyor tube in the recirculation air
intake (Picture D).
•Put the power lead through the top of the opened
side-window.
•Close all the windows of the vehicle (Picture E).
ATTENTION
If the temperature inside the vehicle exceeds 60 °C , switch on the air conditioning
to bring the temperature below 60 °C before using the device.
NOTE
Before use, check the pollen filter/active carbon filter and if too dirty replace them.
E
D

USE 14 OPERATING MANUAL

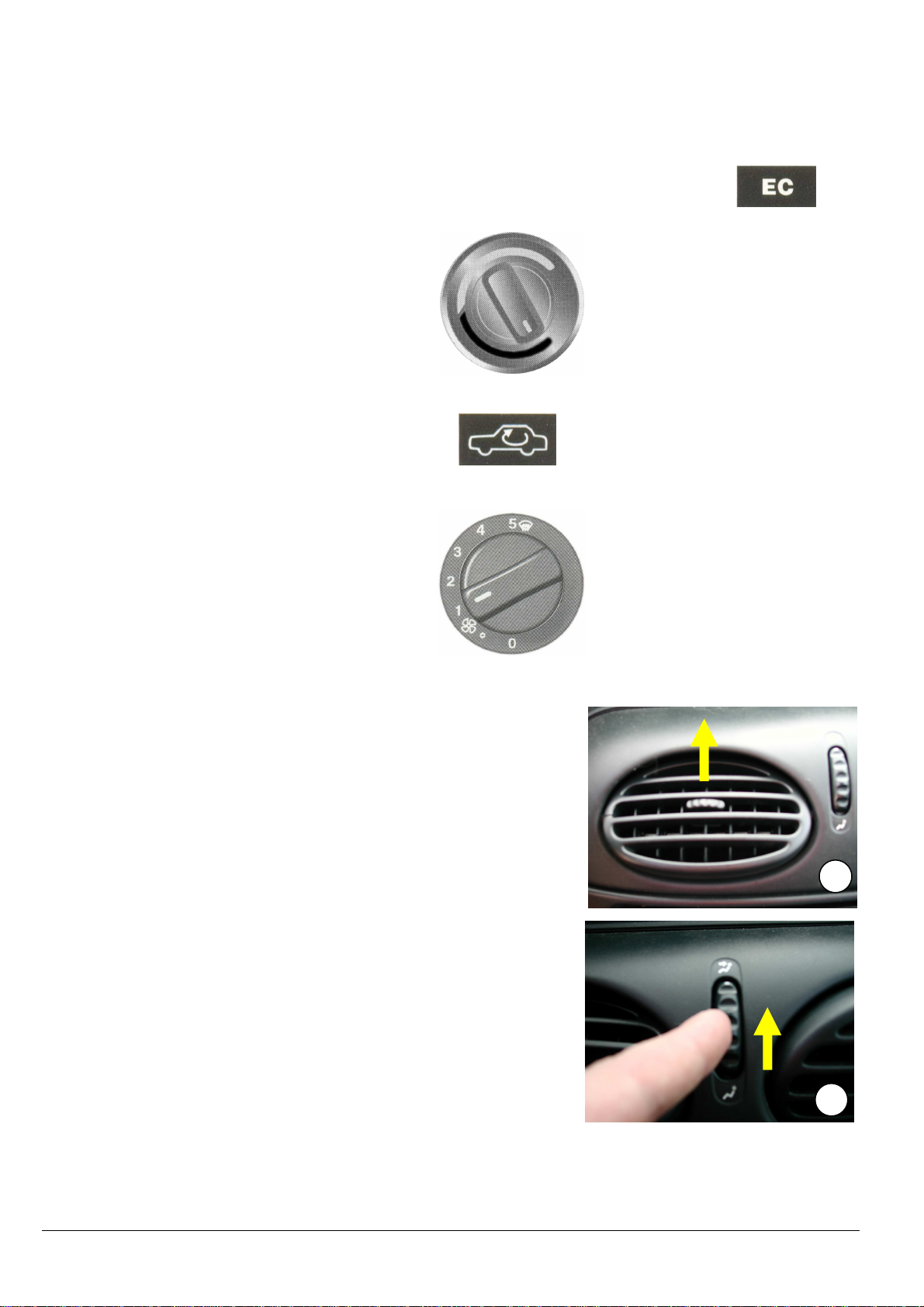

•Switch off the air conditioning system, using the special control.
If the vehicle has an automatic conditioning system, set it to ECONOMY mode .
•Set the temperature to the minimum.
•Select internal air recirculation mode .
•Set the air fan to the minimum.
•Adjust the direction of air flow upwards (Picture F).
•Open all the air deflectors in the dashboard (Picture G).
F
G

OPERATING MANUAL 15 USE
•Press the ON/OFF button of the device for the start the treatment phase (Picture H).
•Check whether the nebulized liquid is being sucked
into the recirculation air intake (Picture I).
•Leave the vehicle and close the doors.
The treatment lasts approx. 20 minutes.
The device will switch off automatically after the treatment.
Once the operation has been completed, open all the doors, switch of the vehicle’s engine and
ventilate the interior for approx. 5 – 10 minutes.
ATTENTION
Do not remain inside the vehicle during the treatment and do not breath in the
nebulized liquid.
ATTENTION
Take care with the power supply cable when closing the vehicle’s doors.
I
H

MAINTENANCE 16 OPERATING MANUAL
6 MAINTENANCE
•Disconnect supply cable from the device and pull out the Conveyor Tube .
•Pour the residual liquid into a container (approx 30 ml) (Picture L). The liquid remaining can
be used for the next application.
•To clean regularly, simply pour in some tap water through the opening where the container is
attached.
•Shake and then empty out the water completely
L
