CTS FWRIII-3105 SERIES User manual

FWRIII-3105 SERIES
4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 port 1000Mbps SFP slot
uplink Residential Gateway
4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 port 100/1000Mbps SFP
slot uplink Residential Gateway
4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 port 100/1000Mbps fiber
optics uplink Residential Gateway
4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 uplink port combo
(10/100/1000Mbps RJ-45 and 100/1000Mbps SFP slot) Residential Gateway
4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 port 100/1000Mbps fiber
optics uplink Residential Gateway
4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 uplink port combo
(10/100/1000Mbps RJ-45 and 100/1000Mbps SFP slot) Residential Gateway
4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 port 10/100/1000Mbps
RJ-45 uplink Residential Gateway
User’s Guide
Version 0.99.00

2
Trademarks
CTS is a registered trademark of Connection Technology Systems Inc..
Contents subject to revision without prior notice.
All other trademarks remain the property of their respective owners.
Copyright Statement
Copyright 2013 Connection Technology Systems Inc..
This publication may not be reproduced as a whole or in part, in any way whatsoever
unless prior consent has been obtained from Connection Technology Systems Inc..
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital
device, pursuant to Part 15 of the FCC Rules. These limitations are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if the
equipment is not installed and used in accordance with the instructions, it may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult your local distributors or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
Changes or modifications to the equipment, which are not approved by the party
responsible for compliance, could affect the user’s authority to operate the equipment.
Copyright © 2013 All Rights Reserved.
Company has an on-going policy of upgrading its products and it may be possible that
information in this document is not up-to-date. Please check with your local distributors
for the latest information. No part of this document can be copied or reproduced in any
form without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.

3
Table of Contents
1. INTRODUCTION ...........................................................................................4
1.1 The WLAN Residential Gateway..............................................................4
1.2 Appearance..............................................................................................6
2. INSTALLATION...........................................................................................10
2.1 Installation Requirements.......................................................................10
2.2 Checking the Package Contents............................................................10
2.3 Installing the WLAN Residential Gateway.............................................. 11
2.4 Powering ON.......................................................................................... 11
2.5 Connecting the Gateway to Network......................................................12
3. OPERATION................................................................................................13
3.1 LED Definitions.......................................................................................13
4. MAINTENANCE ..........................................................................................14
4.1 Fault Identification ..................................................................................14
4.2 Hardware Replacement Procedures ......................................................15
4.3 Firmware Upgrade..................................................................................15

4
1. INTRODUCTION
Thank you for choosing this WLAN Residential Gateway. The WLAN Residential
Gateway can provide the best performance and price ratio when multiple copper
ports need to be deployed in networking environment.
1.1 The Managed Residential Gateway
With 4 or 5 10/100/1000Mbps RJ-45 ports on the front panel and 4 wireless LAN
for IEEE802.11N standards, this compact WLAN Residential Gateway provides
high performance store-and-forward switching capability plus other advanced
features such as QoS, VLAN, etc.. Clear, at-a-glance per-port LED indicators
make it easier for users to control and manage network status. The built-in
management module also allows users to configure, control and monitor the
system via SNMP based management system.
Specification
Interface
LAN Ports: 10/100/1000BASE-T x 4
WAN Port: 1000 or 100/1000BASE-X x 1 or 10/100/1000BASE-T x 1
Wireless LAN x 4
Standards
Comply with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.1q, 802.1p,
802.11n standards
Features
Management:
SNMP/Web interface
Storm Control
DHCP Auto-Provisioning
Text Based Config
SFF-8472 (digital diagnostic management interface for SFP)
Power Down Trap
RMON:
FTP/TFTP upgrade
Switching and Routing:
Support Auto-Negotiation in TP ports
Support MDI/MDIX Auto-Crossover in TP ports
Full/Half Duplex Mode Operation

5
MAC Address Table: 1K
Store-and-Forward Switching Mechanism
Support up to 9k Jumbo Frames
Support IEEE802.1Q Tag VLAN
VLANs: Support up to 128 VLAN Groups
Support IGMP Proxy
Support IGMP Snooping V1 and V2
Bandwidth Control
QoS: support 802.1p and ToS Classification
Priority Queues: 4 Queues
Support NAT/Bridge Hybrid Mode
Support RIP V1 and V2
Support DHCP Client & Server
Support DDNS
Support Packet/URL Filter
Support VPN Passthrough (IPSec, PPTP and L2TP)
Support DMZ Host
Support UPnP
WiFi Function:
WiFi Protected Setup (WPS)
64/128-bit WEP, WPA, WPA2 Data Encryption
MAC Access Control for WiFi Link

6
1.2 Appearance
Front Panel
Figure 1. Front Panel for 4 ports 10/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 uplink port
combo (10/100/1000Mbps RJ-45 and 100/1000Mbps SFP slot) Residential Gateway
Figure 2. 4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 uplink port combo
(10/100/1000Mbps RJ-45 and 100/1000Mbps SFP slot) Residential Gateway
➊Smart Lighting Control:
System Status LED and Port Link LEDs will be turned off by
pressing the button. Only Power LED indicator stays on.
➋10/100/1000Mbps RJ-45 ports
➊
➋

7

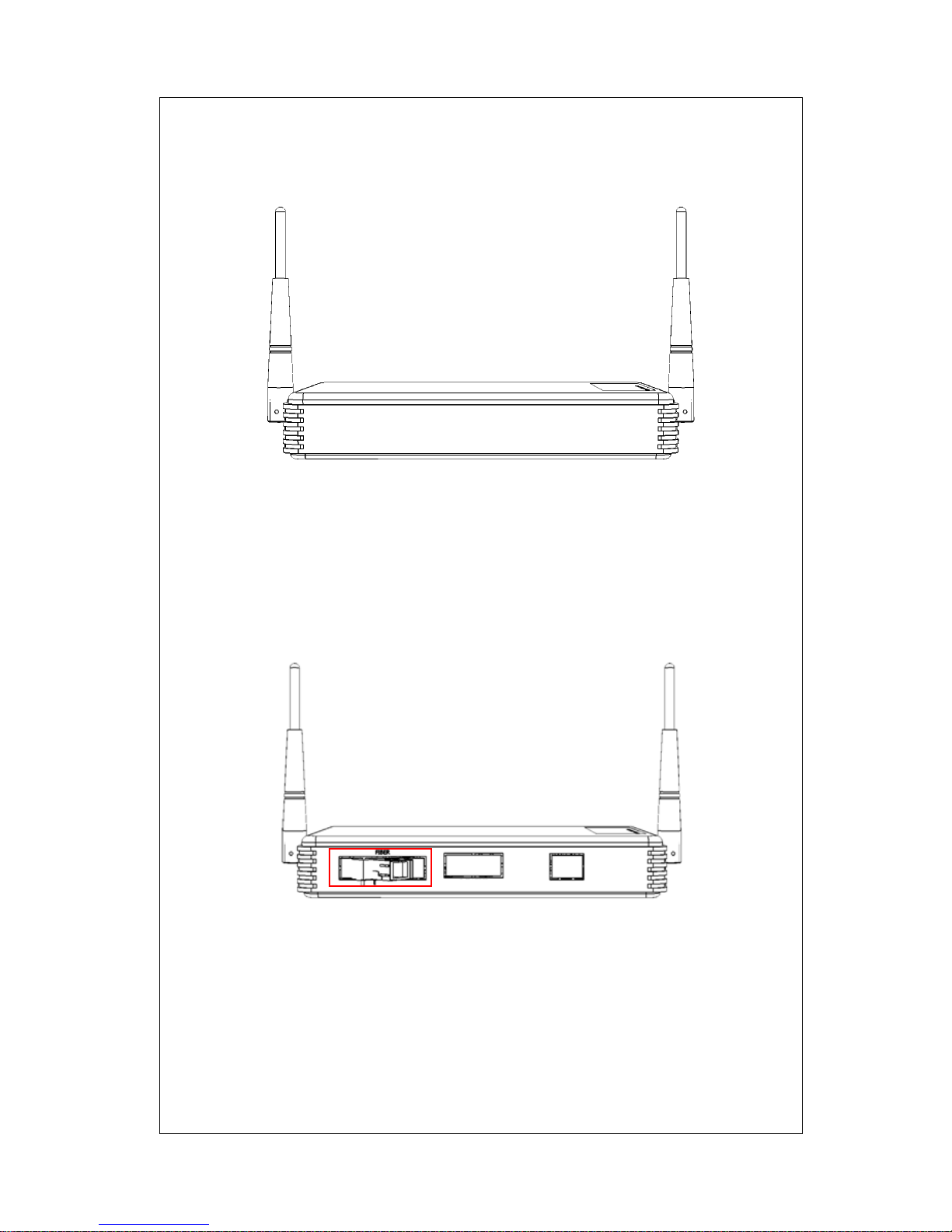

Rear Panel
Figure 3. Rear Panel for 4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 port
10/100/1000Mbps RJ-45 uplink Residential Gateway
Figure 4. Rear Panel for 4 ports 10/100/1000Mbps RJ-45; built-in IEEE802.11n WiFi and 1 port
100/1000Mbps fiber optics uplink Residential Gateway
➌1000Mbps SFP or 100/1000Mbps F/O Port
➌

8

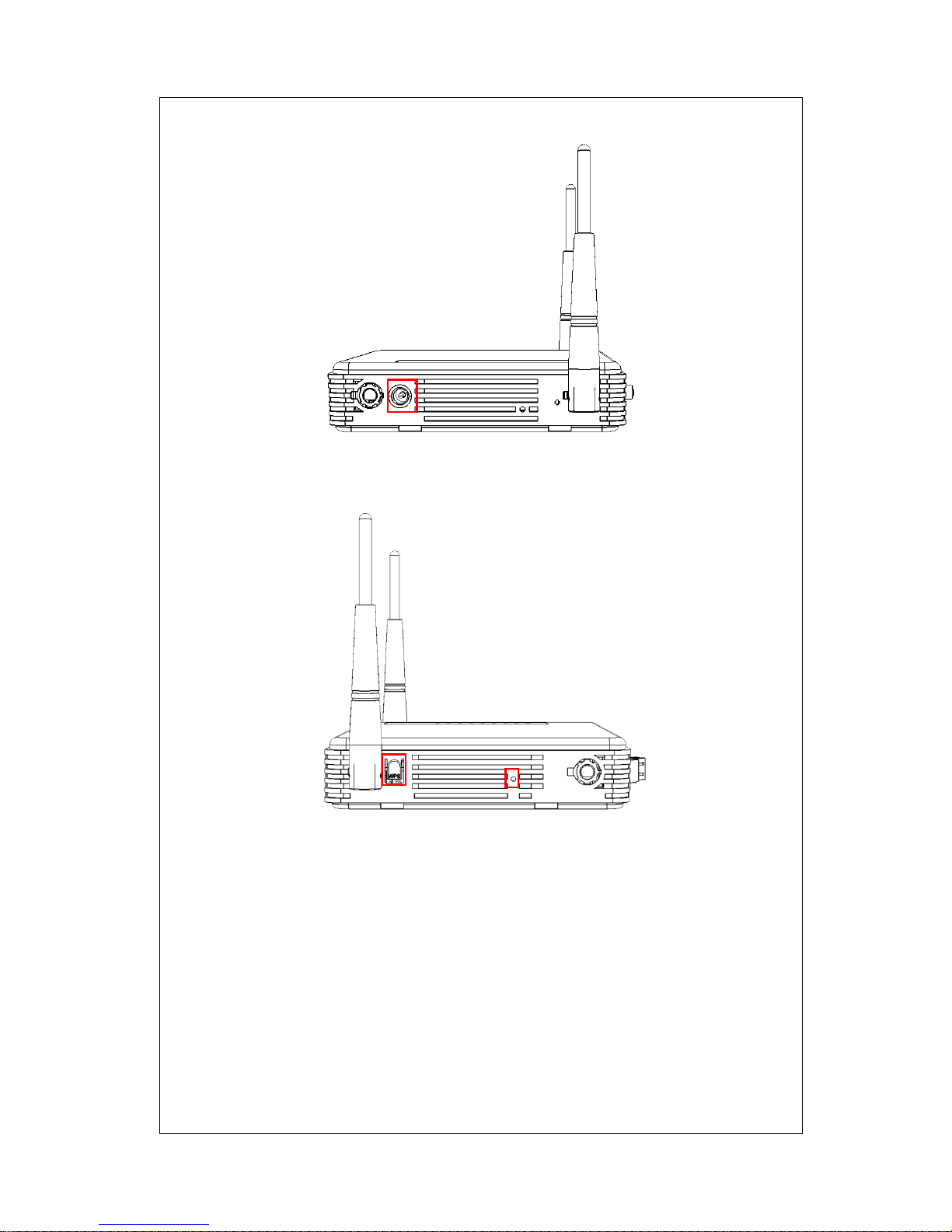

Left and Right Panel
Figure 5. Left Panel
Figure 6. Right Panel
Power Jack Connector
➎WPS Button
➏Reset Button:
Insert a pin or paper clip to press the Reset Button for 5 seconds
to restart the system
Insert a pin or paper clip to press the Reset Button for 10
seconds to reset the device back to factory defaults.
➏

➎

9
Top Panel
Figure 7. Top Panel
➐LED: For detail definitions, please refer to chapter 3.1 LED Definitions
Cable Specifications
The following table contains various cable specifications for the WLAN
Residential Gateway. Please make sure that you use the proper cable when
connecting the WLAN Residential Gateway.
Cable Type
Description
10BASE-T
UTP Category 3, 4, 5 (100 meters max.)
EIA/TIA- 568 150-ohm STP (100 meters max.)
100BASE-TX
UTP Cat. 5 (100 meters max.)
EIA/TIA-568 150-ohm STP (100 meters max.)
1000BASE-T
UTP Cat. 5e (100 meters max.)
UTP Cat. 5 (100 meters max.)
EIA/TIA-568B 150-ohm STP (100 meters max.)
100BASE-FX
Multi-mode fiber module(2km) / Single-mode fiber module
1000BASE-SX
Multi-mode fiber module (550m)
1000BASE-LX
Single-mode fiber module (10km)
1000BASE-LH
Single-mode fiber module (30km/50km)
1000BASE-ZX
Single-mode fiber module (80km)
Mini-GBIC
SFP Transceiver for 1000BASE-SX Multi-mode fiber module (550m)
SFP Transceiver for 1000BASE-LX Single-mode fiber module (10km)
SFP Transceiver for 1000BASE-LH Single-mode fiber module
(30km/50km)
SFP Transceiver for 1000BASE-ZX Single-mode fiber module (80km)
➐

10
2. INSTALLATION
To properly install the WLAN Residential Gateway, please follow the procedures
listed below. Procedures covered in this chapter are described below in
separate sections.
Installation Requirements
Unpacking the WLAN Residential Gateway
Installing the WLAN Residential Gateway
Powering on the WLAN Residential Gateway
Connecting the WLAN Residential Gateway to the Network
2.1 Installation Requirements
Basic requirements for installation are as follows:
Environmental conditions
One power outlet
Proper ventilation
Proper isolation to electrical noise, radio, etc..
UTP cables should not run in the same duct with power and
phone line cords
Required SFP Transceivers, fiber cables, UTP cables or phone line
cords
2.2 Checking the Package Contents
Unpack the package carefully and check the package contents. The package
should contain the following items:
Items included in standard package:
1 WLAN Residential Gateway
1 Documentation CD
1 Power Adaptor
1 Mac ID Label
If any of the above items is found missing or damaged, please contact your local
sales representative for support or replacement.

11
2.3 Installing the WLAN Residential Gateway
CAUTION
To prevent any damage or failure of the WLAN Residential Gateway, please
DO NOT block the ventilation FAN holes.
Use the following guidelines when choosing a place to install the Residential
Gateway:
Firm and steady flat surface.
The location of power outlet should not be far away from the device.
Make sure that there is proper heat dissipation from and adequate
ventilation around the switch. Do not place heavy objects on the
WLAN Residential Gateway.
Make sure water and moisture cannot enter the case.
Keep the cabling away from electrical noise.
2.4 Powering ON
The WLAN Residential Gateway can be used with AC power adapter 100-240
VAC Input and 12VDC output. The input connector is located on the left panel of
the WLAN Residential Gateway. Before turning on the WLAN Residential
Gateway, please make sure that network cables, and power cables are securely
connected.
Procedures:
1. Plug one end of the power adaptor into the power jack on the left
panel.
2. Plug the other end of the power adaptor into the power outlet. After
the power is on, the Power LED indicator should light in green.
Power Failure
In the event of power failure, unplug the power that is plugged into the
Residential Gateway at the left of the device. When power is resumed, plug the
power back to the Residential Gateway. Please note that the WLAN Residential
Gateway has no Power ON/OFF Button. Therefore, the only way to power on or
power off the Residential Gateway is to connect or disconnect the power
adaptor.

12
2.5 Connecting the Gateway to Network
Connect to Network
This WLAN Residential Gateway has 4 or 5 10/100/1000Mbps RJ-45 ports on
the front panel. These ports can be inserted by 10/100/1000Base-T cables,
connecting to the end devices. The connection of the fiber port on the rear panel
must be matched, i.e. Transmitter to Receiver and vice versa.
Figure 4. Example of segmenting network configuration

13
3. OPERATION
The WLAN Residential Gateway is Plug & Play compliant. Real-time
operational status can be monitored through a set of LED indicators located on
the top panel. A built-in management module provides users with flexible
interfaces to configure, control and monitor the complete system remotely.
3.1 LED Definitions
LED
Color
Operation
Power
Off
Power is off.
Green
Power is functioning normally.
STATUS
Green
System is ready.
Orange
System is not ready.
Orange blinking
Insert a pin or paper clip to press the Reset button
for 3 seconds to restart the device. The STATUS
LED will blink in orange once.
Insert a pin or paper clip to press the Reset button
for 10 seconds to reset the device to factory defaults.
The STATUS LED will blink in orange three times.
WAN
Off
The port link is off or it is up in 10Mbps.
Green
The link is up and works at 100Mbps.
Orange
The link is up and works at 1000Mbps.
Blinking
The traffic is present.
LAN 1
Off
The port link is off or it is up in 10Mbps.
Green
The link is up and works at 100Mbps.
Orange
The link is up and works at 1000Mbps.
Blinking
The traffic is present.
LAN 2
Off
The port link is off or it is up in 10Mbps.
Green
The link is up and works at 100Mbps.
Orange
The link is up and works at 1000Mbps.
Blinking
The traffic is present.
LAN 3
Off
The port link is off or it is up in 10Mbps.
Green
The link is up and works at 100Mbps.
Orange
The link is up and works at 1000Mbps.
Blinking
The traffic is present.
LAN 4
Off
The port link is off or it is up in 10Mbps.
Green
The link is up and works at 100Mbps.
Orange
The link is up and works at 1000Mbps.
Blinking
The traffic is present.
Wi-Fi
Off
WLAN link is off.
Green
WLAN link is up
Green blinking
The traffic is present.
WPS
Off
WLAN link is off.
Green
WPS is searching for the WPS client.

14
4. MAINTENANCE
It is easy to use and maintain this WLAN Residential Gateway. The procedures
are suggested when you want to identify faults, perform hardware replacement
and firmware upgrading.
4.1 Fault Identification
Identifying faults can greatly reduce the time required to find the problem and
solution. Users may perform local or remote checks to find the problems.
Local Check
Users can perform local checks by observing LED indicators status.
When the whole system fails to function,
Check Power LED status
Check Power connection
Reset power
When certain network link fails to function,
Locate the port of the switch
Check Port Link Status LED
Check cable connection between the port and the connected device
Reset power
Remote Check
Users may check the WLAN Residential Gateway through SNMP manager
remotely. For detailed procedures, please refer to the Network Management
User’s Manual.

15
4.2 Hardware Replacement Procedures
WARNING!
The WLAN Residential Gateway contains no user-serviceable parts. DO
NOT, UNDER ANY CIRCUMSTANCES, open and attempt to repair it.
Failure to observe this warning could result in personal injury or death
from electrical shock.
Failure to observe the above warning will immediately void any Warranty.
4.3 Firmware Upgrade
This WLAN Residential Gateway may perform firmware upgrading when
required. New firmware can be obtained from your sales representative. For
detailed upgrading procedures, please refer to the Network Management User’s
Manual.
