Cub Cadet CC-1000PS User manual

READ AND FOLLOW ALL SAFETY RULES AND OPERATING
INSTRUCTIONS BEFORE USING THIS EQUIPMENT
CC-1000PS
15 cu ft POLY SWIVEL DUMP CART
U.S. Patent No. 8,496,298 & 9,242,588
6004279 - REV A 09/18

Read and understand all safety rules and operating instructions before using this
tractor attachment.
Follow all safety rules and operating instructions provided by your vehicle's
manufacturer when using attachment.
Never allow children or untrained persons to operate vehicle or attachment.
Do not exceed the vehicle manufacturer's towed weight limit.
Reduce vehicle speed and allow extra stopping distance when towing heavy
loads.
Reduce vehicle speed and towed weight when operating on slopes.
Operate up and down slopes, never across the face of slopes.
Do not carry passengers on vehicle or attachment.
Avoid sudden turns or maneuvers.
Do not tow attachment on public roadways.
Do not remove warning decals from product.
Check product for worn, loose, or damaged parts before each use. If any damage
is present, repair the product before using.
Check product for loose or missing fasteners before each use. Tighten or replace
fasteners as needed before using.
Do not exceed vehicle speed of 6 miles per hour when towing Dump Cart.
Do not exceed Dump Cart rated weight capacity of 1000 pounds.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
1
Safety Rules

3 (x1)
2 (x1)
19 (x1)
21 (x1)
24 (x2)
1 (x1)
25 (x12)
26 (x12)
23 (x4)
27 (x2)
22 (x2)
20 (x1)
TOOLS REQUIRED FOR ASSEMBLY:
1/2" Wrench or Socket • Grease Gun •
18 (x1)
2
Carton Contents

26
25
25
26
21
20
Attach Undercarriage to Poly Body and tighten hardware.
Attach Front Support to Poly Body and tighten hardware.
Insert Axle into Undercarriage halfway as shown. Center Spacer inside
Swivel Clevis and align with Axle.
3
Assembly Instructions
1
3
2

21
23 22
23
27
NOTE:
WHEELS IN MODEL
NOT SHOWN TO SCALE
18
11
17

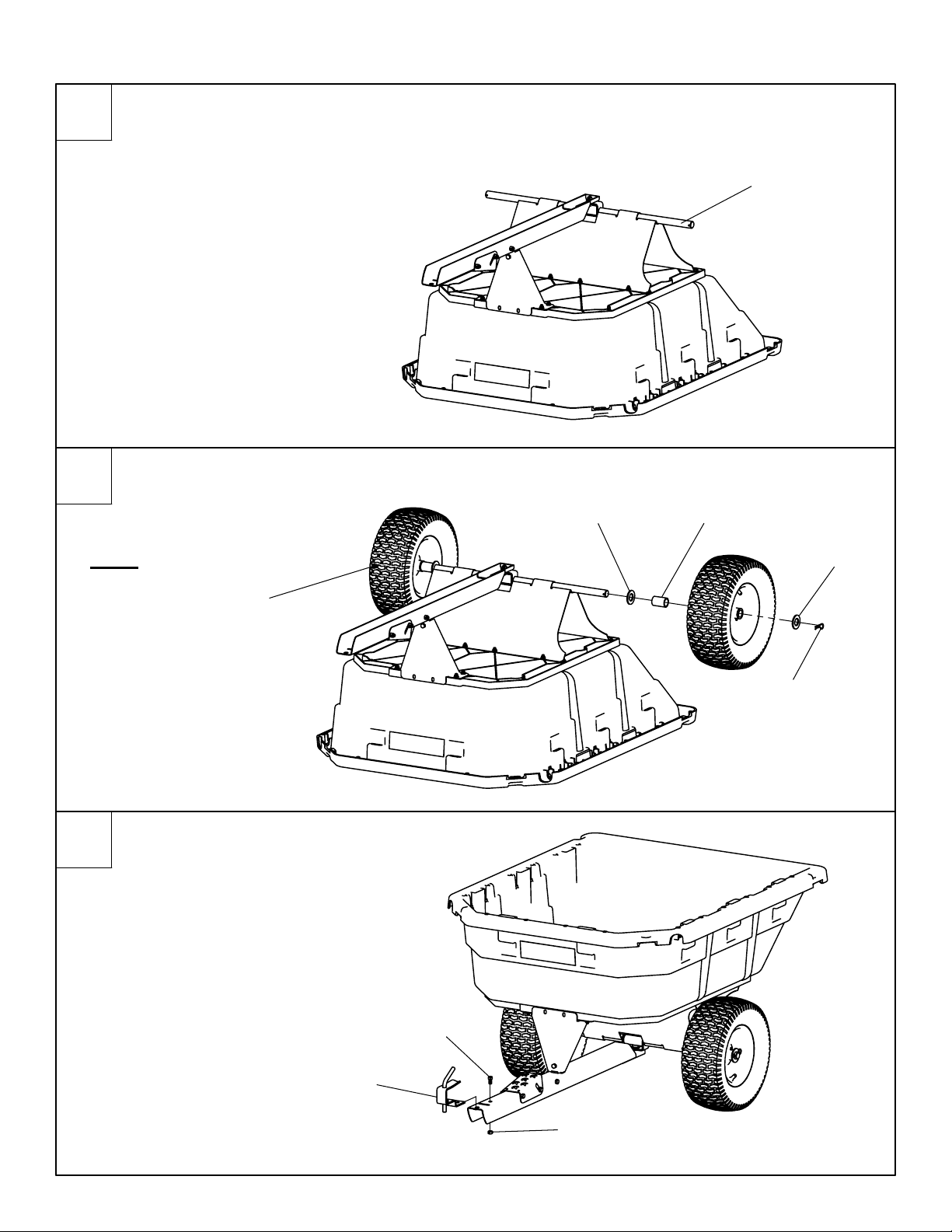

Slide Axle completely through Undercarriage; Swivel Clevis and Spacer
must be captured by Axle. Align Drawbar with Front Support and press
down to latch.
Slide in order: 1" Washers, 2" Spacers and then Wheels onto Axle and
secure with Hairpins.
Install Spring-loaded Hitch Pin as shown.
4
Assembly Instructions
4
6
5

Periodic Maintenance:
Tighten fasteners as needed before each use •
Check tire pressure before each use •
Grease wheels annually •
How to Use Dump Cart:
Attach Dump Cart to your tractor using the supplied hitch pin. 1.
Do not exceed 1000 pounds when loading material into the cart body. 2.
Distribute the weight of the load as evenly as possible in the cart body for 3.
best handling.
When hauling heavy loads, verify that your vehicle has adequate towing and 4.
braking capacity.
Do not exceed 6 miles per hour when towing Dump Cart. 5.
Before Using Dump Cart:
Apply grease to wheels using grease gun until grease can be seen 1.
squeezing out from both sides of the wheel.
Check tire pressure and inflate to 28 psi if needed. 2.
Read all Safety Rules found on page 1. 3.
How to Empty Dump Cart:
Step down the foot pedal to release the latch mechanism. 1.
Lift the body and swivel as desired to guide the material to preferred 2.
location.
Lift the body entirely and empty material. 3.
Lower the body and guide the latch into the drawbar and relatch. 4.
5
Operating Instructions

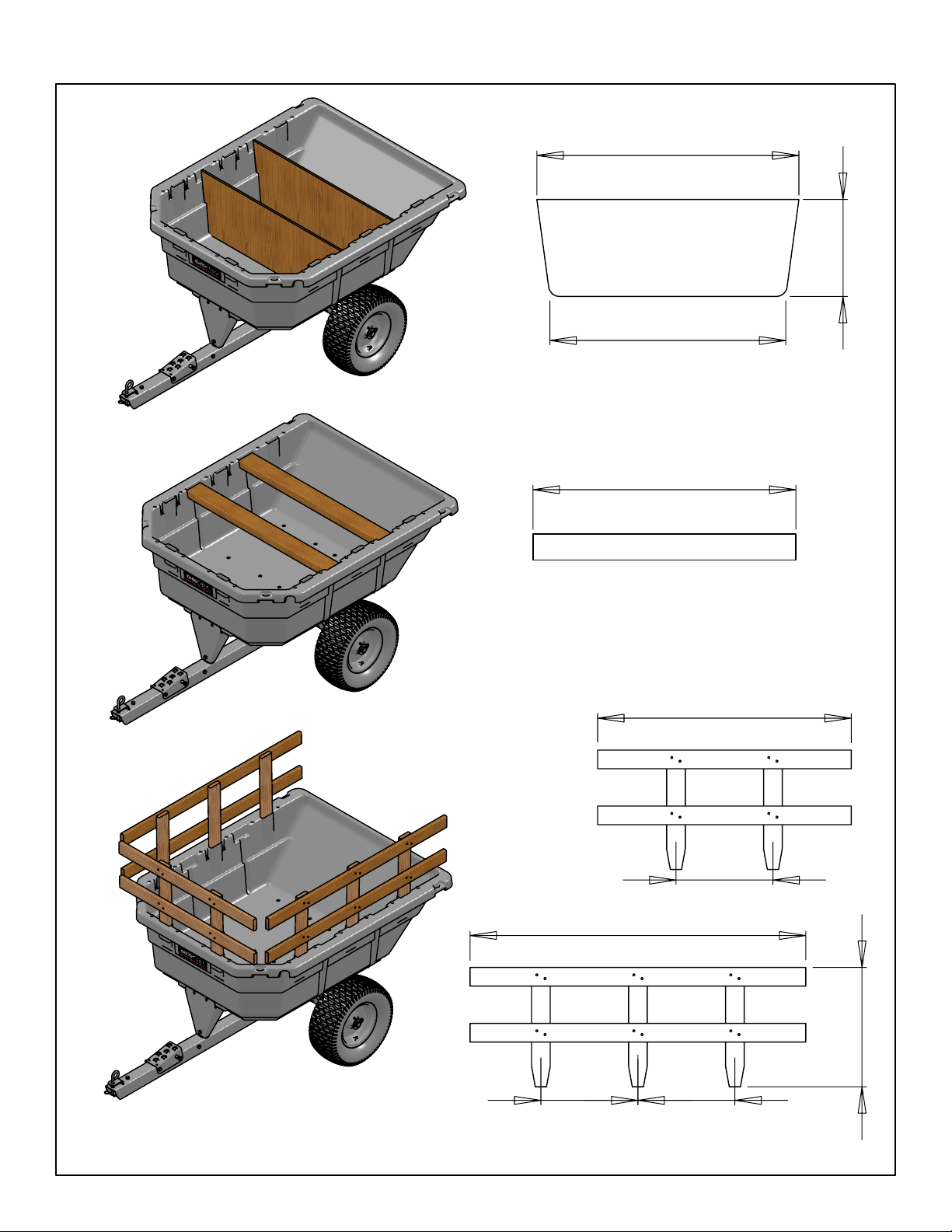

13.00
35.13
31.63
USE 1/2" PLYWOOD
35.25
USE STANDARD 2 X 4
34.00
13.00
16.00
13.0013.00
45.00
USE NOMINAL GRADE C 1 X 3
6
Do-It-Yourself Accessories

If this product fails due to a defect in material or workmanship within THREE
YEARS from the date of purchase, we will at our option repair or replace it free of
charge. This warranty excludes tires and wheels which are expendable and
become worn during normal use.
This warranty does not cover:
Repairs necessary because of operator abuse or negligence. •
Equipment used for commercial or rental purposes. •
Paint that is worn or faded due to normal use or exposure. •
To arrange for product repair you can call 1-800-652-2321 to speak to our
Customer Service Team, or return this product to place of purchase for
replacement.
This warranty gives you specific legal rights, and you may also have other rights
which may vary from state to state. This warranty applies only while this product
is in use in the United States.
In the space below record the purchase date of your Lawn Sweeper.
Model Number CC-1000PS
Purchase Date
Retailer/Dealer
Purchase Price
Keep this Owner's Manual and your receipt in a safe place for future reference.
Replacement parts may be ordered by calling 1-800-652-2321 .
When ordering replacement parts, always give the following information:
• Product 15 cu ft POLY SWIVEL DUMP CART
• Model Number CC-1000PS
• Part Number
• Part Description
7
Warranty

Replacement parts 1-800-652-2321
25 25
1
2
21 23 22 24
23
27
26
26
19
20
5
14
16
13
6
7
10
9
8
15
12
118
7
73
30
28
29
4
17
18
30
ITEM PART NO DESCRIPTION QTY ITEM PART NO DESCRIPTION QTY
1 311161 Poly Body 1 17 300052 3/8-16 x 3/4" Hex Bolt 1
2 6000404 Undercarriage 1 18 6000612 Spring Loaded Hitch Pin 1
3 6001663 Drawbar Assembly (incl 4-16) 1 19 6000310 Front Support 1
4 6000383 Welded Drawbar 1 20 6000463 3-1/8" Spacer 1
5 6000369 Shoulder Bolt 1 21 300002 Axle 1
6 3000720 3/8" USS Flat Washer 1 22 6000382 2" Spacer 2
7 300061 3/8-16 C-Lock Nut 5 23 300076 1" SAE Flat Washer 4
8 6000324 Bushing 2 24 6002415-1 Wheel 2
9 6000370 3/8-16 x 3-1/2" Hex Bolt 2 25 3000528 5/16-18 x 1-1/2" Hex Bolt 12
10 300055 3/8-16 x 3" Hex Bolt 1 26 6000419 5/16-18 Flange Lock Nut 12
11 6000305-Y Foot Pedal 1 27 300084 Hairpin Cotter, 2-5/16" 2
12 6000309 Latch 1 28
Owners Manual
1
13 300075 1/2" USS Washer 1 29 6001667
Hardware Bolt Bag
1
14 6000368 Spring Washer 130 777D21641
Decal, Cub Cadet
1
15 6000325 Latch Spring 2
16 6000312 Swivel Clevis 1

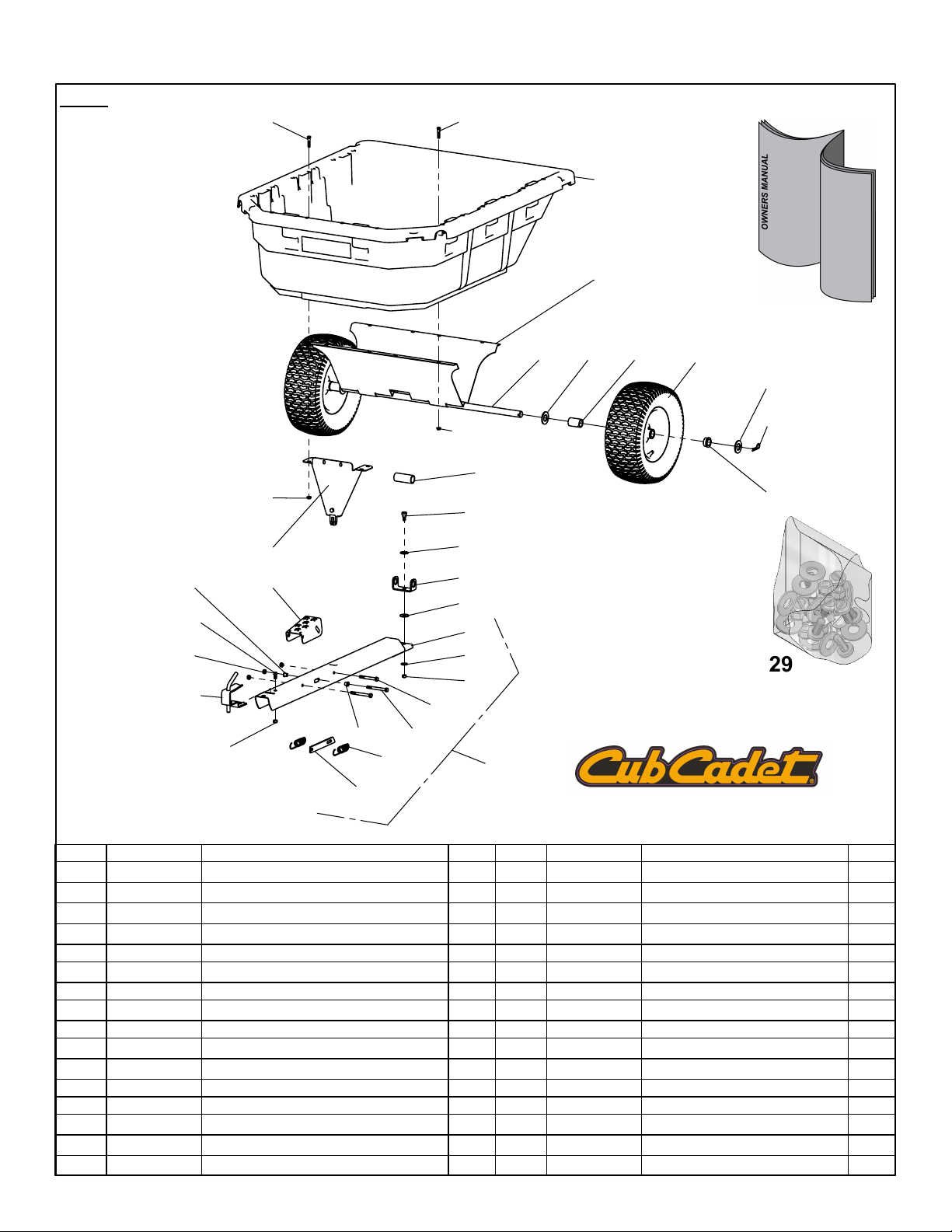

EXPLODED VIEW
8
NOTE:
WHEELS IN MODEL
NOT SHOWN TO SCALE
6004279

Replacement parts 1-800-652-2321
1. A description of the issue you are having
2. Photos of the issue that include an overall view and detailed view from multiple angles
3. If applicable, a short video showing the issue
If you believe this is a warranty related issue please see the warranty page in this manual
Replacement Parts:
If you are ordering replacement part(s) for your product, please note that some parts are
only available as a repair kit. You can reach our Customer Service Department at
1-800-652-2321
1. First locate the part on the Exploded View page (page8)
2. Take note of the part number
3. If the part number is on the Repair Kits page, use the kit number to order your replacement parts
4. If the part number is not on the Repair Kits page, use the part number to order your replacement
part
KIT
KIT
NUMBER
PART
NUMBER
PART DESCRIPTION QTY
HARDWARE
BOLT BAG
6001667
3000528 5/16-18 X1-1/2" HEX HEAD BOLT 12
6000419 5/16-18 X1-1/2" SPINNER-GRIP NUT 12
300076 1" SAE WASHER 4
300084 HAIRPIN COTTER, 0.093" X 2-5/16" 2
300052 3/8-16 X3/4" HEX BOLT 1
300061 3/8-16 X3/4" C-LOCK NUT 1
6000382 1" SPACER X 2" 2
6000463 1" SPACER X 3-1/8" 1
1" WHEEL
BUSHING KIT
6000810 6000808 1" WHEEL BUSHING 4
Drawbar
Assembly
6001663
300055 HEX BOLT, 3/8-16 X 3-1/2" 1
300061 HEX NUT, 3/8-16 C-LOCK 4
300075 WASHER, 1/2" USS 1
3000720 WASHER, 3/8" USS 1
6000305-Y
FOOT PEDAL 1
6000309 LATCH 1
6000312 CLEVIS, SWIVEL 1
6000324 BEARING 2
6000325 SPRING, LATCH 2
6000368 WASHER, SPRING 1
6000369 SHOULDER BOLT, 1/2" X 3/8" 1
6000370 HEX BOLT, 3/8-16 X 3-1/2" 2
6000383 WELDED DRAWBAR 1
9
REPAIR KITS
Customer Service 1-800-652-2321

[phone]
MODEL # CC-1000PS
[phone]
Designed And Tested In Columbus, Ohio
Manufactured In The U.S.A. From Domestic
And Imported Components
