CUE AIRCUE-6X10 User manual

CUE, a.s., K Nouzovu 6, 143 00 Praha 4, Czech Republic
fax: [phone]
www.cuesystem.com
mail: [email protected]
phone: [phone]
User Manual
airCUE-8X10
airCUE-6X10
Version 01

User Manual airCUE-8X10, airCUE-6X10
UM030_01, 1.6.2007
Copyright © CUE, a.s., Praha, Czech Republic 1990 - 2007.
All rights reserved. Specifications are subject to change without prior notice.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 3 of 28
1. Table of Contents
1. Table of Contents...........................................................................................................................3
2. Introduction....................................................................................................................................4
2.1. Overview.................................................................................................................................................4
2.2. airCUE-8X10 Models & Available Accessories........................................................................................4
2.3. airCUE-6X10 Models & Available Accessories........................................................................................4
2.4. Features..................................................................................................................................................5
2.5. Programming...........................................................................................................................................5
3. Box Contents.................................................................................................................................. 6
4. Specifications................................................................................................................................. 7
5. Physical Description......................................................................................................................8
5.1. Front Panel..............................................................................................................................................8
5.2. Top Panel..............................................................................................................................................10
5.3. Rear Panel ............................................................................................................................................11
5.4. Bottom Panel.........................................................................................................................................12
6. Setup and Using...........................................................................................................................13
6.1. Switch On / Off......................................................................................................................................13
6.2. Charging................................................................................................................................................13
6.3. PC Connection......................................................................................................................................14
6.4. Access Admin Web Server....................................................................................................................16
6.5. Wireless Communication Settings.........................................................................................................16
6.6. Download User Application ...................................................................................................................17
6.7. On Screen Display ................................................................................................................................18
7. Cleaning the Touch Panel...........................................................................................................21
8. Factory Default Setting................................................................................................................22
9. Software and Firmware License.................................................................................................23
10. Warranty Conditions....................................................................................................................24
11. CE Declaration of Conformity.....................................................................................................25
12. FCC................................................................................................................................................26

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 4 of 28
2. Introduction
2.1. Overview
The airCUE-8X10 and airCUE-6X10 and are superior touch panels cater to the full integration of lifestyle as
well as work style. It combines functionality such as multimedia integration, lighting automation, security
monitoring, entertainment integration, and meeting & presentation control. Unleashed by Wi-Fi this classical
beauty gives professional presenters and homeowners the wireless freedom that they love. From living room
to garden, boardroom to break-room, anywhere there is wireless LAN, both models put them in control and
keep them connected to the world. The long battery life and quick charger keep them wireless with fewer pit
stops. The active matrix touch screen display offers resolution 800 x 600 pixels (airCUE-8X10) or 640 x 480
pixels (airCUE-6X10) and it produces stunning high color images. Innovative design features like 256 MB of
standard data storage provides a level of capability not available with other similar touch panels. Wired
Ethernet connection provides easy network integration. Fully compatible with CUE controllers, this touch
panel provides the ultimate one-touch solution for meeting rooms, conference rooms, boardrooms and high-
tech homes. Flexible tabletop or wall installation can be done using four types of accessories.
2.2. airCUE-8X10 Models & Available Accessories
Model
Stainless steel enclosure Wooden enclosure, white birch Wooden enclosure, oak Wooden enclosure, mahogany Plastic enclosure, stardust black Plastic enclosure, abrasive white
airCUE-8X10 - CS0300-001 CS0300-002 CS0300-003 CS0300-004 CS0300-005
airCUE-8X10 Tabletop Docking Station - CS0301-001 CS0301-002 CS0301-003 CS0301-004 CS0301-005
airCUE-8X10 Wall Docking Station - CS0302-001 CS0302-002 CS0302-003 CS0302-004 CS0302-005
airCUE-8X10 Tabletop Stand CS0303-001 - - - - -
airCUE-8X10 Wall Mounting Adapter CS0304-001 - - - - -
2.3. airCUE-6X10 Models & Available Accessories
Model
Stainless steel enclosure Wooden enclosure, white birch Wooden enclosure, oak Wooden enclosure, mahogany Plastic enclosure, stardust black Plastic enclosure, abrasive white
airCUE-6X10 - CS0305-001 CS0305-002 CS0305-003 CS0305-004 CS0305-005
airCUE-6X10 Tabletop Docking Station - CS0306-001 CS0306-002 CS0306-003 CS0306-004 CS0306-005
airCUE-6X10 Wall Docking Station - CS0307-001 CS0307-002 CS0307-003 CS0307-004 CS0307-005
airCUE-6X10 Tabletop Stand CS0308-001 - - - - -
airCUE-6X10 Wall Mounting Adapter CS0309-001 - - - - -

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 5 of 28
2.4. Features
The main features of the unit are
•Display
oairCUE-8X10: 8.4” active matrix touch screen display 800 x 600 pixels
oairCUE-6X10: 6.4” active matrix touch screen display 640 x 480 pixels
•802.11b/g Wi-Fi 2-way wireless communication
•Wired Ethernet connection
•Power over Ethernet (PoE) IEEE 802.3af compatible
•Battery charging from Power over Ethernet
•Four programmable buttons
•Web server and Admin Web pages for setup and diagnostics
•Built-in microphone and speaker
•Built-in light and motion sensors
•Internal Li-Ion rechargeable battery pack
•Wireless, wired tabletop and wired wall mounting usage
•Tabletop and wall docking stations for charging
2.5. Programming
The control application for airCUE is programmed using Cue Director programming tools.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 6 of 28
3. Box Contents
Each airCUE comes with
1. Touch panel airCUE-8X10 or airCUE-8X10
2. Stylus
3. Ethernet cable straight-through
4. Ethernet cable crossed-over
5. CUEadapter /30W incl. power cable
6. Cleaning tissue
7. CE Declaration of Conformity, RoHS Declaration
8. Touch Panel Data Sheet
9. Cue System Connector Wiring Sheet
10. CUE Application CD

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 7 of 28
4. Specifications
Touch-screen display
Active matrix color LCD
Size and resolution
airCUE-8X10: 8.4” / 213 mm diagonal, 800 x 600 pixels
airCUE-6X10: 6.4” / 162 mm diagonal, 640 x 480 pixels
65 536 colors (High Color)
Aspect ratio 4:3
Resistive membrane touch overlay
Built-in sensors
Light sensor for automatic backlight dimming
Motion sensor for resume from display backlight saver mode
Buttons
Power, Reset / Set factory default, 4x programmable
LED indicators
Power Blue indicates power on or power down mode
Green indicates external power supply
Red indicates charging of battery pack
Wi-Fi (yellow/green) indicates wireless network
Memory
128 MB RAM
CompactFlash Card min. 256 MB (upgradeable)
Software technologies
Admin Web, XPL Inside, WXL
Audio Built-in microphone, built-in mono speaker
System communication
10/100 BaseT LAN, RJ-45 connector
Wireless network, IEEE 802.11b/g Wi-Fi 2.4 GHz
Power supply
24 VDC (+/- 20%), 13 W, power jack connector
Power over Ethernet (PoE), IEEE 802.3af compatible
Built-in Li-Ion rechargeable battery pack
Physical
Stainless steel – solid wood or plastic enclosure
Dimensions and weight
airCUE-8X10: 263 x 175 x 25 mm / 10.4” x 6.9” x 1.0”, 1.5 kg / 3.3 lb
airCUE-6X10: 216 x 145 x 25 mm / 8.5” x 5.7” x 1.0”, 1.2 kg / 2.7 lb
Operating environment
Temperature 10° to 40° C
Humidity 10% to 90% non-condensing

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 8 of 28
5. Physical Description
5.1. Front Panel
Programmable Buttons
Light Sensor
Motion Sensor
Touch-screen Display
Power and Charging Indicator
Wi-Fi Indicator
Built-in Microphone
Built-in Mono Speaker
Touch-screen Display
Touch-screen display with active matrix color LCD and resistive membrane touch overlay.
Power and Charging Indicator
Off............................................. The device is off.
Blue On.................................... The device is switched on.
Green On ................................. External power supply is connected.
Red On..................................... Battery pack is being charged.
Wi-Fi Indicator
Off............................................. No Wi-Fi connection
Green On ................................. Wi-Fi connected, strong signal
Yellow On ................................ Wi-Fi connected, intermediate or weak signal
Motion Sensor
The Motion Sensor resumes airCUE from Backlight Saver mode.
Built-in Mono Speaker
The built-in mono speaker is prepared for future use. It is not supported by current firmware version.
Light Sensor
The Light Sensor automatically adjusts display backlight according ambient light level.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 9 of 28
Built-in Microphone
The built-in microphone is prepared for future use. It is not supported by current firmware version.
Programmable Buttons
The airCUE is equipped with 4 programmable buttons numbered from left. Default button functions are as
follows
•Button 1 – On Screen Display show / hide
•Button 2 – Arrow Left in On Screen Display
•Button 3 – Arrow Right in On Screen Display
•Button 4 – Enter in On Screen Display

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 10 of 28
5.2. Top Panel
Power Button Power Supply Connector
(airCUE-6X10 only)
Stylus
Stylus
Use the stylus to tap or double tap on an application icon or to select items on the menu. The stylus is also
used to type on the On Screen Display. Use of other pointers could damage our screen. When stylus is not
used you can place it in the storage slot located on the top right corner of airCUE.
Power Button
The button Power is used to switch the device between on and power down modes.
Power Supply Connector
This connector allows you to connect airCUE to the external power with the supplied AC adapter. It is used
for charging of the battery without docking station. Not implemented in airCUE-8X10.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 11 of 28
5.3. Rear Panel
Factory Default Button
10/100 BaseT LAN incl. PoE
Connector
Power Supply Connector
2x Wall Docking Station Fixing
4x Thread M3 for Accessories
2x M3 for Tabletop Stand Fixing
10/100 BaseT LAN Link / Activity
Indicator
Power Supply Connector
This connector allows you to connect airCUE to the external power with the supplied AC adapter. It is used
for charging of the battery without docking station.
10/100 BaseT LAN incl. PoE Connector
The 10/100 BaseT LAN is a standard network connection 10/100 BaseT LAN using RJ-45 connector. There
is no auto sense, which means it does not recognize straight through cable to cross-over cable. For the
direct PC connection it is necessary to use cross-over cable; for the connection to Ethernet switch straight
through cable. The length of the Ethernet cable connecting touch panel to the network must not exceed 100
meters.
Power over Ethernet (PoE) is fully compatible with IEEE 802.3a standard. PoE integrates data and power on
the same wires. It keeps the structured cabling safe and does not interfere with concurrent network
operation. PoE delivers 48 V of DC power over unshielded twisted-pair wiring for terminals consuming less
than 13 watts of power. PoE needs 802.3a compatible Ethernet switches currently available by most
leading network equipment vendors.

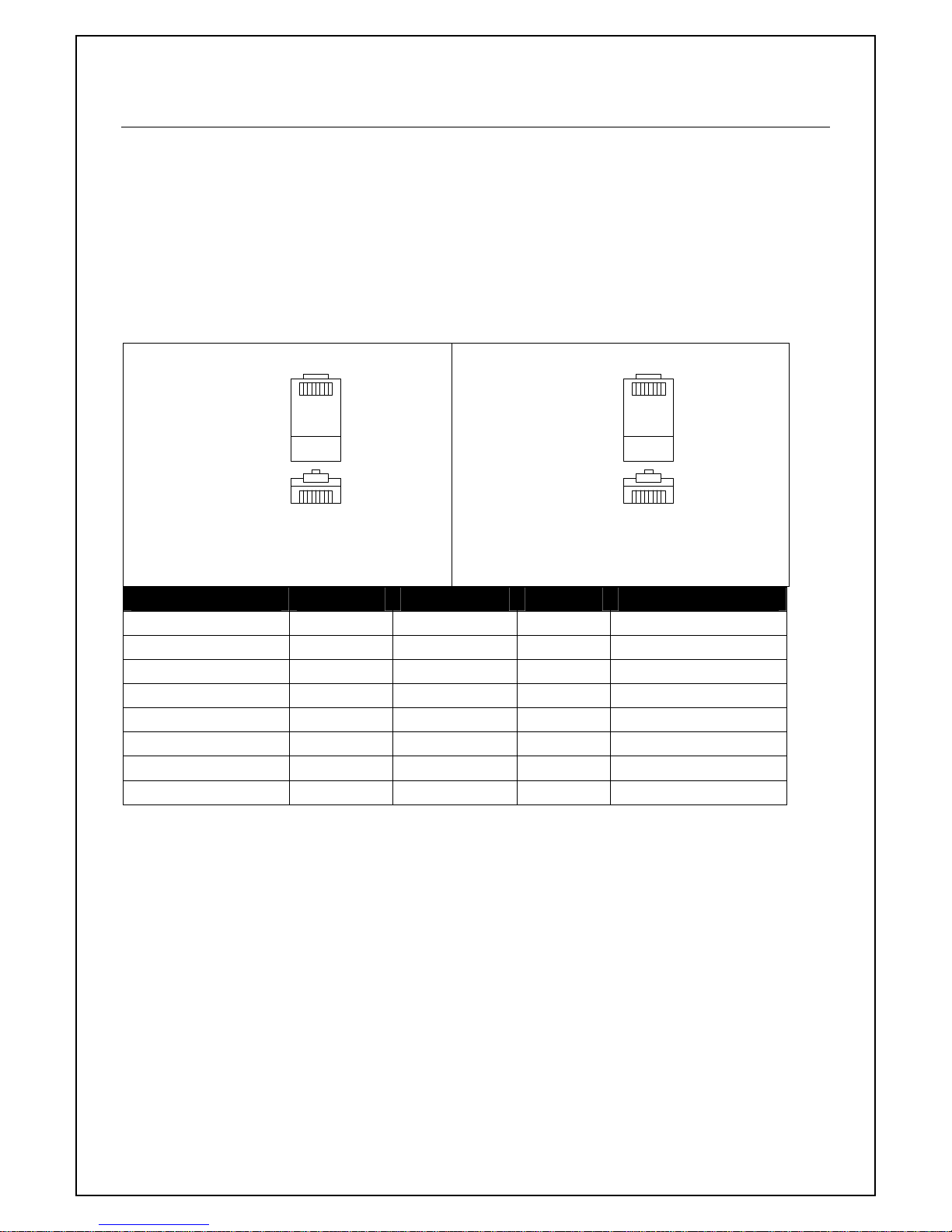

Connector pin out
Pin
1
2
3
4
Signal
TX_D1+ and PoE
TX_D1- and PoE
RX_D2+ and PoE
5
6
7
8
RX-D2- and PoE
PoE +/- 48 V
Cat5 Cable Color
White / Orange
Orange
White / Green
Blue
White / Blue
Green
White / Brown
Brown
RJ-45
18
CUEnet (LAN)
PoE Common

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 12 of 28
Factory Default Button
This button carries two functions
1. When pressed shortly (< 2 seconds) the reset of the unit is performed followed by operating system
boot taking approx. 13 seconds.
2. When pressed longer for approx. 5 seconds the factory default function is performed. For factory
default values please see chapter Factory Default Setting.
5.4. Bottom Panel
2x Contact for Docking Station

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 13 of 28
6. Setup and Using
6.1. Switch On / Off
The airCUE can be switched on / off by button Power Button located on top panel. The power mode is
indicated by Power and Charging indicator located on the front panel.
Current Mode \ Target Mode Switch On Power Down Mode Switch Off
Switch Off
Indication: no Power Button short press x x
Switch On
Indication: blue LED on, display backlight on x Power Button short press
Press Power Button until
display backlight goes off
(approx. 2 seconds)
Power Down Mode
Indication: blue LED on Power Button short press x Press Power Button until blue LED starts to flash
6.2. Charging
External Power Supply
For battery charging touch panel requires power from an external power supply. The standard CUEadapter
/30W is delivered with the unit. Attach the power jack connector of the power supply unit to the power supply
connector located on the bottom panel of airCUE and attach power cable to a power outlet. The green
indicator will light when external power supply is connected and red indicator will light when battery is
charging.
Docking Station
Tabletop Docking Station or Wall Docking Station can be used for charging. Both
docking stations are available and have to be ordered separately.
Docking station is powered by CUEadapter /30W delivered with the airCUE.
Attach the power jack connector of the power supply unit to the power supply
connector located on the bottom panel of docking station and attach power cable
to a power outlet.
Indicators located on the front panel of docking station indicate as follows
•Green indicator will light when external power supply is connected to docking station.
•Red indicator will light when airCUE is placed in docking station correctly.
Power Over Ethernet (PoE)
Touch panel battery is automatically charged if PoE is applied. Be sure charging time is longer against
charging from external power supply.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 14 of 28
6.3. PC Connection
Using LAN Directly to PC
Attach one end of an RJ-45 Ethernet crossed-over cable to the touch panel CUEnet (LAN) port and attach
the other end of the RJ-45 Ethernet cable to your computer.
Ethernet Crossed-Over Cable
This cable can be used to cascade hubs, or for connecting two Ethernet stations back-to-back without a hub.
It works with 10Base-T, 100Base-TX, 100Base-T4 and 1000Base-T. Use a good enough cable, if you are
confused about categories of cables then use Category 5 (enhanced) and you'll be fine even at 1000Base-T.
18
18
Top
Front
18
18
Top
Front
To Network Interface Card 1 (NIC 1)
Computer
RJ45 Male Connector
To Network Interface Card 2 (NIC 2)
Touch panel
RJ45 Male Connector
Name NIC 1 Color NIC 2 Name
TX+ (BI_DA+) 1 White/Orange 3 RX+ (BI_DB+)
TX- (BI_DA-) 2 Orange 6 RX- (BI_DB-)
RX+ (BI_DB+) 3 White/Green 1 TX+ (BI_DA+)
- (BI_DC+) 4 Blue 7 - (BI_DD+)
- (BI_DC-) 5 White/Blue 8 - (BI_DD-)
RX- (BI_DB-) 6 Green 2 TX- (BI_DA-)
- (BI_DD+) 7 White/Brown 4 - (BI_DC+)
- (BI_DD-) 8 Brown 5 - (BI_DC-)
That means that the White/Orange cable connected to NIC 1 pin 1 should go to NIC 2 pin 3 and NIC 1 pin 2
to NIC 2 pin 6 etc.
Notes
1. 1000Base-T names are in parentheses.
2. It's important that each pair is kept as a pair. TX+ & TX- must be in the pair and RX+ & RX- must
together in another pair. Just as the table above shows.
3. While 10Base-T and 100Base-TX only uses 2 pairs, please connect all four since 100Base-T4 and
1000Base-T needs them and save you some future debugging.
4. The colors originate from the numbering and name on NIC 1.
5. The connection is based on IEEE Standard 802.3, 2000 Edition.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 15 of 28
Using LAN Network
Attach one end of an RJ-45 Ethernet straight-through cable to the touch panel CUEnet (LAN) port and
attach the other end of the RJ-45 Ethernet cable to your computer.
Windows XP Local Area Connection Settings
Steps are
1. Start Windows XP.
2. Click Start, then click Control Panel choose the option to switch to Classic View.
3. Double-click Network Connections, select the Local Area Connection and then right-click and select
Properties.
4. Select Internet Protocol (TCP/IP) and click Properties button.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 16 of 28
5. Select Use the following IP address option. Set IP address to 192.168.1.1 (or other address different
from 192.168.1.127) and Subnet mask to 255.255.255.0. Leave other options unchanged and click
OK.
6.4. Access Admin Web Server
Run the Internet browser on your PC and type in the touch panel factory default IP address 192.168.1.128.
The Admin login web page will be displayed. The password is set to default.
6.5. Wireless Communication Settings
Please use Admin Web for Wi-Fi settings.
Note: In case of troubles please see application note Configuration of More Overlapping WiFi Networks,
which is stored on delivered CUE Application CD or can be downloaded from www.cuesystem.com, section
Products / Product Documentation / Application Notes (http://www.cuesystem.com/application_notes.aspx).

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 17 of 28
6.6. Download User Application
Overview
User control application is dedicated to control and it is programmed by Cue Director programming tools. It is
composed of elements for AV, lighting, heating, and air conditioning control etc. based on the actual
application.
Using Cue Director XPL
Steps are
1. Connect touch panel to your computer as described in chapter PC Connection.
2. Switch on the touch panel.
3. Run Cue Director XPL.
4. Open Cue System Workspace (CSW) file with Cue Director XPL. It’s necessary to have appropriated
touch panel properly inserted and configured.
5. Right-click on airCUE-xxx Layout and select “Download layout...”.
Using Admin Web
Steps are
1. Connect touch panel to your computer as described in chapter PC Connection.
2. Switch on the touch panel.
3. Run Cue Director XPL.
4. Open Cue System Workspace (CSW) file with Cue Director XPL. It’s necessary to have appropriated
touch panel properly inserted and configured.
5. Right-click on airCUE-xxx Layout and select “Export to WDF file...” and type name of exported file.
6. Start your web browser and open airCUE web pages (for default IP settings open
http://192.168.1.128 page).
7. Go to Application page, browse your WDF file and upload it (see more in section Settings –
Applications page).

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 18 of 28
6.7. On Screen Display
Access
On Screen Display is activated by front panel left most button.
Startup Menu
The Startup Menu is activated if no application is
running.
Run downloaded application by button Application.
Launch On Screen Display by button On Screen
Display.
Screen
Backlight Saver will switch off automatically the display
backlight off to conserve battery power and fluorescent
tubes lifetime.
Power Down mode will be reached automatically if
enabled. By decreasing time you can set disabled.
LCD Backlight sets display backlight level.
If Adaptive Brightness is switched to Yes the Light
Sensor automatically adjusts display backlight
according ambient light level.
If Motion Sensor is switched to Yes the Motion Sensor resumes airCUE from Backlight Saver mode
automatically.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 19 of 28
Status
This page shows current status of the touch panel.
IP Settings
This page is used for setting the communication
parameters for your touch panel. The airCUE uses
standard internet protocol (IP) communication
parameters. Certain parameters can be reset by the
user. On start up, this page will display current IP
address. Carefully note this addressing information
(and any changes you elect to make to the IP address,
subnet mask, or default gateway). This information
must be entered into the CUE System Director®
program written for your specific application. For
control systems with more than one unit, a unique IP
address must be given to each CUE device.
For setting please select appropriate field and use numeric keypad. Be sure to click the Apply button for any
changes to the IP settings to become effective.
Note: The Ethernet connector has to be plugged in prior switching from Wi-Fi to LAN.
Applications
This screen is used for selection; start and stop of
uploaded applications (touch panel layouts). All
uploaded applications are listed on this page.
A “running flag” denotes the active application. The
running application can be stopped via the Stop
button.
Files are uploaded from a personal computer to the
touch panel using CUE System Director software or
using Admin Web.

User Manual airCUE-8X10, airCUE-6X10
www.cuesystem.com
Page 20 of 28
Calibration
Use this page for calibration. We recommend use
stylus.
Battery
This page shows current battery status and it’s
charging modes. The type of external power source is
indicated too.
Exit
Closes the On Screen Display.
