Acnodes PC 1150 User manual

PANEL PC 1150
All-in-One
15.1” Super Slim
PANEL PC
User’s Manual

Disclaimers
The information in this manual has been carefully checked and is believed to be
accurate. ACNODES Corp. assumes no responsibility for any infringements of
patents or other rights of third parties, which may result from its use.
ACNODES Corp. assumes no responsibility for any inaccuracies that may be
contained in this document. ACNODES Corp. makes no commitment to update or to
keep current the information contained in this manual.
ACNODES Corp. reserves the right to make improvements to this document and/or
product at any time and without notice.
No part of this document may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of ACNODES Corp.
Copyright 2002 by ACNODES Corp.
All rights reserved.
May 2002, Version A1
ii

Safety Approvals
 CE Marking
 FCC Class A
FCC Compliance
This equipment has been tested and complies with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. If not installed and used in
accordance with proper instructions, this equipment might generate or
radiate radio frequency energy and cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measurers:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and
receiver.
3. Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV
technician for help.
Shielded interface cables must be used in order to comply with
emission limits.
iii

Safety Precautions
Before getting started, read the following important cautions.
1. The PANEL PC 1150 does not come equipped with an
operating system. An operating system must be loaded
first before installing any software into the computer.
2. Be sure to ground yourself to prevent static charge when
installing the internal components. Use a grounding wrist
strap and place all electronic components in any
static-shielded devices. Most electronic components are
sensitive to static electrical charge.
3. Disconnect the power cord from the PANEL PC 1150
before making any installation. Be sure both the system
and the external devices are turned OFF. Sudden surge
of power could ruin sensitive components. Make sure the
PANEL PC 1150 is properly grounded.
4. The brightness of the flat panel display decreases with
usage. However, hours of use vary depending on the
application environment.
5. Turn OFF the system power before cleaning. Clean the
system using a cloth only. Do not spray any liquid cleaner
directly onto the screen. The PANEL PC 1150 may come
with or w/o a touch screen. Although the touch screen is
chemical resistant, it is recommended that you spray the
liquid cleaner on a cloth first before wiping the screen. In
case your system comes without the touch screen, you
must follow the same procedure and not spray any
cleaner on the flat panel directly.
6. Avoid using sharp objects to operate the touch screen.
Scratches on the touch screen may cause malfunction
or internal failure to the touch screen.
7. The flat panel display is not susceptible to shock or
vibration. When assembling the PANEL PC 1150, make
sure it is securely installed.
iv

8. Do not open the system’s back cover. If opening the
cover for maintenance is a must, only a trained
technician is allowed to do so. Integrated circuits on
computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge,
observe the following precautions:
 Before handling a board or integrated circuit, touch an
unpainted portion of the system unit chassis for a few
seconds. This will help to discharge any static electricity
on your body.
 When handling boards and components, wear a
wrist-grounding strap, available from most electronic
component stores.
Trademarks Acknowledgments
ACNODES is a trademark of ACNODES Corp.
IBM, PC/AT, PS/2, VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium are trademarks of Intel Corporation.
MS-DOS, Microsoft C and Quick BASIC are trademarks of
Microsoft Corporation.
C&T is a trademark of Chips and Technologies, Inc.
SST is a trademark of Silicon Storage Technology, Inc.
UMC is a trademark of United Microelectronics
Corporation.
Other brand names and trademarks are the properties of
their respective owners.
v

This page does not contain any information.
vi

Table of Contents
Chapter 1 Introduction ------------------------------- 1
1.1 General Description..........................................1
1.2 Specifications...................................................2
1.2.1 Core System for PANEL1150-370 SBC8360-based
system ..............................................................................2
1.2.2 I/O System................................................................2
1.2.3 Built-in Peripherals ...................................................3
1.2.4 System Specification ...............................................4

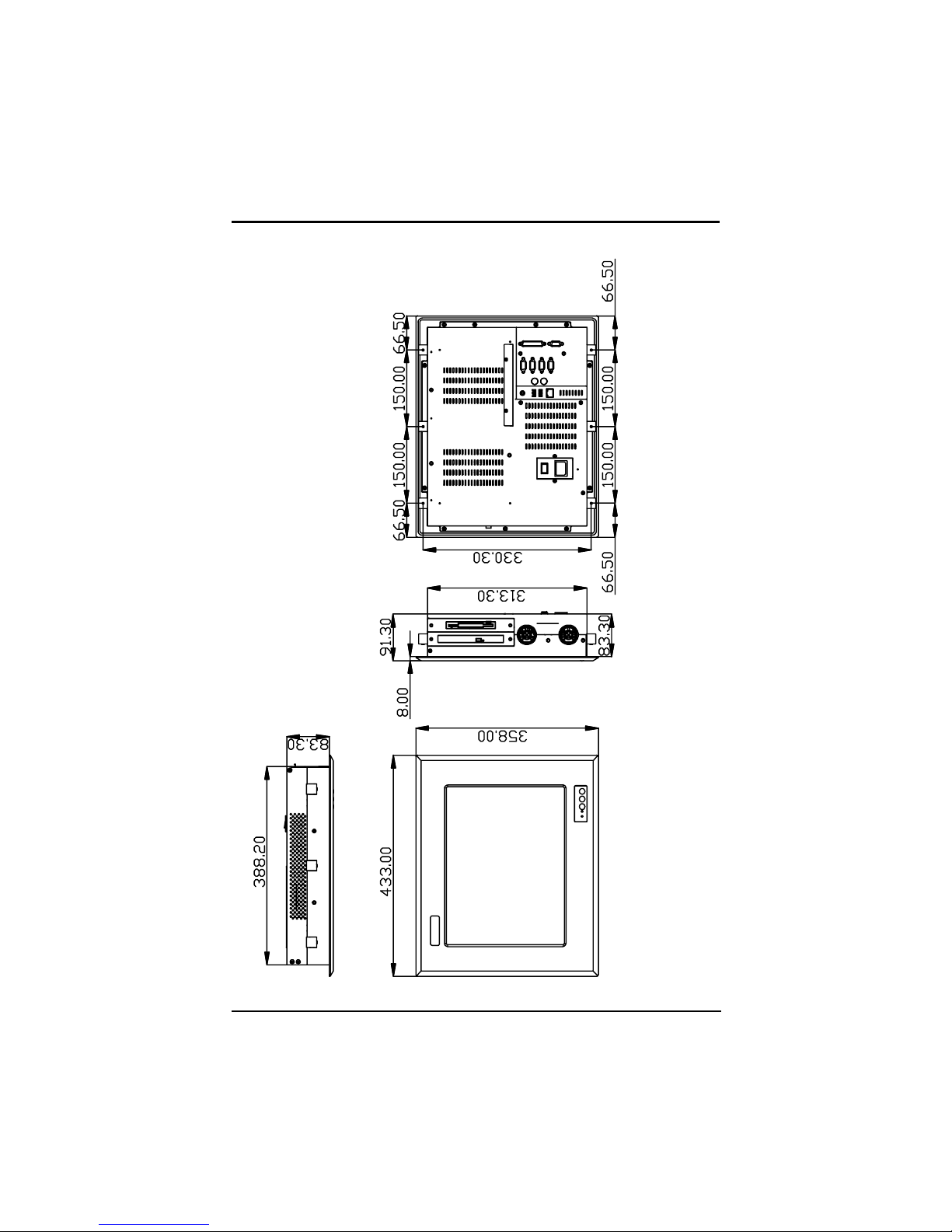

1.3 Dimensions.......................................................5
1.4 I/O Outlets ........................................................7
1.5 Utilities Supported............................................8
Chapter 2 System Configuration------------------ 9
2.1 System Configuration.......................................9
2.1.1 Front View ................................................................9
2.2 Panel Mount.................................................... 10
Chapter 3 System Installation --------------------11
3.1 CPU, HDD, and DRAM Installation .................. 12
3.2 CD-ROM and FDD Installation......................... 13
3.3 3 x Serial Ports ............................................... 15
3.4 Parallel Port.................................................... 15
3.5 VGA ................................................................ 16
3.6 Ethernet.......................................................... 16
3.7 Digital I/Os...................................................... 17
3.8 Keyboard ........................................................ 17
3.9 Riser Card Assembly ...................................... 18
3.10 PS/2 Mouse..................................................... 19
3.11 System O/S and Software Installation ............ 20
Appendix A Power Supply Specifications ----21
Specifications .......................................................... 21
International Standards ........................................... 22
Table of Contents vii

This page does not contain any information.
viii

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
C h a p t e r 1
Introduction
This chapter contains the general information and the detailed
specifications of the PANEL PC 1150. Chapter 1 includes the following
sections:
 General Description
 System Specification
 Dimensions
 I/O Outlets
 Utilities Supported
1.1 General Description
The PANEL PC 1150 super slim industrial PANEL PC is mainly
designed for industrial automation and some space-constricted
embedded applications. For some space-concerned industries, a
traditional PC with a separate main system, display monitor and
keyboard is simply not integrated enough.
Ruggedly designed, the PANEL PC 1150 is 100% IBM PC/AT
compatible and it integrates super I/Os, VGA, 15.1” TFT touch screen,
Ethernet, and packs special industrial features like watchdog timer,
CMOS double backup, all in a single system. The full PC functionality
coupled with its industrial-grade construction easily tailors the system
for any embedded applications and allows the system to endure
continuous operation in any hostile industrial environments where
stability and reliability are a must. Common applications of the PANEL
PC 1150 include tooling machine, POI terminal, stand-alone KIOSK,
medical instrument, mobile communication device and banking
system - to name just a few.
Designed by the PC experts for PC professionals, the PANEL PC
1150 is virtually the ultimate one-step solution for your space-limited
applications.
Introduction 1

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
1.2 Specifications
1.2.1 Core System for PANEL PC 1150
 CPU: Intel Celeron 300 up to 733 MHz;
Intel Pentium III 500 up to 850 MHz
 System Chipset: Intel 440BX Core Logic Controller
 BIOS: Award BIOS, Y2K compliant
2Mbit Flash ROM, DMI, Plug and Play
 System Memory: One 168-pin DIMM (PC-100)
Maximum SDRAM of up to 256MB
(buffered)/128MB (unbuffered)
 L2 Cache: Integrated in CPU
 Real Time Clock: Dallas 12887 or STM48T86PC1 or latest
product
 Watchdog Timer: System reset or Non-Mask Interrupt
software programmable Time interval and
jumper selectable;
64 levels, 0.5~8 / 5~80 / 50~800 / 100~1600
seconds
1.2.2 I/O System
 Standard I/O:
− 4 x serial ports with power;
3 x RS-232, 1 x
RS-232/422/485 jumper
selectable
− 1 x parallel port,
SPP/EPP/ECP
− 1 x External FDD Interface
− 1 x Internal HDD Interface
− 1 x Keyboard Interface
− 1 x PS/2 Mouse Interface
− 1 x External IDE Interface
− 2 x USB Ports
− 1 x IrDA
− 1 x Speaker-out
 Digital I/O: Input x 4, Output x 4
 Ethernet:
− 32-bit Plug & Play Fast Ethernet Controller
− RJ-45 connector
Introduction
2

PANEL PC 1150 15.1” All-in-One PANEL PC User’s Manual
 Audio:
− ESS Solo-1 ES1938 32-bit PCI 2.1 Audio Drive controller
(with Panel 1150-370/SBC8360 combo)
 VGA/Flat Panel Controller:
− AGP bus controller with 2MB display SDRAM (4MB
optional with PANEL1150-370/SBC8360 combo)
− Simultaneously supports CRT and flat panel displays
1.2.3 Built-in Peripherals
 Standard 100W power supply
 3.5” hard disk, or 2.5” HDD (optional)
 15.1” anti-glare analog resistive touch screen with RS-
232 controller sharing COM3
 System cooling fan
Introduction 3

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
1.2.4 System Specification
 15.1” TFT with 1024 x 768 resolution
 NEMA 4/12 sealed front panel
 24X slim type CD-ROM drive
 2.5” floppy disk drive
 Heat dispensing design
 PC/104 expansion Bus
 Two free slots for PCI/ISA and ISA expansion, or two
free slots for PCI/ISA and PCI expansion
− This slot only comes standard with the riser card
assembly.
 Net weight:
− 7.7 Kgs (without the riser card assembly mounted)
− 8.8 Kgs. (with the riser card assembly mounted)
 Dimension (main body size):
− 1150-370:
433 x 358 x 91.30 mm (without the riser card assembly
mounted)
433 x 358 x 145.5 mm (with the riser card assembly
mounted)
 Operating Temperature Range: 0oC ~ 40oC
 Relative Humidity: 5% ~ 95%; non-condensing
NOTE: For more detailed information on the system engine
board used in your PANEL PC, refer to the system board
User’s Manual that came with the system packaging.
Introduction
4

PANEL PC 1150 15.1” All-in-One PANEL PC User’s Manual
1.3 Dimensions
The following diagrams show the dimensions and outlines of PANEL
PC 1150.
PANEL1150-370 15.1" FLAT PANEL PC DIMENSIONS (unit:mm)
(With Riser Card)
Introduction 5

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
PANEL1150-370 15.1" FLAT PANEL PC DIMENSIONS (unit:mm)
(Without Riser Card)
Introduction
6

PANEL PC 1150 15.1” All-in-One PANEL PC User’s Manual
1.4 I/O Outlets
The following figure shows the I/O arrangement of the PANEL PC
1150. The backside of the chassis contains most of the connectors.
Introduction 7

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
1.5 Utilities Supported
 Watchdog Utility
 Ethernet Utility
 VGA Drivers
 Touch screen Utility
Introduction
8

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
C h a p t e r 2
System Configuration
This chapter details the system parts and components with figures.
Sections include
 System Major Parts  Panel Mount
2.1 System Configuration
2.1.1 Front View
The figure below shows the features and controls on the PANEL PC
1150 front panel.
System Configuration 9

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
2.2 Panel Mount
The PANEL PC 1150 is mainly designed for panel mount application.
To mount the PANEL PC 1150, the standard set of mounting kit
(included in the system packaging) is needed. Please refer to the
following figure.
System Configuration
10

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
C h a p t e r 3
System Installation
This chapter describes the installation and the cable connection to the
system connectors. See system board User’s Manual that came with
your PANEL PC packaging for more details. Sections in this chapter
includes
 CPU
 DRAM
 HDD
 3 x Serial
Ports
 Parallel Port
 VGA
 Ethernet
 Digital I/O
 Keyboard
 PS/2 Mouse
 Expansion
Slot
 System O/S
and
Software
Installation
The PANEL PC 1150 has a Pentium III little board with a free ISA and
PCI slots inside the riser card assembly. It already builds in a Pentium
III CPU, relevant DRAM and a 3.5” HDD (or a 2.5” optional HDD).
These are all standard and the system is ready to play. System
performance can be increased by upgrading to a higher performance
CPU, higher capacity DRAM modules and hard disk drive. The user
can use the I/O ports located at the backside of the chassis to connect
external peripheral devices, such as a monitor, serial devices, parallel
printer…etc.
NOTE: Make sure the power cord is disconnected before any
installation. To install any internal device such as CPU,
DRAM and HDD, take out the rear chassis cover first.
System Installation 11

PANEL1150-370 15.1” All-in-One PANEL PC User’s Manual
3.1 CPU, HDD, and DRAM Installation
The standard PANEL PC 1150 system already builds in a
Pentium-level CPU, and a 3.5” (or optional 2.5”) hard disk drive.
SBC8360, on the one hand, provide one 168-pin DIMM socket that
supports system memory up to 256MB.
When upgrading the CPU, HDD, or DRAM, refer to the following
instructions:
CPU
DRAM
HDD
Bracket
System Installation
12
