Instruction Booklet
Purxium™Multi-Zone Air Purifier - CAP-500XA

2
IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS
BEFORE USING
When using any electrical appliance, especially
when children are present, basic safety
precautions should always be taken to reduce
the risk of fire, electric shock and/or injury,
including the following:
• To reduce the risk of shock, always unplug the
air purifier from the electrical outlet
immediately after using as well as before
replacing or removing any filters.
• The air purifier should always be placed on a
flat, secure surface.
• The cord should be kept away from any
heated surfaces.
• Never place or store the air purifier where it
could fall or be pulled into a sink or bathtub.
• Do not reach for the air purifier if it has fallen
into water. Unplug the appliance immediately.
• Do not place in or drop into water or liquid.
• Do not place anything on top of unit.
• Always keep the air purifier dry and do not
operate in wet or moist conditions like
bathrooms, laundry areas or similar moist
indoor places.
• Always unplug the air purifier when not in
use.
• Check your air purifier cord and plug
connections. A faulty wall outlet or loose plug
can cause the outlet or plug to overheat.
Make sure the plug fits tightly in outlet.
• Do not run power cord under carpeting,
runners or similar type floor coverings.
• Do not use this product outdoors.
• Do not block air intakes or exhaust in any
manner. Do not use on any soft surface, like a
couch or bed, where the openings may
become blocked.
• Do not tilt or move the air purifier while the
unit is powered on. Make sure the power is
off and remove the plug from the outlet
before moving.
• Use this air purifier only for its intended use
as described in this manual. Any other use
not recommended by Cuisinart may cause
fire, electric shock, or serious injury to a
person.
• Press the Power ON / OFF button to turn off
the air purifier prior to removing plug from
outlet.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• Prior to cleaning or other maintenance, the
appliance must be disconnected from the
supply mains.
CAUTION
This appliance is for household use only.
Any servicing other than cleaning and user
maintenance should be performed by an
authorized service representative.
• Do not immerse base in water.
• To reduce the risk of fire or electric shock, do
not disassemble the base.
Note: The base does not contain any user-
serviceable parts.
• Make sure the air purifier is always 15cm away
from any walls as well as at least 1m away
from any heat source.
• Repairs should be made only by authorized
personnel.
• Check voltage to be sure that the voltage
indicated on the nameplate agrees with your
voltage.
• Never clean with scouring powders or hard
implements.
WARNING
To reduce the risk of fire or electric shock, do not
use this fan with any solid-state speed control
device.

3
UNPACKING
INSTRUCTIONS
1. Place the box on a large, sturdy, flat surface.
2. Open the box and remove the instruction
booklet and other printed materials from the
box.
3. Remove any protective or promotional labels
from unit and other parts.
SAVE THESE
INSTRUCTIONS
BEFORE THE FIRST USE
Before using the Purxium™ Air Purifier. for the
first time, we recommend you wipe all of the
parts with a damp cloth to remove any dirt or
dust. Dry thoroughly with a soft, absorbent cloth
and handle carefully.
CONTENTS
Important Safeguards.......................................2
Parts and Features............................................4
Features and Specifications..............................5
3-Stage Dual Air Intake H13 High
Grade Hepa Filtration System..........................5
Operating Instructions......................................5
Removing Filters...............................................6
Installing Your Replacement Filter System .......6
Cleaning and Maintenance ..............................6

4
PARTS AND FEATURES
A. Top Panel Airflow Output
B. HEPA H13 and Active Carbon Dual Filter
C. Removable, Reusable Metal Pre-filter
D. Filter Cover Panel
E. Control Panel
(see chart under Touchscreen Controls,
at left)
F. Night Light
G. Base of Unit
TOUCHSCREEN
CONTROLS
A. Filter Replacement Indicator
B. Child Safety Lock
C. 12-Hour Timer
D. Sleep Mode/Night Light
E. 3 Fan Speeds
F. Power On
A
B
C
D
G
E
ABDEF
C
A
B
C
D
REMOVABLE FILTERS
F
INTRODUCTION
Congratulations on your Purxium™ Multi-Zone Air Purifier. The Air Purifier comes complete with dual
filtration using two H13 high-grade HEPA filters, active carbon filters and removable, reusable metal
pre-filters. Designed for multi function rooms, Purxium™ Multi-Zone Air Purifier is the perfect solution
for open plan living areas, kitchen, rooms and office. Our three stage filter system will capture up to
99.9% of airborne particles 0.1 Micron or larger including bacteria and various contaminants to provide
fresher, cleaner air.

5
FEATURES AND
SPECIFICATIONS
Your Purixium features a H13 High-Grade HEPA
filter that captures up to 99.9% of airborne
particles 0.1 Micron or larger including bacteria
and various contaminants as well as dust, pollen
and odors from cooking, smoke, pets and VOC’s.
It also features a unique washable metal prefilter
that captures cooking oils and dust to prelong
the life of the HEPA filter.
This makes it ideal for use in kitchen areas to
remove smells, smoke and oils.
The air purifier has a 3 level filter system level
filter system that purifies air in an area up to
46m², two times every hour or in an area up to
23m², four times every hour.
To calculate your room size in m² multiple the
length by the width (in metres)
3-STAGE DUAL AIR
INTAKE H13 HIGH GRADE
HEPA FILTRATION SYSTEM
• HEPA H13 – H13 high-grade HEPA filters
capture up to 99.9% of airborne particles
0.1 Micron or larger including bacteria and
various contaminants.
• ACTIVE CARBON FILTERS – Captures up to
99.9% of various unwanted cooking odors,
smoke and VOCs to 0.1 Micron or larger.
• REMOVABLE, REUSABLE METAL
PRE-FILTERS – Captures larger airborne
particles such as dust, pet dander and
cooking oil.
OPERATING INSTRUCTIONS
1. Place the air purifier on a sturdy, flat surface.
2. Make sure the unit is plugged in.
3. Turn On : Press the Power ON button.
4. 3 Fan Speeds : Select or change fan
speed (choose 1, 2 or 3).
Start by pressing the fan speed button,
continue pressing until you have reached your
desired setting, then release the button.
5. 12-Hour Timer Function :To select the
desired time, press the timer button.
The timer will show settings ranging from
1 hour – 12 hours and off. If there is no time
selected, the timer will be off. The unit will
continue to run until the power is turned off.
6. Child Safety Lock : The child safety lock
can be activated by pressing and holding the
lock button for 3 seconds. All buttons on the
air purifier will now be in locked mode and
will not operate. To take the unit off locked
mode, simply hold the lock button again for
3 seconds and the unit will now be unlocked.
7. Sleep Mode / Night Light:
To activate the night light press
once. The blue night light will
illuminate along with the
control panel lights.To activate
Sleep Mode press the icon a
second time, and the Moon
symbol will illuminate in addition to the night
light. Press the icon once more and only the
moon icon will be illuminated.
8. Filter Replacement Light: The filter
replacement light will illuminate in RED when,
it is time to replace the dual action HEPA H13
and active carbon filters on the unit. The
Replace filter light will illuminate after 2,500
hours of continuous use.
Note: Utilizing an H13 High-Grade HEPA filter
does not make this a medical device.
carbon dust
bacteria lead dust
pollen
pet dander
dust
dust mites tobacco smoke smoke
CAPTURES AIRBORNE PARTICLES INCLUDING
BACTERIA AND VARIOUS CONTAMINANTS
AIR IS DRAWN IN THROUGH 2-SIDES CAPTURING UP TO 99.9%
OF VARIOUS AIRBORNE PARTICLES 0.1 MICRON OR LARGER

6

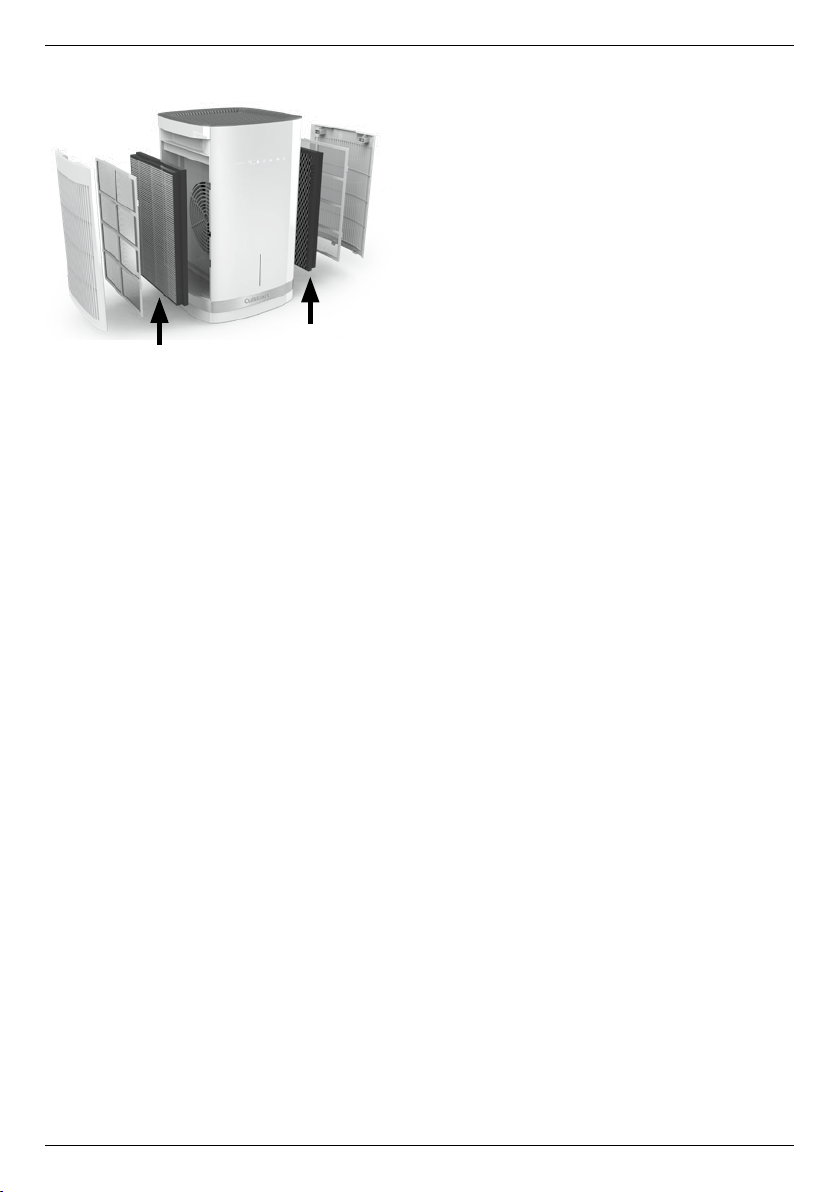

REMOVING FILTERS
Always unplug your Purxium™ Multi-Zone Air
Purifier from the electrical outlet before replacing
or removing filters.
To remove the Purxium™ Multi-Zone Air Purifier
filters, you will first need to unplug the unit. To
remove both side panels, place your finger into
the opening on the side of the unit and pull
lightly on the panel.
The metal removable, reusable pre-filters may be
removed easily by taking the small tab and
pulling slightly up and away from the unit. To
remove the H13 HEPA /Active Carbon filter
system, you simply pull on the filter and remove
from the unit. Repeat step on other side.
INSTALLING YOUR
REPLACEMENT
FILTER SYSTEM
1. Your air purifier will automatically tell you
when its time to change your filter. The
'Replace Filter' icon on the control panel will
illuminate after 2500 hours of purification
has been reached. Replacement filters are
available from Cuisinart Customer Service,
please visit cuisinart.com.au for customer
service details.
2. Slide the new H13 HEPA & Active Carbon
filter system into the unit until you feel
resistance.
3. Place the washed and dried removable,
reusable metal pre-filters into the slots. Place
side panels back onto the unit.
Repeat step for other side.
4. Once all of the filters are in place, plug in
and turn on the air purifier. YOU WILL NOW
NEED TO RESET THE FILTER INDICATOR.
5. Reset the filter indicator light by pressing
and holding down the night light button for
3 seconds. This will reset the filter indicator
light.
CLEANING AND
MAINTENANCE
The H13 high-grade HEPA filters can be
vacuumed once a month in order for the air
purifier to perform at its best. If the air purifier
contains dust or pet dander, or if you are using in
the kitchen around cooking oils, it’s best to clean
the removable metal pre-filters more often than
once a month to maintain 2,500 hours of filter
life. Always unplug your air purifier from the
electrical outlet before replacing or removing any
filters.
1. Unplug the power cord from the unit and
from the outlet. Only the metal pre-filters
are washable. If the filters are fairly clean,
wash each filter with soapy, warm water. If
the pre-filters are very dirty, you may need
use a soft brush to gently clean them. Make
sure the pre-filters are completely dry before
placing back into the unit.
2. Remove the HEPA H13 and active carbon
filters as described under heading
"Removing Filters".
3. The best way to clean the HEPA H13 filters
is to use a vacuum cleaner with the brush
attachment. Gently run the brush attachment
along the white side of the filter only. You do
not need to vacuum the black active carbon
filter.

7
NOTES:

©2021 Cuisinart
Suite 101 Ground Floor
18 Rodborough Rd
Frenchs Forest NSW, 2086
Australia
Visit our Website:
cuisinart.com.au
Printed in China
IB-21/245
cuisinart.com.au
