Cuisinart Gourmet INFRARED 810 85-3110-8 User manual

Manual Revision #: 22092014 AT
ASSEMBLY
MANUAL
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
Assemble your grill immediately.
Missing or damaged parts should be claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support, please call 1-800-309-3452.
www.cuisinartbbqs.com
LIMITED 5-YEAR WARRANTY
Cuisinart®Gourmet INFRARED 810 85-3110-8 (G53503) Propane
85-3111-6 (G53504) Natural Gas

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
1-800-309-3452
HEAVY ARTICLE NEEDS 2 TO LIFT
To ORDER non-warranty replacement parts or accessories,
or to register your warranty, please visit us on the web at
www.cuisinartbbqs.com
THIS BARBECUE IS FOR OUTDOOR USE ONLY
CUISINART®CUSTOMER CARE HOTLINE
Sharp edges. Wear gloves when assembling
your grill.
Read and follow all safety statements,
assembly instructions, use and care directions
before attempting to assemble and cook.
This manual should be kept with the BBQ at
all times.
CAUTION DANGER
DANGER
CAUTION
CAUTION
Failure to follow all of the Manufacturer’s
instructions could result in hazardous fires,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully prior
to operation of barbecue, even if grill was dealer
assembled. Do not try lighting this BBQ without
reading the Lighting Instructions section of the
Safety and Care Manual that accompanies this
grill.
WARNING
INSTALLER OR
ASSEMBLER/CONSUMER
1. If you smell Gas:
a. Shut off gas to the appliance
b. Extinguish any open flame
c. Open lid
d. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department
2. Do not store or use gasoline or other
flammable liquids or vapours in the vicinity of
this or any other appliance.
3. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
1. Do not store or use gasoline or other
flammable liquids or vapours in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
Avoid burns. The stainless steel and steel
surfaces of this barbecue can become extremely
hot, in direct sun and while the barbecue is in
operation.

1

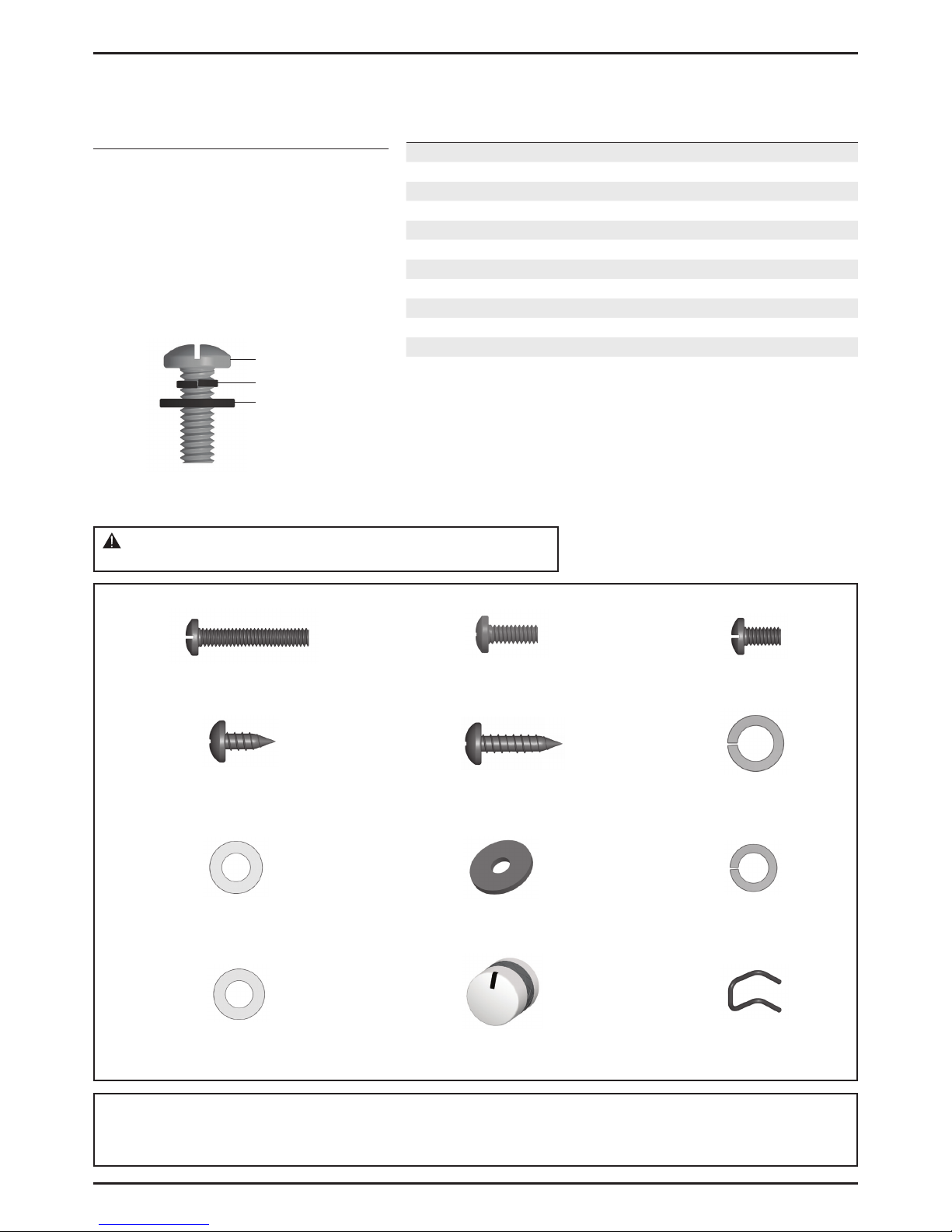

Tools Needed for Assembly
• #2 Phillips screwdriver (long and short)
• ¼” Slotted screwdriver (long and short)
• Adjustable wrench
• Pliers
• Rubber Mallot
For correct hardware assembly, always
position the lock washer between the screw
and the flat washer.
Note: Do not fully tighten all the nuts
during this initial stage
HARDWARE PACK
1/4-20UNCx38 Screw
X 8
φ7 Lock Washer
X 26
ST4.2x10 Tapping Screw
X 6
U Pin
X 1
1/4-20UNCx16 Screw
X 18
φ7 Washer
X 22
φ5 Lock Washer
X 12
ST4.2x20 Tapping Screw
X 1
NO.10-24UNCx13 Screw
X 12
Fiber Washer
X 4
φ5 Washer
X 12 Control Knob
X 2
No. Description Part Number Qty.
1 1/4-20UNCx38 Screw 20120-13038-250 8
2 1/4-20UNCx16 Screw 20120-13016-250 18
3 NO. 10-24UNCx13 Screw 20124-13013-250 12
4ST4.2x10 Tapping Screw 22500-42010-137 6
5ST4.2x20 Tapping Screw 22500-42020-137 1
6φ7 Lock Washer 41400-07000-250 26
7φ7 Washer 40300-07000-250 22
8Fiber Washer G466-0042-9000 4
9φ5 Lock Washer 41400-05000-250 12
10 φ5 Washer 40300-05000-250 12
11 Control Knob G618-0014-9000 2
12 U Pin G350-0026-9000 1
Caution:
Sheet metal can cause injury. Wear gloves when installing this grill.
BEFORE ASSEMBLING THE BARBECUE, READ THESE INSTRUCTIONS CAREFULLY.
Assemble the barbecue on a flat, clean surface. Grill is heavy. Two people are recommended
to complete assembly.
Lock Washer
Flat Washer
Screw
1 2 3
4 5 6
7 8 9
10 11 12

2
PARTS LIST (PROPANE) FOR 85-3110-8 (G53503)
Item No. Qty. Description Part No.
AA 1 Top lid G535-2000-01
AB 1 Lid Handle G535-0002-01
AC 2 Lid Handle End Cap G358-0004-01
AD 1 Thermometer G512-0085-01
AE 2 Screw for Top Lid G359-0030-01
AF 2 Lid Bumper G527-0002-01
AG 1 Logo G618-0054-01
BA1 1 Burner Box Assembly G535-3600-02
BA2 1 Burner Box Surround G535-1500-01
BB 3 Main Burner G525-3800-02
BC 1 Carryover Assembly G535-0033-01
BD 3 Flame Tamer G525-0015-01
BE 3 Cooking Grate, Burner Box G525-0016-01
BF 1 Warming Rack G525-0017-01
BG 1 Stainless Steel Rotisserie
Burner
G535-3800-01
BH 1 Electrode Set, Rotisserie
Burner
G453-0033-01
BI 1 Wind Shield, Rotisserie Burner G501-00B1-01
BJ 1 Collector Box, Rotisserie
Burner
G501-00C1-01
BK 1 Match Holder G501-0068-01
BL 1 Rotisserie LP Valve G535-0024-01
BM 2 Lid Support Pin G525-0014-02
CA 1 Manifold Assembly - LP G535-1700-01
CB 1 Regulator G510-0006-01
CC 1 Infrared Side Burner Valve - LP G535-0023-01
CD 2 Metal Hose G508-0024-01
CE1 1 Rotisserie Flexible Hose G601-0055-A1
CE2 1 Rotisserie LP Orice G525-0057-01
CF1 1 Electronic Ignition Assembly G535-0032-01
CF2 1 Electronic Ignition Battery Cap G535-0031-02
CG 3 Electrode Set, Main Burner G525-0030-01
CH 5 Control Knob G618-0014-01
CI 5 Bezel, Control Knob G525-0012-01
CJ 1 Control Panel G535-0008-01
CK 1 Front Brace G535-5000-01
CL 1 Grease Tray G350-4400-01
CM 1 Upper Back Panel G535-0013-01
CN 1 Heat Shield G525-0022-01
CO 1Left Track G515-0024-01
CP 1 Right Track G515-0025-01
CQ 1 Lower Back Panel G535-0012-01
Item No. Qty. Description Part No.
DA 1 Side Shelf Table - Right G535-0400-02
DB 1 Side Shelf Fascia - Right G535-0500-02
DC 1 Infrared Support Frame G535-3500-01
DD 1 Infrared Zone Side Burner G614-8500-01
DE 1 Electrode Set, Infrared Zone G614-0092-01
DF 1 Lid, Infrared Zone G501-0070-02
DG 1 Cooking Grate, Infrared Zone G525-0055-01
DH 1 Infrared Grease Tray G614-0075-01
DI 1 Infrared Side Burner Wind
shield
G614-0073-01
DJ 1 Side Shelf Table - Left G525-0600-01
DK 1 Side Shelf Fascia - Left G535-2500-01
EA 1 Cart Side Panel - Left G535-0009-01
EB 1 Cart Side Panel - Right G525-0010-01
EC 1 Bottom Shelf - LP G535-0900-01
ED 2 Wheel with Lock G350-0023-01
EE 2 Wheel G350-0024-01
EF 1 Left Door Assembly G535-2100-01
EG 1 Right Door Assembly G535-2200-01
EH 2 Door Handle G517-0011-01
EI 4 Door Magnet Assembly G501-00F2-03
F1 1 Hardware pack G535-B003-01
F2 1 Assembly Manual G535-M003-01
F3 1 Safety and Care Manual G535-M003-02
F4 1 Tank Screw G505-0047-01

3
BM
CO
CP
DF
EI
EI
BI BJ
BL CD
CE1 CE2
BE
BA1
CJ
AF
AE
BF
AB
AA
CN
DD
BC
EC EB
CI
DG
EG
EA
DK
EH
CG
BB
DJ
CH
AD
AG
BD
BK
BA2
AC
AC
BM
CA
CB
CC
CD
CF2
CF1
CK
CL
CM
CQ
DA
DB
DE
ED
EE
EF
EH
BG
BH
DC
DH
DI
EXPLODED DIAGRAM (PROPANE)
FOR 85-3110-8 (G53503)
Hardware
Pack
Tank
Screw
Assembly
Manual
Safe Use
& Care
Manual
EXTRAS
F1 F4F2 F3

4
PARTS LIST (NATURAL GAS) FOR 85-3111-6 (G53504)
Item No. Qty. Description Part No.
AA 1 Top lid G535-2000-01
AB 1 Lid Handle G535-0002-01
AC 2 Lid Handle End Cap G358-0004-01
AD 1 Thermometer G512-0085-01
AE 2 Screw for Top Lid G359-0030-01
AF 2 Lid Bumper G527-0002-01
AG 1 Logo G618-0054-01
BA1 1 Burner Box Assembly G525-3600-02
BA2 1 Burner Box Surround G535-1500-01
BB 3 Main Burner G525-3800-02
BC 1 Carryover assembly G535-0033-01
BD 3 Flame Tamer G525-0015-01
BE 3 Cooking Grate, Burner Box G525-0016-01
BF 1 Warming Rack G525-0017-01
BG 1 Stainless Steel Rotisserie
Burner
G535-3800-01
BH 1 Electrode Set, Rotisserie
Burner
G453-0033-01
BI 1 Wind Shield, Rotisserie Burner G501-00B1-01
BJ 1 Collector Box, Rotisserie
Burner
G501-00C1-01
BK 1 Match Holder G501-0068-01
BL 1 Rotisserie NG Valve G535-0028-01
BM 2 Lid Support Pin G525-0014-02
CA 1 Manifold Assembly - NG G535-2800-01
CB 1 Natural Gas Hose G501-0099-01
CC 1 Infrared Side Burner Valve - NG G535-0027-01
CD 2 Metal Hose G508-0024-01
CE1 1 Rotisserie Flexible Hose G601-0055-A1
CE2 1 Rotisserie NG orice G512-0048-01
CF1 1 Electronic Ignition Assembly G535-0032-01
CF2 1 Electronic Ignition Battery Cap G535-0031-02
CG 3 Electrode Set, Main Burner G525-0030-01
CH 5 Control Knob G618-0014-01
CI 5 Bezel, Control Knob G525-0012-01
CJ 1 Control Panel G535-0008-01
CK 1 Front Brace G535-5000-01
CL 1 Grease Tray G350-4400-01
CM 1 Upper Back Panel G535-0013-01
CN 1 Heat Shield G525-0022-01
CO 1Left Track G515-0024-01
CP 1 Right Track G515-0025-01
CQ 1 Lower Back Panel G535-0012-01
Item No. Qty. Description Part No.
DA 1 Side Shelf Table - Right G535-0400-02
DB 1 Side Shelf Fascia - Right G535-0500-02
DC 1 Infrared Support Frame G535-3500-01
DD 1 Infrared Zone Side Burner G614-8500-01
DE 1 Electrode Set, Infrared Zone G614-0092-01
DF 1 Lid, Infrared Zone G501-0070-02
DG 1 Cooking Grate, Infrared Zone G525-0055-01
DH 1 Infrared Grease Tray G614-0075-01
DI 1 Infrared Side Burner Wind
shield
G614-0073-01
DI 1 Side Shelf Table - Left G535-0600-01
DJ 1 Side Shelf Fascia - Left G535-2500-01
EA 1 Cart Side Panel - Left G535-0009-01
EB 1 Cart Side Panel - Right G535-0010-01
EC 1 Bottom Shelf - NG G535-3400-01
ED 2 Wheel with Lock G350-0023-01
EE 2 Wheel G350-0024-01
EF 1 Left Door Assembly G535-2100-01
EG 1 Right Door Assembly G535-2200-01
EH 2 Door Handle G517-0011-01
EI 4 Door Magnet Assembly G501-00F2-03
F1 1 Hardware pack G535-B003-01
F2 1 Assembly Manual G535-M003-01
F3 1 Safety and Care Manual G535-M003-02

5
BM
CO
CP
DF
EI
EI
BI BJ
BL CD
CE1 CE2
BE
BA1
CJ
AF
AE
BF
AB
AA
CN
DD
BC
EC EB
CI
DG
EG
EA
DK
EH
CG
BB
DJ
CH
AD
AG
BD
BK
BA2
AC
AC
BM
CA
CB CC
CD
CF2
CF1
CK
CL
CM
CQ
DA
DB
DE
ED
EE
EF
EH
BG
BH
DC
DH
DI
EXPLODED DIAGRAM (NATURAL GAS)
FOR 85-3111-6 (G53504)
Hardware
Pack
Assembly
Manual
Safe Use
& Care
Manual
EXTRAS
F1 F2 F3

6

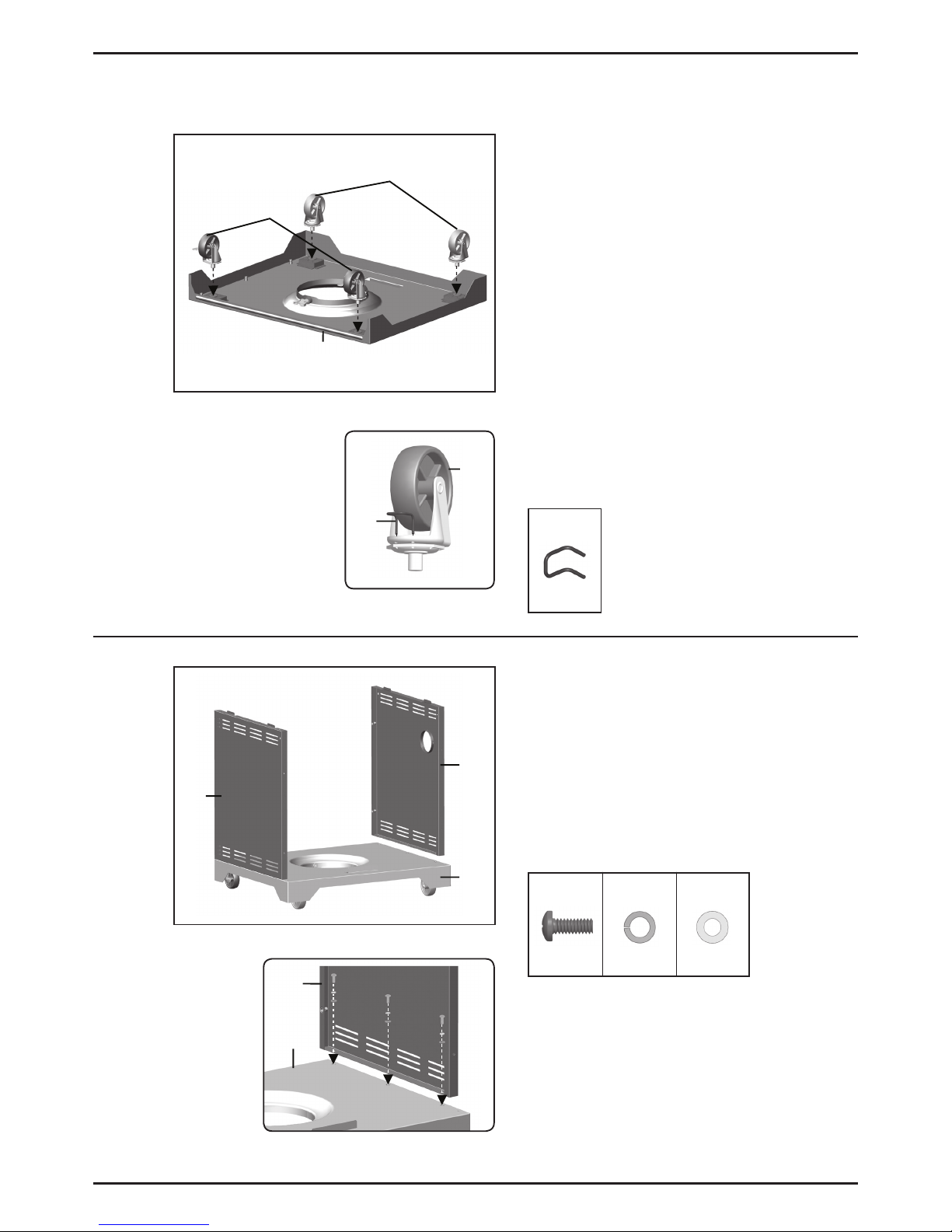

Separate the 2 different types of wheels, 2
Locking Wheels (ED) and 2 Regular Wheels
(EE).
Insert the U Pin (#12) into one of the Regular
Wheels (EE), as shown in image B. Attach the
Regular Wheel (EE) to the front of the Bottom
Shelf (EC), and use the U Pin (#12) to secure
and tighten.
Repeat for remaining 3 Wheels (EE & ED).
NOTE: Regular Wheels (EE) need to be
assembled to the front of the Bottom
Shelf (EC), and Wheels with Lock (ED)
need to be assembled to the back of
the Bottom Shelf (EC), as shown in
image A.
6
X 1
YOU WILL NEED:
1.
Back view
Close up
EE
EE
12 12
B
A
ASSEMBLY INSTRUCTIONS
EC
a. Ensure that the wheels are rmly locked in
the “ON” position before continuing.
b. Assemble the Left Cart Side Panel (EA) and
the Right Cart Side Panel (EB) to the Bottom
Shelf (EC).
6
X 6 X 6 X 6
YOU WILL NEED:
6 7
2.
Front view
Close up
EB
EB
EA
EC
EC
B
A2
ED

7
ASSEMBLY INSTRUCTIONS
Attach the Front Brace (CK) to the Left and
Right Cart Side Panels (EA and EB).
TIP: One person should align the left side,
while the second person assembles the
right side.
6
X 2 X 2 X 2
YOU WILL NEED:
1 6 7
c. Assemble the Lower Back Panel (CQ)
to the Left Cart Side Panel (EA) and Right
Cart Side Panel (EB).
6
X 4 X 4 X 4
YOU WILL NEED:
6 7
3.
2.
Back view
Close up
CK
CQ EA
EB
EA
CQ
EC
EB
A
C
2
CJ
EA
B
Close up
CQ EB
D
TIP: The top of the lower back panel (CQ) can
be identied by the four recesses located
on the top of this part.
TIP: The bottom of the front brace (CJ) can be
identied by the four recesses located on
the bottom of this part.

8
ASSEMBLY INSTRUCTIONS
Back view
Front view
EA
EB
C
CK
b. Assemble Burner Box Assembly (A and B) to
the Left and Right Cart Side Panels (EA and
EB), as shown.
c. Assemble the front of the Burner Box
Assembly (A and B) to the Front Brace (CK),
as shown.
Close up - left outside view
THIS STEP REQUIRES 3 PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY
HEAVY.
a. Position the Top Lid and Burner Box
Assembly (A and B) onto Cart Assembly (C),
as shown.
4.
A
C
A+B
Front view
6
X 4 X 4 X 4
YOU WILL NEED:
6 72
6
X 2 X 2 X 2
YOU WILL NEED:
1 6 7
EB EA
B
A+B

9
ASSEMBLY INSTRUCTIONS
5.
6. a. Open the Lid. Assemble the Left Side Shelf
Assembly (DJ and DK) to the Cart Assembly
by inserting the Side Shelf Tabs into holes on
the Cart Assembly (gure A).
b. Secure using hardware, as shown in gure B,
C & D.
Front, left side view
View inside burner box
DJ
DK
A
BA

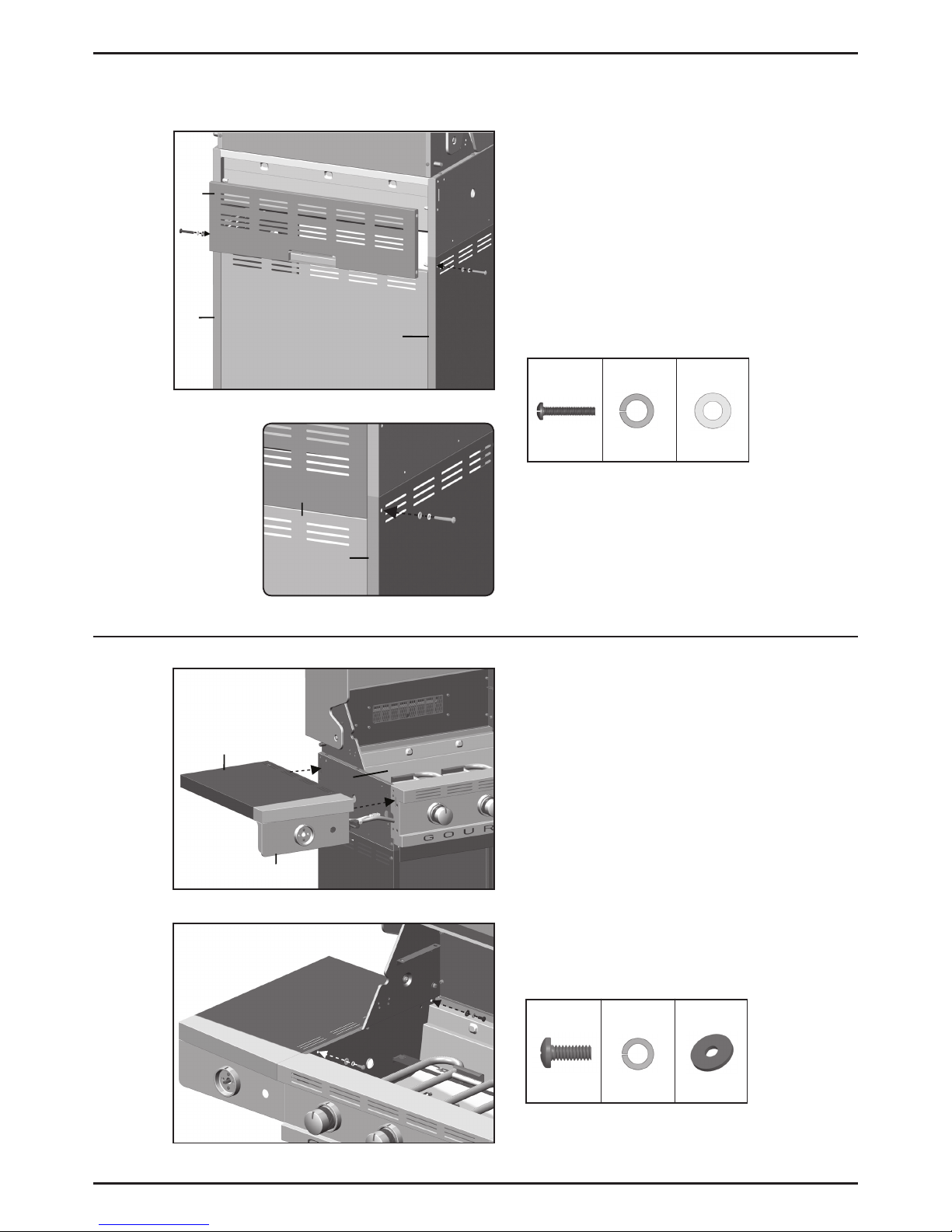

Attach the Upper Back Panel (CM) to both the
Left and Right Cart Side Panels (EA and EB).
Only install hardware in the bottom portion of
the Upper Back Panel (CM), as shown in gure
B.
DO NOT TIGHTEN SCREWS UNTIL SIDE
SHELF HAS BEEN INSTALLED.
Back view
Close up
EA
CM
EB
EA
CM
B
A6
X 2 X 2 X 2
YOU WILL NEED:
1 6 7
6
X 2 X 2 X 2
YOU WILL NEED:
6 82
B
DJ
BA
DK

10
ASSEMBLY INSTRUCTIONS
6.
7.
6
X 3 X 3 X 3
YOU WILL NEED:
View under left side shelf (back)
View under left side shelf (front)
3 9 10
C
D
DJ
DJ
BA DK
BA
DK
Front, right side view

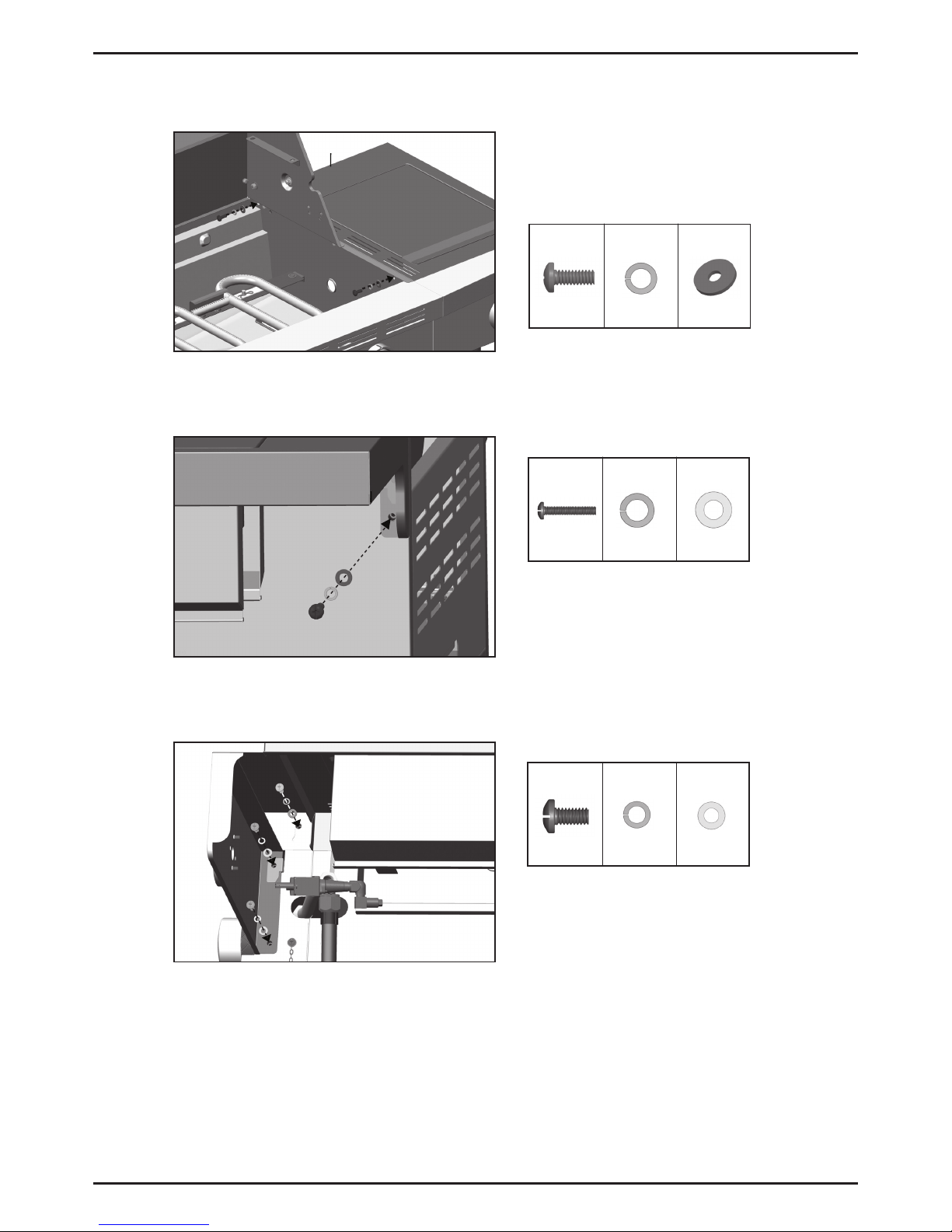

a. Open the lid. Assemble the Right Side Shelf
Assembly (DA and DB) to the Cart Assembly
by inserting the Side Shelf tabs into the holes
on the Cart Assembly (gure A).
DA
DB
BA
A
Close up
6
X 1 X 1 X 1
YOU WILL NEED:
1 6 7
NOTE: Beware of sharp edges.

11
ASSEMBLY INSTRUCTIONS
7.
6
X 3 X 3 X 3
YOU WILL NEED:
3 9 10
View under right side shelf (back)
View under right side shelf (front)
BA
DA
C
D
View inside burner box
DA
BA
B
b. Secure using hardware, as shown in gure B,
C and D.
DB
6
X 1 X 1 X 1
YOU WILL NEED:
1 6 7
6
X 2 X 2 X 2
YOU WILL NEED:
6 82
DC
BA
DC
DB
NOTE: Beware of sharp edges.

12
ASSEMBLY INSTRUCTIONS
9.
a. Assemble the Infrared Side Burner Wind
Shield (DI) to the Infrared Support Frame
(DC), as shown in gure A and B.
DI
DC
DC
B
A
6
X 2
YOU WILL NEED:
4
DI
Front, right side view
Front, right side view
Front, right side view
View from above right side shelf

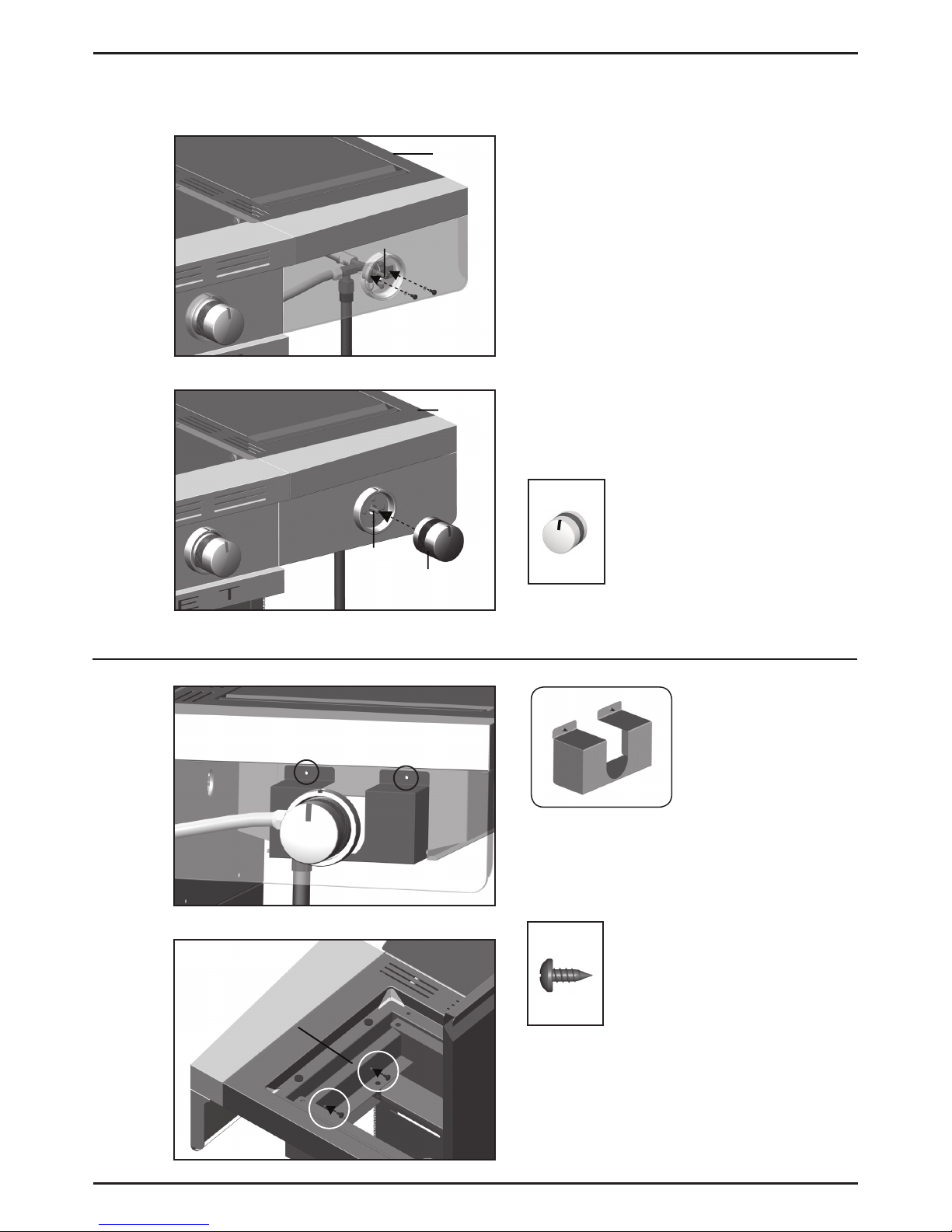

a. Remove the hardware that is pre-assembled
to the Side Burner Valve bracket (CC), as
shown in gure A.
b. Insert the Side Burner Valve stem (CC)
through the rear of the Right Side Shelf
Fascia (DB). Assemble the Side Burner Valve
(CC) to the Side Shelf Fascia (DB), using the
hardware removed (gure A).
8 . DA
DB
A
B
CC
11
CC
DA
DB
6
X 1
YOU WILL NEED:
11
c. Assemble the Side Burner Control Knob
(#11) to the Side Burner Valve (CC) (gure B).
NOTE: Two people recommended.

13
ASSEMBLY INSTRUCTIONS
9 . b. Position the Infrared Zone Side Burner (DD)
through the opening in the Infrared Support
Frame (DC).
C
DD
DC
c. Make sure that the Infrared Zone Side Burner
(DD) engages the Side Burner Valve (CC) gas
jet, as shown in gure D.
D
CC
DD
5
X 1
YOU WILL NEED:
d. Assemble the Infrared Zone Side Burner (DD)
to the Infrared Zone Support Frame (DC), at
the 2 points indicated in gure E.
e. Feed the Infrared Zone Electrode set (DE)
from underneath the Infrared Zone Side
Burner (DD), through the small opening on
the left side of the Infrared Zone Support
Frame (DC). Align and assemble the
electrode using the self tapping screw
provided, as shown in gure F.
E
F
DE
DD
DC
DC
DD
Front, right side view
View from underneath right side shelf
View from above right side shelf
View from above right side shelf
6
X 2 X 2 X 2
YOU WILL NEED:
3 9 10

14
ASSEMBLY INSTRUCTIONS
9 .
10.
View under left side shelf
DK
DJ

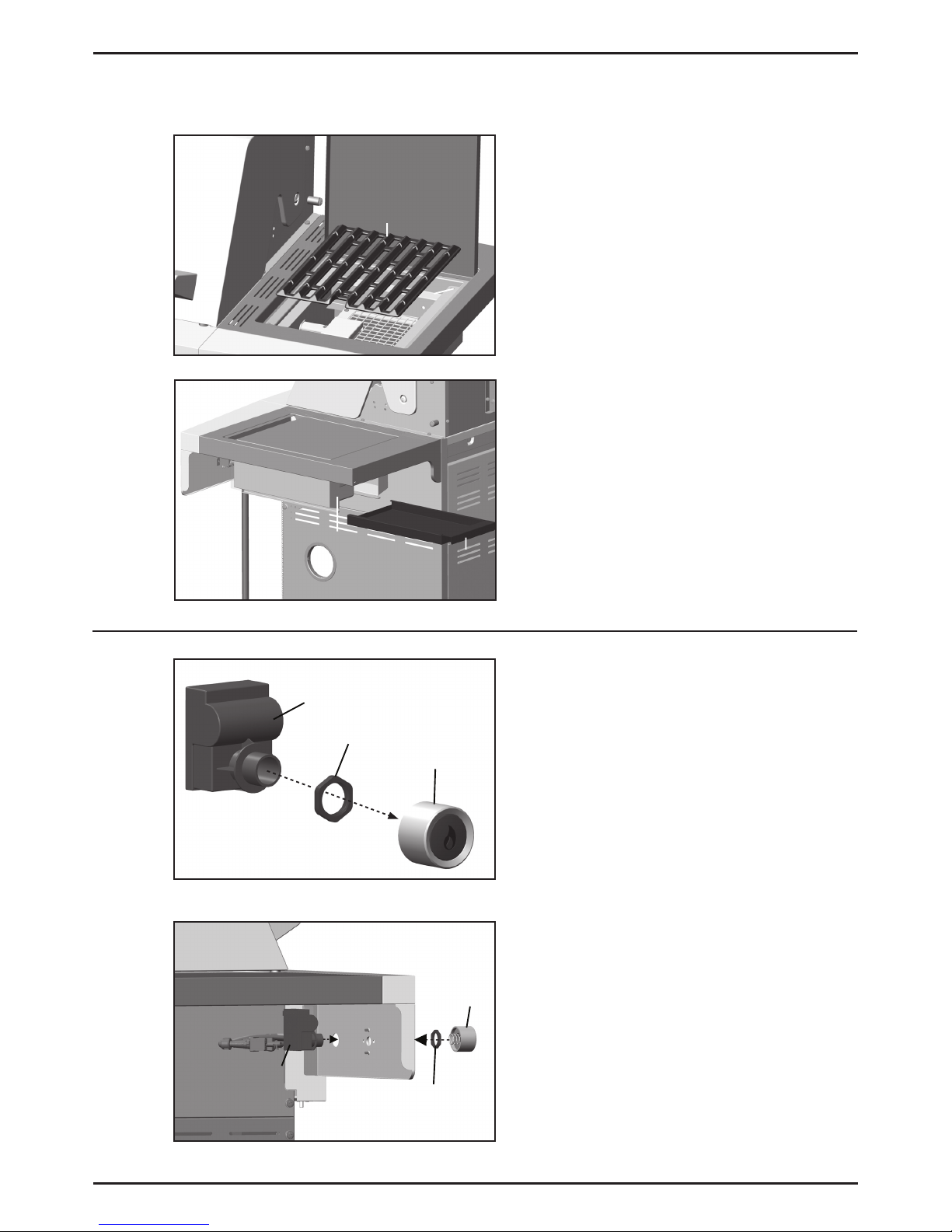

b. Feed the Electronic Ignition Assembly (CF1)
through the opening in the Left Side Shelf
Fascia (DK) and secure using the nut.
a. Remove the Electronic Ignition Battery Cap
(CF2) and the plastic nut from the Electronic
Ignition Assembly (CF1).
B
CF1
CF2
f. Position the Infrared Zone Cooking Grate
(DG) on the Infrared Zone Support Frame
(DC).
G
DG
DC
g. Insert the Infrared Grease Tray (DH) into the
back of the Infrared Zone Support Frame
(DC), as shown.
H
DC
DH
A
CF2
Plastic Nut
CF1
Plastic Nut
Front, right side view
Back, right side view

15
ASSEMBLY INSTRUCTIONS
10.
D
Front, left side view
DK
DJ
C
c. Insert one “AA” battery into the battery
compartment with the positive end facing
outward, as shown. Secure using the
Electronic Ignition Battery Cap (CF2).
CF2
+
-
D
TIP: The Electrode set for Main Burner (CG),
the Electrode wire for Infrared Zone (DE),
the Electrode wire for Rotisserie Burner
(BH) can be found fastened together with
the Rotisserie Valve (BL) hanging from the
left side of Control Panel on the outside of
the burner box (BA), as shown.
DK
DJ
CF1
BA
d. Insert all Electrode wires (CG, DE, BH) into
the Electronic Ignition Assembly (CF1), as
shown in gure E.
NOTE: All electrode wire connection points are
the same size.
View under left side shelf
BL
E
DE
BH
CF1
CG
CG

16
Front, left side view
Front, left side view
ASSEMBLY INSTRUCTIONS
11. a. Remove the hardware that is pre-assembled
to the Rotisserie Valve bracket (BL), as
shown in gure A.
b. Insert the Rotisserie Burner Valve stem
(BL) through the rear of the Left Side Shelf
Fascia (DK). Assemble the Rotisserie Valve
(BL) to the Side Shelf Fascia (DK), using the
hardware removed (gure A).
A
B
c. Assemble the Control Knob (#11) to the
Rotisserie Valve (BL).
6
X 1
YOU WILL NEED:
11
BL
11
BL
DK
DK

17
ASSEMBLY INSTRUCTIONS
12.
Close up, front
CN
CK
6
X 2
YOU WILL NEED:
4

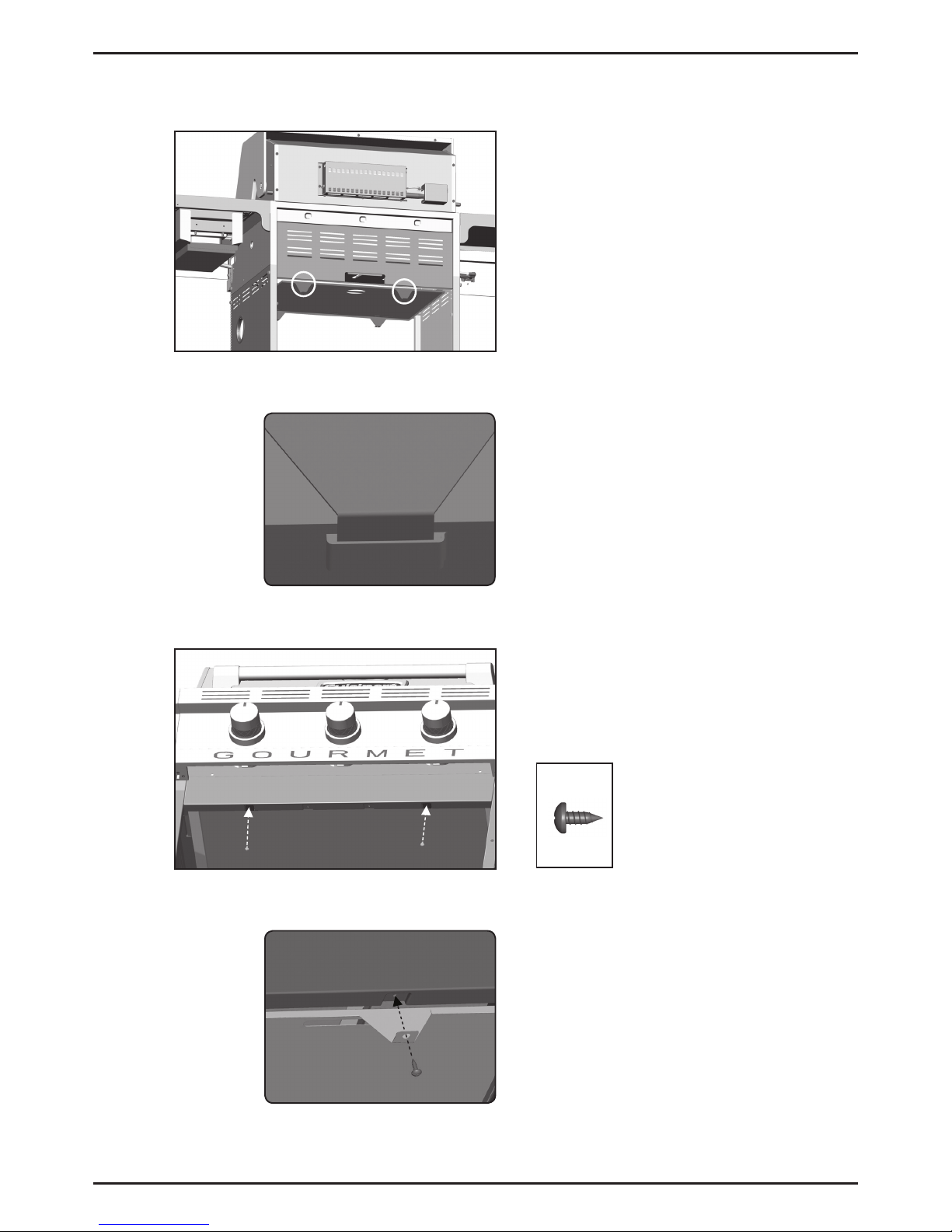

b. Assemble the Heat Shield (CN) to the bottom
of the Front Brace (CK), as shown in gure B.
Front view
Close up, back
CM
CN
a. Position the Heat Shield (CN) into the two
hooks located on the bottom of the Upper
Back Panel (CM), as shown in gure A.
Back view
CN
CM
A
CN
B
CK

18

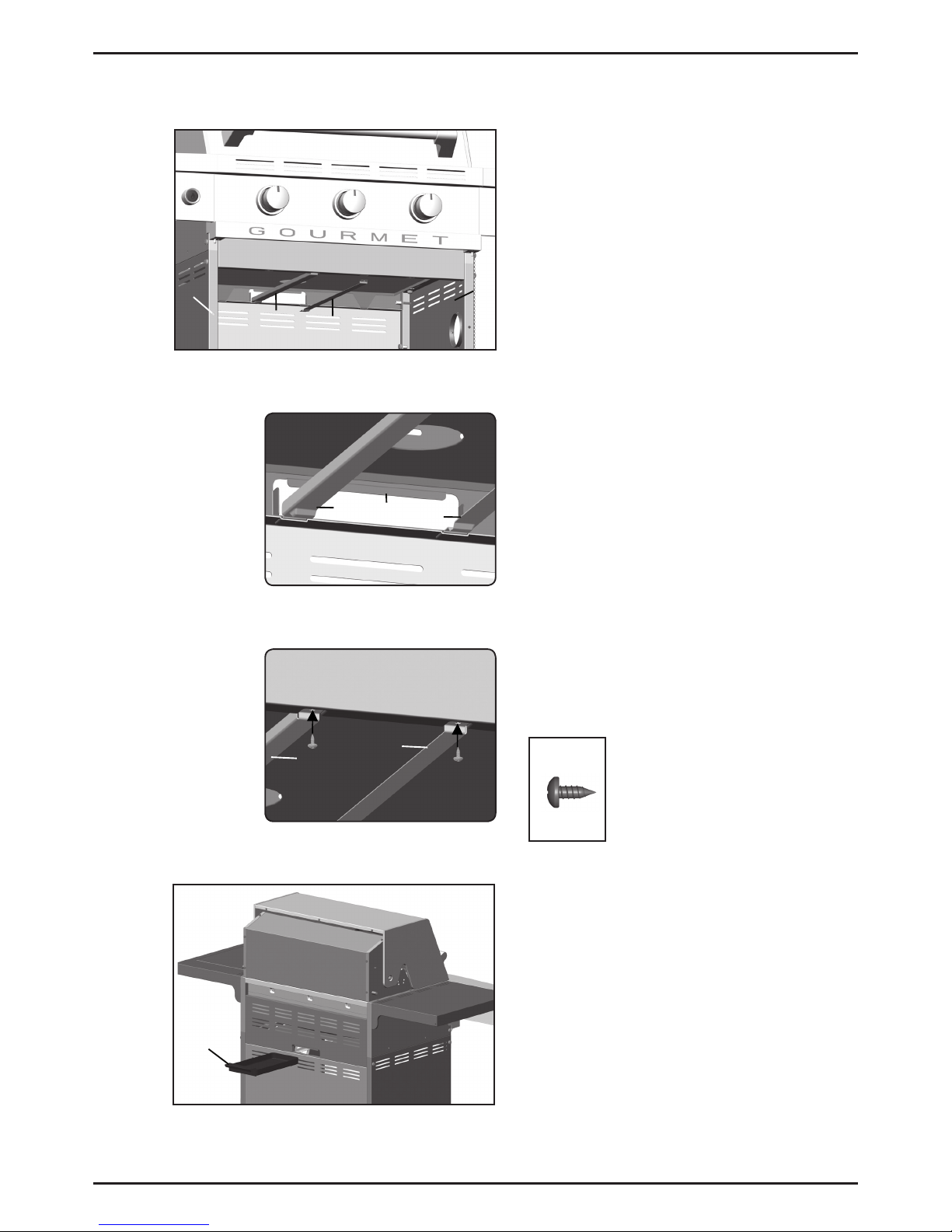

13. a. Assemble the Left and Right Tracks (CO and
CP) for the Grease Tray (CL), as shown in
gure A-C.
b. Both the Left and Right Tracks (CO and CP)
should be inserted into the two clips located
on the Upper Back Panel (CM), as shown in
gure B.
A
B
Front view
EB
EA
CK
CP
CO
CP
CO CM
Close up, back
ASSEMBLY INSTRUCTIONS
c. Assemble the front of the Left and Right
Tracks (CO and CP) to the Front Brace (CK),
as shown in gure C.
d. Insert the Grease Tray (CL) into the opening
of the Upper Back Panel (CM).
D
6
X 2
YOU WILL NEED:
4
C
Back view
Close up, front
CK
CO
CP
CL CM
