Cuisinart C782IRS-R User manual

Manual Revision #: 27112009PD
CUISINART™ C782IRSR
Assembly Manual
85-3034-0 (G51215) Propane
85-3035-8 (G51216) Natural Gas
LIMITED 5YEAR WARRANTY
Read and save manual for future reference.
Assemble your grill immediately.
Missing or damaged parts should be
claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support,
please call 1-800-309-3452.
www.cuisinartbbqs.com
TM

1
WARNING
Failure to follow all of the Manufacturer’s
instructions could result in hazardous res,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully
prior to operation of barbecue, even if grill
was dealer assembled. Do not try to light
this barbecue without reading the Lighting
Instructions section of this manual.
THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
CAUTION
Read and follow all safety statements,
assembly instructions, and use and care
directions before attempting to assemble
and cook.
CAUTION
Sharp edges. Wear gloves when assembling
your grill.
THIS BARBECUE IS FOR OUTDOOR USE ONLY
CONTACT CALL CENTRE IF ANY PARTS ARE MISSING
INSTALLER OR ASSEMBLER/CONSUMER
This manual should be kept with the BBQ at
all times.
HEAVY ARTICLE NEEDS 2 TO LIFT
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.

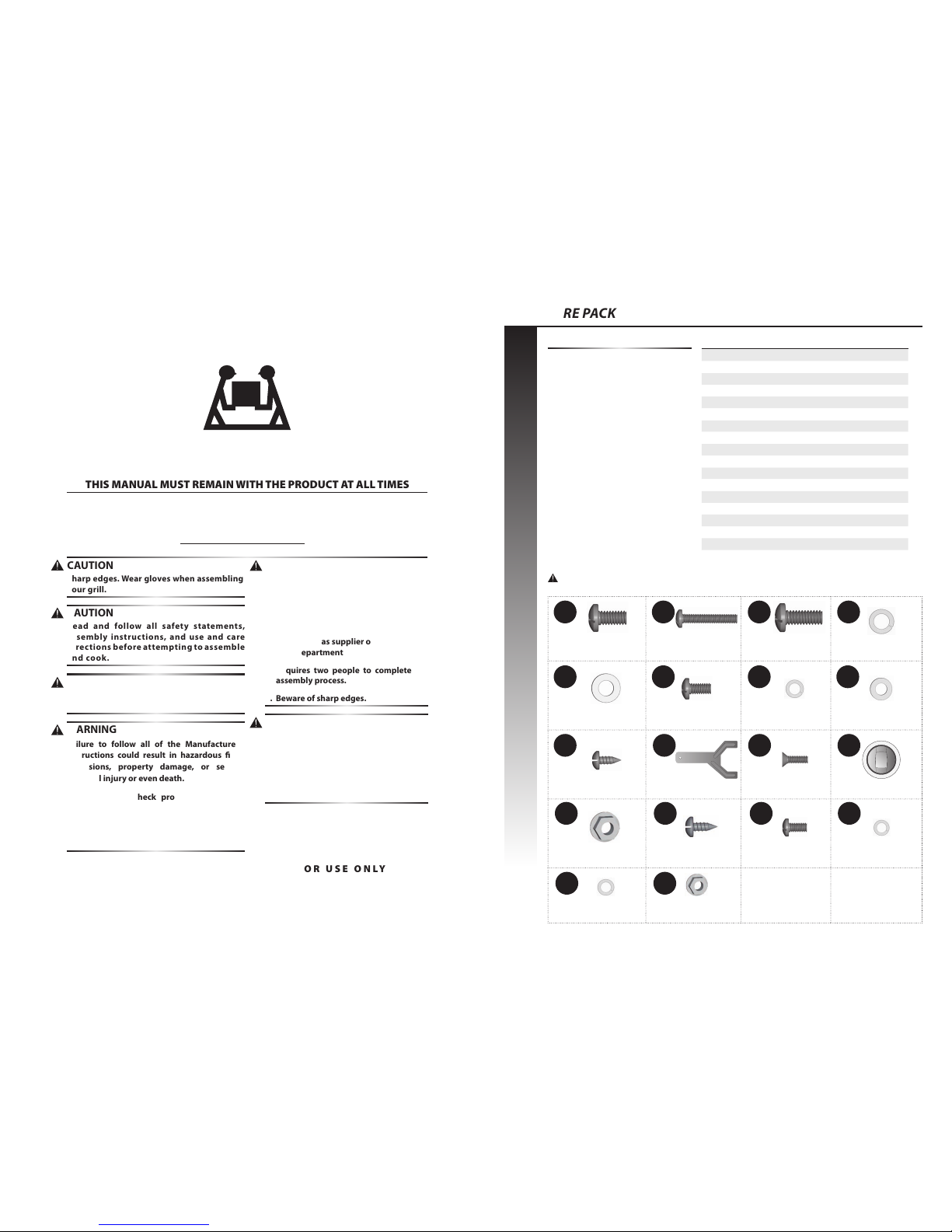

HARDWARE PACK
¼” - 20UNCX13 Screw
X 8
ø7 Lock Washer
X 20
ST4.2x10 Tapping Screw
X 4
¼” - 20UNCX38 Screw
X 4
ø7 Washer
X 20
ø5 Lock Washer
X 26
¼” - 20UNCX16 Screw
X 8
NO. 10-24UNC10 Screw
X 26
ø5 Washer
X 26
Wrench
X 1
NO. 8-32UNCx10 Screw
X 4
12 3 4
5 6 78
910 11 12
13
NO. 10 Nut
X 2
Control Knob
X 1
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (Long and short)
• ¼” Slotted screwdriver (Long and short)
• Adjustable wrench
• Pliers
• Rubber Mallot
Before assembling the barbecue, read these
instructions carefully.
Assemble the barbecue on a at, clean surface.
Grill is heavy.
Notes: Do not fully tighten all the nuts during this
initial stage.
No. Description Part Number Quantity
1 ¼"-20UNCX13 Screw 20120-13013-250 8
2 ¼"-20UNCX38 Screw 20120-13038-250 4
3 ¼"-20UNCX16 Screw 20120-13016-250 8
4 ø7 Lock Washer 41400-07000-250 20
5 ø7 Washer 40300-07000-250 20
6 NO.10-24UNCx10 Screw 20124-10010-250 26
7 ø 5 Lock Washer 41400-05000-250 26
8 ø 5 Washer 40300-05000-250 26
9 ST4.2x10 Tapping Screw 22500-42010-137 4
10 Wrench G413-0032-9082 1
11 NO.8-32UNCx10 Screw 20332-08010-250 4
12 Control Knob G412-4500-9000 1
13 NO. 10 Nut 30244-10000-250 2
14 ST4.2x20 Tapping Screw 22500-42018-250 1
15 NO. 8-32UNCx10 Screw 20132-08010-250 4
16 ø 4 Lock Washer 41400-04000-250 4
17 ø 4 Washer 40300-04000-250 4
18 NO. 8 Nut 30232-08000-250 4
14 15 16
17 18
ST4.2x20 Tapping Screw
X 1
NO.8-32UNCx10 Screw
X 1
ø4 Lock Washer
X 1
ø4 Washer
X 1
NO. 8 Nut
X 1
1-800-309-3452
To ORDER non-warranty replacement parts or accessories, or to register your warranty,
please visit us on the web at
www.cuisinartbbqs.com
DANGER
1. If you smell Gas:
a. Shut o gas to the appliance
b. Extinguish any open ame
c. Open lid
d. If odor continues, keep away from
the appliance and immediately
call your gas supplier or your
re department
2. Requires two people to complete the
assembly process.
3. Beware of sharp edges.
WARNING
1. Do not store or use gasoline or other
ammable liquids or vapours in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.

2 3
PARts List (PRoPAnE) foR 85-3034-0 (G51215) EXPLoDED DiAGRAM (PRoPAnE) foR 85-3034-0 (G51215)
Item Qty. Description Part No.
CN 1 Upper Back Panel G512-0071-01
CO 1Heat Shield G512-0026-01
DA 1Side Shelf Table- Left G512-9100-01
DB 1 Side Shelf Fascia- Left G512-0066-01
DC 1 Infrared Support Frame G512-9200-01
DD 1 Infrared Side Burner G512-B000-01
DE 1 Electrode Set, Infrared Zone G610-0009-01
DF1 1Lid Infrared Zone G512-0074-01
DF2 1Lid Handle Infrared Zone G512-0078-01
DG 1 Cooking Grate Infrared Zone G512-0060-01
DH 1 Side Shelf Table-Right G512-9900-01
DI 1 Side Shelf Fascia-Right G512-0064-01
DJ 1Infrared Wind Shield G512-0077-01
DK 1 Infrared Grease Tray G614-0075-01
DL 1 Infrared Side Burner Windshield G614-0073-01
EA 1Cart Side Panel-Left G512-9500-01
EB 1 Cart Side Panel, Right G512-9600-01
EC 1 Pillar, Left G512-8000-01
ED 1 Pillar, Right G512-8700-01
EE 2 Magnet Assembly G501-0016-01
EF 1Door Assembly G512-8800-01
EG 1 Bottom Shelf G512-9800-01
EH 2 Wheel with Lock G401-0061-01
EI 2 Wheel G606-0027-01
EJ 1 Towel Bar G512-0063-01
F1 1Hardware Pack G512-B015-01
F2 1Instruction Manual G512-M015-01
F3 1Safe Use & Care Manual G412-M006-02
F4 1 Tank Screw G505-0047-01
Item Qty. Description Part No.
AA 1Top Lid G512-7400-01
AB 1Lid Handle G512-0053-01
AC 1Thermometer G512-0052-01
AD 2Screw for Top Lid G501-0005-02
AE 2Lid Bumper G508-0063-01
BA 1Burner Box Assembly G512-7600-02
BA1 1Rotisserie Burner Brace G512-0015-01
BB 1 Upper Side Panel- Left G512-7700-01
BC 1 Upper Side Panel- Right G512-9300-01
BD 2 Main Burner-A G607-0700-A1
BE 1 Main Burner-B G502-1800-A1
BF 1Carryover Assembly G502-0012-01
BG 3 Flame Tamer G617-0019-01
BH 3 Cooking Grate, Burner Box G512-0062-01
BI 1 Warming Rack G512-0004-01
BJ 1 Rotisserie Burner G617-2900-01
BK1 1 Electrode Set, Rotisserie Burner G411-0002-01
BK2 1 Ground Wire, Rotisserie Burner G411-0004-01
BK3 1 Wind Shield, Rotisserie G617-0036-01
BL 1 Match Holder G608-0019-01
CA 1Manifold Assembly with Coupling G512-A800-01
CB 1 Regulator G433-0034-01
CC 1Valve, Sideburner LP G512-0040-01
CD 1 Metal Hose, Sideburner G608-0039-01
CE1 1 Rotisseries Flexible Hose G601-0055-A1
CE2 1 Rotisserie LP Orice G411-0013-02
CF1 1Electronic Igniter Assembly G512-0070-02
CF2 1 Electronic Ignition Button G512-0070-01
CG 1Electrode Set, Main Burner G512-0059-01
CH 3 Control Knob Assy G512-7900-01
CI 1 Rotisserie Knob Assy G512-9400-01
CJ 1 Control Panel G512-0056-01
CK 1 Front Brace G512-0072-01
CL 1 Grease Tray G512-A000-01
CM 1 Grease Cup G416-0015-01
BI
CD
CA
CC
CE1
CE2
CB
DF2
DF1
DC
DG
BB
DE
DD
DA
DK
DL
DJ
DB
EC
EE
EA
F1
F4 BL
F2
F3
CN
CK
CO
CJ
CI
AE
AD
BH
BG
BJ
BA1
BC
EF
BK1
+
BK2
BA
DH
DI
CL
CM
EB
EG
EI EH
ED
EJ
CH
CG
CF2
CF1
BE
BF
BD
AA
AB
AC
Assembly
Manual
Safety & Care
Manual
Hardware
Pack
Extras
No.12
BK3

4 5
PARts List (nAtuRAL GAs) foR 85-3015-6 (G51211) EXPLoDED DiAGRAM (nAtuRAL GAs) foR 85-3035-8 (G51216)
Item Qty. Description Part No.
CN 1 Upper Back Panel G512-0071-01
CO 1Heat Shield G512-0026-01
DA 1Side Shelf Table- Left G512-9100-01
DB 1 Side Shelf Fascia- Left G512-0066-01
DC 1 Infrared Support Frame G512-9200-01
DD 1 Infrared Side Burner G512-B000-01
DE 1 Electrode Set, Infrared Zone G610-0009-01
DF1 1Lid Infrared Zone G512-0074-01
DF2 1Lid Handle Infrared Zone G512-0078-01
DG 1 Cooking Grate Infrared Zone G512-0060-01
DH 1 Side Shelf Table-Right G512-9900-01
DI 1 Side Shelf Fascia-Right G512-0064-01
DJ 1Infrared Wind Shield G512-0077-01
DK 1 Infrared Grease Tray G614-0075-01
DL 1 Infrared Side Burner Windshield G614-0073-01
EA 1Cart Side Panel-Left G512-9500-01
EB 1 Cart Side Panel, Right G512-9600-01
EC 1 Pillar, Left G512-8000-01
ED 1 Pillar, Right G512-8700-01
EE 2 Magnet Assembly G501-0016-01
EF 1Door Assembly G512-8800-01
EG 1 Bottom Shelf G512-A700-01
EH 2 Wheel with Lock G401-0061-01
EI 2 Wheel G606-0027-01
EJ 1 Towel Bar G512-0063-01
F1 1Hardware Pack G512-B015-01
F2 1Instruction Manual G512-M015-01
F3 1Safe Use & Care Manual G412-M006-02
Item Qty. Description Part No.
AA 1Top Lid G512-7400-01
AB 1Lid Handle G512-0053-01
AC 1Thermometer G512-0052-01
AD 2Screw for Top Lid G501-0005-02
AE 2Lid Bumper G508-0063-01
BA 1Burner Box Assembly G512-7600-02
BA1 1Rotisserie Burner Brace G512-0015-01
BB 1 Upper Side Panel- Left G512-7700-01
BC 1 Upper Side Panel- Right G512-9300-01
BD 2 Main Burner-A G607-0700-A1
BE 1 Main Burner-B G502-1800-A1
BF 1Carryover Assembly G502-0012-01
BG 3 Flame Tamer G617-0019-01
BH 3 Cooking Grate, Burner Box G512-0062-01
BI 1 Warming Rack G512-0004-01
BJ 1 Rotisserie Burner G617-2900-01
BK1 1 Electrode Set, Rotisserie Burner G411-0002-01
BK2 1 Ground Wire, Rotisserie Burner G411-0004-01
BK3 1 Wind Shield, Rotisserie G617-0036-01
BL 1 Match Holder G608-0019-01
CA 1Manifold Assembly with Coupling G512-A900-01
CB 1 Natural Gas Hose G501-0099-01
CC 1Valve, Sideburner LP G512-0041-01
CD 1 Metal Hose, Sideburner G608-0039-01
CE1 1 Rotisseries Flexible Hose G601-0055-A1
CE2 1 Rotisserie NG Orice G601-0072-02
CF1 1Electronic Igniter Assembly G512-0070-02
CF2 1 Electronic Ignition Button G512-0070-01
CG 1Electrode Set, Main Burner G512-0059-01
CH 3 Control Knob Assy G512-7900-01
CI 1 Rotisserie Knob Assy G512-9400-01
CJ 1 Control Panel G512-0056-01
CK 1 Front Brace G512-0072-01
CL 1 Grease Tray G512-A000-01
CM 1 Grease Cup G416-0015-01
BI
CD
CA
CC
CE1
CE2
DF2
DF1
DC
DG
BB
DE
DD
DA
DK
DB
EC
EE
EA
BL
F1
F2
F3
CN
CK
CO
CJ
CI
AE
AD
BH
BG
BJ
BA1
BC
EF
BK1
+
BK2
BA
DH
DI
CL
CM
EB
EG
EI EH
ED
EJ
CH
CG
CF2
CF1
BE
BF
BD
AA
AB
AC
Assembly
Manual
Safety & Care
Manual
Hardware
Pack
Extras
No.12
BK3
CB
DJ
DL

6 7
1 3
24

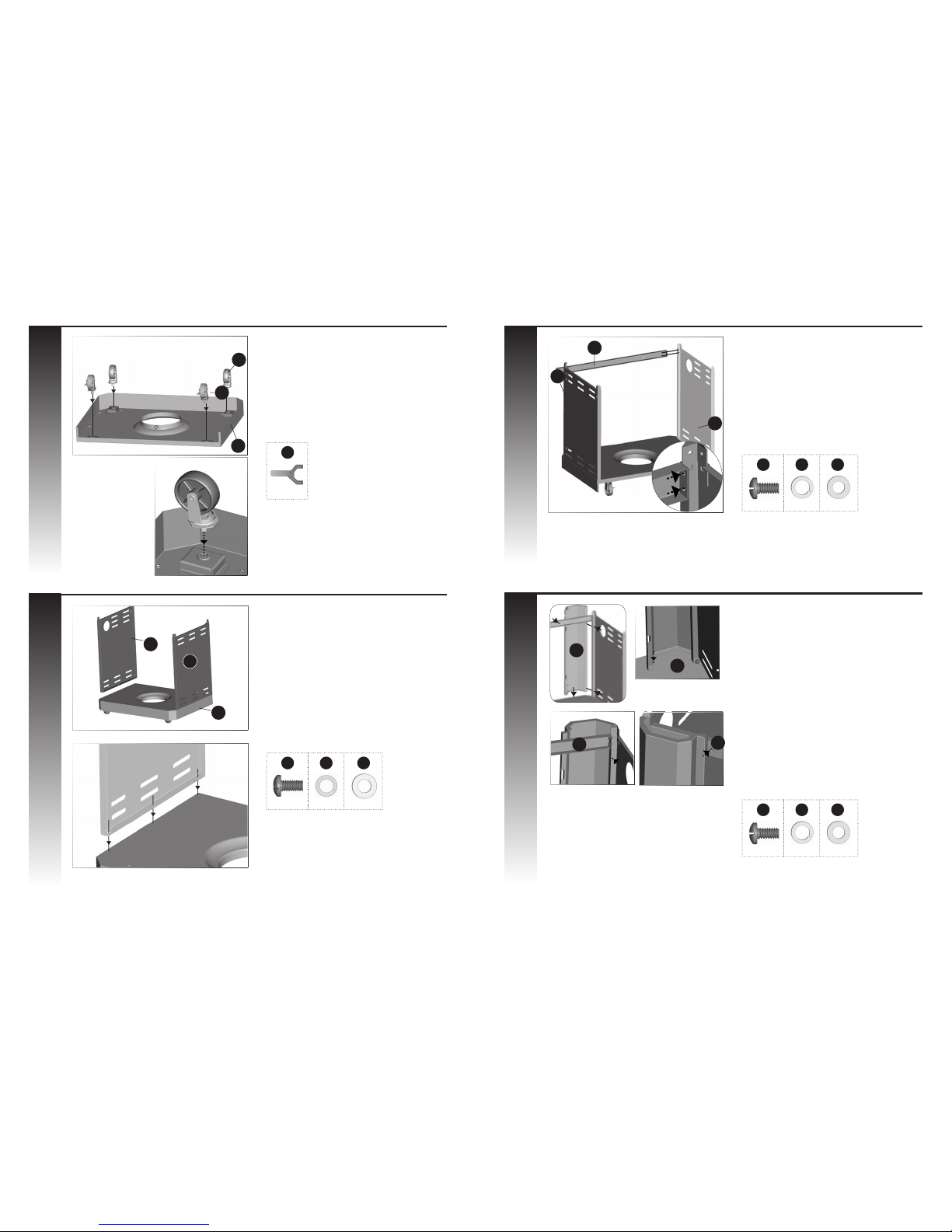

AssEMBLY instRuCtions AssEMBLY instRuCtions
EI
EG
Back view
EH
Close up
EA
EB
EG
Front view
Ensure that the wheels are rmly locked in the
“ON”position before continuing.
Assemble the left side panel (EA) and the right
side panel (EB) to the bottom shelf (EG).
Close up
Attach the front brace (CK) to the Left and right
cart side panels (EA and EB)
TIP: One person should align the left side, while
the second person assembles the right side.
EB
CK
EA
Back view
Assemble the left and right pillars (EC and ED), to
the cart side panels, as shown in gure A and B.
Next, assemble the left and right pillars to the
front brace (CK) and the bottom shelf (EG), as
shown in gure C and D.
TIP: One person should align the left side, while
the second person assembles the right side.
Separate the 2 dierent types of wheels, 2
locking wheels (EH) and 2 regular wheels (EI).
Attach the locking wheels (EH) to the back of the
bottom shelf (EG) and the regular wheels (EI) to
the front of the bottom shelf (EG).
To secure the 4 wheels, hand tighten rst. Then,
tighten further using the wrench provided in the
hardware pack.
876
YOU WILL NEED:
1 4 5
X 6 X 6 X 6
876
YOU WILL NEED:
6 7 8
X 4 X 4 X 4
876
YOU WILL NEED:
6 7 8
X 8 X 8 X 8
6
10
X 1
C
A
EC
CK
D
CK
BEG

8
9
5
6
A
ss
EMBLY
inst
R
instRinst
u
C
tions
A
ss
EMBLY
inst
R
instRinst
u
C
tions
7
8
a. Position the top lid and burner box assembly
(A and B) onto cart assembly (C) as shown.
b.
U
se the hardware to connect both parts, on
the left and right sides, at the three points
indicated in gure B and C.
T
H
I
S S
TE
P
RE
QU
IRE
S 3 O
R
MO
RE
P
E
OPL
E
.
D
O
N
O
T
A
TTE
ATTEA
MP
T
ALO
NE
.
E
X
TRE
M
E
LY
H
E
AV Y.
B
C
A
A
Attach the upper back panel (CN) to both the left
and right side panels (EA and EB).
Only install hardware in the bottom portion of
the back panel (CN), as shown in gure B.
CN
Back view
EB
EA
B
B
Attach the right side shelf fascia (DI) to the right
side shelf table (DH), as shown.
DI
DH
TI
P:
To position the right side shelf, insert the two
hooks on the side shelf assembly into the two
openings located on the right upper side panel
(BC).
Assemble the right side shelf assembly to the cart
assembly, as shown in gure B.
DH
DI
*
B
B
BC
8
8
7
7
6
6
Y
O
U W
ILL
NEED
:
Y
O
U W
ILL
NEED
:
6
6
6
6
7
7
7
7
8
8
8
8
X 6
X 3
X 6
X 3
X 6
X 3
Y
O
U W
ILL
NEED
:
2 4 5
X 2
X 2
X 2
Y
O
U W
ILL
NEED
:
A
*
A
B
B
B
B
B
2
3
4
4
5
5
X 1
X 1
X 1
X 4
X 4
X 4
A
+
B
C

10 11
AssEMBLY instRuCtions AssEMBLY instRuCtions
11
10
9a. Attach the left shelf fascia (DB) to the left side shelf
table (DA).
b. Attach the Infrared Zone lid (DF1) to the left side
shelf table (DA).
c. Remove the hardware from the infrared support
frame (DC). Use the hardware to assemble the
infrared wind shield (DJ) onto the infrared sup-
port frame (DC).
DA
DA
Front
*
A
B
TIP: To position the left side shelf assembly, insert
the two hooks on the side shelf assembly into
the two openings located on the upper left side
panel (BB).
Assemble the left side shelf assembly to the cart
assembly, as shown in gure B.
Please note: It is recommended that a 3 ½”Phillips
screwdriver be used in this step, and that the
assembler positions themselves at rear of the side
shelf, to complete assembly.
BB
Remove the hardware that is pre-assembled to the
side burner valve bracket(CC), as shown in gure
A. Insert the side burner valve stem through the
rear of the left side shelf fascia(DB). Assemble the
side burner valve (cc) to the side shelf fascia (DB),
using the hardware removed.
Assemble the side burner control knob (#12) to
the side burner valve (CC).
Hardware may be included with the hardware
pack.
CC
A
8
8
7
7
6
6
YOU WILL NEED:
YOU WILL NEED:
6
15
7
16
8
17 18
X 3
X 4
X 3
X 4
X 3
X 4 X 4
YOU WILL NEED:
A
A
B
B
B
B
B
2
3
4
4
5
5
X 1X 1X 1
X 4 X 4 X 4
YOU WILL NEED:
12
X 1
DC
DA
DFI
DJ
DF1
DB
12
B
CC
DB
DA DB

12
13
A
ss
EMBLY
inst
R
instRinst
u
C
tions
12
A
ss
EMBLY
inst
R
instRinst
u
C
tions
12
13

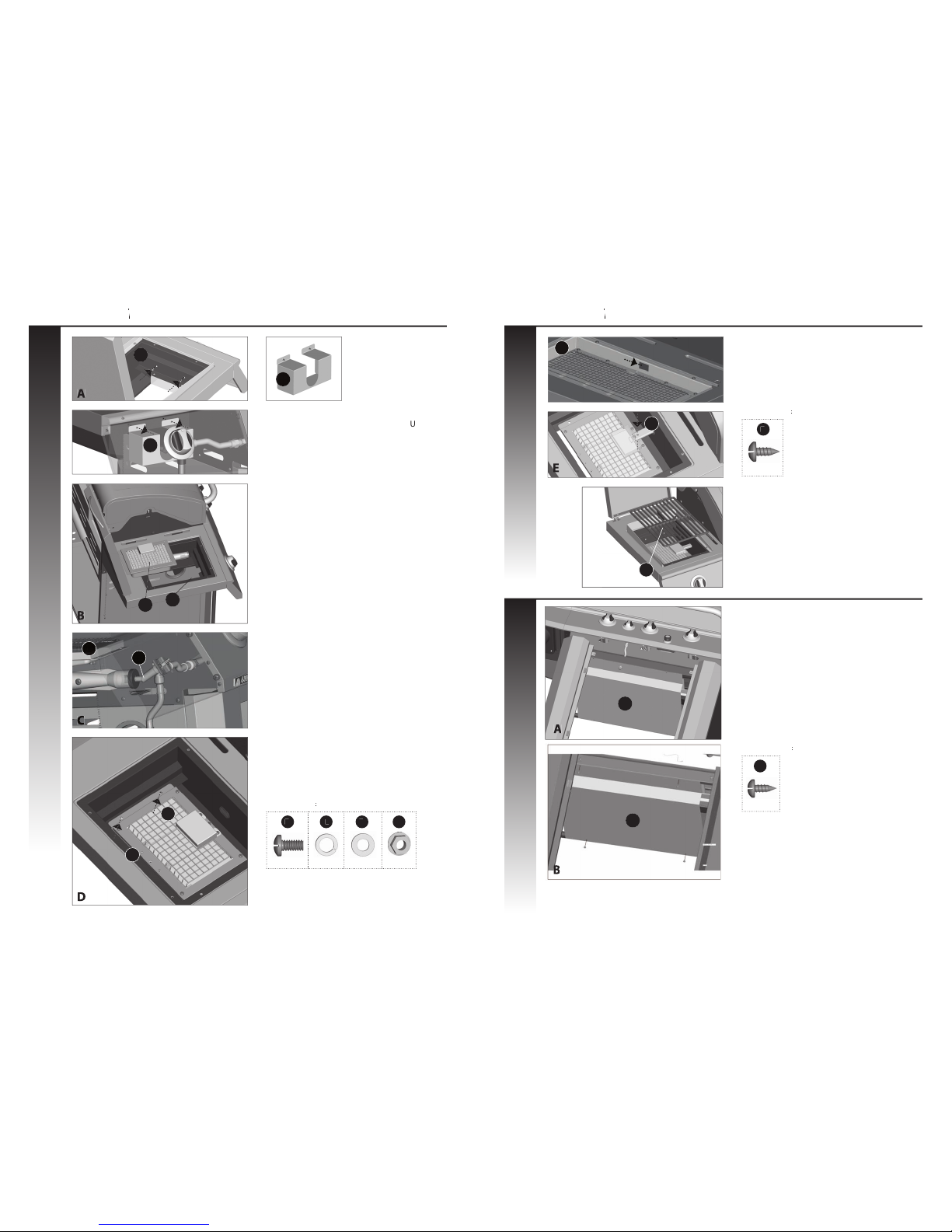

b. Position the Infrared Zone burner (DD) through
the opening in the left side shelf (DA).
a. Remove the pre-assembled hardware from the
infrared side burner windshield (DL).
U
se the
hardware to assemble the infrared side burner
windshield (DL) to the infrared support frame
(DC), as shown in gure A.
c. Make sure that the Infrared Zone burner (DD)
engages the Infrared Zone burner valve (CC),
gas jet, as shown in gure C.
d. Assemble the Infrared Zone burner (DD) to
the Infrared Zone support frame (DC), at the 4
points indicated in gure D.
e. Feed the Infrared Zone electrode wire (DE) from
underneath the Infrared Zone burner (DD),
through the small opening on the right side of
the Infrared Zone support frame (DC1). Align
and assemble the electrode using the self
tapping screw provided, as shown in gure E.
DD
DC
DL
DL
DD
DD
DC
CC
DA
DC
B
A
C
D
876
6
Y
O
U W
ILL
NEED
:
Y
O
U W
ILL
NEED
:
6
6
6
14
7
7
8
8 13
X 2
X 1
X 2
X 2
X 2
Y
O
U W
ILL
NEED
:
9
Place the heat shield (CO) into the groove
which is located at the back side of the front
brace (CK) as shown in gure A. Next, attach
the heat shield (CO) to the upper back panel
(CN) by using the self tapping screws (X 4), as
shown in gure B.
X 4
A
f. Position the cooking grate (DG) on the Infrared
Zone side burner side shelf. Store the extra
accessory within the BBQ cart.
CO
DE
E
B
CO
F
DG

14
15
A
ss
EMBLY
inst
R
instRinst
u
C
tions
14
EF
ED
TI
P
: Before attempting to assemble the door (EF)
to the right pillar (ED), locate the two clasps
on the door hinge. Next, locate the two
small openings on the right side pillar (ED).
a. Hold the door (EF) perpendicular to the BBQ
Cart. Align the two clasps on the door hinge
(EF), with the two holes on the right side pillar
(ED). Once aligned, push the two clasps into
the openings, and immediately push down to
lock clasps in place.
b. Assemble the door (EF) to the right pillar (ED),
as shown in gure B, using the screws pro
-
vided.
c. Assemble the towel bar (EJ) onto door (EF).
Y
O
U W
ILL
NEED
:
11
X 4
A
ss
EMBLY
inst
R
instRinst
u
C
tions
15
16
Place the ame tamers (BG) into the burner box.
Model may not be exactly as shown.
a. Place the cooking grates (BH) into the burner
box, as shown in gure A.
BH
BI
A
B
b. Insert the three small positioning rods of the
warming rack (BI) into the rotisserie burner
brace (BA1).
EF
EJ 876
Y
O
U W
ILL
NEED
:
6
1
7
4
8
5
X 2
X 2
X 2
BA1
A
B
C
C
BG
BG

16
17
A
ss
EMBLY
inst
R
instRinst
u
C
tions
17
18
a. Insert the grease tray (CL) into the opening
in the upper back panel (CN), making sure to
engage tracks located under burner box.
b. Place the grease cup (CM) onto the tracks,
located on the underside of the grease tray
(CL).
c. Slide the Infrared grease tray (DM) into the
Infrared zone support frame (DC).
CL
CM
CN
U
nscrew the electronic ignitor button (CF2) and
insert one AA battery into the electronic igniter
battery compartment, with the positive end facing
outward.
* Battery not included.
CF2
A
ss
EMBLY
inst
R
instRinst
u
C
tions
19
20
F
O
R
P
R
OPA
NE
MO
DE
L
O
N
LY
.
LY.LY
For natural gas model, follow step 20.
a. Position the 20 lb propane tank onto the
bottom shelf (EG), and secure using the bolt
(already attached) located on the underside of
the bottom shelf, as shown in gure B.
b. Attach the regulator coupling nut to the LP
cylinder valve.
A
TTENTI
ATTENTIA
O
N
:
For your families safety, do not
attempt to light this BBQ until you have reviewed
pages 4-7 of the Cuisinart™ Safety & Care Manual.
All Safety and Leak test M
U
ST BE PERFORMED BY
THE END
U
SER, prior to lighting this BBQ.
B
WA
WA
RNIN
G
D
o not store extra propane tanks within BBQ
cart.
F
O
R N
A
T
ATA
U
R
AL
GAS
MO
DE
L
O
N
LY
.
LY.LY
Attach the natural gas hose (CB) to the side burner
valve (CC) as shown.
A
TTENTI
ATTENTIA
O
N
:
In order to complete installa
-
tion of your Natural Gas BBQ a 1/2”or 3/8”
adapter may be required to connect your
BBQ’s Natural Gas hose to your home gas
supply.
Contact your Natural Gas supplier to
purchase the necessary part.
CB
CC
www.cuisinartbbqs.com
AEG
CM
+
-
