Current Tools 453 User manual

Operating, Maintenance, Safety
and Parts Manual
Read and understand this material before
operating or servicing this PVC heater.
Failure to understand how to safely operate
and service this unit may result in serious
injury or death.
This manual is free of charge. All personnel who operate or service this PVC
heater should have a copy of this manual and read and understand its contents.
To request a copy, call or write to the address below. All information, specifications
and product designs may change due to design improvements or updates and are
subject to change without notice. Current Tools does not assume any liability for
damages resulting from misuse or incorrect application of its products.
CURRENTTOOLS • P.O.BOX 17026 GREENVILLE, SC 29606
800.230.5421 or 864-721-4230 • FAX [phone]
www.currenttools.com
CurrentTools™ Model 453
1/2” to 6” PVC Heater
with Automatic Rotation

This manual should be read and understood by all personnel who
operate or service this PVC heater. Failure to understand how to safely
operate and service this unit could result in injury or death. This unit
should only be operated by qualified personnel.
RETAIN SAFETY INFORMATION
SPECIFICATIONS —453 PVC Heater
Model No. – 453 Automatic Rotation
Capacity –1/2”to 6”PVC conduit
Power –230 volts AC - Single Phase, 28 amps, 60 hz, 6400 watts
Dimensions –11 5/8”x157/8”x74”
Weight –72 lbs.
BENDING
MATERIALS NEEDED
•Sponge or clean cloth
•Bucket with clean water
•Insulated gloves
IMPORTANT SAFETY INFORMATION
•ALWAYS wear hand protection when operating this equipment and when
bending PVC conduit. Use handle to open and close the PVC heater door(s).
•DO NOT use in wet conditions. DO NOT expose to rain or moisture.
•DO NOT use near flammable materials.
•DO NOT leave PVC heater unattended.
•Turn PVC heater off when not in use.
•Use for heating PVC conduit only. DO NOT use for any other purpose.
•Use only for PVC conduit sizes specified.
•Operate only in a well ventilated area.
•Use only with a grounded power source.
2
ELE
C
TRI
C
S
H
OC
K HAZARD
!
Onl
y
connect thi
s
receptacle. Do NOT modif
y
the plug which i
s
p
rovided with the unit. Failure to follow thes
e
warnings can result in serious injur
y
or death
.
WARNIN
G
RE
C
EPTA
C
L
E
L
O
CKING PLU
G

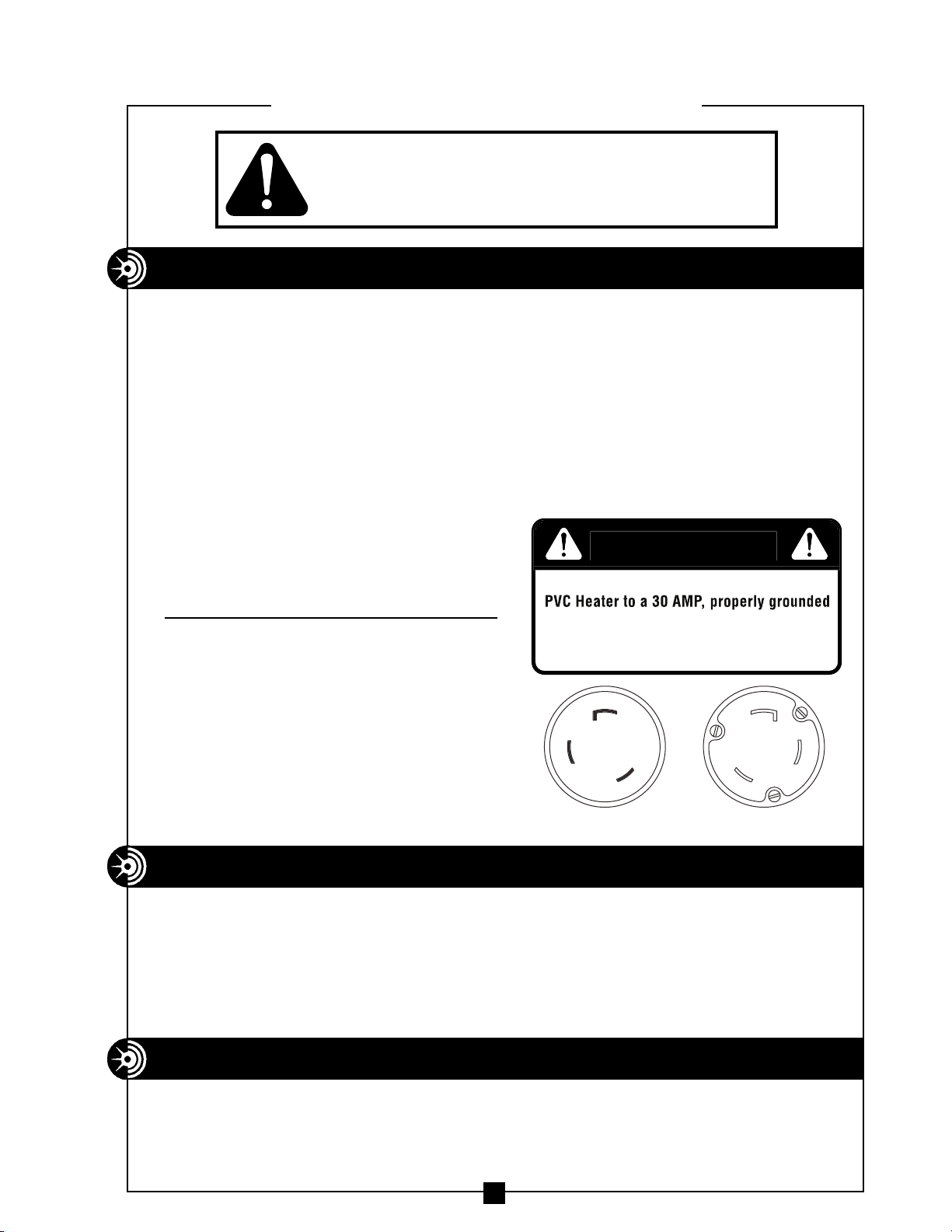

The electric plug on this PVC heater
includes a grounding conductor and
is the twist to lock type as shown.
Only connect the unit to a 30 AMP
receptacle which is properly installed
and grounded to meet all applicable
electrical codes. Do NOT remove or
modify the plug in any way.

OPERATING INSTRUCTIONS —453 PVC Heater
1. Place PVC conduit heater on a flat, dry surface. Plug heater into a grounded
power source.Turn switch to ON position. Rollers will begin to rotate.
2. Put on insulated gloves.
3. After warm-up period, ( approximately 7 min. ) place conduit on rollers
inside the heater. Using the handle, close the door(s) over the section
of PVC to be heated.
4. To test, lift one end of the PVC conduit. Conduit is ready when it has
a glossy appearance and bends when lifted.
NOTE: PVC conduit MUST be rotated to provide even heating and
to prevent scorching.
NOTE: PVC conduit will take approximately 30 seconds to heat for
each 1/2” of PVC conduit diameter. ( Example: 2” PVC conduit will
heat in approximately 2 minutes.)
5. Open the heater door(s) using the handle and remove conduit from heater
and place on a clean, flat surface. Hand bend to desired angle.The bend
can be set by allowing to air cool or decrease this time by rubbing the
bend with a sponge soaked in cool water. NOTE: Be Sure to keep all
liquids away from the PVC heater and turn unit off when not in use.
PVC CONDUIT HEATER ACCESSORIES
•To prevent flattening and crimping during the bending process, CurrentTools
plug sets are recommended for 2”and larger PVC conduit.
•CurrentTools Model #454 PVC support stand is recommended to prevent
sagging of the conduit during the heating process.
3
WIRING SCHEMATIC
HEATER
POWER ON
/
OF
F
2
30
V A
C
2
8
AM
P
WHITE
BLA
CK
G
REE
N
BLA
CK
WHITE
M
RE
S
I
S
T
OR
ELEMENT
6
4
00
WATT
INDI
C
AT
O
R
LAMP
BLA
CK
BLA
CK
WHITE
WHITE

8
30
26
15
27
33
28
41
3
4
49
20
19
50
5
1
42
11
8
2
12
38
37
10
2
3
,
24
5
4
44
4
0
,
4
3
38
45
48
31
,
32
37
47
3
5
,
36
9
46
47
26
17
23
3
39
22
2
5
,
29
53
6
47
1
3
23
2
6
,
2
9
5
4
24, 25
12
2
1
16
23
22
14
21
5
2

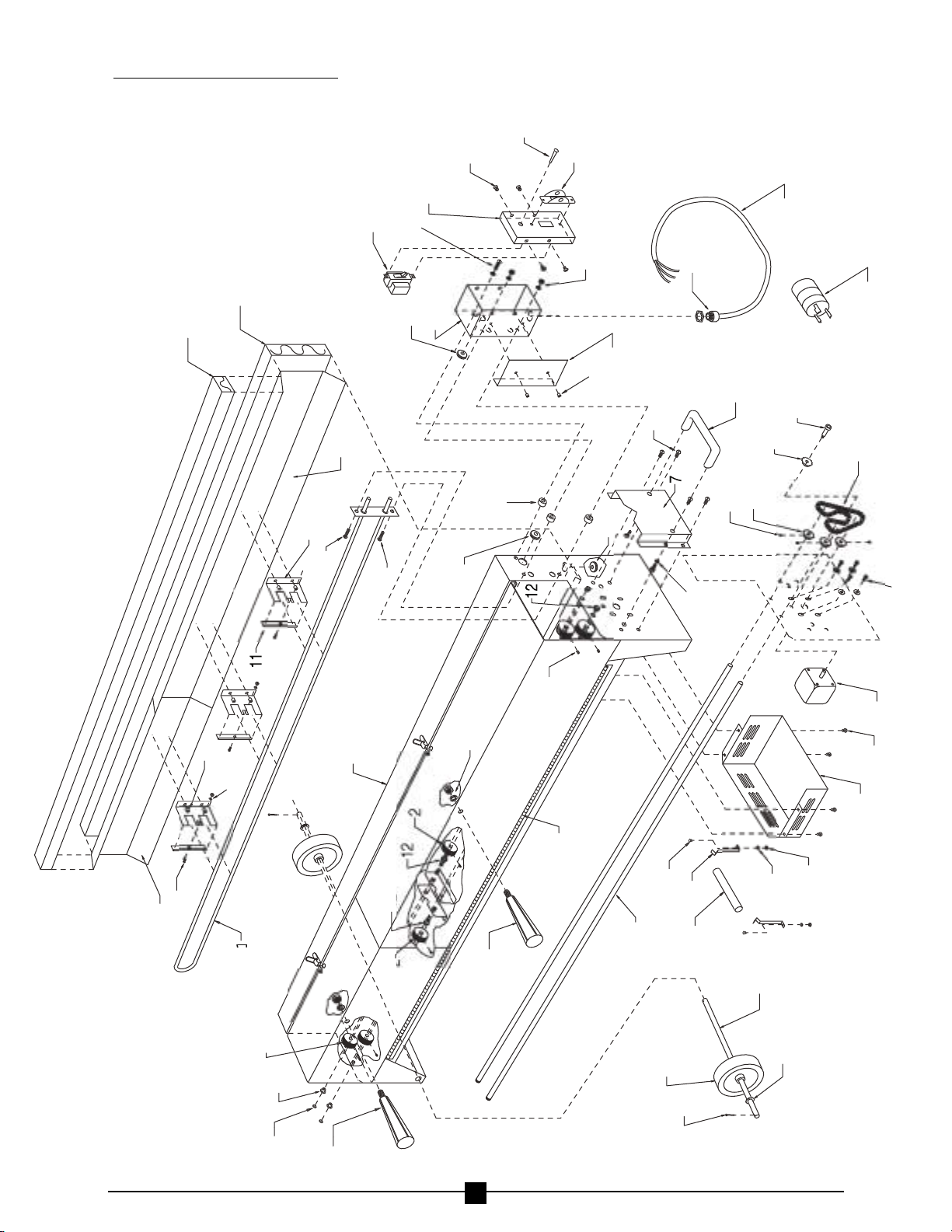

EXPLODED VIEW
453 PVC HEATER
44

PARTS LIST —453 PVC Heater
ITEM# PARTS # QTYDESCRIPTION
1..............................452-1..............................1................................HEATING ELEMENT
2..............................453-9..............................6 .................................KNURLEDWHEEL
3.............................450-11.............................1.....................................LIFT HANDLE
4.............................452-19.............................1..........................................SWITCH
5.............................452-20.............................1.................................INDICATOR LIGHT
6..............................452-6..............................1..................................ELECTRICAL BOX
7..............................453-7..............................1....................................CHAIN GUARD
8.............................452-18.............................2 ...................................DOOR HANDLE
9.............................452-30.............................1...............................MAIN HOUSING FAB
10............................452-31.............................1.....................................POWER CORD
11............................452-15.............................3....................................RETAINER CLIP
12............................453-17.............................6 ........................................BUSHING
13.............................452-5..............................1.................................COVER-ELEC. BOX
14............................452-14.............................3...............................RETAINER BRACKET
15............................452-10.............................1 ...............................HEAT SHIELD-LONG
16............................452-11.............................1 ..............................HEAT SHIELD-SHORT
17............................452-21.............................1....................................STRAIN RELIEF
18............................453-22.............................1 .........................WIRING KIT (NOT SHOWN)
19............................451-13.............................2 ..........................................WHEEL
20............................452-26.............................1............................................AXLE
21.............................450-9..............................1...............INSULATION -2”THICK ( 9”W X 70”L )
22...........................450-28A............................6................................RIVET-3/16 X 1/4 SS
23 ............................451-22 ............................15 ..............SCREW-PAN HD PHILLIPS, 10-32 X 3/8”
24...........................450-14J............................7.................................#10 FLATWASHER
25...........................450-14K............................5 ..................................#10-32 HEX NUT
26............................451-21.............................3...............SLOTTED MACH. SCREW #10-32 X 5/8”
27...........................453-16B............................2..................................#8 FLATWASHER
28...........................453-16A............................2 ...................................#8-32 HEX NUT
29............................453-24.............................3 ................................#10 LOCK WASHER
30...........................453-10A............................2....................RETAINING RING-EXTERNAL 5/16
31...........................450-11A............................2 ......................SOC HD. CAP SCREW M8 X 12
32...........................450-11B............................2.................................M8 LOCKWASHER
33............................451-25.............................2................................1/2”FLATWASHER
34............................451-23.............................2.............................COTTER PIN 3/32 X 3/4
35............................452-27.............................2.................................3/8 LOCKWASHER
36............................452-28.............................2...................................3/8-16 HEX NUT
37............................453-19.............................9...........................SET SCREW-1/4-20 X 1/4”
38.............................453-4..............................4....................SPROCKET-25B14, 5/16 DIA BORE
39............................453-22.............................1.....................................HEAT SHIELD
40.............................453-1..............................1..............................CHAIN-#25 ( 18 1/2”L )
41.............................453-6..............................1...................................MOTOR GUARD
42............................453-10.............................2......................................LINE SHAFT
43.............................453-2..............................1.................................MASTER LINK-#25
44............................453-11.............................1.....................................GEARMOTOR
45............................453-14.............................1........................SHOULDER BOLT-5/16 X 3/4”
46............................450-20.............................3..........................................SPACER
47............................453-21.............................3.......................................GROMMET
48............................452-29.............................1.....................................POWER PLUG
49............................453-16.............................1........................................RESISTOR
50.............................77-3C..............................2.....................MOUNTING BRACKET-RESISTOR
51...........................450-14B............................2................SLOTTED MACH. SCREW #8-32 X 1/4”
52............................450-16.............................1 ...............INSULATION -1”THICK ( 2”W X 70”L )
53...........................452-19A............................1 ..............................SWITCH PROTECTOR
54............................453-6A.............................4.................SELF-TAPPING SCREW, HEX 8 X 1/4”
