Curtis SHG User manual

1
FOR THE LATEST SPECIFICATIONS AND INFORMATION GO TO WWW.WILBURCURTIS.COM
Important Safeguards & Symbols
CAUTION: Please
use this setup
procedure before
attempting to use this
grinder. Failure to follow the
instructions can result in
injury or the voiding of the
warranty.
Service Manual – SHG
This appliance is designed for commercial use. Any servicing other than cleaning and
maintenance should be performed by an authorized Wilbur Curtis service technician.
• Do NOT immerse the unit in water or any other liquid.
• To reduce the risk of re or electric shock, do NOT open top panel. No user serviceable
parts inside.
• Keep hands and other items away from hot parts of unit during operation.
• Never clean with scouring powders or harsh chemicals.
SETUP STEPS
1. Install the grinder on a rm, level base in a location where it can be connected to a
grounded electrical outlet of 120VAC, rated at 15 amps minimum.
2. Test the unit by running some whole bean coffee through the grinder. If any problems
are encountered, refer to the troubleshooting section complete at www.wilburcurtis.com
or call Technical Support at 800-995-0417.
OPERATING INSTRUCTIONS
Wilbur Curtis Company, inC.
Model Included
SHG
SYMBOLS
WARNINGS – To help avoid personal injury Important Notes/Cautions – from the factory
ISO 9001:2008 REGISTERED
WILBUR CURTIS CO., INC.
6913 West Acco Street
Montebello, CA 90640-5403
For the latest information go to
www.wilburcurtis.com
Tel: [phone]
Fax: [phone]
1. Lift open the top cover
of the grinder and ll
with fresh whole bean
coffee.
Close the cover.
3. On the right side of
the grinder, press
the grind switch. The
grinder will start. It will
stop at the set volume.
Make sure the mo-
tor comes to a stop
before removing the
brew cone.
2. Place a new paper l-
ter into the brew cone
and insert the brew
cone into the basket
holder arms on the
grinder.

2
ADJUSTING THE GRINDS*
1. Empty the hopper of coffee beans. Run the grinder for a short time to
clear grinding burrs of coffee.
2. Open the housing cover (10) to locate the adjustment screw (8) and lock
nut (7). With a wrench, loosen the lock nut.
3. Turn the adjustment screw clockwise for a ner grind. Turn the screw
counter clockwise for a more coarse grind. With the motor running, pour
coffee beans into the hopper and turn the screw to make the adjustment.
If you hear the grinding burrs starting to touch, immediately, back off
1/8th turn.
4. When the desired grind texture is satisfactory, hold the adjustment screw
in place with the screwdriver and tighten the locknut.
5. Grind some coffee beans to conrm the adjustment.
6. Replace front cover on machine.
*This adjustment may change the amount of ground coffee dispensed.
CHANGING A BROKEN SHEAR DISK
1. Unplug the power cord.
2. Empty the hopper of beans.
3. Take out the thumb screws (9) to remove the housing cover (10).
4. Pull out the grinding burr/feed worm assembly (3). The mating half of the grinding burr set remains within the
housing.
5. Separate the shear cap (6) and shear drive (4). The snapped shear disk (5) should fall from the shear drive.
6. Inspect and brush out the housing (1).. Especially look for anything that could have broken the shear disk.
7. Insert the feed worm and grinding burr onto the motor shaft.
8. Push the shear drive through the burr/feed worm assembly and align it with the tongue on the motor shaft.
9. Rotate the burr/feed worm assembly to align the slot with narrow slot on shear drive.
10. Insert a new shear disk into the slot. Cover with the shear cap.
11. Replace the grind cap and two thumb screws.
Cleaning the Coffee Grinder
CAUTION – Unplug the grinder from the electrical power source.
Do not use cleansers, bleach liquids, powders or any other substance containing chlorine. These products
promote corrosion and will pit the stainless steel. USE OF THESE PRODUCTS WILL VOID THE WARRANTY.
1. Brush coffee grounds from the dispensing spout. Wipe off the surrounding area.
2. Make a mild cleaning solution. Mix dish washing liquid in warm water.
3. Avoid spilling liquid into the grind housing. Wipe exterior surfaces with a cloth moistened with cleaning solution.
5. Wipe exterior surfaces with a water soaked cloth to rinse off all traces of the cleaning solution.
6. Dry exterior surfaces with a clean soft cloth. Polish exterior surfaces with stainless steel polish.
8. Return power to the grinder.
A tablet style grinder cleaner may be used to clean the inside of the grind housing, the burrs and chute. The product
will eliminate taste and odor left in the grinder from grinding avored coffee. The regular use of grind cleaner reduces
the need to disassemble the grinder to clean it.
1. Empty coffee beans from the hopper. Plug power cord into the electrical outlet.
2. Place a container under the grind spout and run the grinder to empty the housing of all coffee.
3. Pour in grinder cleaner granules or tablets into the hopper (use manufacturer’s recommendations).
4. Press a grind button, running the grinder until the cleaner empties from the spout.
5. Rell the grinder with whole bean coffee and run two grind cycles to purge the grind housing of residual cleaner.

3
Hopper & Cover
7
9
7A
8
Motor & Base
10
1
2
4
3
7
5
6
8

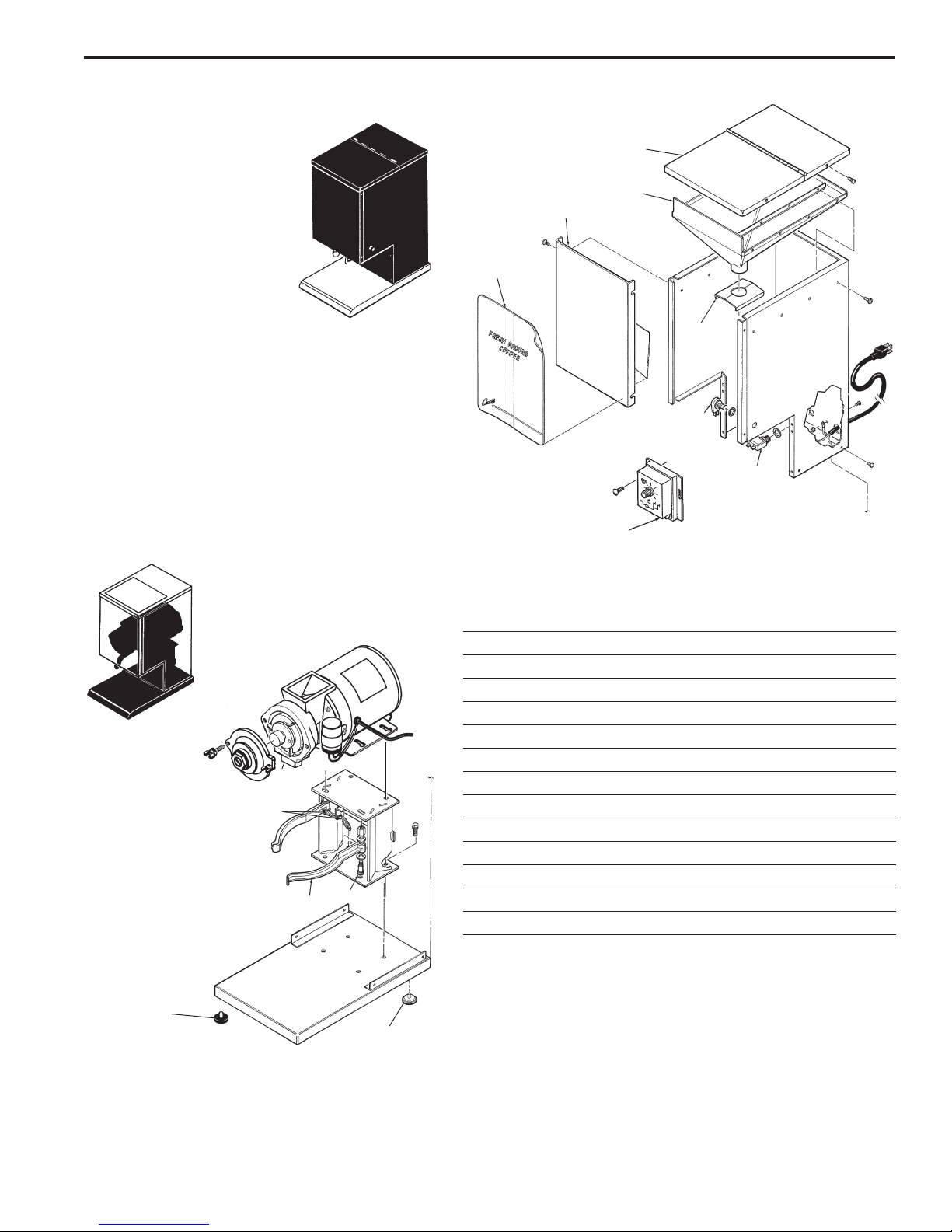

PARTS DIAGRAM
WC-9129
WC-9117
WC-9165
WC-3891
WC-101
WC-628
WC-9134
WC-1504
WC-3503
WC-3518
WC-9141
WC-9155
WC-4813
COVER, TOP ASSEMBLY SHG
HOPPER, COFFEE BEAN SHG
COVER, FRONT SHG
LABEL, SHG
SWITCH, ON/OFF NON-LIT SPST MOMENTARY
TIMER, 120V .5-60 SEC SHG
CAP SEAL, S/S
CIRCUIT BREAKER, 10A
LEG, 3/8”-16 STUD SCREW BMPR
LEG, GLIDE 3/8”-16 STUD SCREW
BASKET HOLDER
SPRING, BASKET HOLDER
SCREW, 5/16x5/8 L SHOULDER
DESCRIPTION
ITEM № PART №
1
2
3
4
5
6
7
8
9
9A
10
11
12

4
2
7
8
9
3
4
5
1
6
PARTS DIAGRAM MOTOR ASSY
ROUGH-IN DRAWING
SHG
1
2
3
4
5
6
7
8
9
MOTOR SLICING GRINDER ASSY 120VAC
KIT, GRINDER CHUTE DHG/ILGD/SHG
CAPACITOR, COFFEE GRINDER ASSY
SHEAR DRIVE COFFEE GRINDER
DISC, SHEAR COFFEE GRINDER 6PCS
SCREW & THRUST PIN ADJUSTING ASSY
BURR, COMPLETE SET SLICING
SPRING, TENSION COFFEE GRINDER
FEEDWORM, SLICING GSG
WC-9135
WC-37283
WC-91026
WC-91024
WC-9107-6
WC-91015
WC-91050
WC-91021
WC-91051
DESCRIPTION
ITEM № PART №

5

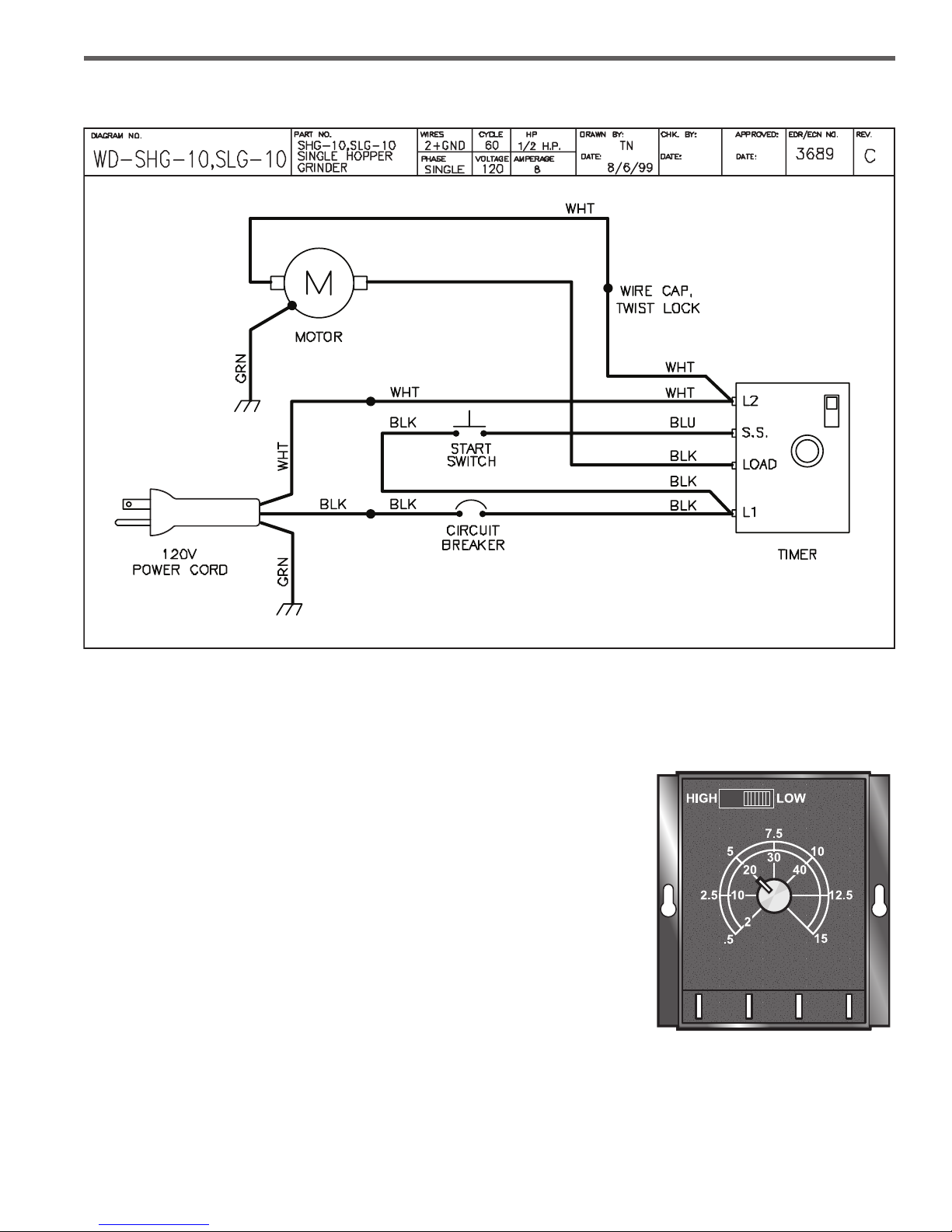

ELECTRICAL SCHEMATIC – SHG
TIMER SETTING SHG
1. Take off timer cover, located behind hopper. Remove the four screws holding
the cover in place. The timer is found inside this cover. Also refer to the illus-
trated parts diagram on page 3.
2. The timer controls are a high/low switch and a dial with a corresponding scale.
The switch allows you to select a scale on the dial. The outside scale range
is ½ second through 15 seconds. The inside scale range is 2 seconds to 60
seconds.
3. Test a new adjustment by grinding some coffee. When the results are satisfac-
tory, reinstall timer cover.

ECN 16063 . 8/7/[email protected] . rev E
1/28/14 . 13.3 . ECN 15619 . rev D
WILBUR CURTIS CO., INC.
6913 Acco St., Montebello, CA 90640-5403 USA
Phone: [phone] Fax: [phone]
Technical Support Phone: [phone] (M-F 5:30A - 4:00P PST) E-Mail: [email protected]
Web Site: www.wilburcurtis.com
FOR THE LATEST SPECIFICATION INFORMATION GO TO WWW.WILBURCURTIS.COM
Printed in U.S.A. 8/2014 F-3209-S Rev E
