CyberData 011121 Manual

Quick Reference 932012C © 2023, CyberData Corporation, ALL RIGHTS RESERVED© 2023, CyberData Corporation, ALL RIGHTS RESERVED 932012C Quick Reference
4.00 [101.6]
120°
VoIP Speaker
Mounting Template
Speaker Hole Diameter:
7.50 [190.5]
Screw Hole Diameter:
0.1875 [4.75]
Dimensions are in inches [millimeter]
Mounting Template
Getting Started
• Create a plan for the locations of your Speakers.
• Prior to installation, consult local building and electrical code requirements.
Typical System Installation
Parts
Contacting CyberData

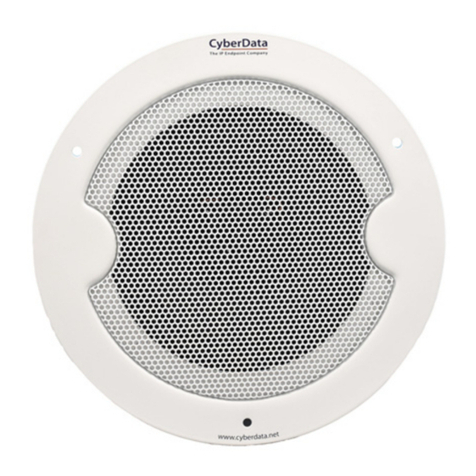

The Auxiliary Analog Speaker is an option for the CyberData SIP or InformaCast Enabled
Speakers to extend the coverage area.
When connecting the Auxiliary Analog Speaker to the SIP or InformaCast Enabled Speaker, the
total speaker wattage is the same. However, by adding this Auxiliary Analog Speaker, additional
coverage can be realized.
The Auxiliary Analog Speaker can be mounted with the same mounting hardware options
available for the SIP or InformaCast Enabled Speakers.
Auxiliary Speaker IP Speaker
802.3af/at Compliant Ethernet Switch
IP Phone IP PBX Server
Auxiliary Speaker IP Speaker
(1) Template for Speaker
and Screw Holes*
(1) Drop Ceiling Mounting Kit
(3) #8 Nylon Thumb Nuts
(3) #8 Fender Washers
(3) 8-32 x 1 1/4” Mounting
Screws
(1) Drywall Mounting Kit
(3) Plastic Ribbed Anchors
(3) #6 Sheet Metal Screws
* See the last page of this document
(1) Speaker Assembly
Sales: 831-373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: https://support.cyberdata.net/
RMA Department Contact and Status: https://support.cyberdata.net/
Warranty Information: https://support.cyberdata.net/
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: [phone]
Fax: [phone]
https://www.cyberdata.net/
Printing Instructions: Before printing this document or the mounting template, check the following:
• Make sure that the Paper Size setting of the printer is set to 11”x 17”.
• Make sure that the Page Scaling setting of the printer is set to NONE (with no scaling [1:1])
• Print on 11” x 17”-sized paper.
The IP Endpoint Company
Installation Quick Reference
Auxiliary Analog Speaker
011121

© 2023, CyberData Corporation, ALL RIGHTS RESERVED 932012C Quick Reference Quick Reference 932012C © 2023, CyberData Corporation, ALL RIGHTS RESERVED
Ceiling Tile Mounting
Drywall Mounting
To mount a speaker:
1. Use the TEMPLATE on the back of this
document to cut a hole in the wall or ceiling,
and prepare holes for the screws.
2. Connect the (+) and (-) speaker wire terminal
connectors to the binding posts of the speaker
assembly.
3. For drop ceiling mounting, position the
SPEAKER ASSEMBLY in the ceiling so that
its screw holes align with those you prepared.
4. For drywall mounting, place the three
PLASTIC RIBBED ANCHORS in the holes
you prepared, and position the SPEAKER
ASSEMBLY over them, aligning the screw
holes in the assembly with the anchors.
5. For drop ceiling mounting*, use the three
8-32 x 1 1/4" MOUNTING SCREWS, #8
NYLON THUMB NUTS, and #8 FENDER
WASHERS to secure the speaker.
For drywall mounting, use the three #6 SHEET
METAL SCREWS to secure the speaker.
* For weak ceiling tile, CyberData offers a
reinforcing mount (CyberData part number
010991).
#8-32x1 1/4" Pan Head Phillips
Ceiling Mounting Kit
Template
Ceiling Tile or Dry Wall
Optional Reinforcement Mount
P/N: 010991 (Sold Seperately)
#8 Fender Washer (3x)
#8 Nylon Thumb Nut (3 Pieces)
Auxiliary Speaker
Machine Screw (3 Pieces)
Ceiling Mounting Kit
Ceiling Mounting Kit
Thickness at 0.625"
Drywall Mounting Shown
Prepare Hole for Plastic Anchors
Drill Bit Size: 3/16" or 0.1875"
[190.5mm]
7.5" Diameter Hole
Twist-Resistant Plastic Anchor for
Block, Brick and Drywall
Mounting Screw &
Plastic Anchor
(3 Pieces Each)
Auxiliary Speaker
Dimensions
Connections
9.055 [230.00]
Ø 5mm
Max. Height 3.819 [97.01]
3.581 [90.96]
3.699 [93.96]
Dimensions are in Inches [Millimeters]
Binding Posts
12 - AUX SPKR OUT (-)
11 - AUX SPKR OUT (+)
10 - RELAY - NO
9 - RELAY - COM
8 - NOT USED
7 - NOT USED
6 - LINE - OUT (-)
5 - LINE - OUT (+)
4 - BTN SENSE - (+)
3 - BTN SENSE - COM
2 - LED COM
1 - LED (+)
CLASS II WIRING
IP Speaker
8 Ohm Auxiliary Analog Speaker
Red (+)Black (-)
High-purity copper
16-gauge wire and
a maximum length
of 20 feet
Part #011121
