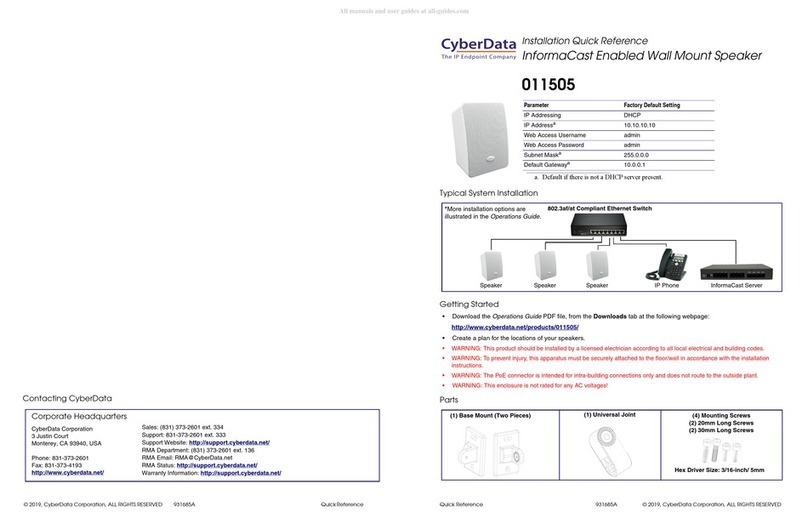

CyberData InformaCast 011505 Manual

Quick Reference 931685B © 2022, CyberData Corporation, ALL RIGHTS RESERVED© 2022, CyberData Corporation, ALL RIGHTS RESERVED 931685B Quick Reference
Typical System Installation
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
https://www.cyberdata.net/products/011505/
• Create a plan for the locations of your speakers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
Parameter Factory Default Setting
IP Addressing DHCP
IP Addressa
a. Default if there is not a DHCP server present.
IPv4 Link Local
Web Access Username admin
Web Access Password admin
Subnet MaskaIPv4 Link Local
Default GatewayaIPv4 Link Local
802.3af/at Compliant Ethernet Switch
Speaker IP Phone InformaCast ServerSpeaker Speaker
*More installation options are
illustrated in the Operations Guide.
(4) Mounting Screws
(2) 20mm Long Screws
(2) 30mm Long Screws
(1) Base Mount (Two Pieces) (1) Universal Joint
Hex Driver Size: 3/16-inch/ 5mm
(1) InformaCast Enabled
Wall Mount Speaker
The IP Endpoint Company
Installation Quick Reference
InformaCast Enabled Wall Mount Speaker
011505
Contacting CyberData
Sales: 831-373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: https://support.cyberdata.net/
RMA Department Contact and Status: https://support.cyberdata.net/
Warranty Information: https://support.cyberdata.net/
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: [phone]
Fax: [phone]
https://www.cyberdata.net/

© 2022, CyberData Corporation, ALL RIGHTS RESERVED 931685B Quick Reference Quick Reference 931685B © 2022, CyberData Corporation, ALL RIGHTS RESERVED
Connecting Power
Mounting
PoE Injector
Non PoE Switch
802.3af Compliant PoE Switch
(Part #011124)
Approx.
200°
Approx.
200°
Swivel Mount
Base
Mount
Base
Mount
Short
Bolt
Long
Bolt
Long
Bolt
Universal
Joint
Keyhole
Range of Motion
Dimensions
Features
5.396 [137.0]
9.178 [233.1]
Dimensions are in Inches [Millimeter]
Mounting Bracket
Keyhole Mounting
Swivel Mount
1.657 [42.1] Ø0.175 [Ø4.4]
Ø0.340 [Ø8.6]
Keyhole Fits Size #6 / 4mm Screw
6.419 [163.0]
RTFM Switch
To broadcast a device’s current IP address, use a paper
clip or a similar instrument to press and release the
RTFM switch within a five second window.
To restore a device’s factory default settings, press and
hold the RTFM switch for more than five seconds.
Network 100 Mb (Yellow)
The yellow 100 Mb LED is illuminated when the network
100 Mb link to the speaker is established.
Network Link/Activity (Green)
The green Network Link/Activity LED comes on
immediately to show that there is a good network
connection, and then blinks to show network activity.
Ethernet Port
