Overview
The CyberPower BPE48V75ART2U Battery Pack provides extended runtime (XL) for the
PR1000ELCDRTXL2U, PR1500ELCDRTXL2U, PR2200ELCDRTXL2U and
PR3000ELCDRT2U.
The 2U BPE48V75ART2U Battery Pack matches the esthetics of these UPSs, and can
be used in either rack or tower installations. The heavy gauge power cord has a
plug-n-play DC connector for easy installation. The all metal enclosure safely houses
eight 12V 9Ah batteries (The specified type of battery: HR9-12 FR (BB)).
Features include:
•Form Factor – 2U configuration supports both rack and tower mounting
•Scalable – Up to four battery packs can be daisy-chained together for increased
runtimes.
•Metal Housing – Rigid metal construction provides greater durability and safety.
•Power On/Off Switch - Local power switch for manual reset and control.
•Back-panel fuse - User replaceable fuse is easily accessed from the rear panel.
Product Features
1. On-board user-replaceable fuse cover- User replaceable fuse is easily accessed
from the rear panel.
2. Additional Battery Pack connector sockets
3. Connector plug for additional Battery Packs
4. DC Circuit Protection- Resettable circuit breaker that provides DC output overload
protection.
5. AC Circuit Protection- Resettable circuit breaker that provides AC input overload
protection.
6. AC Output Outlet- This outlet connects to the AC Input Inlet of additional battery
packs.
7. AC Input Inlet- AC power connectivity to wall receptacle.

3
Copyright © 200
9
CyberPower Systems, Inc.
Technical Specifications
General
Model BPE48V75ART2U
Input
Nominal Input Voltage 48 VDC, 230VAC
Overload Protection AC, DC circuit protection
Batteries
Specifications (8 of batteries) 12V/ 9.0AH
Sealed Maintenance Free Yes
User Replaceable Yes
Battery Life 3-5 Years
Compatibility
UPS Compatibility PR1000/1500/2200ELCDRTXL2U,
PR3000ELCDRT2U
Scalability
Battery Packs Unlimited (Up to 5 for PR3000ELCDRT2U)
Charging
Built-in Charger Yes
Physical
Dimensions (cm) 2U Rack, 43.3 x 8.8 x 48
Weight (kg) 35
Environmental
Temperature – Operating 32°F – 104°F
Humidity – Operating 0% to 95% Non-condensing
Safety Approvals
Certifications CE
RoHS RoHS Compliant

4
Copyright ©
200
9
CyberPower Systems, Inc.
Installation Instructions

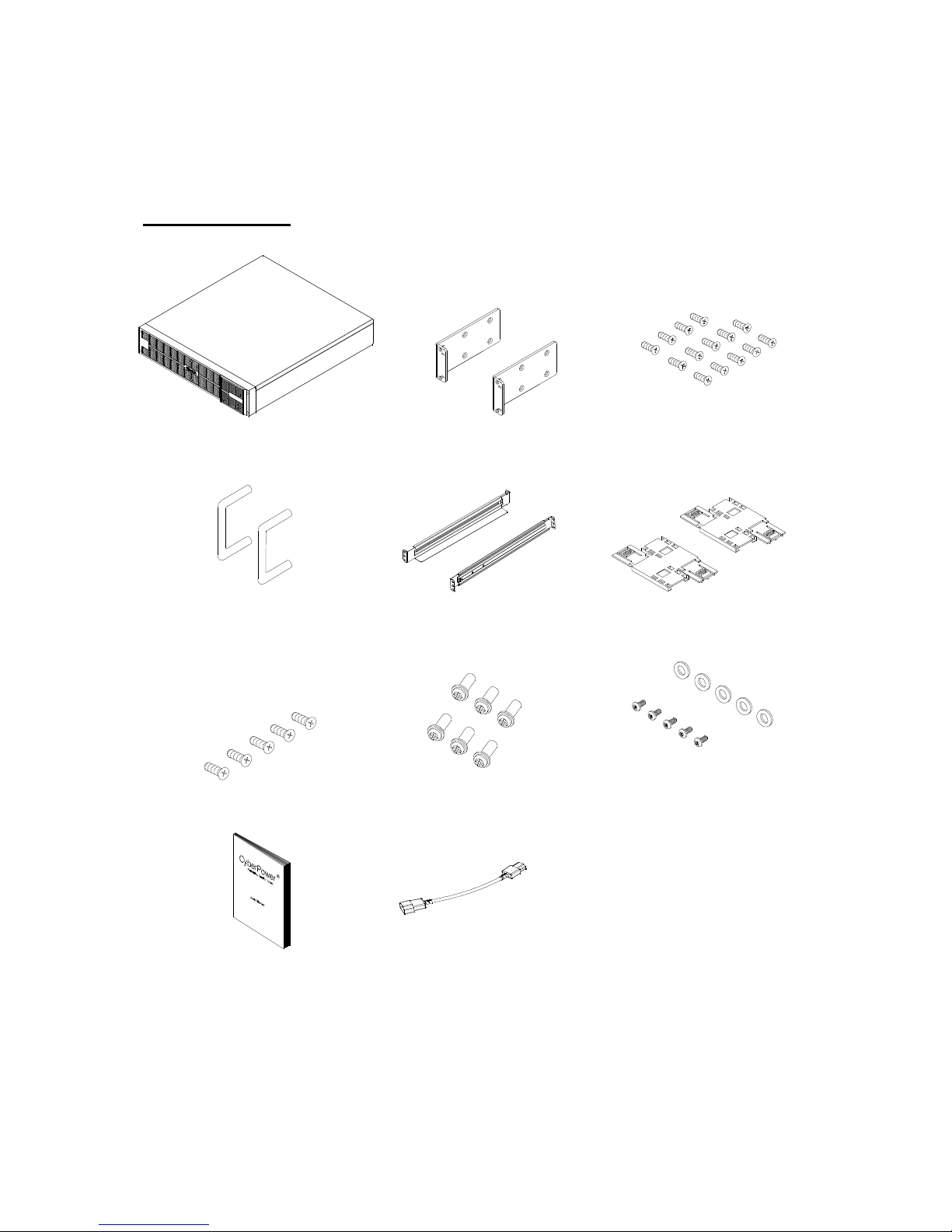

Package Contents
Auxiliary AC Power Cord
Rack-mount Ears (2)
Rack-mount Ear Screws (14)
Battery Pack Unit
󲇓
󲆔
󰽔
Rack-mount Handles (2)
Rack-mount Handle Screws (5)
Screw Hole Dust Covers (5)
Screw Hole Dust Cover Screws (5)
Rackmount Rails (1 set – Left and
Right sides)
Rackmount Rail Screws (6)
Base Stand Extensions (2)
User’s Manual

5
Copyright © 200
9
CyberPower Systems, Inc.
Hardware Installation Guide
Safety Precautions
CAUTION! Before connecting the Battery Pack(s) to the UPS, completely turn off and
unplug the main UPS from the wall receptacle.
CAUTION! Do not disconnect the any Battery Packs when the UPS is turned on or
plugged into a wall receptacle.
CAUTION! Do not connect the battery pack into itself.
CAUTION! Do not add more Battery Packs to the UPS than is specified in the
Technical Specifications section of the User’s Manual. This will damage the unit
and void the warranty.
Rackmount Installation
Step 1: Rackmount ear and handle installation
Step 2: Rackmount Rail Installation
Each Rackmount Rail (Left and Right) consists of two pieces that must be assembled
together before installing into the rack.
Attach the two Rackmount Ears to
Battery Pack using the provided
screws.
Attach the Rackmount Handles
to the Rackmount Ears using
the provided screws.

6
Copyright ©
200
9
CyberPower Systems, Inc.
Take the Rackmount Rail with an “L” (Left) and attach it to the rear bracket of the
Rackmount Rail using three Rackmount Rail Screws. Do not fully tighten the
Rackmount Rail screws, as the Rackmount Rails will need to be adjusted to fit your rack.
Once complete, perform the same steps for assembling the Rackmount Rail inscribed
with an “R” (Right).
Attach the Rackmount Rails to
your rack using fasteners that
are designed for your rack
system.
Complete the Rackmount Rail
installation by tightening the
screws on the Rackmount Rails.
Slide the UPS on top of the
newly installed Rackmount
Rails, and secure the UPS to
your existing rack system [via
the Rackmount Ears] using
fasteners that are designed for
your rack system.

7
Copyright © 200
9
CyberPower Systems, Inc.
Vertical/Standing Installation

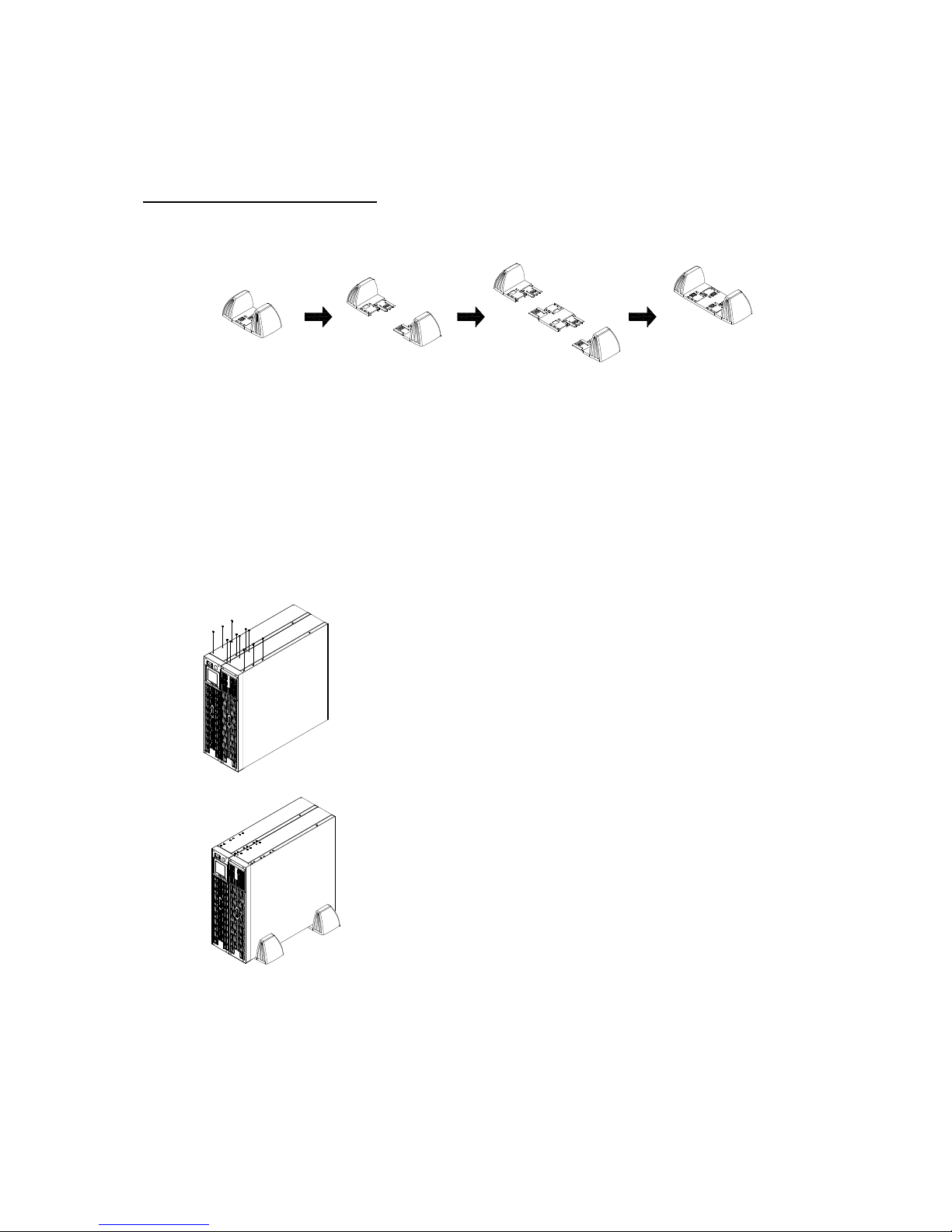

Step 1: Expand Base Stands
Remove the UPS from the Base Stands, and separate the Base Stands to make room
for the Base Stand Expanders.
Take the Base Stand Expanders and insert them in-between the separated Base Stands.
Be sure the pieces firmly snap together.
Step 2: Install Battery Pack
The UPS and Battery Pack
should now fit easily in the
newly expanded Base Stands.
Insert Dust Covers into the
Rackmount Ear screw holes that
are not being used.

8
Copyright ©
200
9
CyberPower Systems, Inc.
Expansion Port
Provides SNMP Card Communication
OFF
ON
BATTERY
PACK
INPUT:
48V
(Change Only)
AC INPUTAC OUTPUT
RESET
Push To
1
48V
OUTPUT:
Serial Port II
(PRIMARY)
Serial Port I IN
EPO
OUT
AC INPUT
16A MAX
BATTERY
PACK
48V ON
Push To
AC INPUTAC OUTPUT
(Change Only)
RESET
INPUT:
OFF
PACK
BATTERY
OFF
INPUT:
2
RESET
(Change Only)
AC OUTPUT AC INPUT
Push To
ON
48V
Expansion Port
Provides SNMP Card Communication
Serial Port II
(PRIMARY)
Serial Port I IN
EPO
OUT
AC INPUT
16A MAX
48V
OUTPUT:
48V
OUTPUT:
Electrical Installation Guide
CAUTION! Before connecting the Battery Pack(s) to the UPS, completely turn off and
unplug the main UPS from the wall receptacle.
CAUTION! Do not disconnect the any Battery Packs when the UPS is turned on or
plugged into a wall receptacle.
CAUTION! Do not connect the battery pack into itself.
CAUTION! Do not add more Battery Packs to the UPS than is specified in the
Technical Specifications section of the User’s Manual. This will result in overloading
the unit and will void the warranty.
Step 1: Turn off your existing UPS system
Safely power-down your UPS system and unplug it from the wall receptacle.
Step 2: Connect the Battery Pack to the UPS
Plug the Battery Pack into the
UPS. Ensure the color coded
Battery Pack connector lines up
correctly with the colors in the
UPS socket.
If connecting multiple Battery
Packs, simply use the available
socket(s) on the Battery Packs to
add additional packs. CAUTION:
Do not add more Battery Packs to
the UPS than is specified in the
Technical Specifications section of
the User’s Manual.

9
Copyright © 200
9
CyberPower Systems, Inc.
OFF
ON
BATTERY
PACK
INPUT:
48V
(Change Only)
AC INPUTAC OUTPUT
RESET
Push To
48V
OUTPUT:
Step 3: Connect the Battery Pack to wall power
Plug the female end AC Power Cord into the Battery Pack, and plug the male end into a
wall receptacle or PDU. Note: Do NOT plug this AC Power Cord into a UPS.
If using multiple Battery Packs, use the Auxiliary AC Power Cord to provide power to
subsequent power to additional Battery Packs.
Step 4: Turn the Battery Pack power switch ON
Step 5: Turn on your UPS system
Plug your UPS system into the wall receptacle, and safely power-up your UPS system
and connected equipment.
Battery Pack Configuration
In order for the UPS to recognize the addition of the Battery Pack(s), you must configure
the UPS to recognize the presence of the additional battery packs.
Step 1: Access the Utility menu on the UPS.
Press the Select button once to activate the Multi-function LCD Readout. Then, press
and hold the Select button for 10 seconds to access the Utility menu. Note: the UPS
will start beeping during this process.
Position the On/Off switch on
the back of the Battery Pack to
the “On” position.

10
Copyright ©
200
9
CyberPower Systems, Inc.
Step 2: Configure the UPS to recognize the Battery Packs
Press the Select button until the UPS
displays a screen that shows a number
(0-10) with an “A” suffix. The number
0-10 indicates how many battery packs are
attached. The default is zero.
To change this number, press and hold the
Select button for four seconds. Now,
simply press the Select button and change
the number to match how many Battery
Packs you have attached to the UPS
.
Example: If you have three Battery Packs
attached, set the number to 3.
To save the changes, press and hold the
Select button for four seconds. This will
return you to the main menu on the UPS.

11
Copyright © 200
9
CyberPower Systems, Inc.
Trouble Shooting
Need Additional Help?
For more information, visit eu.cyberpowersystems.com or contact.
CyberPower Systems B.V.
Flight Forum 3545 5657DW Eindhoven The Netherlands
Tel: [phone], E-MAIL: [e-mail]
CyberPower Systems Inc. (USA)
4241 12th Avenue East, Suite 400, Shakopee, MN 55379, U.S.A.
Tel: [phone], Fax: [phone], E-MAIL: [e-mail]
Entire contents copyright © 2009 CyberPower Systems, Inc.
All rights reserved. Reproduction in whole or in part without permission is prohibited.
Problem Possible Cause Solution
The UPS LCD does
not perform
expected runtime.
Do not set the UPS
to recognize the
battery pack(s).
By pressing the display toggle to
select functions. Then, set up the
correct battery pack numbers. The
default setting is 0.
The battery pack
does not work.
Batteries are not
fully charged.
Allow the battery pack to charge for
24 hours. Do not expect full runtime
during this initial charge period.
Specified battery pack models can
use AC to shorten charge time.
The status of circuit
breaker is off. Switch on the circuit breaker.
The fuse blew.
Contact CyberPower Systems.
Open the cover on the rear panel
and replace the new fuse.
