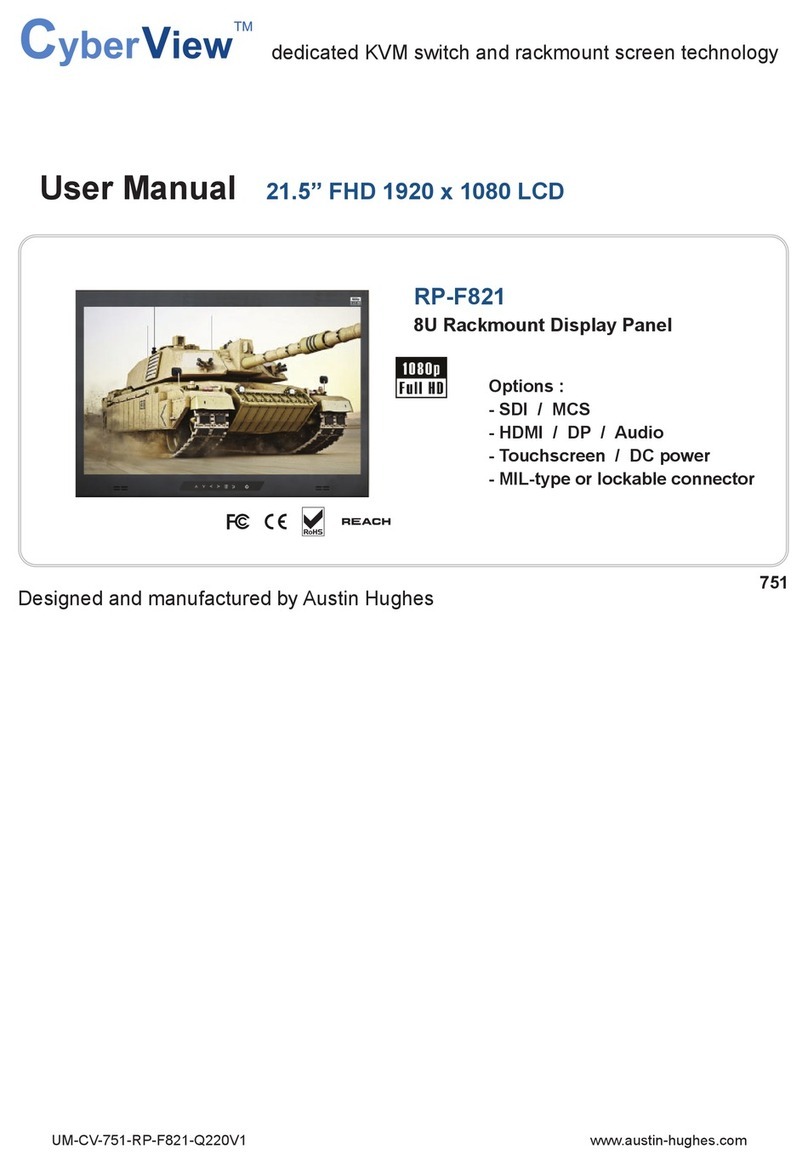

CyberView RP-F821 User manual

dedicated KVM switch and rackmount screen technology
User Manual 21.5” FHD 1920 x 1080 LCD
RP-F821
8U Rackmount Display Panel
Options :
- SDI / MCS
- AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
751
UM-CV-751-RP-F821-Q317V2

Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
Repair or attempted repair by anyone not authorized by us.
Any damage of the product due to shipment.
Removal or installation of the product.
Causes external to the product, such as electric power fluctuation or failure.
Use of supplies or parts not meeting our specifications.
Normal wear and tear.
Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
UM-CV-751-RP-F821-Q317V2
□
□
□
□
□
□
□
□

Contents
< Part. 1 > RP-F821
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
P.1
P.1 - 2
P.3 - 4
< Part. 2 > Specifications / OSD / Remote Controller
2.1 Product Specifications
2.2 On-screen Display Operation ( OSD )
2.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
P.5 - 6
P.7 - 8
P.9 - 10
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 MCS Multi-display control solution
3.3 AV3.0 Upgrade :
DVI-D + VGA + HDMI + BNC + S-Video +Audio
3.4 F21" Touchscreen : Resistive, Capacitive ( 1-point touch )
3.5 DC Power : 12V / 24V / 48V / 125V / 250V
3.6 MIL-type or lockable connector
P.11
P.12
P.13
P.14
P.15
P.16
UM-CV-751-RP-F821-Q317V2

Before Installation
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfiber cloth first, not directly on the parts you are cleaning.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
UM-CV-751-RP-F821-Q317V2
1
2
1
2
3
4

< Part 1 >
< 1.1 > Package Content RP-F821
RP-F821 unit X 1
- 6ft VGA cable X 1
- Power adapter X 1
- Power cord X 1
- Fastener screw for rear bracket x 2
< 1.2 > Structure Diagram
Front view
1
Power adapter
3
2Rear view
4
1
2
3
4
5
LCD panel
LCD membrane
Latch to release the display panel from the
rear bracket
Rear mounting bracket
Power adapter basket
Power cord
DVI-D
Audio
out - in - in
Video PC
Power BNC S-Video VGA HDMI
Basic I/O
AV3.0 upgrade
Options
: DVI-D + VGA + HDMI w/ speaker
: DVI-D + VGA + HDMI + BNC + S-Video + audio
: SDI, USB for touchscreen & DC power
UM-CV-751-RP-F821-Q317V2
P.1

< 1.2 > Dimension
Front View Side View
UNIT : mm
Rear View 1mm = 0.03937 inch
Bottom View
Model
RP-F821
Product Dimension
(W x D x H)
501.9 x 64 x 353 mm
19.8 x 2.5 x 13.9"
Packing Dimension
(W x D x H)
585 x 124 x 557 mm
23 x 4.9 x 21.9”
Net
Weight
10.3 kg
22.7 lb
Gross
Weight
12.7 kg
27.9 lb
UM-CV-751-RP-F821-Q317V2
P.2

< 1.3 > VESA mount Installation RP-F821
M4 screw
VESA mount ( 100*100mm )
■Hardware and M4*4 pcs for VESA mount are not provided
UM-CV-751-RP-F821-Q317V2
P.3

< 1.3 > Rear Mounting Bracket Installation
Step
1
■Mount the rear bracket with M6 screw set.
■8 x M6 screw set are required.
M6 screw sets are not provided.
rear bracket
Step
2
■Insert the upper part of the RP-F821
display panel into the rear bracket.
Step
3
■Push the lower part of the RP-F821
display panel into the rear bracket.
Step
4
■Fix the RP-F821 display panel into the rear
bracket with two fasteners ( Left & right side ).
Fastener screw
■Lock the RP-F821 display panel by the
latch ( on the bottom left & right side ).
latch
UM-CV-751-RP-F821-Q317V2
P.4

< Part 2 >
< 2.1 > Product Specifications RP-F821
LCD
Panel
Video
Connectivity
Audio
Connectivity
Manufacturer
Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1920 x 1080
Brightness ( typ. ) 250
Contrast Ratio ( typ. ) 1000:1
Color 16.7 M
Viewing Angle ( L/R/U/D ) 85/85/80/80
Response Time ( ms ) 5
Dot pitch ( mm ) 0.248
Display Area ( mm ) 476.64H x 268.11V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 30,000
Digital HDMI HDMI 1.3, CEA-861-D
DVI DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Composite ( RCA ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Plug & Play DVI / VGA VESAEDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ/ 750mV
Audio Output Connector 3.5mm stereo jack
Resistance / Power level 30kΩ/ 2.8V
Speaker Dual Stereo Speaker 2W x 2
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption Screen ON Max. 32W
Power saving mode Max. 4W
Power button OFF Max. 1W
Regulatory Safety FCC & CE certified
Environmental RoHS2 & REACH compliant
UM-CV-751-RP-F821-Q317V2
P.5

Environmental
Conditions
Physical
Specification
Applicable
Format
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Product ( W x D x H ) 501.9 x 64 x 353 mm
19.8 x 2.5 x 13.9 inch
Packing ( W x D x H ) 585 x 124 x 557 mm
23 x 4.9 x 21.9 inch
Net Weight 10.3 kgs / 22.7 lbs
Gross Weight 12.7 kgs / 27.9 lbs
DVI-D / VGA Input PC Signal 1920 x 1080 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
HDMI Input * PC Signal Same as VGA
Video Signal 1080p : 50 / 60Hz
1080i : 50 / 60Hz
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz )
*In some circumstances, if the user connects the LCD to PC via HDMI port
for video and audio signals, the LCD may display incorrectly on a full screen.
If so, please adjust the display card setting on display size to fix the issue.
UM-CV-751-RP-F821-Q317V2
P.6

< 2.2 > On-screen Display Operation ( OSD ) RP-F821
Membrane Switch Function
1
2
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting options
Scroll through menu options and adjust
the displayed control
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is no signal input.
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
1Picture
Picture mode : Standard / Vivid / Soft / User mode to choose
Brightness : Adjust background black level of the screen image
Contrast : Adjust the difference between the image background
(black level) and the foreground (white level)
Hue: Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Picture size : Adjust the image size
Color temp : Standard / Cool / Warm / User to choose
Noise reduce : Reduce the noise of the image
Sharpness : Adjust the image from weak to sharp
UM-CV-751-RP-F821-Q317V2
P.7

< 2.2 > On-screen Display Operation ( OSD )
2PC
Auto adjust : Automatically adjust sizes, centers and fine tunes the
video signal to eliminate waviness and distortion.
Clock : Adjust the clock value
Phase : Adjust the phase value
H. Position : Align the screen image left or right
V. Position : Align the screen image up or down
3Audio
Audio mode : Movie / Voice / Normal / Music mode to choose
Volume : Adjust the volume of sound
Bass : Set the value of bass sound
Treble : Set the value of treble sound
Balance : Set the balance value of treble and bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn off the surrounding sound
4MISC
Language : Select the language in which the OSD menu is
displayed - English
Sleep timer : Set the off time
PIP mode : Adjust picture in picture setting
PIP position : Enter into PIP position
PIP source : Enter into the Sub source and sound source
System reset : Return the adjustment back to factory setting
Information : Select for Help
UM-CV-751-RP-F821-Q317V2
P.8

< 2.3 > How to Use Picture In Picture ( PIP ) / RP-F821
Picture By Picture ( PBP )
< 2.3.1 > Picture in Picture ( PIP )
Mode
Display the Sub screen in the Main screen.
OSD Menu →MISC →PIP Mode →Large / Small / OFF
Main screen
Sub screen
Position
Adjust the position of the Sub screen ( top left, bottom left, top right, bottom right )
OSD Menu →MISC →PIP Position →top left / top right / bottom left / bottom right
top left top right
bottom left bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSD Menu →MISC →PIP Mode →Large / Small
Size of Sub screen
LCD Monitor Large Sub screen Small Sub screen
1920 x 1200 552 x 414 480 x 360
1920 x 1080 552 x 414 480 x 360
1440 x 900 414 x 310 360 x 270
1366 x 768 392 x 294 340 x 254
1280 x 1024 368 x 276 320 x 240
UM-CV-751-RP-F821-Q317V2
P.9

< 2.3.2 > Picture By Picture ( PBP )
Mode
Display the Sub screen next to the Main screen.
OSD Menu →MISC →PIP Mode →PBP
Main screen Sub screen
Size
LCD Monitor Main / Sub screen
1920 x 1200 955 x 716
1920 x 1080 955 x 716
1440 x 900 715 x 536
1366 x 768 678 x 508
1280 x 1024 635 x 476
< 2.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu →MISC →PIP Source →VGA / S-Video / Composite / DVI / HDMI / SDI / YPbPr / TV
The PIP / PBP is operable in the following table :
Main
VGA
S-Video
Composite
DVI
HDMI
SDI
YPbPr
TV
Sub
VGA S-Video Composite DVI-D HDMI SDI YPbPr TV
x o o o o o o o
o x x o o o o x
o x x o o o o x
o o o x x o o o
o o o x x o o o
o o o o o x x o
o o o o o x x o
o x x o o o o x
UM-CV-751-RP-F821-Q317V2
P.10

< Part 3 >
< 3.1 > Options : 3G / HD / SD-SDI input RP-F821
Austin Hughes’ SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with CyberView displays, a SDI input
module can support up to 1080p @60Hz resolution without
using additional space or power and it comes standard with a
2-year warranty.
SDI
DVI-D
Audio
out - in - in
Video PC
Power BNC S-Video VGA
out - in
HDMI
*** For SDI option, the AD board will be upgraded to AV3.0, and this comes standard with HDMI, DVI-D,
VGA, S-Video, BNC and audio inputs.
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
HD-SDI 1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
UM-CV-751-RP-F821-Q317V2
P.11

< 3.2 > Options : MCS
( Multi-display Control )
More control is always good. Especially when it is necessary and
easy. Austin Hughes provides MCS solution to control the OSD of
various CyberView LCD display up to 64 units.
The RS-232C is used for the communication between the PC and the
first display via a 15 feet serial cable while the CAN bus is used for the
various LCD displays cascade together via CAT 5/6 cable, and daisy
chain up to 1,000 meters.
Designed for use with CyberView LCD displays, Austin Hughes
provides a MCS input module without using additional space or power
and it comes standard with a 2-year warranty.
HDMI Audio Power BNC S-Video
out - in - in
Video PC
VGA DVI-D set out
MCS
in Link
*** Please download the protocol of MCS control at :
http://www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MCS.pdf
*** For MCS option, casing depth will be changed.
RS-232C
15 feet serial cable
( over 15 feet, extender required )
LINK OUT IN OUT
Set switch
For the 1st and last display,
push the set switch upward
For other daisy chain displays,
push the set switch downward
IN OUT IN OUT
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
RJ-45 jack
Daisy chain up to 1,000 up to 64 displays
meters and 64 displays
UM-CV-751-RP-F821-Q317V2
P.12

< 3.3 > AV3.0 Upgrade Options : RP-F821
- AV
- Audio
( S-Video + Composite, BNC )
( Built-in Dual Stereo Speakers, 2W x 2 )
( 3.5mm audio jacks for audio in & out )
DVI-D
Audio
out - in - in
Video PC
Power BNC S-Video VGA HDMI
UM-CV-751-RP-F821-Q317V2
P.13

< 3.4 > Options : Touchscreen & driver
F21" USB Touchscreen Specification
Model TRB e-Resistive TCB e-Capacitive
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
5-Wire Resistive Capacitive
Single Single
Stylus or Finger Finger
≤50g / Stylus=R0.8 ≤50g
10 million touches 300 million touches
15 ms 20 ms
80% ± 3% 87% ±2%
3H 9H
8% ± 3% 7%
3.2 ±0.2 mm 2.8 mm ±10%
USB Type A
Windows 7 / XP / Vista, Linux
■USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■For detailed information, please refer to the attached CD disc
■As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
DVI-D Power VGA HDMI
TRB & TCB Driver
Please follow the below steps to setup the touch screen:-
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/resources/driver/rackmount-display
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please do the initial calibration
after the first setup
UM-CV-751-RP-F821-Q317V2
P.14

< 3.5 > Options : DC Power RP-F821
Model 12V 24V 48V 125V 250V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V
Input current
- No load 50 mA 50 mA 50 mA 35 mA 10 mA
- Full load 4950 mA 2450 mA 1220 mA 749 mA 600 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 6.25A 12.5A
Efficiency 84% 85% 85% 91% 86%
***
For DC power option :
( 1 ) If the unit with LCD, earthing may be required
UM-CV-751-RP-F821-Q317V2
P.15

< 3.6 > Options : MIL-type or Lockable Connector
Input Part no. MIL Standard
MIL - type
Connector
DC Power ***
( Male )
VGA ***
( Male )
MS3470W8-33P MIL - DTL - 26482
MS3470W14-15P MIL - DTL - 26482
*** There are several additional MIL DC and VGA connector types with varying design
characteristics to meet cost considerations and to provide users with the most
design flexibility possible. For more information, please contact us.
Input Part no. Standard
Lockable
Connector
DC Power YM-Ext-461CP001 D-type 3W3
( Male )
USB LUSB - A111 - 00 -
*** MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.
UM-CV-751-RP-F821-Q317V2
P.16
