CyberView RP-X617 User manual

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
751
6U Rackmount Display Panel
RP-X617
Options :
- SDI / MCS
- DC power
- Touchscreen
- MIL-type or lockable connector
User Manual
Designed and manufactured by Austin Hughes
dedicated KVM switch and rackmount screen technology
16.2” High Resolution 1920 x 1200 LCD

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
Legal Information
First English printing, July 2022
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment offand on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
Contents
< Part. 1 > RP-X617
1.1 Package Content P.1
1.2 Structure Diagram & Dimension P.1
1.3 Installation P.3
< Part. 2 > Specifications / OSD
2.1 Product Specifications P.4
2.2 On-screen Display Operation ( OSD ) P.6
2.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP ) P.9
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input P.11
3.2 MCS Multi-display control solution P.12
3.3 X17 Touchscreen : Resistive ( 1-point touch ) P.13
3.4 DC Power : 12V / 24V / 48V / 125V P.14
3.5 MIL-type or lockable connector P.15

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip offthe finish.
■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfiber cloth first, not directly on the parts you are cleaning.
3
4

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
RP-X617
P. 1
Power VGADVI-D HDMI
Audio
out
Basic I/O : VGA + DVI-D + HDMI
Options : SDI, USB for touchscreen & DC power
RP-X617 unit X 1
- 6ft VGA cable X 1
- Power adapter X 1
- Power cord X 1

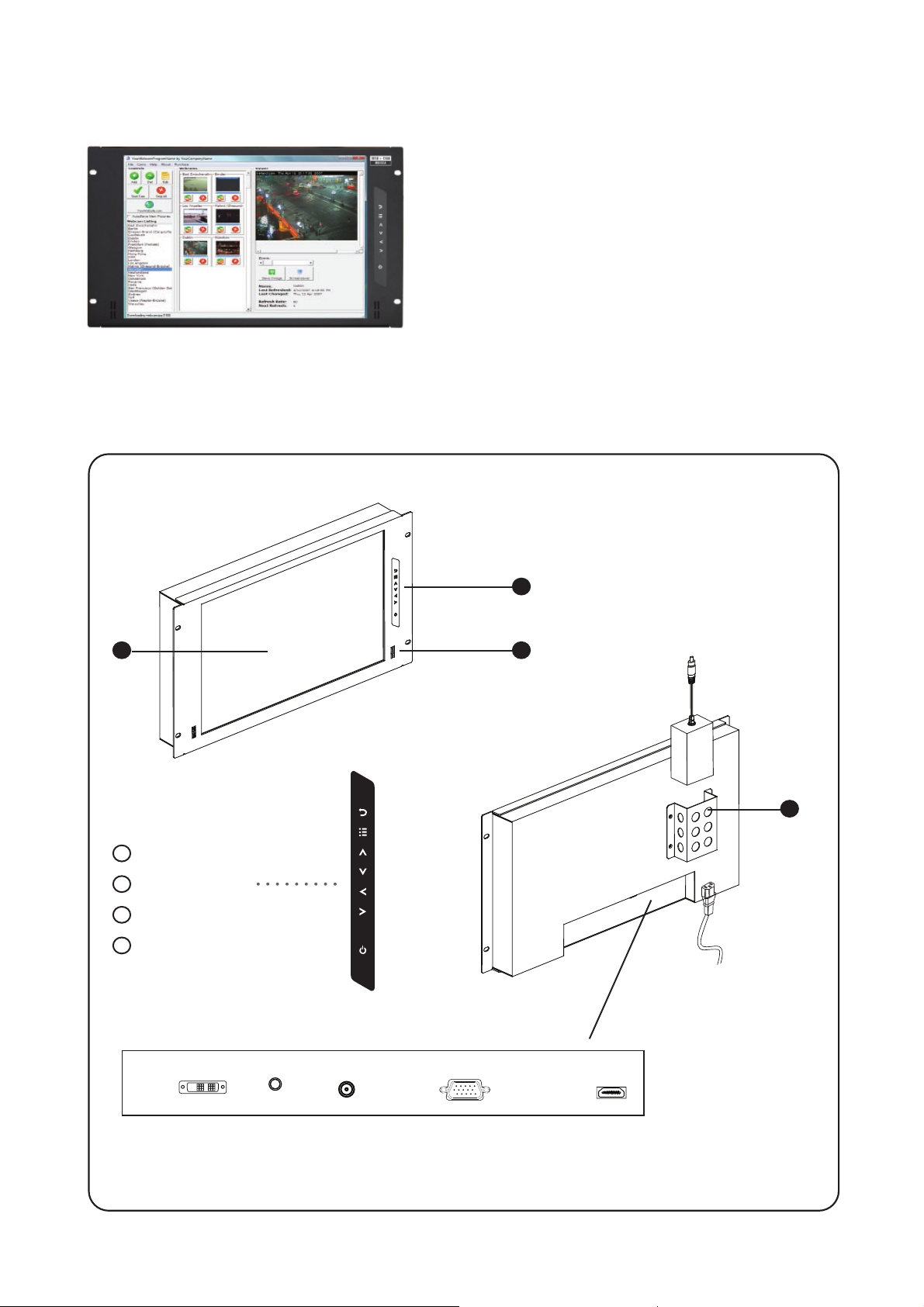

< 1.2 > Structure Diagram
1
2
Front view
Rear view
3
Power adapter
Power cord
3
LCD panel
LCD membrane
Audio speaker
Power adapter basket
1
2
3
4
< Part 1 > RP-X617
< 1.1 > Package Content

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.comP. 2
< 1.2 > Dimension
Front View Side View
UNIT : mm
1mm = 0.03937 inch
Bottom View
Model Product Dimension
(W x D x H)
Packing Dimension
(W x D x H) Net Weight Gross
Weight
RP-X617 480 x 48 x 266 mm
18.9 x 1.9 x 10.5 inch
529 x 124 x 451 mm
20.8 x 4.9 x 17.8 inch
4.2 kg
9.2 lb
6.2 kg
13.6 lb

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
RP-X617
P. 3

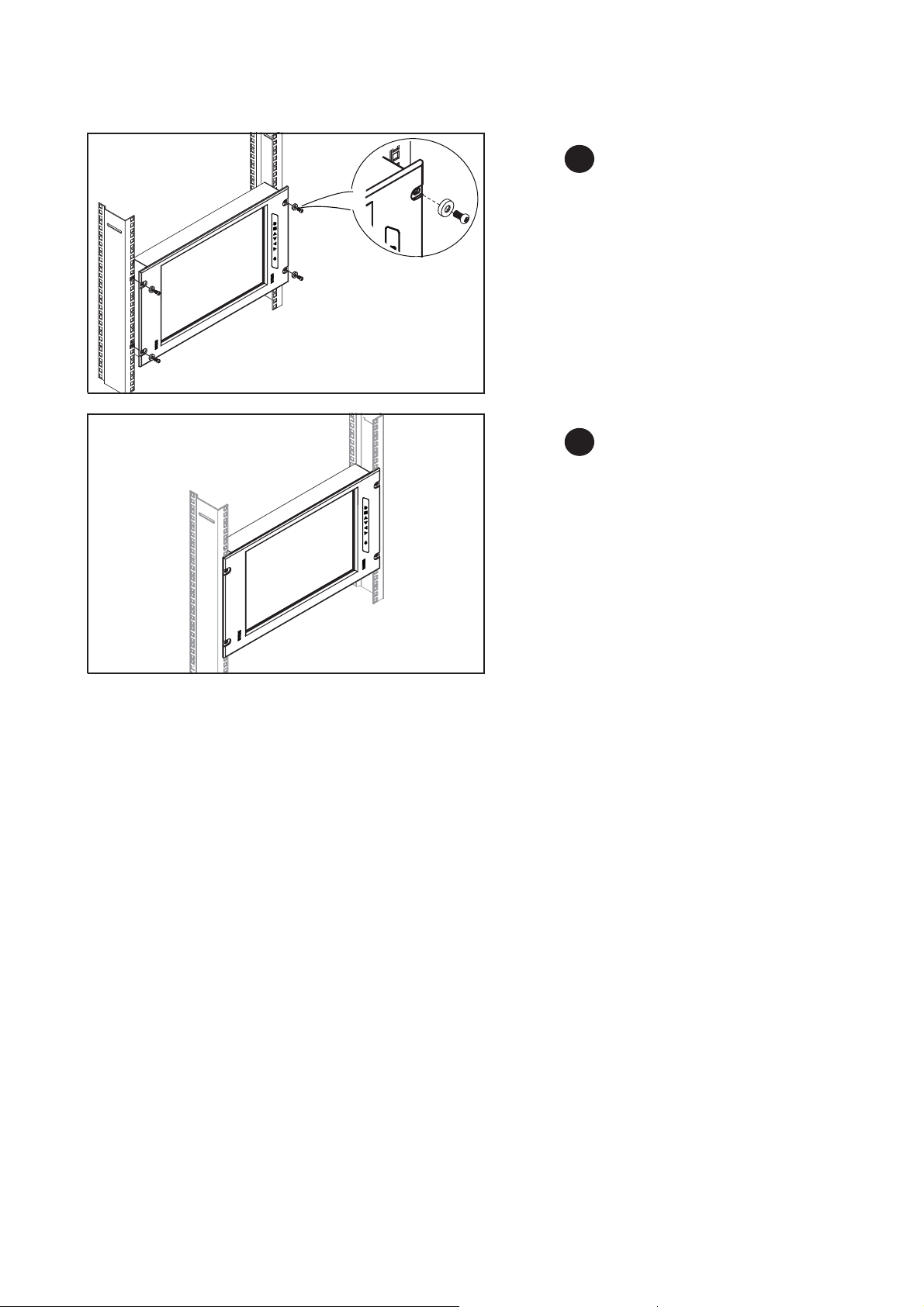

< 1.3 > Installation
Step
■Mount the display panel with M6 screw set.
■M6 screw x 4 pcs required ( Left & right side ).
M6 screw sets are not provided.
1
Step
■Fix the LCD into the rack.
2

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.comP. 4
LCD
Panel Panel Size ( diagonal ) 16.2-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1920 x 1200
Brightness ( typ. ) 300
Contrast Ratio ( typ. ) 800:1
Color 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 89/89/89/89
Response Time ( ms ) 30
Dot pitch ( mm ) 0.191
Display Area ( mm ) 343.80H x 214.90V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 20,000
Video
Connectivity
Digital HDMI HDMI 1.4, HDCP 1.4
DVI DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio
Connectivity
Audio Output Connector 3.5mm stereo jack
Resistance / Power level 30kΩ/ 2.8V
Speaker Dual Stereo Speaker 2W x 2
* When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption Screen display ON Max. 34W
Power saving mode Max. 2W
Power button OFF Max. 1W
< Part 2 > Specifications / OSD
< 2.1 > Product Specifications
Compliance EMC FCC & CE
Safety CE / LVD & UKCA
Environmental RoHS3 & REACH / WEEE

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
RP-X617
P. 5
Environmental
Conditions
Operating Temperature 0 to 55°C degree
Humidity 10~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random
Applicable
Format
DVI-D / VGA Input PC Signal 1920 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
HDMI Input * PC Signal Same as VGA
Video Signal 1080p : 60Hz
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz )
Physical
Specification
Product ( W x D x H ) 480 x 48 x 266 mm
18.9 x 1.9 x 10.5 inch
Packing ( W x D x H ) 529 x 124 x 451 mm
20.8 x 4.9 x 17.8 inch
Net Weight 4.2 kg / 9.2 lb
Gross Weight 6.2 kg / 13.6 lb
* All dimensions stated are subject to change if options are selected / integrated to base model part codes

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.comP. 6
< 2.2 > On-screen Display Operation ( OSD )
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off
Membrane Switch Function
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is no signal input.
All the LED touch buttons will automatically turn offafter 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
Select another video input (only available for models with multiple video input) :
( a ) Press the button to call up the on-screen video mode on top right corner.
( b ) Use up/down arrow to the select the video input
( c ) Press the button to confirm the selection
1
2
3

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
RP-X617
P. 7

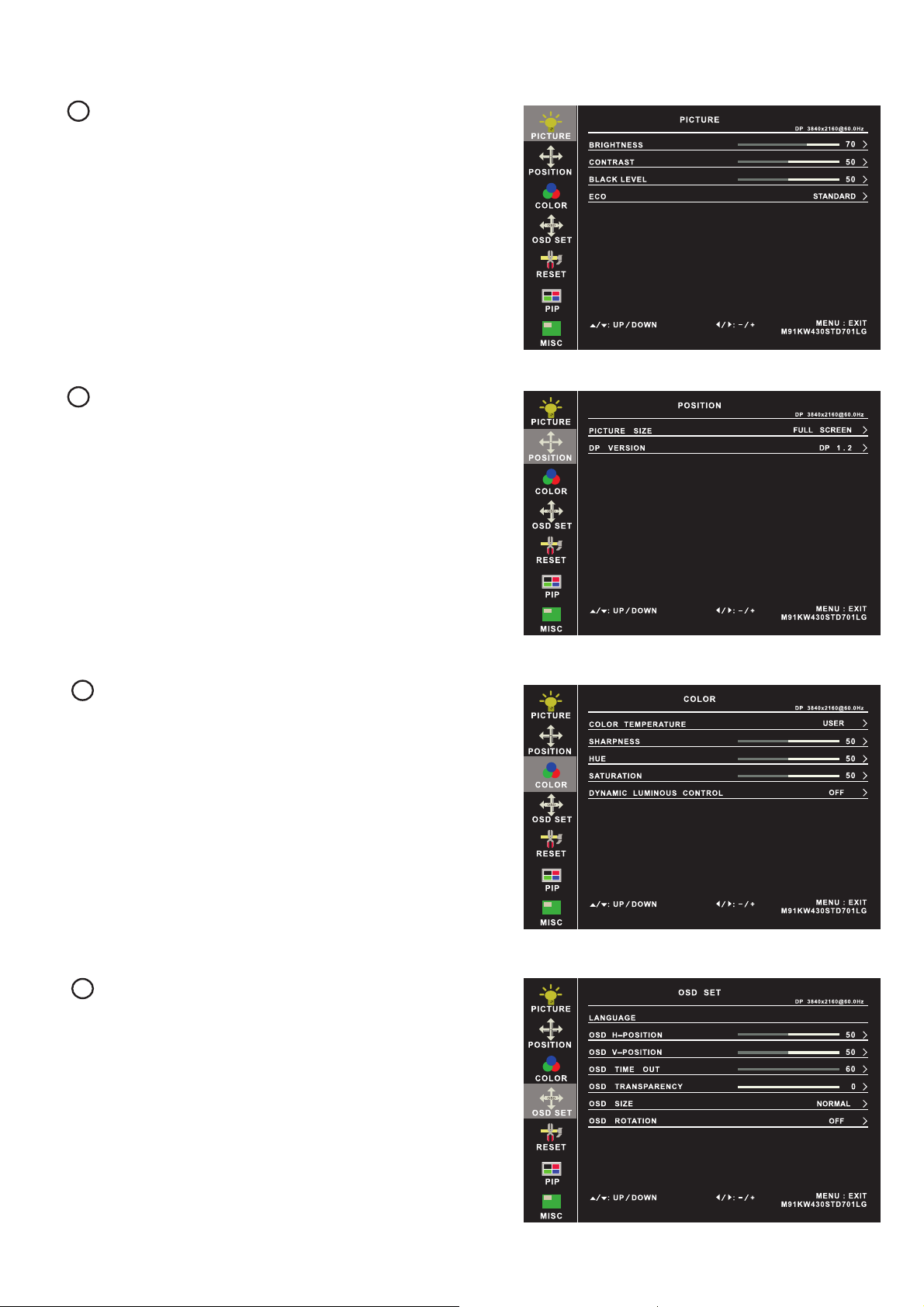

< 2.2 > On-screen Display Operation ( OSD )
Brightness : Adjust the screen brightness
Contrast : Adjust the difference between the image background
( black level ) and the foreground ( white level )
Black level : Adjust background black level of the screen
Eco : Screen in power saving mode
1
Position
Picture size : Adjust the image size
- Full Screen / 4:3 / 5:4 / Pixel to Pixel
DP version : Select the DP version
2
Color
Color temperature : User / Warm / Cool / 5400k mode and
Red / Green / Blue color balance
Sharpness : Adjust the image from weak to sharp
Hue : Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Dynamic
luminous control : Control the dynamic brightness
3
OSD Set
Language : Select the language in which the OSD menu is
displayed - English
OSD H-Position : Align the screen image left or right
OSD V-Position : Align the screen image up or down
OSD time out : Adjust the screen timeout
OSD transparency : Adjust the screen transparency
OSD size : Adjust the screen size - Normal / Small
OSD rotation : Rotate the screen - 90° / 180° / 270°
4

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.comP. 8
Reset
Reset : Return the adjustment back to factory setting
< 2.2 > On-screen Display Operation ( OSD )
5
PIP
PIP mode : Enter into PIP / PBP setting - PIP MODE /
PBP 2WIN ( Main screen + 1 sub screen ) /
PBP 3WIN ( Main screen + 2 sub screen ) /
PBP 4WIN ( Main screen + 3 sub screen )
Select the signal input of each sub screen
PIP size : Adjust the size of the Sub screen
- Small / Medium / Large / Huge
PIP position : Adjust the position of the Sub screen
- Top Left / Top Right / Bottom Left / Bottom Right
Swap : Swap the input signal of PIP / PBP sub screen
6
MISC
Signal source : Select the signal source - DP / HDMI1 / HDMI2
Mute : Turn offthe surrounding sound
Audio in : Auto / Line in / DP
Volume : Adjust the volume of sound
Sleep mode : Set the offtime - 10 min / 20 min / 30 min /
50 min / 60 min / 120 min / 240 min
7
Options on Reset page
Rotation : Rotate the image in Full screen or 1:1
- 90° / 180° / 270°
Picture size : Adjust the image size in Full screen or 1:1

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
RP-X617
P. 9
< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
Mode
Display the Sub screen in the Main screen.
OSD Menu →MISC →PIP Mode →Large / Small / OFF
Sub screen
Main screen
Position
Adjust the position of the Sub screen ( top left, bottom left, top right, bottom right )
OSD Menu →MISC →PIP Position →top left / top right / bottom left / bottom right
top left top right
bottom left bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSD Menu →MISC →PIP Mode →Large / Small
LCD Monitor Large Sub screen Small Sub screen
1920 x 1200 552 x 414 480 x 360
1920 x 1080 552 x 414 480 x 360
1440 x 900 414 x 310 360 x 270
1366 x 768 392 x 294 340 x 254
1280 x 1024 368 x 276 320 x 240
Size of Sub screen
< 2.3.1 > Picture in Picture ( PIP )

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.comP.10
Sub screenMain screen
Mode
Display the Sub screen next to the Main screen.
OSD Menu →MISC →PIP Mode →PBP
Size
LCD Monitor Main / Sub screen
1920 x 1200 955 x 716
1920 x 1080 955 x 716
1440 x 900 715 x 536
1366 x 768 678 x 508
1280 x 1024 635 x 476
< 2.3.2 > Picture By Picture ( PBP )
< 2.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu →MISC →PIP Source →VGA / DVI / HDMI / SDI / YPbPr / TV
Sub
Main VGA DVI-D HDMI SDI YPbPr TV
VGA xooooo
DVI oxxooo
HDMI oxxooo
SDI oooxxo
YPbPr oooxxo
TV ooooox
The PIP / PBP is operable in the following table :

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
RP-X617
P. 11
SDI
Power
Audio
out
VGADVI-D HDMI
out - in
Austin Hughes’ SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with CyberView displays, a SDI input
module can support up to 1080p @60Hz resolution without
using additional space or power and it comes standard with a
2-year warranty.
< Part 3 > Options
< 3.1 > Options : 3G / HD / SD-SDI input
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized / Asyn-
chronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable 3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.comP.12
For the 1st and last display,
push the set switch upward
Set switch
For other daisy chain displays,
push the set switch downward
LINK OUT IN OUT
RS-232C
Cat5 / 6 cable
max. 300 meters
up to 64 displaysDaisy chain up to 1,000
meters and 64 displays
RJ-45 jack
IN OUT IN OUT
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
15 feet serial cable
( over 15 feet, extender required )

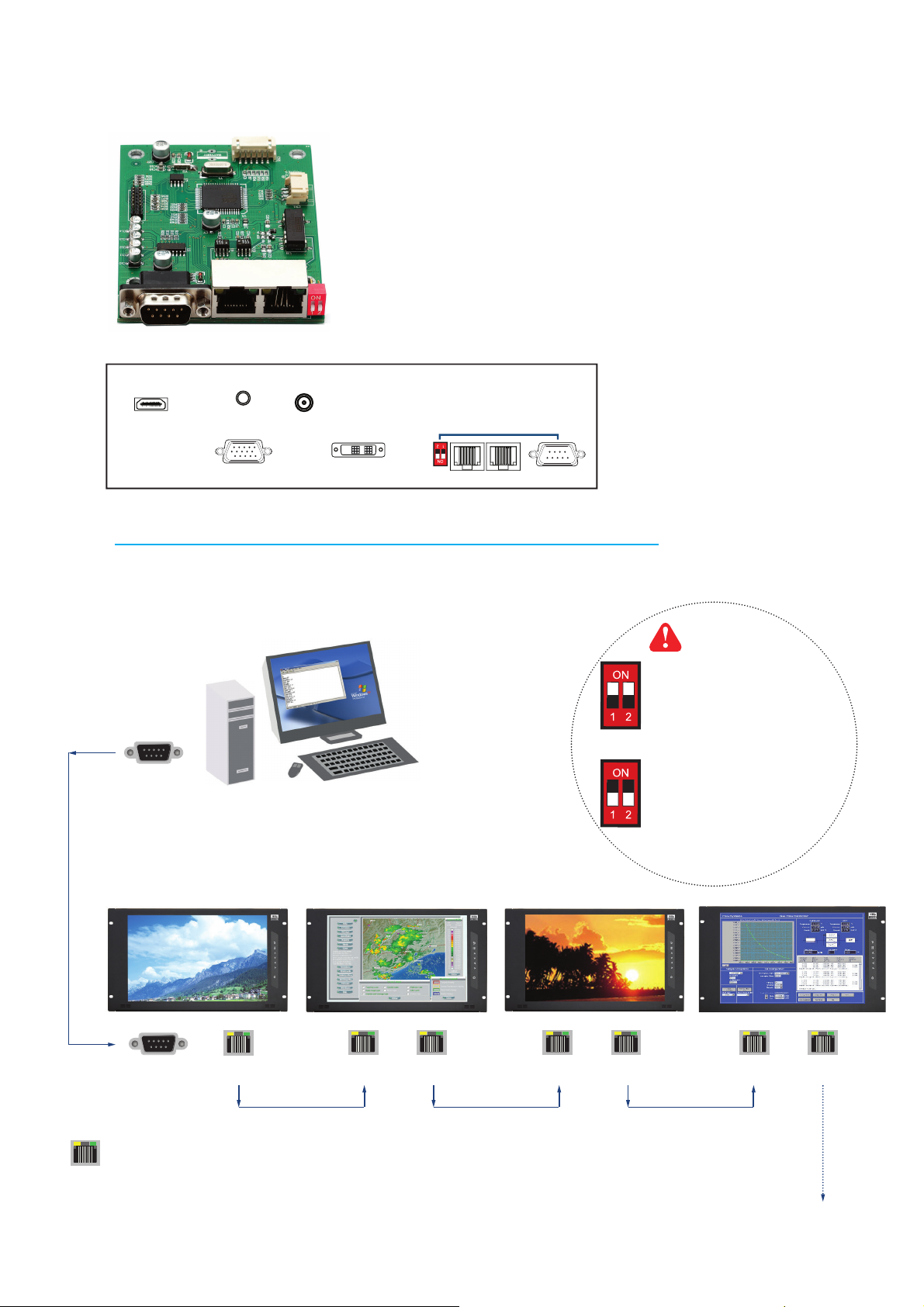

< 3.2 > Options : MCS
More control is always good. Especially when it is necessary and
easy. Austin Hughes provides MCS solution to control the OSD of
various CyberView LCD display up to 64 units.
The RS-232C is used for the communication between the PC and the
first display via a 15 feet serial cable while the CAN bus is used for the
various LCD displays cascade together via CAT 5/6 cable, and daisy
chain up to 1,000 meters.
Designed for use with CyberView LCD displays, Austin Hughes
provides a MCS input module without using additional space or power
and it comes standard with a 2-year warranty.
( Multi-display Control )
*** Please download the protocol of MCS control at :
http://www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MCS.pdf
Audio Power
out
HDMI
MCS
VGA DVI-D Linkinoutset
*** For MCS option, the AD board will be upgraded and comes standard with HDMI, DVI-D, VGA and audio
inputs. Casing depth will be changed.

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
RP-X617
P.13
< 3.3 > Options : Touchscreen & driver
Model TRB e-Resistive
Technology 5-Wire Resistive
Touch Point Single
Method Stylus or Finger
Activation Force ≤50g / Stylus=R0.8
Durability 10 million touches
Response Time 15 ms
Optical Transmittance 80% ± 3%
Surface Hardness 3H
Haze 8% ± 3%
Glass 2.2 ±0.2 mm
Connector USB Type A
Compatibility Windows 7 / XP / Vista, Linux
Resistive 1-pt Touchscreen Specification
■USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■For detailed information, please refer to the attached CD disc
■As the touchscreen unit is not made of toughened glass, please handle it carefully
For touchscreen option, casing depth will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
***
Power
VGA
DVI-D
USB Touchscreen
Audio
out
TRB Driver
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/resources/driver/ultraview
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the first setup

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.comP.14
< 3.4 > Options : DC Power
( 1 ) If the unit with LCD, earthing may be required
For DC power option :
***
Model 12V 24V 48V 125V 250V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V
Input current
- No load 50 mA 50 mA 50 mA 35 mA 10 mA
- Full load 4950 mA 2450 mA 1220 mA 749 mA 600 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 6.25A 12.5A
Efficiency 84% 85% 85% 91% 86%

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
RP-X617
P.15
Input Part no. MIL Standard
MIL - type
Connector
DC Power ***
( Male )
MS3470W8-33P MIL - DTL - 26482
VGA ***
( Male )
MS3470W14-15P MIL - DTL - 26482
< 3.5 > Options : MIL-type or Lockable Connector
Input Part no. Standard
Lockable
Connector
DC Power
( Male )
YM-Ext-461CP001 D-type 3W3
USB LUSB - A111 - 00 -
*** There are several additional MIL DC and VGA connector types with varying design
characteristics to meet cost considerations and to provide users with the most
design flexibility possible. For more information, please contact us.
*** MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.

UM-CV-RP-751-X617-Q322V1 www.austin-hughes.com
The company reserves the right to modify product specifications without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved.
Other manuals for RP-X617
1
Table of contents
Other CyberView Industrial Monitor manuals

CyberView
CyberView RP-HF821 User manual

CyberView
CyberView RP-F719 User manual

CyberView
CyberView RP-HW719 User manual

CyberView
CyberView RP-X617 User manual

CyberView
CyberView RP-F617 User manual

CyberView
CyberView RP-X617 User manual

CyberView
CyberView W119 series User manual

CyberView
CyberView RP-F821 User manual

CyberView
CyberView RP-HF617 User manual
Popular Industrial Monitor manuals by other brands

Cincoze
Cincoze CS-100/M1000 Series user manual

Autonics
Autonics GP Series Technical support manual

Windhager
Windhager InfoWINplus quick guide

Noritake
Noritake itron Y-Series manual

Omron
Omron SYSMAC NYM12W-C1062 user manual

Rockwell Automation
Rockwell Automation Allen-Bradley 6186M-12PN installation instructions
