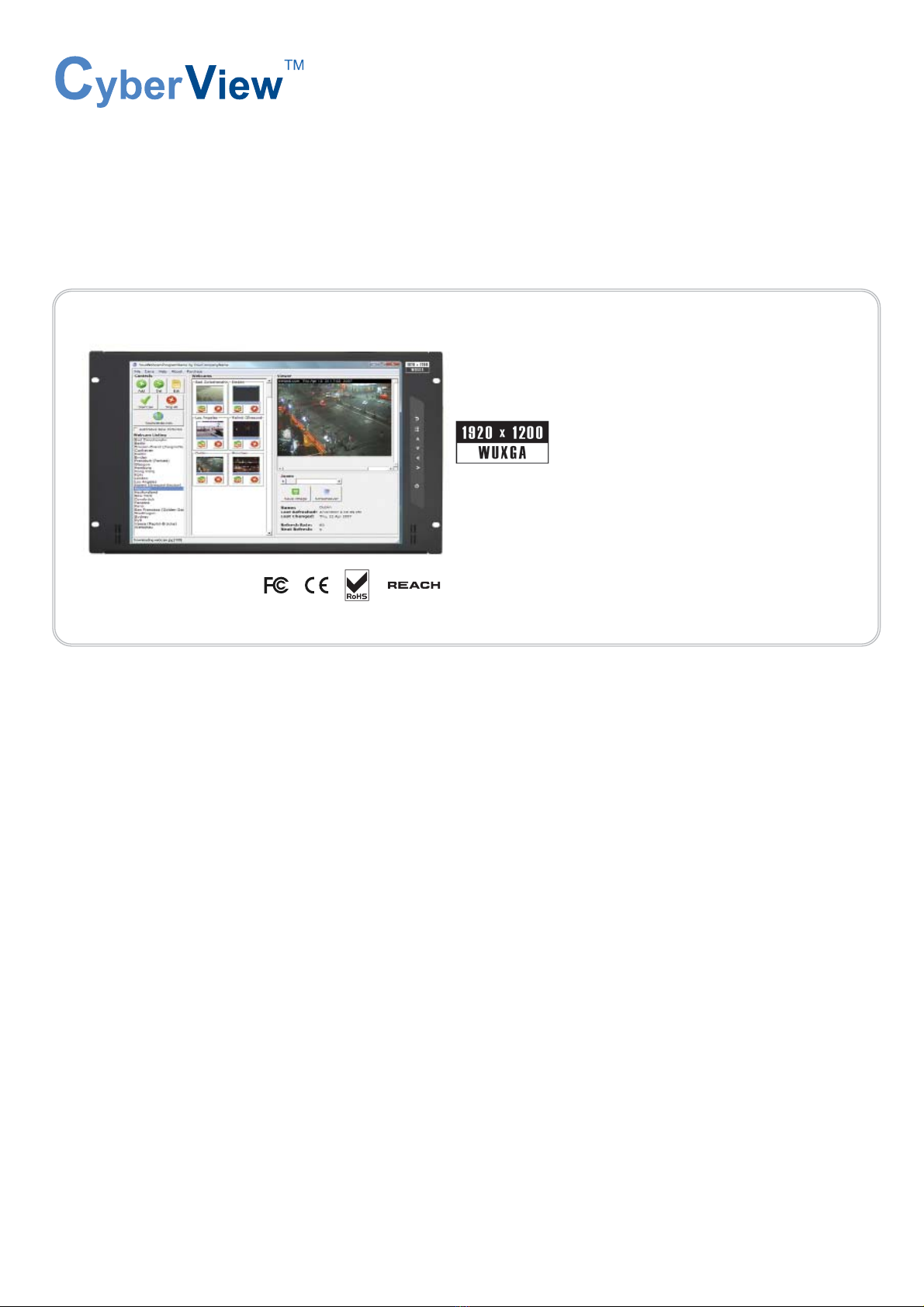

CyberView RP-X617 User manual

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
751
6U Rackmount Display Panel
RP-X617
Options :
- SDI / MCS
- DC power
- Touchscreen
- MIL-type or lockable connector
User Manual
Designed and manufactured by Austin Hughes
dedicated KVM switch and rackmount screen technology
17” High Resolution 1920 x 1200 LCD

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■Observe all precautions and warnings attached to the equipment.
■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■Any product, on which the serial number has been defaced, modified or removed.
■Damage, deterioration or malfunction resulting from:
□Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
□Repair or attempted repair by anyone not authorized by us.
□Any damage of the product due to shipment.
□Removal or installation of the product.
□Causes external to the product, such as electric power fluctuation or failure.
□Use of supplies or parts not meeting our specifications.
□Normal wear and tear.
□Any other causes which does not relate to a product defect.
■Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■Re-position or relocate the receiving antenna.
■Increase the separation between the equipment and receiver.
■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input ( except RP-717 )
3.2 MCS Multi-display control solution
3.3 X17” Touchscreen : Resistive, Capacitive
3.5 DC Power : 12V / 24V / 48V / 110 ~ 125V

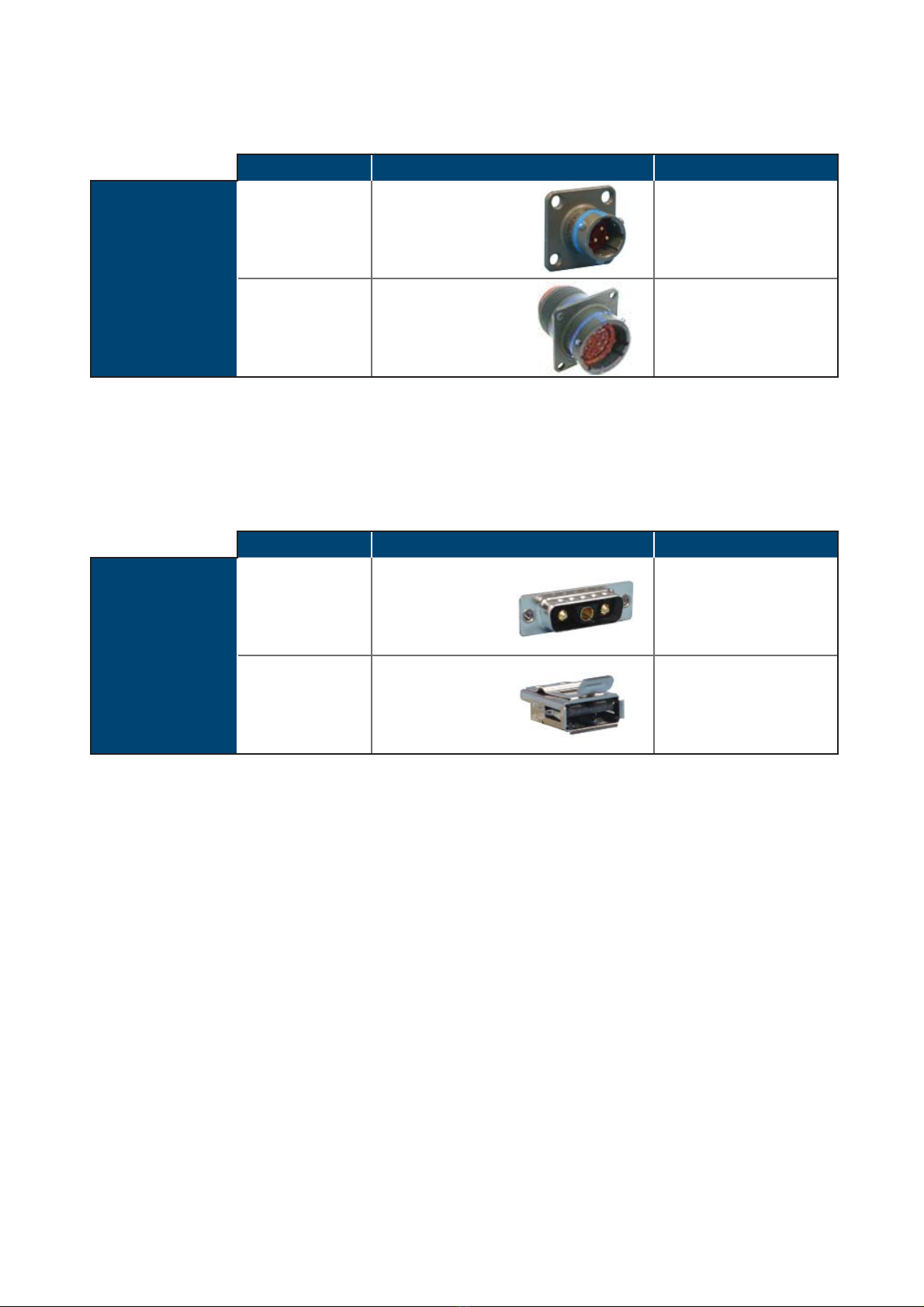

3.6 MIL-type or lockable connector
P.10
P. 11
P.12
P.13
P.14
< Part. 2 > Specifications / OSD / Remote Controller
2.1 Product Specifications
2.2 On-screen Display Operation ( OSD )
2.3 Picture In Picture ( PIP ) / Picture By Picture ( PBP )
P.4 - 5
P.6 - 7
P.8 - 9
< Part. 1 > RP-X617
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
Contents
P. 1
P.1 - 2
P. 3

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
■It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfiber cloth first, not directly on the parts you are cleaning.
3
4

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
Power VGADVI-D HDMI
Audio
out - in - in
Video PC
S-VideoBNC
Basic I/O : VGA + DVI-D + HDMI + BNC + S-Video + audio
Options : SDI, USB for touchscreen & DC power
< 1.1 > Package Content RP-X617
P. 1
< Part 1 >
RP-X617 unit X 1
- 6ft VGA cable X 1
- Power adapter X 1
- Power cord X 1

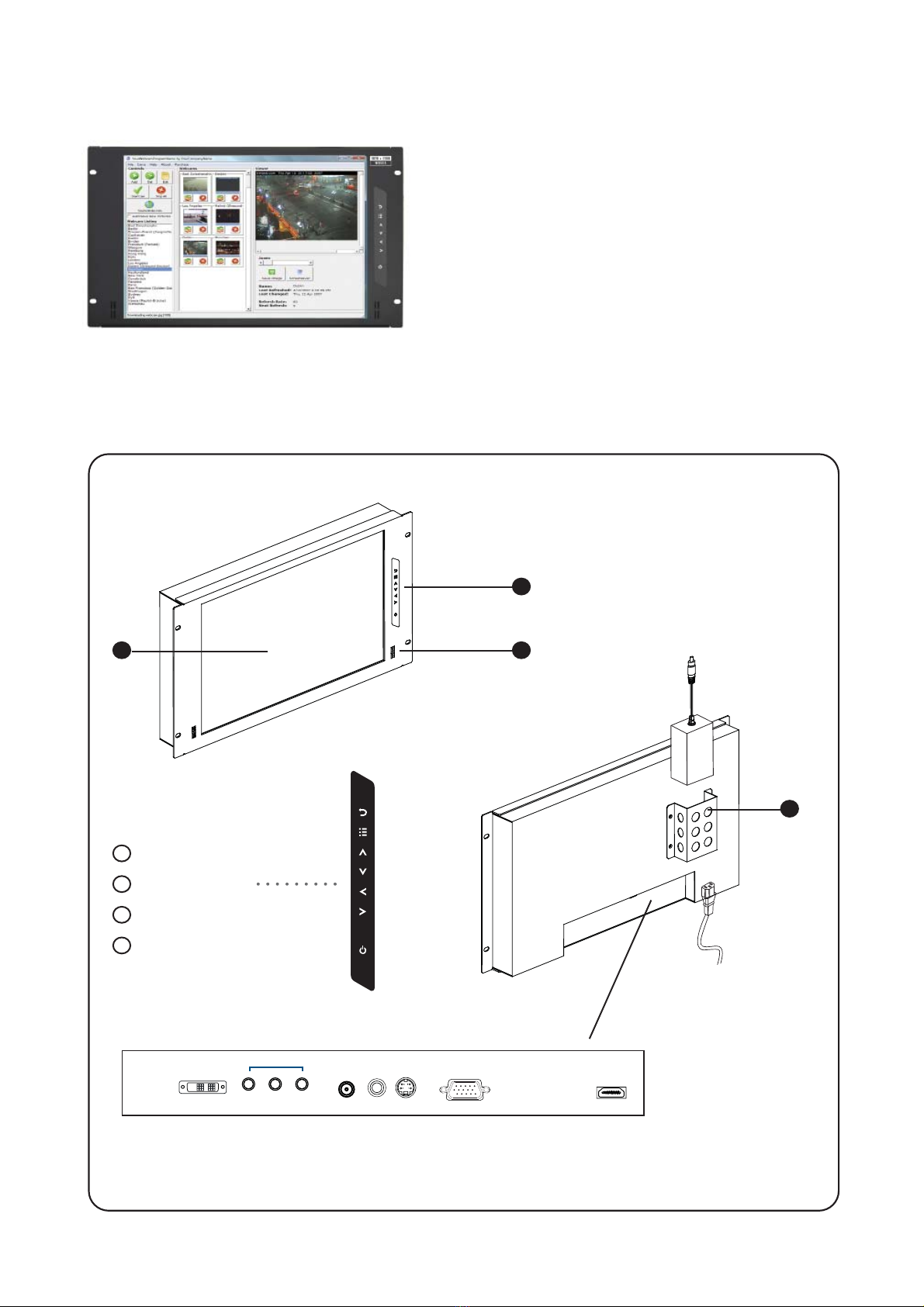

< 1.2 > Structure Diagram
1
2
Front view
Rear view
3
Power adapter
Power cord
3
LCD panel
LCD membrane
Audio speaker
Power adapter basket
1
2
3
4

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com

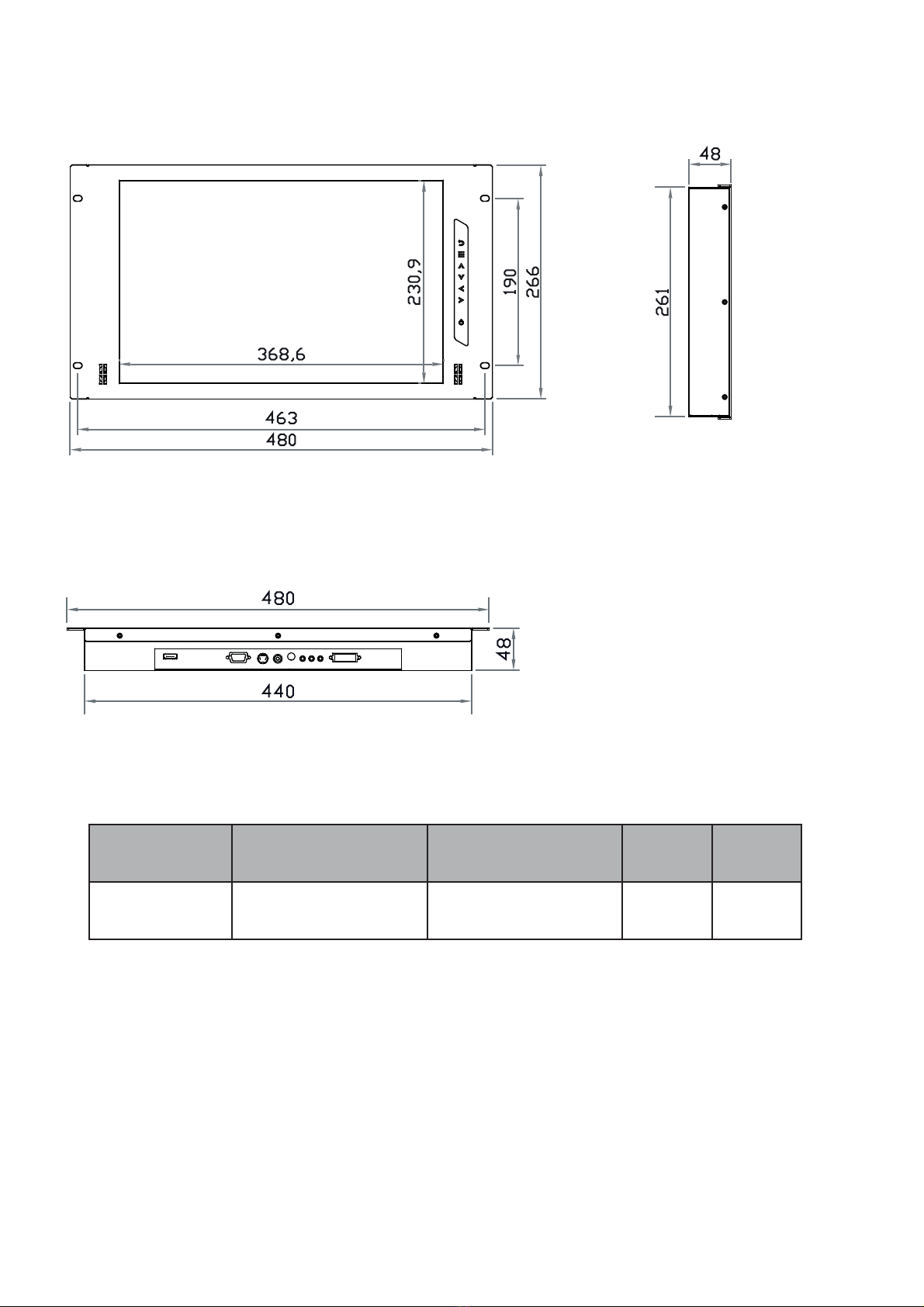

< 1.2 > Dimension
P. 2
Front View Side View
UNIT : mm
1mm = 0.03937 inch
Bottom View
Model Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
480 x 48 x 266 mm
18.9 x 1.9 x 10.5 inch
529 x 124 x 451 mm
20.8 x 4.9 x 17.8 inch
4.2 kg
9.2 lbs
6.2 kg
13.6 lbs
RP-X617

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
< 1.3 > Installation RP-X617
Step

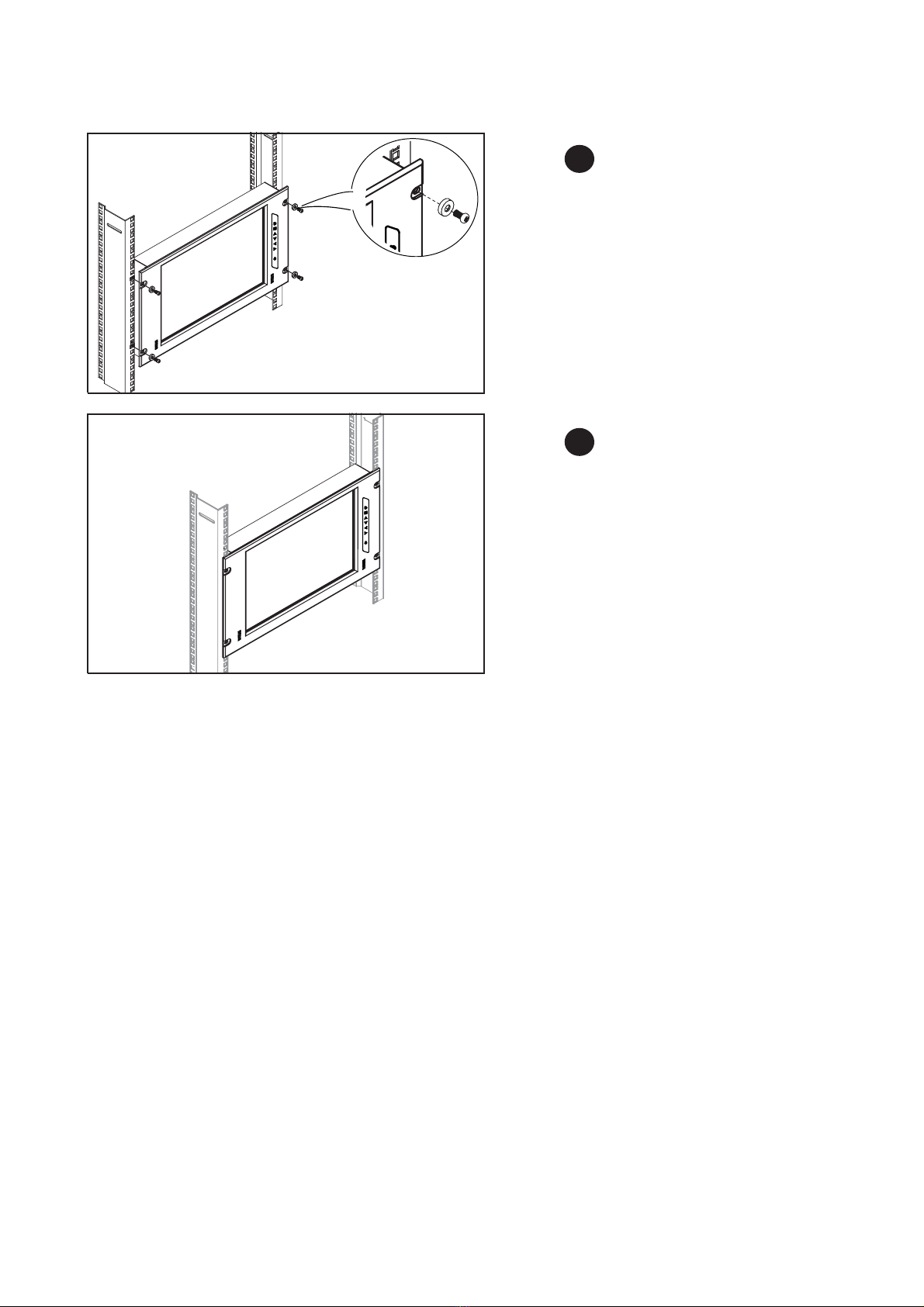

■Mount the display panel with M6 screw set.
■M6 screw x 4 pcs required ( Left & right side ).
M6 screw sets are not provided.
1
Step
■Fix the LCD into the rack.
2
P. 3

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
LCD
Panel
Panel Size ( diagonal ) 17.1-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1920 x 1200
Brightness ( typ. ) 210
Contrast Ratio ( typ. ) 600:1
Color 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 65/65/55/55
Response Time ( ms ) 30
Dot pitch ( mm ) 0.191
Display Area ( mm ) 367.20H x 229.50V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 20,000
< 2.1 > Product Specifications
P. 4
< Part 2 >
Video
Connectivity
Digital HDMI HDMI 1.1, CEA-861-D
DVI DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio
Connectivity
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ/ 750mV
Audio Output Connector 3.5mm stereo jack
Resistance / Power level 30kΩ/ 2.8V
Speaker Output Power 2 x 2W
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption Screen display ON 34W or less
Power saving mode 4W or less
Power button OFF 1W or less
Regulatory Safety FCC & CE certified
Environmental RoHS2 & REACH compliant

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
RP-X617
Environmental
Conditions
Operating Temperature 0 to 50°C degree
Humidity 20~90%, non-condensing
Storage Temperature -5 to 60°C degree
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Applicable
Format
DVI-D / VGA Input PC Signal 1920 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
HDMI Input PC Signal Same as VGA
Video Signal 1080p : 60Hz
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz )
P. 5
Physical
Specification
Product ( W x D x H ) 480 x 48 x 266 mm
18.9 x 1.9 x 10.5 inch
Packing ( W x D x H ) 529 x 124 x 451 mm
20.8 x 4.9 x 17.8 inch
Net Weight 4.2 kgs / 9.2 lbs
Gross Weight 6.2 kgs / 13.6 lbs

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is
no signal input.
All the LED touch buttons will automatically turn off after 10 minutes of idle status
( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except
the Power ).
1
2
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off
Membrane Switch Function
P. 6
< 2.2 > On-screen Display Operation ( OSD )
Picture mode : Standard / Vivid / Soft / User mode to choose
Brightness : Adjust background black level of the screen image
Contrast : Adjust the difference between the image background
(black level) and the foreground (white level)
Hue: Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Picture size : Adjust the image size
Color temp : Standard / Cool / Warm / User to choose
Noise reduce : Reduce the noise of the image
Sharpness : Adjust the image from weak to sharp
1

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
PC
Auto adjust : Automatically adjust sizes, centers and fine tunes the
video signal to eliminate waviness and distortion.
Clock : Adjust the clock value
Phase : Adjust the phase value
H. Position : Align the screen image left or right
V. Position : Align the screen image up or down
2
MISC
Language : Select the language in which the OSD menu is
displayed - English
Sleep timer : Set the off time
PIP mode : Adjust picture in picture setting
PIP position : Enter into PIP position
PIP source : Enter into the Sub source and sound source
System reset : Return the adjustment back to factory setting
Information : Select for Help
4
< 2.2 > On-screen Display Operation ( OSD ) RP-X617
P. 7
Audio
Audio mode : Movie / Voice / Normal / Music mode to choose
Volume : Adjust the volume of sound
Bass : Set the value of bass sound
Treble : Set the value of treble sound
Balance : Set the balance value of treble and bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn off the surrounding sound
3

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
P. 8

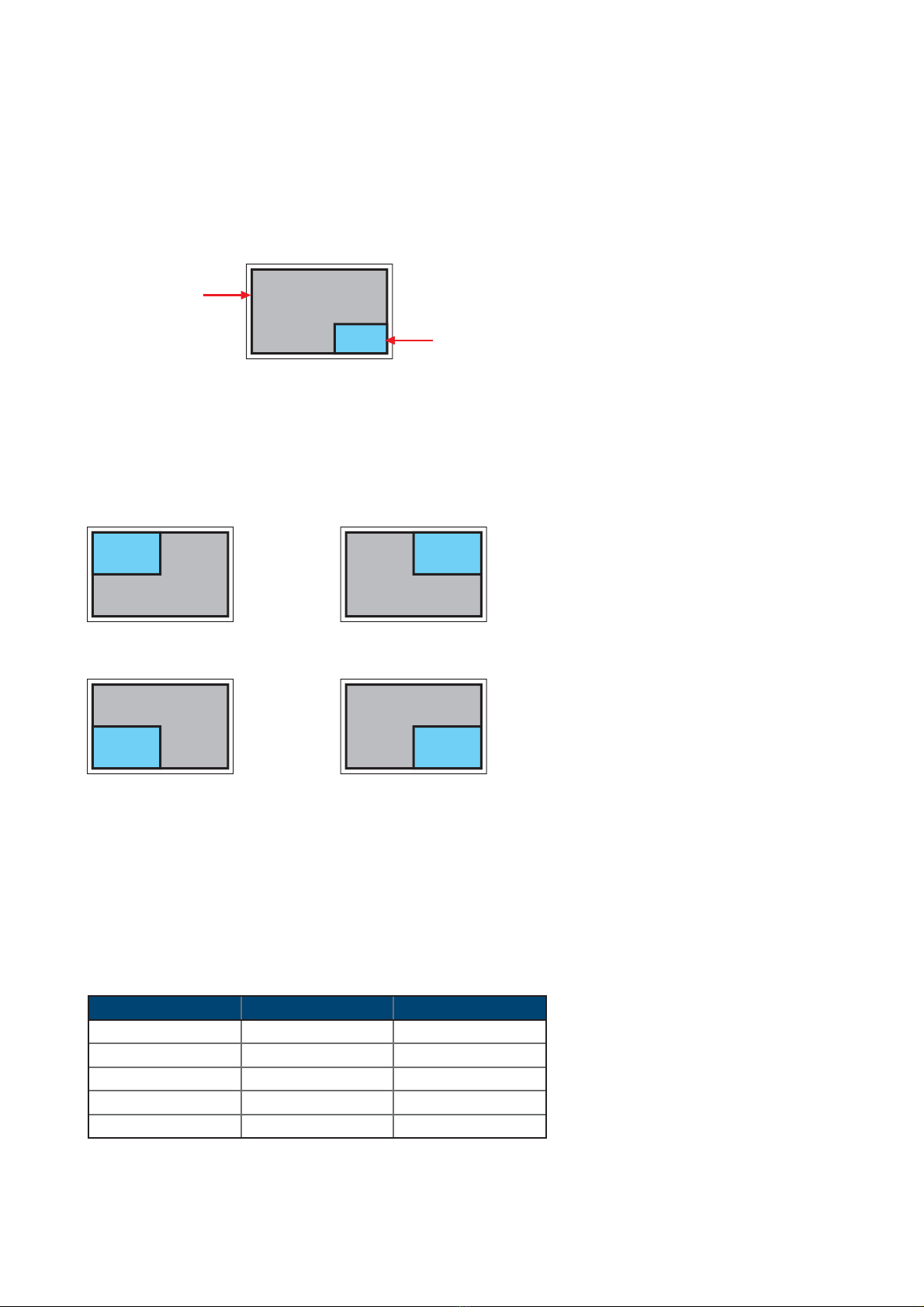

< 2.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP )
Mode
Display the Sub screen in the Main screen.
OSD Menu →MISC →PIP Mode →Large / Small / OFF
Sub screen
Main screen
Position
Adjust the position of the Sub screen ( top left, bottom left, top right, bottom right )
OSD Menu →MISC →PIP Position →top left / top right / bottom left / bottom right
top left top right
bottom left bottom right
Size
Adjust the size of the Sub screen ( Large / Small )
OSD Menu →MISC →PIP Mode →Large / Small
LCD Monitor Large Sub screen Small Sub screen
1920 x 1200 552 x 414 480 x 360
1920 x 1080 552 x 414 480 x 360
1440 x 900 414 x 310 360 x 270
1366 x 768 392 x 294 340 x 254
1280 x 1024 368 x 276 320 x 240
Size of Sub screen
< 2.3.1 > Picture in Picture ( PIP )

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
Sub screenMain screen
P. 9
RP-X617
Mode
Display the Sub screen next to the Main screen.
OSD Menu →MISC →PIP Mode →PBP
Size
LCD Monitor Main / Sub screen
1920 x 1200 955 x 716
1920 x 1080 955 x 716
1440 x 900 715 x 536
1366 x 768 678 x 508
1280 x 1024 635 x 476
< 2.3.2 > Picture By Picture ( PBP )

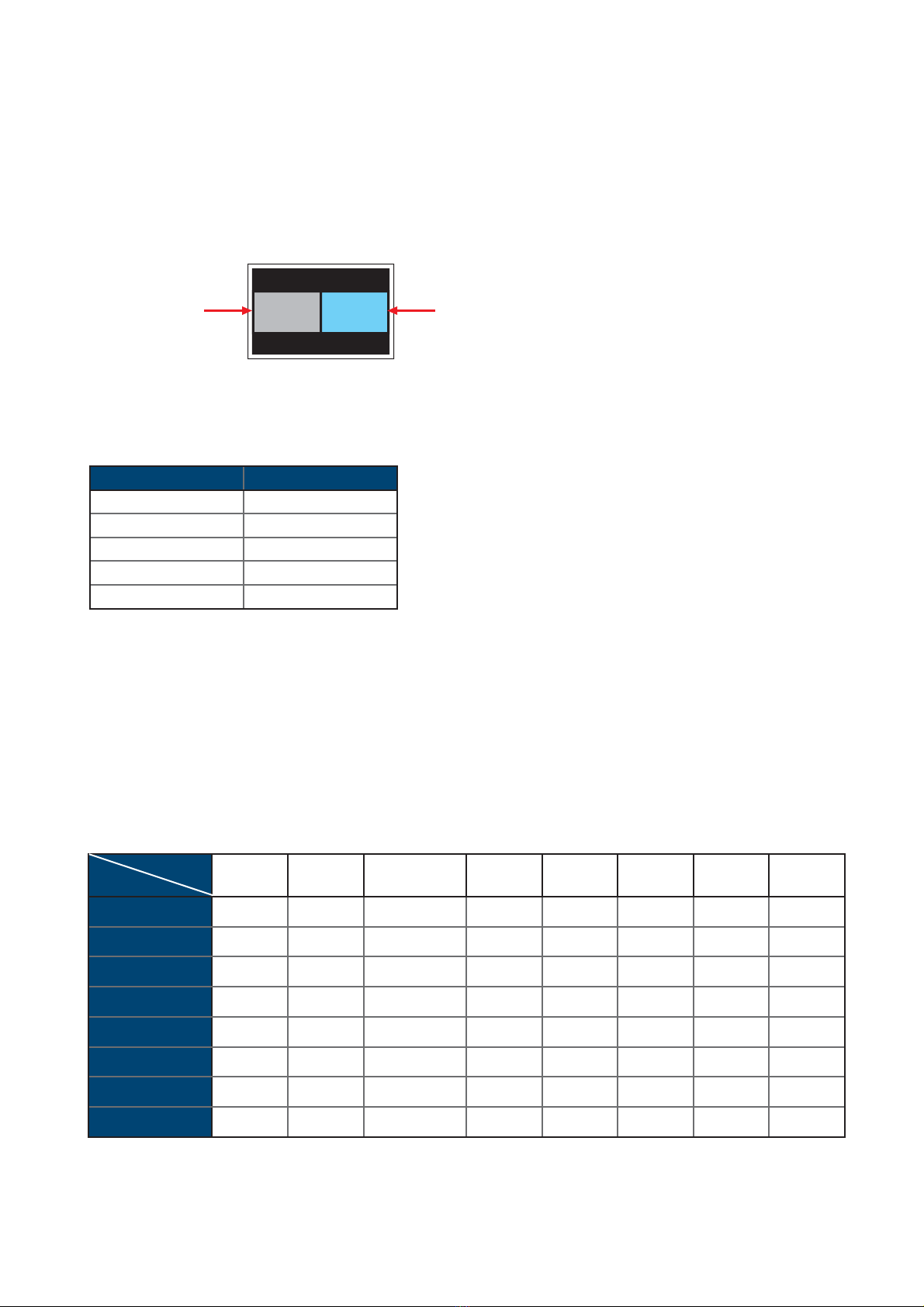

< 2.3.3 > PIP / PBP Source
To select an input signal for PIP / PBP Sub screen.
OSD Menu →MISC →PIP Source →VGA / S-Video / Composite / DVI / HDMI / SDI / YPbPr / TV
Sub
Main VGA S-Video Composite DVI-D HDMI SDI YPbPr TV
VGA xo o ooooo
S-Video ox x oooox
Composite ox x oooox
DVI oo o xxooo
HDMI oo o xxooo
SDI oooooxxo
YPbPr oooooxxo
TV ox x oooox
The PIP / PBP is operable in the following table :

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
Austin Hughes’ SDI input is an ideal solution for the broadcast-
grade video and high resolution CCTV market.
Designed for use with CyberView Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, Austin Hughes provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
< 3.1 > Options : 3G / HD / SD-SDI input
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
< Part 3 >
SDI
Power
Audio
out - in - in
Video PC
VGADVI-D HDMIS-VideoBNC
out - in
P.10

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
RP-X617
For the 1st and last display,
push the set switch upward
Set switch
For other daisy chain displays,
push the set switch downward
LINK OUT IN OUT
RS-232C
Cat5 / 6 cable
max. 300 meters
up to 64 displaysDaisy chain up to 1,000
meters and 64 displays
RJ-45 jack
IN OUT IN OUT
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
15 feet serial cable
( over 15 feet, extender required )
< 3.2 > Options : MCS
More control is always good. Especially when it is necessary and
easy. Austin Hughes provides MCS solution to control the OSD of
various CyberView LCD display up to 64 units.
The RS-232C is used for the communication between the PC and the
first display via a 15 feet serial cable while the CAN bus is used for the
various LCD displays cascade together via CAT 5/6 cable, and daisy
chain up to 1,000 meters.
Designed for use with CyberView LCD displays, Austin Hughes
provides a MCS input module without using additional space or power
and it comes standard with a 2-year warranty.
( Multi-display Control )
*** Please download the protocol of MCS control at :
http://www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MCS.pdf
Audio Power
out - in - in
Video PC
HDMI S-VideoBNC
MCS
VGA DVI-D Linkinoutset
P. 11
*** For MCS option, the AD board will be upgraded and comes standard with HDMI, DVI-D, VGA, S-Video,
BNC and audio inputs. Casing depth will be changed.

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
Model TRB e-Resistive TCB e-Capacitive
Technology 5-Wire Resistive Capacitive
Touch Point Single Single
Method Stylus or Finger Finger
Activation Force ≤50g / Stylus=R0.8 ≤50g
Durability 10 million touches 300 million touches
Response Time 15 ms 20 ms
Optical Transmittance 80% ± 3% 92% ±2%
Surface Hardness 3H 9H
Haze 8% ± 3% 7%
Glass 2.2 ±0.2 mm 2.8 mm ±10%
Connector USB Type A
Compatibility Windows 7 / XP / Vista, Linux
< 3.2 > Options : Touchscreen & driver
P.12
X17" USB Touchscreen Specification
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/downloads/RMDL/software.html
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the first setup
■USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■For detailed information, please refer to the attached CD disc
■As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
TRB & TCB Driver
Power
Audio
out - in - in
Video PC
VGADVI-D HDMIS-VideoBNC

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
Model 12V 24V 48V 110 ~ 125V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V
Input current
- No load 50 mA 50 mA 50 mA 40 mA
- Full load 4950 mA 2450 mA 1220 mA 993 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 8.4A
Efficiency 84% 85% 85% 92%
RP-X617
< 3.3 > Options : DC Power
P.13

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
< 3.4 > Options : MIL-type or Lockable Connector
Input Part no. MIL Standard
MIL - type
Connector
DC Power ***
( Male )
MS3470W8-33P MIL - DTL - 26482
VGA ***
( Male )
MS3470W14-15P MIL - DTL - 26482
Input Part no. Standard
Lockable
Connector
DC Power
( Male )
YM-Ext-461CP001 D-type 3W3
USB LUSB - A111 - 00 -
*** There are several additional MIL DC and VGA connector types with varying design
characteristics to meet cost considerations and to provide users with the most
design flexibility possible. For more information, please contact us.
*** MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.
P.14

UM-CV-RP-751-X617-Q414V1 www.austin-hughes.com
The company reserves the right to modify product specifications without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2014 Austin Hughes Electronics Ltd. All rights reserved.
