cyclotest mySense User manual

You will nd your personal activation
code on the piece of paper enclosed with
the thermometer.
Los geht‘s:
Youra ctivation code:
Il tuo codice di attivazione :
Tucódigo de activación:
Votrecode d'activation:
Seucódigo de ativação:
Twójkod aktywacyjny:
Váš aktivační kód:
Váš aktivačný kód:
Vašaktivacijski kod:
Vašaa ktivacijska koda:
Dinaktiveringskod:
Dinaktiveringskode:
Virkjunarkóðinnþinn:
Dinaktiveringskode:
Aktivointikoodisi:
Вашкод ак тивации:
Aktivasyonkodunuz:
:ךלשה לעפהה דוק
:كبصاخلا ليعفتلا ز مر
Dein Freischaltcode:
Wichtig! Gut aufheben.
cyclotestu nd UEBE
sindinternationale
geschützteWarenzeichen
der
UEBEMe dical GmbH,
ZumOtte rsberg 9
97877Wer theim
Deutschland
0123
70640 00 2 C / 2019-12
35914 67 69 91 5
Noch Fragen?
Solltest Du in der App ma l etwas nicht verstehen,
tippe einfach auf den i-Bu tton. Dieser erklärt die
immer die aktuelle A nzeige.
Wichtig: Unter dem Menü > H ilfe
Gebrauchsanweisung . Bitte lies diese vollstän dig,
damit alles optimal f unktioniert.
ndest Du eine
mySense
EN
It’s that simple
Install the app
Create an account
Enter the activation code
Download the cyclotest mySense
app.
Tap on “I don’t have an account yet“ to register.
You must register to continue.
Note: To pair the app with your thermometer, you
will need to allow the app to access your location/
GPS. Once the devices are paired, you can disa-
ble location services.
THIS CODE IS IMPORTANT! KEEP IT SAFE!
PLEASE ALSO REFER TO THE DETAILED INSTRUCTIONS FOR USE
FOR THE THERMOMETER FROM PAGE 5

EN-2 EN-3
It’s that simple It’s that simple
Connect the thermometer
Perform a test measurement
Enter cycle data
First steps
Press and hold the M/Bluetooth button
on the thermometer for 1–5 seconds,
then tap “Continue“.
You can view the most important information
about your cycle in your Daily chart. To view
past or future days, move the highlighted day
around the edge of the cycle triangle.
To enter cycle data, tap in the centre of the
large cycle triangle. You can only enter data
for the current day or past days.
Note: You cannot enter your basal temperature
manually. This is transmitted by the thermometer via Bluetooth.
There are two ways to transfer your basal body temperature
to the app:
• Immediately after a measurement, when the app is open and
Bluetooth is enabled.
• Manually at any time. To do so, open the app
and press the M/Bluetooth button on the
thermometer for 1–5 seconds.
Finding out your fertility status
Entering data
Transferring temperature data
Note: You can repeat the test at any time by selecting Menu >
Settings > Test measurement
Now enter your cycle data, such as the rst day of your men-
strual cycle.
Caution: This day is also your rst cycle start date. You can also
enter extra information if you wish.
• Press the On/Off button on the thermometer.
• Wait until after the second beep, then a line and
“°C“ will ash on the display.
• Place the thermometer under your tongue in
the pocket on the left or the pocket on the right.
• If the temperature measurement was successful,
a beep will sound.
• In the app, tap “Transfer test measurement“.

EN-5
Instructions for use
EN-4
It’s that simple
When you switch on the thermometer, it will perform a self-test during
which all segments of the display light up briey. Please do not confuse
this with the “battery low” or “battery drained” display.
The following pages contain the instructions for use for the thermom-
eter. Please read the instructions carefully to ensure that you are
using the app correctly.
Visit our website: www.cyclotest.com/cyclotest-mysense/
rst-steps-with-cyclotest-mysense
For more information, visit www.cyclotest.com/
cyclotest-mysense or complete our contact form at
www.cyclotest.com/contact.
Alternatively, you can contact customer service at:
Full-segment display during self-test: everything OK.
Battery low: you can still take a few more measurements, but
you should have a new battery ready.
Battery drained: you cannot take any more measurements.
Change the battery.
Note about the battery indicator
Intended use
It’s that simple
Safety instructions
Operating the device
Technical information
Cleaning and care
Warranty
cyclotest service hotline
Device description
Display
Initial device setup
Temperature measuring
Manually transferring data to the mySense app
Recalling saved measurement values
Battery display/changing the battery
Changing devices
Error messages
Technical data
Customer service
Explanation of symbols
Disposal
1
6
7
8
9
9
11
14
14
15
16
18
19
20
21
21
22
23
24
Still have questions?
www.cyclotest.com
+ 49 (0) 93 42 /
92 40 40
Service

EN-6 EN-7
Safety instructionsIntended use

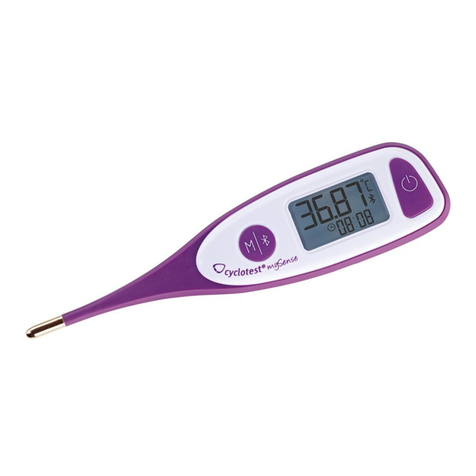

The cyclotest mySense is a medical digital thermometer (direct mode) for
the self-measurement of human basal body temperature.
The device transmits the measured values to the cyclotest mySense app
via a Bluetooth 4.0 interface.
The device is intended exclusively for use with the cyclotest mySense app.
The device cannot be operated without the cyclotest mySense app or with
other apps.
• The device must be used solely for the purpose described in these op-
erating instructions. The manufacturer shall not be held liable for any
damages resulting from improper use.
• Protect the device from dirt, dust and strong sunlight and keep the de-
vice away from excessive heat or cold.
• Using the thermometer in a way that does not comply with the intended
operating conditions can result in inaccurate measurement values.
• Before each measurement, check the integrity of the measuring tip. A
damaged measuring tip can cause injuries.
• Do not bite or bend the sensor. This can cause damage and lead to
malfunctions.
• The use of this device near mobile phones, radios or other strong elec-
tromagnetic elds can cause errors and malfunctions. Maintain a dis-
tance of at least 3.3metres from such devices when using the device.
• The thermometer contains small parts that could be swallowed by chil-
dren. Do not leave the device unattended with children.
• If the device has been stored at temperatures below 10°C or above
40°C, allow it to stand at room temperature for at least 2 hours before
using it.
• If the device is not being used for an extended period of time, remove
the battery.
• Always store the thermometer in the protective cover.
• Do not open the device (except when changing the battery).
• Do not allow the thermometer to fall on the oor. The thermometer is
not shock-resistant or impact-resistant.

EN-8 EN-9
Operating the device Operating the device
Device description
Gold-plated measuring tip
Illuminated display
On/off button
Battery compartmentData transfer and memory
recall button
Display
Bluetooth data connection
Temperature unit
Synchronising
Battery display Time
Date
Memory mode
Initial device setup
You must install the cyclotest mySense app on your smartphone before
setting up the device for the rst time. The cyclotest mySense basal body
temperature thermometer cannot be set up without the cyclotest myS-
ense app.
Download the cyclotest mySense app from the App Store or Google Play.
Open the cyclotest mySense app and complete the user registration. Fol-
low the instructions in the app.

EN-10 EN-11
Operating the device Operating the device
During the registration process, you will be asked to enter an activation
code for the thermometer. You will nd this activation code in the pack-
aging of your cyclotest mySense basal body temperature thermometer.
Once you have successfully completed user registration, the Bluetooth
function on your smartphone will be enabled and the app will search for
available devices.
Now switch the thermometer on. To do this, press
and hold the on/off button for at least 1 second.
The device switches on and automatically does into
SET mode, where you can set the date and time
(Figure 1).
The date and time are synchronised automatically
from the mySense app. To do this, the device con-
nects to the app via Bluetooth (Figure 2).
If the connection is successful, the “APP“ indicator
appears (Figure 3).
If the device cannot connect to the app, it switches
off after 60 seconds. If this occurs, check whether
Bluetooth is enabled on your smartphone and that
the mySense app is running. Now try to establish a
connection again.
Once the device is connected successfully, you will be prompted to per-
form a test measurement. This test measurement is used to ensure that
the thermometer and app are functioning correctly and is not saved.
Figure 1
Figure 2
Figure 3
To perform the test measurement, please follow the instructions in the
app and refer to the instructions for measuring wake-up temperature
starting on page 12.
• Switch on the device by pressing and holding the
on/off button for at least 1 second.
• Remove the transparent protective cover from the thermometer before
taking a measurement.
• The word “On” will appear on the display (Figure
1) and you will hear a beep.
• The device now performs an internal self-test; all
display elements are displayed (Figure 2).
If measurement values have already been saved,
the most-recently measured value is shown in the
display with an M (memory). The display switch-
es between the measurement value and the year,
date and time of the measurement (Figure 3).
The device now checks whether all previous meas-
urement values have already been transferred to
the mySense app. The device can temporarily store
up to 30 measurements.
Viewing the most-recent measurement value
Checking the transfer status
Temperature measuring
Figure 1
Figure 3
Figure 2
The number of measurement values not yet trans-
ferred is shown on the display (Figure 4). Figure 4
• If more than 25 saved
measurements have not
been transferred to the
mySense App, the mes-
sage “APP/FULL“ (Figures
5 and 6) appears on the Figure 5 Figure 6

EN-12 EN-13
Operating the device Operating the device
• If you perform more than 30 measurements without transferring the
values to the mySense app, the oldest value is deleted to make room for
a new measurement.
display to remind you to transfer the measurement values to the app
as soon as possible.
The device is now ready to perform a new meas-
urement (Figure 7). You will then hear another beep.
Never begin a measurement before this message
appears on the display or before you hear the sec-
ond beep and the dash and °C icon ash on the
display. The thermometer must already be in meas-
urement mode when you start measuring to be able to correctly record
the progress of the measurement.
Take the measurement within the selected measurement timeframe im-
mediately after waking up. Take the measurement even before you get up.
Measured values determined outside the measurement timeframe will not
be transferred to the mySense app.
You must have slept for at least ve hours before taking a measurement
and must not have stood up in the last hour before the measurement. If
you have not had enough sleep, skip the measurement.
Measuring wake-up temperature
Figure 7
• Place the probe tip underneath your tongue on either the left-hand or
right-hand side. The temperature sensor must make good contact with
the tissue.
• Close your mouth and breathe calmly through your nose so that the
measurement result is not affected by the air that you breathe.
• As long as the measured temperature remains below the measuring
range (32.00°C to 43.99°C), the display shows L (low) (Figure 8). Have a
• During the measurement, the current tempera-
ture is shown on the display. You must wait until
the measurement is complete to ensure the ac-
curacy of the temperature value.
little patience during the measurement. The sen-
sor must rst warm up from room temperature to
body temperature.
• A long beep indicates that the measurement is
complete. The measurement value is shown on
the display (Figure 9).
• If the thermometer measures an elevated tem-
perature of 37.50°C or above, you will hear 10
beeps in rapid succession. The display switches
between showing the temperature and “HI” (fe-
ver alert, Figure 10).
• The device now tries to establish a Bluetooth con-
nection to transfer the measured value to the mySense app. Make sure
that the smartphone is within range, Bluetooth is enabled and the my-
Sense app is running.
Figure 9
Figure 10
• If the device cannot establish a connection, the
measurement value is stored on the device to
be transferred later. The device can temporarily
store up to 30 measurement values. The ther-
mometer then switches itself off (Figure 12).
• If the connection is successful, the “APP“ indica-
tor appears (Figure 11). Once the data has been
transferred, the thermometer switches off auto-
matically (Figure 12).
Figure 8
Figure 12
Figure 11

EN-14 EN-15
Operating the device Operating the device
Manually transferring data to the mySense app
If the measurements cannot be transferred to the mySense app
immediately after the measurement (e.g. if your smartphone is not within
Bluetooth range or the mySense app is not open), you can transfer the
measurements to the mySense app at a later date. To do so, proceed as
follows:
• Open the mySense app on your smartphone.
• With the device switched off, press and hold the data transfer button
for at least 1 second, but no more than 5 seconds, until the Bluetooth
symbol appears in the display. If you hold down the button for more
than 5 seconds, you will enter memory recall mode.
• The device now connects to the app via Blue-
tooth (Figure 1).
• If the connection is successful, the “APP“ indica-
tor appears (Figure 2).
If the device cannot connect to the mySense app, it
switches itself off after 60seconds. If this occurs,
check whether Bluetooth is enabled on your smart-
phone and that the mySense app is running, then
try again.
Figure 2
Recalling saved measurement values
The thermometer has a measurement value memory with 30 save slots.
The measurement values are saved automatically together with the date
and time of the measurement. The most recently measured value is stored
in save slot 1; the value measured prior to that is stored in save slot 2, and
so on. If more than 30 measurements are taken, the oldest value (no. 30)
is deleted so that the most recent value (no. 1) can be saved.
Figure 1
The measurement values and lots of additional in-
formation are saved in the mySense app, where
they can be analysed with ease.
You can also recall the last 30 readings directly
from the mySense basal body temperature ther-
mometer. To do so, proceed as follows:
• With the device switched off, press and hold the
memory recall button for at least 5 seconds
until the icon appears on the display. The de-
vice switches to memory mode (Figure 1).
Figure 1
• By repeatedly pressing the memory recall key ,
you can call up the previous measurements (no. 2,
no. 3 ...).
• If no measurement values are saved, the follow-
ing appears on the display (Figure 4): Figure 4
• The most recently measured value, no. 1, is
now displayed (Figure 2, Figure 3). The display
switches between the measurement value and
the year, month/day and time. For measurement
values that have been transferred to the myS-
ense app, the symbol is displayed. Figure 3
Figure 2
Battery display/changing the battery
The device is equipped with a CR2032 lithium battery.
If the battery icon ashes on the display while
the thermometer is in use, the battery is low (Fig-
ure 1). You can still perform some temperature
measurements at this point, but you should have a
spare battery ready. Figure 1

EN-16 EN-17
Operating the device Operating the device
Change the battery if:
– After switching on the device, the “battery
at“ indicator (Figure 2) appears on the dis-
play. You must insert a new battery before you
can take any temperature measurements.
Figure 2
• Unlock the battery cover by turning
it past the marker to the left. Then
lift the cover off.
• Remove the old battery and insert a
new battery (CR2032) with the “+”
symbol facing up.
– Nothing is shown on the display despite
pressing the on/off button.
Battery com-
partment cover
unlocked
Battery com-
partment cover
locked
• Place the cover back on the battery
compartment and lock it in place.
After changing the battery, the thermometer must be connected to the
mySense app so that the date and time can be resynchronised. To do this,
open the mySense app and turn on the thermometer. Until you have done
this, you cannot take any new temperature measurements.
Measurement values stored on the device are retained when the battery
is changed.
Changing devices
Each mySense basal body temperature thermometer has a unique sig-
nature assigned to a specic user. Signatures are assigned during initial
setup when the device is synchronised with the mySense app for the rst
time.
If your device is lost or faulty, you can assign a new mySense basal body
temperature thermometer to your user account.
To do this, go to “Menu → Settings → Replace thermometer” in the mySense
app and follow the instructions.
Please note: If you change device during a cycle, the current cycle be-
comes inactive in the mySense app. For your safety, the mySense app
only accepts measurement data from a single device during a cycle.

EN-18 EN-19
Technical information Technical information
The measured temperature is above 43.99°C and is
therefore outside the measuring range.
The measured temperature is below 32.00°C and is
therefore outside the measuring range.
The ambient temperature is above 40.00°C and is there-
fore outside the permissible operating conditions.
The ambient temperature is below 10.00°C and is there-
fore outside the permissible operating conditions.
Fever warning. Temperature higher than 37.5°C meas-
ured.
Battery at. Please change the battery.
Device memory is full. Connect the ther-
mometer to the cyclotest mySense app to
transfer the measured values to the app.
Battery low. Have a spare battery ready.
Error messages
No display after switching on. Check whether the battery
is positioned correctly and the polarity (+/-) is correct. If
the error persists, change the battery.
Bluetooth connection error
Sensor error. If this occurs repeatedly, please contact the
cyclotest service hotline.
Measurement was cancelled prematurely. Repeat the
measurement and wait until the measurement is compete
before removing the thermometer from the measurement
point.
Calibration error. If this occurs repeatedly, please contact
the cyclotest service hotline.
The device is in technical test mode. Switch it off and on
again after a few seconds to return to normal mode.
Technical data
Type: Maximum thermometer, direct mode
Measuring points/
body reference points:
rectal, oral, vaginal
Temperature unit: °C
Measuring range: 32.00°C to 43.99°C
Measurement accu-
racy:
± 0.05°C between 35.00°C and 38.00°C
± 0.10°C in other temperature ranges
Memory: 30 measurement values with date and time
can be recalled in memory mode
Operating conditions: Ambient temperature 10°C to 40°C, maximum
relative humidity 15% to 95%

EN-20 EN-21
Technical information Technical information
Customer service
Device repairs may only be performed by the manufacturer or an ex-
pressly authorised body. Please contact:
UEBE Medical GmbH
Zum Ottersberg 9
97877 Wertheim, Germany
Tel.: [phone]
Fax.: [phone]
Email: inf[email protected]
Website: www.uebe.com
Conditions for storage
and transport:
-25°C to +55°C, maximum relative humidity
15% to 95%
Time to adjust from
minimum/maximum
storage temperature to
operating temperature:
30 minutes
Battery: 1 x CR2032, 3.0V, mercury-free
Battery life: approx. 400measurements
Data transfer: Bluetooth 4.0 LE (low energy)
IP classication: IP67: dust tight, protection against temporary
submersion
Expected service life: 5years
Dimensions: 137mm (L) x 32mm (W) x 15mm (H)
Weight: 27g with battery
We recommend a technical inspection of the device every 5 years. This
inspection can be carried out either by UEBE Medical GmbH or by author-
ised maintenance services.
Explanation of symbols
This product complies with Council Directive 93/42/EEC of 5
September 2007 concerning medical devices and bears the
mark CE 0123 (TÜV SÜD Product Service GmbH).
Degree of protection against electric shock TYPE BF
Consult the instructions for use
Fabricant
Dust tight, protection against temporary submersion
Lot number/Batch number
Reference number = item number
0123
IP 67
Disposal
Technical equipment and batteries do not belong in household
waste. They must be disposed of at appropriate collection and
disposal points.

EN-22 EN-23
WarrantyCleaning and care
Clean the thermometer with a soft cloth and isopropyl alcohol diluted with
water or cold, soapy water.
Do not use aggressive cleaning agents, solvents or petroleum spirit to
clean the device.
The thermometer can be immersed in water or a disinfectant solution
when cleaning. Do not sterilise the device by boiling it, using gas or plac-
ing it in a steam autoclave.
Make sure that the surface of the measuring sensor and the display do
not get scratched.
After cleaning the measuring sensor with alcohol, wait 5 minutes before
taking the next temperature measurement so that the thermometer can
return to the required operating temperature.
The device has been manufactured and tested with all due care. Neverthe-
less, in the event of defects upon delivery, we provide a warranty under
the following conditions:
During the warranty period of 2 years from the date of purchase, we
remedy such defects at our discretion and at our expense in our plant
through repair work or replacement delivery of a defect-free device.
The warranty does not cover normal wear and tear of wearing parts or
damage caused by failure to observe the instructions for use, improp-
er handling (e.g. unsuitable power sources, breakage, leaking batteries)
and/or disassembly of the device by the buyer. Furthermore, the warranty
does not constitute grounds for asserting claims for damages against us.
UEBE Medical GmbH
Service-Center
Zum Schlag 18
97877 Wertheim, Germany
Warranty claims can only be asserted during the warranty period and
upon presentation of the proof of purchase. In the case of a warranty
claim, the device along with the proof of purchase and a description of
the complaint must be sent to:
The cost of returning the device to our factory shall be borne by the send-
er. Complaints that are sent back without prepayment will not be accept-
ed by UEBE.
The statutory claims and rights of the buyer against the seller (for exam-
ple, defect claims, producer liability) are not restricted by this warranty.
Please note: In the case of a warranty claim, please make sure to
enclose the proof of purchase.

EN-24 EN-25
cyclotest service hotline
You have undoubtedly read our instructions on the use of cyclotest
mySense carefully and have familiarised yourself with its characteristics.
If you have any additional questions, you can call our cyclotest service
hotline, which is available Monday to Thursday from 8:00am to 5:00pm
and Fridays until 4:30pm.
Your cyclotest advisory team looks forward to speaking with you.
www.cyclotest.com
+ 49 (0) 93 42 /
92 40 40
Service
www.cyclotest.ch
0 52 / 224 41 47
Service
For customers from Switzerland:

0645
PZN-14886326
cyclotest and UEBE are internationally
protected trademarks of:
Subject to technical modications.
Reprinting, including of extracts, is prohibited.
© Copyright 2019 UEBE Medical GmbH
UEBE Medical GmbH
Zum Ottersberg 9
97877 Wertheim, Germany
Phone: + 49 (0) 93 42 / 92 40 40
Fax: + 49 (0) 93 42 / 92 40 80
Email: inf[email protected]
Website: www.uebe.com
0123
7 0645 201 AA 2020-01
mySense
www.cyclotest.com
