Cycplus M2 User manual

⽤户⼿册
User manual
Benutzerhandbuch
取扱説明書 【38 - 52】
Manuale d’istruzione
Manuel de l'Utilisateur
Manual de usuario
【01 - 12】
【13 - 24】
【25 - 37】
【53 - 65】
【66 - 78】
【79 - 91】
GPS BIKE COMPUTER M2

01. CYCPLUS Z1/Z2 bike computer
mount (Need to buy separately).
1.Package List

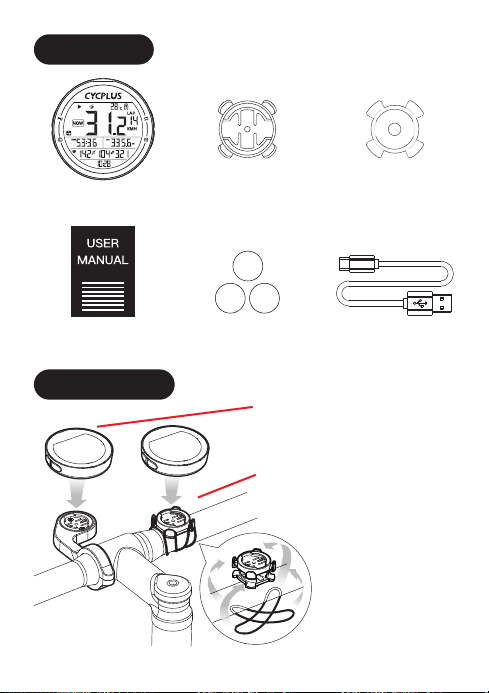

2.About Installation
GPS bike computer
Instruction manual
Rubber padBike computer mount
Rubber band x 3
02. Use bike computer mount.
Cross-fix the mount with
rubber bands.
Type-c
charging cable
01

3.About Function
4.Quickstart
01. Support 10 types of data including speed, time, distance,
altitude (based on barometer), ascent, gradient, ODO,
heart rate, cadence, power.
02. Support count circles (need manual control)
03. Support record gps track (need to save manually)
04. Support sync to 3 apps including Xoss, Strava, Trainingpeaks
05. Auto on/off
01. Press [L1 button ] to start/open.
02. Long press [R1 button ] to set time zone.
03. Press [L1 button ] to start recording data.
04. Press [R1 button ] to switch displaying data.
05. Long press [L2 button ] to save the recording data.
06. Press [R2 button ] to turn on/off backlight.
07. Download XOSS app.
08. Connect to app, sync data.
02

5.About Icons
NOW
Current
altitude
Current
ascent
Odograph Current
gradient
NO GPS
Recording
Current speed
Connected with
speed sensor
Trip time
Current heart
rate
Current cadence
Current
power
Temperature
Battery
Circle
Speed unit
Trip dist
GPS
O’clock
03

MAX
AVG
04
Average
altitude Average
gradient
Average
heart rate
Average
power
Average cadence
Average
speed
Pause recording
Connected to phone Temperature unit
Max altitude Max gradient
Max heart rate Max power
Max speed
Max cadence

Press [L1 button ] to start searching the ANT sensor
6.About Buttons
7.About Settings
01.Search the ANT+ sensor（C2)
1
2
Long pres [R1 button ] to enter the setting
*The screen displays C2 and the ANT+ indicator is flashing.
*After the right sensor been searched, the screen will back to main
interface and display the sensor data. Time for searching is 10 seconds.
Will quit sensor setting (C2) and return to the main interface if time out.
Supported ANT sensors: Speed sensor, Cadence sensor, Heart rate
monitor, Power meter.
Press Long press
Turn off
Count lap Save record
Turn on/off backlight
Switch display content Enter/Quit settings
Turn on / Start setting
There are 7 pages in settings, long press the right button to enter the
setting, press right button to switch the pages. Details are as follows:
L1 button
R1 button
L2 button
R2 button
Start / Pause recording
---
05

02.Wheel circumference setting（C3)
06
*The Wheel Circumference only needs to be set when connecting the
ANT+ speed sensor. The unit is MM.
6Long press [R1 button ] to return to the main page.
4Press [L2 button ] to switch the setable digit.
3Press [R1 button ] to modify the digit.
2
*Setable digit will be flashing continuously.
Press [L1 button ] to start setting.
Long press [R1 button ] to enter the setting,
then press [R1 button ] once.
1
*The screen displays C3 and the below 4 digits flash.
03.Time zone setting（C4)
5Long press [R1 button ] to return to the main page.
4Press [L2 button ] to switch the selected digit.
3Press [R1 button ] to modify.
2
*‘08’ stops flashing.
Press [L1 button ] to start setting.
Long pres [R1 button ] to enter the setting，
then press [R1 button ] twice.
1
*The screen displays C4 and the 08 (factory setting
time zone) is flashing.
04.Speed unit setting（C5)
2
*‘KMH’ stops flashing.
Press [L1 button ] to start setting.
3Press [R1 button ] to switch between KMH and MPH.
Long press [R1 button ] to return to the main page.
4
Long pres [R1 button ] to enter the setting,
then press [R1 button ] thrice.
1
*The screen displays C5 and the KMH is flashing.
5Press [L1 button ] to finish setting.

07
06.Factory reset（C7）
Long pres [R1 button ] to enter the setting,
then press [R1 button ] quintic.
1
2
Long press [L2 button ] to restore factory settings,
and the computer will turn off.
3
Press [L1 button ] to start setting.
* ‘RECOVER’ stops flashing.
*The screen displays C7 and RECOVER is flashing.
05.Temperature unit setting（C6)
Long pres [R1 button ] to enter the setting，
then press [R1 button ] quartic.
1
*The screen displays C6 and the ‘°C’ is flashing.
2
*‘°C’ stops flashing.
Press [L1 button ] to start setting.
3Press [R1 button ] to switch between Celsius and Fahrenheit .
Long press [R1 button ] to return to the main page.
4
07.Odograph setting（C8)
6Long press [R1 button ] to return to the main page.
4Press [L2 button ] to switch the setable digit.
3Press [R1 button ] to modify the digit.
2
*Setable digit will be flashing continuously.
Press [L1 button ] to start setting.
Long press [R1 button ] to enter the setting,
then press [R1 button ] six times.
1
*The screen displays C8, ODO and the below 5 digits flash.
5Press [L1 button ] to finish setting.

01.Download XOSS and Register
Scan QR code or download the APP from Google play or APP
store, register by email. Then open the phone Bluetooth.
02. Connecting M2 computer
① Open “XOSS"
8.About APP
Android User iOS User XOSS APP
② Choose CYCPLUS M2 ③ Click connect
08

03. Connecting STRAVA/Training Peaks
Find Strava / Training Peaks in your personal files and click
connect. Log in Strava / Training Peaks with account and
passwords (Google and Facebook account login is not supported) .
④
choose the paired computer
among the found devices
⑤
connection succeeded
09

04. Updating data and checking the analysis
① Click Sync, the record will be synced to APP. If Strava is
connected, the data will be automatically synced to Strava.
② Choose the activity on the exercise page, you will see the
cycling data.
10

9.About Notes
10.Specifications
01. Battery charging:
When charging with the Type-c, The battery indicator on the
screen will light up and blink, and stop blinking to indicate that
the battery is fully charged.
Screen Size
Product Size
Product Weight
Battery
2.5 inch LCD
69*69*22 mm
68 g
1000 mAh 3.7 V
11
04. Memory:
After the memory is used up, the computer will overwrite the
previous records according to the chronological order.
03. Data recording:
After turning on, press the [L1 button ] to start recording
data. Don't forget long press the [L2 button ] to save the
record after riding.
02. GPS positioning:
After press the [L1 button ] to turn on the computer, the
GPS positioning will automatically start and be done about 35
seconds (will be longer for 1st time).

Charging Mode Type-C
Memory Capacity
Endurance Time
16 M（Approximately 150 hours of data）
30-35 hours
Charging Time
App Synchronization
Connection
nearly 3.5 hours.
(Support using while charging)
Bluetooth 5.0
Peripheral Connection
Supported Peripherals
Waterproof
ANT+
Speed sensor, cadence sensor,
heart rate monitor, powermeter.
IPX6 (Rain is ok, but don’t soak long
time in water)
Manufacturer:
Chengdu Chendian Intelligent Technology Co., Ltd.
Warranty:
Free replacement or repair in 1 year
After sale email:
[email protected]
11.Factory Info
12
