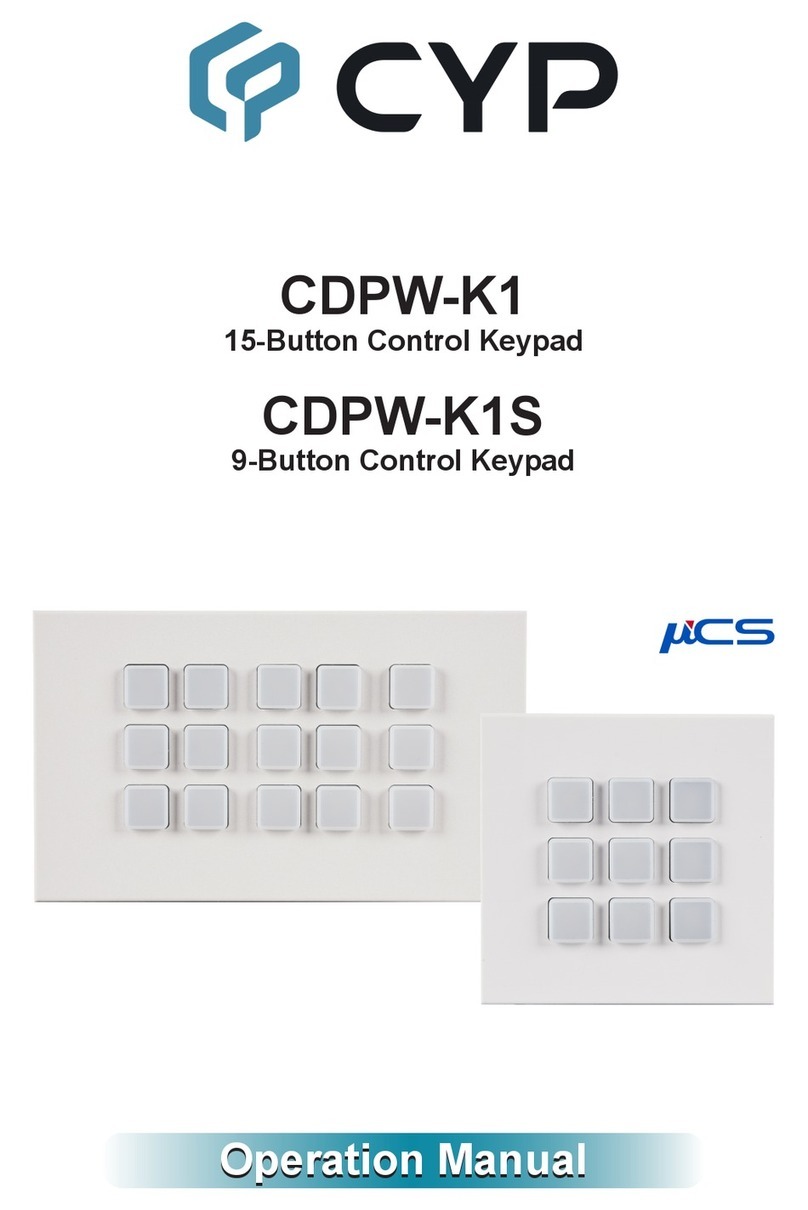

CYP CDPW-K1 User manual

CDPW-K1
15-Button Wall Plate Control Keypad
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VR0 26/08/15 Preliminary release
VR1 31/03/16 Add Macro Features

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel.........................................3
6.3 Telnet Commands............................4
6.4 Software Application.......................6
6.5 Telnet Control ...................................7
6.6 WebGUI Control ...............................9
7. CONNECTION DIAGRAM..................... 19
8. Specications ...................................... 20
9. Acronyms ............................................. 20

1
1. INTRODUCTION
The Wall-Plate Control System box is a fantastic and useful design
for system installer and smart home user. With 15 direct macro
buttons and extra 15 macro in WebGUI control which allows up to
16 commands to be execute, within one push and a total of 128
commands capacity inside this box that can bring out a set of scenes
in a seconds. Soft and colorful LED design tting all environment
purpose and PoE (Power over Ethernet) function ease power supply
issue without extra DC power burden. Further, relay outputs design
and scheduling function control settings can trigger master switch or
any main switch of the installation environment that brings the world
of control to whole.
2. APPLICATIONS
• Smart Home Installation
• Control Center
• Functional Room
• Show Room
• Ballroom
3. PACKAGE CONTENTS
• 1×Wall Plate Control Keypad
• 1×USB Type A to Mini USB OTG Connector
• 2×3.5mm Terminal Block Pitch
• 1×5 V/2.6 A DC Power Adaptor
• 1×Button Stickers (60pcs)
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
Active internet connection from Hub or Router and output to DC
controllable device.

2
5. FEATURES
• 30 macro buttons with up to 128 commands to implant for control
system
• Supports Relays to control on/off of other devices
• Supports Scheduling control system and settings
• Supports Schedule memory over power blackout up to 48 hrs
• Supports daylight saving timing system
• Supports Key Pad, Telnet and WebGUI controls
• Supports PoE function or DC power supply selection
• UK 2 Gang wall plate design with adjustable LED dim light
• Multiple uses for home, hotel room central control or conference
room and etc.
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
HDBaseT HDMI MUTE
R/L
COAXIAL
LINE OPTICAL
Power
Volume
Dial
IR Sensor
LED
Volume
1
1
Macro Buttons 1~15: Each buttons has 2 colors of LEDs adjustable
from dim 0~100% and can be insert up to 16 commands. (Further
detail settings please refers to section 6.7 WebGUI Control.)

3
6.2 Rear Panel
DC 5V
+
R1R2
CONTROL
RELAY OUT
-
+
-
DC 5V
+
R1R2
CONTROL
RELAY OUT
-
+
-
1 2 3
1
IP Control: Connect from PC/Laptop with active internet service
or Telnet or WebGUI control with RJ-45 terminated cable. This slots
supports PoE PD 48V function which means when the connected
server/Hub support PSE 48V it can be powered without DC supply
connection.
2
DC 5V: Plug the 5V DC power adaptor included in the package
and connect to AC wall outlet for power supply.
3
RELAY OUT: Connect with device that supports DC 0~24V/5A
power or signal that supports relay function.

4
6.3 Telnet Commands
COMMAND DESCRIPTION PARAMETER
IPCONFIG Display the current IP
congure
NONE
SETIP N, N1,N2 Set Ethernet IP, net mask
and gateway address
N=IP
XXX.XXX.XXX.XXX(0~255)
N1= net mask
XXX.XXX.XXX.XXX(0~255)
N2= gateway
XXX.XXX.XXX.XXX(0~255)
SIPADDR XXX.
XXX.XXX.XXX
Set ethernet IP address XXX=0~255
SNETMASK XXX.
XXX.XXX.XXX
Set Ethernet net mask XXX=0~255
SGATEWAY XXX.
XXX.XXX.XXX
Set Ethernet gateway XXX=0~255
SIPMODE N Set Ethernet IP Mode N=STATIC/DHCP
VER Show unit rmware
version
NONE
FADEFAULT All congure set to
factory default
NONE
ETH_FADEFAULT All Ethernet congure
set to factory*
NONE
REBOOT System reboot NONE
HELP (?) Show command list NONE
HELP N Show descript of
command
N=COMMAND NAME
RELAY N N1 Relay control N (PORT)=1or 2
N1=OPEN/CLOSE/
TOGGLE

5
COMMAND DESCRIPTION PARAMETER
LEDBLUE N N1 Led blue backlight
control
N (LED NO.)=1~15
N1=% (0-100)
LEDRED N N1 Led red backlight
control
N (LED NO.)=1~15
N1=% (0-100)
LEDBLUES N All blue led backlight
control
N=% (0-100)
LEDREDS N All red led backlight
control
N=% (0-100)
LEDSHOW N Led dimming mode
control
LEDSHOW N
N=ON/OFF/TOGGLE
BACKLIGHT N All led backlight control N=% (0-100)
KEY_PRESS N
RELEASE
KEY_PRESS N
HOLD
Key press trigger type KEY_PRESS N RELEASE
(Default)
N=KEY NUMBER
KEY_PRESS N HOLD
N=PORT NUMBER
MACRO RUN N
MACRO STOP
MACRO STOP N
Macro control MACRO RUN N
N=MACRO ID (1~15)
MACRO STOP
(Stop All)
MACRO STOP N
N=MACRO ID (1~30)
Note:
1. Any commands will not be executed unless followed by a carriage
return. Commands are case-insensitive.
2. *Command reset IP address back to factory default only.

6
6.4 Software Application
Please download the software from www.cypress.com.tw with le
name CDPS V2.000 and save it in a directory where you may use it
later.
Note: The default setting of the IP address is 192.168.1.50
Connect the Control System with PC/Laptop through the Ethernet
port through an active network system and open the CDPS V2.000
application. Click on Find Devices on Network and a list of the devices
connected to the Control System will show up.
Then user may use the IP Address to nd the control device through
Telnet or WebGUI tools.

7
6.5 Telnet Control
Before attempting to use the Telnet control, please ensure that both
the Wall Plate Control Keypad (via the 'LAN/CONTROL' port) and the
PC/Laptop are connected to the same active networks.
To access the Telnet control in Windows 7, click on the 'Start' menu
and type "cmd" in the Search eld then press enter.
Under Windows XP go to the 'Start' menu and click on "Run", type
"cmd" with then press enter.
Under Mac OS X, go to Go→Applications→Utilities→Terminal
See below for reference.
Once in the command line interface (CLI) type "telnet", then the IP
address of the unit and "23", then hit enter.

8
This will bring us into the unit which we wish to control. Type "help" to
list the available commands.
Note: Commands will not be executed unless followed by a carriage
return. Commands are case-insensitive. If the IP is changed then the IP
Address required for Telnet access will also change accordingly.

9
6.6 WebGUI Control
On a PC/Laptop that is connected to an active network system, open
a web browser and type device’s IP address on the web address entry
bar. A security page will appear to ask for User and Password, please
key in “Admin” for both and click Submit to enter.
Note: The Default IP setting is on Static with address at 192.168.1.50
The browser will display the device’s Macro Settings, Extension Macro,
Command Settings, Schedule, Network Settings, System Settings and
Time Settings pages for users to control.
The Background Light bar allows user with instant change on the LEDs
lighting percentage base on the orignial illuminate setting.

10
There are 6 Macro inserted as default setting for testing the Wall-Plate
Control System’s functionality. Click on Macro 1~6 to demonstrate the
function of lighting LEDs.
• Macro 1: Light up the Red backlight LED with 100% brightness
sequentially from 1~15 with every 500ms
• Macro 2: Light up the Blue backlight LED with 100% brightness
sequentially from 1~15 with every 500ms
• Macro 3: Switch off all the red backlight LED with 0% brightness
• Macro 4: Switch off all the blue backlight LED with 0% brightness
• Macro 5: LED show mode toggle, switch off Demo Mode
• Macro 6: Light up the Blue backlight LED with 10% brightness, Switch
off all the blue backlight LED with 0% brightness, switch Off & On
Relay 1 and switch Off & On Relay 2 with delay of 1000ms
To disable default testing mode, click on Demo Mode/Macro 5 to
switch it off.
Click on the mark to edit the command settings. Up/down
arrows are to move the command up or down and button is to
delete the command.

11
Click on Insert button to insert commands. Command can be set to
control the Wall-Plate Control Box/SysCMD, other devices connected
within the same Telnet system/Internet area and Relay devices
connected through the Relay outputs of Wall-plate Control Box with
delay time setting. It is suggest to set the delay time >100ms once the
setting is conrmed double click on Save Change.
Command set to control the devices within the same telnet system
or internet area require to set its IP and Port number and it is strongly
recommand to set the delay time >500ms in order to secure a
successful command sending. Once the setting is done click on Save
Changes.

12
Command set to control the Relay devices require to set the Port
number. Click on Save Change to conrm the setting.
Click on 'Extension Macro' to execute/edit more Macro action up to
15 more.

13
Click on 'Command Settings' to insert new commands or delete
commands and Label the command with end character.
Command under 128 characters including space can be build up
to 128 commands, command over 128 characters and under 512
characters including space can be build up to 32 command in
addition with 96 commands of 128 characters under. Click on Save
Change to save the command inserted.
Click on ‘Device Settings’ to enable or disable the selected
device settings with up to 16 sets available. Device naming up to
24 characters include space, IP address and Connection port re-
assignable. This setting will be linked directly to the command list and
the command setting under Macro Settings.

14
Click on Key Settings to enable and disable Repeat and or Toggle
mode on Macro buttons.
Enable Reapeat Mode will allows action(s) to be execute repeatly
when Macro button is pressed and hold on. Up on button releasing
action will be terminated. This function works on Macro 1~15 only.
Each Macro can contain up to 16 actions. Enable Toggle mode will
combine both Macr button and Extension Macro into one. When
Macro button is pressed only one part of Macro will be execute a
time.
Click on 'Schedule' to set the executing time schedule of the Macro(s).
Note: The scheduling system support up to 48hrs of memory under
power blackout after that the system will reset the time automatically
back to 2015/01/01 00:00:00.

15
Click on Edit from Repeat column to set the macro command(s) to be
activated repeatedly on a set time.
