CYP CMPRO-U8H8CVPL User manual

CMPRO-U8H8CVPL
4K2K 8x8 HDMI Matrix over CAT5e/6/7
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2014 by Cypress Technology.
All Rights Reserved.
Version 1.0 June 2014
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 20/05/14 Preliminary Release
RDV2 19/09/14 Add RS-232 Command

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 2
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 Side Panel .........................................5
6.4 Remote Control................................6
6.5 IR Cable Pin Assignment..................6
6.6 RS-232 Pin Assignment .....................7
6.7 RS-232 & Telnet Commands............8
6.8 Telnet Control .................................10
6.9 Web GUI Control ............................12
7. Connection Diagram .......................... 14
8. Specications ...................................... 16
9. Acronyms ............................................. 17

1
1. INTRODUCTION
The 4K2K 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission
of video (resolutions up to 4K2K Full HD), multi-channel digital
audio and control via IR, RS-232, Telnet or Web GUI from eight high
denitionsources to eight outputs over a single CAT5e/6/7 cable (up
to 60m) for each output.
It supports high resolution digital audio formats such as LPCM 7.1CH,
Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as
3D content that can be displayed when connecting a 3D TV and 3D
source.
2. APPLICATIONS
• HDMI Matrix System
• Video/TV wall display and control
• Security surveillance and control
• Commercial advertising, display and control
• University lecture hall, display and control
• Retail sales and demonstration
3. PACKAGE CONTENTS
• 4K2K 8×8 HDMI Matrix over CAT5e/6/7
• 9×IR Blaster
• 1×24 V/6.25 A DC Power Adaptor
• 2×Power Cable
• 1×IR Remote Control
• Operation Manual

2
4. SYSTEM REQUIREMENTS
• HDMI equipped source devices, connect with HDMI cables or DVI
equipped source, connect with DVI to HDMI cables
• HDMI equipped displays (TVs or monitors) or HDMI equipped AV
receivers, connect with HDMI cables
• Industry standard CAT5e/6/7 cables
• HDBaseT™ Receivers
5. FEATURES
• HDMI, HDCP 1.1 and DVI compliant
• Supports resolutions VGA~WUXGA, 4K2K@24/25/30 & YUV_420 and
480i~1080p dependent upon the output display’s EDID settings
• Supports distances up to 60 meters through CAT6/7 cables
• Supports 3D signal display dependent upon the output display EDID
settings
• Supports PoC (Power over Cable) on compatible receivers only
• Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters
at 12-bit resolution
• Supports bi-directional IR from input and output locations
• Supports RS-232, remote control, on-panel control and IP Control
(Telnet & Web GUI)
• 2U size design
• Supports external and internal EDID settings
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD
Master Audio transmission
Note:
1.The PoC function is designed for powering compatible receiver units
only—non-PoC receivers will need their own power supply. Receivers
of another brand may not be compatible.
2.Do not connect the LAN port to CAT outputs of this device or to CAT
inputs or receiver. Doing so may demagethe unit.

3
6. OPERATION CONTROLS AND FUNCTIONS

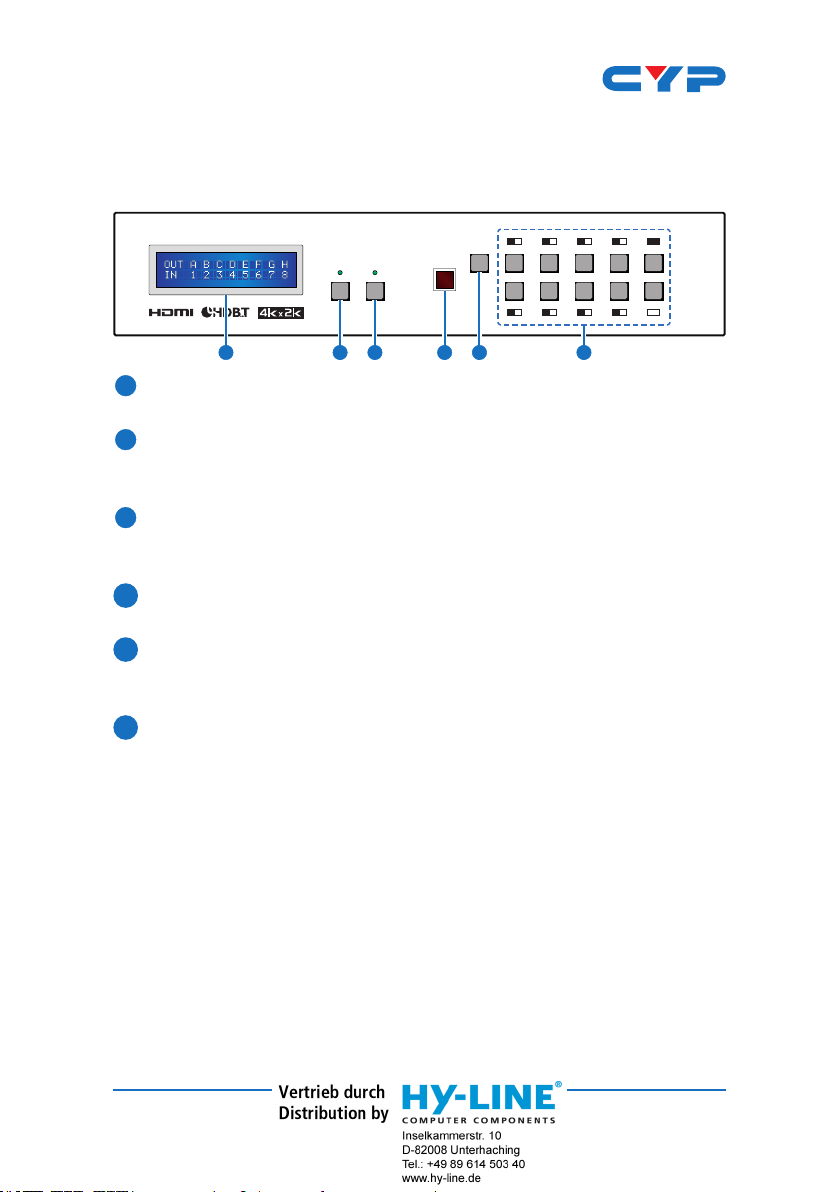

6.1 Front Panel
POWER LOCK
MENU OUTA 1B2C3D4
IN
E5F6G7H8
2 3 4 5 61
1
LCM : Displays the setting information of each input and output
setting.
2
POWER: Press this button to power the device on/off. The LED will
illuminate green when the power is on, red when it is in 'Standby'
mode.
3
LOCK: Press this button for 3 seconds to lock all the buttons on the
panel; press again for 3 seconds to unlock. The LED will illuminate
green when locked.
4
IR: IR Receiver window (accepts the remote control signal of this
device only).
5
MENU: Press this button to access the LCM menu system, from
here EDID settings can be managed and IP system settings are
displayed.
6
1~8/A~H and In/Out: Press the Out or In button to select the output
or input mode and then press the required number button to make
the selection accordingly.
For example, if outputs A~D need to be set to input 1 and outputs
E~H need to be set to input 2, then the following sequence of
button presses need to be performed:
Press: Out →A→B→C→D→In→1→Menu,
and then press: Out→E→F→G→H→In→2→Menu.
Note: If the menu button is not pressed the selection will not be
changed.

4

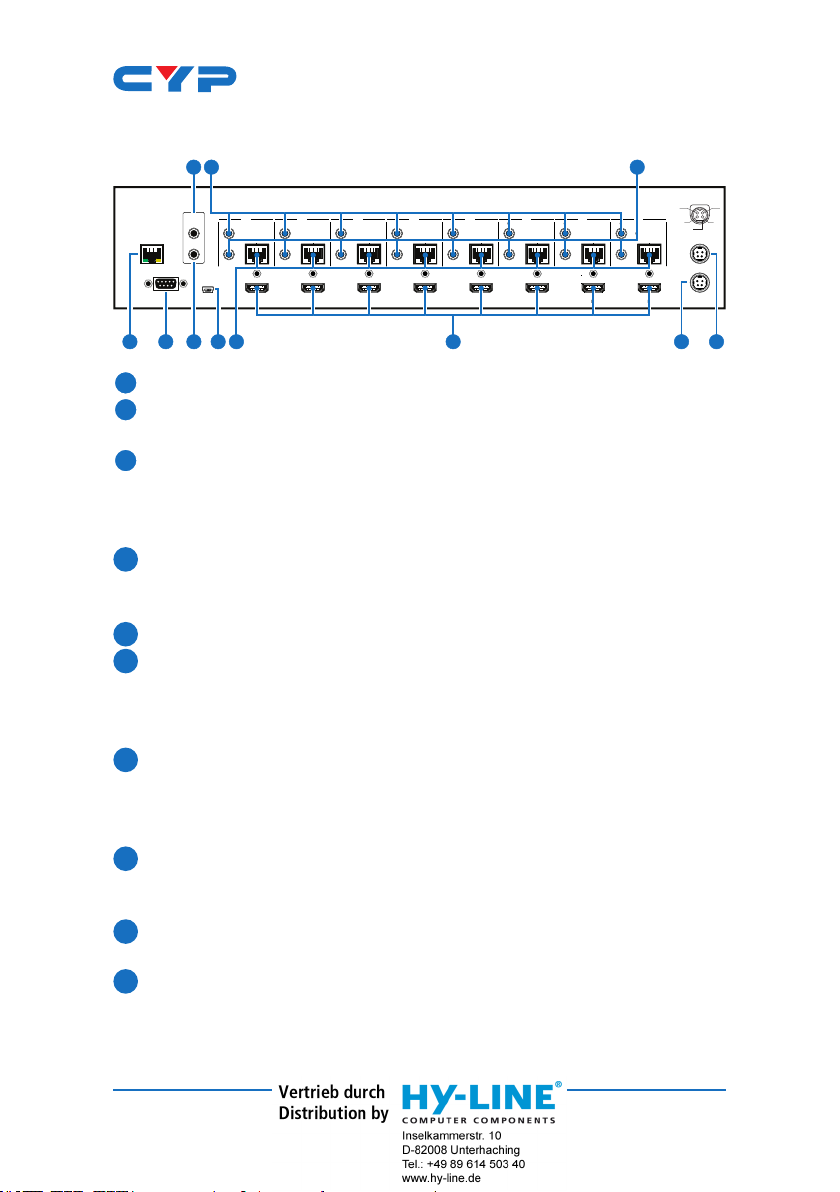

6.2 Rear Panel
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUTCAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
CONTROL
24
3
510 111
6
8
7
9
1
CONTROL: Web GUI control (refer to Sections 6.8 and 6.9).
2
RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for the transmission of RS-232 commands.
3
ALL IR OUT: Connect to the IR blaster for IR signal transmission to
the source side. Place the IR blaster in direct line-of-sight of the
equipment to be controlled for it will blaster out all signal received
from the IR IN at the receiver sides.
4
ALL IR IN: Connect to the IR extender for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the signal to all receiver's IR OUT.
5
SERVICE: Manufacturer use only.
6
IR OUT 1~8: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled for it will blaster out the IR signal received from the
receiver side choosen by input selection.
7
IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure
that remote being used is within the direct line-of-sight of the IR
extender for it will send out the IR signal to the selected receiver's
IR OUT.
8
CAT5e/6/7 OUT 1~8: Connect from these CAT outputs to the CAT
input port of the receiver units with a single CAT5e/6/7 cable for HDMI
Audio/Video and IR/RS-232 control signal transmission.
9
HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
10
DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit
and connect the adaptor to an AC outlet.

5
11
PoC 24V: Plug the 24 V PoC power supply into the unit and connect
the adaptor to an AC outlet. This unit will power PoC (Power over
Cable) capable receiver units.
Warning: Please do not connect the CAT5e/6/7 cable into the
receiver's LAN port.
6.3 Side Panel
1
1

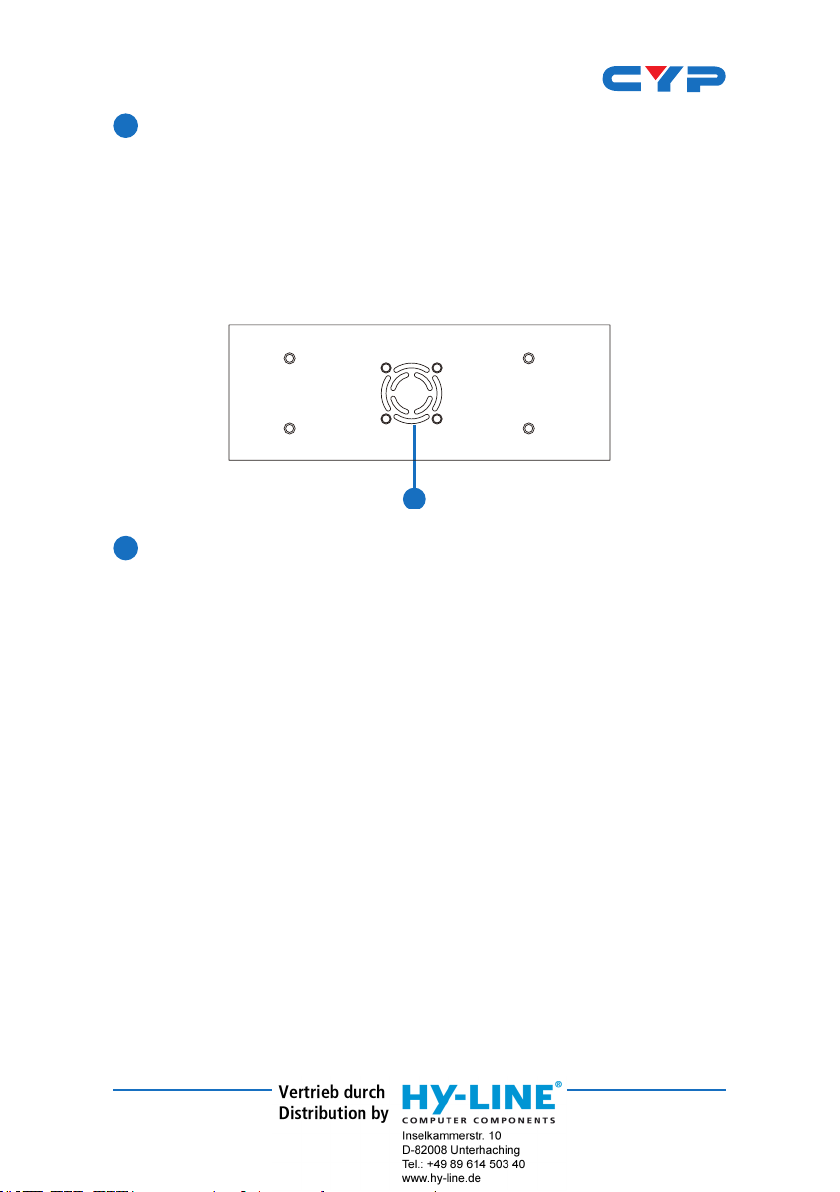

Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.

6
6.4 Remote Control
1
POWER: Press this button to
switch on the device or set it to
standby mode.
2
IN: Input ports selection 1~8.
3
OUT: Output ports selection A~H.
6.5 IR Cable Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Grounding
IR Receiver
IR Blaster
1
23

7
6.6 RS-232 Pin Assignment
CMPRO-U8H8CVPL Remote Control Console
PIN Assignment PIN Assignment
1 NC 1 NC
2Tx 2Rx
3Rx 3Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200 bps
Data bit: 8 bits
Parity: None
Stop Bit: 1
Flow Control: None

8

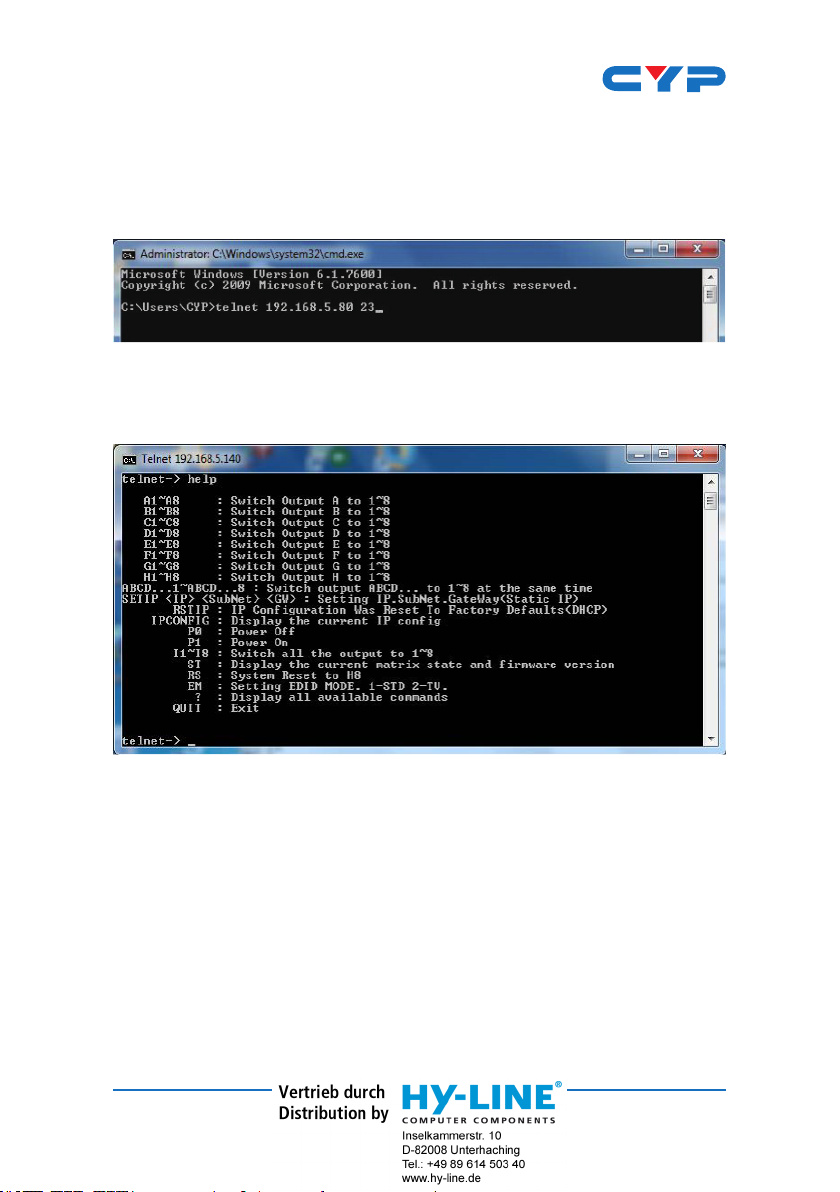

6.7 RS-232 & Telnet Commands
Command Description
A1~A8 Switch Output A to 1~8
B1~B8 Switch Output B to 1~8
C1~C8 Switch Output C to 1~8
D1~D8 Switch Output D to 1~8
E1~E8 Switch Output E to 1~8
F1~F8 Switch Output F to 1~8
G1~G8 Switch Output G to 1~8
H1~H8 Switch Output H to 1~8
ABCD...1~ABCD...8 Switch Output A B C D... to 1~8 at the
same time
SETIP <IP> <SubNet> <GW> Setting IP. SubNet. GateWay (Static IP)
RSTIP IP Conguration Was Reset To Factory
Defaults <DHCP>
IPCONFIG Display the current IP cong
P0 Power OFF
P1 Power ON
I1~I8 Switch all the Output to 1~8
ST Display the current matrix status and F/
W version
RS System Reset to A1, B2, C3, D4, E5, F6,
G7, H8
EM Setting EDID MODE. 1-STD 2-TV

9
Command Description
UARTBAUD1~8 Set output A~D’s uart baud rate from
1~6
1: 9600bps
2: 14400bps
3: 19200bps
4: 38400bps
5: 57600bps
6: 115200bps
UARTSW1~8 Switch output’s UARTto A~H and
allow Matrix to send commands to
Receiver's connected RS-232 device.
UARTSW0 Switch output's UART to MCU.
Restoring RS-232 control to the
Receiver output back to Matrix.
UARTBAUD? Display all the outputs UART baud
UARTSW? Display the UART switching state
?Display all the available commands
Quit Exit(for telnet only)
Note: Any commands will not be executed unless followed by a
carriage return. Commands are case insensitive.

10
6.8 Telnet Control
Before attempting to use the telnet control, please ensure that both
the Matrix (via the 'LAN port) and the PC/Laptop are connected to
the active networks.
To access the telnet control in Windows 7, click on the 'Start' menu
and type "cmd" in the Search eld then press enter.
Under Windows XP go to the 'Start' menu and click on "Run", type
"cmd" with then press enter.
Under Mac OS X, go to Go→Applications→Utilities→Terminal
See below for reference.

11
Once in the command line interface (CLI) type "telnet", the IP address
of the unit you wish to control and "23", then hit enter.
Note: The IP address of the Matrix can be displayed on the device's
LCM monitor by pressing the Menu button twice/three times.
This will bring us into the device which we wish to control. Type "HELP"
to list the available commands.
Type “IPCONFIG” To show all IP congurations. To reset the IP,
type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of
commands, see Section 6.7).
Note: Any commands will not be executed unless followed by a
carriage return. Commands are not case-sensitive. If the IP is changed
then the IP Address required for Telnet access will also change
accordingly.

12

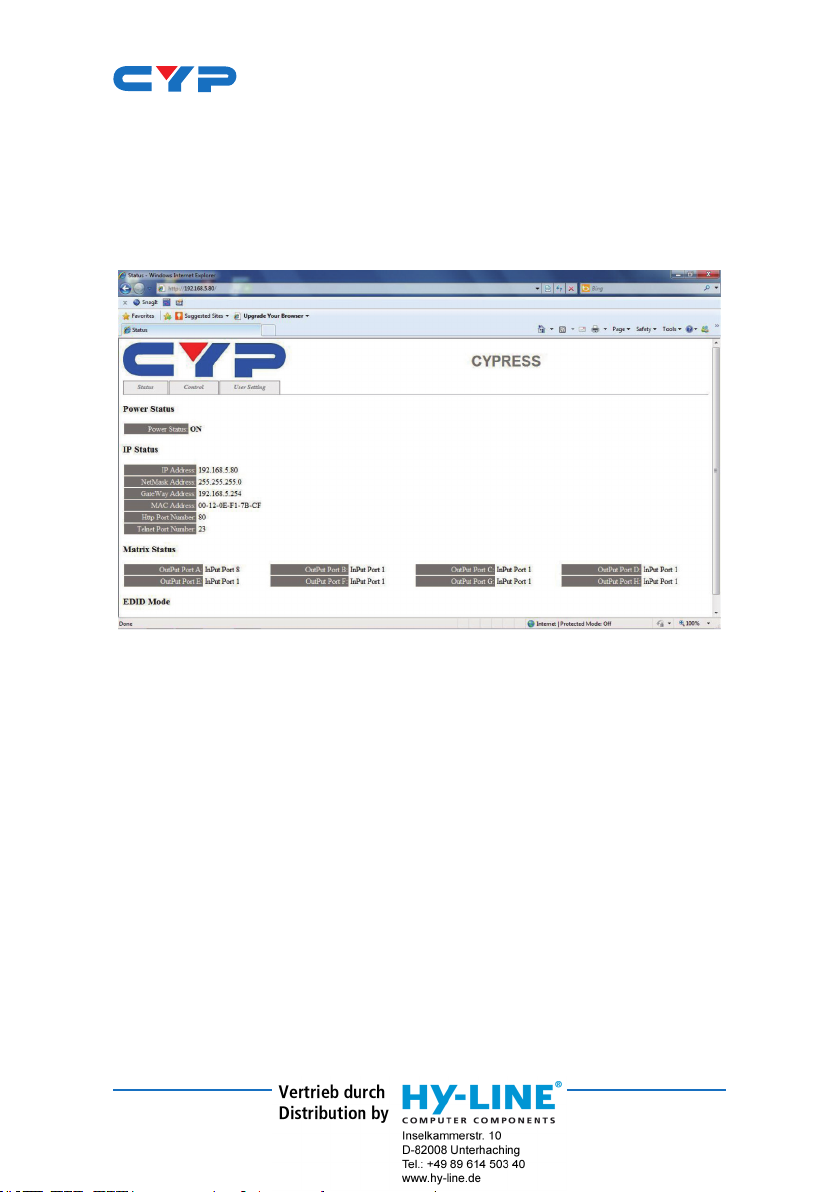

6.9 Web GUI Control
On a PC/Laptop that is connected to the same active network as the
Matrix, open a web browser and type device's IP address on the web
address entry bar. The browser will display the device's status, control
and User setting pages.
Click on the 'Control' tab to control power, input/output ports, EDID
and reset mode.

13
Clicking on the 'User Setting' tab allows you to reset the IP
conguration. The system will ask for a reboot of the device every time
any of the settings are changed. The IP address needed to access
the Web GUI control will also need to be changed accordingly on the
web address entry bar.

14

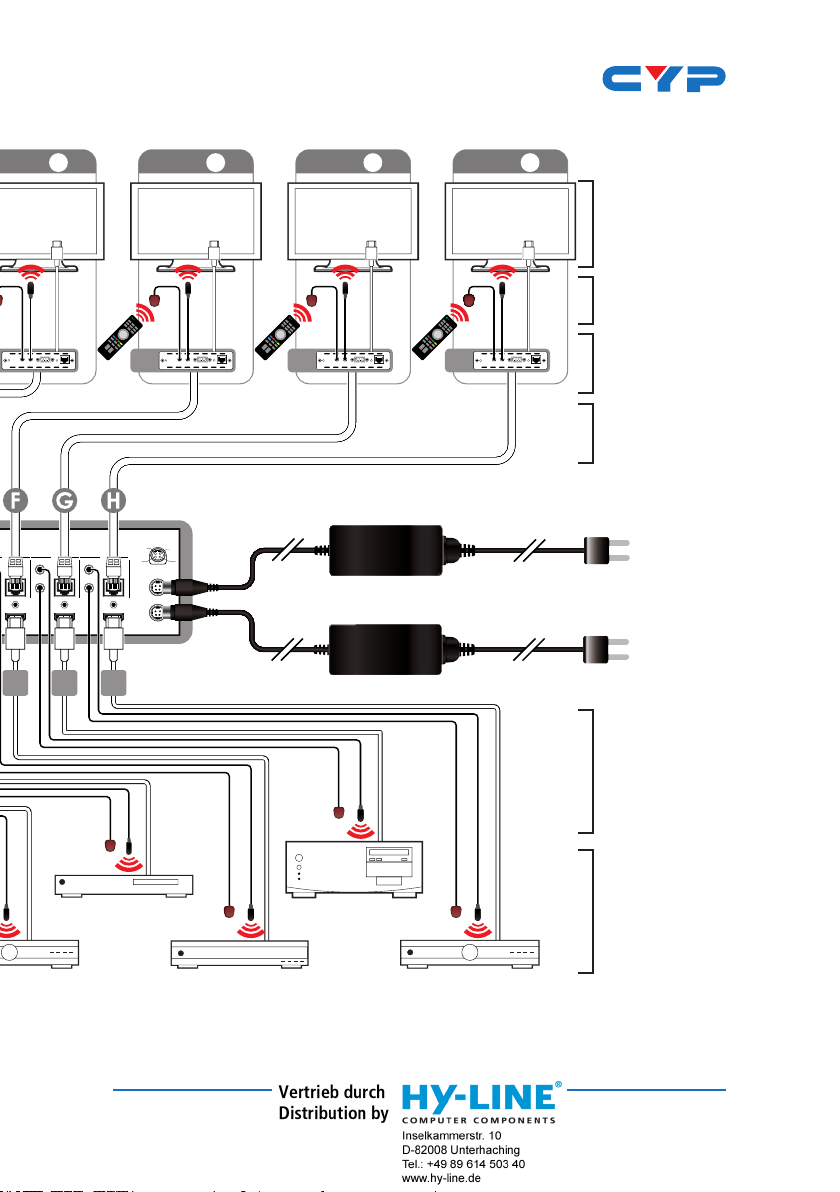

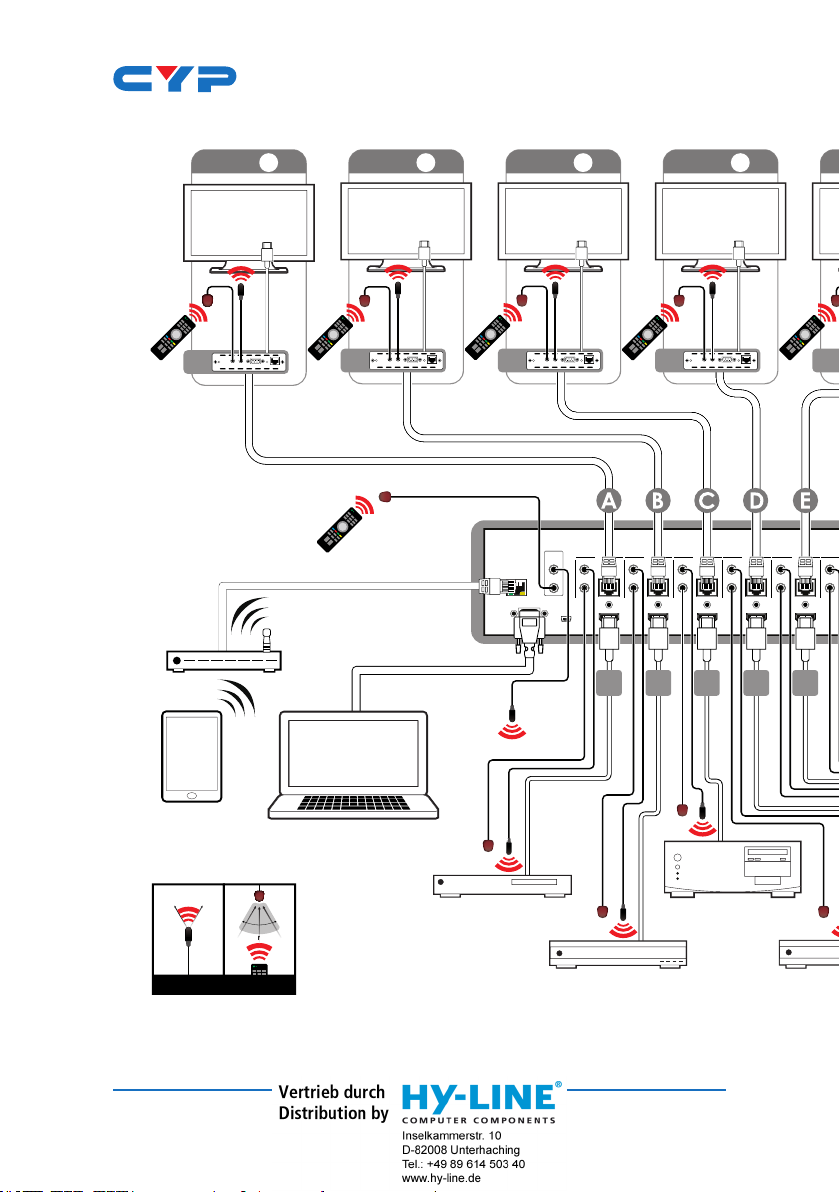

7. CONNECTION DIAGRAM
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
ZONE A
CONTROL
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E
F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
12
34
V+
GND
GND
GND
V+
1234
56 87
RX
ZONE B
Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link
ZONE C
RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link
ZONE D
RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link
ZONE EZONE FZONE GZONE H
RX Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link
Main Power Supply
Power Supply for
Power-over-Cable
IR
Out
(All)
IR In (ALL)
Receiver Units
Single
CAT 5e/6
Cable
HDMI Inputs
IR Out/In
HDMI Outputs
IR Out/In
Source
Equipment
Displays
RS-232 Equipped
PC or Notebook
Wireless
Router(with
Internet
Connection)
Model Shown:
8×8 HDMI Matrix
Smartphone
or Tablet

15
7. CONNECTION DIAGRAM
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
ZONE A
CONTROL
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E
F G H
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
CAT5e/6 OUT
IR OUT
IR IN
CAT5e/6 OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
12
34
V+
GND
GND
GND
V+
123456
87
RX
ZONE B
Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link
ZONE C
RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link
ZONE D
RX
Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 OutCAT5e/6In
Link RX Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link
ZONE EZONE FZONE GZONE H
RX Power
Extender Blaster
IR 2
IR 1
RS232 Out CAT5e/6 In
Link
Main Power Supply
Power Supply for
Power-over-Cable
IR
Out
(All)
IR In (ALL)
Receiver Units
Single
CAT 5e/6
Cable
HDMI Inputs
IR Out/In
HDMI Outputs
IR Out/In
Source
Equipment
Displays
RS-232 Equipped
PC or Notebook
Wireless
Router(with
Internet
Connection)
Model Shown:
8×8 HDMI Matrix
Smartphone
or Tablet

16
8. SPECIFICATIONS
Video Bandwidth 300 MHz/9 Gbps
Input Ports 8×HDMI, 9×IR Extender,
1×RS-232, 1xLAN, 1×Mini USB-B type (for
rmware update only)
Output Ports 8×CAT5e/6/7, 9×IR
ESD Protection Human-body Model:
± 8kV (Air-gap discharge)
± 4kV (Contact discharge)
Power Supply 24 V/6.25A DC (US/EU standards, CE/FCC/
UL certied)
Dimensions 438 mm (W)×235 mm (D)×88mm (H)/Jacks
Excluded
438 mm (W)×249 mm (D)×93mm (H)/Jacks
Included
Weight 4402g
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 65 W Tx (Main), 56 W Rx (PoE)
