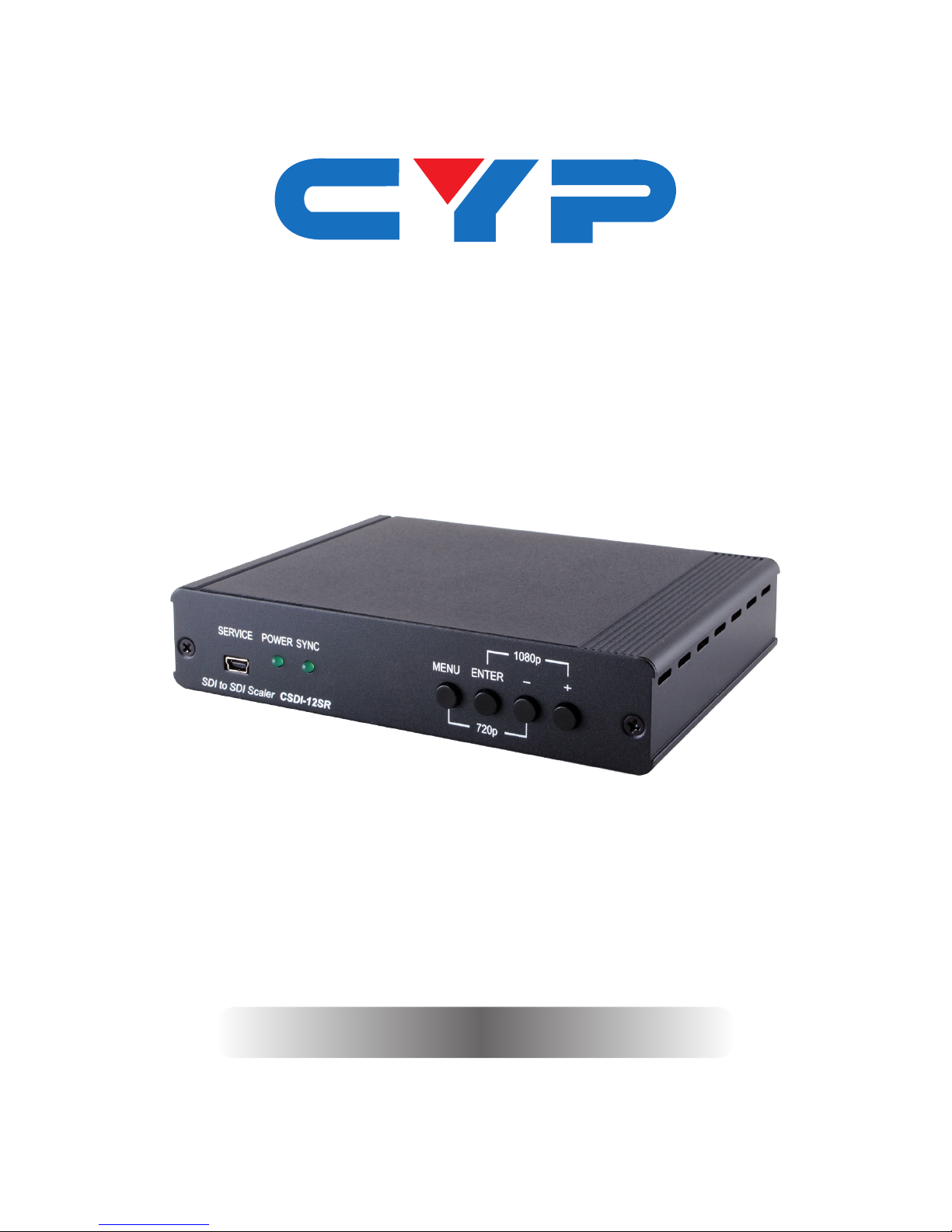

CYP CSDI-12SR User manual

CSDI-12SR
1 by 2 SDI to SDI Scaler
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version 1.0 September 2010
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
V1 11/12/13 Preliminary Release

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 OSD Menu and Function List...........5
6.4 Input support timing table...............7
6.5 Output support timing table...........8
6.6 USB Firmware update procedure...8
7. Connection Diagram ............................ 9
8. Specications ........................................ 9
9. Acronyms ............................................. 10

1
1. INTRODUCTION
The 1 by 2 SDI to SDI Scaler allows SD, HD, 3G-SDI signals to be shown
on SDI display. It is easier for professional to distribute and extend their
SDI signal. Through the front panel, the user can easy to bring up the
OSD (On Screen Display) to select benets settings.
2. APPLICATIONS
• Distribute and extend SDI signal to SDI displays
• Scale any SDI input timing to any SDI output timing follow by SDI
standard
3. PACKAGE CONTENTS
• 1 by 2 SDI to SDI Scaler box
• 5V/2.6A DC power adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as SNG camera or any SDI signal with SDI
connection cable and output to the SDI monitors with SDI connection
cables.

2
5. FEATURES
• One SDI input to two SDI outputs with scaler functions
• Supports SD-SDI, HD-SDI and 3G-SDI input/output signals with auto-
detection
• SDI interface operates at bitrates of 2.970Gbps, 2.970/1.001Gbps,
1.485Gbps, 1.485/1.001Gbps and 270Mbps
• Scale any SDI input signals to any SDI output signals follow by SDI
standard
• Supports SDI input/output modes:
1. SD-SDI (SMPTE 259M-C, at bitrates of 270Mbps)
2. HD-SDI (SMPTE 292M, at bitrates of 1.485Gbps and
1.485/1.001Gbps)
3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970Gbps and
2.970/1.001Gbps)
• The audio support up to 8 channels at 48kHz
• The SDI input/output distance up to 100 meters (3G-SDI), 200 meters
(HD-SDI), or 300 meters (SD-SDI)
Note: Tested with Belden 1694A Cable. Operating distances may vary
 ifusedwithcableofdifferentspecications.

3
6. OPERATION CONTROLS AND FUNCTIONS

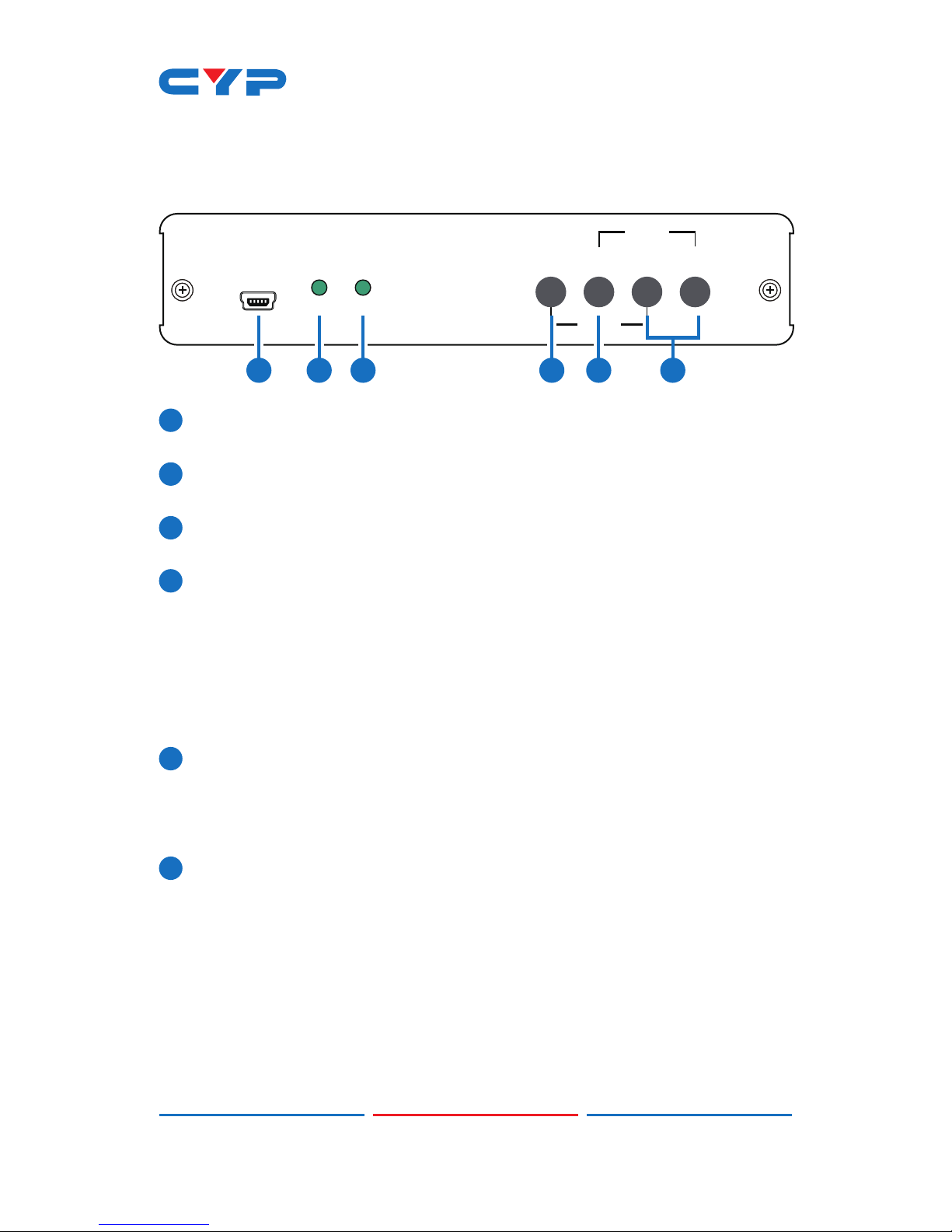

6.1 Front Panel
720p
1080p
SDI to SDI Scaler CSDI-12SR
MENUSYNCPOWERSERVICE ENTER
-
+
1 2 3 4 5 6
1
SERVICE: This slot is to connect with mini USB B type cable for
rmware update only.
2
Power LED indicator: The power LED will illuminate when power is
ON.
3
SYNC LED indicator: The LED will illuminate when the SDI port is
connected and detected to the input source.
4
MENU:
¾Press this button to bring up the OSD menu. When in OSD menu
mode, the “MENU” button will become to “EXIT” button.
¾Press “MENU” with “-“buttons to switch output timing to
720p@60Hz instantly.
¾This “MENU” button can be an ISP key for Firmware upgrade
(please refer to 6.6 USB Firmware Update Procedure).
5
ENTER:
¾ Press to conrm the selection.
¾Press “ENTER” with “+” buttons to switch output timing to
1080p@60Hz instantly.
6
-/+:
¾Press these buttons to move up or down the OSD selections.
¾When in normal display (without OSD), press “+” button to
FREEZE the image (Please refer to the 6.3 OSD Menu and
Function List).

4

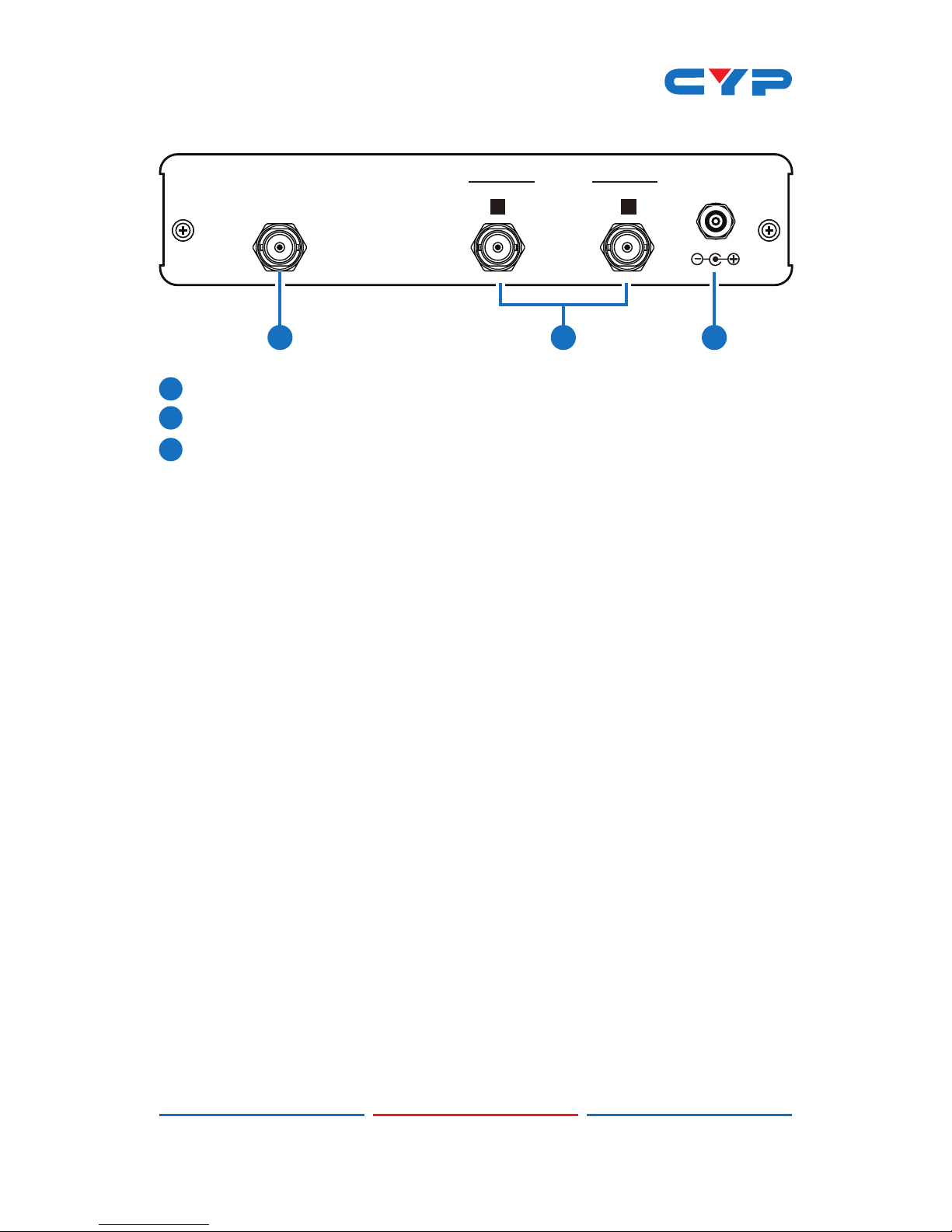

6.2 Rear Panel
DC 5VSDI OUT
SDI IN
1 2
1 3
2
1
SDI IN: Connect to the SDI output of the SDI source device.
2
SDI 1&2 OUT: Connect to the SDI displays.
3
DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet. The “POWER” LED will illuminate when
power is ON.

5
6.3 OSD Menu and Function List
The OSD IN/OUT is showing the input/output timing, if the input did not
connect to the source the input OSD will display “No Signal”.
MAIN MENU Sub Menu Adjustments Default
OUTPUT
480I59 , 576I50 ,
720P50 , 720P59 , 720P60 ,
1080P23 , 1080P24 ,
1080P25 , 1080P29 ,
1080P30 , 1080I50 ,
1080P50 , 1080I59 ,
1080P59 , 1080I60 ,
1080P60
720P60
EXIT
CONTRAST 0 ~ 100 64
BRIGHTNESS 0 ~ 100 64
SATURATION 0 ~ 100 64
HUE 0 ~ 100 64
SHARPNESS 0 ~ 100 32
PICTURE RESET
EXIT
ASPECT RATIO
(*1)
FULL
FULL
16:9 TV
16:10 TV
4:3 TV
KEEP RATIO
EXIT
OVERSCAN
ENABLE YES , NO NO
H SIZE% 0% ~ 50% 0%
V SIZE% 0% ~ 50% 0%
EXIT
AUDIO
ENABLE YES , NO YES
SOURCE GROUP 1+2 , 3+4 ,
AUTO (*2)AUTO
EXIT

6
OSD SETTINGS
POSITION
LEFT-TOP ,
RIGHT-TOP ,
RIGHT-BTM
, LEFT-BTM ,
CENTER
LEFT-TOP
TRANSPARENCY 0~15 12
MENU TIMEOUT 5~50, OFF(*3)20
INFO. TIMEOUT 5~50, OFF 10
INFO. DISPLAY ON , OFF ,
INFO INFO
EXIT
ADVANCED
AUTO SYNC-OFF(*4)ON , OFF OFF
MIRROR-V ON , OFF OFF
FREEZE(*5)
FREEZE ONLY,
FREEZE+MUTE,
MUTE ONLY
FREEZE+
MUTE
EXIT
PATTERN
OFF
OFF
COLOR BAR
GRAY SCALE
CROSS HATCH
CROSS
WHITE WINDOW
RAMP
EXIT
FACTORY
DEFAULT
NO
NO
YES
EXIT
INFORMATION
IN , OUT ,
Audio group
detection
report,
Firmware
Version
EXIT
EXIT

7
NOTE:
*1 ASPECT RATIO:
9FULL-Fullllsthescreen.
916:9 TV, 16:10TV, 4:3TV – Select the corrected Aspect ratio to
match the display.
9KEEP RATIO: The ratio will depend on the output timing. For
example: The output timing is 1080p@60Hz (16:9) and display is
4:3, then the image will become Letter box (black bars above
and below it).
*2 SOURCE GROUP: From OSD menu to select 4 groups of audio source
(Group1+2/3+4 or Auto detection), the maximum audio output is 8
channels.
91+2: Group 1 is Primary, Group 2 is Secondary.
93+4: Group 3 is Primary, Group 4 is Secondary
9AUTO: Primary > Secondary, Group 1 > 2 > 3 > 4.
*3 MENU TIMEOUT: When MENU TIMEOUT is OFF, the MENU/INFO screen
will stand still on the display.
*4 AUTO SYNC-OFF: When the output displays been disconnected for 2
minutes the system will automatically switch off the SYNC output.
*5 FREEZE: When freeze is ON, either source change timing or no
source input, the video always freeze. Unless changed output
timing. The system did not support last memory functions, when
reboot the system the image still remain freeze.
9FREEZE ONLY: Video freeze and Audio is ON.
9FREEZE+MUTE: Video freeze and Audio mute.
9MUTE ONLY: Video is ON and Audio mute.
6.4 Input support timing table
Input timing
SD-SDI 480i@59Hz
576i@50Hz
HD-SDI 720p@50 / 59.94 / 60Hz
1080i@50 / 59.94 / 60Hz
[email protected] / 24 / 25 / 29.97 / 30Hz
[email protected] / 24 / 25 / 29.97 / 30Hz
3G-SDI 1080p@50 / 59.94 / 60Hz

8
NOTE:
¾When input source is [email protected]/24Hz, the output will not
support 480i/576i and the OSD timing selection will become
blank for those two timings.
¾When the input source is 1080sF@25/29.97/30Hz, the OSD input
timing will show 1080i@50/59.94/60Hz.
6.5 Output support timing table
Output timing
SD-SDI 480i@59Hz
576i@50Hz
HD-SDI 720p@50 / 59.94 / 60Hz
1080i@50 / 59.94 / 60Hz
[email protected] / 24 / 25 / 29.97 / 30Hz
3G-SDI
3G-SDI 1080p@50 / 59.94 / 60Hz
6.6 USB Firmware update procedure
1. Do not connect the 5V power to the unit.
2. Connect Mini-USB cable to the unit.
3. Press “MENU” button and connect 5V power to the system.
4. Wait for PC connection, after connected the le management will
bring up automatically.
5. Release “MENU” button and then attached the BIN le to the le
management.

9
7. CONNECTION DIAGRAM
SDI Display / Monitor
SDI Camera
DC 5VSDI OUT
SDI IN
1 2
8. SPECIFICATIONS
SMPTE Standard 425M Level A& B, 424M, 292M, 259M-C
SDI Transmission Rates 2.970Gbps, 2.970/1.001Gbps, 1.485Gbps,
1.485/1.001Gbps and 270Mbps
Video Bandwidth 148.5MHz/link
Input port 1 x BNC(SDI/HD/3G-SDI)
Output ports 2 x BNC(SDI/HD/3G-SDI)
SDI Timing Support SD-SDI: SMPTE 259M-C, 270Mbps
HD-SDI: SMPTE 292M, 1.485 and
1.485/1.001Gbps
3G-SDI: SMPTE 424M/425M-AB, 2.970 and
2.970/1.001Gbps

10
SDI cable Distance 3G/HD/SD-SDI up to 100/200/300 meters
with BELDEN 1694A Cable
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL
certied)
Dimensions 145(W) x 112.5(D) x 30(H)/Jacks Excluded
145(W) x 131(D) x 30(H)/Jacks Included
Weight 354
Chassis Material Aluminum
Silkscreen Color Black
Operating Temperature 0˚C~40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption N/W (Max)
9. ACRONYMS
ACRONYM COMPLETE TERM
3G Bandwidth 2.97Gbps~3G
SDI Serial Digital Interface
HD High Denition

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
MPM-CSDI12SR
