CYP WPS-QPM01 User manual

Operation Manual
Operation Manual
UHD+HDMI/DP over Fiber Transceiver
(10Gbit/s SFP+)
WPS-QPM01

DISCLAIMERS
The information in this manual has been carefully checked and is believed
to be accurate. Cypress Technology assumes no responsibility for any
infringements of patents or other rights of third parties which may result from
its use.
Cypress Technology assumes no responsibility for any inaccuracies that
may be contained in this document. Cypress also makes no commitment to
update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer le, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express written
permission and consent from Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document are trademarks of
the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture
or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings
or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it
is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to
be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings
in the unit housing that provide ventilation and allow for su󰀩cient space
for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use to
avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
V1.0 2020/12/30 Preliminary release

CONTENTS
1. MAIN FEATURES ............................................. 1
2. OPERATION CONTROL AND FUNCTIONS .... 1
2.1 Receiver ...................................................... 1
2.2 Transmitter................................................... 2
3. CONFIGURING YOUR HYSHARE VIA WEB... 2
4. BEGIN TO CAST WITH HYSHARE.................. 3
5. USER LOGIN .................................................... 4
6. DOWNLOAD ANDROID APK........................... 5
7. NETWORK MANAGEMENT............................. 5
7.1 Connect to 5GHz Wireless Access Point..... 5
7.2 Remember Wi-Fi ......................................... 6
8. DEVICE MANAGEMENT.................................. 7
8.1 Language..................................................... 7
8.2 Resolution.................................................... 8
8.3 Maximum Connections................................ 9
8.4 Display Mode............................................... 9
8.5 Reboot Timer............................................. 10
8.6 One Touch Play ......................................... 10
9. ADMIN SETTINGS.......................................... 11
9.1 Wi-Fi Channel............................................ 11
9.2 LAN IP Settings ......................................... 12
9.3 SSID .......................................................... 12
9.4 Password................................................... 14
9.5 My Screen ................................................. 14
9.6 Dynamic Wallpaper ................................... 15
9.7 Host Control: An admin can control other
casting devices................................................ 15
9.8 AirPlay Support.......................................... 16
9.9 Admin Password........................................ 17
9.10 Screen Saver........................................... 17

9.11 WiFi Enterprise ........................................ 18
9.12 Fixed Hos ................................................ 18
9.13 Castcode Control..................................... 19
9.14 Upgrade................................................... 19
9.15 Multicast .................................................. 20
9.16 Download Pairing File.............................. 21
9.17 Reboot..................................................... 21
9.18 Reset to Factory Default.......................... 22
10. ABOUT DEVICE........................................ 22

1
1. MAIN FEATURES
1.1 No App required, just press one key to work with projector.
1.2 High compatibility with iOS, Android, Windows, MacOS.
1.3 Supports 1080p input and up to 3840x2160@30Hz output.
1.4 5GHz Wi-Fi transmission.
1.5 Support touch back, Google Cast and AirPlay.
1.6 Support 4 of splitter screens.
1.7 Allow up to 32 connections through Wi-Fi.
1.8 Support multi I/O: HDMI and USB.
2. OPERATION CONTROL AND FUNCTIONS

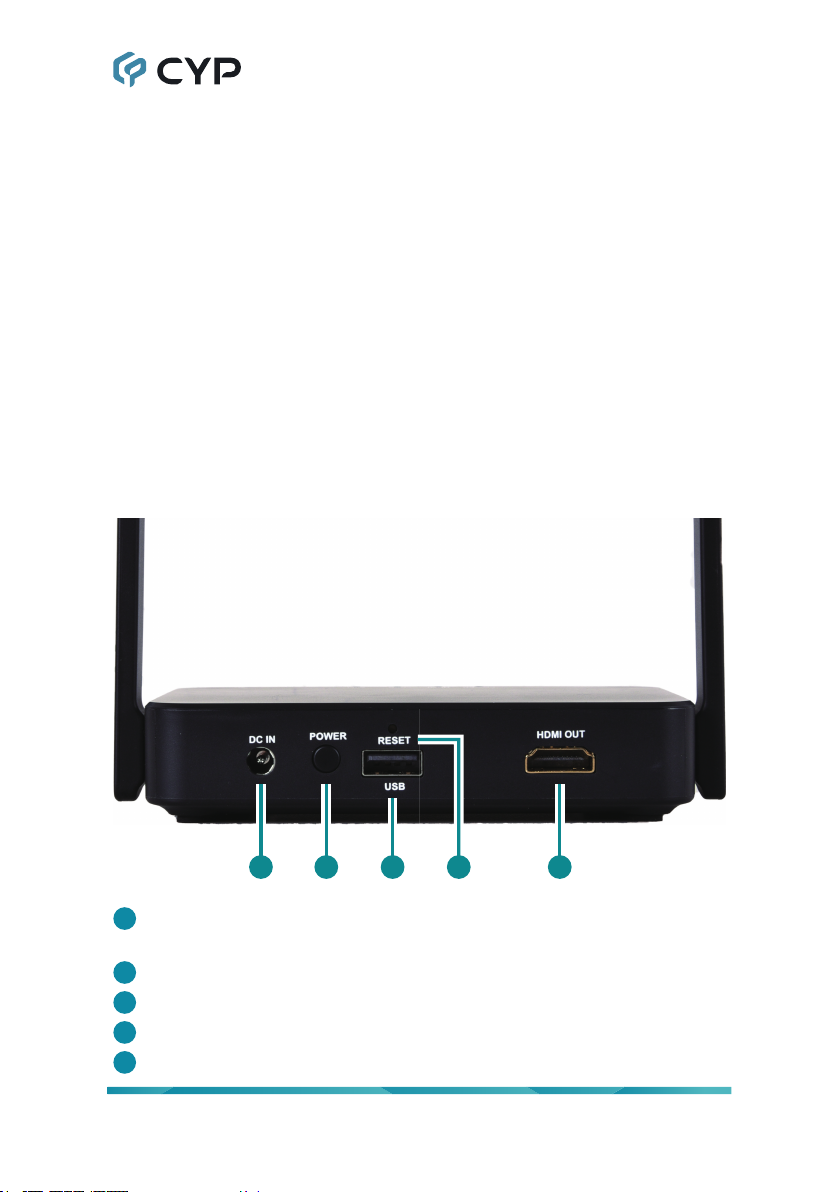

2.1 Receiver
53 421
1DC IN: Plug the DC power adapter into this port and connect it to an AC
outlet for power.
2POWER: Power button.
3USB: USB port, transmitter connects it for pairing.
4RESET: Reset the unit.
5HDMI OUT: Connect to the display.

2
2.2 Transmitter
1 2
1HDMI Input: Connect to the source.
2USB: Connect to the USB port to get the power.
3. CONFIGURING YOUR HYSHARE VIA WEB
With Hyshare, the user may congure their device via a web browser
interface instead, which greatly enhances the user experience.
In Hyshare’s Web Setting sections, customers may do custom settings
including output resolution, preferred language, max connections, etc, based
on di󰀨erent needs and usage scenarios.

3
4. BEGIN TO CAST WITH HYSHARE
Before casting with Hyshare, please follow the below instructions, and
connect your phone or laptop to Hyshare. We provide the user with two
connecting methods: Direct Link or Through Wi-Fi.
4.1 Connecting through Direct Link
4.1.1 Connecting Hyshare to an external power supply.
4.1.2 Connecting Hyshare to an external display via HDMI port.
Once the above steps are done, the user will see the below standby
screen on the external display.
4.1.3 SSID and Password: The user may see the required information for
connection at the upper middle of the standby screen.
SSID: Selecting the correct SSID in the device’s Wi-Fi list.
Password: Entering the password to connect your device with
Hyshare.
4.1.4 IP Address: Once connected, open your web browser, entering the IP
address at the URL bar. You may see the IP address at the bottom left
corner. Please note that the below IP is for reference only, which may
vary depending on the device.
4.1.5 You may see the Main Menu once successfully connected.

4
4.2 Connecting Through Wi-Fi or External AP
4.2.1 If Hyshare is connected to the internet, the Wi-Fi icon will be displayed
at the upper right corner of the standby screen.
4.2.2 Entering the IP address at the URL bar. You may see the IP address
at the bottom left corner. Please note that Hyshare and mobile devices
must facilitate the same network.
4.2.3 You may see the Main Menu once successfully connected.
5. USER LOGIN
5.1 Non-Admin User
A user is provided with normal access control rights, including Device
Management, Network Management, etc.
5.2 Admin User
The rst time login as an admin user, entering the default password
“000000”. To provide better security for Hyshare, the user must modify
the default admin password. An admin user is provided with the
completed access control rights.

5
6. DOWNLOAD ANDROID APK
For Android users, please enable USB debugging mode for USB display rst,
or you can download Hyshare APK from Hyshare’s webpage. Hyshare may
need your further authorization and trust to install the APK le.
Note: Hyshare APK supports from Android 5.0 and up.
7. NETWORK MANAGEMENT
Connecting Hyshare to the internet through external Wi-Fi or LAN.
7.1 Connect to 5GHz Wireless Access Point
Once your device is connected to Hyshare, entering the required password
to access an external Wi-Fi.
