CPRO-11SE2
HDMI 4Kx2K Audio Extractor
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology. All Rights Reserved.
Version 1.0 September 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 10/06/13 Preliminary release
RDV2 23/10/13 Top Panel Printing

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Top Panel ..........................................3
6.2 Right Panel........................................4
6.3 Left Panel ..........................................4
6.4 Front Panel ........................................5
7. Connection Diagram ............................ 6
8. Specications ........................................ 7
8.1 Audio Supports Chart ......................8
9. Acronyms ............................................... 8

1
1. INTRODUCTION
The HDMI™ 4Kx2K Audio Extractor allows you to extract audio signals
from your HDMI source. When connecting to a TV or display you don’t
always get the best audio, or in the case of a PC monitor, no audio at
all. So with this Audio Extractor you can take your original HDMI audio
signal and convert it to digital optical or analog stereo L/R audio. This
means that you can output your audio signal to external speakers or
extend your audio signal pathway. Meanwhile, when connecting a
4Kx2K display a true video will be performed without down grading
the resolution.
2. APPLICATIONS
• Game entertainment on monitor
• Extend your audio signal
• Audio extraction for non-HDMI AV receivers or wider audio systems
3. PACKAGE CONTENTS
• HDMI 4Kx2K Audio Extractor
• 5V Power adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/PS3 player and output display
(TV/monitor) and amplier/active speakers with connection cables.

2
5. FEATURES
• Compliant with HDMI, HDCP 1.2 and DVI 1.0
• Supports HDMI audio sampling rate up to 192 kHz
• Supports Optical S/PDIF audio sampling rate up to 192 kHz
• Supports L/R audio sampling rate up to 48 kHz
• HDMI supports high-bit-rate (HBR) audio
• No HDMI output connection is required to receive audio at the
analog and optical outputs
• Supports analog stereo L/R and Optical S/PDIF audio outputs
• Maximum input and output HDMI cable length can run up to 15
meters at 1080p at 8-bit resolution
• Supports built-in audio EDID switching among LPCM 2CH, TV
(external) EDID, and Bitstream audio
• Supports 4Kx2K resolution and 3D signal
Note: When displaying HDMI 4Kx2K signal, equivalent source signal,
output display and HDMI cables are required in order to secure the
best image display.

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
LinkLPCM Power
UHD 4Kx2K
Audio Extractor
31 2
1LPCM:
This LED will illuminate when the output audio EDID is switch to
LPCM 2CH.
2Link:
This LED will illuminate when input source is connected with HDMI
signal.
3Power:
This LED will illuminate when the unit is connected with power
supply.

4
6.2 Right Panel
HDMI InService
1 2
1Service:
This port is reserved for rmware update only.
2HDMI IN:
This slot is to connect with source equipment such as Blu-ray/PS3
player with HDMI signal sending.
6.3 Left Panel
Out
OpticalHDMI L/R
1 2 3
1HDMI OUT:
Connect to the display (TV/monitor) with an HDMI cable for
video and audio signal output. For 4Kx2K or 3D image display,
an equivalent standard display is required. No HDMI output
connection is required to send audio through the analog and
optical outputs.
2Optical OUT:
Connect to audio equipment such as an amplier or Hi-Fi system
with an optical cable for digital audio output. Supports up to
bitstream audio 5.1CH and LPCM 2CH.
3L/R OUT:
Connect to audio equipment such as an amplier or active
speakers with 3.5mm phone jack cable for stereo audio outputs.

5
6.4 Front Panel
DC 5V
Bitstream
TV LPCM
2CH
Power
1 2 3
1TV/Bitstream/LPCM 2CH:
This switch allows users to select the source’s audio EDID.
TV Mode: Switch to TV mode to use the HDMI output port’s EDID.
Bitstream Mode: Switch to Bitstream mode to use the HDMI output
port’s EDID, the audio supports up to compressed audio 5.1
channels.
LPCM 2CH Mode: Switch to LPCM 2CH mode to use HDMI output
port’s EDID, the audio supports up to LPCM 2 channels.
Note: Depending on the input audio format, the unit may not
output audio through all output port. For Example, the L/R analog
output port will have no audio when the input audio format is
other than LPCM 2CH.
2Power:
Press this button to switch ON the device or to set it into standby
mode.
3DC 5V:
Plug with 5V DC power adaptor from the AC wall outlet for power
supply.

6

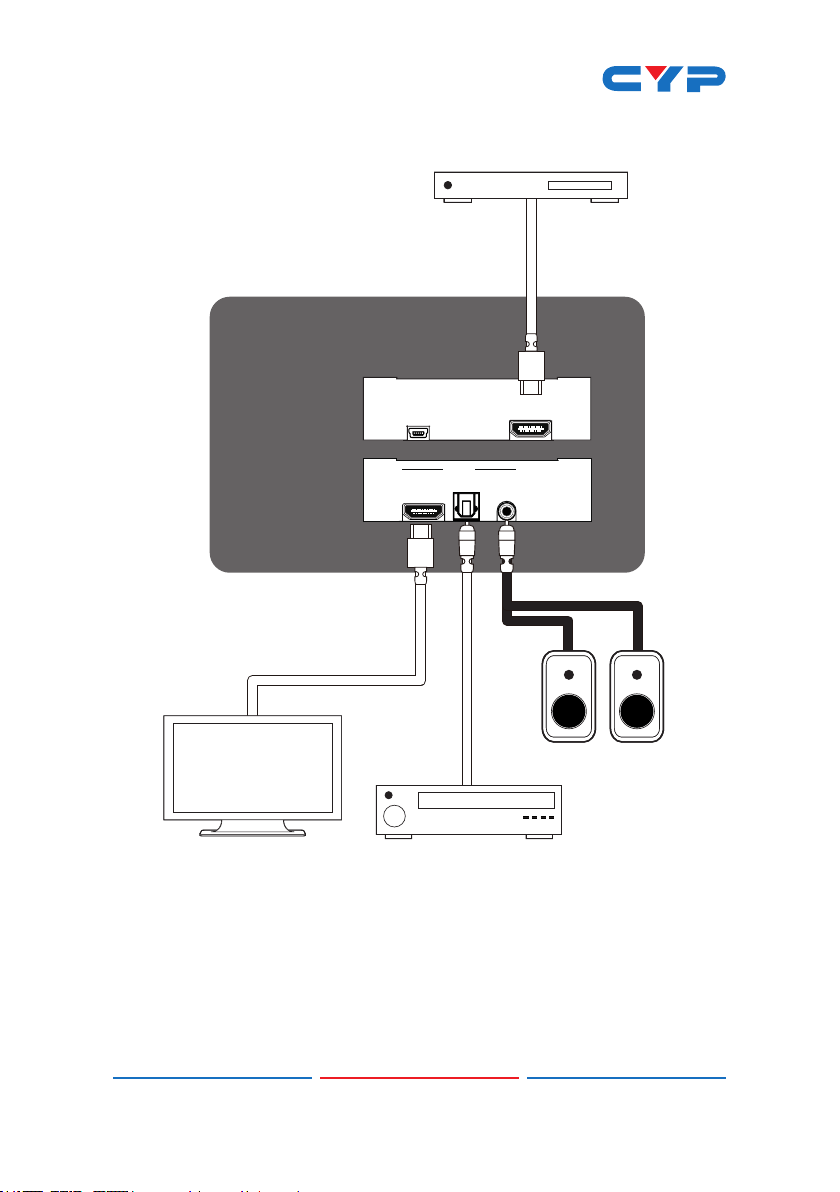

7. CONNECTION DIAGRAM
Out
OpticalHDMI L/R
HDMI InService
DVD or Blu-ray Player
HDMI Input
Analog Stereo Output
AmplierDisplay
HDMI Output
Digital Audio
Output (Optical)
HDMI Audio
Extractor

7
8. SPECIFICATIONS
Video Bandwidth 300Mbps / 10.2Gbps
Input Ports 1 x HDMI,
1 x Mini-USB (service only)
Output Ports 1 x HDMI,
1 x Optical,
1 x L/R(3.5mm Phone Jack)
HDMI Audio Sampling Rate Up to 192 kHz
Optical S/PDIF Audio
Sampling Rate
Up to 192 kHz
L/R Audio Sampling Rate Up to 48 kHz
HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH,
DTS 2~5.1CH, Dolby Digital Plus, Dolby
TrueHD, and DTS-HD Master Audio
Optical Audio Format LPCM 2CH, Dolby Digital 2~5.1CH, and
DTS 2~5.1CH
L/R Audio Format Analog Stereo 2 CH
HDMI I/O Cable Distance
4Kx2K
10m/10m
Power Supply 5V / 1.2A DC ( US/EU standards, CE/FCC/
UL certied)
ESD Protection Human body model:
±8kV (air-gap discharge)
±6kV (contact discharge)
Dimensions (mm) 85 (W) x 87.5 (D) x 34(H)
Weight (g) 102
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0˚C~40˚C / 32˚F~104˚F
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 2.2W

8
8.1 Audio Supports Chart
Output
Audio Mode HDMI Optical L/R
2CH V V V
LPCM 5.1 V
LPCM 7.1 V
Bitstream 5.1 V V
Bitstream 7.1 V
9. ACRONYMS
ACRONYM COMPLETE TERM
4Kx2K 3840 x 2160 / 4096 x 2160
DTS Digital Theater System
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
20130703MPM-CPRO11SE2
