CYP CPRO-11SE2 User manual

CPRO-11SE2
HDMI 4K2K Audio Extractor
Operation Manual
Operation Manual

DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology. All Rights Reserved.
Version 1.0 September 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 10/06/13 Preliminary release
RDV2 23/10/13 Top Panel Printing
VS1 06/01/16 Updated text/diagrams

CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Top Panel ...........................................3
6.2 Right Panel.........................................3
6.3 Left Panel ...........................................4
6.4 Rear Panel .........................................5
7. Connection Diagram ............................ 6
8. Specications ........................................ 7
8.1 Technical Specications ..................7
8.2 Supported Audio Formats................8
9. Acronyms ............................................... 8

1
1. INTRODUCTION
The HDMI ™4K×2K Audio Extractor allows you to de-embed the audio
signal from an HDMI source. With this Audio Extractor you can take
your original HDMI audio signal and convert it to digital optical or
analog stereo (L/R) audio, allowing you to output your audio signal
to an external audio system or to extend your audio signal pathway.
It also has the added benet of 4K×2K and 3D support, allowing full
resolution video and eliminating the need to downscale the image.
2. APPLICATIONS
• Play a game console on monitor lacking audio output by
connecting a separate audio system
• Extend your audio signal
• Audio extraction for non-HDMI AV Receivers or wider audio systems
• De-embedding of HDMI digital audio to optical digital or analog
outputs
• De-embed HDMI audio for use with non-HDMI equipped devices
such as an AV Receiver
3. PACKAGE CONTENTS
• HDMI 4K×2K Audio Extractor
• 5 V/1.2A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Source device such as a Blu-ray player or games console and display
(TV/monitor) and amplier/active speakers with suitable connection
cables.

2
5. FEATURES
• Compliant with HDMI, HDCP 1.2 and DVI 1.0
• Supports HDMI audio sampling rates up to 192 kHz
• Supports Optical (S/PDIF) digital audio sampling rates up to 192 kHz
• HDMI supports high-bit-rate (HBR) audio
• No HDMI output connection is required for analog or optical audio
output
• Supports analog stereo (L/R) and Optical digital audio (S/PDIF)
outputs
• Supports maximum input and output HDMI cable lengths of up
to 15 meters each at 1080p/8-bit resolution or 10 meters each at
1080p/12-bit or 4K×2K resolution
• Supports built-in audio EDID switching between LPCM 2CH, TV
(external) EDID or Bitstream audio
• Supports 4K×2K resolution and 3D signals
Note: For playback of 4K×2K/3D HDMI source signals, a 4K×2K/3D
capable display and High Speed HDMI cables are required.

3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
LinkLPCM Power
HDMI 4Kx2K
LPCM 7.1 Extractor
1 2 3
1LPCM LED: This LED will illuminate to indicate that the output audio
EDID is switched to LPCM 2CH.
2Link LED: This LED will illuminate when input source is connected
and receiving an HDMI signal.
3Power LED: This LED will illuminate when the unit is connected to an
active power supply.
6.2 Right Panel
HDMI InService
21
1Service: Manufacturer use only.
2HDMI In: Connect to source device such as a Blu-ray player or
games console with an HDMI cable.

4
6.3 Left Panel
Out
OpticalHDMIL/R
31 2
1HDMI Out: Connect the HDMI output port to the HDMI input port of
your display with an HDMI cable.
Note:
1. For playback of 4K×2K/3D HDMI source signals, a 4K×2K/3D
capable display and High Speed HDMI cables are required.
2. No HDMI output connection is required for analog or optical
audio output.
2Optical Out: Connect to audio equipment such as an amplier or
Hi-Fi system with an optical cable for digital audio output. Supports
up to Bitstream 5.1CH and LPCM 2CH audio.
3L/R Out: Connect to audio equipment such as an amplier or
active speakers with a 3.5mm mini-jack cable for analog stereo
audio output.

5

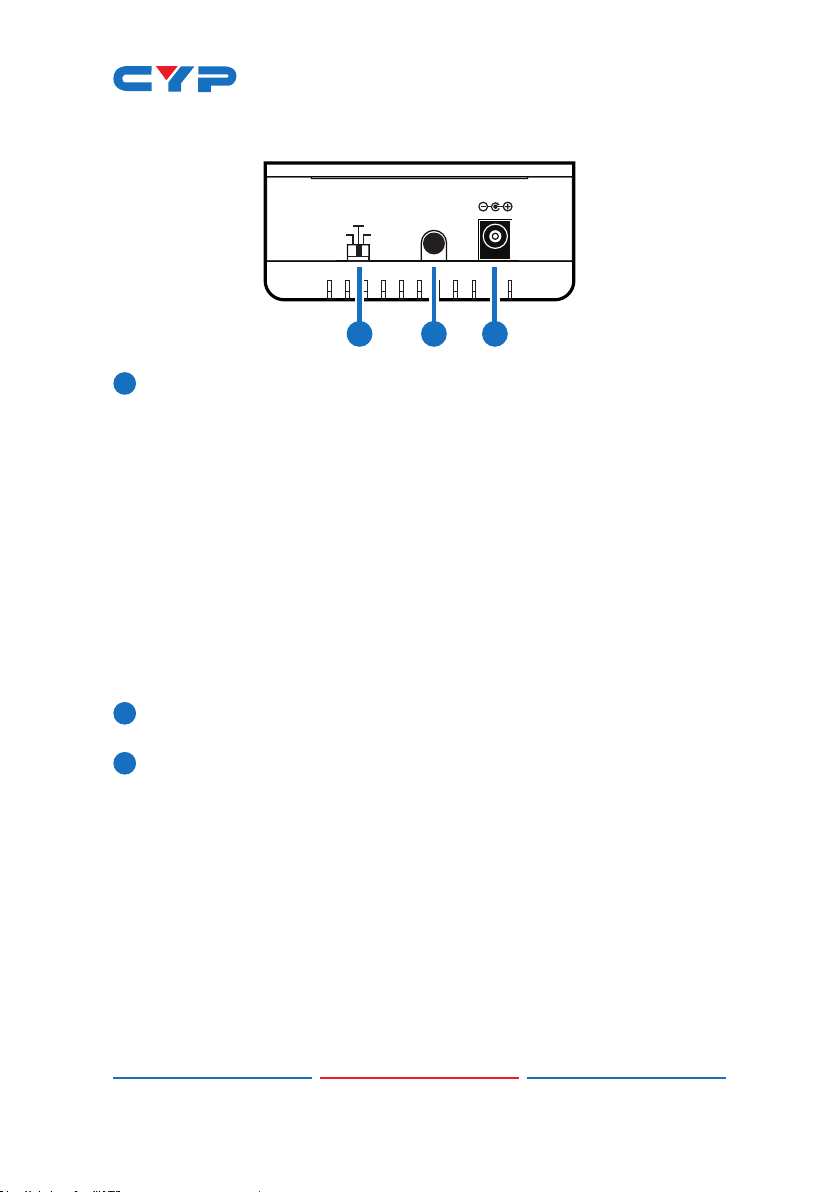

6.4 Rear Panel
DC 5V
Bitstream
TV LPCM
2CH
Power
31 2
1Audio EDID Switch: This switch allows users to select which audio
EDID settings are used for audio output.
TV Mode: Switch to TV mode to use the EDID settings of the display
connected to the HDMI output port.
Bitstream Mode: Switch to set the HDMI source device to output
the audio in bitstream mode (supports up to 5.1 channels of
compressed audio).
LPCM 2CH Mode: Switch to set the HDMI source device to output
the audio in LPCM 2CH mode.
Note: Depending on the input audio format, the unit may not
output audio through all output ports (See Section 8.2). For
Example, there will be no audio output from the L/R analog output
port when the input audio format is LPCM 5.1CH.
2Power Button: Press to turn on the unit or to set it into standby
mode.
3DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to an AC wall outlet.

6
7. CONNECTION DIAGRAM
LinkLPCM Power
HDMI 4Kx2K
LPCM 7.1 Extractor
DVD or Blu-ray Player
HDMI
Input
Power Supply
Analog Stereo
Output
Active SpeakersAmplierDisplay
HDMI
Output
Digital Audio
Output (Optical)

7
8. SPECIFICATIONS
8.1 Technical Specications
Video Bandwidth 300 Mbps/10.2 Gbps
Input Ports 1×HDMI, 1×Mini-USB (Service only)
Output Ports 1×HDMI, 1×Optical, 1×3.5 mm Mini-jack
Audio Sampling Rates HDMI: Up to 192 kHz
S/PDIF (Optical): Up to 192 kHz
HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH,
DTS 2~5.1CH, Dolby Digital Plus, Dolby
TrueHD & DTS-HD Master Audio
Optical Audio Formats LPCM 2CH, Dolby Digital 2~5.1CH & DTS
2~5.1CH
Analgo Audio Format Analog Stereo 2CH
HDMI Cable I/O Distance 15 m (1080p@8-bit), 10 m (1080p@12-bit),
10 m (4K×2K)
Power Supply 5 V/1.2A DC ( US/EU standards, CE/FCC/
UL certied)
ESD Protection Human body model:
±8 kV (air-gap discharge)
±6 kV (contact discharge)
Dimensions 85 mm (W)×87.5mm (D)×34 mm (H)
Weight 102 g
Chassis Material Plastic
Color White
Operating Temperature 0 ˚C~40 ˚C / 32 ˚F~104 ˚F
Storage Temperature −20 ˚C ~ 60 ˚C / −4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 2.2 W

8
8.2 Supported Audio Formats
OUTPUT
FORMAT HDMI Optical Analog
LPCM 2CH   
LPCM 5.1CH - -
LPCM 7.1CH - -
Bitstream 5.1CH   -
Bitstream 7.1CH - -
9. ACRONYMS
ACRONYM COMPLETE TERM
4K×2K Ultra HD (3840×2160/4096×2160)
DTS Digital Theater System
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television

Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD
20130703MPM-CPRO11SE2
