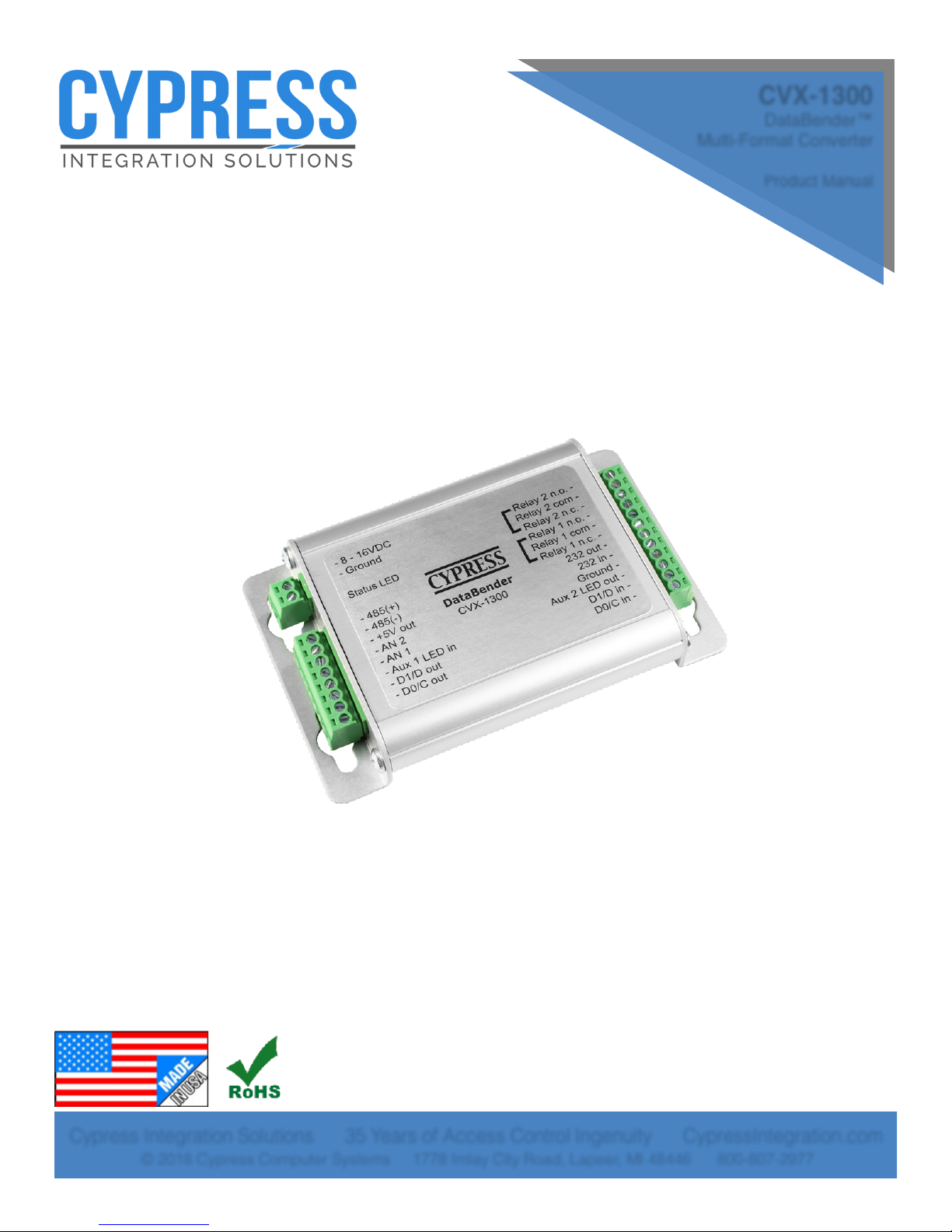

Cypress DataBender CVX-1300 User manual

!
CVX-1300_MAN_181217
CVX-1300
DataBender™
Universal Format Converter
User Manual
Cypress Integration Solutions 35 Years of Access Control Ingenuity CypressIntegration.com
© 2018 Cypress Computer Systems 1778 Imlay City Road, Lapeer, MI 48446 800-807-2977
CVX-1300
DataBender™
Multi-Format Converter
Product Manual

Electrical and Mechanical Specifications!
This complies with part 15 of the FCC rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Data I/O
Reader - Wiegand, Strobed (Clock & Data), F/2F
LED - 0 to 30v
Interface
+5vDC @ 100 ma
Output
95% (non-condensing)
Storage (-55°C to +150°C)
Operating (-40°C to +80°C * )
Power
Unreg Input 8 to 16VDC * @ 200ma Max
Input
Humidity
Aluminum enclosure
Size 3.5” x 2.75” x .75”
Temp
Physical
2

Initial Setup - CVX-1300 Converter
The CVX-1300 will support many different input and output formats.
The CVX-1300 replaces the CVX-1200 and many of the standard Cypress CVT series of
converters (e.g. CVT-2232 CVT-9102).
A DIP switch determines which conversion process will be used.
A “Legacy” cross reference chart is provided to quickly determine which settings to use for standard
Cypress converter numbers. In most cases several baud rate options are available to expand the
capabilities of existing converters. The Legacy cross reference chart will list the converter CVT
number and the CVX numbers and the DIP switch setting that will apply. Use the converter
numbers to find the DIP switch settings on the CVX-1300 application charts.
Setting up the CVX-1300 converter:
1. First determine which converter (conversion process) is required for the application. This may be
one of the standard Cypress converters or one of the new converters that are now part of the
CVX-1300 library. All of the different conversion processes are described in detail in this manual.
Each process will have a wiring diagram and specification sheet to describe the wiring connections
and operation.
2. Set the DIP switch to the setting called out in the CVX application chart.
3. Refer to the wiring diagram for the particular converter that is being used. The wiring diagrams
are different depending upon the type of conversion being performed.
4. Connect power to the CVX-1300 board.
5. If the diagnostic indicator LED flashes Green slowly, a valid converter number has been selected.
If the diagnostic indicator is illuminated a solid Red color, an invalid DIP switch
setting has been made.
6. Connect peripheral devices (Readers, Panel, Switches etc.) according to the appropriate wiring
diagram.
LEGACY CONVERTER EXAMPLE: You need a CVT-2232 that operates at 2400 Baud.
The Legacy Compatibility chart calls out CVX numbers 1,2, and 3.
Looking at the CVX application charts for #1,#2,and #3 lists 3 baud rates.
Selecting the 2400 Baud rate for CVX converter #2 would yield a DIP switch setting of:
1 OFF, 2 ON , 3 OFF, 4 OFF, 5 OFF, 6 OFF, 7 OFF, 8 OFF

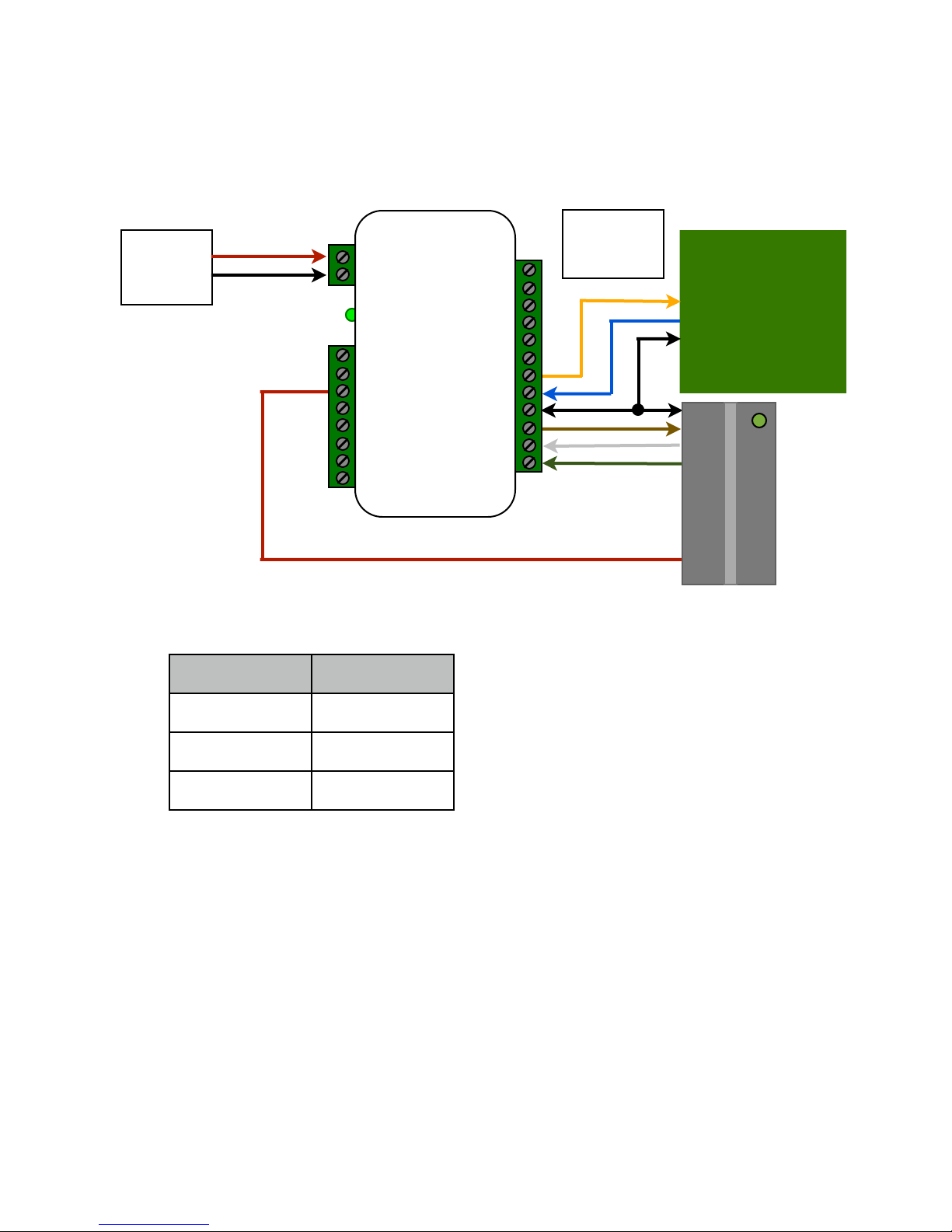

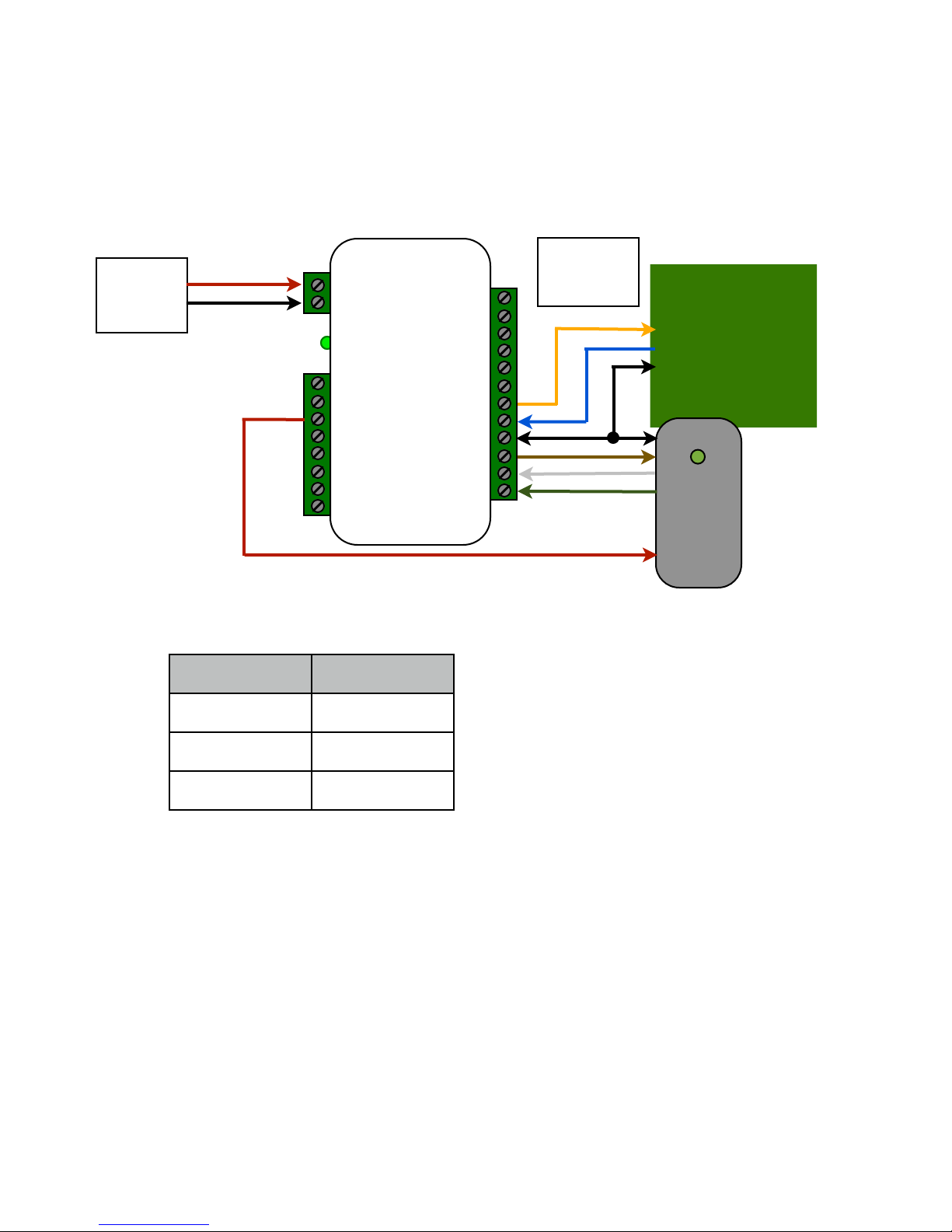

The wiring diagram would reference the Wiegand to Serial connections.
NOTE: The CVX-1300 does not use an onboard DB type connector for RS-232 serial signals.
Serial connections can be made directly to the 12 position connector.
An optional patch cord is available with a Female DB-9 connector and flying leads.
The wiring diagrams indicate the equivalent DB-9 connections to the CVX-1300 J3 connector.
3

*
Converter CVX-1300
CYPRESS
Electrical and Environmental Specifications
8
10
12
14
16
80
55
35
-40
Ambient Temperature
(Degrees Celsius)
Supply Voltage

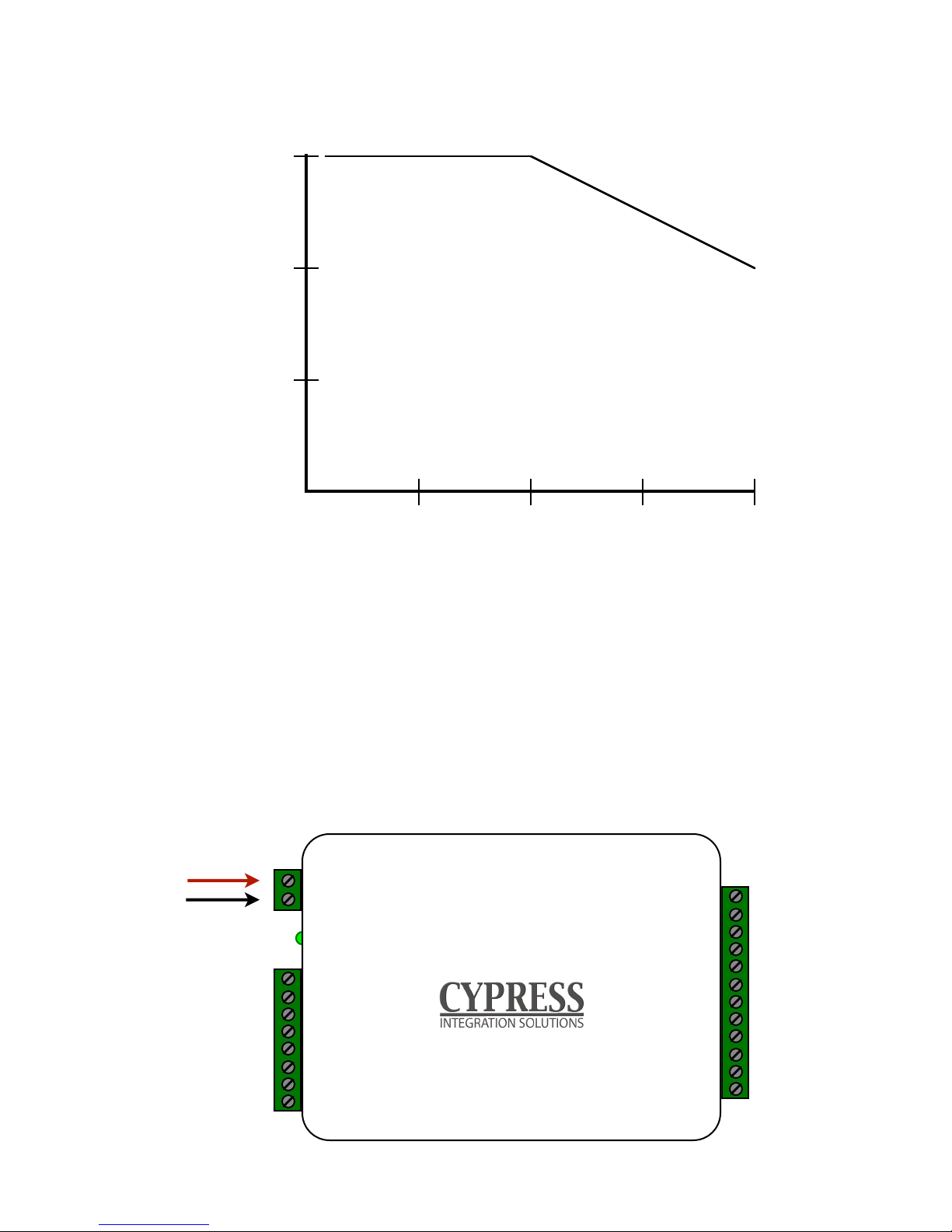

Temperature/Voltage de-rating curve
The CVX-1300 units should be operated with a filtered 12 Volt nominal DC supply.
Any voltage between 8 and 16 volts can be utilized by following the temperature /voltage
derating curve. Voltage should not exceed 16 VDC under normal operating conditions.
DC Power IN
+8 to +16 VDC In
Ground
RLY2 N.O.
RLY2 Com
RLY2 N.C.
RLY1 N.O.
RLY1 Com
RLY1 N.C.
RS232 Output
RS232 Input
Ground
Aux2 LED Out
D1/Data Input
D0/CLK Input
RS485 (+)
RS485 (-)
+5 VDC Out
Analog In2
Analog In1
Aux1 LED In
D1/Data Output
1-D0/CLK Output
4

The Cypress CVX-1300 is based on the CVX-1200 series converter. For most legacy converter
functions, the DIP switch settings will be set the same as with the Cypress CVX-1200.
This document provides detailed wiring information and a reference to DIP switch settings for the
converter. Detailed conversion descriptions are provided in chapters organized for each type of
conversion function. i.e. Wiegand to Serial functions will have a chapter, Serial to Strobed will have
a chapter etc. Each chapter is a separate document and is available at www.cypressintegration.com
A Diagnostic LED is provided to provide operational status of the converter:
Diagnostic LED OFF - No power
Diagnostic LED Blinking Green - Unit is operating
Diagnostic LED Red - Undefined DIP Switch Setting
Note: Terminals shown for reference.
Connections may or may not be utilized based on converter function.

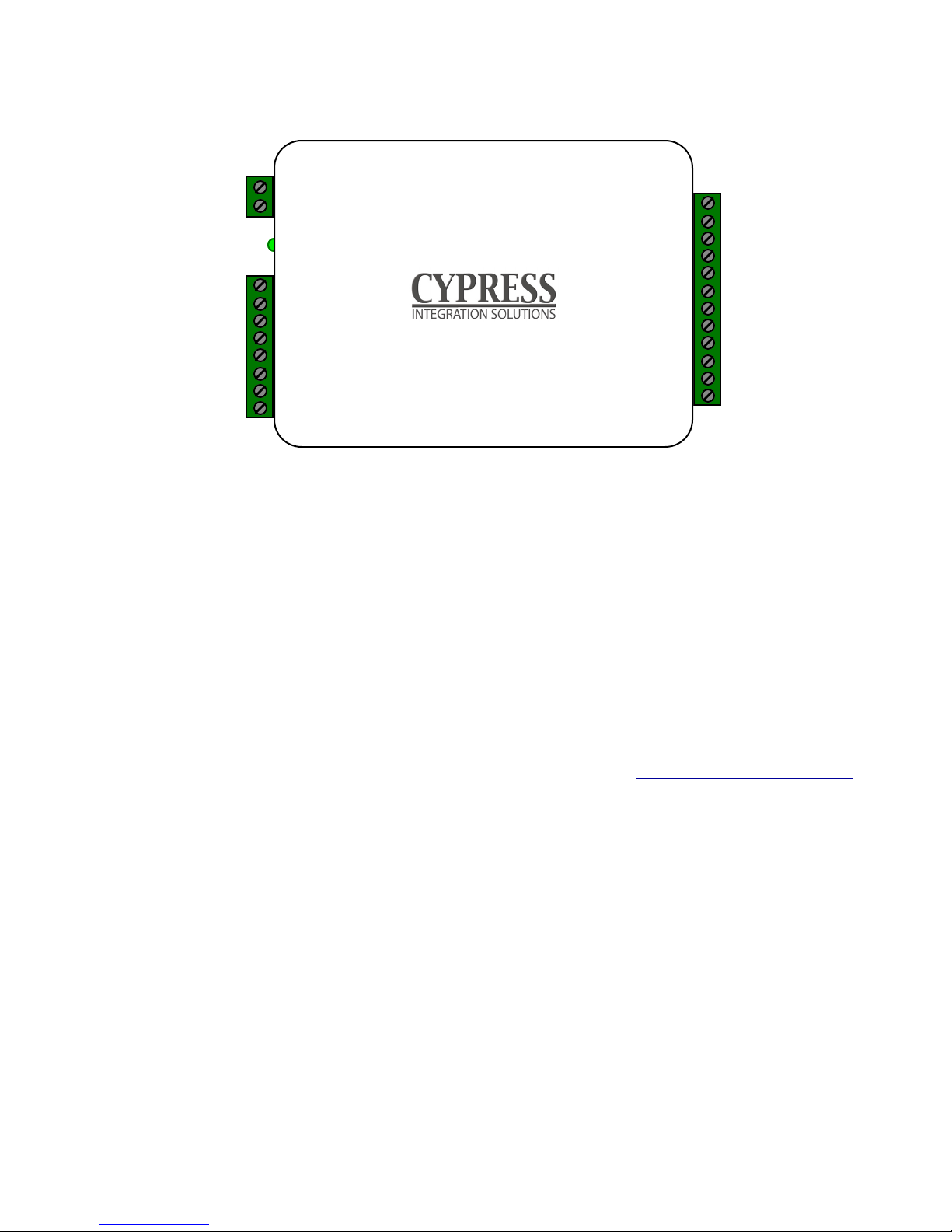

External connections and product description
Note: F2F connections support
unsupervised mode
*
Converter CVX-1300
CYPRESS
+8 to +16 VDC In
Ground
RLY2 N.O.
RLY2 Com
RLY2 N.C.
RLY1 N.O.
RLY1 Com
RLY1 N.C.
RS232 Output
RS232 Input
Ground
Aux2 LED Out
D1/Data Input
D0/CLK Input
RS485 (+)
RS485 (-)
+5 VDC Out
Analog In2
Analog In1
Aux1 LED In
D1/Data Output
1-D0/CLK Output
5

CVX-1300 Serial data and RS485
The CVX-1300 can support both RS-232 and RS-485 signals for transmitting and receiving
serial data. For most converters utilizing serial data, both interfaces are always active and may
be used by making the appropriate connections to the converter. Either the RS-232 or RS-485
interface may be used, but a loss of data will occur if both interfaces have active data at the
same time.
Examples:
The CVT-2232 function will provide a serial input and convert to a Wiegand output.
Serial data can be read from either the RS-232 or RS-485 interface. The baud rate will be
determined by the DIP switch setting.
The CVT-9110 function will provide a Wiegand input and a serial output. Serial data will be
output on the RS-232 and RS-485 interface.
NOTE: Some of the CVX-1300 converters may not support both RS-232 and RS-485
interfaces. Converters that do not support both interfaces will be noted in the specific converter
specification.
RS-232 Interface
RS-485 Interface
*
Converter CVX-1300
CYPRESS
+8 to +16 VDC In
Ground
RLY2 N.O.
RLY2 Com
RLY2 N.C.
RLY1 N.O.
RLY1 Com
RLY1 N.C.
RS232 Output
RS232 Input
Ground
Aux2 LED Out
D1/Data Input
D0/CLK Input
RS485 (+)
RS485 (-)
+5 VDC Out
Analog In2
Analog In1
Aux1 LED In
D1/Data Output
1-D0/CLK Output
6

Converter
Input
Output
Settings(#)
CVT2232
Wiegand 24 to 40
Serial 13 Digits with <CR>
1 , 2 , 3
CVT-2111
Wiegand 1 to 40
Serial Dec/Hex Digits
7, 8, 9
CVT-2110
Wiegand 1 to 48
SerialHex Digits
10 , 11, 12
CVT-2144
Wiegand 44
Serial12 Digits
13 , 14 , 15
CVT-2145
Wiegand 44/32
Serial 12/10 Digits
16 , 17 , 18
CVT-2152
Wiegand 1 to 96
Serial 24 Hex Dec
19 , 20 , 21
CVT-2151
Wiegand 1 to 40
Serial HID Hex
22 , 23 , 24
CVT-2201
Strobed/ABA
Serial 24 Hex
25 , 26 , 27
CVT-2403
F/2F Raw
Serial ASCII Hex
28
CVT-2404
F/2F ABA
Serial ASCII Hex
29
CVT-2405
F/2F ABA
Wiegand 37 bit Custom
30
CVT-2406
F/2F ABA
Wiegand 37 bit Custom
33
CVT-9102
Serial 10 Dec
Wiegand 26
65 , 66 , 67
CVT-9110
Serial 12 Hex
Wiegand Variable
68 , 68 , 70
CVT-9109
Serial Transcore
Wiegand 26
71
CVT-9129
Serial Transcore
Xico 6
72
CVT-9132
Serial Transcore
Wiegand 37
73
CVT-9137
Serial Transcore
Wiegand 26
74
CVT-9117
Serial Transcore
Wiegand 26
75
CVT-9161
Serial Transcore
Wiegand 26
76
CVT-9162
Serial Transcore
Wiegand 37
77
CVT-9164
Serial Transcore
Wiegand 37
78
CVT-9201
Serial ASCII
Strobed / ABA
79,80,81,82
CVT-5932
Dallas iButton 1Wire
Wiegand 26
34
CVT-9165
Serial Transcore 26 bit
Wiegand 26
84
CVT-0026
Wiegand 24-40 bit
Wiegand 26
97
CVT-0026A
24-40 bit, spec 34 bit pr.
Wiegand 26
98
CVT-3526
Wiegand 35 bit C1000
Wiegand 26
99
CVT-5100
12 digit Strobed ABA
Wiegand 26
100
CVT-5100A
Last 8 digit Strobed ABA
Wiegand 26
101
CVT-5200
Wiegand 26 and 35 bit
12 Digit Strobed/ABA
102
CVX-1300 Legacy Compatable formats
7

Converter
Input
Output
Settings(#)
CVT-5201
Wiegand 26 bit
10 digit Strobed/ABA
103
CVT-2211
Wiegand ABA
Serial ASCII
35,36
CVT-0126
Wiegand 26 bit
Wiegand 26 bit fixed FC=215
104
CVT-9117A
Serial Transcore
Wiegand 26
85
CVT-3226
Wiegand 32 Bit Kastle
Wiegand 26 bit Standard
105
CVT-9133
Serial ASCII
Wiegand 36 bit Special
86
CVT-9501
Serial ASCII 1-12 digits
F/2F
83
CVT-2485
Wiegand 24-40
Serial ASCII RS-485
1,2,3
CVT-9485
Serial ASCII RS-485
Wiegand 24-40
65,66,67
CVT-2201F
Strobed/ABA Fall Edge
Serial 24 Hex
37
CVT-5100F
Strobed/ABA Fall Edge
Wiegand 26 bit
106
CVT-5100AF
Strobed/ABA Fall Edge
Wiegand 26 bit
107
CVX-2232-5
Wiegand 24-40
Serial- Last 5 digits
38
CVX-9174
Serial ASCII 1-10 Dec
Wiegand 37 Bit FC = 1
87
CVT-0126B
Wiegand 26 bit
Wiegand 26 bit fixed FC=0
108
CVT-5217
Wiegand 24-40
8 digit Strobed/ABA
112
CVX-1300 Legacy Compatable formats
8

#
DIP SWITCH SETTING
INPUT
OUTPUT
1
2
3
4
5
6
7
8
Interface
Format
Interface
Format
0
Test Mode
1
X
Wiegand
24 to 40 bits
RS-232 (9600)
13 Digits,CR
2
X
Wiegand
24 to 40 bits
RS-232 (2400)
13 Digits,CR
3
X
X
Wiegand
24 to 40 bits
RS-232 (1200)
13 Digits,CR
4
X
Wiegand
24 to 48 bits
RS-232 (9600)
10 Digits,CR
5
X
X
Wiegand
24 to 48 bits
RS-232 (2400)
10 Digits,CR
6
X
X
Wiegand
24 to 48 bits
RS-232 (1200)
10 Digits,CR
7
X
X
X
Wiegand
24 to 48 bits
RS-232 (9600)
Dec/Hex Digits
8
X
Wiegand
24 to 48 bits
RS-232 (2400)
Dec/Hex Digits
9
X
X
Wiegand
24 to 48 bits
RS-232 (1200)
Dec/Hex Digits
10
X
X
Wiegand
1 to 48 bits
RS-232 (9600)
Hex Digits
11
X
X
X
Wiegand
1 to 48 bits
RS-232 (2400)
Hex Digits
12
X
X
Wiegand
1 to 48 bits
RS-232 (1200)
Hex Digits
13
X
X
X
Wiegand
44 bits
RS-232 (9600)
12 Digits
14
X
X
X
Wiegand
44 bits
RS-232 (2400)
12 Digits
15
X
X
X
X
Wiegand
44 bits
RS-232 (1200)
12 Digits
16
X
Wiegand
44/32 bits
RS-232 (9600)
12/10 Digits
17
X
X
Wiegand
44/32 bits
RS-232 (2400)
12/10 Digits
18
X
X
Wiegand
44/32 bits
RS-232 (1200)
12/10 Digits
19
X
X
X
Wiegand
1 to 96 bits
RS-232 (9600)
24 Hex/Dec
20
X
X
Wiegand
1 to 96 bits
RS-232 (2400)
24 Hex/Dec
21
X
X
X
Wiegand
1 to 96 bits
RS-232 (1200)
24 Hex/Dec
22
X
X
X
Wiegand
1 to 40 bits
RS-232 (9600)
HID Hex
23
X
X
X
X
Wiegand
1 to 40 bits
RS-232 (2400)
HID Hex
24
X
X
Wiegand
1 to 40 bits
RS-232 (1200)
HID Hex
25
X
X
X
Strobed
ABA
RS-232 (9600)
24 Hex
26
X
X
X
Strobed
ABA
RS-232 (2400)
24 Hex
27
X
X
X
X
Strobed
ABA
RS-232 (1200)
24 Hex
28
X
X
X
F/2F
Raw-All bits
RS-232 (1200)
RS-232 (9600)
29
X
X
X
X
F/2F
ABA
RS-232 (9600)
ASCII Hex
30
X
X
X
X
F/2F
ABA
Wiegand
37 Bit Custom
31
X
X
X
X
X
TEST
MODE
RS-232 (9600)
Test String
Continued
DIP Switch Application Table
9

#
DIP SWITCH SETTING
INPUT
OUTPUT
1
2
3
4
5
6
7
8
Interface
Format
Interface
Format
32
X
Wiegand Output TEST MODE- 26 Bit FC =123 Badge = 4567
33
X
X
F/2F
ABA
Wiegand
37 Bit Custom
34
X
X
Dallas iButton
64 Bit Binary
Wiegand
26 Bit
35
X
X
X
Wiegand
ABA
RS-232 (9600)
ASCII
36
X
X
Wiegand
ABA
RS-232 (2400)
ASCII
37
X
X
X
Strobed Fall
ABA
RS-232 (9600)
24 Hex ASCII
38
X
X
X
Wiegand
24 to 40 bits
RS-232 (9600)
5 Digits, CR
39
X
X
X
X
Radionics
Readykey
Wiegand
40 Bit
40
X
X
Radionics
Readykey
Wiegand
34 Bit
41
X
X
X
Radionics
Readykey
Wiegand
26 Bit
42
X
X
X
43
X
X
X
X
44
X
X
X
45
X
X
X
X
46
X
X
X
X
47
X
X
X
X
X
48
X
X
49
X
X
X
50
X
X
X
51
X
X
X
X
52
X
X
X
53
X
X
X
X
54
X
X
X
X
55
X
X
X
X
X
56
X
X
X
57*
X
X
X
X
RS-232 (9600)
12 digit ASCII
Wiegand
40 bit
58*
X
X
X
X
RS-232 (9600)
16 digit ASCII
Wiegand
64 bit
59
X
X
X
X
X
60
X
X
X
X
61
X
X
X
X
X
62
X
X
X
X
X
63
X
X
X
X
X
X
TEST
MODE
FC = 246
BADGE = ++
Continued
DIP Switch Application Table
10

#
DIP SWITCH SETTING
INPUT
OUTPUT
1
2
3
4
5
6
7
8
Interface
Format
Interface
Format
64
X
Strobed ABA Output TEST MODE Number = 123456789
65
X
X
RS-232 (9600)
10 Dec
Wiegand
26 bit
66
X
X
RS-232 (2400)
10 Dec
Wiegand
26 bit
67
X
X
X
RS-232 (1200)
10 Dec
Wiegand
26 bit
68
X
X
RS-232 (9600)
12 Hex
Wiegand
Variable
69
X
X
X
RS-232 (2400)
12 Hex
Wiegand
Variable
70
X
X
X
RS-232 (1200)
12 Hex
Wiegand
Variable
71
X
X
X
X
RS-232 (9600)
TransCore
Wiegand
26 bit
72
X
X
RS-232 (9600)
TransCore
Wiegand
Xico 6
73
X
X
X
RS-232 (9600)
TransCore
Wiegand
37
74
X
X
X
RS-232 (9600)
TransCore
Wiegand
26
75
X
X
X
X
RS-232 (9600)
TransCore
Wiegand
26 (9117)
76
X
X
X
RS-232 (9600)
TransCore
Wiegand
26 (9161)
77
X
X
X
X
RS-232 (9600)
TransCore
Wiegand
37
78
X
X
X
X
RS-232 (9600)
TransCore
Wiegand
37
79
X
X
X
X
X
RS-232 (9600)
ASCII
Strobed
ABA
80
X
X
RS-232 (2400)
ASCII
Strobed
ABA
81
X
X
X
RS-232 (1200)
ASCII
Strobed
ABA
82
X
X
X
RS-232 (9600)
ASCII
Strobed NoPU
ABA
83
X
X
X
X
RS-232 (9600)
ASCII Decimal
F/2F
12 digit ABA
84
X
X
X
RS-232 (9600)
TransCore 26b
Wiegand
26 bit
85
X
X
X
X
RS-232 (9600)
Transcore
Wiegand
26 bit
86
X
X
X
X
RS-232 (9600)
ASCII Decimal
Wiegand
36 bit
87
X
X
X
X
X
RS-232 (9600)
ASCII Decimal
Wiegand
37 bit
88
X
X
X
89
X
X
X
X
90
X
X
X
X
91
X
X
X
X
X
RS-232 (9600)
Mag-Tek Track 1
Wiegand
26 bit
92
X
X
X
X
93
X
X
X
X
X
94*
X
X
X
X
X
RS-232 (9600)
10 digit ASCII
Wiegand
37 bit
95*
X
X
X
X
X
X
RS-232 (4800)
10 digit ASCII
Wiegand
37 bit
Continued
DIP Switch Application Table
11

*Note: After CVX-1300 version 3.1.4, settings 94 and 95 were modified. The original unmodified
versions currently exist as settings 57 and 58, respectively.
#
DIP SWITCH SETTING
INPUT
OUTPUT
1
2
3
4
5
6
7
8
Interface
Format
Interface
Format
96
X
X
Reserved
97
X
X
X
Wiegand
24-40 bit
Wiegand
26 bit
98
X
X
X
Wiegand
24-40 bit
Wiegand
26 bit
99
X
X
X
X
Wiegand
35 bit
Wiegand
26 bit
100
X
X
X
Strobed
ABA/ 12 digits
Wiegand
26 bit
101
X
X
X
X
Strobed
ABA/Last 8 dig.
Wiegand
26 bit
102
X
X
X
X
Wiegand
26 bit
Strobed/ABA
12 digits
103
X
X
X
X
X
104
X
X
X
105
X
X
X
X
106
X
X
X
X
107
X
X
X
X
X
108
X
X
X
X
109
X
X
X
X
X
110
X
X
X
X
X
111
X
X
X
X
X
X
112
X
X
X
113
X
X
X
X
114
X
X
X
X
115
X
X
X
X
X
116
X
X
X
X
117
X
X
X
X
X
118
X
X
X
X
X
119
X
X
X
X
X
X
120
X
X
X
X
121
X
X
X
X
X
122
X
X
X
X
X
123
X
X
X
X
X
X
124
X
X
X
X
X
125
X
X
X
X
X
X
126
X
X
X
X
X
X
127
X
X
X
X
X
X
X
DIP Switch Application Table
12

Standard Wiring Diagrams - CVX-1300 Converter
Wiring diagrams are referenced by function and number. The specific converter
descriptions will refer to these diagrams.
CVX-1300 Electrical Connections
1. Serial data and RS485
2. Standard power supply connections
LISTING OF STANDARD WIRING DIAGRAMS
1. Wiegand to Serial.
2. Serial to Wiegand
3. Wiegand to Wiegand
4. Strobed to Serial
5. Serial to Strobed
6. Strobed to Wiegand
7. Wiegand to Strobed
8. F/2F to Wiegand
9.Serial to F2F
10. Dallas iButton to Wiegand
11. Serial to Wiegand - Special Application
12 Radionics 1 Wire to Wiegand
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Part 15 COMPLIANCE
13

Wiring Diagram #1 Wiegand to Serial
The Wiegand to RS232 converters support incoming commands to
control the Reader LED and Converter Relay.
RX Data:
NOTE: Commands must be capitalized characters
Turn LED on................ @ L 1
Turn LED off............... @ L 0
Toggle LED................. @ L 2 (Bi-Color LED Turns Orange)
Turn Relay on.............. @ R 1
Turn Relay off............. @ R 0
CVX Terminal
DB9 Pin
Ground
5
RS232 Input
3
RS232 Output
2
DB-9 Connections
Direct to PC Com Port
Connections
to Serial
Device
Data Bender®
Card
Reader
DC
Power
Supply
Reader powered by external supply (8 to 16 VDC)
Ground
LED
D1/Data In
D0/Clock In
RS232 Output
RS232 Input
+8 to +16 VDC In
Ground
14

Wiring Diagram #1 Wiegand to Serial
The Wiegand to RS232 converters support incoming commands to
control the Reader LED and Converter Relay.
RX Data:
NOTE: Commands must be capitalized characters
Turn LED on................ @ L 1
Turn LED off............... @ L 0
Toggle LED................. @ L 2 (Bi-Color LED Turns Orange)
Turn Relay on.............. @ R 1
Turn Relay off............. @ R 0
CVX Terminal
DB9 Pin
Ground
5
RS232 Input
3
RS232 Output
2
DB-9 Connections
Direct to PC Com Port
Reader powered by converter +5 VDC
Connections
to Serial
Device
Data Bender®
Card
Reader
DC
Power
Supply
+5VDC Out
Ground
LED
D1/Data In
D0/Clock In
RS232 Output
RS232 Input
+8 to +16 VDC In
Ground
15

Wiring Diagram #2 Serial to Wiegand
Data Bender®
Connections
to Serial
Device
(-)
(+)
DC
Power
Supply
Access
Control
Panel
RS232 Output
DB9-5
DB9-2
DB9-3
DB9-6
Ground
RS232 Input
Ground
Data 1 Out
Data 0 Out
+5VDC Out
+8 to +16 VDC In
Ground
16

Wiring Diagram #3 Wiegand to Wiegand
Reader powered by external supply (8 to 16 VDC)
Card
Reader
DC
Power
Supply
Access
Control
Panel
Data Bender®
Reader powered by 5 Volt Supply
Card
Reader
Data Bender®
DC
Power
Supply
Access
Control
Panel
+5 VDC Out
Ground
Data 1 Out
Data 0 Out
+8 to +16 VDC In
Ground
Data 1 Out
Data 0 Out
+8 to +16 VDC In
Ground
Ground
D1/Data In
D0/Clock In
Ground
D1/Data In
D0/Clock In
17

Wiring Diagram #4 Strobed to Serial
The Strobed to RS232 converters support incoming commands to
control the Reader LED and Converter Relay.
RX Data:
NOTE: Commands must be capitalized characters
Turn LED on................ @ L 1
Turn LED off............... @ L 0
Toggle LED................. @ L 2 (Bi-Color LED Turns Orange)
Turn Relay on.............. @ R 1
Turn Relay off............. @ R 0
CVX Terminal
DB9 Pin
Ground
5
RS232 Input
3
RS232 Output
2
DB-9 Connections
Direct to PC Com Port
Reader powered by external supply (8 to 16 VDC)
Connections
to Serial
Device
Card
Reader
Data Bender®
DC
Power
Supply
(-)
(+)
Ground
LED
D1/Data In
D0/Clock In
RS232 Output
RS232 Input
+8 to +16 VDC In
Ground
18

Wiring Diagram #4 Strobed to Serial
The Strobed to RS232 converters support incoming commands to
control the Reader LED and Converter Relay.
RX Data:
NOTE: Commands must be capitalized characters
Turn LED on................ @ L 1
Turn LED off............... @ L 0
Toggle LED................. @ L 2 (Bi-Color LED Turns Orange)
Turn Relay on.............. @ R 1
Turn Relay off............. @ R 0
CVX Terminal
DB9 Pin
Ground
5
RS232 Input
3
RS232 Output
2
DB-9 Connections
Direct to PC Com Port
Reader powered by converter +5 VDC
Connections
to Serial
Device
Card
Reader
Data Bender®
DC
Power
Supply
(-)
(+)
+5VDC Out
Ground
LED
D1/Data In
D0/Clock In
RS232 Output
RS232 Input
+8 to +16 VDC In
Ground
19

Wiring Diagram #5 Serial to Strobed
DC
Power
Supply
Access
Control
Panel
Data Bender®
Connections
to Serial
Device
5 Volts
(If Used)
+5VDC Out
RS232 Output
DB9-5
DB9-2
DB9-3
DB9-6
Ground
RS232 Input
Ground
Data 1 Out
Data 0 Out
+8 to +16 VDC In
Ground
20
