D-Link Air DWL-520 User manual

Contents of Package:
•DWL-520 11Mbps Wireless PCI Adapter
•Printed Quick Installation Guide
•CD with Manual and Drivers
If any of the above items are missing, please contact your reseller.
Before you start, make sure to turn off your computer
and unplug the power cord.
Note: To avoid damage caused by static electricity, make sure to properly ground
yourself by first touching a metal part of your computer to discharge any static
electricity before working with the DWL-520 Wireless PCI Adapter.
•Remove the back cover of the computer.
•Install the DWL-520 carefully and firmly into an available
PCI slot which is usually “white” or “cream” colored
•Secure the DWL-520 with a screw.
•Replace the computer’s cover.
Installing the DWL-520

•Plug in the power cord and turn on your computer.
•Insert the DWL-520 driver CD into the CD-ROM drive.
The following “Welcome”
screen will appear. Select
“Install from a list or specific
location.”
NOTE: If this screen does not
appear, go to Start > Settings
> Control Panel > Add
Hardware.Double-click on
the icon.
•Click Next
•Select “Search for the
best drivers in these
locations.”
•Browse for the drivers on
the driver CD i.e.
D:\DWL-520 where D:
refers to the CD-ROM
drive.
•Click Next
-2-
Installing the Drivers

•Click on “Continue
Anyway.”
(D-Link software is currently
undergoing Windows Logo
testing. Microsoft
certification is pending.)
Windows will load the
necessary files.
•Click “Finish” to
complete the installation.
-3-
Installing the Drivers (continued)

To connect to your wireless network, please do the following:
•Double-click on the iconin the task bar.
•The “Connect to Wireless
Network” window will contain a
list of all the available Wireless
Networks. Select the proper
network for your needs. In this
example, “default” network was
selected as shown.
•Click “Connect.”
This notice is displayed
to confirm the wireless
connection.
•Double-click on the icon in the task bar to see status and information about
your connected network. The window on the next page will appear.
-4-
Connecting to the Wireless
Network

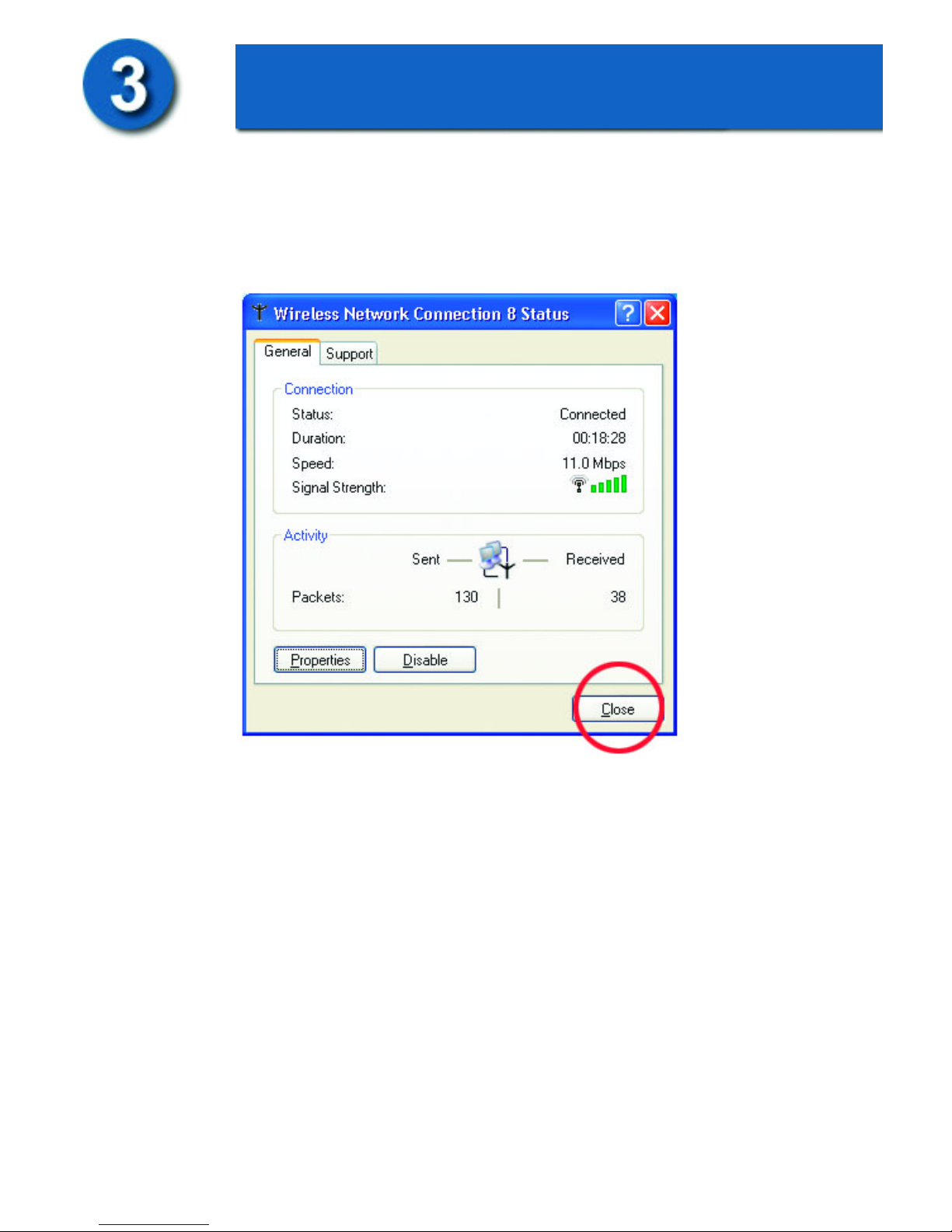

The window below will appear showing the current status of your connected
network.
-5-
Connecting to the Wireless
Network (continued)

You can find the most recent software and user documentation on the D-Link
website.
D-Link provides free technical support for customers within the United States
for the duration of the warranty on this product.
U.S. customers can contact D-Link technical support through our web site,
by e-mail, or by phone.
United States technical support is available Monday through Friday from 6:00
a.m. to 6:00 p.m. (PST.)
Technical Support Website: http://www.support.dlink.com
Email:[email protected]
Phone:[phone]
If you are a customer residing outside of the United States, please refer to the list
of D-Link locations that is included in the User’s manual.
-6-
Technical Support

Notes
