D-Link Express EtherNetwork DNS-120 User manual

Manual
Building Networks for People

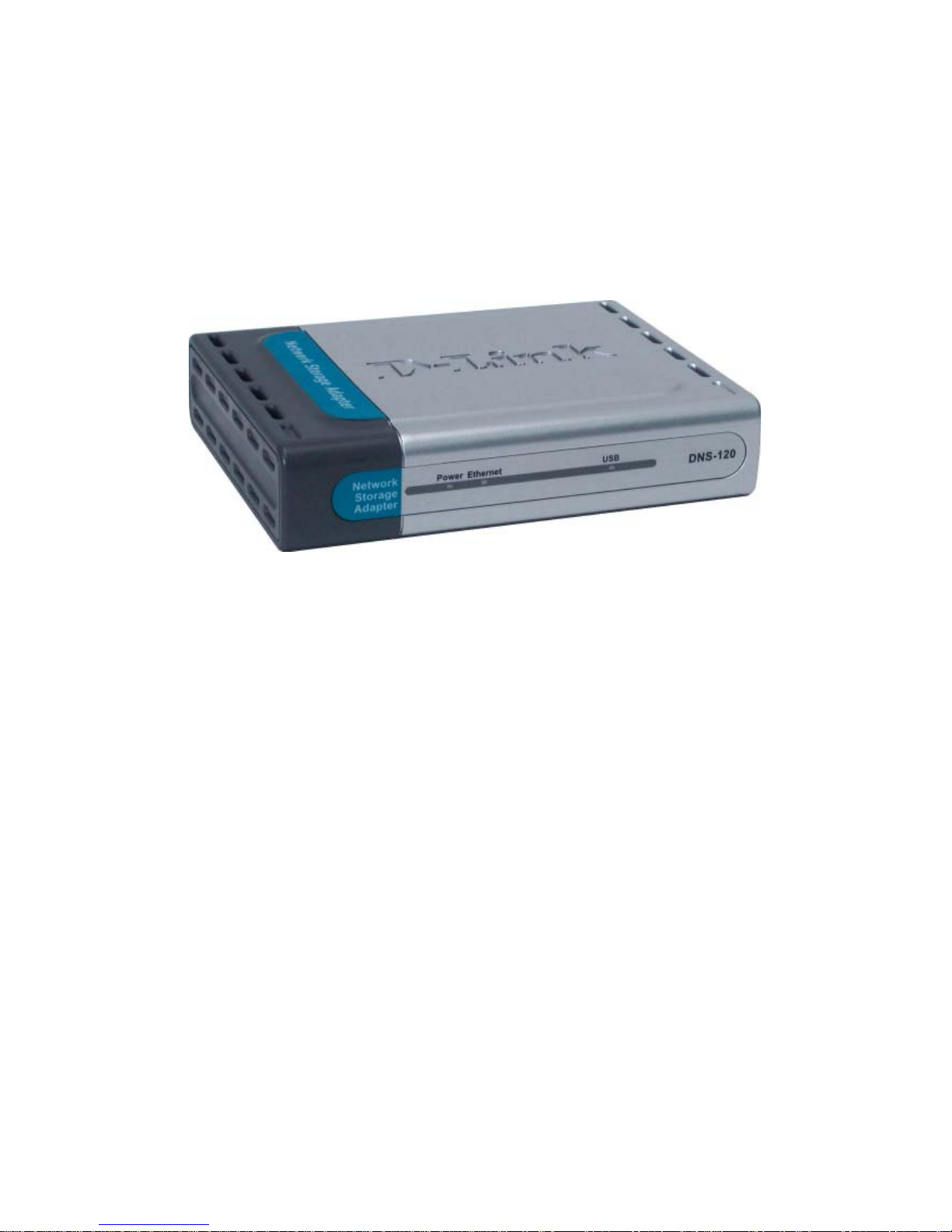

D-Link DNS-120DNS-120
DNS-120DNS-120
DNS-120
USB to Ethernet Network Storage Adapter
Version 1.0

2
Contents
Package Contents .................................................................................. 3
Introduction ..............................................................................................4
Features..................................................................................................4
HardwareOverview.................................................................................5
Disconnect Button ................................................................................... 6
ResetButton............................................................................................6
Using Easy Search .................................................................................7
DNS-120 Web Login Screen ................................................................13
Web Configuration Utility.......................................................................14
Scheduling ............................................................................................31
Networking Basics ................................................................................37
Technical Specifications ........................................................................50
Contacting Technical Support................................................................51
Warranty ................................................................................................52

3
Contents of Package:
D-Link USB to Ethernet Network Storage Adapter
Power Adapter-DC 5V, 2.5A
CD-ROM with manual
Quick Installation Guide
Ethernet Cable
Package Contents
!
!
!
!
!
Internet Explorer version 6.0 or above
Computers with Windows OS XP/2000/Me with an installed
Ethernet adapter
Note: Using a power supply with a different voltage rating than the one included with the
DNS-120 will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
System Requirements for Configuration:
!
!

4
Introduction
The D-Link DNS-120 USB to Ethernet Network Storage Adapter is a convenient way to
share data, media-rich files and resources on your network. With two USB ports, the
DNS-120 allows you to plug in up to two USB drives, configure your file-sharing settings,
and begin sharing storage on your network.
Features
!Compact design
!USB 1.1 and 2.0 compliant
!10/100 Fast Ethernet LAN port with auto-MDI/MDIX
!DHCP compatible
!No software installation necessary
!Built-in Web Configuration Utility
!User management
!Foldermanagement
!Built-in FTP server for remote access
!Firmware Upgrade utility
!Scheduleddownload
!USB drive to drive backup
!Local PC to USB drive backup
!Recurring and incremental backup
!Easy Search utility for quick access to the DNS-120

5

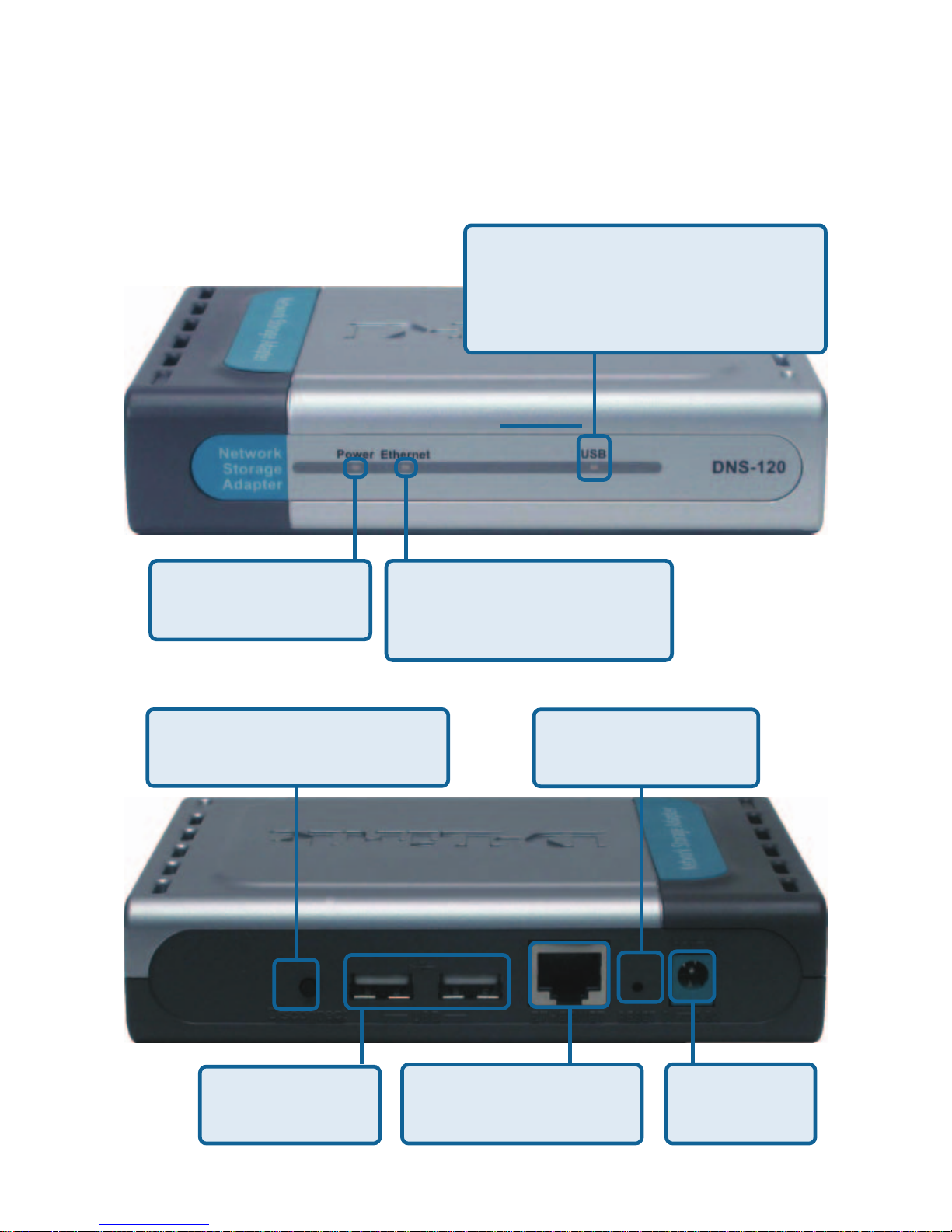

Ethernet Port: Connects to
your router or switch using
the included Ethernet cable.
Receptor for the
provided Power
Adapter
Power LED: Solid green
indicates a good power
source connection.
Front Panel
Rear Panel
Ethernet LED: Solid green
indicates an Ethernet connection.
Blinkinggreenindicatesactivityon
the Ethernet network.
USBLED: TheUSBLEDwillblinkgreenwhen
a USB drive is being connected. When the
USB drive is fully connected the USB LED
will appear solid green. The USB LED blinks
red when the drive is being disconnected.
USBPorts:Connects
your USB drives to
the DNS-120.
Disconnect button: Press this
button to safely disconnect USB
drivesfrom theDNS-120.
Reset button: Thisbutton
will restore the DNS-120
factory default settings.
Hardware Overview

6
Disconnect Button
The Disconnect button is located on the back panel of the DNS-120. This button will
safely disconnect all attached USB drives on the DNS-120.
To safely remove a USB drive from the DNS-120, press the Disconnect button on the
back panel until the USB LED blinks red. After the USB LED turns off, it is safe to
remove all USB drives from the DNS-120.
Note: If a USB drive remains attached to the DNS-120 after being disconnected, it will
no longer be accessible. That USB drive must be reconnected in order to be available
for access again.
To ensure that risk of data loss is minimized, it is important to make sure that no
users are currently accessing files on the DNS-120 while disconnecting USB drives is
in progress.
Reset Button
To reset the DNS-120 to factory default settings, press the reset button for 5 seconds
and release. The Ethernet LED will turn off momentarily, and then light green.
Wait approximately 30 seconds for the DNS-120 to complete the reset cycle before you
begin using it again.

7
Using Easy Search
At any time, you can easily access and manage the DNS-120 with the convenient
utility, Easy Search (provided on the Installation CD-ROM). Easy Search is a tool that
allows you to easily find DNS-120 units for configuration and add USB drive content to
the network for user access.
To use Easy Search:
1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the
Autorunprogram.
2. Click the Easy Search item to launch the utility. The control panel will appear as
shown on the following page.

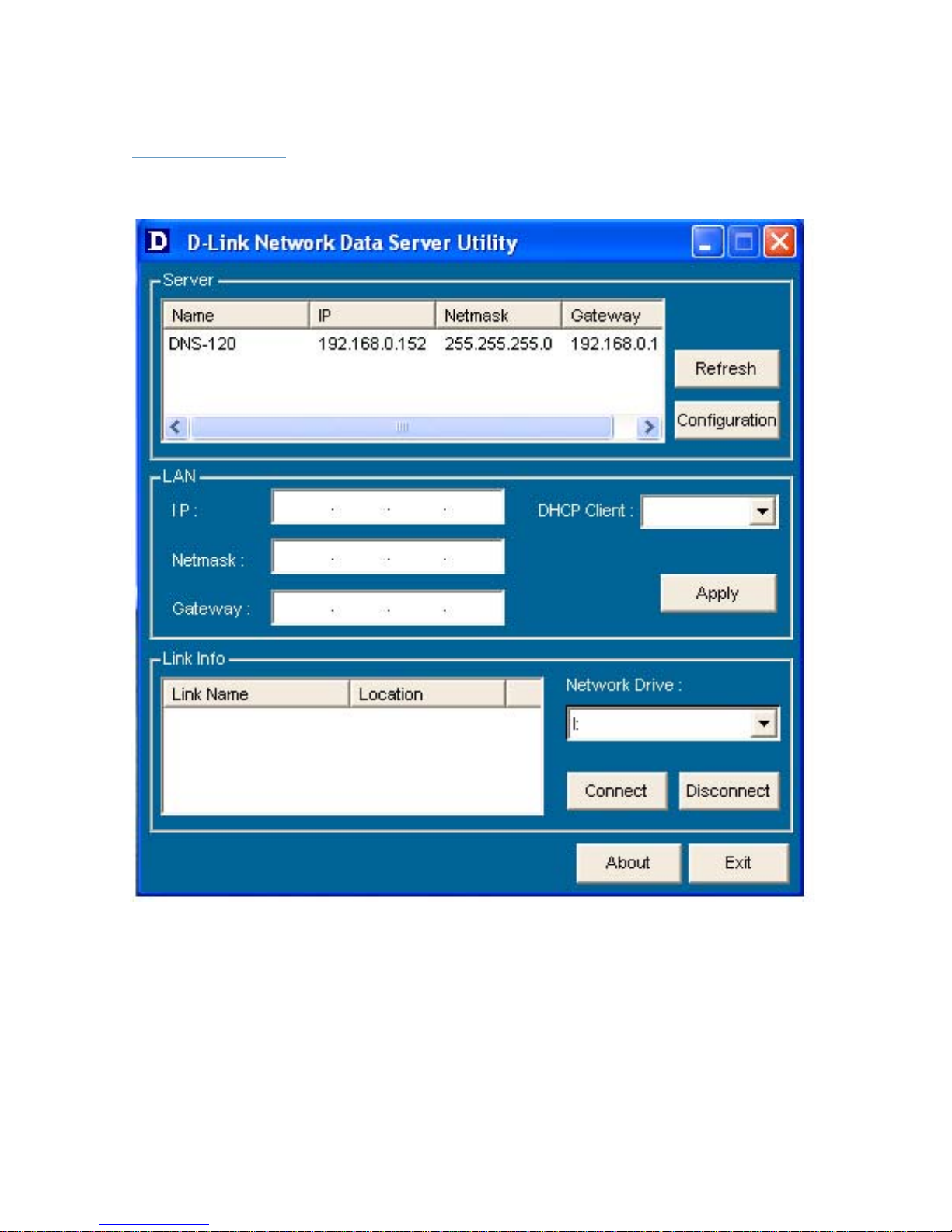

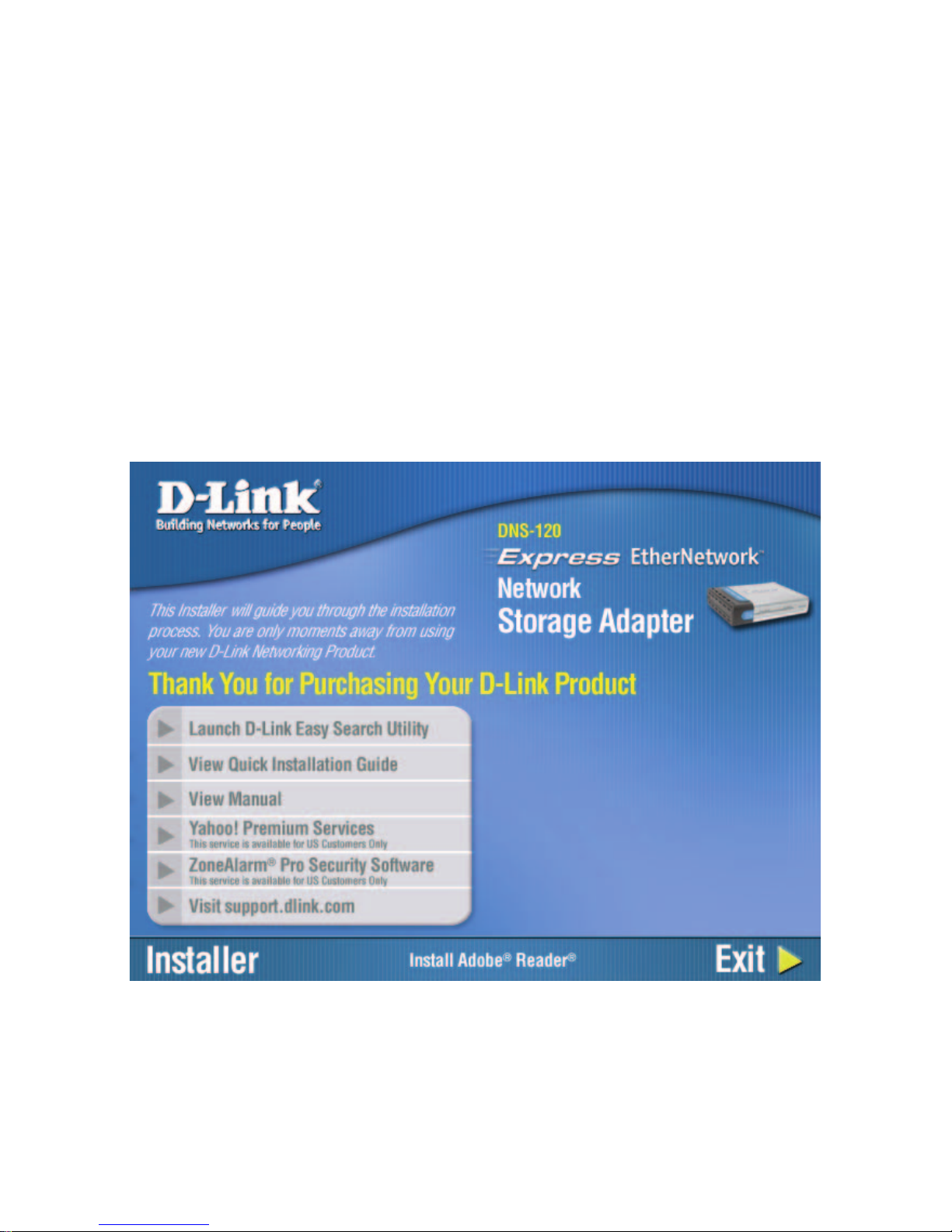

The Autorun Screen of the Installation CD-ROM

8
Using Easy Search
Server List
This list will detect all DNS-120 units on the network. Each DNS-120 will be displayed
on a separate line with the current IP address, Network Mask, and Gateway IP.
Refresh
Click this button to refresh or re-detect all DNS-120 units on the network.
Configuration
This is used to bring up the Web configuration utility of the DNS-120. To access the
Web configuration utility, click on the desired DNS-120 unit in the Server List and then
click on the Configuration button to bring up the Web configuration login screen.

9
Using Easy Search
LAN
LAN
This section displays details of selected DNS-120 unit. To review the LAN settings,
click on an available DNS-120 unit in the Server List. The LAN settings now appear in
the appropriate fields in this section.
DHCP Client
The DNS-120 takes advantage of DHCP server presence on the network to
automatically configure the LAN settings.
Enabled – The DNS-120 will request an IP address from the available DHCP
server and configure the LAN settings automatically. The IP, Netmask, and
Gateway options will be disabled.
Disabled – The IP, Netmask, and Gateway fields will be enabled for the user
to enter in the LAN settings manually.
Apply – Click this button to put the changes to LAN settings into effect.

10
Using Easy Search
LINK INFO
LINK INFO
This section lists all available shared folders on a USB drive attached to DNS-120. Click
on the desired DNS-120 in the Server List. All available shared folders will be displayed
in the Link Info List, along with the mapped drive letter (if any). At the user’s option, any
of the available shared folders may be mapped as a network drive letter to the local PC
or to disconnect an existing mapped drive.

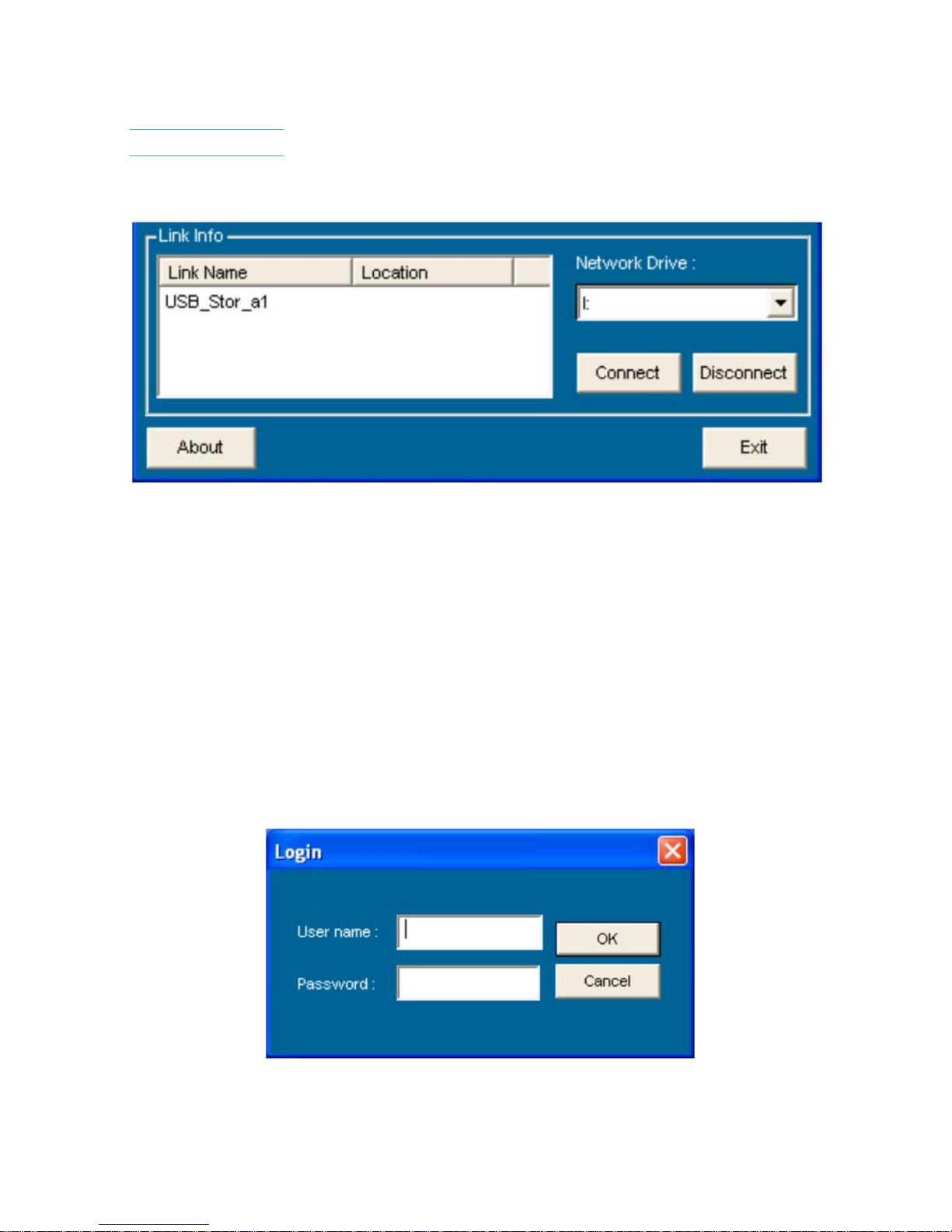

MAP (CONNECT) A DNS-120 SHARED FOLDER AS A NETWORK DRIVE
1. Click on the desired shared folder in the Link Info list (will highlight in blue)
2. Select a network drive letter from the drop-down Network Drive option. Note that
some network drive letters may be unavailable. This will be indicated by a
previously assigned network path next the drive letter.
3. Click the Connect button

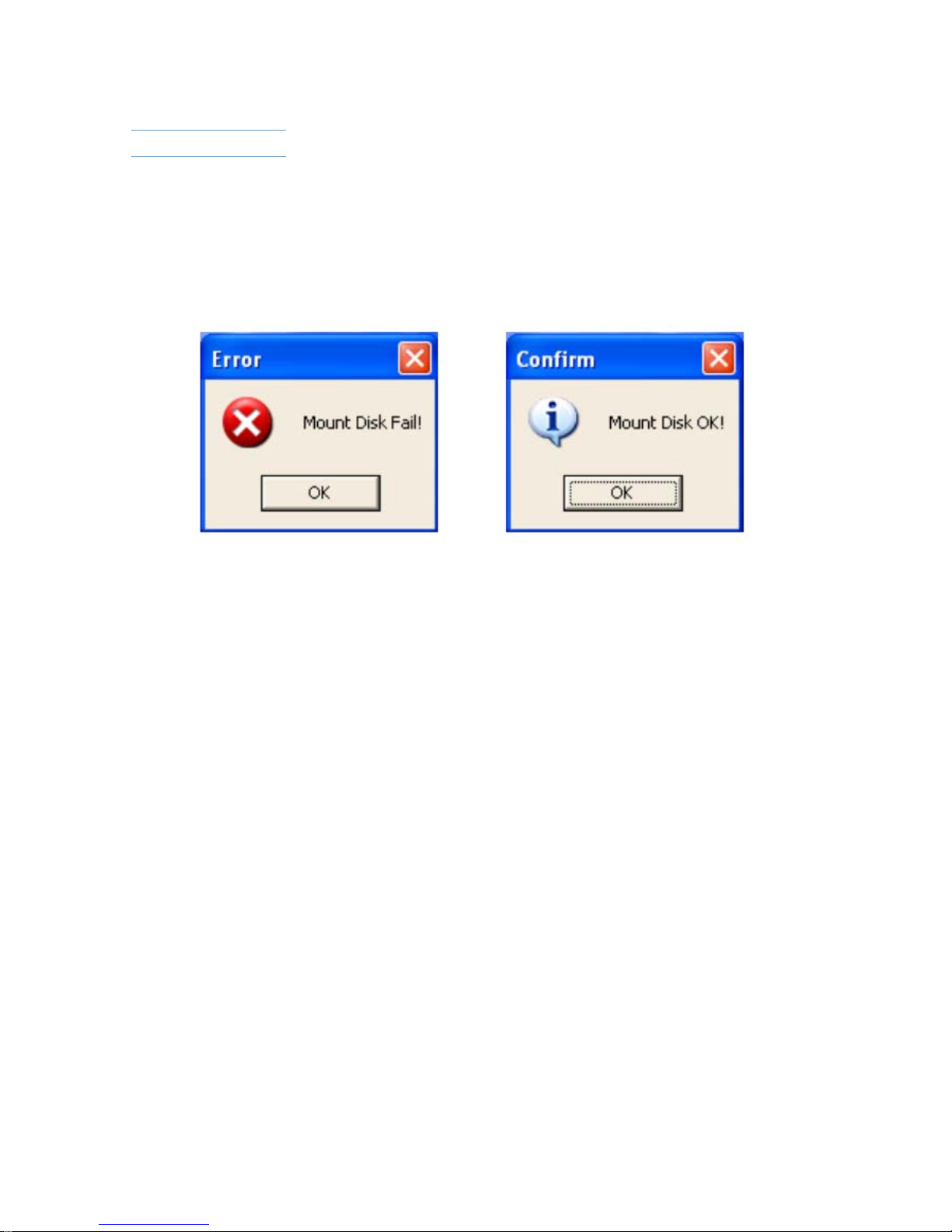

4. If the shared folder has restricted user access, you will see the following:

11
Using Easy Search
MAP (CONNECT) A DNS-120 SHARED FOLDER AS A NETWORK DRIVE (continued)
Enter in a valid user name and password. Press OK to continue or Cancel to reset the
Usernameand Passwordfields.Youwillthen seeone ofthefollowing messagesappear:
If the user name and password entered is incorrect, you will see a failure notice (shown
above). If the user name and password entered is valid, you will see a success notice
(shownabove).
5.
Failure Notice SuccessNotice
To verify that the DNS-120 shared folder was mapped successfully, click on My
Computers on the Windows desktop of the local PC. The mapped drive should
appear under the Network Drives heading.

12
DISCONNECTAMAPPED(CONNECTED)DRIVE
1. Click on the desired shared folder in the Link Info list (will highlight in blue).
2. Click the Disconnect button.

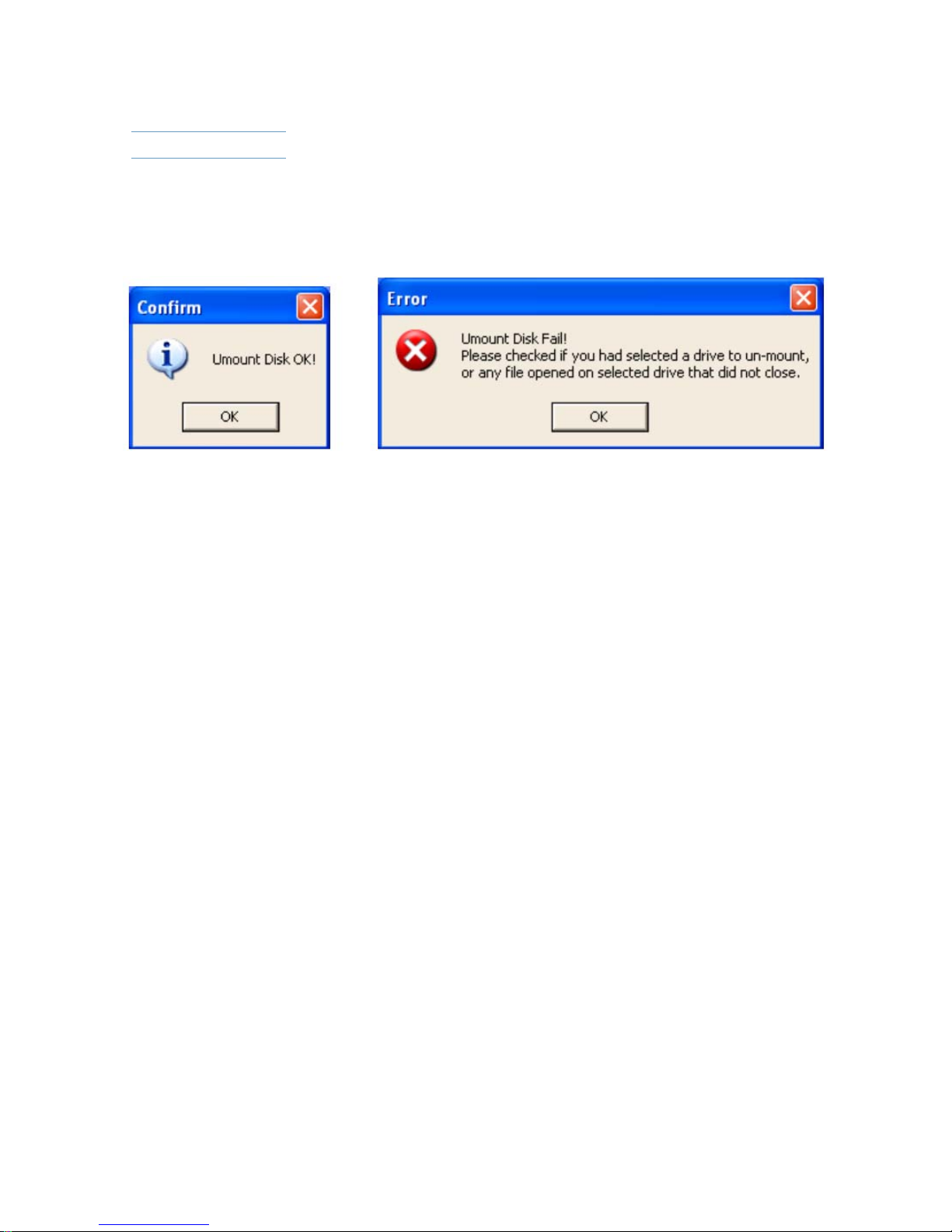

3. You will see one of the above messages.
If the mapped drive was disconnected successfully, a success notice (shown above) will
appear. If the mapped drive could not be successfully disconnected, a failure notice
(shown above) with some possible reasons will appear.
Using Easy Search
To verify that the DNS-120 shared folder was disconnected successfully, click on
My Computers on the Windows desktop of the local PC. The mapped drive should
nolonger appear.
4.
Failure Notice
SuccessNotice

13
DNS-120 Web Login Screen
This is the DNS-120 login screen for access to Download Scheduling and the Web
Configuration. Enter your User Name and Password here.
For first-time configuration of DNS-120, enter “admin” for user name and leave the
password field blank.
Download Schedule
After entering login information, click the Download Schedule button to access file/
folder backup and transfer configuration screen. All users have access to this section
of the DNS-120 web configuration.
Config
After entering login information, click the Config button to access the DNS-120 web
configuration utility. This section is restricted to only the Admin account.
Reset
Click this button to clear the User Name and Password fields.

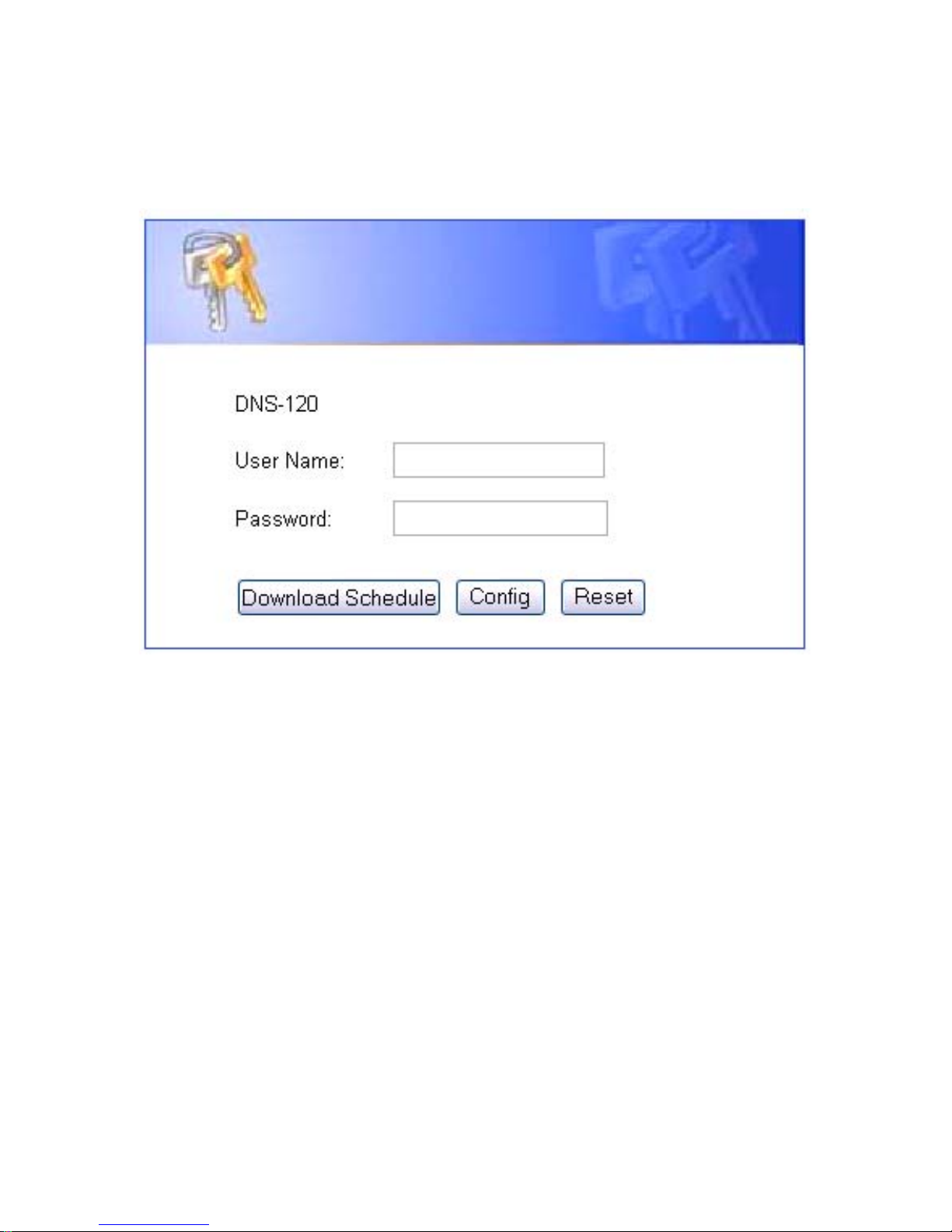

DNS-120WEB LOGIN SCREEN
Access the Web login screen from the Easy Search utility. (Please see page 7).

14
Web Configuration Utility
Home > Wizard
This utility contains all of the settings and options available to configure the DNS-120.
Theutility is dividedup into fivetabbed sections. Eachtabbed section includesa number
ofoptionsrepresented by buttons on theleft side. The Logout buttonremains present on
every configuration page for instant logout of the utility.

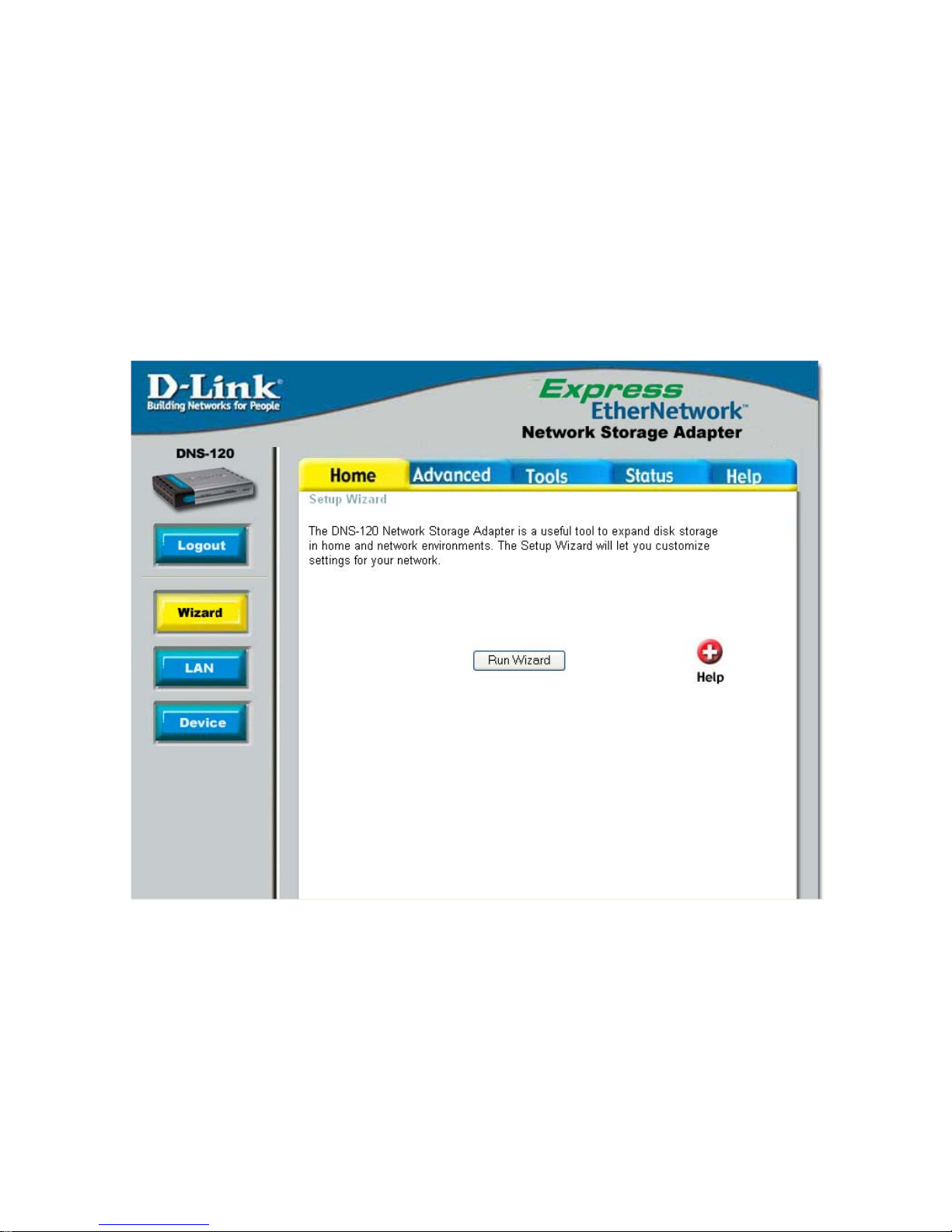

Run Wizard
Click this button to access the Setup Wizard. Please refer to the Quick Installation
Guide that is included with the DNS-120 to learn more about the Setup Wizard.
Help
Click this button to get additional online help for the Setup Wizard.

15
WebConfiguration
Home > LAN

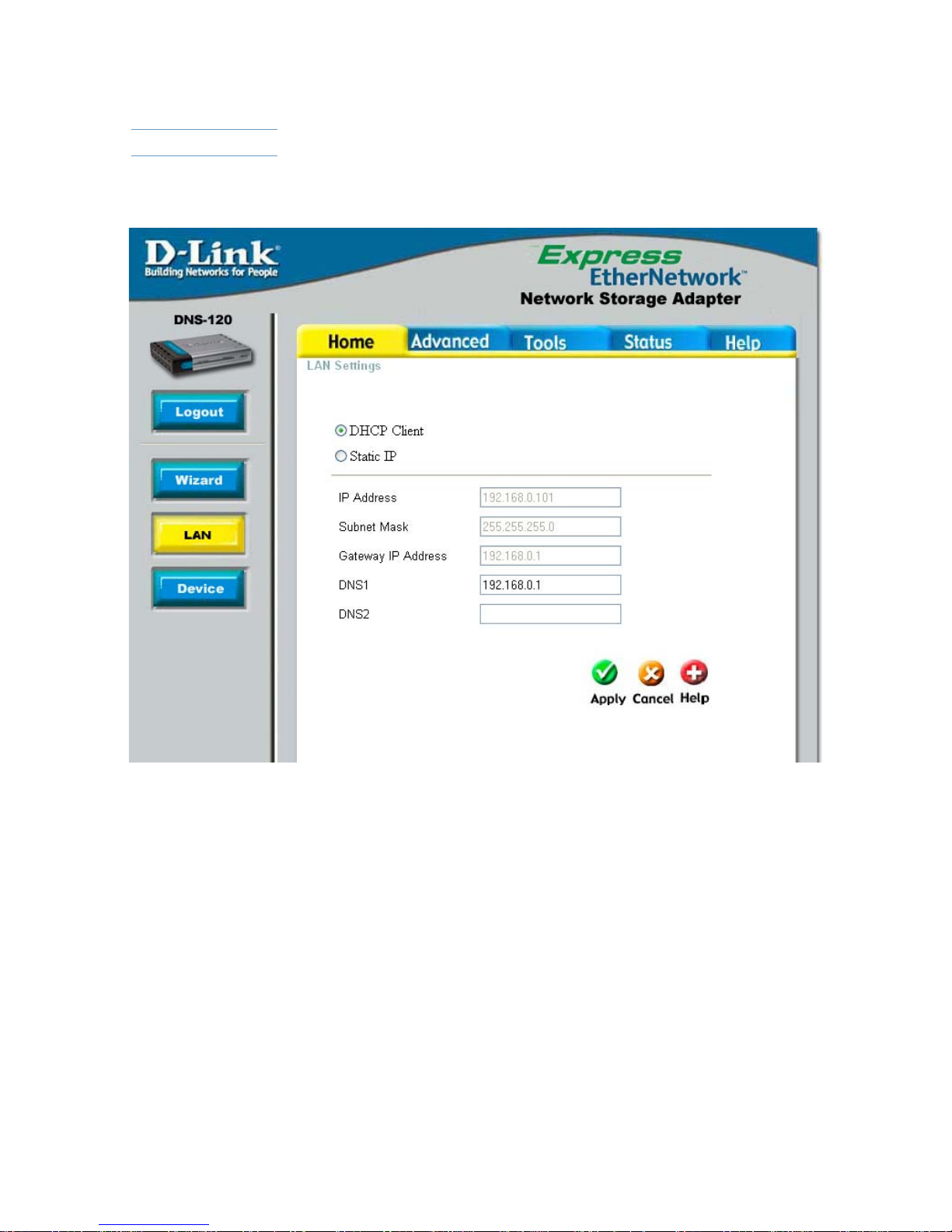

LAN Settings
ThissectioncontainsallLANsettingstoconfiguretheDNS-120tothenetwork.Depending
on how the network is set up, changes to this page may or may not be necessary.
DHCP Client
Clicking this option enables the DNS-120 to request an IP and auto-configure itself to
the network if there is a DHCP Server present. By default, DHCP is enabled.
Static IP
Click this option if there is no DHCP Server present on the network and manually enter
the network settings in the fields provided below this option.
· IP Address – Enter the static IP address
· Subnet Mask – Enter the Subnet Mask address
· Gateway IP Address – Enter the Gateway IP address
· DNS1 and DNS2 (both optional) – If available, enter those IP addresses here
If you need assistance in manually entering the above information, contact your network
administrator for additional help in configuring the network settings.

16
Home > LAN (continued)
WebConfiguration
NOTE: If DHCP Client is enabled, but there is no DHCP server, the DNS-120 will fall
back to the default IP address of 192.168.0.101.
Once all changes to the LAN settings have been made, click the Apply button to put the
changes into effect. The DNS-120 will then reboot itself. Wait approximately 30 seconds
before attempting to log in again.
To clear any changes made to the settings and start over again, click the Cancel button.
To access online help for the LAN Settings, click the Help button.

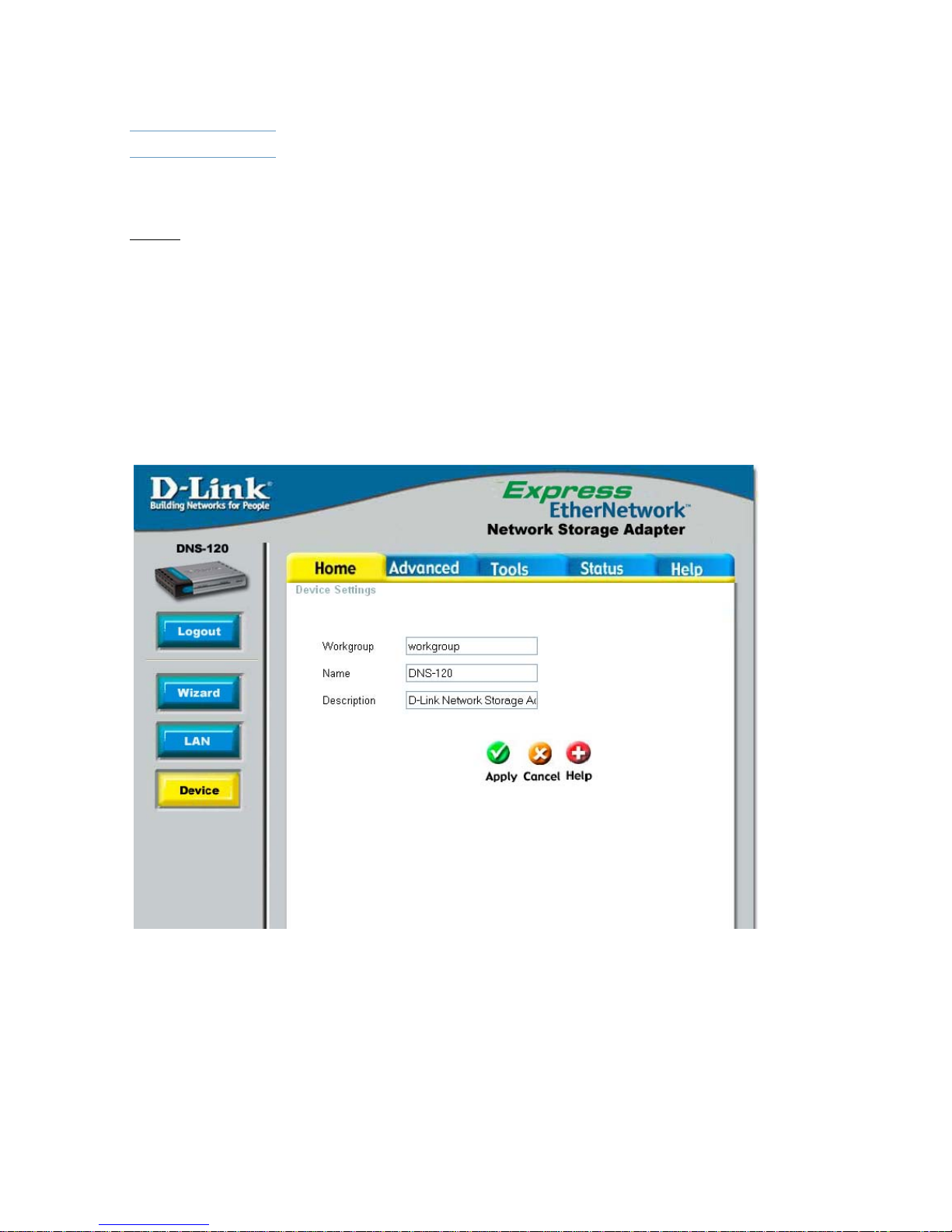

Home > Device
Device Settings
These are additional settings to affect how the DNS-120 will appear on a Windows PC.
Thesettingsshownabovearefactorydefaultandcanbeacceptedwithnofurtherchanges.
Workgroup – Enter name of workgroup for the DNS-120
Name – Enter name of the DNS-120 as it will appear in Windows
Description – Enter brief description of this DNS-120 unit

17
WebConfiguration
Advanced > User

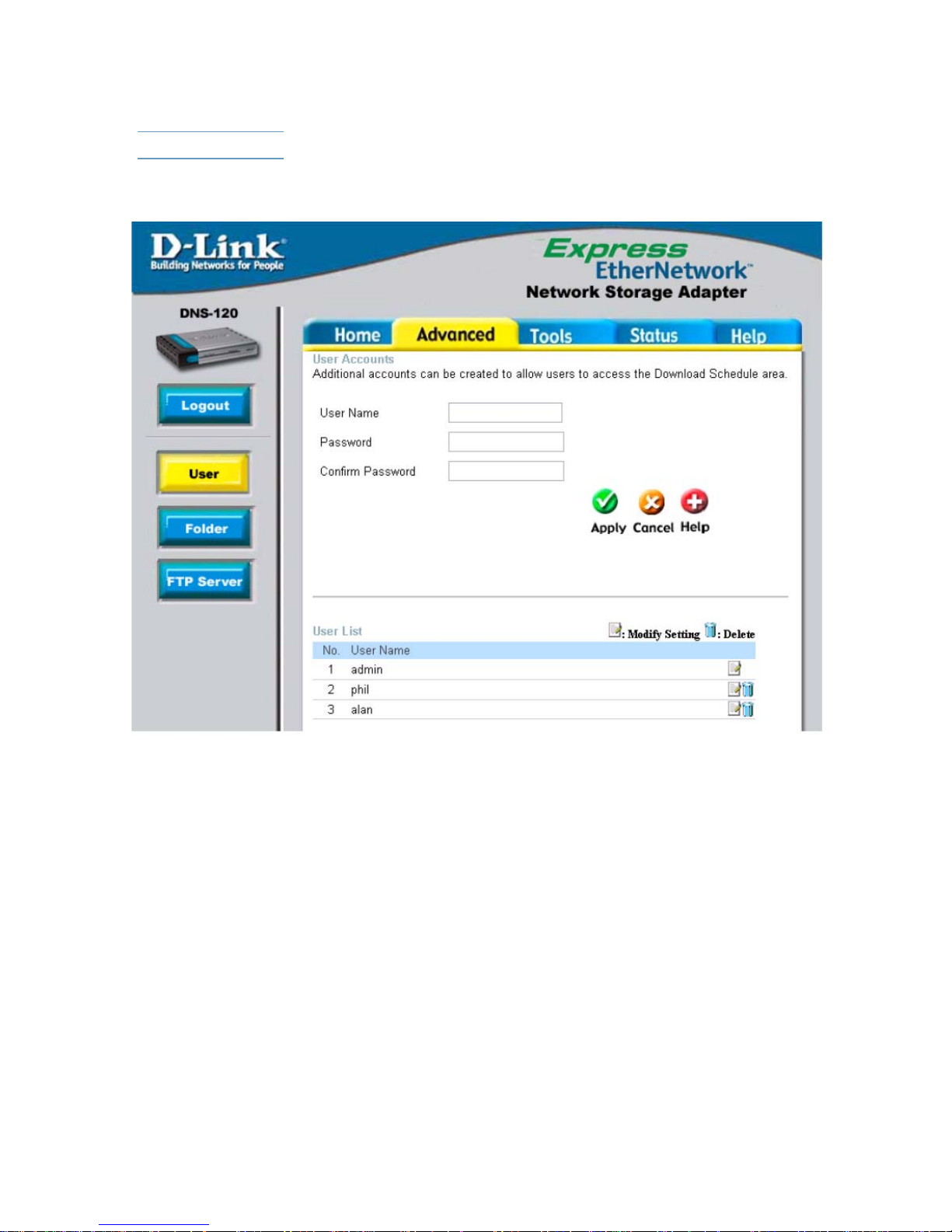

UserAccounts
This section will allow the Administrator to create additional user accounts. These
accounts can then be used to access the Download Schedule section of the web
configuration utility.
ADDA USER ACCOUNT
1. Enter a unique user name
2. Enter a password associated with the user name
3. Re-Enter the password to confirm
4. Click Apply to save changes and add the user account
To reset the user account field and start over, click the Cancel button. To access online
help for User Accounts, click the Help button.

18
WebConfiguration
Advanced > Folder
Folder Settings

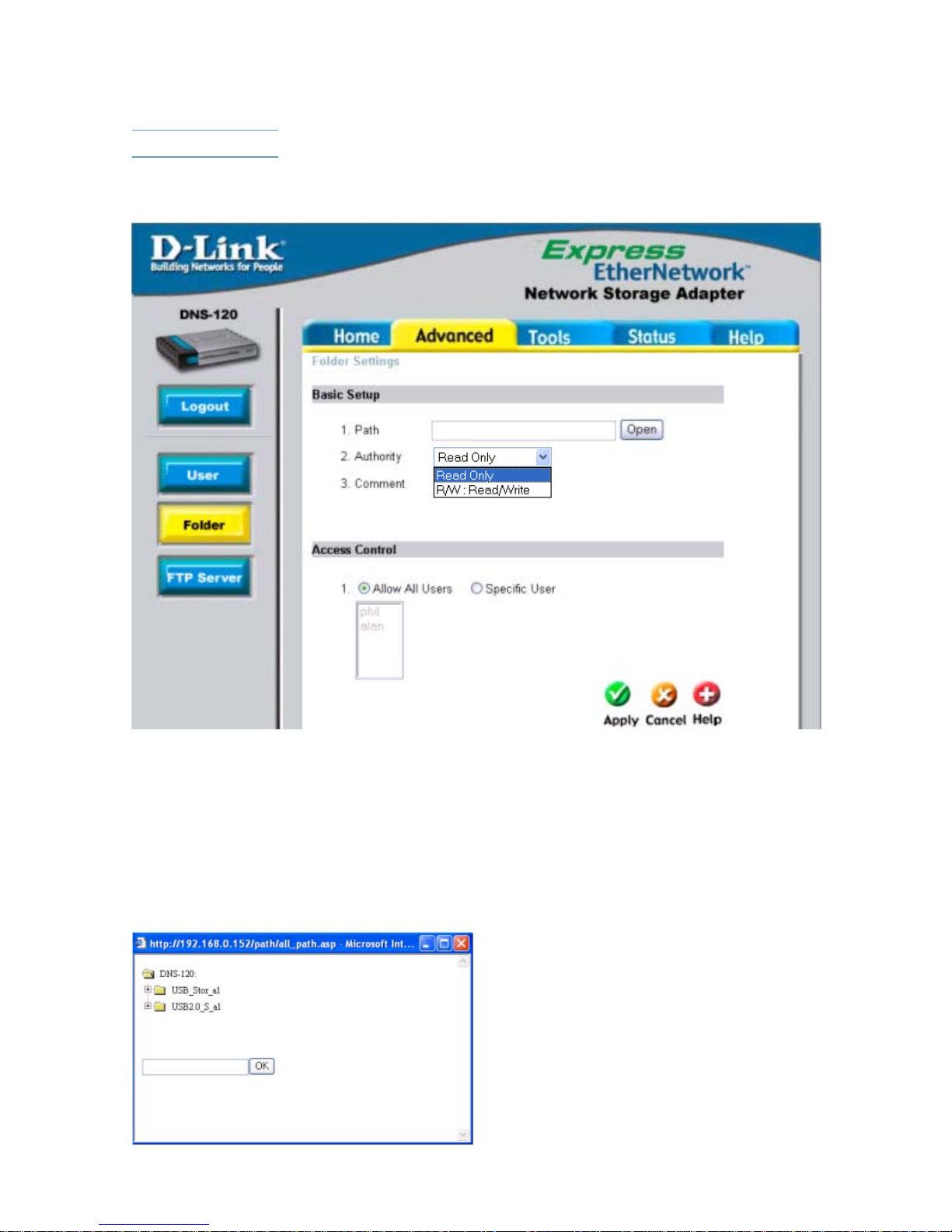

This section will allow you to designate folders on attached USB drives as shared
folders. Once shared, these folders can be mapped as a network drive using the Easy
Search utility.
Path
To set the folder path, click the Open button to begin folder selection. A window will
appear with a graphical representation of the folder structure on the USB drive(s).

19
WebConfiguration
Advanced > Folder (continued)
To select a folder, click on the sign next to the USB drive name to reveal all sub-
folders available. When the folder you want is displayed, click on the folder name,
scroll to the bottom of the folder structure, and verify the correct folder path listed. If
the folder path is correct, click on the OK button to accept.
Authority
Select the Authority (commonly known as folder permissions) to set on the folder
Read Only – Users can access the files in the folder, but cannot make
changes
R/W (Read/Write) – Users can access the files and can make changes
Comment
Enter a brief comment about the chosen folder (optional)
AccessControl
This section determines which users can gain access to the folder.
Allow All Users - Click this button to allow all users access to the folder

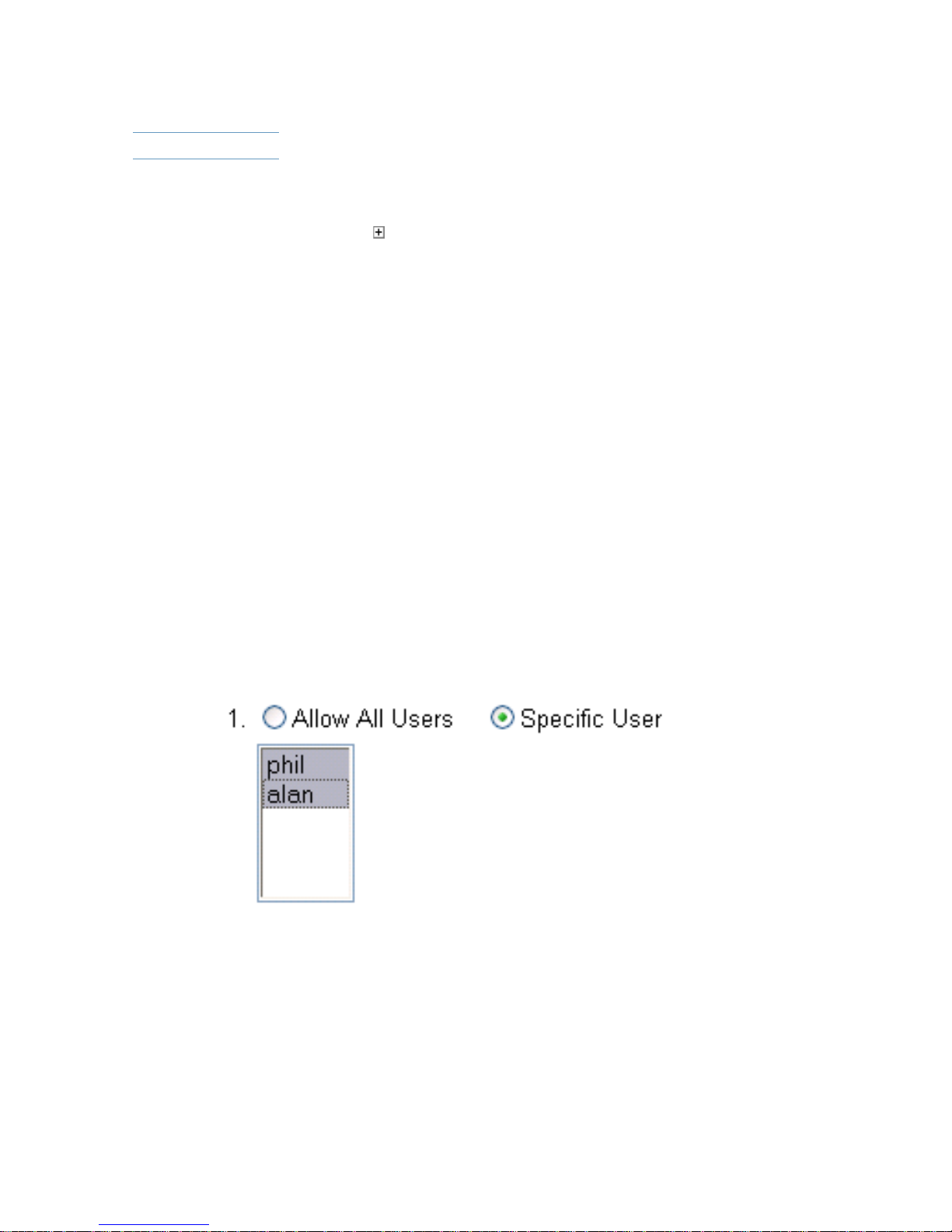

Specific Users - Click this button to limit folder access to specified users.
Multiple users may be chosen by holding down the Shift or Alt key and left-
clicking on additional users listed in the User List
Example:
Click the Apply button to save changes and designate as a shared folder.
To reset the Folder Settings options and start over, click the Cancel button. To
access online help for Folder Settings, click the Help button.

20
WebConfiguration
Advanced > FTP Server

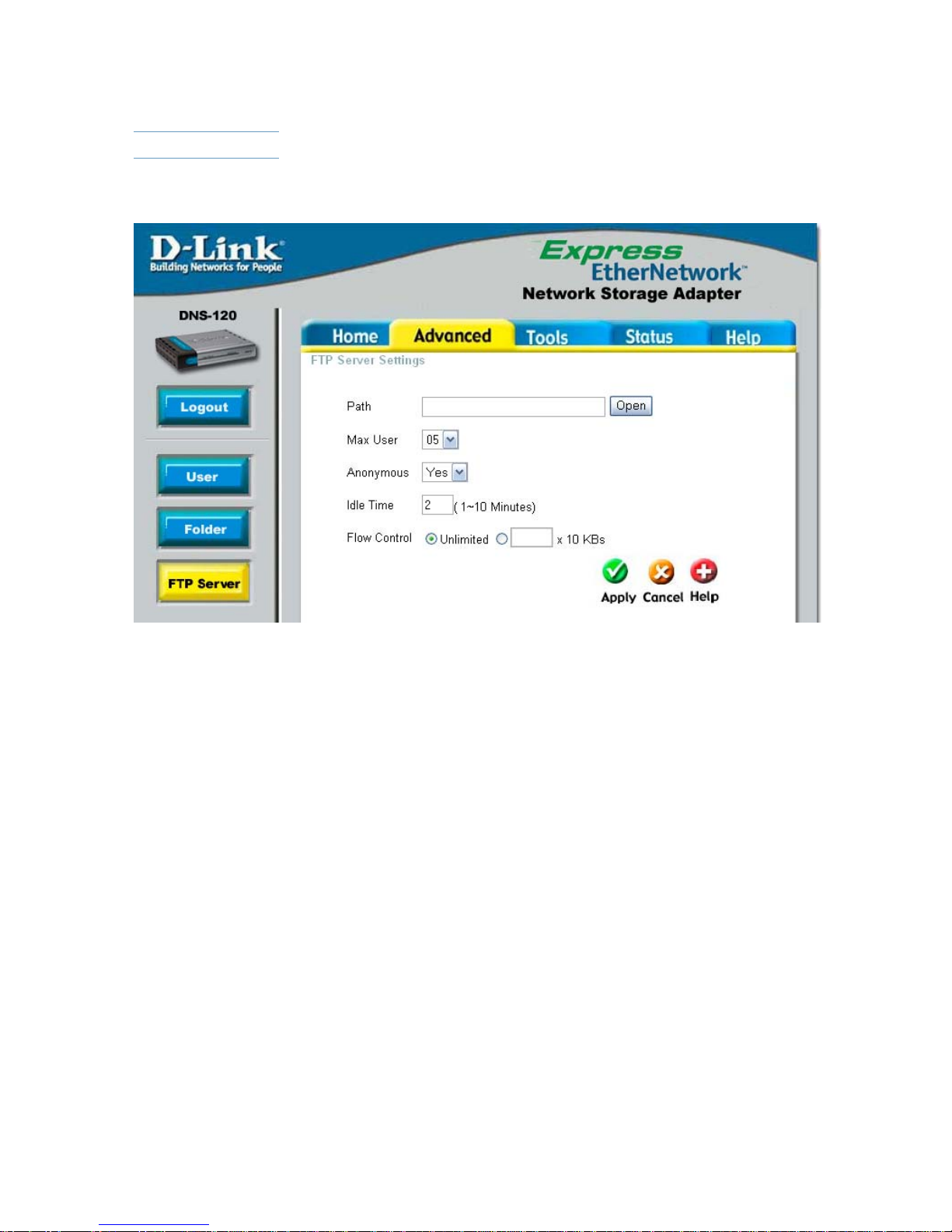

FTP Server Settings
This section will allow the Administrator to configure, stop, and start the built-in FTP
server. The FTP server allows users outside of the network to access the DNS-120
through the Internet.
Path
To set the folder path, click the Open button to begin folder selection. A window will
appear with a graphical representation of the folder structure on the USB drive(s).
Refer to the previous section (Folder Settings) for directions on how to select a
specific folder.
Max Users
Select the maximum number of users that can log onto the FTP server at the same
time. The maximum number is limited to 10 simultaneous users.
Anonymous
Select Yes for Anonymous login. All users can log into the FTP server anonymously
(user name: Anonymous, password: <none>). Select No for restricted access. Only
registered user accounts (and appropriate password) created on the DNS-120 will be
able to gain access to the FTP server.
