Section 1 - Product Overview
System Requirements
• Windows® 7/Vista®/XP SP3 or higher
• Available PCI Express slot (x1, x4, x8, or x16)
• Available 4-pin 12V peripheral power connector
• CD-ROM drive
Product Overview
Package Contents
If any of the above items are missing, please contact your reseller.

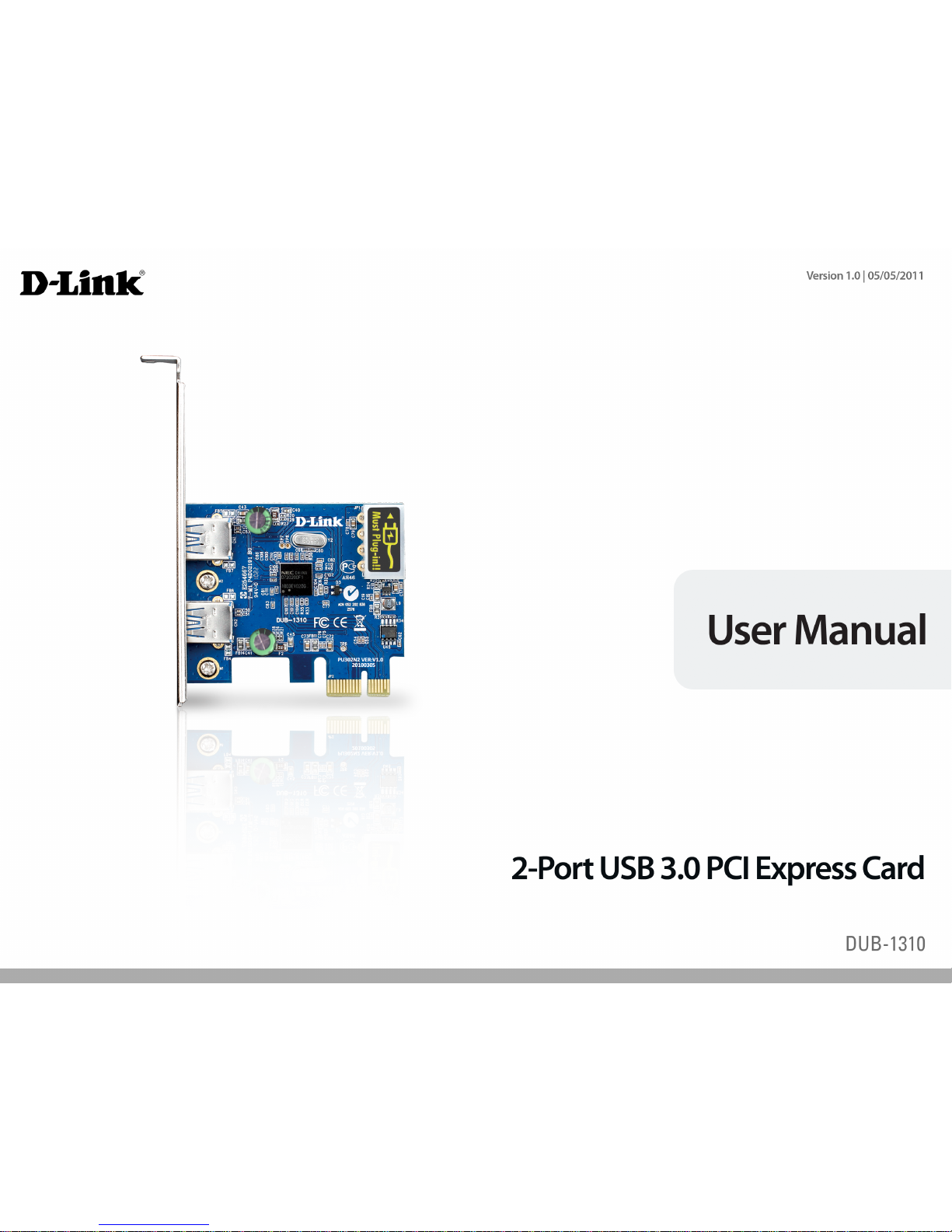

D-Link DUB-1310 2-Port USB 3.0 PCI Express Card
Low Prole Bracket
CD-ROM with drivers and user manual
Quick Install Guide

5D-Link DUB-1310 User Manual
Section 1 - Product Overview
Blazing USB 3.0 Speed
Connect your PC to USB 3.0 devices to transfer data at blazing speeds of up to 5 Gbps - up to 10 times faster than USB 2.0. You
can back up your photos, music, and HD movies to a USB 3.0 external storage device faster than ever before.
Plug and Play Connectivity
Just run the Setup CD and then slide the DUB-1310 into an available PCI Express slot; it’s that simple to add 2 USB 3.0 ports to
your PC.
Connect All Your Peripherals
Backward compatibility with USB 2.0 and USB 1.1 means that you can connect any USB device to the DUB-1310. If you need
more ports, you can connect additional USB hubs to support up to 127 devices.
Features

6D-Link DUB-1310 User Manual
Section 1 - Product Overview

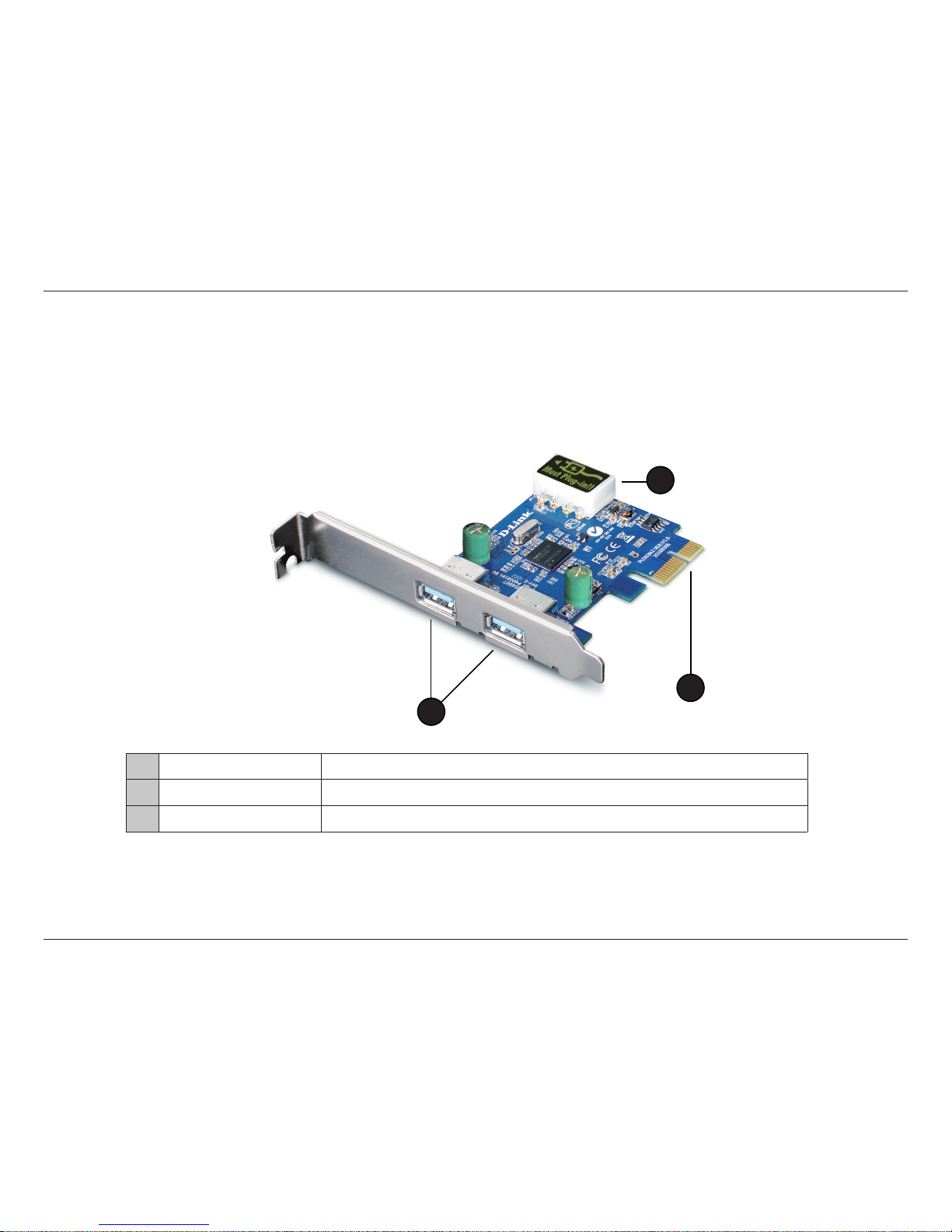

Hardware Overview
12 USB 3.0 Ports Connects to USB devices.
2PCIe Interface Connects to your desktop’s PCIe slot.
3Power Connector Connects to a 4-pin 5V peripheral power connector.
1
3
2

7D-Link DUB-1310 User Manual
Section 2 - Installation
Installation
Step 1 - Before installing the DUB-1310, insert the CD-ROM into your CD drive. Click on Install from the autorun menu and
follow the instructions to install the drivers.
Step 2 - Shut down your computer and unplug the power cable from your computer. It is recommended to unplug all cables
from your computer. Remove the case. Please refer to your computer’s documentation for more information on how to remove/
open the case. Make sure you are properly grounded before installing the PCIe card.
Step 3 - Install the DUB-1310 into an available PCIe slot. Connect a 4-pin 5V peripheral power connector to the power connector
on the DUB-1310.
Step 4 - Close the computer case and reconnect the power cable and any other cable you disconnected.
Step 5 - Turn on your computer. Windows will automatically detect the DUB-1310 and install drivers for it. Once installed you
may plug in your USB devices.
* Note: For some computers, opening the case may invalidate your computer’s warranty. For details on your computer’s warranty, or
for more information on how to open your case, please check your computer’s documentation.

8D-Link DUB-1310 User Manual
Appendix C - Technical Specications
Technical Specications
Interface
• PCI Express x1
• 2 downstream USB Type A (female) ports
Standards
• USB specication version 3.0
• USB specication version 2.0
• USB specication version 1.1
• USB specication version 1.0
• OHCI (Open Host Controller Interface)
• EHCI (Enhanced Host Controller Interface)
• PCI Express 2.0
Data Rates*
• SuperSpeed: 4.8 Gbps
• High Speed: 480 Mbps
• Full Speed: 12 Mbps
• Low Speed: 1.5 Mbps
Connectivity
• Up to 127 devices by cascading multiple hubs
System Requirements
• Windows® 7/Vista®/XP SP3 or higher
• Available PCI Express slot
• Available 4-pin 12V peripheral power connector
• CD-ROM drive
* Maximum transfer rate based on USB 3.0 specications. Actual data throughput will vary. To meet USB 3.0 transfer speeds, USB 3.0 hubs, cables and devices are required. Using a USB
1.1 or USB 2.0 port will aect device performance.
Supplied Power
• Maximum 900 mA per port
Dimensions (L x W x H)
• 2.98 x 2.42 x 0.72 inches (75.8 x 61.5 x 18.3 mm)
Weight
• 0.09 lbs
Operating Temperature
• 32 to 104 °F (0 to 40 °C)
Storage Temperature
• -4 to 140 °F (-20 to 60°C)
Operating Humidity
• 0% to 80% (non-condensing)
Certications
• USB-IF
• WHQL
• FCC
• CE

9D-Link DUB-1310 User Manual
