D-Link DUB-1310 User manual

USB
Blazing Speeds – transfer les
up to 10x faster than
USB 2.0²
Backward Compatible with USB
2.0 and 1.1² devices
Instant Upgrade - just add it to your
desktop’s PCI Express Card slot to
instantly add 2 USB 3.0 ports
SUPERSPEED USB 3.0 CAPABILITIES
Connect your PC to USB 3.0 devices to transfer data at blazing speeds of up to 5 Gbps¹ - up to 10 times faster than USB 2.0. You can back up your photos, music,
and HD movies to an external storage device faster than ever before. SuperSpeed USB delivers maximum power efciency to save the energy cost. You can also
charge USB 3.0 devices faster using the DUB-1310.
PLUG AND PLAY CONNECTIVITY
Just run the Setup CD and then slide the DUB-1310 into an available PCI Express slot; it’s that simple to add 2 USB 3.0 ports to your PC.
CONNECT ALL YOUR PERIPHERALS
Backward compatibility with USB 2.0 and USB 1.1² means that you can connect any USB device to the DUB-1310. If you need more ports, you can connect
additional USB hubs to support up to 127 devices¹.

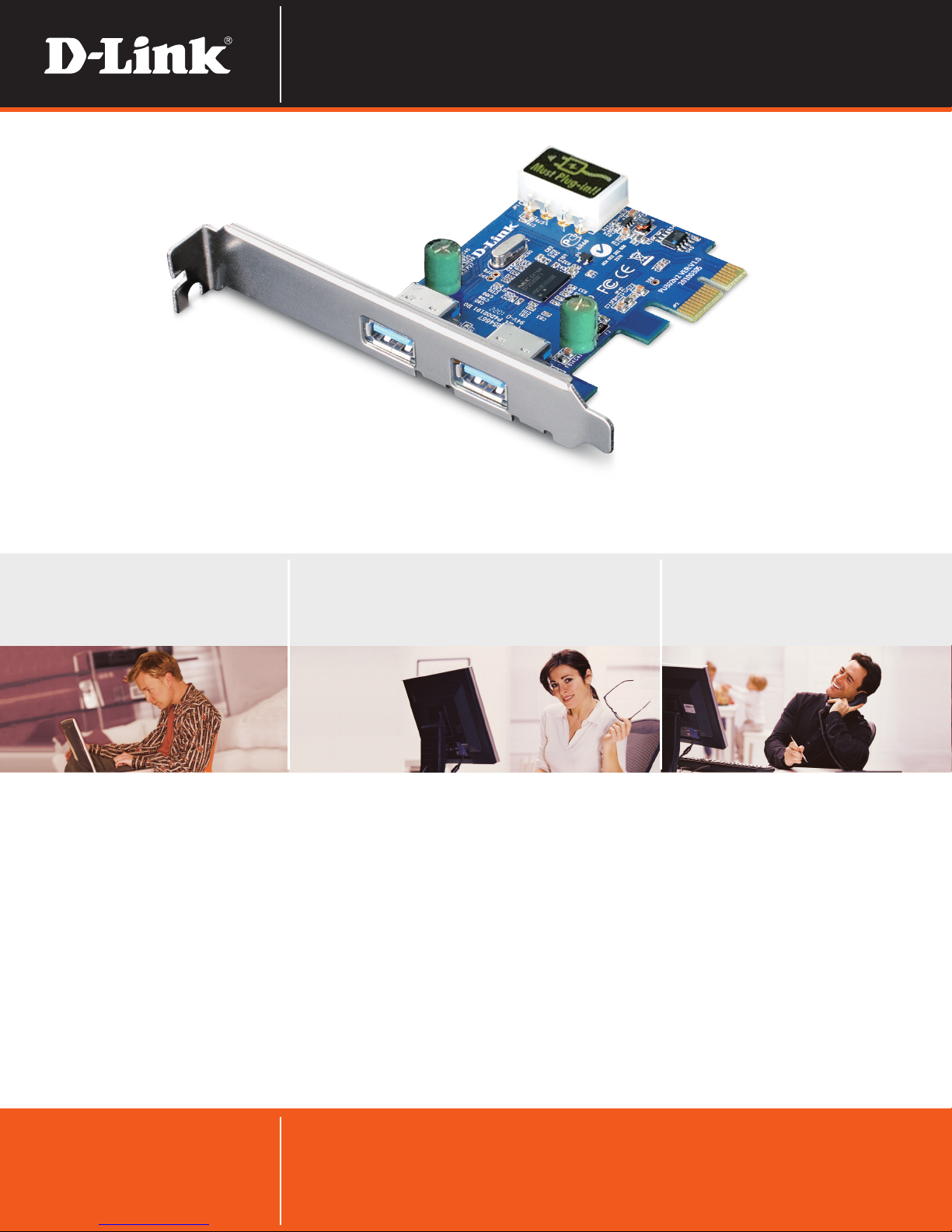

DUB-1310
2-PORT USB 3.0 PCI EXPRESS CARD

USB
TECHNICAL SPECIFICATIONS

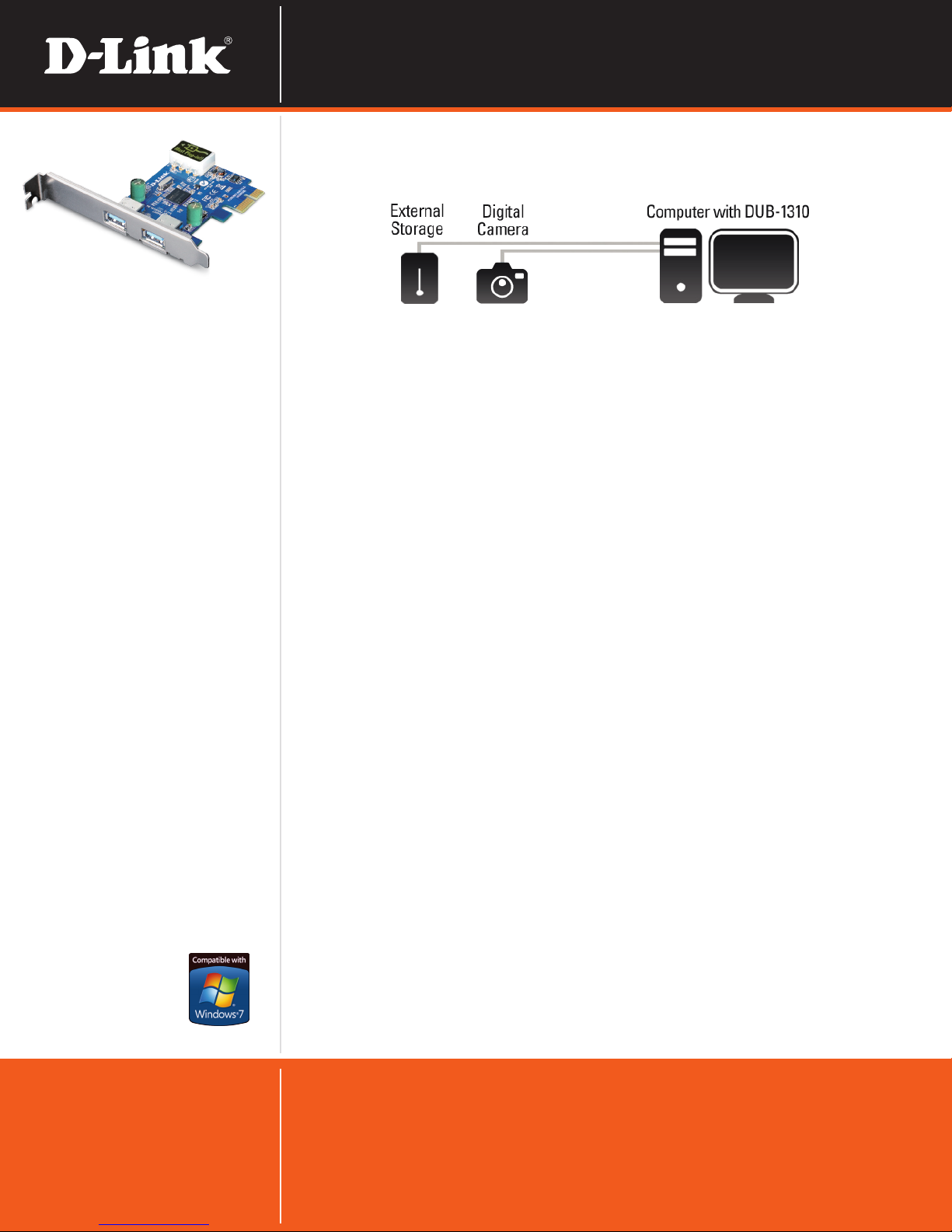

NETWORK DIAGRAM
INTERFACE
+ PCI Express x1
+ 2 downstream USB type A (female) ports
STANDARDS
+ USB specication version 3.0
+ USB specication version 2.0
+ USB specication version 1.1 1
+ USB specication version 1.0
+ OHCI (open Host Controller Interface)
+ EHCI (Enhanced Host Controller Interface)
+ PCI Express 2.0
DATA RATES
+ SuperSpeed: 4.8 Gbps
+ High Speed: 480 Mbps
+ Full Speed: 12 Mbps
+ Low Speed: 1.5 Mbps
CONNECTIVITY
+ Up to 127 devices by cascading multiple hubs
SUPPLIED POWER
+ Maximum 900 mA per port
DIMENSIONS (L X W X H)
+ 2.98” x 2.42” x 0.72” (75.8 x 61.5 x 18.3mm)
WEIGHT
+ 0.09 lb (43 grams)
OPERATING TEMPERATURE
+ 32 to 104 °F (0 to 40 °C)
STORAGE TEMPERATURE
+ -4 to 140 °F (-20 to 60 °C)
OPERATING HUMIDITY
+ 0% to 80% (non-condensing)
CERTIFICATIONS
+ USB-IF
+ WHQL
+ FCC
+ CE
WARRANTY
1-Year Limited
3
DUB-1310
WHAT THIS PRODUCT DOES
The D-Link 2-Port USB 3.0 PCI Express Card (DUB-1310)
adds 2 USB 3.0 ports to your PC, allowing you to connect
USB devices such as external storage, digital cameras,
printers, and more. Providing data rates of up to 5Gbps
- 10 times faster than USB 2.0¹. You can transfer your
photos, music, and HD movies to a USB 3.0 external
storage device faster than ever before.
1. Maximum transfer rate based on USB 3.0 specications. Actual data throughput will vary. To meet USB 3.0 transfer speeds, USB 3.0 Hubs, cables and devices are required.
2. Using a USB 1.1 or USB 2.0 port will affect device performance.
3. 1-Year Limited Warranty available only in the USA and Canada.
4. Latest Software and Documentation available at http://support.dlink.com.
5. Computer must adhere to Microsoft’s recommended system requirements.
Product specications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See inside
package for warranty details.
©2011 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link, the D-Link logo and the D-Link RoHS logo are registered trademarks of D-Link Corporation or its
subsidiaries in the United States and/or other countries. Other trademarks or registered trademarks are the property of their respective owners.
MINIMUM SYSTEM REQUIREMENTS
+ Computer with:
- Windows® 75, WindowsVista®5,
Windows XP SP35or higher
- Available PCI Express slot
- Available 4-pin 12V peripheral power connector
- CD-ROM drive4
PACKAGE CONTENTS
+ D-Link 2-Port USB 3.0 PCI Express
Card (DUB-1310)
+ Low-Prole Bracket
+ CD Rom4
- Drivers
- User Manual
+ Quick Install Guide
