D-Link DSN-3400-10 - xStack Storage Area Network Array Hard... Operating and maintenance manual

xStack Storage TM
D-Link xStack Storage iSCSI SAN Array
Managed SAN Solution
DSN-3200 & DSN-3400
Hardware Reference Guide
Version 1.0

ii
© 2008 D-Link Networks, Inc. All Rights Reserved
D-Link Systems, Inc. makes no warranty of any kind with regard to this material, including,
but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. D-Link Systems, Inc. shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use of this
material.
This document contains proprietary information, which is protected by copyright. No part of
this document may be photocopied, reproduced, or translated into another language without
the prior written consent of D-Link Systems, Inc.
The information is provided “as is” without warranty of any kind and is subject to change
without notice. The only warranties for D-Link products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. D-Link shall not be liable for
technical or editorial errors or omissions contained herein.
Copyright © 2008 D-Link Systems, Inc.™
Trademarks
Adobe®and Acrobat®are trademarks of Adobe Systems, Incorporated.
Java™ is a U.S. trademark of Sun Microsystems, Incorporated.
Microsoft Windows is a U.S. registered trademark of Microsoft Corporation.
Oracle®is a registered U.S. trademark of Oracle Corporation, Redwood City, California.
UNIX®is a registered trademark of The Open Group.
All other brand or product names are or may be trademarks or service marks, and are used
to identify products or services, of their respective owners.
D-Link Systems, Inc.
17595 Mount Herrmann Street
Fountain Valley, CA 92708

DSN-3000 series Hardware Reference Guide iii
Safety Information
There is a danger of a new battery exploding if it is incorrectly installed.
Replace the battery pack only with the same or equivalent type recommended
by the manufacturer. Do not dispose of the battery along with household waste.
Contact your local waste disposal agency for the address of the nearest battery
deposit site.
This product also uses a lithium coin cell battery. The lithium coin cell battery is a long-life
battery, and it is very possible that you will never need to replace it. However, should you
need to replace it, consult your service documentation. Do not dispose of the battery along
with household waste. Contact your local waste disposal agency for the address of the
nearest battery deposit site.
Following are the safety agency certifications that the xStack Storage enclosure has met:
CSA 60950-1
UL 60950-1
IEC 60950-1
EN 60950-1
Compliance Information
FCC Class A
CE Class A
C-Tick Class A
VCCI Class A
Notice of Export Controls
Export of technical data contained in this document may require an export license from the
United States government. Please contact D-Link Systems, Inc. for any export compliance
questions.

iv
Document Revision Level
Revision Date Notes
Version 1.0 October 10, 2008

DSN-3000 series Hardware Reference Guide v
Preface
This document is intended to assist users with installing the xStack Storage system from D-
Link. This document assumes that users are computer literate, familiar with Storage Array
Products, and have a basic understanding of storage products and concepts.
Typographic Conventions
Notes
Notes provide information that deserves special attention. They are preceded by:
Cautions
Cautions contain information which, if not followed, can cause damage to the
xStack storage system. They are preceded by:
Warnings
Warnings contain information which, if not followed, can cause damage to the
xStack storage system and to the person installing it. They are preceded by:
Related Documentation
In addition to this document, the following documents are available from D-Link.
xStack Storage Management Center Software User's Guide. This guide provides the
information needed to configure and manage storage on the xStack Storage system using
the xStack graphical user interface.

vi Contents
Contact Information
You can find software updates and user documentation on the D-Link website.
D-Link provides free technical support for customers within the United States and within
Canada for the duration of the warranty period on this product.
U.S. and Canadian customers can contact D-Link Technical Support through our website, or
by phone.
Tech Support for customers within the United States:
D-Link Technical Support over the Telephone
Please see our support site for current number:
http://support.dlink.com
Monday to Friday 8:00am – 5:00pm PST/PDT
D-Link Technical Support over the Internet:
http://support.dlink.com
Tech Support for customers within Canada:
D-Link Technical Support over the Telephone
Please see our support site for current number:
http://support.dlink.ca
Monday to Friday 7:30am to 9:00pm EST/EDT
D-Link Technical Support over the Internet:
http://support.dlink.ca

DSN-3000 series Hardware Reference Guide vii
Contents
Chapter 1 Introduction..................................................................................................................................9
1.1 Model .............................................................................................. 9
1.2 Benefits and Features ...........................................................................10
1.3 System Overview .................................................................................10
Chapter 2 DSN-3000 series Layout...........................................................................................................11
2.1 Front Panel Components........................................................................12
2.2 Back Panel Components.........................................................................14
2.2.1 Switches ..................................................................................15
2.2.2 External Interfaces .....................................................................16
2.2.3 Rear Vents................................................................................19
2.3 Side and Bottom Panel Components ..........................................................19
Chapter 3 Installing the DSN-3000 series Storage System ...................................................................21
3.1 Site Considerations...............................................................................22
3.1.1 General Considerations ................................................................22
3.1.2 Desktop, Floor or Shelf Installation..................................................22
3.1.3 Rack-mount Guidelines ................................................................23
3.2 Unpacking the DSN-3000 series Storage System ............................................23
3.3 Items Supplied by the User.....................................................................24
3.4 Connecting to the iSCSI Data Ports............................................................25
3.4.1 Connecting to the DSN-3200 Host Network Connection Ports...................25
3.4.2 Connecting to the DSN-3400 Host Network Connection Port....................25
3.5 Connecting to the Management Port..........................................................26
3.6 Connecting the Power Cords ...................................................................26
3.7 Powering-on the DSN-3000 series Storage System..........................................27
Appendix A Replacing and Upgrading FRUs..............................................................................................29
A.1 Installing the Battery Pack......................................................................29
A.2 Installing Memory.................................................................................32
A.3 Installing or Replacing SATA Drives ...........................................................34
A.4 Replacing a Fan...................................................................................39
A.5 Replacing a Power Supply.......................................................................41

viii Contents
This Page Left Intentionally Blank

DSN-3000 series Hardware Reference Guide 9
Chapter 1 Introduction
The DSN-3000 series storage system is an intelligent, high-performance multiple Gigabit
Ethernet storage solution designed for small businesses that want to improve the reliability,
availability, serviceability, and performance of their storage systems. It provides a range of
benefits and features from its ability to use familiar, proven, and widespread networking
technologies like IP and Ethernet for storage solutions.
Based on an Internet Protocol-Storage Area Network (IP-SAN) architecture, the DSN-3000
series storage system is built around an iSNP8008 System-On-A-Chip, with the following
features:
Up to 15 internal Serial Advanced Technical Attachment (SATA) drives
Up to 512 MB of system memory
Up to 4 GB of buffer (cache) memory
Eight 1GbE local-area network (LAN) connectors (DSN-3200) or one 10GbE connection
(DSN-3400) accessed via the back panel
A 10/100 Mbps management port
An RS-232-C DB9 diagnostic port for troubleshooting purposes
Complete configuration and management are available through the intuitive, graphical-
based xStack Storage Management Center.
For the latest information about supported drives, consult the
Interoperability Matrix found on the D-Link Support Web site:
support.dlink.com
1.1 Model
The DSN-3000 series storage system is available in various models. The models differ
according to the speed & host network interface. Table 1-1 lists the DSN-3000 series storage
system models.
Table 1-1 DSN-3000 Series Storage System Models
Model Host Network Interface Speed Maximum Number of
Internal SATA Drives
DSN-3200 Eight 1GbE data ports 1 Gbps 15
DSN-3400 One optical or CX4XFPtransceiver host network connection
(requires purchase of aseparate 10GbE XFP transceiver) 10 Gbps 15

10 Chapter 1 Introduction
1.2 Benefits and Features
High-performance, low-latency iSCSI storage system, with a highly integrated, reliable,
multifunction ASIC for fully featured, integrated storage virtualization
Modular design with expansion up to 15 SATA disk drives
Easy setup and configuration – can be placed anywhere on a 10BaseT, 100BaseT, or
Gigabit Ethernet network for improved access to critical information
In-band or out-of-band management via a direct connection or the Web
Delivers Ethernet economics to storage for lower total cost of ownership and rapid
deployment using known and trusted technologies
Proven transport infrastructure for increased reliability, investment protection, and
reduced training costs
Scalability over long distances - ideal for remote data replication and disaster recovery
Three internal fans provide cooling
Battery pack ensures that a charged battery is on hand to preserve buffer cache
contents if a power failure occurs. Contents are backed up for approximately 72 hours.
1.3 System Overview
Figure 1-1 shows a typical DSN-3000 series storage system configuration in a Storage Area
Network (SAN). The SAN shown is an Ethernet network used solely for exchanging data
between the customer's servers and the DSN-3000 series storage system. The Ethernet
bandwidth used by the servers exchanging data with the DSN-3000 series storage system can
be very high. Using a separate Ethernet to act as a SAN keeps that data from interfering with
the customer's existing LAN and improves security.

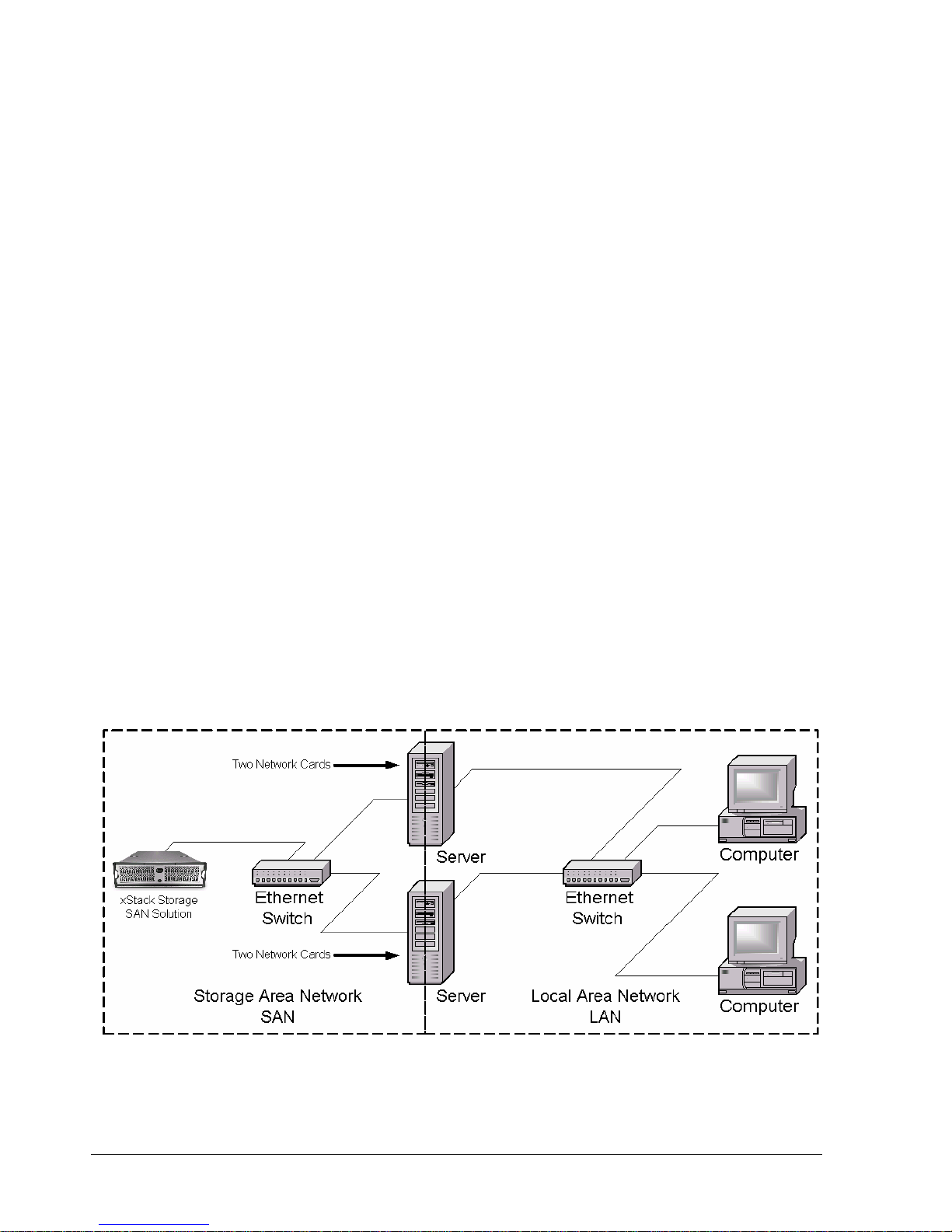

Figure 1-1 DSN-3000 Series Storage System Diagram

DSN-3000 series Hardware Reference Guide 11
Chapter 2 DSN-3000 series Layout
This chapter describes the hardware components on the DSN-3000 series storage system. The
topics covered in this chapter are:
Section 2.1, Front Panel Components
Section 2.2, Back Panel Components
Section 2.3, Side and Bottom Panel Components

12 Chapter 2 DSN-3000 series Layout
2.1 Front Panel Components
The front of the DSN-3000 series storage system has the following components:
Power LED – shows the DSN-3000 series power on status. (see Figure 2-1 and Table 2-1)
Boot and Fault LED – shows whether the DSN-3000 series is ready for operation or
encountered a fault condition. (see Figure 2-1 and Table 2-1)
A lock on the bezel that protects access to the drives inside the unit.
The hard drive power and drive activity/fault LEDs. (see Figure 2-1 and Table 2-2)

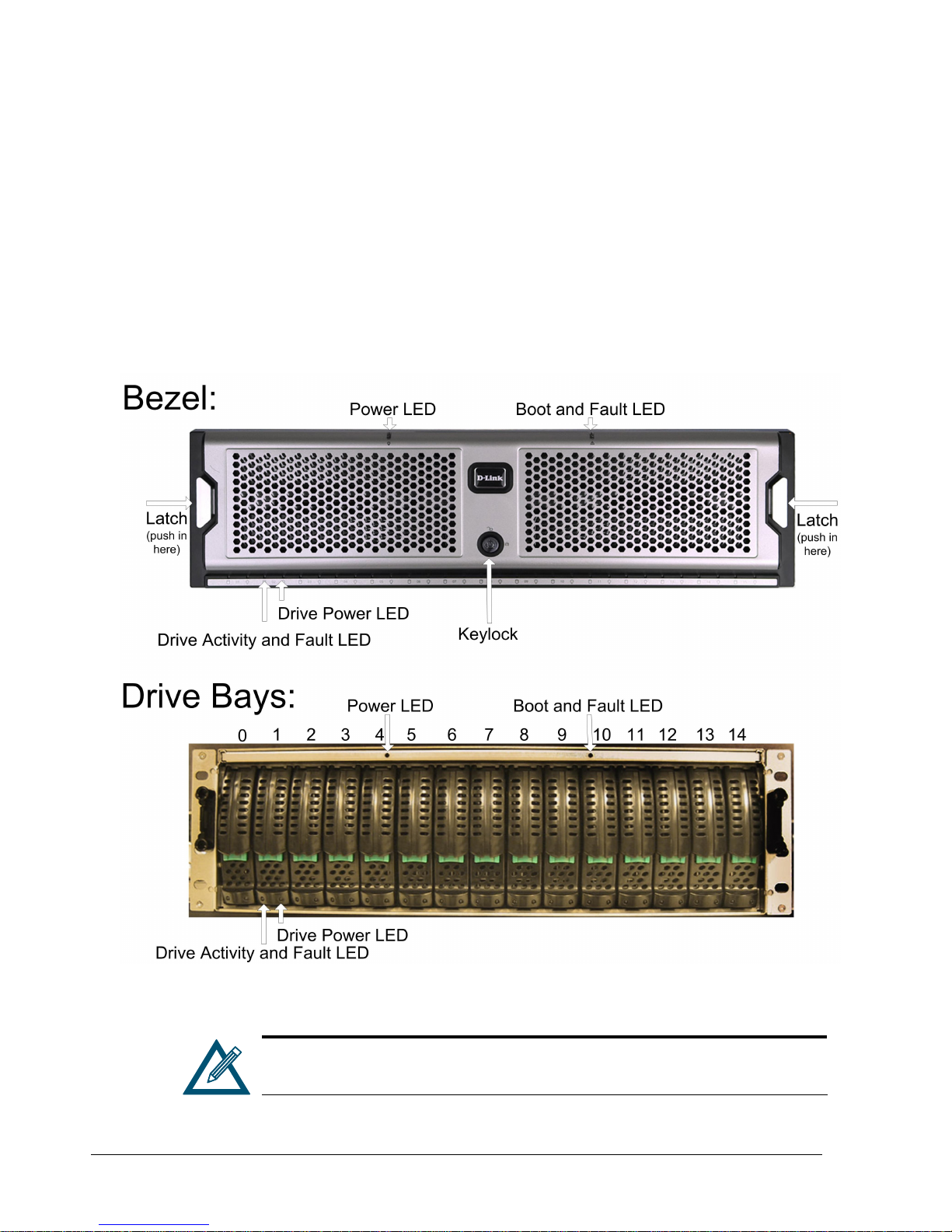

Figure 2-1 Front View of the DSN-3000 Series Storage System
When installed, the front bezel uses pipes to pass light from the LEDs behind
it to the front for viewing. The bezel itself is passive and has no active LEDs.

DSN-3000 series Hardware Reference Guide 13
Table 2-1. Front Panel LEDs
LED Color Description
ON = DSN-3000 series is powered on.Power Green
OFF = power is not being received.
OFF Array is powered off or performingits Power On Self Test.
Red ON = a fault has occurred.
Boot andFault
Green ON = normal operation.
Table 2-2. Hard Drive LEDs (for each drive 0 through 14)
LED Color Description
Drive Power Blue ON Drive is powered and operational.
Green Blinking Data being transmitted or received fromcorrespondingSATA drive.Drive Activity
and Fault Red ON Drive hasexperienceda fault and isoffline

14 Chapter 2 DSN-3000 series Layout
2.2 Back Panel Components
The rear of the DSN-3000 series storage system enclosure has the following components:
(DSN-3200)Eight 1 GbE RJ-45 iSCSI host network data ports. Each iSCSI data port has
port speed and port activity LEDs. (see Figure 2-2, Figure 2-4 and Table 2-4)
(DSN-3400)One 1 GbE RJ-45 iSCSI host network data port. This iSCSI data port has port
speed and port activity LEDs. (see Figure 2-2, Figure 2-6 and Table 2-6)
Diagnostic port (Diagnostic Port) - one 9600 bps RS-232-C DB9 diagnostic port is located
to the right of the iSCSI data ports. This requires a female-to-female straight-through
cable provided with the system. (see Figure 2-4 for the DSN-3200 and Figure 2-6 for the
DSN-3400)
Management port (Mgmt 10/100) - one 10/100 RJ-45 management is located to the right
of the diagnostic port. The management port has port speed and port activity LEDs. (see
Figure 2-2, Figure 2-4 and Figure 2-6)
Power switch and reset switch – are located above the external interfaces (see Figure
2-2, Figure 2-3 and Table 2-3).
Power - three power receptacles are located on the right side of the rear panel.
Power supply alarm silence button – located on the rear of the power supply. (see
Figure 2-2)
Figure 2-2 Rear View of the xStackStorage DSN-3200 Enclosure
Power Supply Alarm
Silence Button

DSN-3000 series Hardware Reference Guide 15
2.2.1 Switches
The rear panel of the xStack Storage unit enclosure has two switches as shown in Figure 2-3.
Table 2-3 identifies the switches and their function.

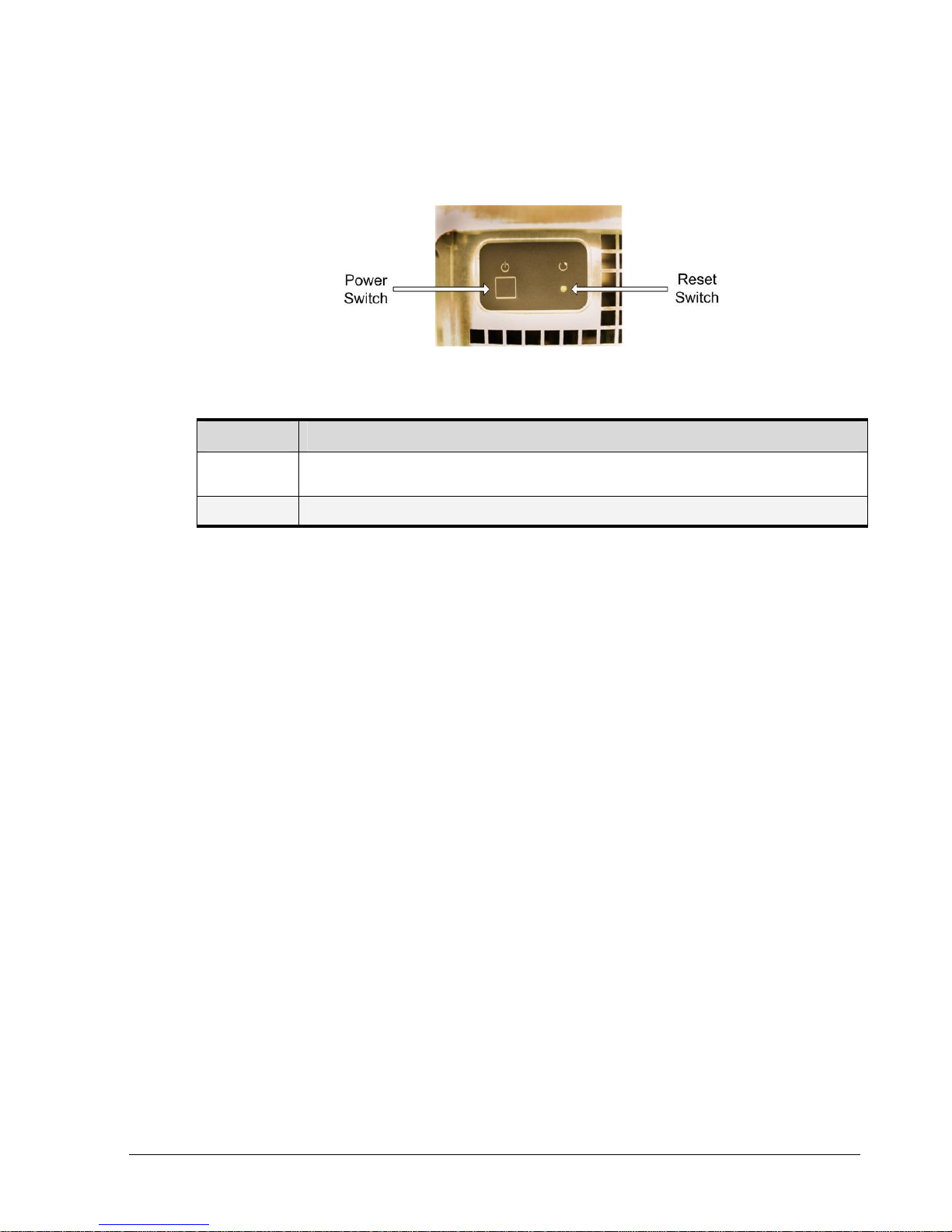

Figure 2-3 Power and Reset Switches
Table 2-3 Power and Reset Switches Function
Switch Description
Power Applies power tothe xStack Storage Array. Pressingthis switch for longer than 3 seconds removes power
from the xStack Storage Array and turns off the unit.
Reset Resets the xStack Storage Array.

16 Chapter 2 DSN-3000 series Layout
2.2.2 External Interfaces
Figure 2-2 shows an area labeled “External Interfaces” where the external ports of the DSN-
3000 series are found.
2.2.2.1 DSN-3200 External Interfaces
The back of the xStack Storage DSN-3200 enclosure provide the following external
interfaces:
Eight (8) 1GbE (1 Gigabit Ethernet) RJ-45 host network connections
One DB9 RS-232-C diagnostic port
One RJ-45 Fast Ethernet management port
Figure 2-4 shows the external interfaces on the back of the xStack Storage DSN-3200
enclosure

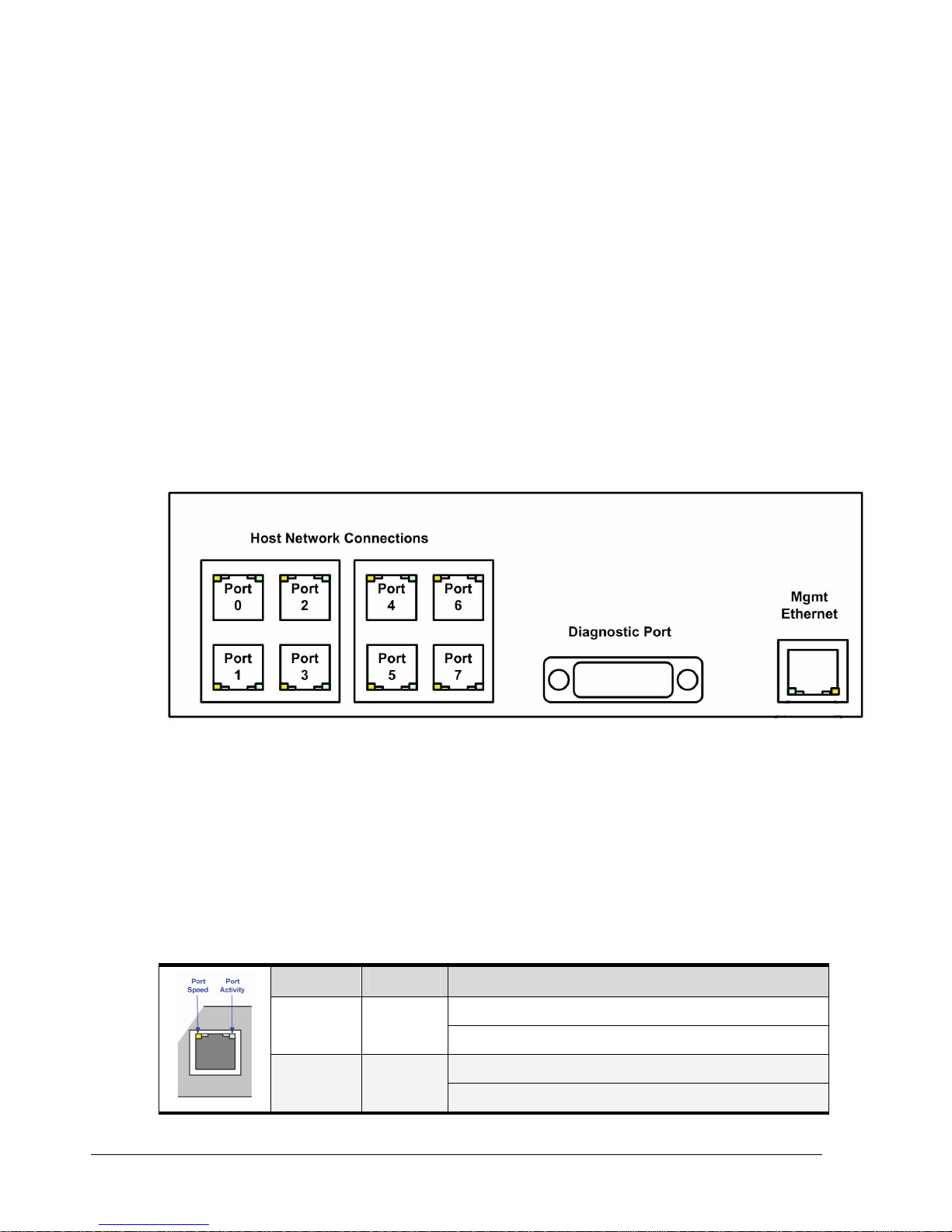

Figure 2-4 External Interfaces on the xStack Storage DSN-3200 Enclosure
2.2.2.2 DSN-3200 LEDs
Each RJ-45 host network connection on the back of the xStack Storage DSN-3200 enclosure
has two bicolor light-emitting diode (LED) indicators that show the activity and speed for
that port. Table 2-4 describes the host network connection LED indicators on the back of the
xStack Storage DSN-3200 enclosure.
Table 2-4 Host Network Connection LEDIndicators on the xStack DSN-3200 Enclosure
LED Color Description
ON =link is operatingat 1 Gbps.PortSpeed Yellow
OFF = link is operating at either 10 Mbps or 100 Mbps.
ON = link is operational. Port Activity Green
Blink = data is beingsent or received.

DSN-3000 series Hardware Reference Guide 17
In addition, the management port has two bicolor LED indicators that show the activity/link
and speed for this port. Table 2-5 describes the management port LEDs and Figure 2-5
shows their location.
Table 2-5 Management Port LED Indicators on thexStack Storage DSN-3200 Enclosure
Color Description
Green ON Link is operational.
Green Blinking Data is beingtransmitted or received on theRJ-45 port.
Yellow OFF Connection has been established at 10 Mbps.
Yellow ON Connection has been established at 100 Mbps.
Figure 2-5 Management Port LEDLocations

18 Chapter 2 DSN-3000 series Layout
2.2.2.3 DSN-3400 External Interfaces
The back of the xStack DSN-3400 enclosure provides the following external interfaces:
A single 10 GbE XFP transceiver host network connection
o(optical or copper depending on what interface you install)
One DB9 RS-232-C diagnostic port
One RJ-45 Fast Ethernet management port
Figure 2-6 shows the hardware components on the back of the xStack DSN-3400.

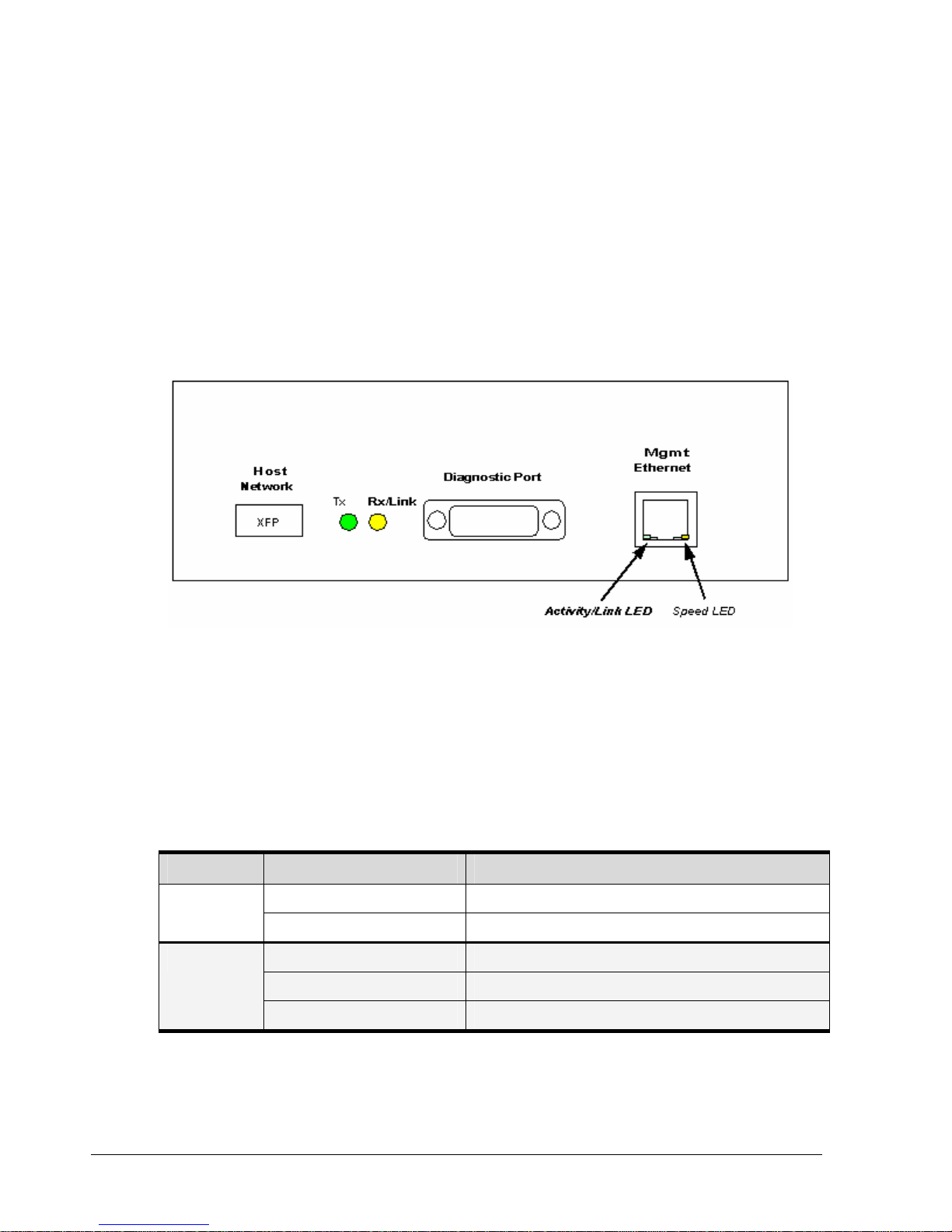

Figure 2-6 External Interfaces on the xStack DSN-3400 Enclosure
2.2.2.4 DSN-3400 LEDs
Two LEDs next to the XFP connector show transmit (Tx) and receive (Rx) activity on the host
network interface. Table 2-6 describes the Tx and Rx LED indicators on the back of the
xStack DSN-3400 enclosure.
Table 2-6 Host Network Connection LEDIndicators on the xStack DSN-3400 Enclosure
LED Color Description
OFF Thereis notransmit activity.Tx Link
Blinks Green There is transmit activity fromthe xStack DSN-3400.
OFF There is noreceive activity.
Solid Yellow A 10GbE connection has been established.
Rx Link
Blinks Yellow There is receive activity with thexStack DSN-3400.

DSN-3000 series Hardware Reference Guide 19
In addition, the management port has two bicolor LED indicators that show the activity/link
and speed for this port. Table 2-7 describes the management port LEDs and Figure 2-6 shows
their location.
Table 2-7 Management Port LED Indicators on thexStack DSN-3400 Enclosure
LED Color Meaning
Green ON Link is operational.
Green Blinking Data is beingtransmitted or received on theRJ-45 port.
Yellow OFF Connection has been established at 10 Mbps.
Activity/Link
Yellow ON Connection has been established at 100 Mbps.
OFF Data is being sent or received at 10 Mbps.Port Speed
Yellow Data isbeingsent or receivedat 100Mbps.
2.2.3 Rear Vents
Figure 2-2 shows air vents that allow the exit of air through the rear of the chassis. Please
be sure these vents are not blocked.
2.3 Side and Bottom Panel Components
The left and right sides of the DSN-2100 storage system enclosure has rails for rack-mounting
the unit. Product information labels will be found on the side, bottom, or back of the unit.
For rack-mount instructions, refer to the documentation for the rack.

20 Chapter 2 DSN-3000 series Layout
This Page Left Intentionally Blank
