ETERNUS DX60 S2
Support and Maintenance
Support and Maintenance ETERNUS DX60 S2

Content
Maintenance Operations
Maintenance Utilities
Log and Dump Management
Maintenance Procedures
Replacement Procedures
Support and Maintenance ETERNUS DX60 S2 Copyright Fujitsu Technology Solutions, Release September 20111

Maintenance Operations
Device Status
Preventive Maintenance
Force Degrade and Force Reboot
Hot Reduction
Identify LED
RAID Group Status and Volume Status
Support and Maintenance ETERNUS DX60 S2 Copyright Fujitsu Technology Solutions, Release September 20112

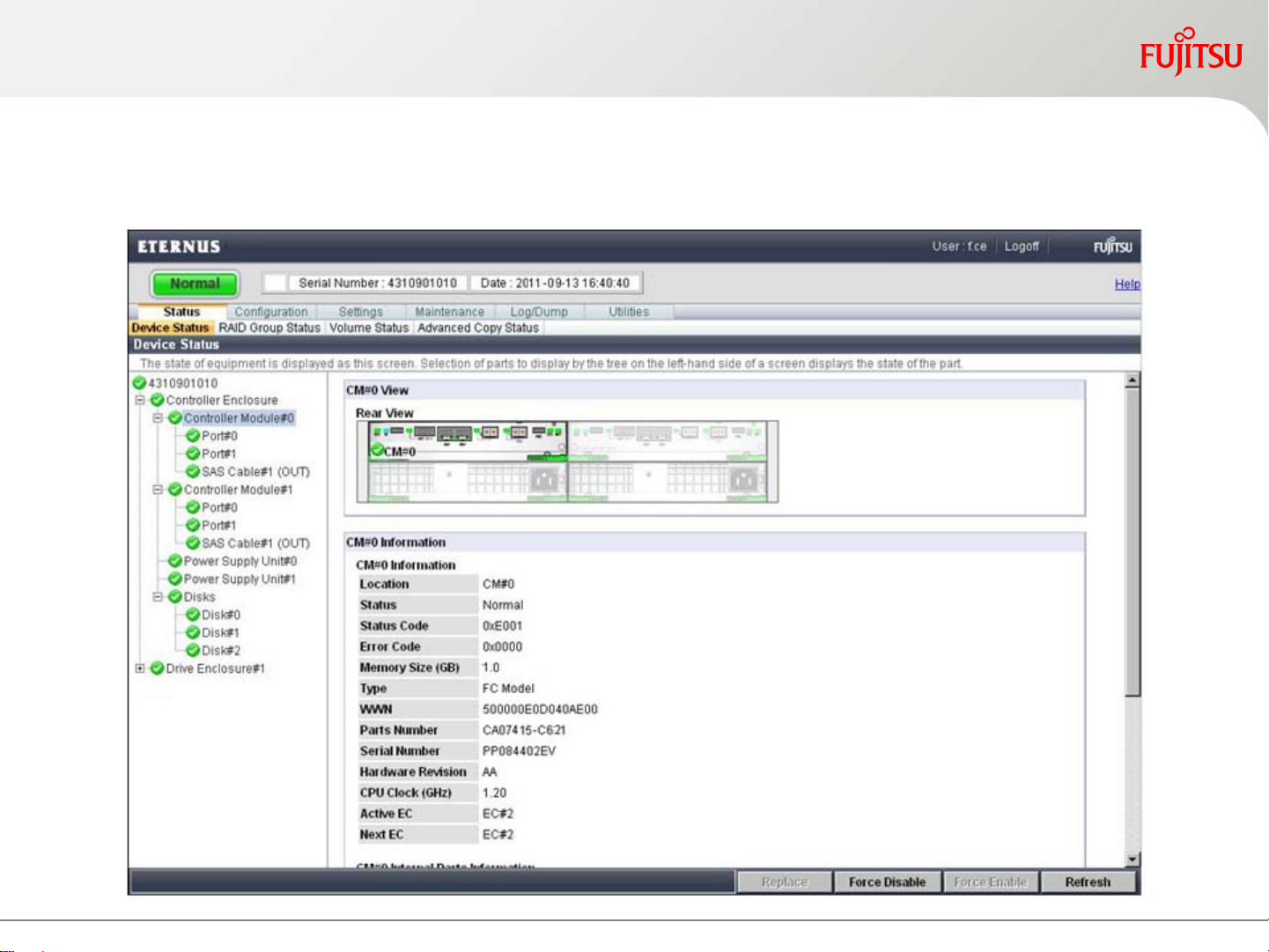

Status - Device Status
The Device Status menu offers various functionalities for the
maintenance operations
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 3

Preventive Maintenance
Device Status - Replace
Applicable to: CM, EXP, PSU, SFP, Disk Drive and SAS Cable
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 4

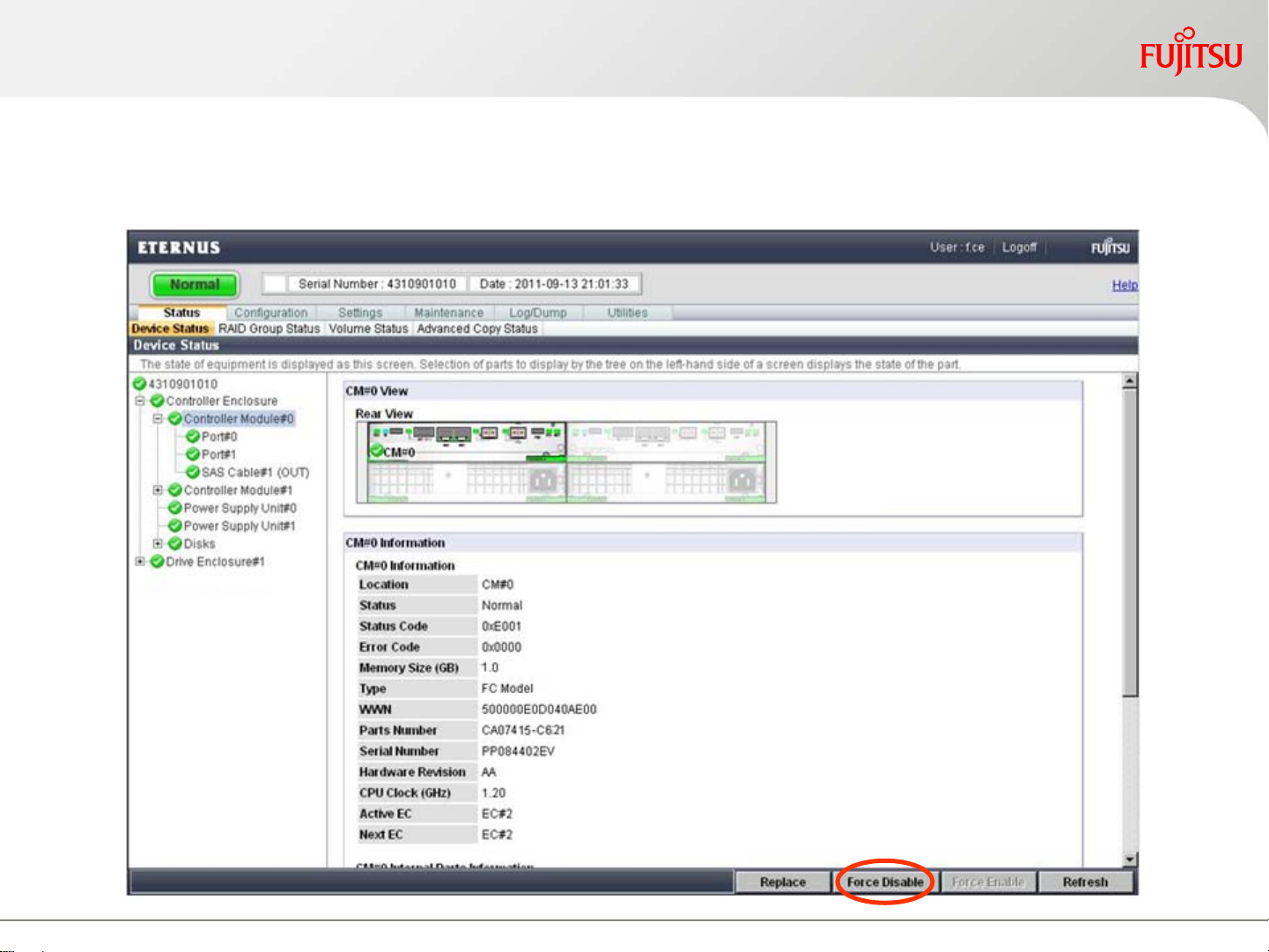

Force Degrade
Device Status - Force Disable
Applicable to: CM, EXP, PSU, SFP, Disk Drive and SAS Cable
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 5

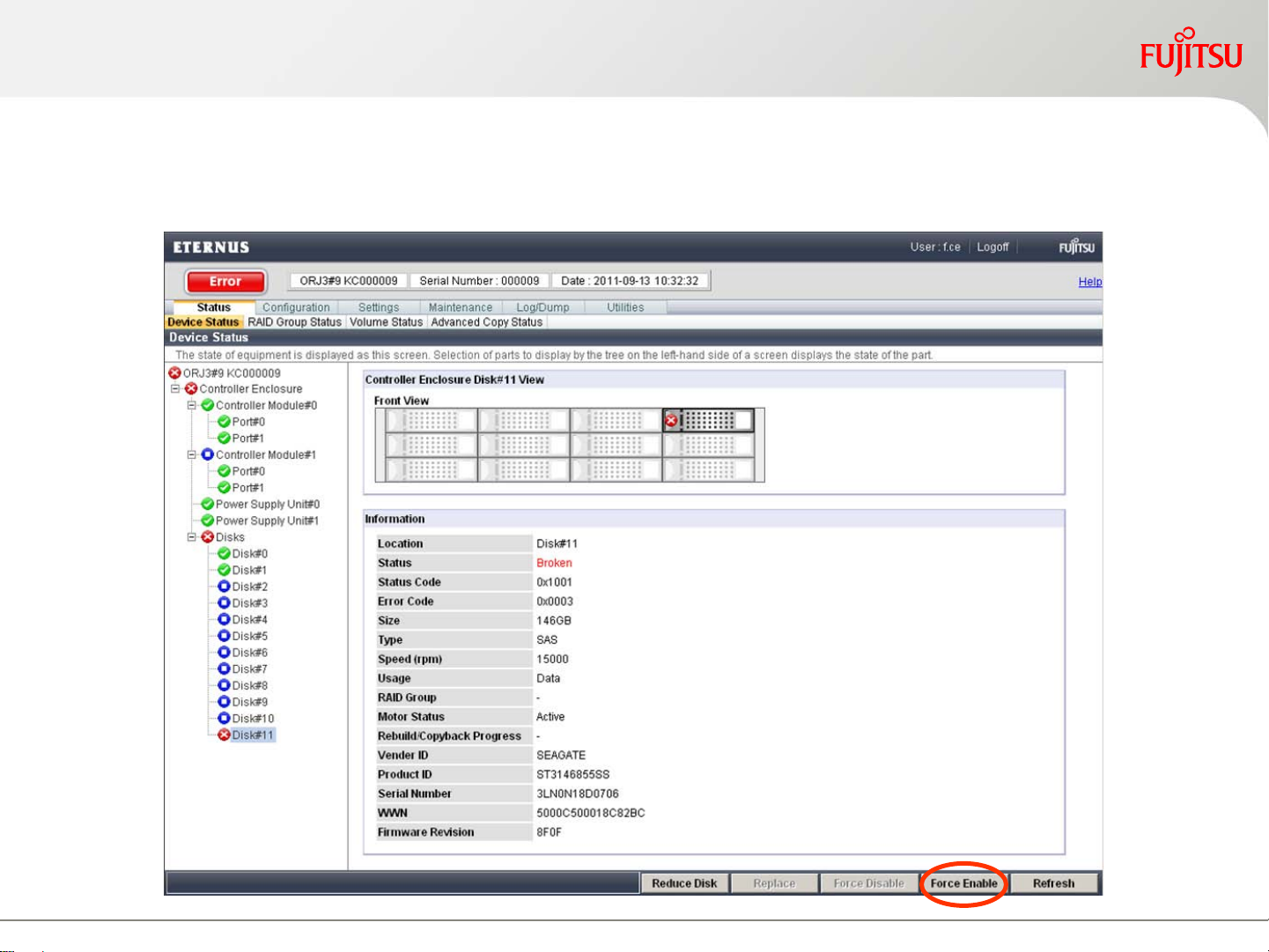

Force Reboot
Device Status - Force Enable
Applicable to: CM, EXP, SFP and Disk Drive
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 6

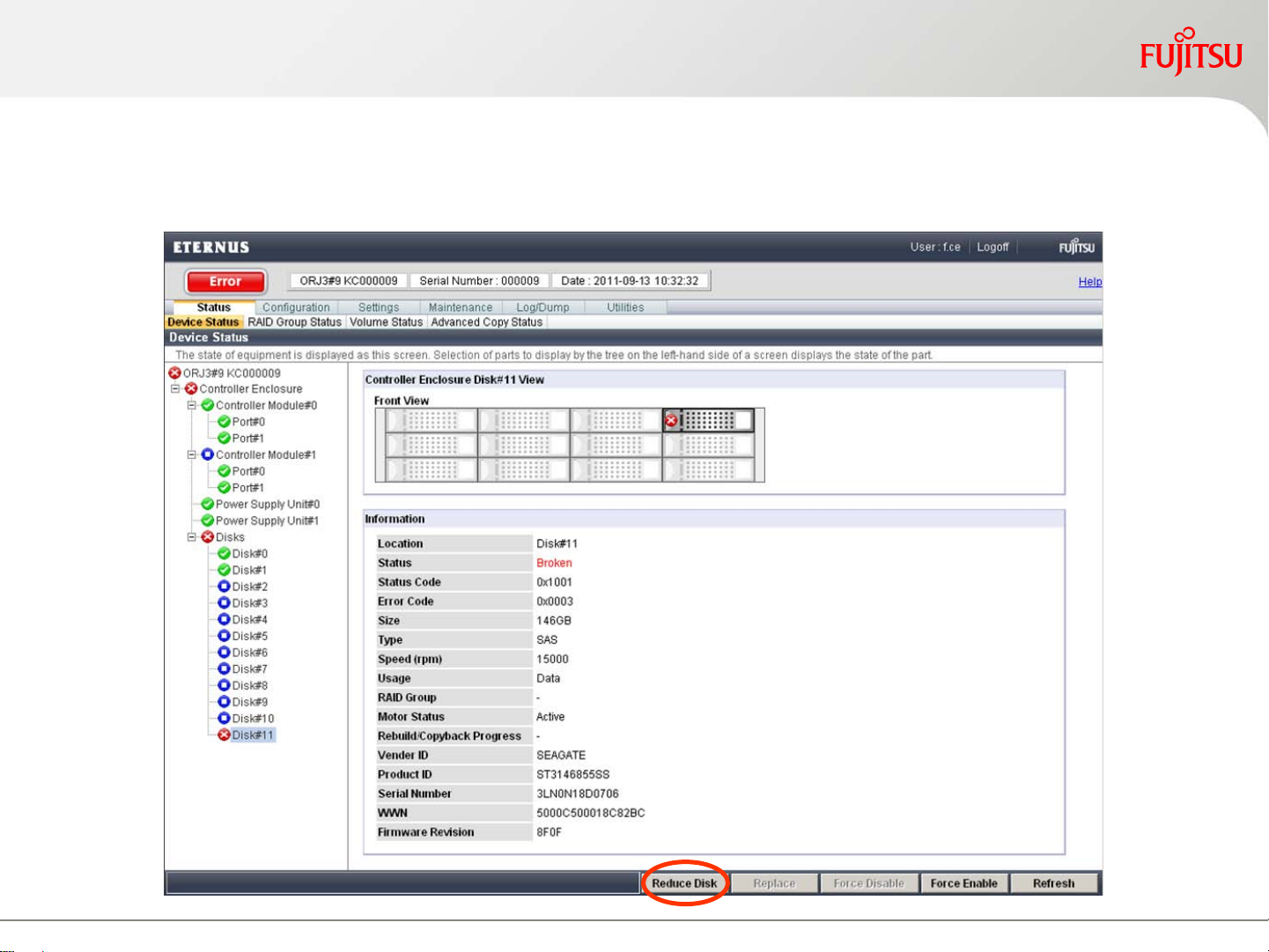

Hot Reduction
Device Status - Reduce Disk
Applicable to: Disk Drive
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 7

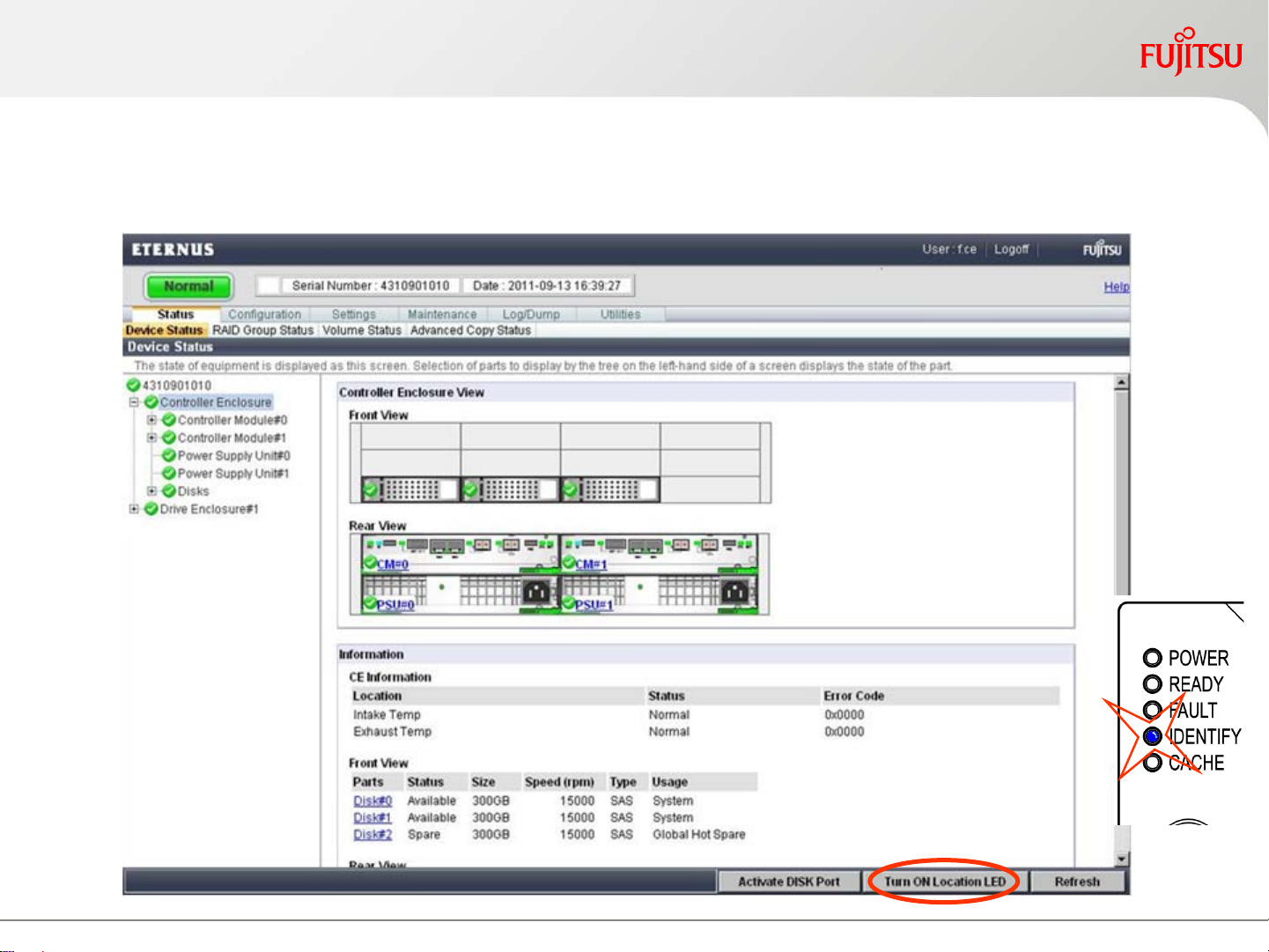

Identify LED
Device Status - Turn ON Location LED
Applicable to: CE and DE
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 8

Status (1)

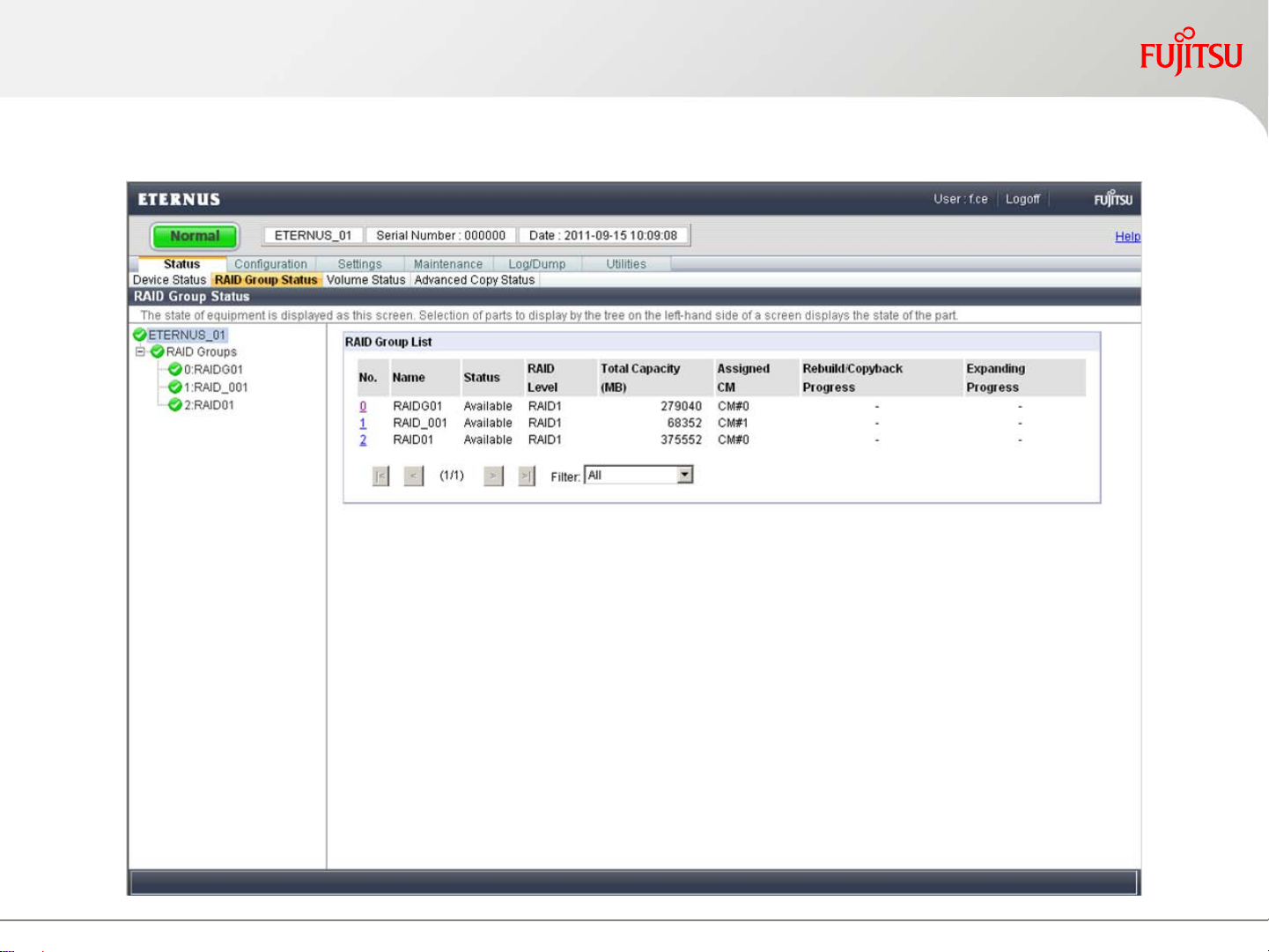

RAID Group Status
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 9

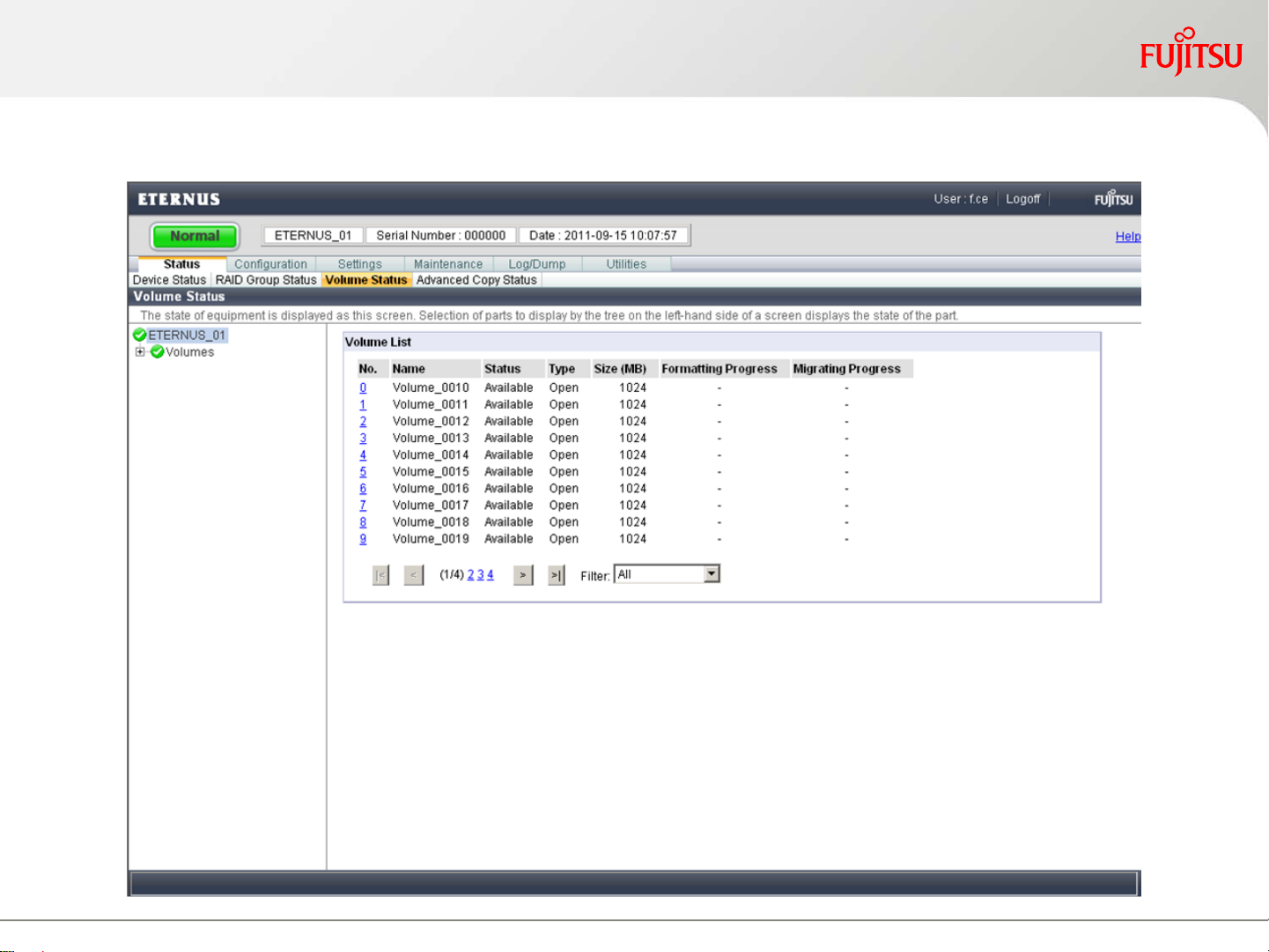

Status (2)
Volume Status
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 10

Maintenance Utilities
Start / End Maintenance
Add/Remove Drive Enclosure
Add Controller Module
Delete Sense Data
Support and Maintenance ETERNUS DX60 S2 Copyright Fujitsu Technology Solutions, Release September 201111

Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2

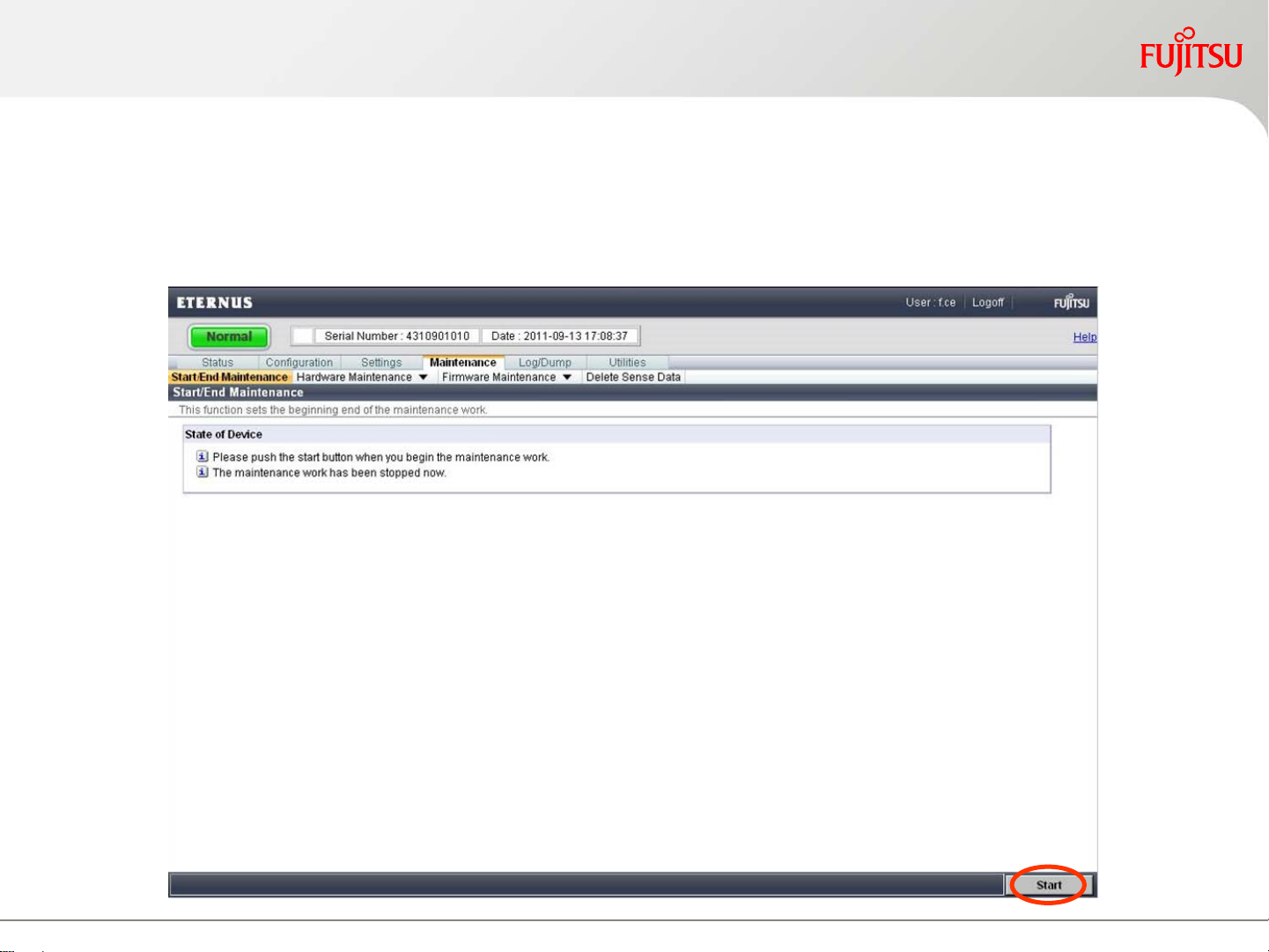

Start / End Maintenance
This function is necessary for the operations Preventive
Maintenance, Expansion and Reduction
Start Maintenance stops remote failure reporting
12

Maintenance Utilities (1)
Hardware Maintenance - Add Drive Enclosure
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 13

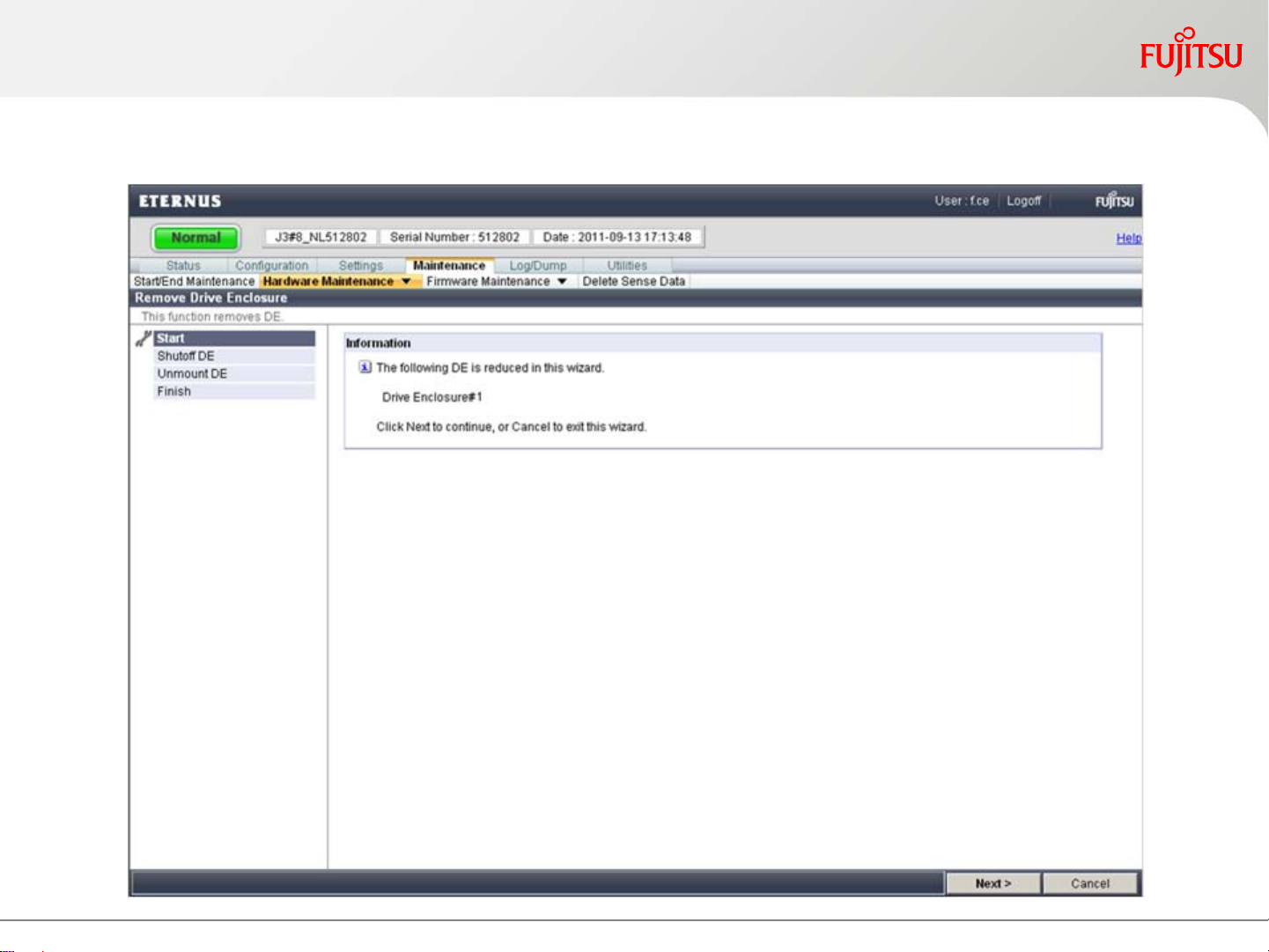

Maintenance Utilities (2)
Hardware Maintenance - Remove Drive Enclosure
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 14

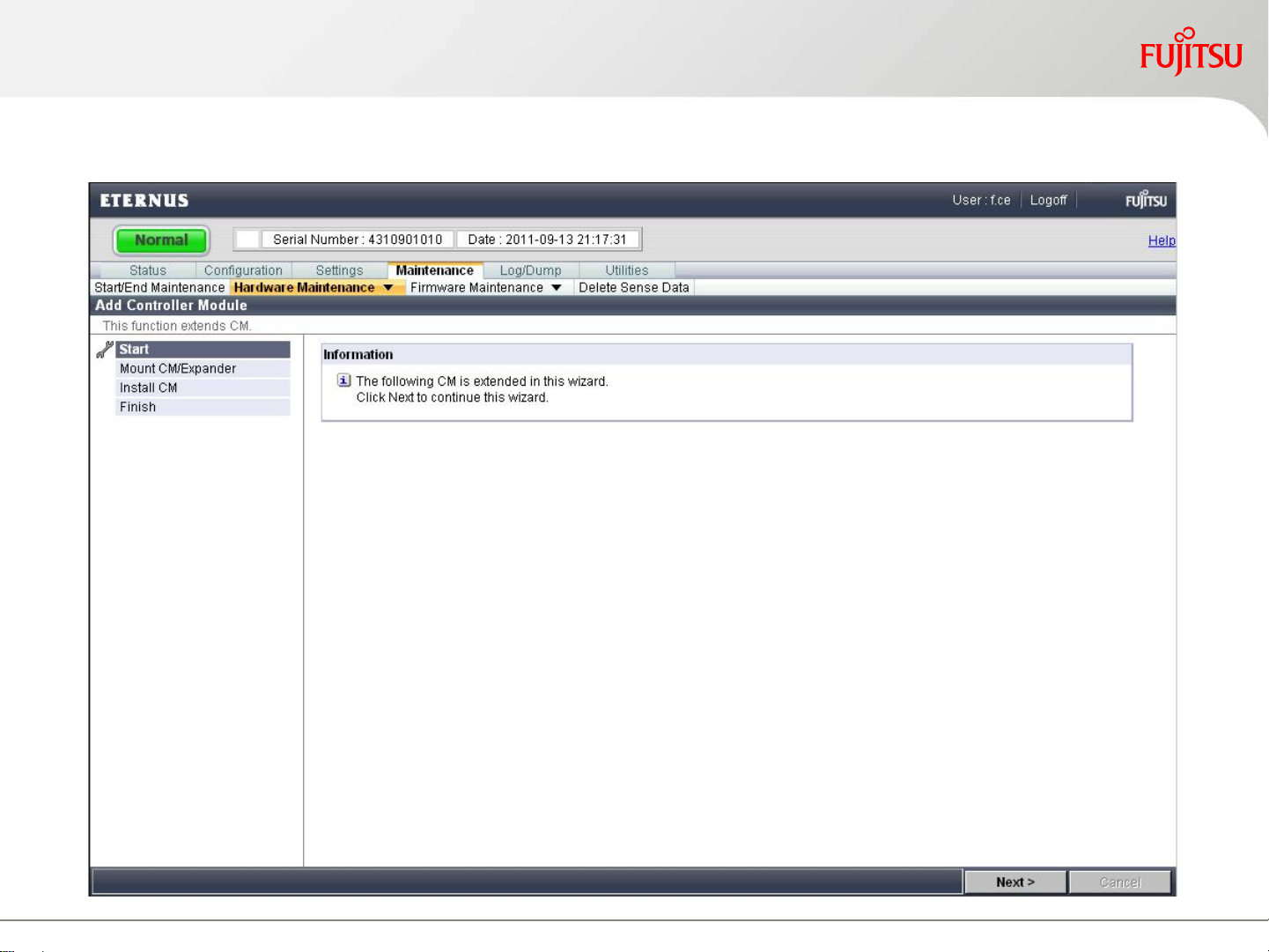

Maintenance Utilities (3)
Hardware Maintenance - Add Controller Module
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 15

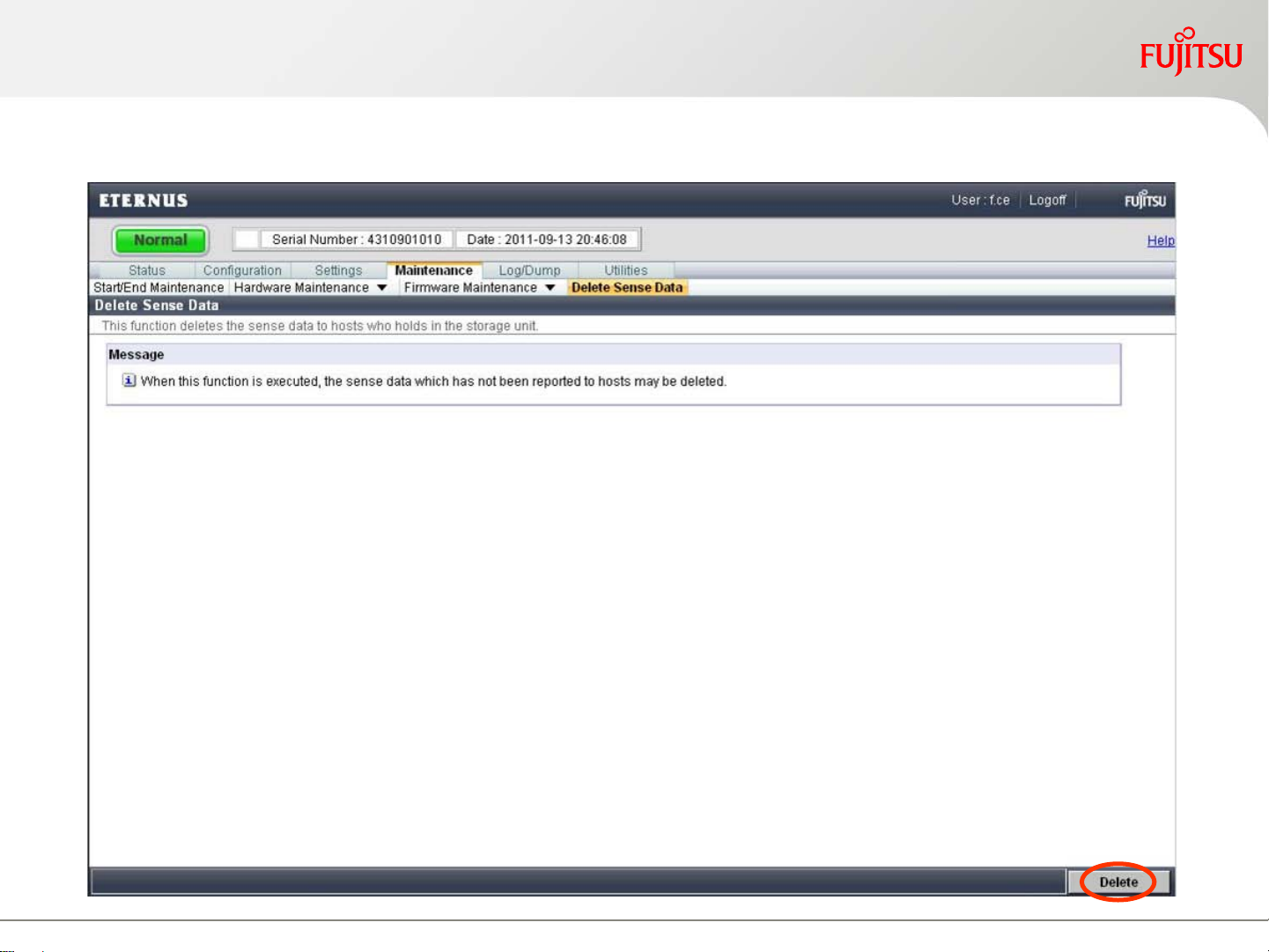

Maintenance Utilities
Delete Sense Data
Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2 16

Log and Dump Management
Event Log
Export Panic Dump
Error Information
Export Log
Export Configuration
Get G-List
Support and Maintenance ETERNUS DX60 S2 Copyright Fujitsu Technology Solutions, Release September 201117

Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2

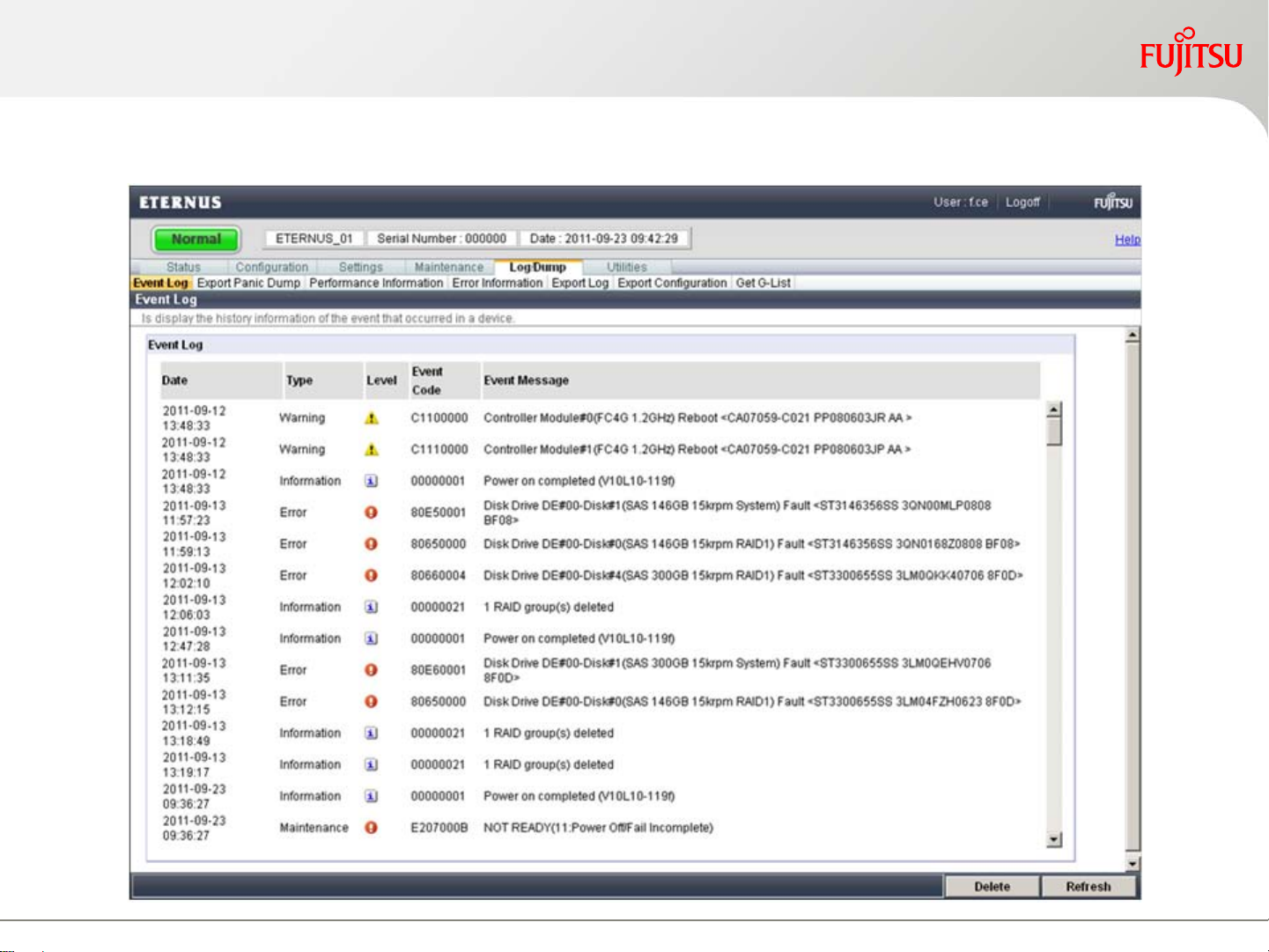

Log and Dump Management (1)
Log/Dump - Event Log
18

Copyright Fujitsu Technology Solutions, Release September 2011
Support and Maintenance ETERNUS DX60 S2

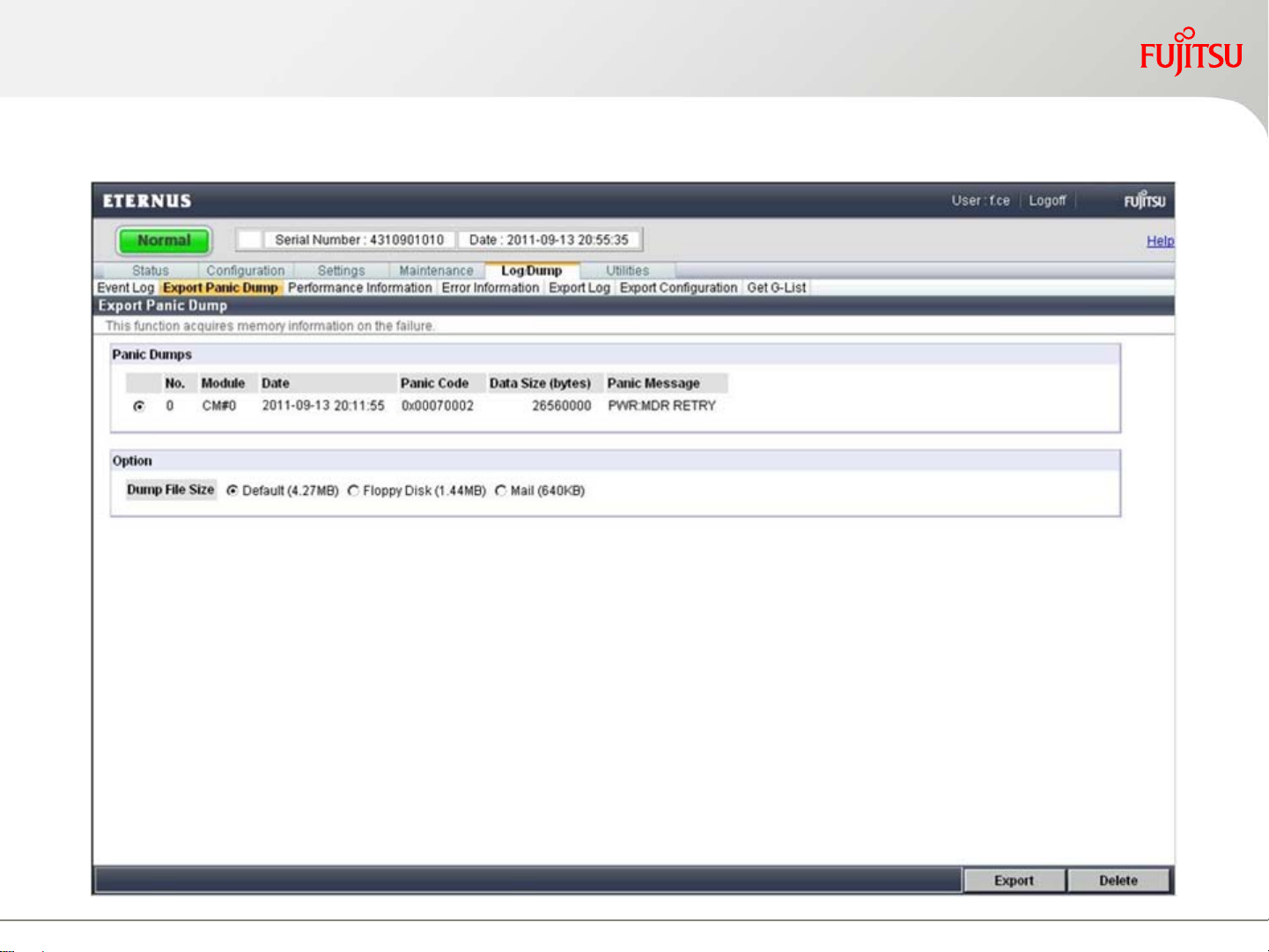

Log and Dump Management (2)
Log/Dump - Export Panic Dump
19
