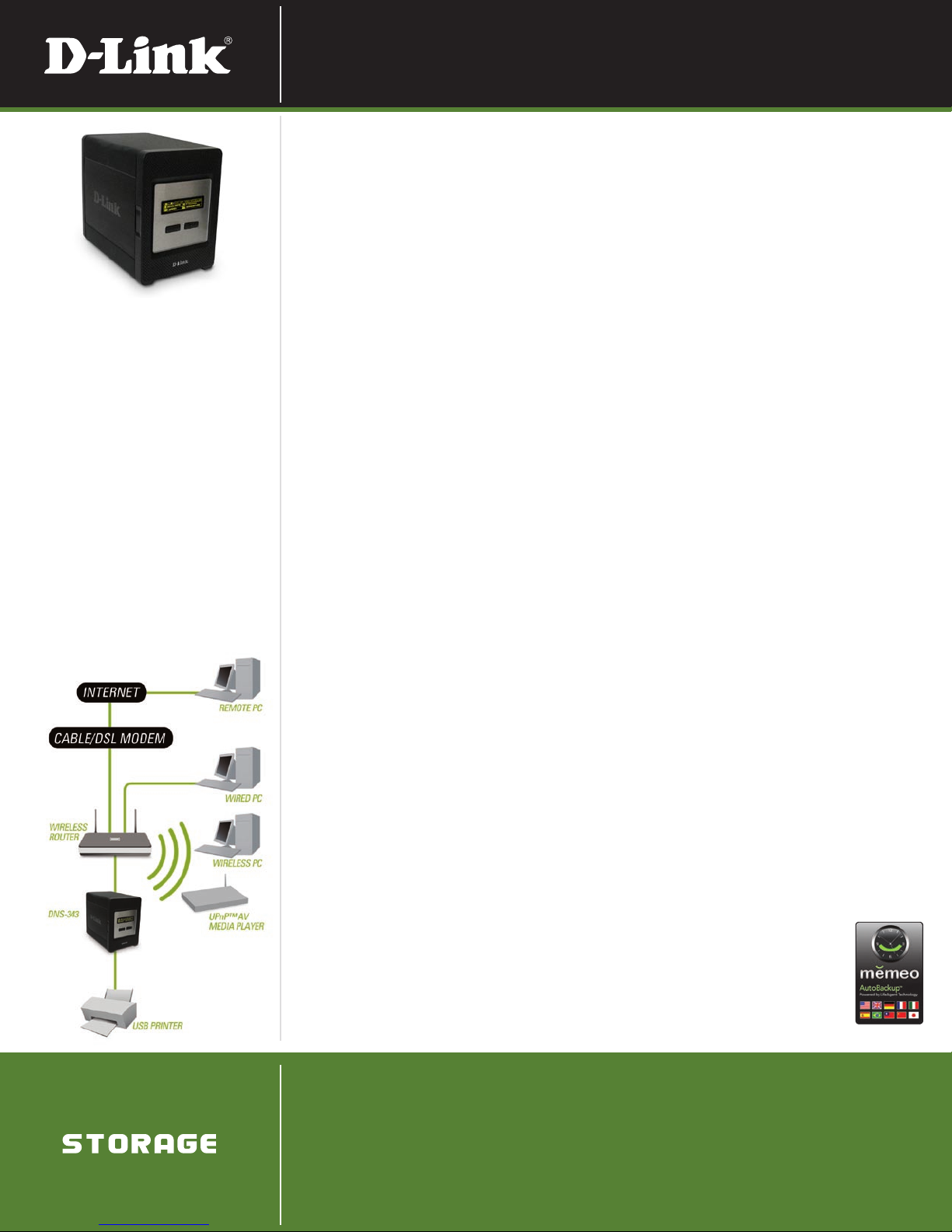

D-Link ShareCenter DNS-343 User manual

back up and share your digital files
4-bay network storage enclosure
Easily insert up to 4 SATA hard drives1
without using tools
The D-Link®4-Bay Network Storage Enclosure (DNS-343) is the perfect way to store, share, and safeguard your documents, music, videos, and photos. With the D-Link
tool-less installation, you can easily insert up to 4 SATA drives1without any tools or attaching any cables. Plus, the DNS-343 is a scalable solution, allowing you to
start off with one SATA hard disk drive (HDD) and add up to 3 more as you grow.
protection, performance and flexbility
By supporting RAID 0, 1, 5, and JBOD, the DNS-343 gives you a variety of data protection options to help avoid data loss due to hard drive failure. RAID 0 combines
all drives in a ‘striped’ configuration, splitting data evenly across the hard drives to provide the highest performance. RAID 1 causes two drives to mirror each other,
providing maximum protection. If there are four drives present, you can set up two separate RAID 1 partitions. If one drive fails, the unaffected drive in the partition
will continue to operate normally. Once you replace the failed drive, RAID 1 mirroring will resume and both drives will mirror each other again. Advanced RAID 5
offers the highest performance with the most reliable data recovery in the case of a drive failure. RAID 5 technology uses a clever algorithm to distribute your data
over 4 SATA hard disk drives and, in the case of a hard drive failure, the DNS-343 will continue to function with your data intact.
simplified management
With the included MemeoTM software, you can create schedules and rules including real-time full or incremental backups and storage quotas for specific users and
groups. Using Memeo backup software, you can automatically back up your data onto the DNS-343, creating a failsafe protection solution from accidental data loss
on your PC. The 4-Bay Network Storage Enclosure features an OLED to display important information including IP address, hard drive statistics, temperature, RAID
status, and server status (FTP and UPnPTM).
usb port functionality
The USB port can act as a print server port, allowing a USB printer to be added to your network without the need for a dedicated computer. The USB port can
also support a Universal Power Supply (UPS) monitor that supports ‘smart’ signaling over a USB connection. If a power outage were to occur, the compatible UPS
monitor would allow the UPS unit to safely shut down the DNS-343. When power is restored, the UPS monitor would then automatically power up the DNS-343.
For flexible usage, the DNS-343 includes features such as a built-in FTP server2to access files over the Internet and a UPnP™ Media server to stream digital
content to compatible media players. With RAID 5 technology, an OLED that displays vital storage information, a management program that allows you to easily set
rules and schedules, and a variety of built-in servers, the 4-Bay Network Storage Enclosure (DNS-343) is a secure expandable and reliable storage solution for the
home and business.
DNS-343
Access stored files over the InternetProtect important files with RAID 1 or
RAID 5 data redundancy
HIGH PERFORMANCE
FASTER
READ/WRITE SPEEDS
GIGABIT CONNECTIVITY

what this product does
The 4-Bay Network Storage Enclosure (DNS-343)
enables you to store and access your documents,
music, photos, and videos across the network
and on the Internet so family members, friends,
or employees can access them. You can use this
device to stream music, photos, and videos to
UPnP™AV compatible network media players.
secure backup
The DNS-343 features RAID 5 technology, allowing
you to securely store data across 4 hard disk
drives. If one drive fails, the DNS-343 will continue
to function with your data intact.
standards
+ IEEE 802.3 10Base-T Ethernet
+ IEEE 802.3u 100Base-TX Fast Ethernet
+ IEEE 802.3ab 1000Base-T Gigabit Ethernet
supported hard driVe type
+ SATA
1
– Any Capacity
+ 3.5” Internal
ports
+ 1 Gigabit Ethernet Port with Jumbo Frame Support
+ 1 USB Print Server/UPS Monitoring Port
driVe management
+ 5 Different Hard Drive Configurations
+ Scandisk
+ E-Mail Alerts
+ Drive Quotas
+ Power Management
deVice management
+ Internet Explorer
®
v6 or other Java-enabled Browser
leds
+ Power + LAN
+ HDD 1 + HDD 2
+ HDD 3 + HDD 4
oled display screen
+ Device Name + UPnP™ Status (on/off)
+ IP Address + Formatting Percentage
+ Firmware Version + Hard Drive Space
+ Temperature + RAID Status
+ FTP Server Status (Started/Stopped)
certifications
FCC Class B, CE, VCCI, CSA
power supply
19V DC
operating temperature
32˚F to 104˚F (0°C to 40°C)
operating humidity
90% Maximum (Non-condensing)
dimensions (wxdxh)
+ Item: 5.1” x 7.9” x 7.2”
+ Packaging: 12.4” x 10.5” x 11.2”
warranty
1-Year Limited
3
back up and share your digital files
1Hard drive(s) not included. An internal SATA drive is required to store or share your files. RAID 5 requires the use of four (4) internal SATA drives. RAID 1 mirroring
requires the use of two (2) internal SATA drives. To avoid data incompatibility in RAID 1 and RAID 5 operation, use SATA drives from the same manufacturer. Formatted
drive capacity for RAID 1 and RAID 5 operation is dependant on the drive capacity of the lowest-sized drive. May not work with older generation SATA drives.
2Note that use of an FTP Server to access files over the Internet does not provide for secure or encrypted transmissions. It is recommended that the end user utilize a
Virtual Private Network (VPN) to establish a secure FTP session.
31-Year Limited Warranty available only in the USA and Canada.
4Latest software and documentation are available at http://support.dlink.com.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product
appearance may differ from that depicted herein.
D-Link Systems, Inc. 17595 Mt. Herrmann Street, Fountain Valley, CA 92708
©2008 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link
and the D-Link logo are registered trademarks of D-Link Corporation or its
subsidiaries in the United States and other countries. Other trademarks or
registered trademarks are the property of their respective owners. Visit
www.dlink.com for more details.
minimum system reQuirements
+ Devices Supporting 802.3 Ethernet,
802.3u Fast Ethernet, or 802.3ab Gigabit
Ethernet
+ Network Interface Card for Each
Computer
+ CD-ROM Drive to View Product
Documentation
package contents
+ 4-Bay Network Storage Enclosure
+ Power Adapter
+ Rubber Feet
+ CD-ROM4with
- Installation Wizard
- Product Documentation
DNS-343
