D-Link DNS-323 - Network Storage Enclosure NAS... User manual

Wireless G
USB 2.0 Adapter
2-BAY NETWORK STORAGE ENCLOSURE
DNS-323
Quick Installation Guide+
Installations-Anleitung+
Guide d’installation+
Guía de instalación+
Guida di Installazione+
Installatiehandleiding+
Instrukcja instalacji+
Instalační příručka+
Telepítési Segédlet+
Installasjonsveiledning+
Installationsvejledning+
Asennusopas+
Installationsguide+
Guia de Instalação+
Οδηγός Γρήγορης Εγκατάστασης το+
Vodič za brzu instalaciju+
Kratka navodila za namestitev+
Ghid de instalare rapidă+

Quick Install Guide
2-BAY NETWORK STORAGE ENCLOSURE
DNS-323

4
Package Contents
System Requirements
• 1GHzProcessor/512MBRAM
• 200MBavailablespace
• CD-ROMdrive
• InternetExplorer6.0orMozillaFirefox1.0andabove
• 3.5”InternalSATAHardDrives
• Windows®Vista®,orXP(ServicePack2)
• DNS-3232-BayNetworkStorage
• CD-ROMwithManualandSoftware
• QuickInstallationGuide
• PowerAdapter
• PowerCableClip
• CAT5EthernetCable
Note: Using a power supply other than the one included with the DNS-323
may cause damage and void the warranty of this product.
If any of the above items are missing, please contact your reseller.

5
Hardware Overview
Power Button:
PressthebuttononcetopowerontheDNS-323.Pressandholdthe
buttonuntilitbeginsblinkingtopowerdownthedevice.
Drive LEDs:
TheseLEDswillturnasolidBLUEwhendrivesareconnected.
TheLEDswillblinkwhenthedrivesarebeingaccessed,formatted
orsynchronized.TheywillilluminateAMBERifadrivehasfailed.
Activity LED:
ThisLEDwillilluminatesolidBLUEwhenthereis anEthernet
connection.ItwillblinktoindicateLANtrafc.
Front View
Power Button
Drive LED
Activity LED
Drive LED

6
Rear View
Power Receptacle:
The12V3A/5V3Apowersupplyconnectshere.
Ethernet Port:
AGigabitEthernetportthatconnectstheDNS-323tothelocal
network.
USB Port:
Connectaprinter,orUPStotheport.ThisUSBportalsosupports
D-LinkSharePort™technology.RefertotheSharePort™manual
formoredetails.
Drive Eject Lever:
UsetheleverstoejecttheSATAharddrives.
Reset Button:
ApinholebuttonlocatedbesidetheEthernetportisusedtoresetthe
systemtothefactorydefaultsettings.
After resetting the unit you will still have access to the data on your hard drives.
Ethernet Port
Drive Eject
Lever
Power
Receptacle USB Port
Reset Button
Drive Eject
Lever

7

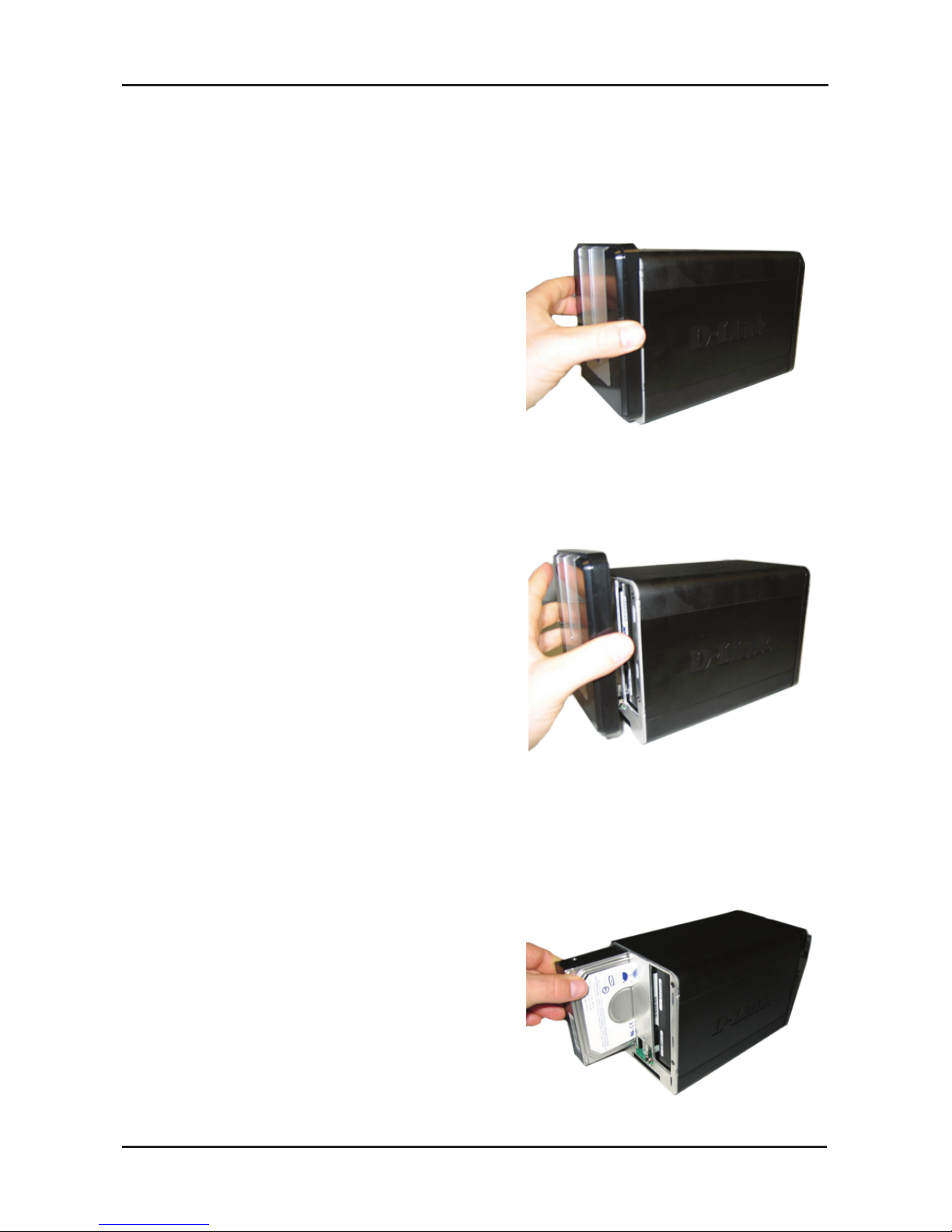

Hardware Installation
1. Accessthedrivebaysbyslidingthefaceplateupuntilitunlatches
fromthedevice.
2. Oncethefaceplateisunlatched,pullitoffofthedevice,exposing
thedrivebays.
3. Inserta3.5”SATAharddriveintoeachavailabledrivebay.
Makesuretoalignthedriveconnectorstotheendpointsinthe
DNS-323.Gentlypushthedriveinuntilitconnects.
Note: If only one 3.5” SATA drive is
available place this drive in the LEFT
bay with the opening (front) of the
DNS-323 facing you.

8

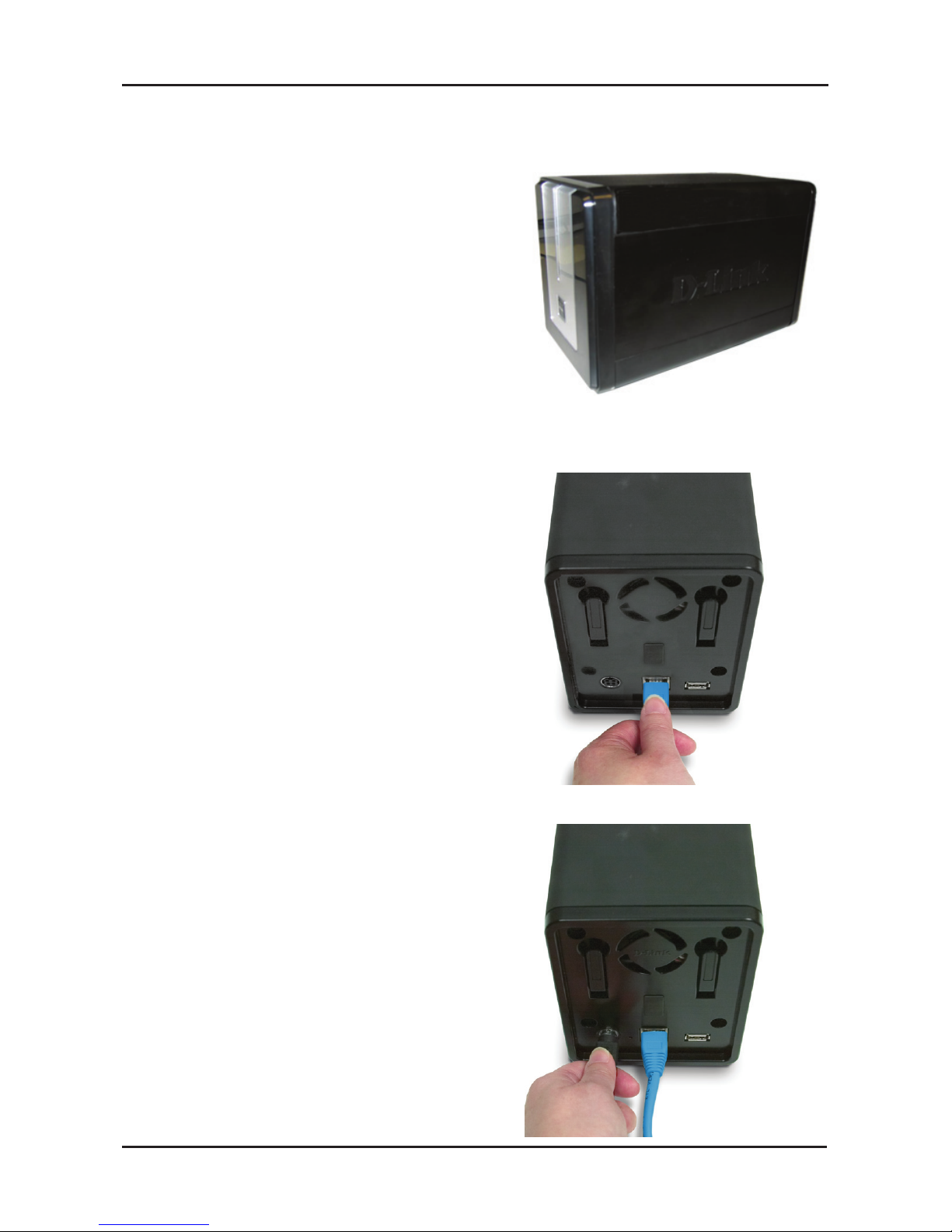

4. Attachthefaceplatetothefrontofthedevice.
5. ConnectanEthernetcableintotheavailableEthernetport.Thiscable
shouldconnecttheDNS-323toyourlocalnetworkordirectlytoa
computerforconguration.
6. Finally,connectthepoweradaptertothepowerreceptacle.

9
When rst powered on, during the initial boot sequence, the
DNS-323willwaittobeassignedanIPaddressviaDHCP.Ifitdoes
notreceiveanassignedIPaddress,bydefaultitwillbootupwitha
self-assignedIPaddressof192.168.0.32.
The Easy Search Utility provided on the DNS-323 CD-ROM
makesitsimpletondanyDNS-323devicesinyournetwork.Itis
recommendedtousetheEasySearchUtilitywhenaccessingand
conguringtheDNS-323forthersttime.EachDNS-323willhave
auniquenameofdlink-xxxxxxwhere‘xxxxxx’isthelastsixdigitsof
itsMACaddress.
Note: If you want to use non-English character les, you may need to change
the Language setting from the Easy Search Utility to ensure full compatibility
with those les. Refer to the user manual for instructions.

10

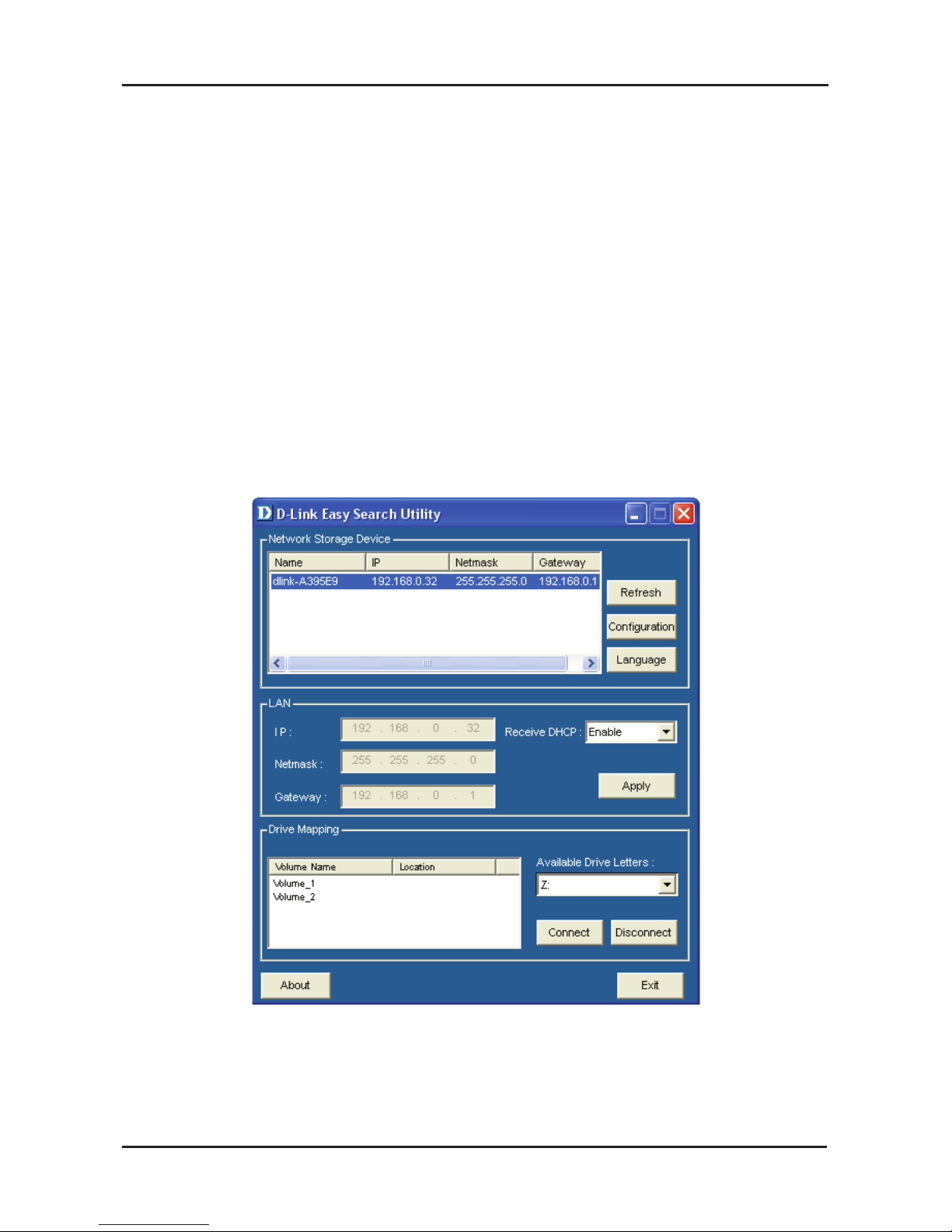

Togetstarted,inserttheDNS-323CDintoyourCD-ROMdriveand
clickonEasySearchUtility:
HighlightanavailableDNS-323
andclickCongurationtoaccess
theweb-basedutility.
Attheloginscreen,typeadmin
fortheusernameandleavethe
passwordeldblank.Thenclick
Conguration.
SelectEasy Search Utility.

11
Amessagewillappearwarning
thatalldatawillbeerased
duringformatting.ClickOKto
continue.
Select theEXT2or EXT3le
systemonDNS-323.ClickNext
tocontinue.
Select a conguration type for
yourharddriveandclickNext.
WhenloggingintotheDNS-323forthersttime,youwillbeasked
tochooseadrive’scongurationtypeandformatthedrives.There
arefouravailablecongurationoptions,Standard,JBOD,RAID0
andRAID1.

12
Selecttoenableordisablethe
auto-rebuildfunctionofRAID1.
ClickNexttocontinue.
Enterthecapacityofthehard
drivethatyouwanttoreserve
forRAID0orRAID1.
ThiswindowappearsonlywhenselectingRAID1astheconguration
type.
This window appears when selecting RAID 0 or RAID 1 as the
congurationtype.
Thiswindowwillindicatetheprogressofthediskformatting.

13
TheDNS-323willrestart.
Amessageinformingyou
thattheDNS-323willrestart.
ClickOK.
Whenformattingiscomplete,
theresultswilldisplay.Click
Restarttocontinue.
AftertheDNS-323restarts,type
adminfortheusernameand
leavethepasswordeldblank.
ThenclickConguration.

14
YourDNS-323setupisnowcomplete.

15
Mapping a Drive
Selectanavailable
DNS-323.
Allavailablevolumeswill
bedisplayedunderDrive
Mapping.Highlightthe
driveyouwanttomapto
yourcomputer.
Selectanavailabledriveletter
fromthedrop-downmenuand
clickConnect.
TheEasySearchUtilitymakesitsimpletomapdrivestoyour
computer.Togetstarted,inserttheDNS-323CDintoyourCD-ROM
andlaunchtheEasySearchUtility.
Onceconnected,yourmappeddrive(s)willappearinMy Computer
asnetworkdrives.

16

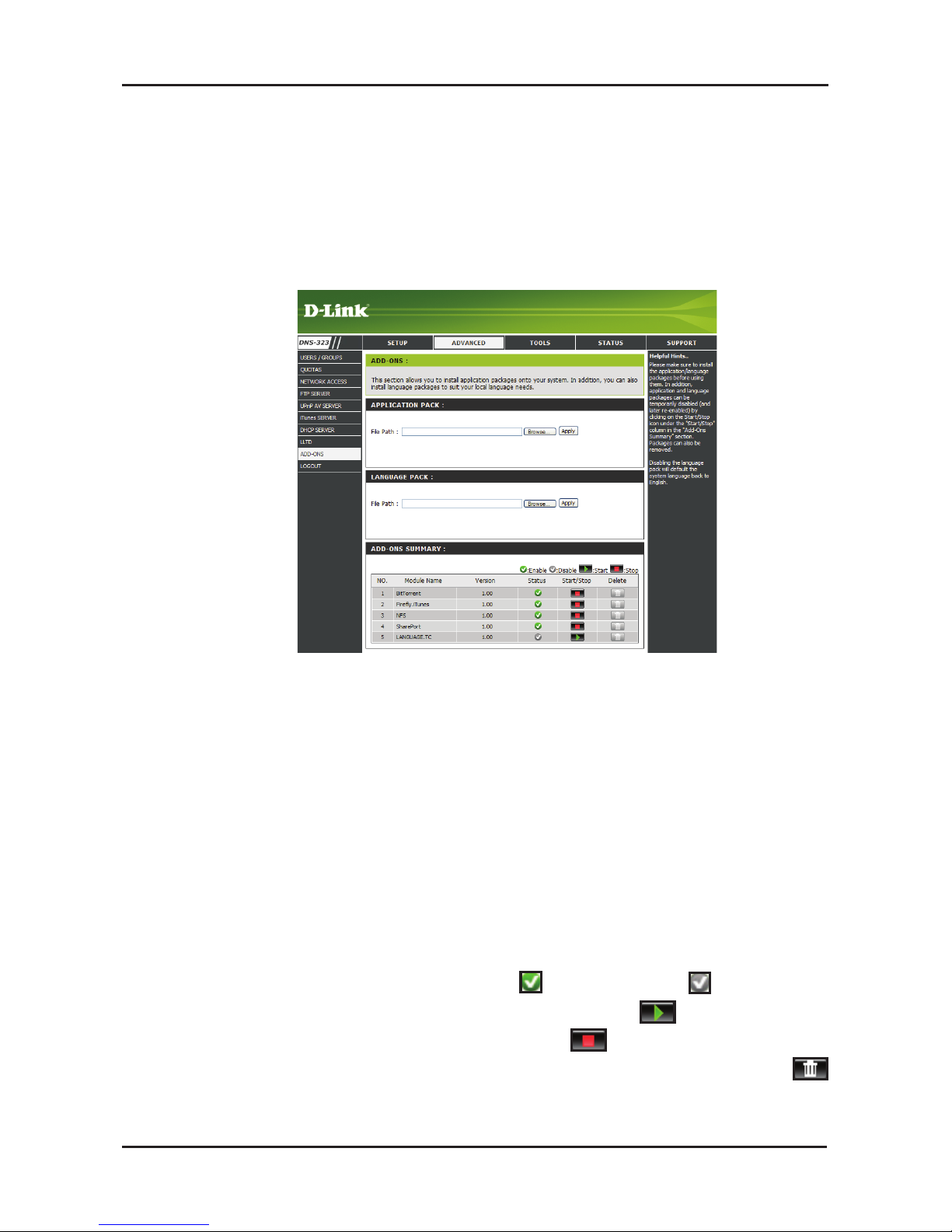

Add-ons
Installapplicationandlanguagepacks tofurtherenhancethe
functionalityoftheDNS-323.Userscancustomizetheinterfaceand
usabilityofthisunit.Addingfeaturestotheunitnowonlyrequiresan
Add-oninstallationassoonasnewfeaturesareavailable.
Application
Pack
Language
Pack
Add-ons
Summary
ClicktheBrowsebuttontosearchforthespecific
applicationpackyouwanttoinstall.Afterselectingthe
applicationpack,clicktheApplybuttontoinstallit.
ClicktheBrowsebuttontosearchforthespeciclanguage
packyouwanttoinstall.Afterselectingthelanguagepack,
clicktheApplybuttontoinstallit.
Thissectiondisplaystheapplication/languagepack(s)you
haveinstalled.UndertheStatuscolumn,youcanseeif
aspecicpackiscurrently (enabled),or (disabled).
UndertheStart/Stopcolumn,clickthe icontoenable
thespeciedpack.Clickthe icontodisablethe
speciedpack.UndertheDeletecolumn,clickthe 
icontouninstallthespeciedpack.

17
Notes
Technical Support
United Kingdom (Mon-Fri)
Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)
Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am – 05.30pm)
(BT 10ppm, other carriers may vary.)
Ireland (Mon-Fri)
All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)
€0.05ppm peak, €0.045ppm off peak Times
Internet
http://www.dlink.co.uk
ftp://ftp.dlink.co.uk

18
Notes

Schnellinstallationsanleitung
2-BAY NETZWERKSPEICHER
DNS-323

20
Packungsinhalt
Systemanforderungen
• 1GHzProzessor/512MBRAM
• 200MBverfügbarerSpeicherplatz
• CD-ROM-Laufwerk
• InternetExplorer6.0oderMozillaFirefox1.0undhöher
• 3,5"SATA-Festplatten
• Windows®Vista®oderXP(ServicePack2)
• DNS-3232-BayNetzwerkspeicher
• CD-ROMmitHandbuchundSoftware
• Schnellinstallationsanleitung
• Netzteil/Stromadapter
• Stromkabelklemme
• Ethernetkabel(CAT5)
Hinweis: Die Verwendung eines anderen Netzteils als des zum Lieferumfang
des DNS-323 gehörenden kann zu Schäden führen und die Garantie für dieses
Produkt hinfällig machen.
Sollte einer der oben aufgeführten Artikel fehlen, wenden Sie sich bitte an Ihren Fachhändler.
