D-Link DIR-868L Setup guide

Technical Support Setup Procedure
How to Setup DIR-868L Router Access Control.

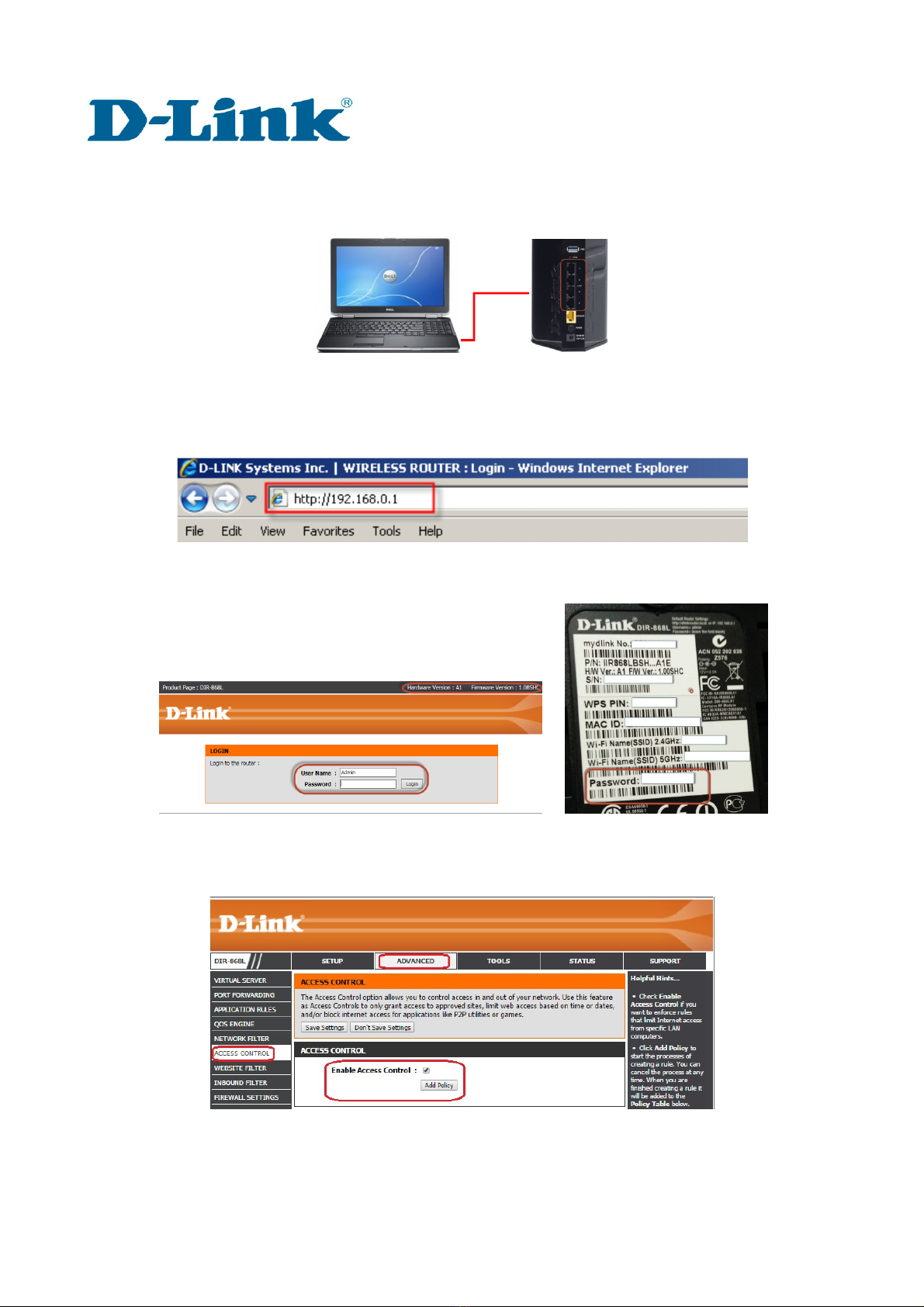

Step 1: Connect the LAN cable from the computer to any of 4 ports of the router.
Step 2: Open a web browser such as Internet Explorer, Mozilla Firefox or Google Chrome. On
the address bar of the web browser type in there the IP Address of the router and then press the
Enter key on your keyboard.
Step 3: Enter the Password (Wireless Password)which show on the sticker label at the base
of the router and click on Login to enter the web admin page again.

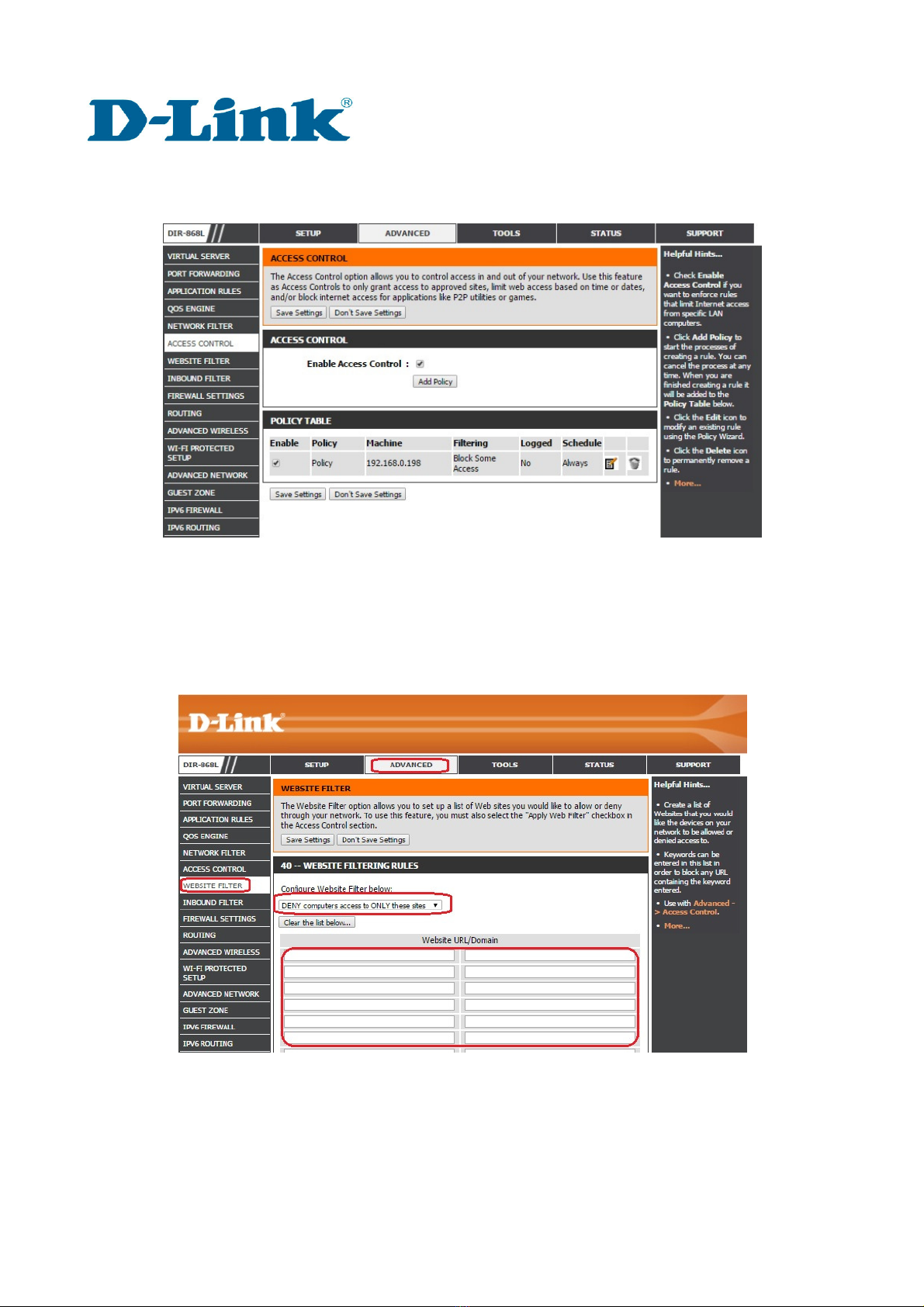

Step 4: Click on ADVANCED tab, then Click on ACCESS CONTROL on the left hand side,
then Click on Enable Access Control. Click Add Policy

Technical Support Setup Procedure

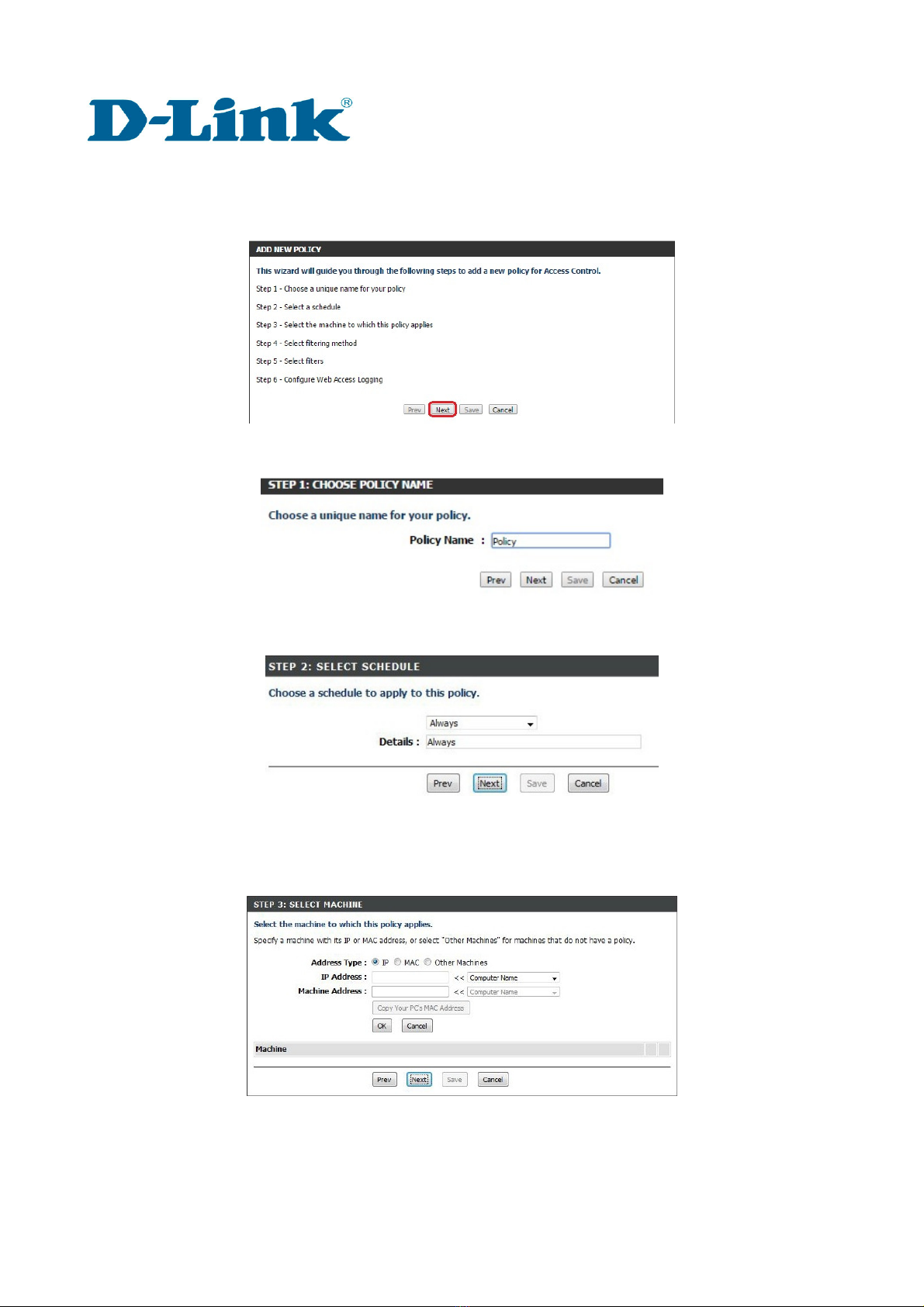

Step 5: Click Next to continue with the wizard
Step 6: Enter the name for policy and then click next to continue
Step 7: Select a schedule from the drop down menu and then click Next to continue
Step 8: Enter the following information and then click Next to continue
•Address Type – Select IP address, MAC address, or other Machines
•IP Address – Enter the IP address of the computer you want to apply the rule to

Technical Support Setup Procedure

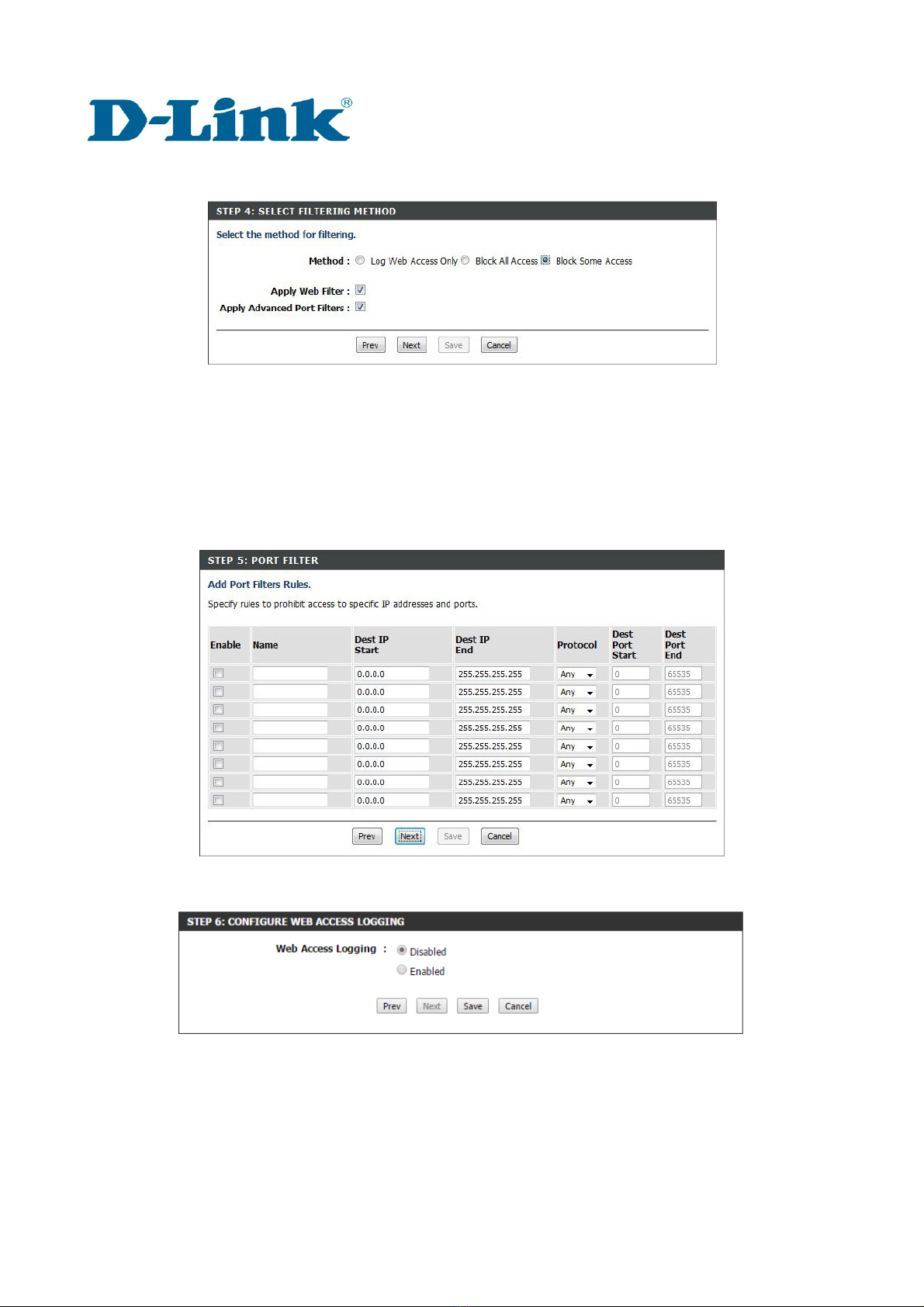

Step 9: Select the filtering method and then click Next to continue
Step 10: Enter the rule:
•Enable – check to enable the rule
•Name – Enter a name for your rule
•Dest IP Start – Enter the starting IP address
•Dest IP End – Enter the ending IP address
•Protocol – Select the protocol
•Dest Port Start – Enter the starting port number
•Dest Port End – Enter the ending port number
Step 11: Enable or Disable Web Access Logging and click Save.

Technical Support Setup Procedure
Step 12: Click Save to save the access control rule. The newly created policy will now show up
under Policy Table.
Step 13: Click the Advanced tab on the top then website filter on the left side of the screen.
Select the option “Deny computers access to ONLY these sites” from configure website filter
below. Type in the website URLs to be blocked on this router Website URL/Domain columns.
Click Save settings when finished.
* Note: You CANNOT block Secure HTTP (HTTPS) websites
