D-Link DMC-1002 User manual

Rev. 01 (JUN. 2003)
1907MCB10016001
DMC-1002
SNMP Module fo
r
Chassis-Based Media Converter
Manual
RECYCLABLE

1
TABLE OF CONTENTS
ABOUT THIS GUIDE.................................................................. 2
FEATURES......................................................................................................2
UNPACKING...................................................................................................2
CONFIGURING THE SYSTEM.......................................... 3
THE MEDIA CONVERTER CHASSIS SYSTEM ...................................................3
INSTALLING THE MANAGEMENT MODULE ....................................................3
CONFIGURE THROUGH WEB BROWSER ..........................................................4
CONFIGURATION VIA SERIAL PORT ...............................................................4
SUPPORT SNMP MANAGEMENT ...................................................................5
LED INDICATORS..........................................................................................5
MANAGEMENT SETTING THROUGH WEB
BROWSER............................................................................................ 6
MANAGEMENT SETTING THROUGH
TERMINAL EMULATOR...................................................... 14
WHEN FORGOT THE PASSWORD ...................................................................20
TECHNICAL SPECIFICATIONS.................................... 21

2
ABOUT THIS GUIDE
This manual shows you how to configuring your DMC-1002 SNMP Module
for Chassis-Based Media Converter.
Features
 Compliant with IEEE802.3u 100BASE-TX standards
 Enable to monitor the module through terminal emulation program and
Web browser
 The network administrator can access management software by
connecting the management module either to a terminal emulation
program (through the RS232 interface) or to a remote network
management station (through the RJ45 interface and a hub)
 Status indication include:
1. Identification of: Media Converter type; Slot number occupied
2. Status Indication of Chassis: Redundant Power status; Power Fail status;
Fan Fail status
3. Status Indication of Modules: Unit Power; Link/Activity; Transmit; Receive
 LED Indication: Power/Power Fail/Fan Fail/MGM/Console/Link/ACT
 Support Hot-swappable
 Auto-negotiation for half-duplex/full-duplex on TX ports
 Equipped with a 19” system chassis 16-converter with Redundant Power
supply for optional Expansion use.
Unpacking
Open the shipping carton of the SNMP Module and carefully unpack its
contents. The carton should contain the following items:
One DMC-1002 SNMP Module for Chassis-Based Media Converter
One RS232 cable
This Manual
If any item is found missing or damaged, please contact your local reseller for replacement.

3
CONFIGURING THE SYSTEM
This chapter provides network managers and system administrators with
information about how to configure the Media Converter Chassis system.
The reader of this document should be knowledgeable about network devices,
device configuration, network management, and Internet browsers. The user
is assumed to be a network administrator or manager with an understanding
of network operations.
The Media Converter Chassis system

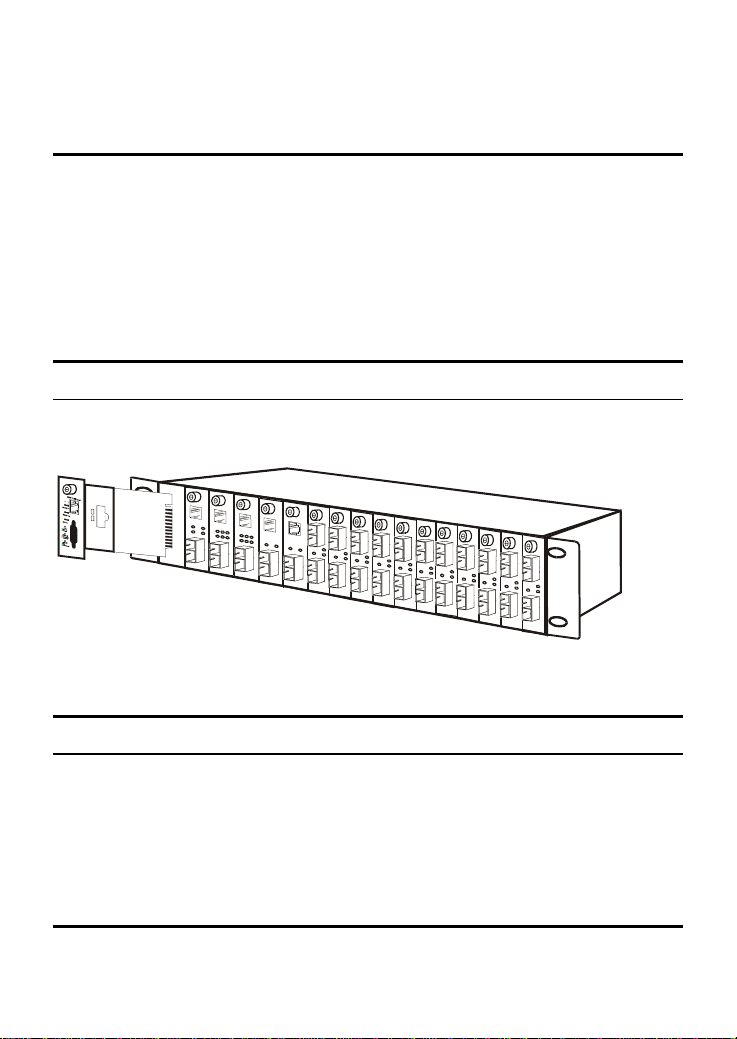

The chassis’s first slot is for the management module as illustration on figure
1.
Figure 1. Slide in the management module in the first slot of the chassis system.
Installing the Management Module
Before Configure the chassis system, you must do the following:
 Install the management module into the chassis. (Figure 1)
 Connect the module to the network.
 Boot up for SNMP management on Web browser or emulation terminal
program.

4
Configure through Web browser
The Media Converter chassis system is accessible using a Web browser (IE
explorer, Netscape Communications, etc.) to open up the chassis monitoring
system. The default IP Address for the chassis system is “192.168.1.1”, and
the default Login name and password is both “root”.
Configuration via Serial Port
The Media Converter chassis system can be accessible using a terminal or
terminal emulator attached to the RS232 serial port on the Switch too.
NOTE: (1) The serial port cable is attached directly with the device.
(2) It needs to upgrade the Terminal Emulator due to key malfunction.
1. Locate correct DB9 serial port cable with female DB9 connector.
2. Attach the DB9 serial port female cable connector to the male DB9 serial
port connector on the chassis system.
3. Attach the other end of the DB9 serial port cable to a remote workstation.
4. By default, the Switch uses the following serial port parameter values:
Bits per second 57600
Stop bits 1
Data bits 8
Parity NONE
Flow Control NONE
5. The default Login name and password is both “root”.

12
Cold Start trap: to set the trap for rebooting the device
(default = enable).
Authentication Fail Trap: to set the warning trap when the
community name of the device and workstation are
different (default = enable).
Power Fail Trap: to set the Power Fail Trap (default = enable).
Fan Fail Trap: to set the fan fail trap (default = enable).
MC Plug-in Trap: to set the trap of the Media Converter module
if it is plugged in (default = enable).
MC Pullout Trap: to set the trap of the Media Converter module
if it is pulled out (default = enable).
MC Broken Trap: to set the trap when the Media Converter
module was broken (default = enable).
MC Link up Trap: to set the trap when a linking is connected
(default = enable).
M MC Link down Trap: to set the trap when a linking is
disconnected (default = enable).
MC Active Slot Xchg Trap: to set the trap when there is a
redundant function activated (default = enable).
MC Active Slot Lose Trap: to set the trap when the redundant
function is fail (default = enable).
MC Active Slot Xchg Trap: to set the trap when there is a
