D-Link DMC-G01LC User manual

iD-Link DMC-G01LC User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Internet Explorer®, Windows® and the Windows logo are trademarks of the Microsoft group of companies.
Copyright © 2015 by D-Link Corporation, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation, Inc.
The purpose of this product is to create a constant network connection for your devices. As such, it does not have a standby mode or use a power
management mode. If you wish to power down this product, please simply unplug it from the power outlet.
Preface
Revision Date Description
2.00 May 12, 2015 • Initial release

iiD-Link DMC-G01LC User Manual
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any
person or organization of such revisions or changes.
FCC Class A Certication
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with this user’s guide, may cause harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be
required to take adequate measures.
VCCI Class A Compliance (Japan)
This is a product of VCCI Class A Compliance.
Certications

iiiD-Link DMC-G01LC User Manual
Table of Contents
Preface................................................................................. i
Manual Revisions........................................................................... i
Trademarks ...................................................................................... i
Certications...................................................................... ii
FCC Class A Certication ........................................................... ii
CE Mark Warning ......................................................................... ii
VCCI Class A Compliance (Japan) ........................................... ii
Product Overview.............................................................. 1
Package Contents......................................................................... 1
Introduction....................................................................... 2
Features............................................................................................ 3
Hardware Overview..................................................................... 4
Rear Panel................................................................................ 4
Front Panel .............................................................................. 5
Installation ......................................................................... 6
Selecting a Site for the Equipment ........................................ 6
Setting up the DMC-G01LC Media Converter ................... 7
LED Indicators................................................................................ 8
Technical Specications .................................................... 9
Table of Contents

1D-Link DMC-G01LC User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a dierent voltage rating than the one included with the DMC-G01LC will cause damage and void the
warranty for this product.
If any of the above items are missing, please contact your reseller.
DMC-G01LC 10/100/1000Base-T to SFP Media Converter
User Manual
5 V DC, 1 A Power Adapter

2D-Link DMC-G01LC User Manual
Section 1 - Product Overview
The D-Link DMC-G01LC 10/100/1000 BASE-T to SFP Gigabit Ethernet Media Converter is a stand-alone plug-and-play
device designed to oer exibility in the use of networking media technologies. The converter provides one channel media
conversion between 10BASE-T, 100BASE-TX, or 1000BASE-T and 100BASE-FX or 1000BASE-SX/LX/ZX through an SFP module.
The DMC-G01LC Media Converter allows network administrators to grow networks on an as needed basis while oering
compatibility with existing equipment.
This Product Manual additional information about the D-Link DMC-G01LC Media Converter. The model you have purchased may
appear slightly dierent from the images shown in this document. For more detailed information about the media converter,
making network connections, and technical specications, please refer to visit http://www.dlink.com
Introduction

3D-Link DMC-G01LC User Manual
Section 1 - Product Overview
• Used as a standalone converter
• Complies with IEEE802.3 10BASE-T, IEEE802.3u, 100TX/FX, IEEE802.3ab 1000BASE-T, and IEEE802.3z 1000BASE-
SX/LX/ZX
• One-channel media conversion between 10/100/1000BASE-T and 100BASE-FX or 1000BASE-SX/LX/ZX SFP
modules
• Extends network connection to various lengths depending on SFP transceiver capability
• Auto negotiation of speed and duplex mode on TX port
• Auto MDI/MDI-X for TX port
• Provides intelligent functions such as LLR (Link Loss Return) and LLCF (Link Loss Carry Forward)
• Front panel status LEDs
Features

4D-Link DMC-G01LC User Manual
Section 1 - Product Overview
Hardware Overview

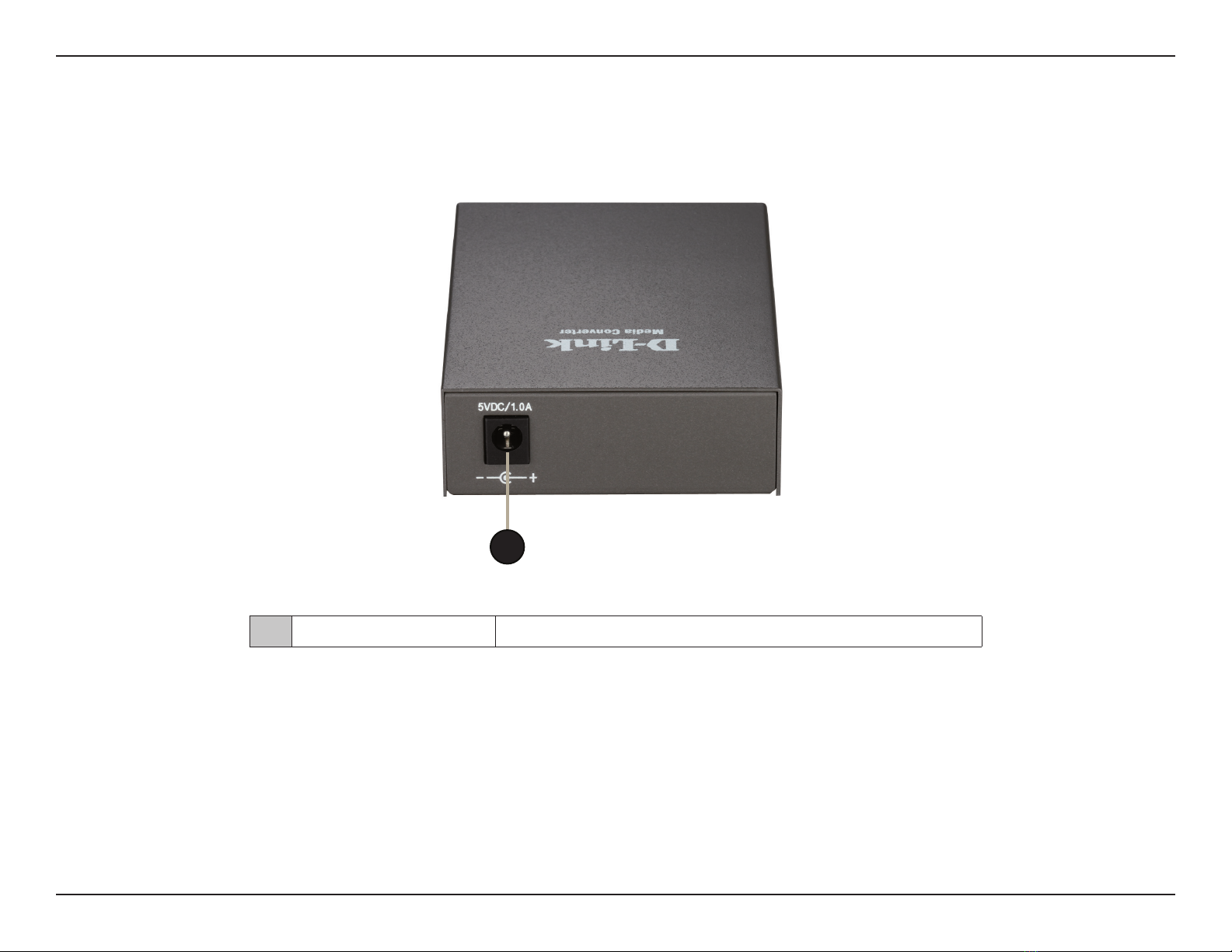

Rear Panel
1 Power Connector Connector for the supplied power adapter.
1

5D-Link DMC-G01LC User Manual
Section 1 - Product Overview
Hardware Overview

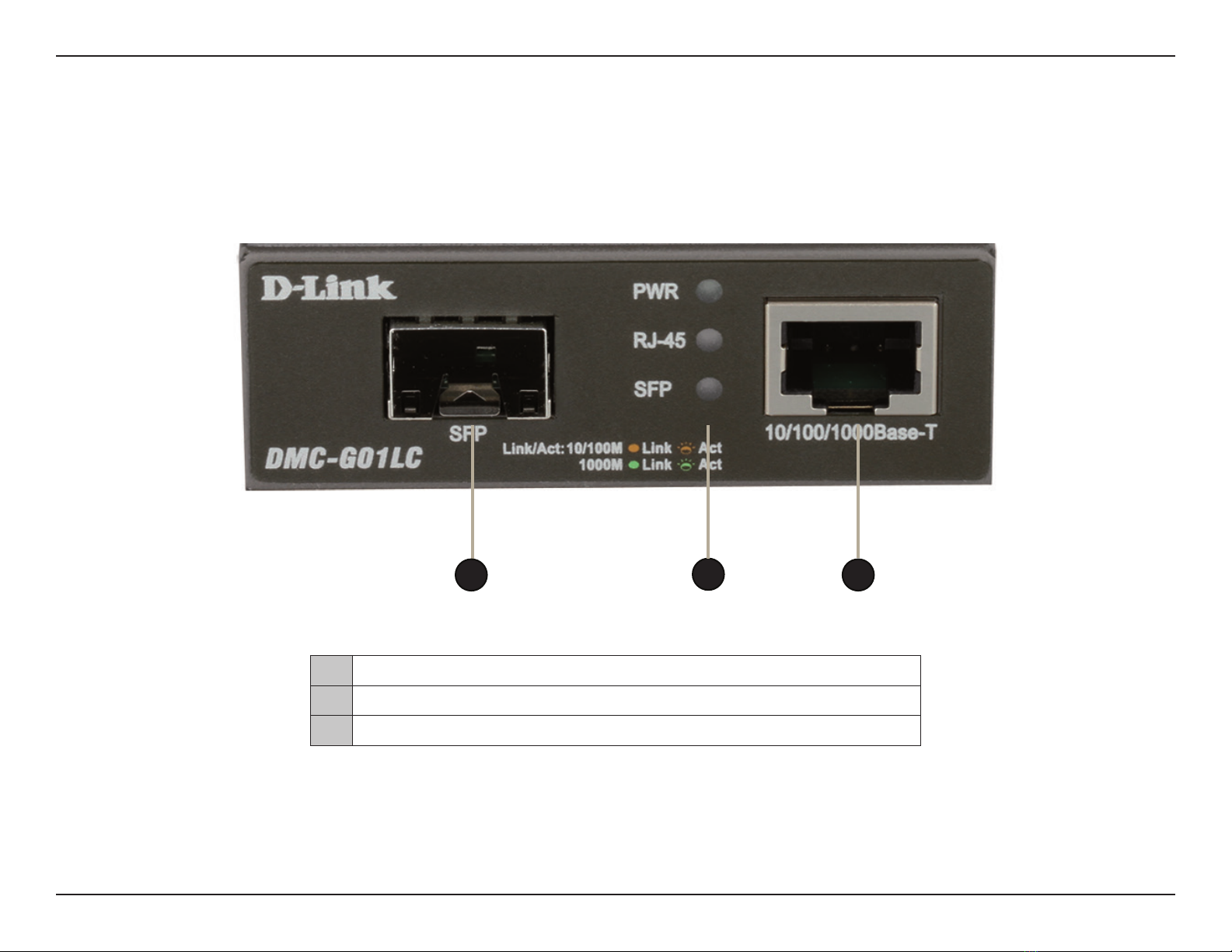

Front Panel
1SFP Port
2Indicator LEDs
310/100/1000 Base-T Ethernet Port
123

6D-Link DMC-G01LC User Manual
Section 2 - Installation
Selecting a Site for the Equipment
Installation
This section gives step-by-step installation instructions for the converter. Placement of the router is very important. Do not
place the router in an enclosed area such as a closet, cabinet, or in the attic or garage.
As with any electronic device, you should place the equipment where it will not be subjected to extreme temperatures, humidity,
or electromagnetic interference. Specically, the site you select should meet the following requirements:
A. The ambient temperature should be between 0 to 50 degrees Celsius (32 and 122 degrees Fahrenheit).
B. The relative humidity should be less than 90 percent, non-condensing.
C. Surrounding electrical devices should not exceed the electromagnetic eld (RFC) standards for IEC 801-3, Level 2 (3V/M)
eld strength.
D. Make sure that the equipment receives adequate ventilation. Do not block the ventilation holes on either side of the
media converter.
E. The power outlet should be within 1.2 meters of the device.

7D-Link DMC-G01LC User Manual
Section 2 - Installation
Setting up the DMC-G01LC Media Converter
This converter is a plug-and-play device.
1. Connect the supplied AC to DC power adapter with a power voltage of 5 V DC/1 A to the receptacle on the rear panel
of the converter, and then attach the plug into a standard AC outlet with a voltage range from 100 to 240 V AC.
2. Insert an SFP Transceiver Module into the SFP in accordance with SFP manufacturer recommendations. Refer to SFP
Transceiver Module documentation for additional installation instructions.
3. Insert an Ethernet cable with an RJ45 connector to the 10/100/1000 Base-T Ethernet port.

8D-Link DMC-G01LC User Manual
Section 2 - Installation

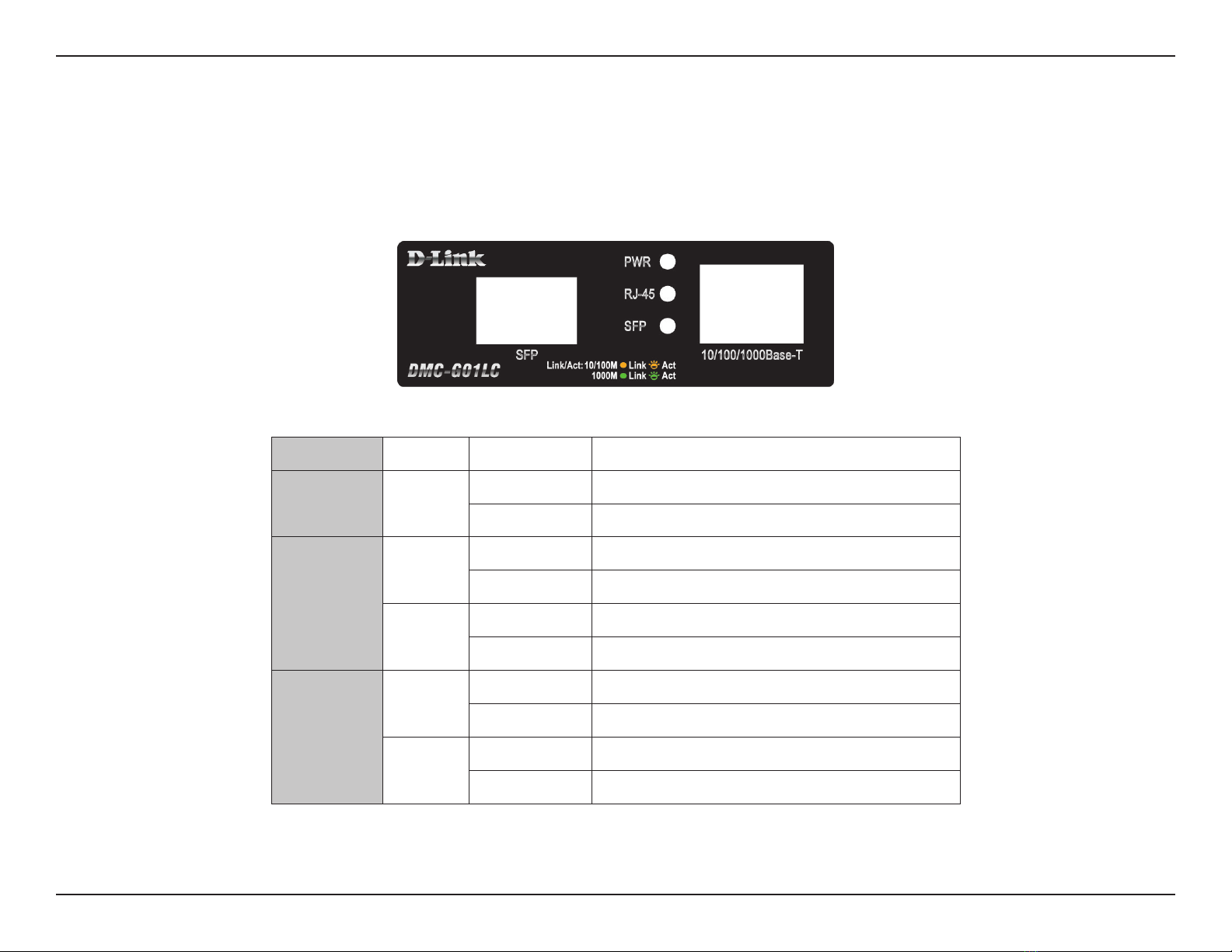

LED Indicators
The LED indicators give you instant feedback on the status of the converter.
LED Color State Indication
Power (PWR) Green Light on Power on
Light o Power o
10/100/1000
Base-T
Green On Connection (or link) at 1000 Mbps
Blinking Reception or Transmission at 1000 Mbps
Amber On Connection (or link) at 10/100 Mbps
Blinking Reception or Transmission at 10/100 Mbps
SFP
Green On Connection (or link) at 1000 Mbps
Blinking Reception or Transmission at 1000 Mbps
Amber On Connection (or link) at 10/100 Mbps
Blinking Reception or Transmission at 10/100 Mbps

9D-Link DMC-G01LC User Manual
Appendix A - Technical Specications
Media
Converter
Standards IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE802.3ab 1000BASE-T
IEEE802.3z 1000BASE-SX/LX/ZX
Data Transfer Rate 10/20 Mbps
100/200 Mbps
2000 Mbps
Duplex Mode Half/Full Duplex Mode
Supported SFP
Transceivers
DGS-712: 1000BASE-T Copper SFP Transceiver
DEM-310GT: 1000Base-LX, Single-mode, 10 km
DEM-311GT: 1000ase-SX, Mutli-mode, 550 m
DEM-312GT2: 1000Base-SX, Multi-mode, 2 km
DEM-314GT: 1000BASE-LHX,Single-mode, 50 km
DEM-315GT: 1000BASE-ZX, Single-mode, 80 km
DEM-330T/R: Gigabit WDM transceiver, Single-Mode 10 km
DEM-331T/R: Gigabit WDM transceiver, Single-Mode 40 km
DEM-211: 100Base-FX, Multi-mode, 2 km
DEM-210: 100Base-FX, Single-mode, 15 km
DEM-220T: 100Base-BX WDM transceiver, Single-mode, 20 km
DEM-220R:100Base-BX WDM transceiver, Single-mode, 20 km
Physical Media Interface: RJ-45 Ethernet Port
SFP Port
LED indicators PWR
RJ-45
SFP
Power 5 V/1A through an external power adapter
Dimensions 95 x 70 x 25 mm (3.74 x 2.76 x 0.98 inches)
Technical Specications
