D-Link DCF-560M User manual

1
Introduction
Package Contents
Please ensure that the following items are included
in your package. If any items are missing , pls.
contact your dealer.

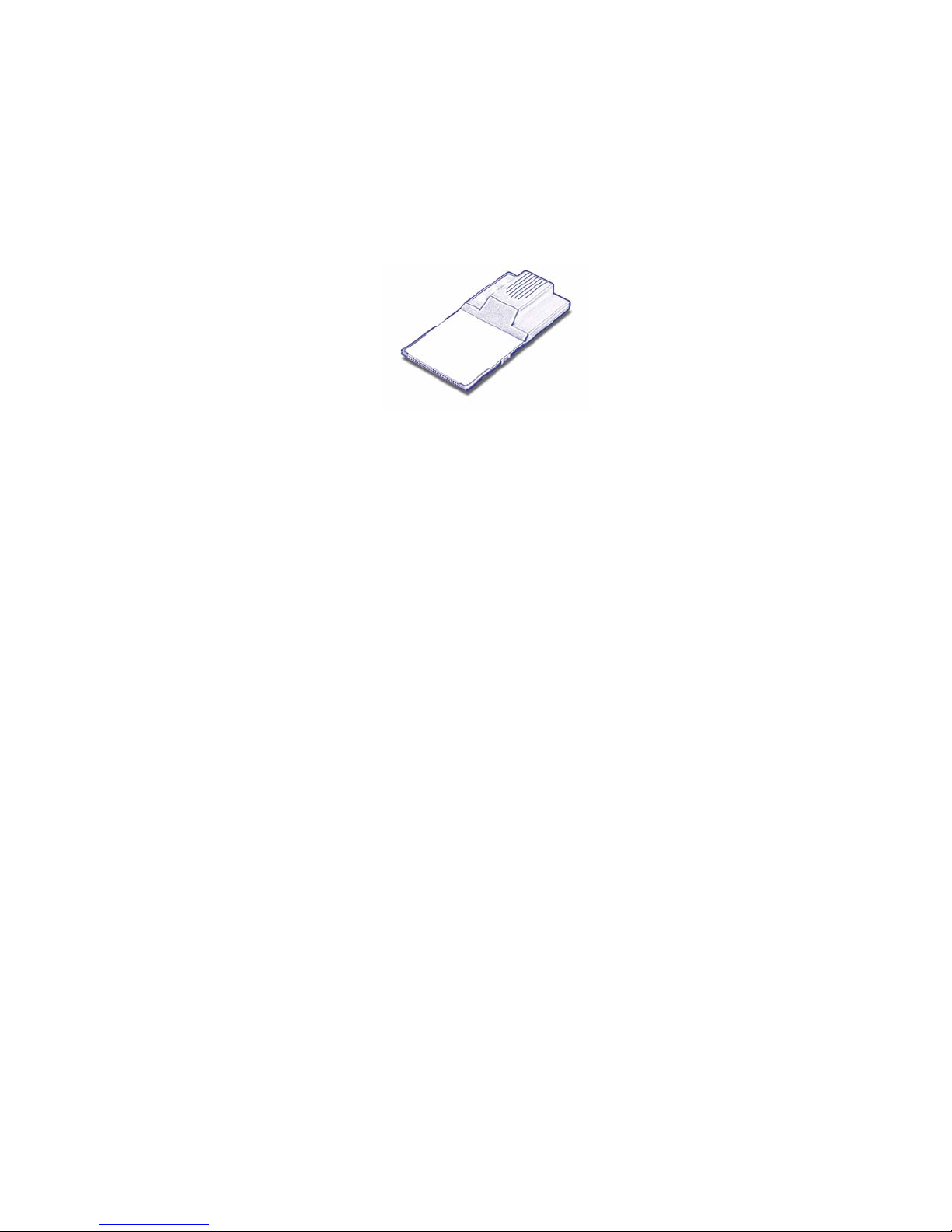

• 1 -DCF – 560M CompactFlash 56K Modem
Card
• 1 - Analog Phone Cable
• 1 - User’s manual
• 1 - Quick Installation Guide
• 1 - Registration Card

—
2
—
Installation
Hardware Installation

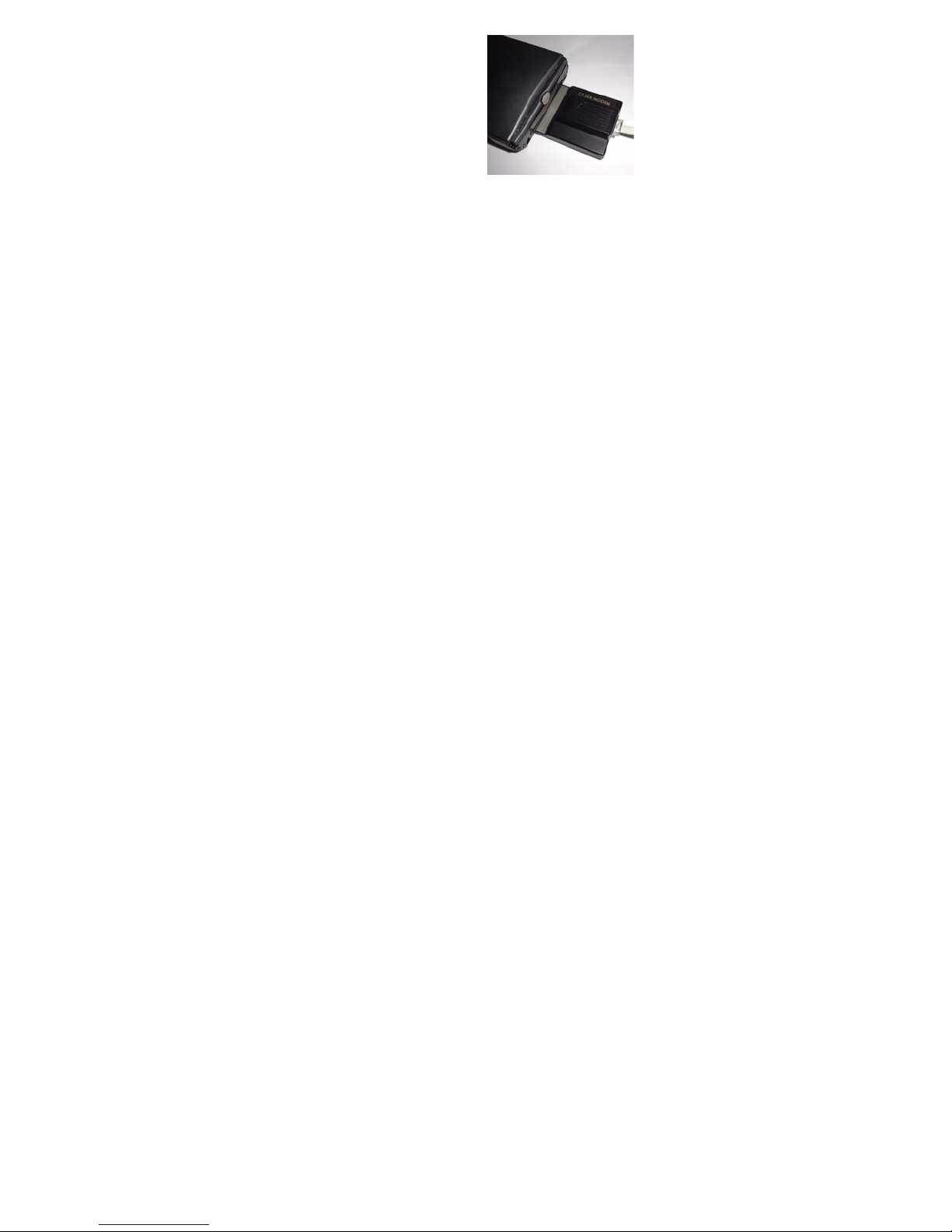

1. Firmly insert the
DCF-560M into the
CompactFlash slot
on top of your
pocket PC with the
50-pin connector
facing the
CompactFlash slot.
You will hear a click
when firmly
connected.
2. Please Press “YES”
to skip the warning
message.

—
3
—
3. Connect the analog
phone cable to RJ-11
of the DCF-560M.
And insert the other
end of the analog
phone cable into a
standard telephone
outlet.

—
4
—
Configuring a Modem Connection on
Your Pocket PC
1. On your Pocket PC,
tap the “ Start”
button and choose
Settings.

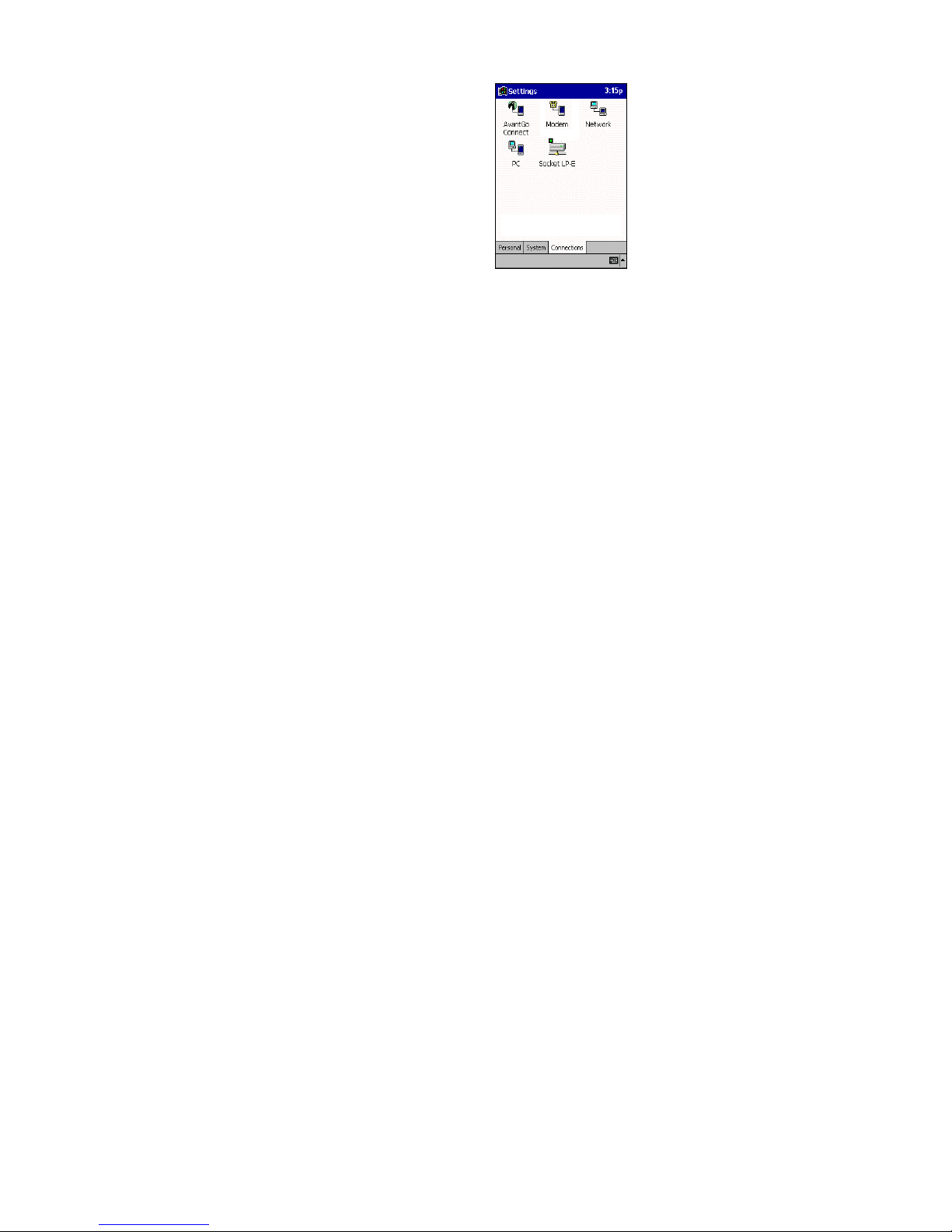

2. Click the
“Connections” tab
and choose “
Modem” icon.
Note: Consult with
your network
administrator
for specific
settings.

—
5
—

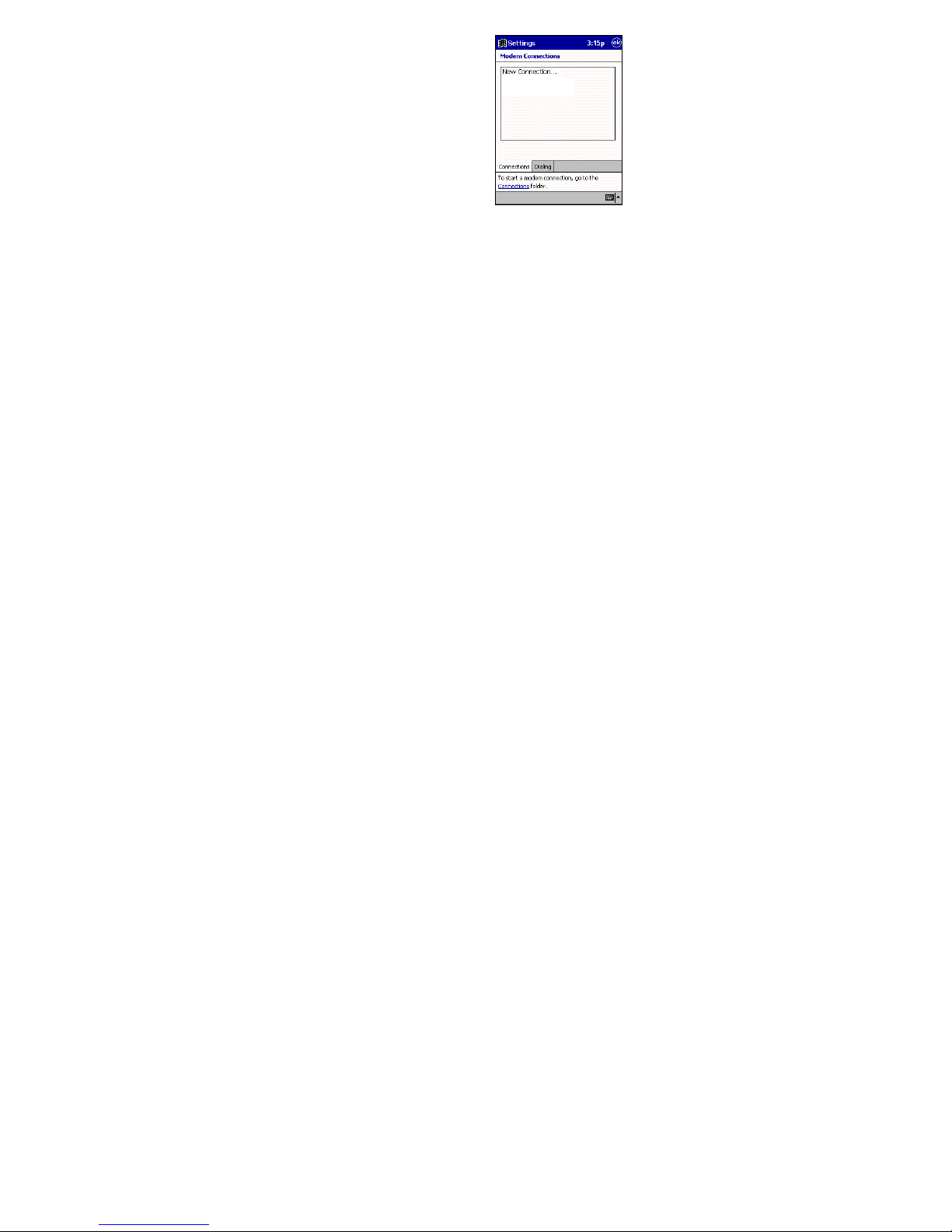

3. Click “ New
Connection…”

—
6
—

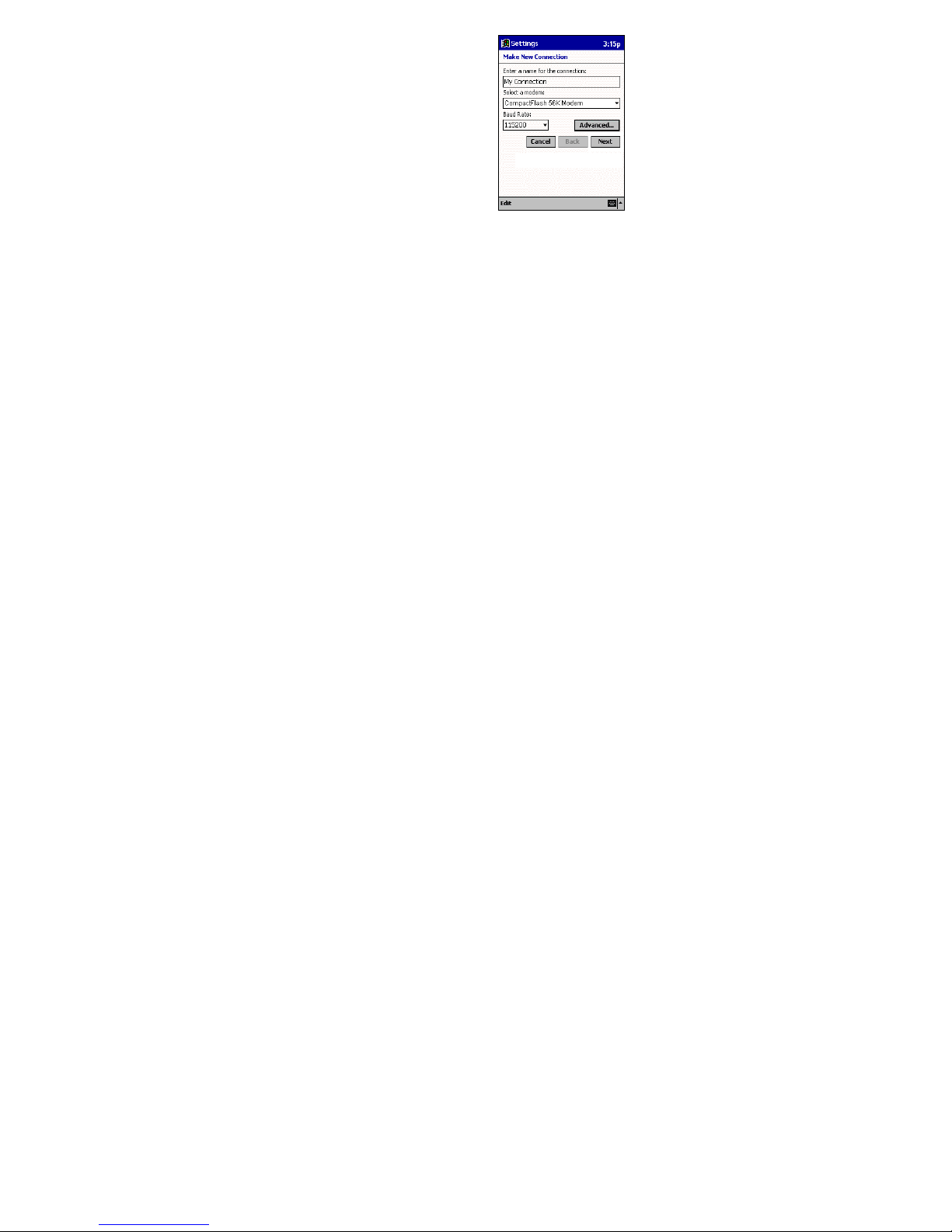

4. Type a name in the
Enter a name for
the connection text
box.
5. Choose
CompactFlash 56K
Modem from the
Select a modem list.
6. Choose Baud Rate
for your CF modem.
For example:
115200. Click the
“Advanced” button.

—
7
—
7. Click the “Name
Servers” tab.
8. According to your
ISP account, input
appropriate address
if necessary.
9. Click “OK“at top
right to continue.

—
8
—
10. Click the “Next”
button.

—
9
—

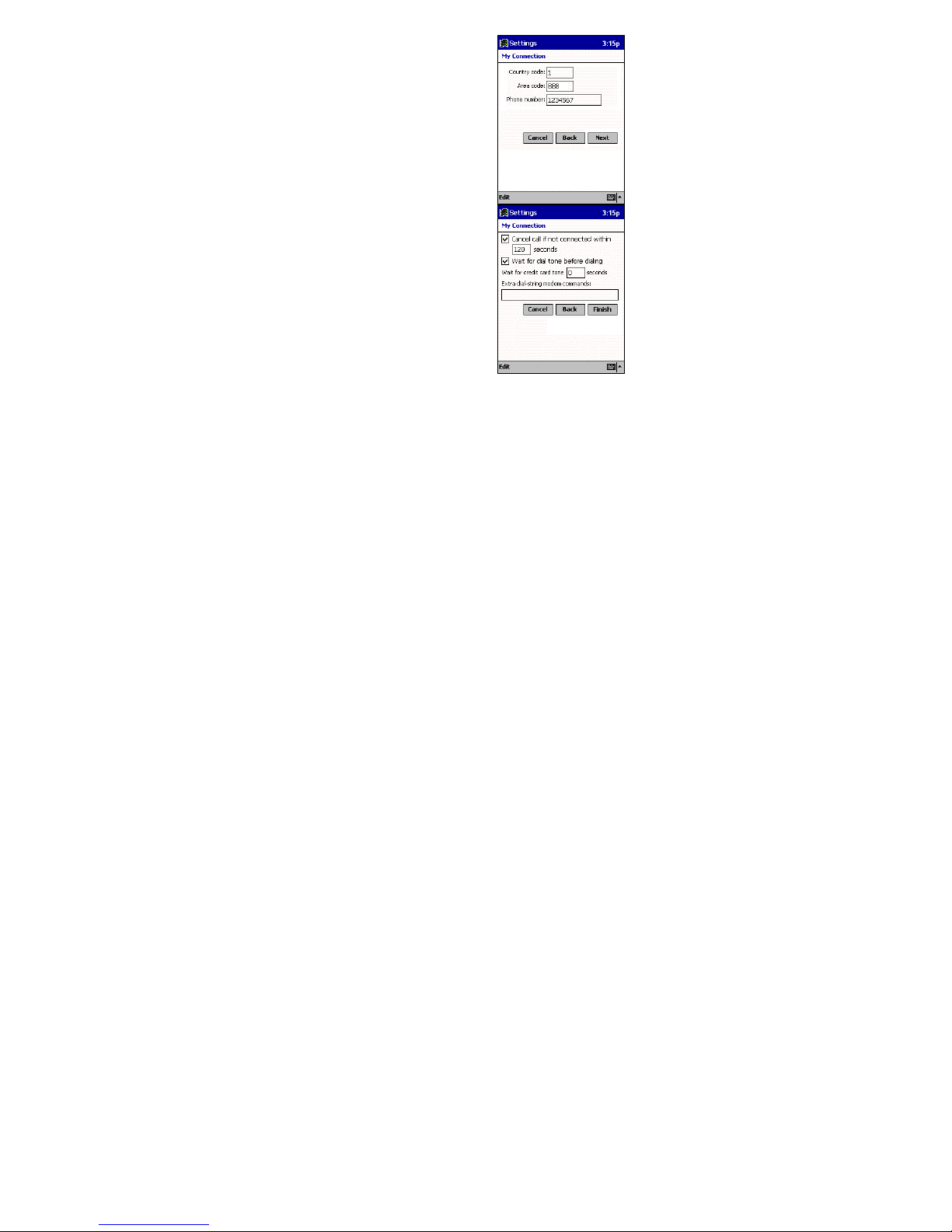

11. Type in your local
ISP access number.
12. Click “Next” to
continue.
13. Click “Finish” to
complete the
process…

—
10
—
Setting up your Pocket PC for POP3
Email

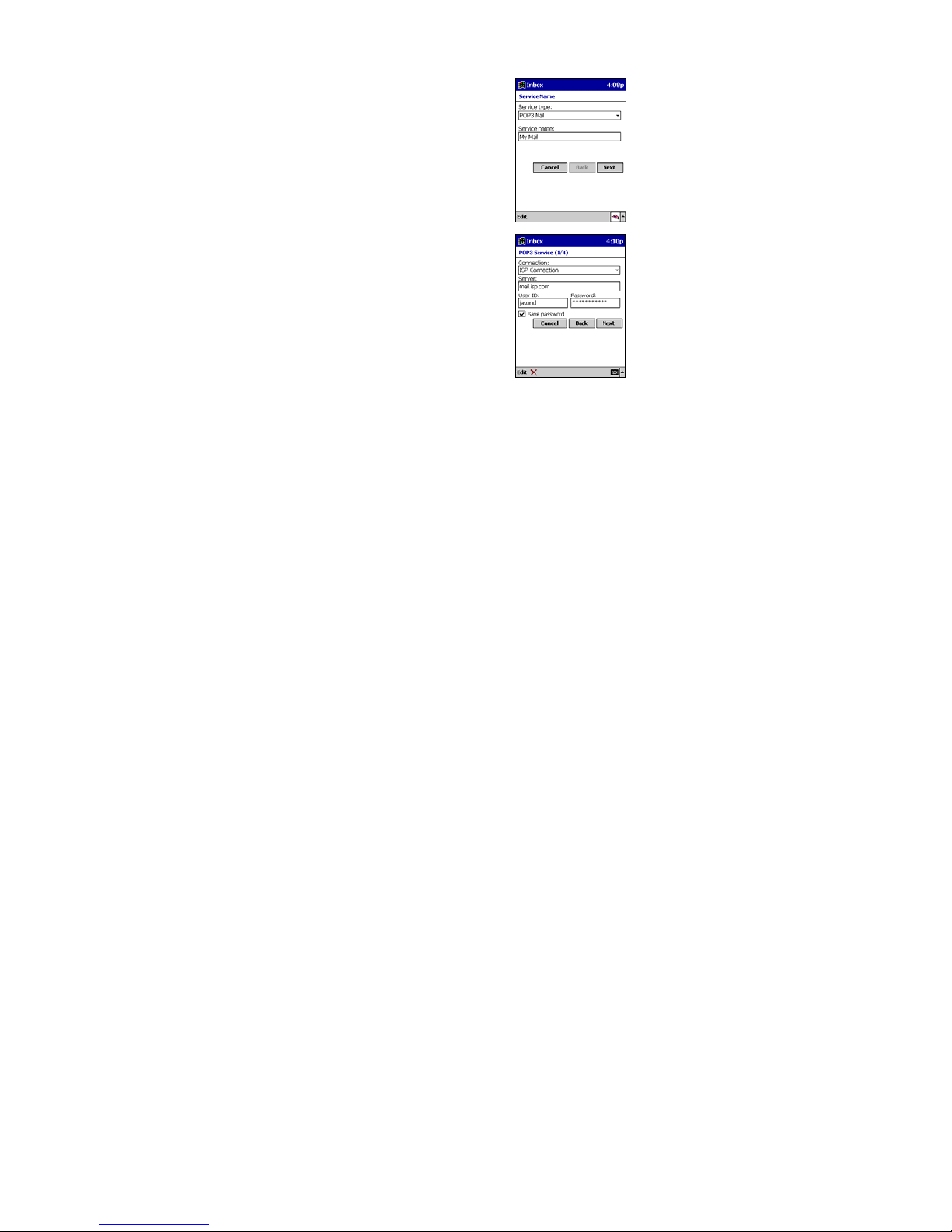

1. Launch the “Inbox”
from your Pocket PC.
Click Services,
followed by New
Service from the
menu. Click “Next”
2. In the Server Field,
enter the incoming
mail server (usually a
POP3) and your User
ID and Password. If
you are having
problems, please
contact your ISP.
Click “Next”.

—
11
—

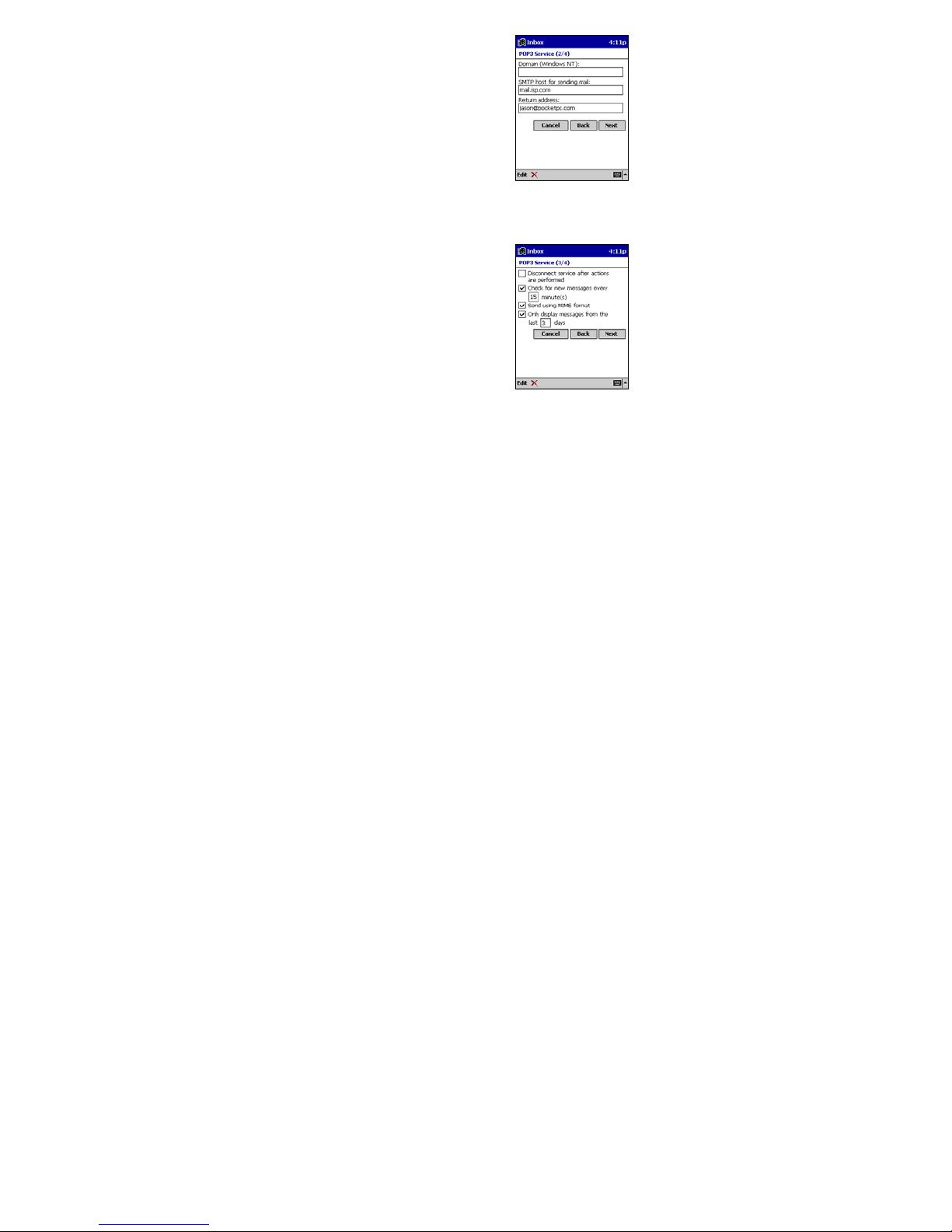

3. Leave the Domain
name blank unless you
are connecting to a
Microsoft NT server.
The SMTP server will
usually be the same as
your POP3 server but
check with your ISP to
make sure. The
return address is the
email you can be
reached at. Click
“Next”.
4. These are email
options. Choose those
options that you wish
to use. Click “Next”.

—
12
—

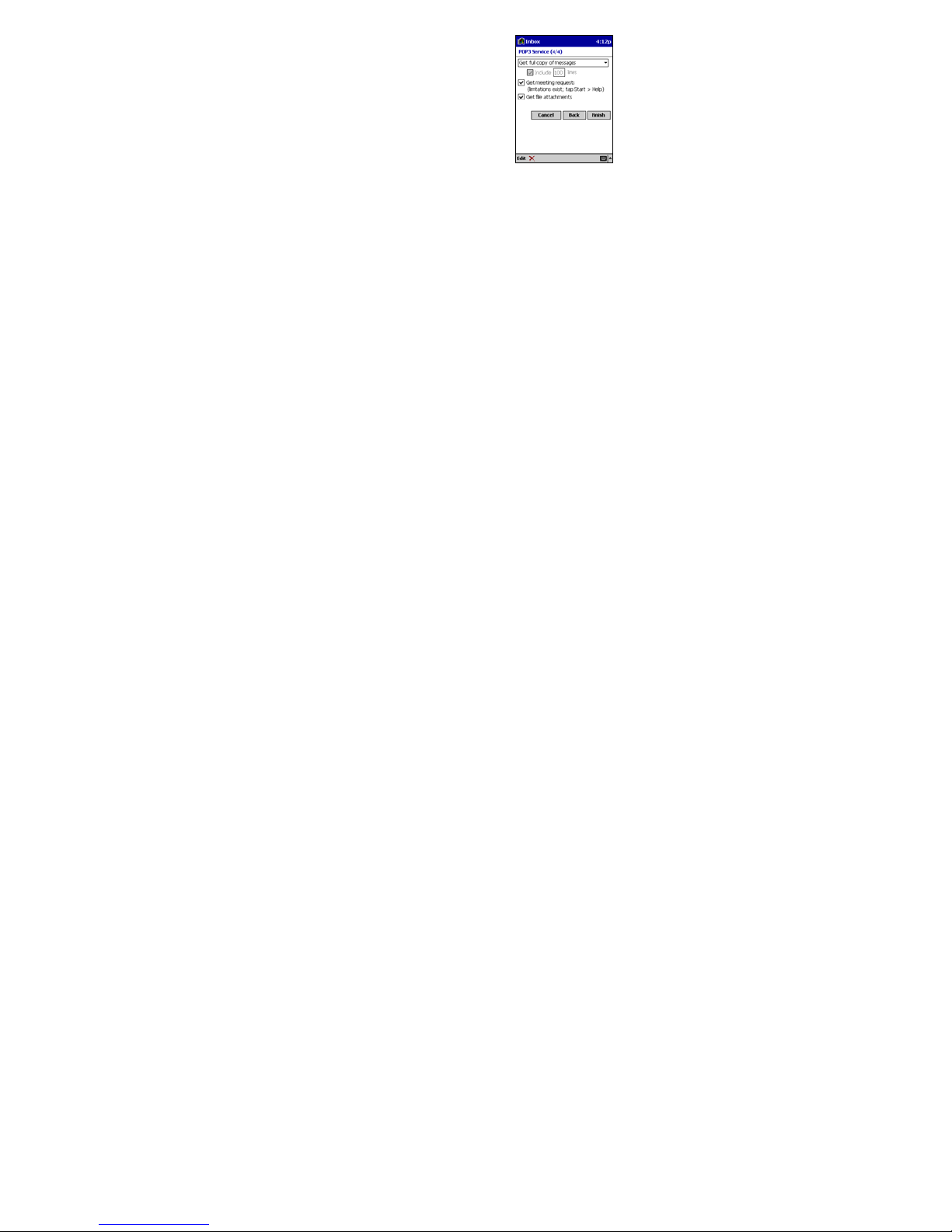

5. The last screen has
options for email
retrieval. You can
select the options on
how you view mail. If
you choose “Get Full
Copy of Messages”,
you download the
entire email. If you
choose “Get Message
Headers Only”, you
download only the
summary of the email.
Choose the amount of
lines you wish to
download.

—
13
—
If you use Microsoft
Outlook, check “Get
Message Requests” if
you want to retrieve
and respond to meeting
requests.
Check “Get File
Attachments” if you
wish to download file
attachments. This may
slowdown your
download time.

—
14
—
Connecting to ActiveSync using a
Modem
Before you begin:
 Setup a partnership between your device
and the desktop computer using serial
cable, cradle, or infrared connection.
See Microsoft ActiveSync Help if you
have more questions.
 If your computer is running Windows
NT 4.0, you need to install Remote
Access Service (RAS). RAS is included
with Windows 2000.
 If you are running Windows 95, you
need to install Dial-Up Networking
Upgrade (DUN) 1.3 or later.
 Install an internal or external modem

—
15
—
Configuring RAS, DUN, and modem equipment
to work with ActiveSync
If your computer is running Windows NT 4.0 or
Windows 2000, you will need to configure RAS to
work with ActiveSync. If your computer is
running Windows 95/98, you will need to
configure DUN to work with ActiveSync.
Configure RAS and modem equipment on
Windows NT 4.0
There are three steps:
1. Install network components.
2. Configure RAS.
3. Configure the user account.

—
16
—
Install network components
1. Click
“Start”, “Settings”, and then
“Control Panel”.
2. Double-click the Network icon. If you see a
Network Configuration Wizard, then continue
below. Otherwise, skip to the next section
because networking is already installed.
3. In the Network Configuration box, click
“Yes”.
4. Select Wired to the network, clear Remote
access to the network, and then click
“Next”.
5. Click
“Select from list”.
6. In the Network Adapters box, select MS
Loopback Adapter and click “Next”.

—
17
—
7. In the Network Protocols box, select
TCP/IP Protocol and clear all other options.
8. Click
“Next” three times to start installing
the selected components.
9. In the Windows NT Setup box, enter the
directory where your Windows NT source
files are located and then click “Continue”.
10. In the MS Loopback Adapter Card Setup
dialog box, click “Continue”. The default
frame type will be selected.
11. In the TCP/IP Setup dialog box, click “No”
when asked to use DHCP.
12. In the Microsoft TCP/IP Properties box,
click the “IP Address” tab.
13. Make sure MS Loopback Adapter is
selected.

—
18
—
14. Click “Specify an IP Address” and in the IP
Address box, enter 1.1.1.1.
15. In the Subnet Mask box, enter
0.255.255.255.
16. Make sure the Default Gateway box is
cleared.
17. Click
“Next’ on the next three dialog boxes,
and then click “Finish’ to complete the
Networking Wizard.
18. Restart your desktop computer.

—
19
—
Configuring Remote Access Server (RAS)
1. Click
“Start”, “Settings”, and then
“Control Panel’
2. Double-click the Network icon. Then click
the “Services” Tab.
3. From the Network Services list, select
Remote Access Service and then click
“Properties” If Remote Access Service is
not listed, perform the following steps;
otherwise, proceed to step 9:
4. Click the Services tab, and then click “Add”.
5. Select Remote Access Service from the list,
and then click “OK”.
6. Provide your Windows NT Setup disks if
instructed to.

—
20
—
7. In the Add RAS Device, select your modem.
8. Click
“OK”, then leave the Remote Access
Setup dialog box open.
9. In the Remote Access Setup, select your
modem.
10. Click
“Configure”, select Receive calls
only, and then click OK.
11. In the Remote Access Setup dialog box,
click “Network”.
12. In the Network Configuration dialog box,
clear Require data encryption.
13. Under Server Settings, select TCP/IP, and
then click “Configure”.
14. Select This computer only and select Use
static address pool.
