D-Link DGE-560T User Manual ii
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to
notify any person or organization of such revisions or changes.
Manual Revisions
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the
United States or other countries. All other company or product names mentioned herein are trademarks or registered
trademarks of their respective companies.
Copyright © 2007 by D-Link Systems, Inc.
All rights reserved.This publication may not be reproduced, in whole or in part, without prior expressed written permission
from D-Link Systems, Inc.
Revision Date Description
1.0 May 1, 2006 • DGE-560T Revision A1/A2
1.1 September 26, 2007
• Added Windows Vista™support
• Added PC Agent (SMTP) utility
• Added Network Control Program
Preface

D-Link DGE-560T User Manual iii
Table of Contents
Preface..........................................................................ii
Manual Revisions .................................................... ii
Trademarks .............................................................. ii
Product Overview ........................................................1
Package Contents....................................................2
System Requirements .............................................2
Features................................................................... 3
Hardware Overview .................................................4
Connections and LEDs ......................................4
Installation....................................................................5
Install the Drivers.....................................................5
Hardware Installation ............................................... 6
Alternate Installation ................................................7
Windows®2000..................................................7
Windows® XP and Server 2003 (32-bit) ............. 8
Windows® XP and Server 2003 (64-bit) ............. 9
Windows®Vista™(32/64-bit) ............................10
Linux ................................................................11
Novell Netware................................................. 13
Novell Netware 5.10......................................... 13
Novell Netware 6.x........................................... 14
FreeBSD .......................................................... 15
Verify Installation.................................................... 16
Configuration.............................................................17
Configure your Adapter..........................................17
Troubleshooting.........................................................20
Network Control Program.........................................25
Advanced Adapter Configuration...........................31
SNMP Agent...............................................................33
Installing the SNMP Agent..................................... 33
Using the SNMP Agent.......................................... 36
Networking Basics .................................................... 40
About Gigabit Ethernet ..........................................40
About Auto-negotiation .......................................... 40
Technical Specifications...........................................42
Technical Support .....................................................43
Warranty ..................................................................... 44
Registration................................................................50

D-Link DGE-560T User Manual 1
Thank you for choosing the D-Link DGE-560T Gigabit PCI Express Ethernet Adapter, the value leader among Fast Ethernet/Gigabit
Ethernet adapters. This chapter provides a general description of D-Link DGE-560T features, with a summary of features at the end of the
chapter. Installation instructions are provided in the following chapters.
With the D-Link DGE-560T, your PC can be connected to an Ethernet, Fast Ethernet, or Gigabit Ethernet network. The PC must be
equipped with a PCI Express x1 expansion slot; alternatively the D-Link DGE-560T can be installed in a PCI Express x4, x8 or x16
expansion slot.
The D-Link DGE-560T automatically detects the parameters of its Ethernet environment, and automatically negotiates and determines its
own speed and duplex settings as required for maximum performance within the environment. (The auto-negotiation function is effective
only when the D-Link DGE-560T is connected to the network by a device (switch or hub) that also has auto-negotiation functionality.)
Inside its compact form, the D-Link DGE-560T holds an Ethernet controller, network processing interface, and a direct port for connecting
an RJ-45 network cable. The D-Link DGE-560T requires no pre-installation setup—simply insert it into the PCI Express slot (for detailed
information, please refer to the Installation Guide).
The D-Link DGE-560T is supplied with an RJ-45 receptacle, which receives the network cable. The direct port features full LED display
for linkage and activity states, speed, and transmitting and receiving data.
Product Overview

D-Link DGE-560T User Manual 2
Minimum System
Requirements
PC with the following:
• Windows®2000/2003/XP/Vista™, Linux (2.4.13 and higher),
Netware 5.10 and Netware 6.x., or FreeBSD 5.x (Intel x86)
• Pentium 150MHz or Faster
• 64MB RAM
• 32MB Free Hard Drive Space
• One Available PCI Express Slot (x1, x4, x8, or x16)
• CD-ROM Drive

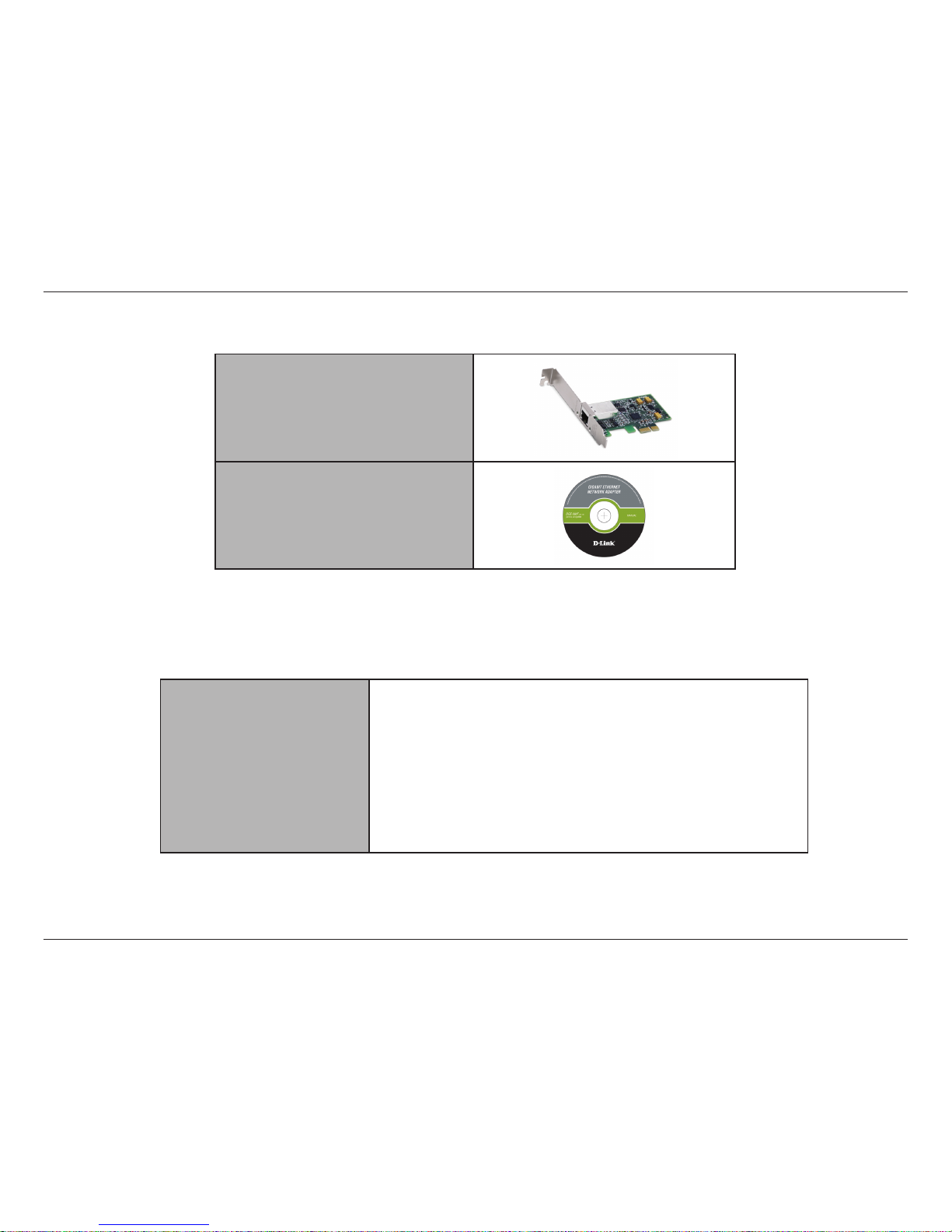

System Requirements
D-Link DGE-560T Gigabit PCI
Express Ethernet Adapter
CD-ROM
Package Contents

D-Link DGE-560T User Manual 3
Features of the DGE-560T Gigabit Cardbus PC Card:
• Complies with IEEE 802.3 10BASE-T Ethernet standard
• Complies with IEEE 802.3u 100BASE-TX Fast Ethernet standard
• Complies with IEEE 802.3ab/802.3z 1000BASE-T Gigabit Ethernet standard
• Complies with IEEE 802.3ad Link Aggregation Control Protocol standard
• Complies with IEEE 802.3x Flow-Control and Auto-Negotiation standard
• Complies with IEEE 802.1p Quality of Service standard
• Complies with IEEE 802.1q/802.3ac VLAN/VLAN Tagging standard
• Complies with PCI Express 1.0a specification
• Supports Crossover Detection & Auto-Correction
• Supports Jumbo Frames (up to 9K frame size)
• Built-in Transmit/Receive FIFO data buffer (48K)
• No manual setup switches—automatically configured by software
• Low power consumption
Supported driver list:
• Windows Vista™x86
• Windows Vista™x64
• Microsoft Windows®XP (service pack 2)
• Microsoft Windows®Server 2003
• Microsoft Windows®2000 (service pack 4)
• Linux kernel 2.4.13 and higher stable version
• Microsoft Network Client for DOS (NDIS 2 driver)
• NetWare Client for DOS (ODI driver)
Note: The D-Link Network Control Program is not supported under Windows Vista™.
Features

D-Link DGE-560T User Manual 4

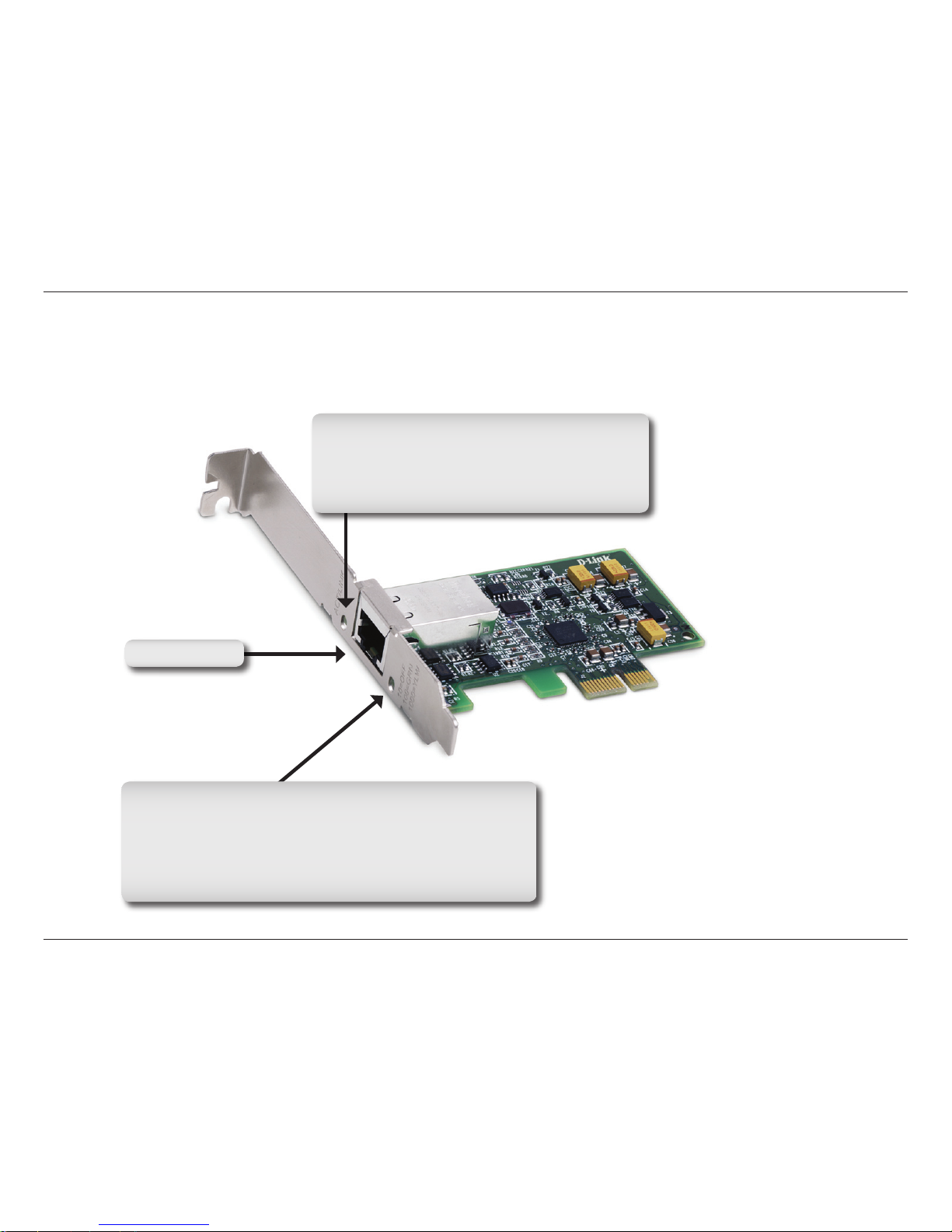

Hardware Overview
Connections and LEDs
Ethernet Port
Activity/Link (ACT/Link)
This indicator lights green when the RJ-45 port is
connected to an Ethernet network. If the indicator
is blinking green, it is transmitting/receiving data
to/from the Ethernet network.
Speed Indicator
The indicator lights yellow when the port is connected to a
1000Mbps Gigabit Ethernet Network and the indicator lights
green when the port is connected to a 100Mbps Fast Ethernet
Network. Otherwise, this indicator remains off when the port is
connected to a 10Mbps Ethernet Network.

D-Link DGE-560T User Manual 5

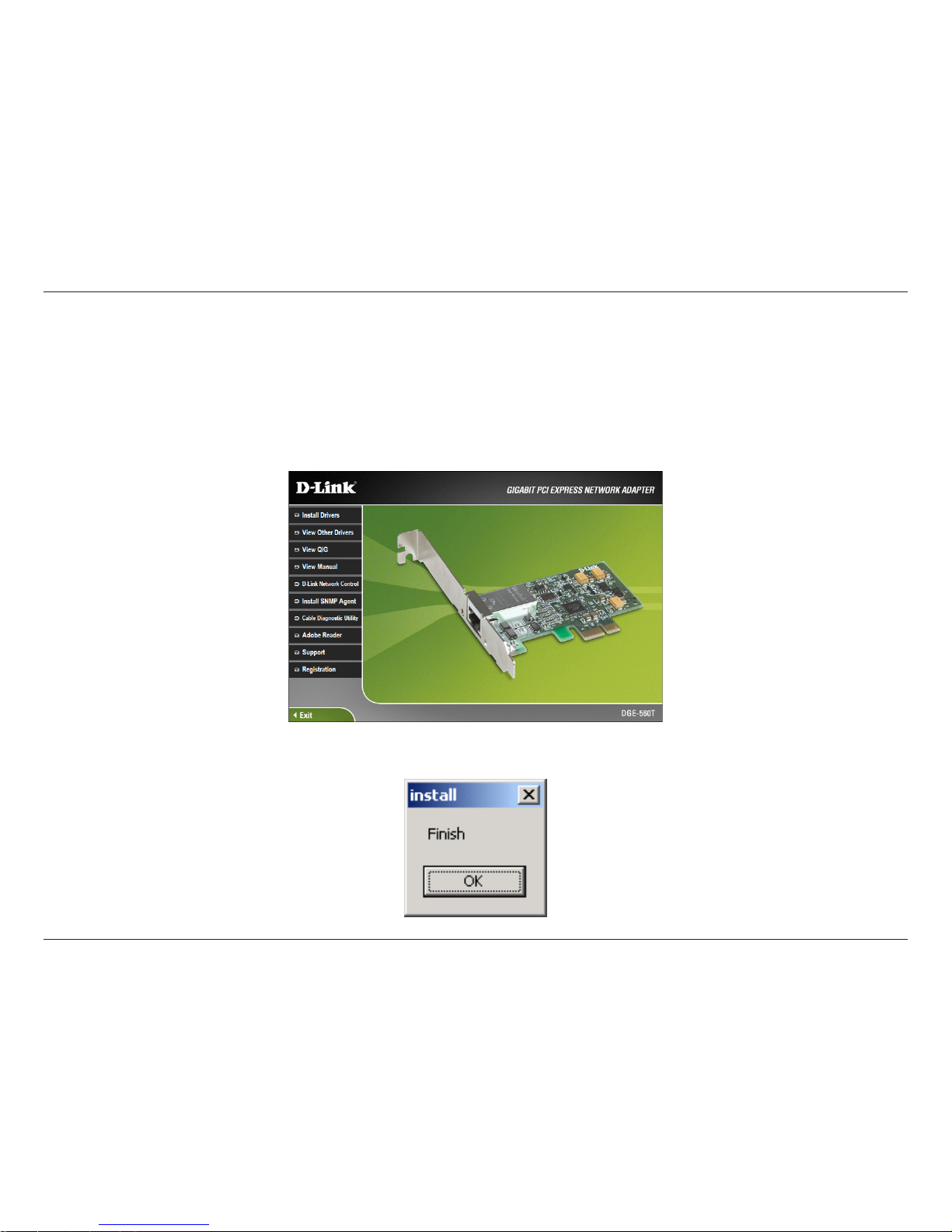

1. With your computer on, insert the D-Link CD into your CD-ROM Drive. When the autorun screen appears, click Install Drivers. If you
are installing this adapter in Linux, Netware, or FreeBSD, click View Other Drivers.
Note: If the Autorun CD function does not automatically start on your computer, go to Start > Run. In the run command box type “D:\
Autorun.exe” (where D: represents the drive letter of your CD-ROM drive).
2. After a few moments, the Finish screen will appear. Click OK.
Install the Drivers

D-Link DGE-560T User Manual 6

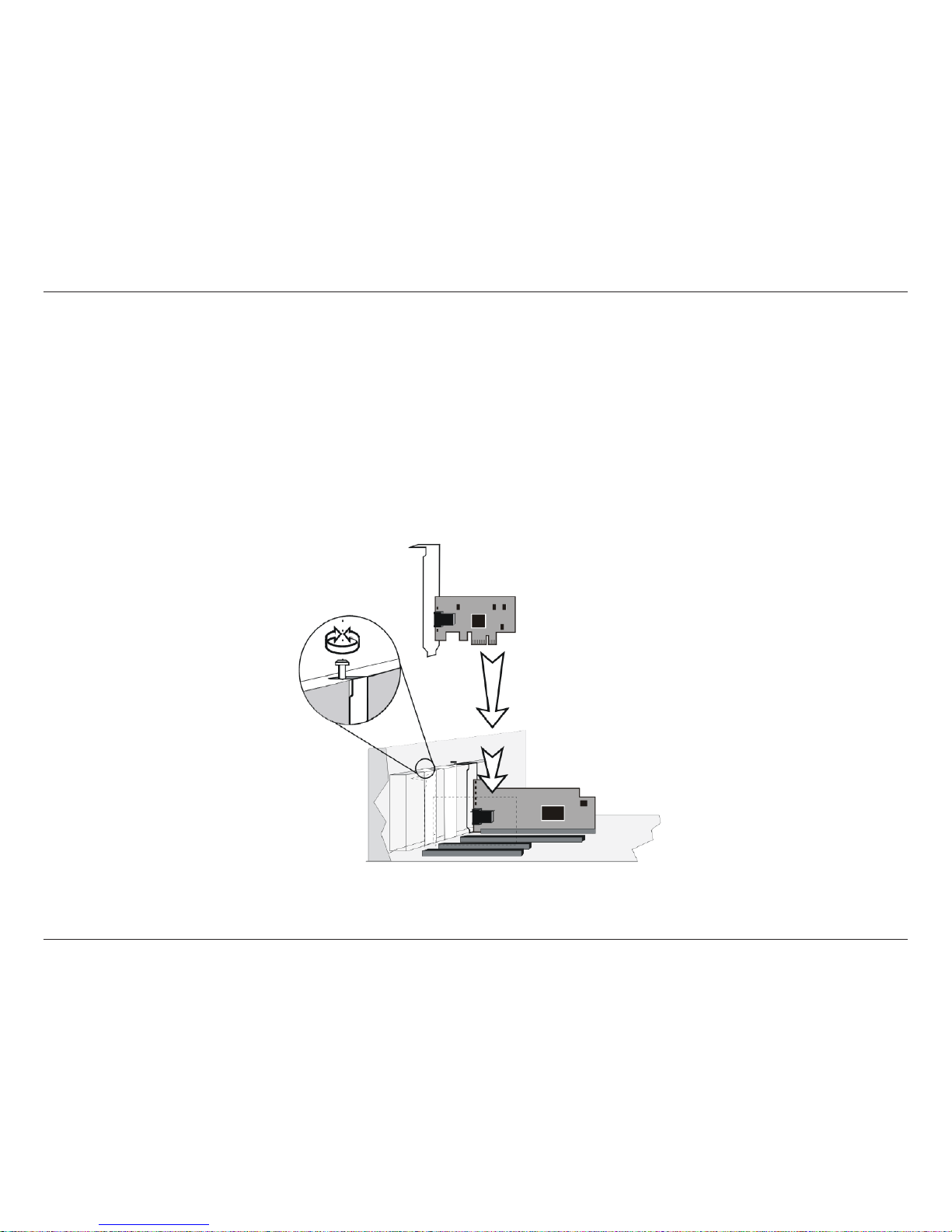

Hardware Installation
1. Shut down the computer and unplug the power cord.
2. Remove the chassis cover. If you are installing a network adapter in a tower computer, we recommend to put the computer
on its side in order to be able to apply the correct force to insert the adapter into the PCI Express slot.
3. Locate an empty PCI Express slot on the motherboard.
4. Insert the network adapter into the PCI Express slot and push it down vertically into the slot until it is firmly seated.
5. Install the bracket screw to secure the network adapter to the computer chassis.
6. Replace the computer chassis cover. Reconnect the power and switch the computer power on. If the BIOS section of your
computer’s boot program is plug-and-play compliant, then at power-up the BIOS will automatically configure any newly
installed adapter. Skip to page 16 to verify your installation.

D-Link DGE-560T User Manual 7
1. After you have installed the network adapter in your computer, boot Windows 2000. Windows 2000 detects the
DGE-560T network adapter as “Ethernet Controller” during the boot operation.The window “Found New Hardware Wizard”
is displayed.
2. Click NEXT. In the same window the menu “Install Hardware Device Drivers” is displayed.
3. Select the check box Search for a suitable driver for my device (recommended).
4. Click NEXT. The menu “Locate Driver Files” is displayed.
5. Select the source from which the driver is to be installed.
6. Type the path to the driver.
7. Click OK.
8. Click NEXT. The menu “Driver Files Search Results” is displayed, listing the found driver and its location.
9. To install the driver, click NEXT. In case the driver does not have a Microsoft Digital Signature yet, the window “Digital
Signature Not Found” is displayed.
10. To continue the installation, click YES. The window “Completing the Found New Hardware Wizard” is displayed.
11. Click FINISH to complete the installation.
Windows®2000
Alternate Installation
Note: If you’ve installed the adapter before installing the driver, please continue with the following procedures.
